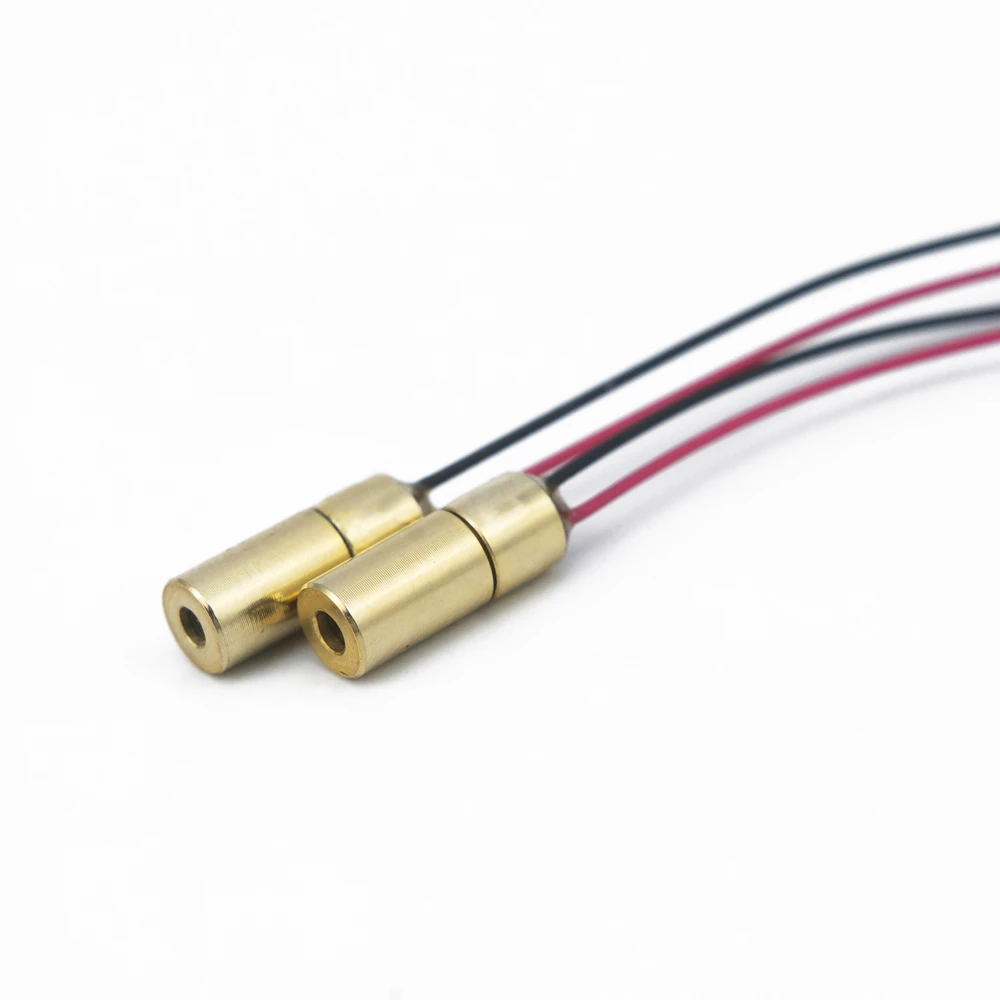

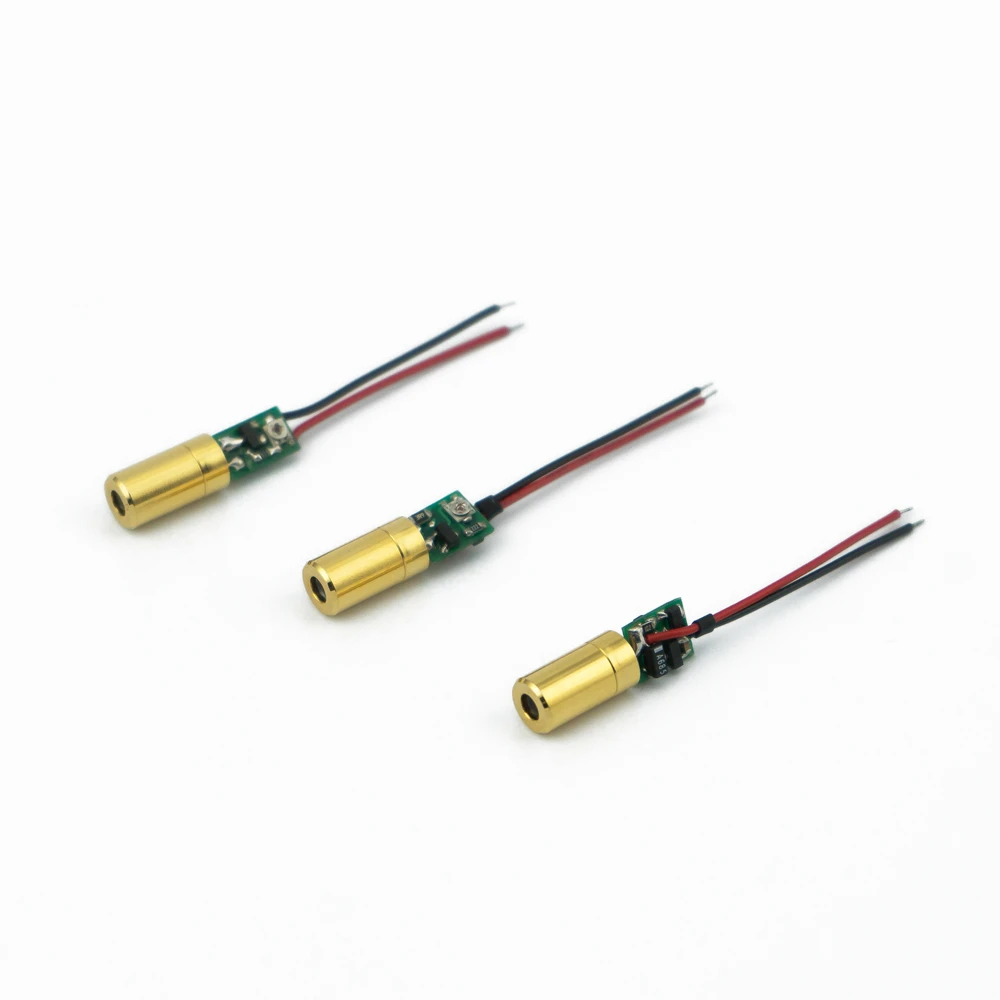

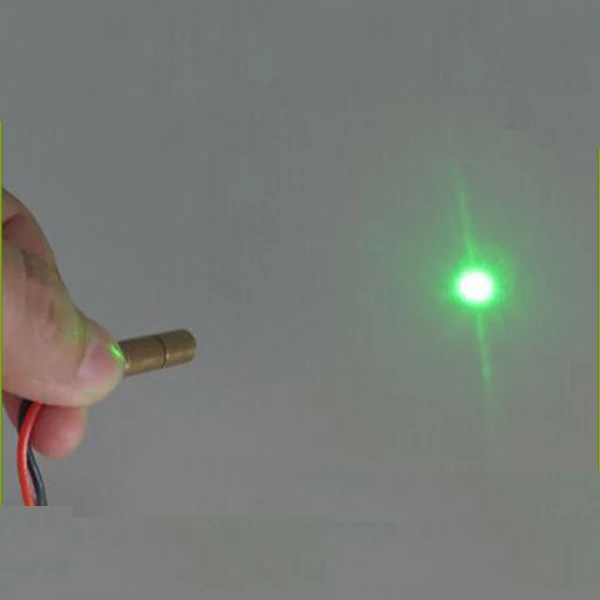

Mini size 520nm line laser diode module 25mW green laser pointer with 4mm dot laser green

Description of 520nm green laser module:

The VB520L50G2 is a green line laser subassembly with collimated beam. The maximun laser output power is 5.0mW at 520nm.

Parameters of 520nm green laser module:

• Wavelength: 520nm


• High brightness, optical output power :25.0mW


• Static, surge, and reverse polarity protected


• Circuit control: Auto power control(APC)


• Fan Angle: 5°-120°


• Line Width: <4mm(@10m)

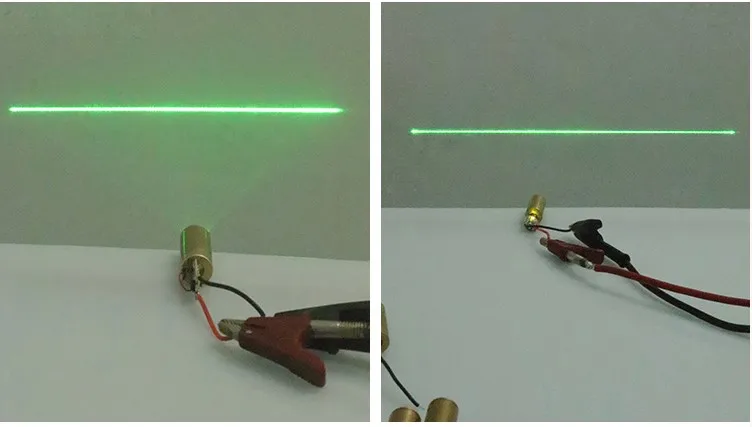

• Beam type: Line


• Operating Temp: -10°C ~ 50°C


• Voltage Stability: > 98% (@2.7 ~ 5.5VDC)


• Temp. Stability: > 95% (@-10°C ~ 50°C)

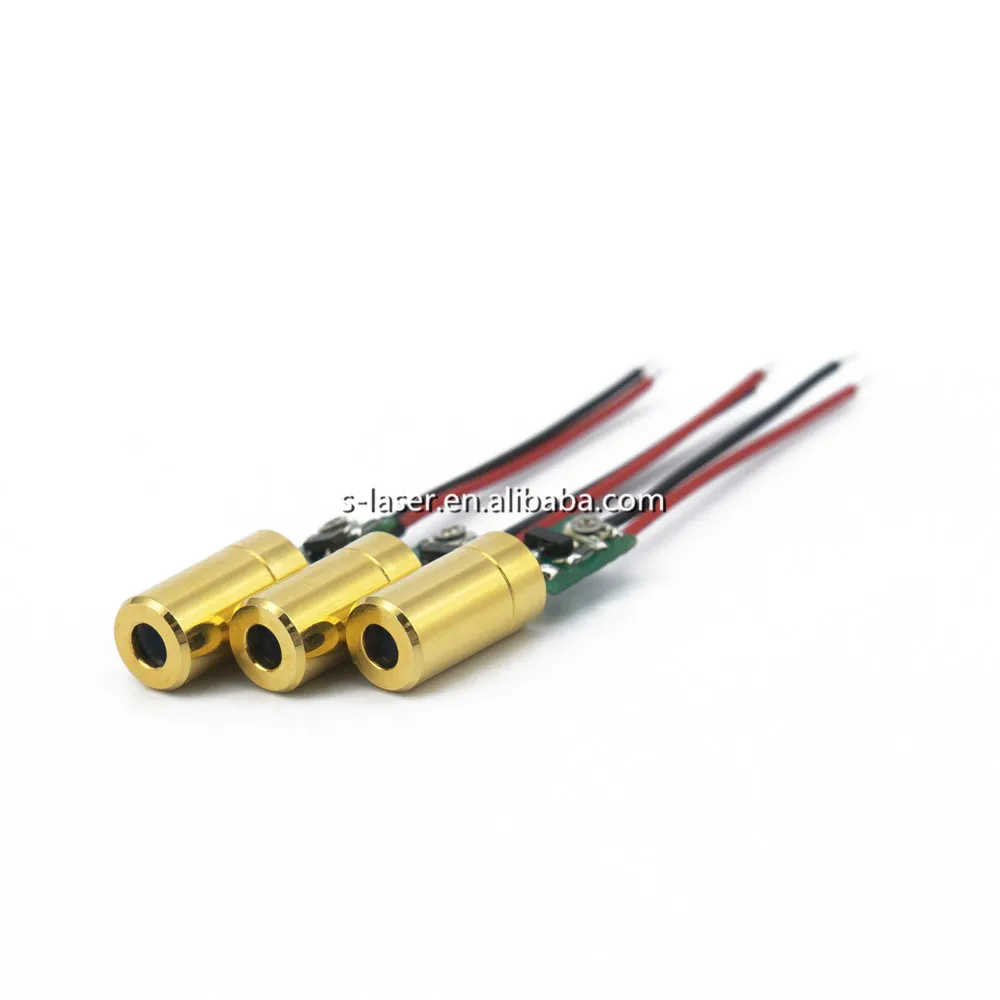

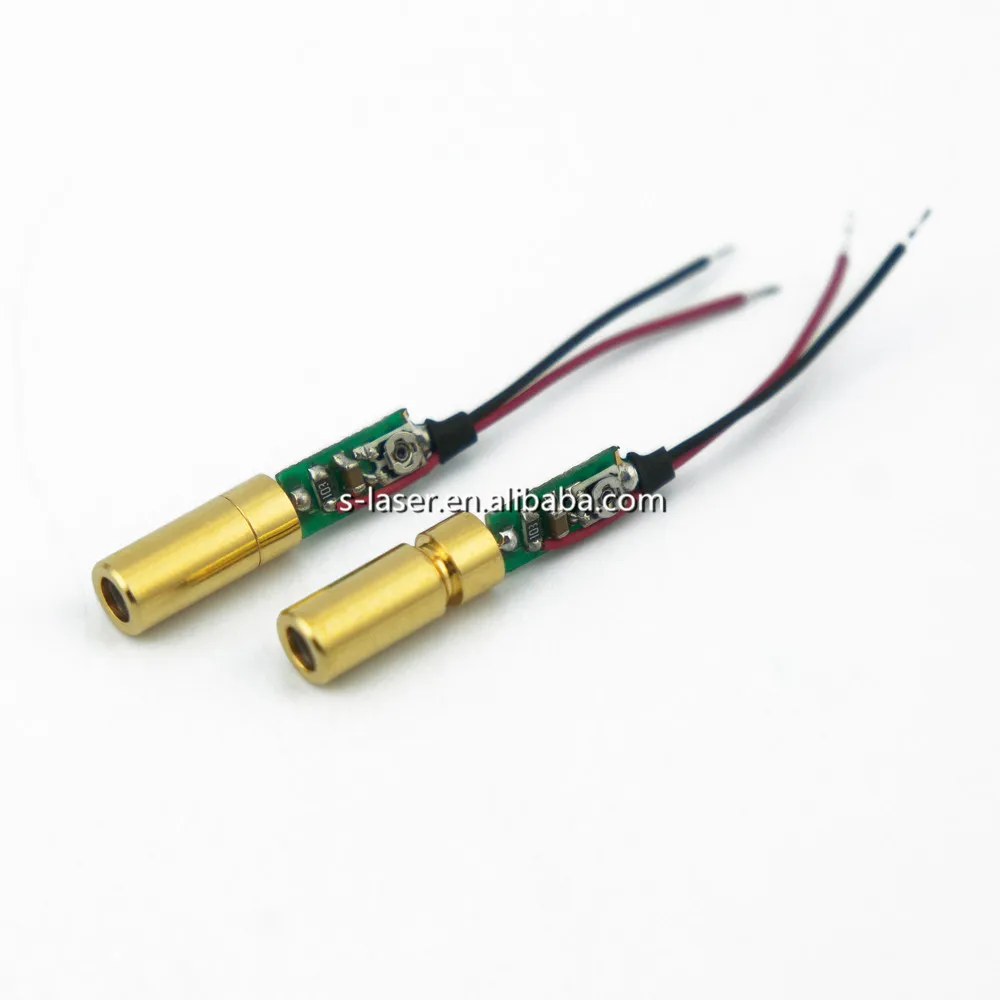

• Housing material: Aluminium anodized or brass


• CDRH Class: Class IIIa


• Certificated: CE IEC SGS ISO9001-2008

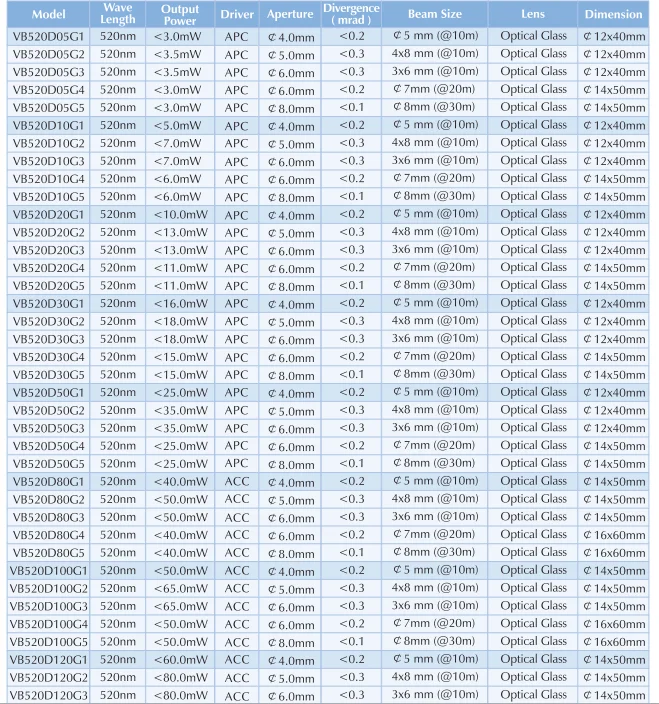

520nm green laser module list

Note:

Line laser diode module is customized product. The parameters can be modified according to the user requirments, such as line width, fan angle and divergence, etc.

Application of 520nm green laser module:

1. Industrial Instruments and Equipments

2. Wild Explore Instruments

3. Military Instruments and Equipments

4. Medical Instruments

Application of 520nm green laser module:

1. Industrial Instruments and Equipments

2. Wild Explore Instruments

3. Military Instruments and Equipments

4. Medical Instruments

 Sent Us Inquiry Now and Pls mention the following points:

 1. Wavelength: ~nm?

 2. Output Power: ~mW?

 3. Housing Dimension: ~mm?

 4. Work distance

 5. Beam size/Line thickens

QC Flow:

 1. Professional Power Meter for double check

 2. Qualified professional staff for the beam size/line thickness testing

 3. Strictly surface Inspection before load to the warehouse.

Warranty:

We offer 12 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.

MOQ: 1pcs.

Supply Ability: 100,000pcs per month.

Packaging Details: One unit packed with condensed foam, bulk into export cartons.

Delivery Time: 10-20 days depending on order quantity.

Shipment Term: FOB Xi’an, China.

Payment Terms: T/T, Western Union, Paypal

Shipping Method: DHL/EMS/TNT Air-Express or sea transportation.
