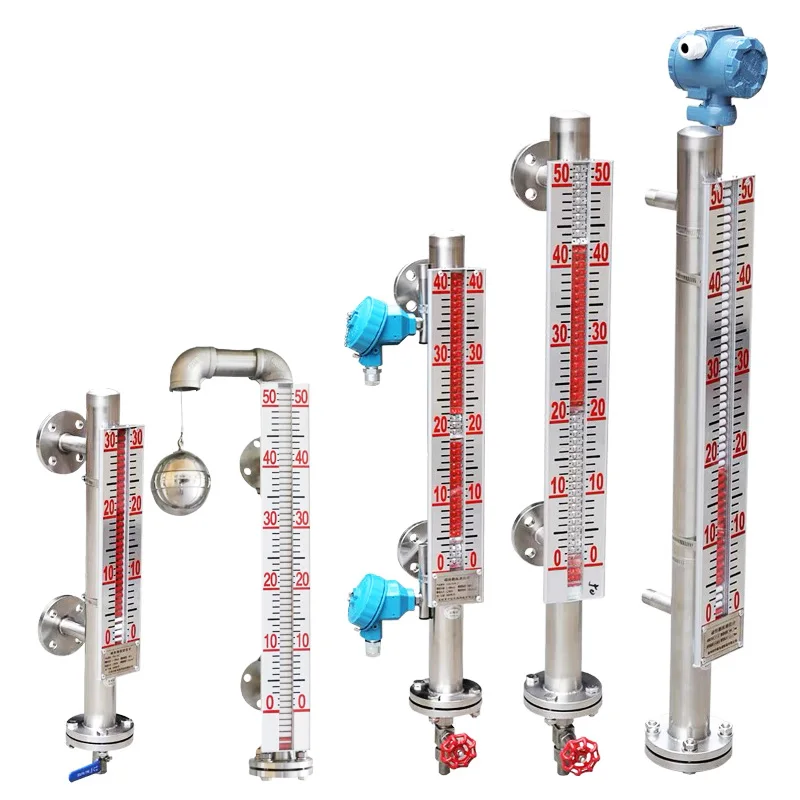

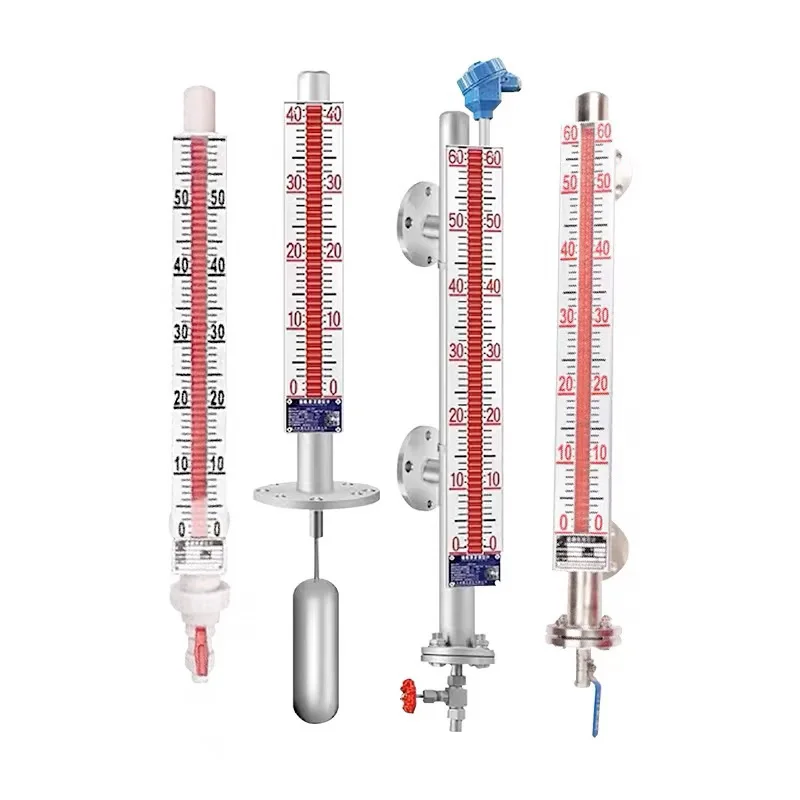

1m/2m/3m Range 304 or 316L Stainless Steel Explosion Proof Industrial Magnetic Liquid Indicator Instrument Level Meter
- Category: >>>
- Supplier: Jiangsu Changshuo Electrical Equipment Co. Ltd.
Share on (1601043674965):
Product Overview
Description
Product Description
Industrial Magnetic Water Fuel Tank Level Gauge Meter Uhm High Quality Tank
Level Gauge Magnetic Level Infic Inficat Float Flap
Level gauge the main components (body) in direct contact with the medium are made of stainless steel material or other special materials, indicating that components are not in contact with the media, and therefore containing flammable, explosive, toxic,corrosive media container use the gauge is safe and reliable.

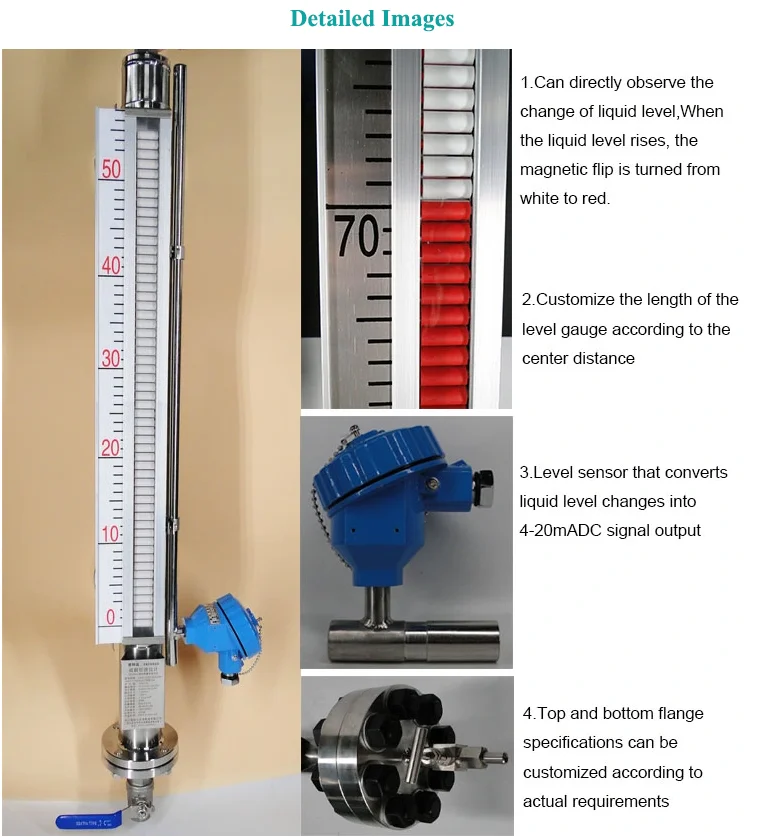

Two-color (white vapor, liquid red) turned columns, flap display, indicating continuous visual eye-catching, no blind spots, in any case will not be a false level.
Less sealing surface, reducing static seal leakage points above 95%, and thus, to overcome the petroleum, chemical industry pressure vessel parts run,run, drip, leak and other weak links than the original plate level gauge.
Simple structure, easy installation and maintenance, large-scale, design pressure, long life, wide range of applications.

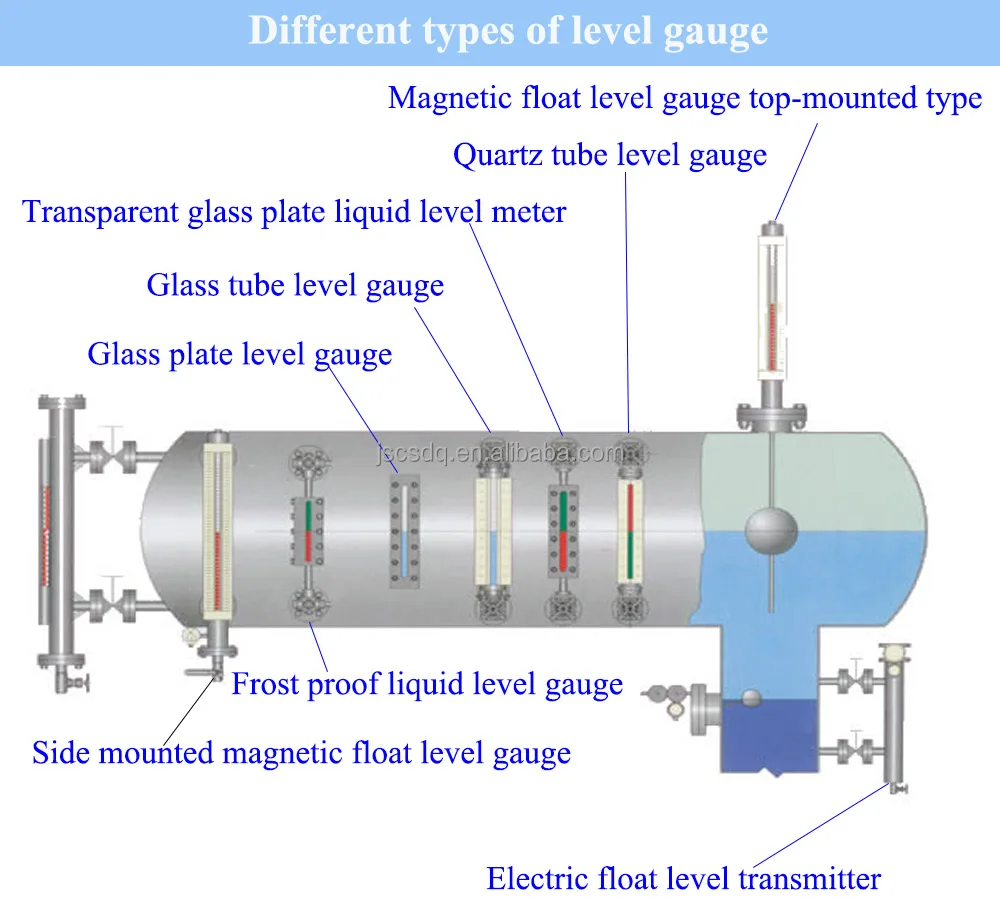

Magnetic float level gauge, with a level gauge can replace more than one glass plate liquid level gauge, and the installation
extremely easy to use.
Two-color (white vapor, liquid red) turned columns, flap display, indicating continuous visual eye-catching, no blind spots, in any case will not be a false level.
Less sealing surface, reducing static seal leakage points above 95%, and thus, to overcome the petroleum, chemical industry pressure vessel parts run,run, drip, leak and other weak links than the original plate level gauge.
Simple structure, easy installation and maintenance, large-scale, design pressure, long life, wide range of applications.
Magnetic float level gauge, with a level gauge can replace more than one glass plate liquid level gauge, and the installation
extremely easy to use.
Meanwhile, the use of plant development level remote transmitter, alarm and automatic control device, can be realized on the lower level alarm and control automation.
Specification
Measure ranges | 20-15000mm |
Measure accuracy | ± 5mm (can add magnetostrictive level transmitter, realize accuracy +/- 1mm) |
Working pressure | 1.0, 1.6, 2.5, 4.0, 6.4, 10.0, 16, 0MPa |
Fluid temperature | -40~450ºC |
Ffluid viscosity | ≤ 14m/s |
Fluid density | ≥ 0.5g/cm3 |
Body or cage material | 1Cr18Ni9Ti, 304SS, 316SS, 301SS, Carbon steel; Floater material: 304SS, 316SS, Titanium |
Flange | Side flange, tank top flange; ANSI, JIS OR DIN form. |
Transmitter output | 4~20mA signal, add level switches (HH, H, L, LL) to realize remote control |
Float Cage Material | SS304, SS316, PTFE, PP, PVC, PVDF |
Max. Centre to Centre Distance | 6000 mm, greater lengths on request |
Connecting Flanges | According to DIN or ANSI B16.5 |
Temperature of Liquid | 450ºC (Max.) for SS, 80ºC (Max.) for PVDF 60ºC (Max.) for PVC, 50ºC (Max.) for PP |
Specific Gravity | Min. 0.45 |
Scale | Graduated in cm, Aluminium or SS304 |
Measuring Accuracy | +/- 5 mm |
Recommend Products
DCS & SIS CONTROL SYSTEM SUPPLY
Our Advantages

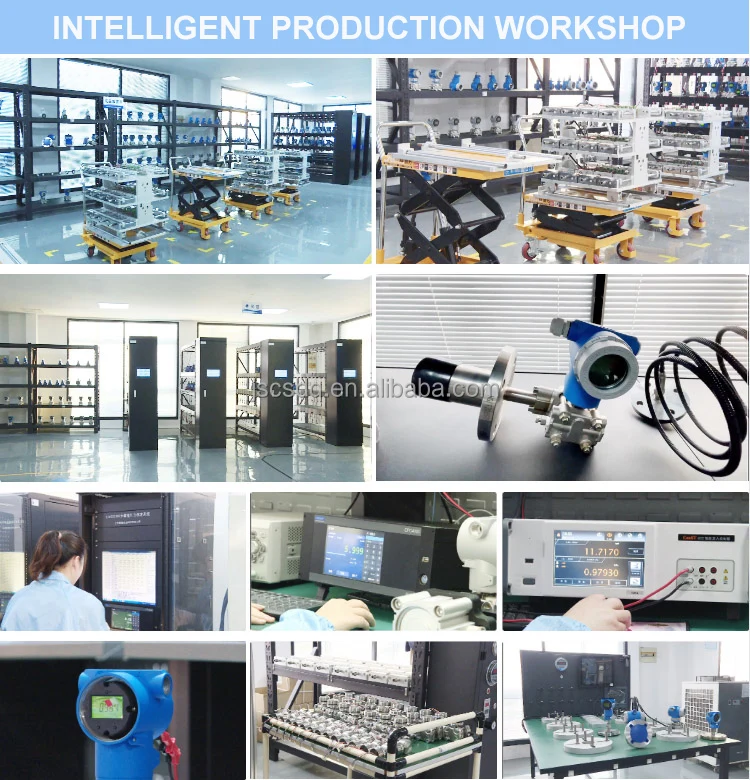

1. Integrating R&D, production, distributing and technical services
2. After Warranty Service

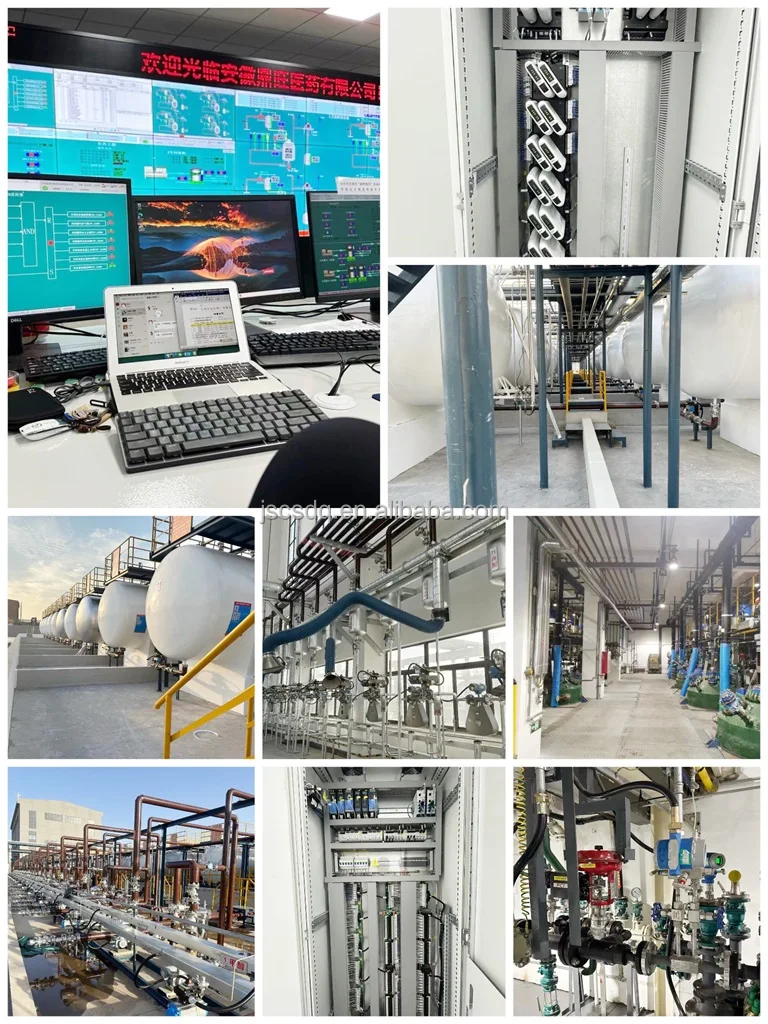

Site Installation and commissioning,
24 hours online support and Video technical support
Company Profile
Jiangsu ChangShuo Electrical Equipment Co., Ltd
Jiangsu ChangShuo Electrical Equipment Co., Ltd has 15 years of professional experience which focus on electrical, instrument,control system and complete system service. We are a professional enterprise which integrating R&D, production,distributing and technical services.
Our main products include temperature instrument, pressure transmitter, flowmeter, level transmitter, control valve, control cable, electric control cabinet and DCS/SIS control system.
The products have obtained Certificate of Quality System ISO9001, Certificate of Explosion-proof and Certificate of Metrology etc.

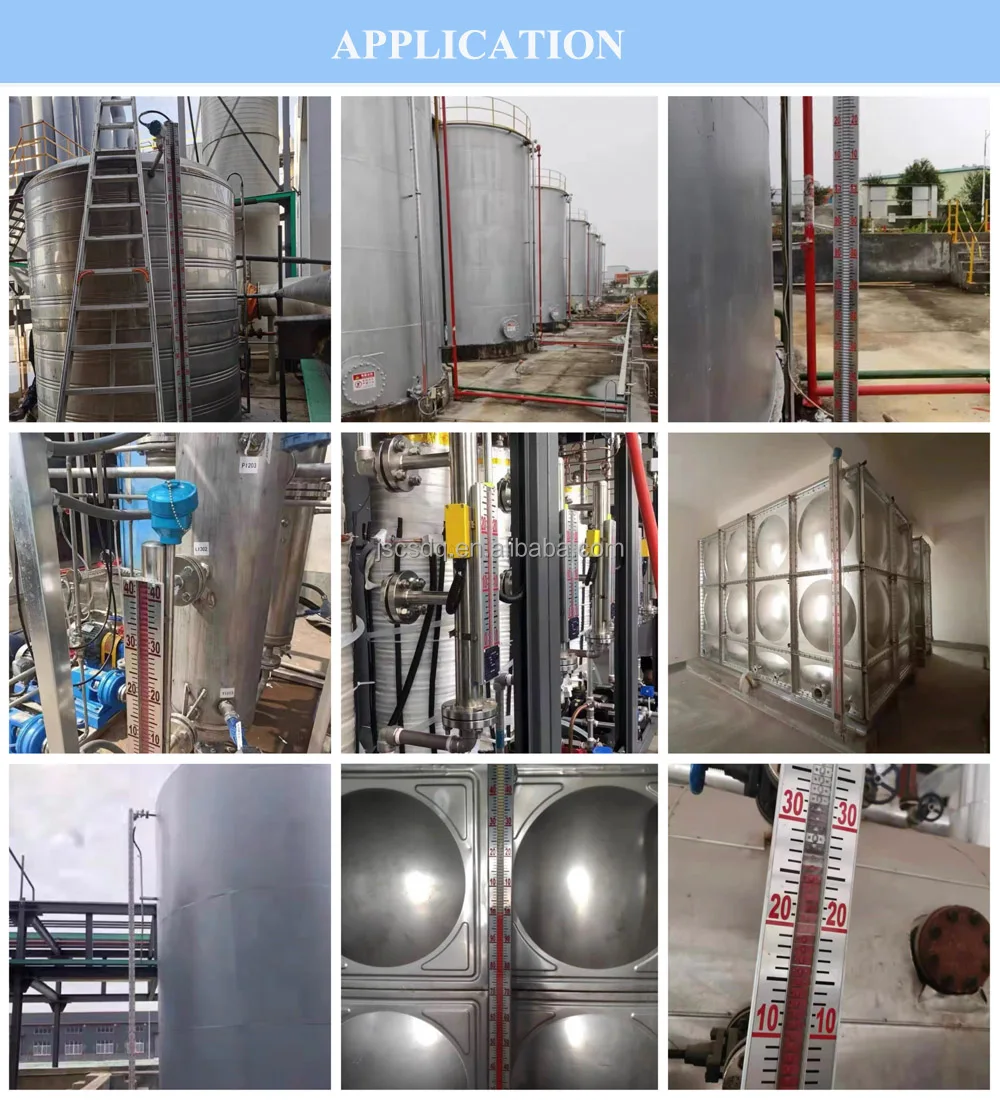

We are working closely with customers of water treatment, food & drug industry, environmental protection, power enterprise, petro-chemical industry, metallurgy industry, shipbuilding and so on.
After many years experience, we become approved vendor of China National Petroleum Corporation (CNPC), SinoPEC Group, China National Offshore Oil Corporation (CNOOC), China National Nuclear Corp.(CNNC) , and so on.
For overseas customers, we offer ODM, OEM and also direct sales service.
Our experienced engineers and sales experts are your competent and dependable contacts locally.
Our main products include temperature instrument, pressure transmitter, flowmeter, level transmitter, control valve, control cable, electric control cabinet and DCS/SIS control system.
The products have obtained Certificate of Quality System ISO9001, Certificate of Explosion-proof and Certificate of Metrology etc.
We are working closely with customers of water treatment, food & drug industry, environmental protection, power enterprise, petro-chemical industry, metallurgy industry, shipbuilding and so on.
After many years experience, we become approved vendor of China National Petroleum Corporation (CNPC), SinoPEC Group, China National Offshore Oil Corporation (CNOOC), China National Nuclear Corp.(CNNC) , and so on.
For overseas customers, we offer ODM, OEM and also direct sales service.
Our experienced engineers and sales experts are your competent and dependable contacts locally.
Product packaging
FAQ
1. Q: Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before.And we made many molds for our customers already. About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.
2. Q: What's your quality control system?
A: MC, ISO9001, CE Certificated.
3. Q: What is the warranty of your products?
A: Our warranty time is 18 months -3 years after shipment.
4. Q: What is lead time of your product?
A: Normally, our factory lead time is within 7~15 working days for products without customization. You can also check lead time detail with our sales depending on different items.
5. Q: Do you provide customized products?
A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.
6. Q: What is your MOQ?
A: We have no MOQ limit, small quantity order is acceptable.
7. Q: What's the transport?
A: Express such as DHL, FedEx, TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea.
8. Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU.
