Product Overview

Description





Product Profile





HDPE plastic pipe butt fusion welding machine PE welder 2023 hot sale pipe connect machine pe pp pvdf butt welding machine



Hydraulic Butt Fusion Machine SWT-V160/50H BEE 50MM-160MM (2" IPS -6" IPS) Product Details
WELDING RANGE O.D.
50MM - 160MM
PISTON AREA
6.27CM²
POWER SUPPLY
220V±10%, 50/60HZ
TEMPERATURE RANGE
MAX. 320°C
HEATER POWER
1.0KW


PACKING DIMENSION
820*400*380 MM
TRIMMER POWER
0.75KW
440*400*520 MM
PUMP POWER
0.75KW
650*340*380 MM
WORKING PRESSURE RANGE
0 - 80 BAR
GROSS WEIGHT
105KGS
Hydraulic Butt Fusion Machine SWT-V160H 50MM-160MM (2" IPS -6" IPS) Product Details
WELDING RANGE O.D.
50MM - 160MM
PISTON AREA
6.27 CM²
POWER SUPPLY
220V±10%, 50/60HZ
TEMPERATURE RANGE
MAX. 320ºC
HEATER POWER
1.0KW


PACKING DIMENSION
820*400*380 MM
TRIMMER POWER
0.75KW
440*400*520 MM
PUMP POWER
0.75KW
650*340*380 MM
WORKING PRESSURE RANGE
0 - 80 BAR
GROSS WEIGHT
133KGS
Hydraulic Butt Fusion Machine SWT-V200H 50MM-200MM Product Details
WELDING RANGE O.D.
50MM - 200MM
PISTON AREA
6.27 CM²
POWER SUPPLY
220V±10%, 50/60HZ
TEMPERATURE RANGE
MAX. 320ºC
HEATER POWER
1.5KW


PACKING DIMENSION
820*400*440 MM
TRIMMER POWER
0.75KW
450*470*550 MM
PUMP POWER
0.75KW
650*340*380 MM
WORKING PRESSURE RANGE
0 - 80 BAR
GROSS WEIGHT
156KGS
Hydraulic Butt Fusion Machine SWT-V250H (63*)90MM-250MM (2" IPS -8" IPS) Product Details
WELDING RANGE O.D.
(63*)90MM - 250MM
PISTON AREA
10.99 CM²
POWER SUPPLY
220V±10%, 50/60HZ
TEMPERATURE RANGE
MAX. 320ºC
HEATER POWER
2.0KW


PACKING DIMENSION
830*520*500 MM
TRIMMER POWER
1.5KW
560*540*600 MM
PUMP POWER
0.75KW
650*340*380 MM
WORKING PRESSURE RANGE
0 - 80 BAR
GROSS WEIGHT
192KGS
Hydraulic Butt Fusion Machine SWT-V315H 90MM-315MM (3" IPS -10" IPS) Product Details
WELDING RANGE O.D.
90MM - 315MM
PISTON AREA
20.02CM²
POWER SUPPLY
220V±10%, 50/60HZ
TEMPERATURE RANGE
MAX. 320ºC
HEATER POWER
3.0KW


PACKING DIMENSION
930*620*630 MM
TRIMMER POWER
1.5KW
630*600*730 MM
PUMP POWER
0.75KW
650*340*380 MM
WORKING PRESSURE RANGE
0 - 80 BAR
GROSS WEIGHT
241KGS
Hydraulic Butt Fusion MachineSWT- V355H 90MM-355MM (3" IPS -12" / 14'' IPS) Product Details
WELDING RANGE O.D.
90MM - 355MM
PISTON AREA
20.02 cm²
POWER SUPPLY
220V±10%, 50/60HZ
TEMPERATURE RANGE
MAX. 320ºC
HEATER POWER
4.0KW


PACKING DIMENSION
930*700*670 MM
TRIMMER POWER
1.5KW
650*600*770 MM
PUMP POWER
0.75KW
650*340*380 MM
WORKING PRESSURE RANGE
0 - 80 BAR
GROSS WEIGHT
292KGS
Hydraulic Butt Fusion Machine SWT-V450H 200MM-450MM (8" IPS -18'' IPS) Product Details
WELDING RANGE O.D.
200MM - 450MM
PISTON AREA
22.37cm²
POWER SUPPLY
380V±110%, 50/60HZ
TEMPERATURE RANGE
MAX. 320ºC
HEATER POWER
5.38KW
PACKING DIMENSION
1300*840*840 MM
TRIMMER POWER
1.5KW
820*600*1100 MM
PUMP POWER
1.5KW
710*340*400 MM
WORKING PRESSURE RANGE
0 - 120 BAR
GROSS WEIGHT
493KGS
Hydraulic Butt Fusion Machine SWT-V500H 200MM-500MM (8" IPS -20'' IPS) Product Details
WELDING RANGE O.D.
200MM - 500MM
PISTON AREA
23.06cm²
POWER SUPPLY
380V±110%, 50/60HZ
TEMPERATURE RANGE
MAX. 320ºC
HEATER POWER
7.3KW
PACKING DIMENSION
1580*1000*960 MM
TRIMMER POWER
1.5KW
1030*680*1200 MM
PUMP POWER
1.5KW
800*350*400 MM
WORKING PRESSURE RANGE
0 - 120 BAR
GROSS WEIGHT
611KGS
Hydraulic Butt Fusion Machine SWT-V630H 315MM-630MM (12" IPS -24'' IPS) Product Details
WELDING RANGE O.D.
315MM - 630MM
PISTON AREA
23.06cm²
POWER SUPPLY
380V±110%, 50/60HZ
TEMPERATURE RANGE
MAX. 320ºC
HEATER POWER
9.3KW
PACKING DIMENSION
1600*1130*1100 MM
TRIMMER POWER
1.5KW
1030*720*1350 MM
PUMP POWER
1.5KW
800*350*400 MM
WORKING PRESSURE RANGE
0 - 120 BAR
GROSS WEIGHT
739KGS
Hydraulic Butt Fusion Machine SWT-V800H 500MM-800MM Product Details
WELDING RANGE O.D.
(400*)500MM - 800MM
PISTON AREA
44cm²
POWER SUPPLY
380V±110%, 50/60HZ
TEMPERATURE RANGE
MAX. 320ºC
HEATER POWER
12.5KW
PACKING DIMENSION
2200*1420*1440 MM
TRIMMER POWER
2.2KW
1350*950*1500 MM
PUMP POWER
2.2KW
800*350*400 MM
WORKING PRESSURE RANGE
0 - 120 BAR
GROSS WEIGHT
1290KGS
Hydraulic Butt Fusion Machine SWT-V1000H 630MM-1000MM (24''IPS - 42''IPS) Product Details
WELDING RANGE O.D.
630MM - 1000MM
PISTON AREA
38.8cm²
POWER SUPPLY
380V±110%, 50/60HZ
TEMPERATURE RANGE
MAX. 320ºC
HEATER POWER
17.5KW
PACKING DIMENSION
2550*1850*1800 MM
TRIMMER POWER
3.0KW
1600*1150*1900 MM
PUMP POWER
2.2KW
800*350*400 MM
WORKING PRESSURE RANGE
0 - 140 BAR
GROSS WEIGHT
2318KGS
Hydraulic Butt Fusion Machine SWT-V1200H 630MM-1200MM (24''IPS - 48''IPS) Product Details
WELDING RANGE O.D.
630MM - 1200MM
PISTON AREA
50.7cm²
POWER SUPPLY
380V±110%, 50/60HZ
TEMPERATURE RANGE
MAX. 320ºC
HEATER POWER
21.5KW
PACKING DIMENSION
2900*1980*2100 MM
TRIMMER POWER
4.0KW
1800*1200*2000 MM
PUMP POWER
2.2KW
870*420*560 MM
WORKING PRESSURE RANGE
0 - 160 BAR
GROSS WEIGHT
3295KGS

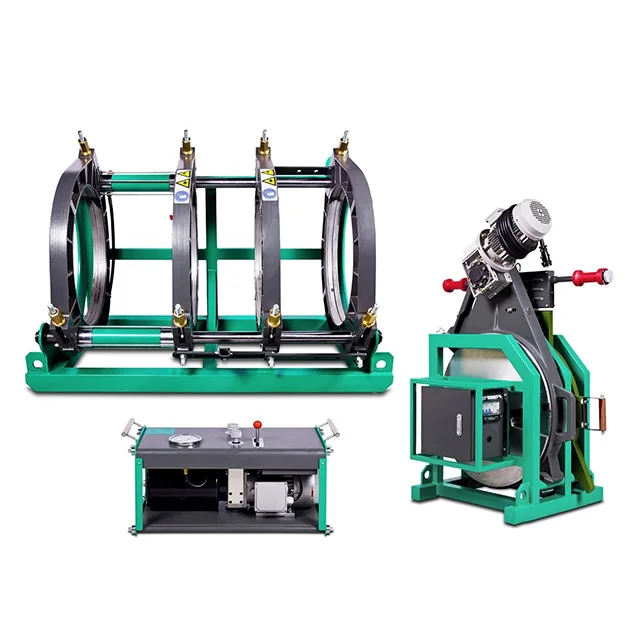

The hydraulically operated butt fusion machine is featured by robust, compact and rugged reliability.

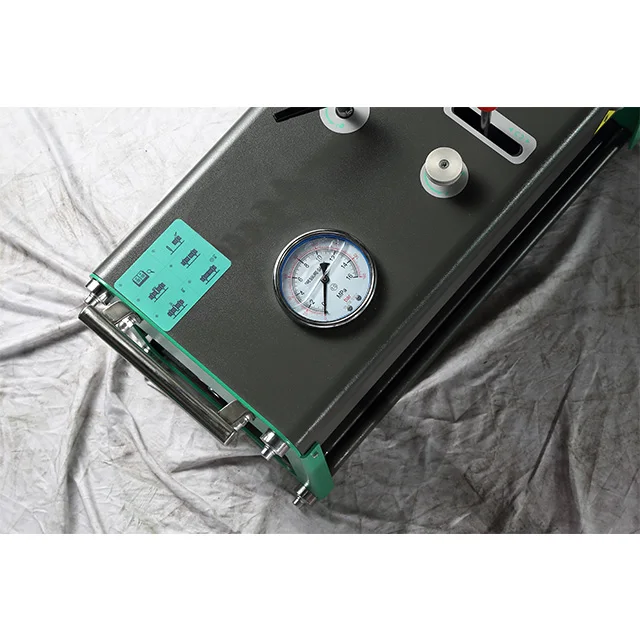

The hydraulic power station gives sufficient pressure to butt fusing pipes and fittings with a variety of pressure ratings.
Hydraulic butt fusion machine is compatible with data logger, which records and documents the key parameters of the fusion process.

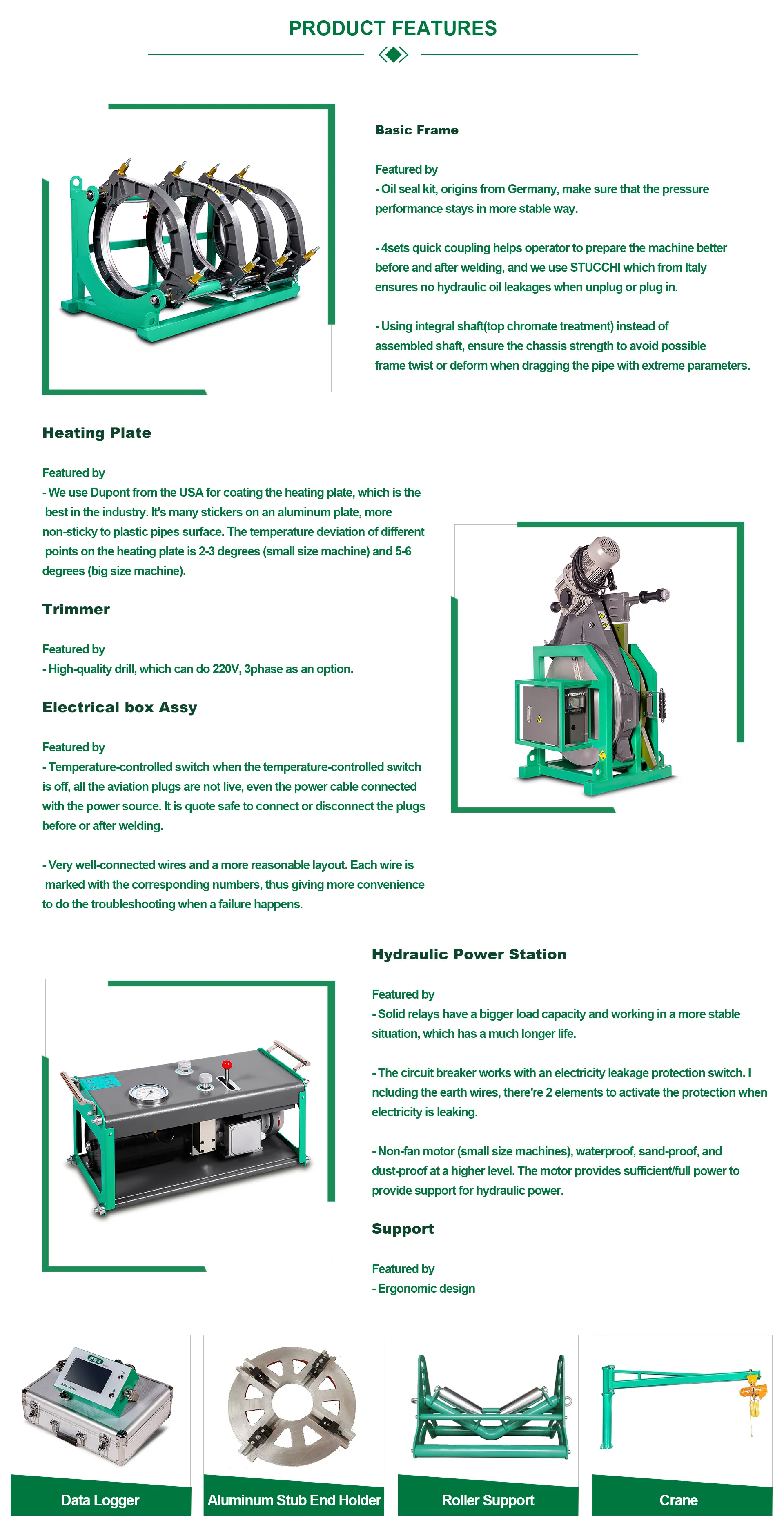

Product Feature






Product Applications

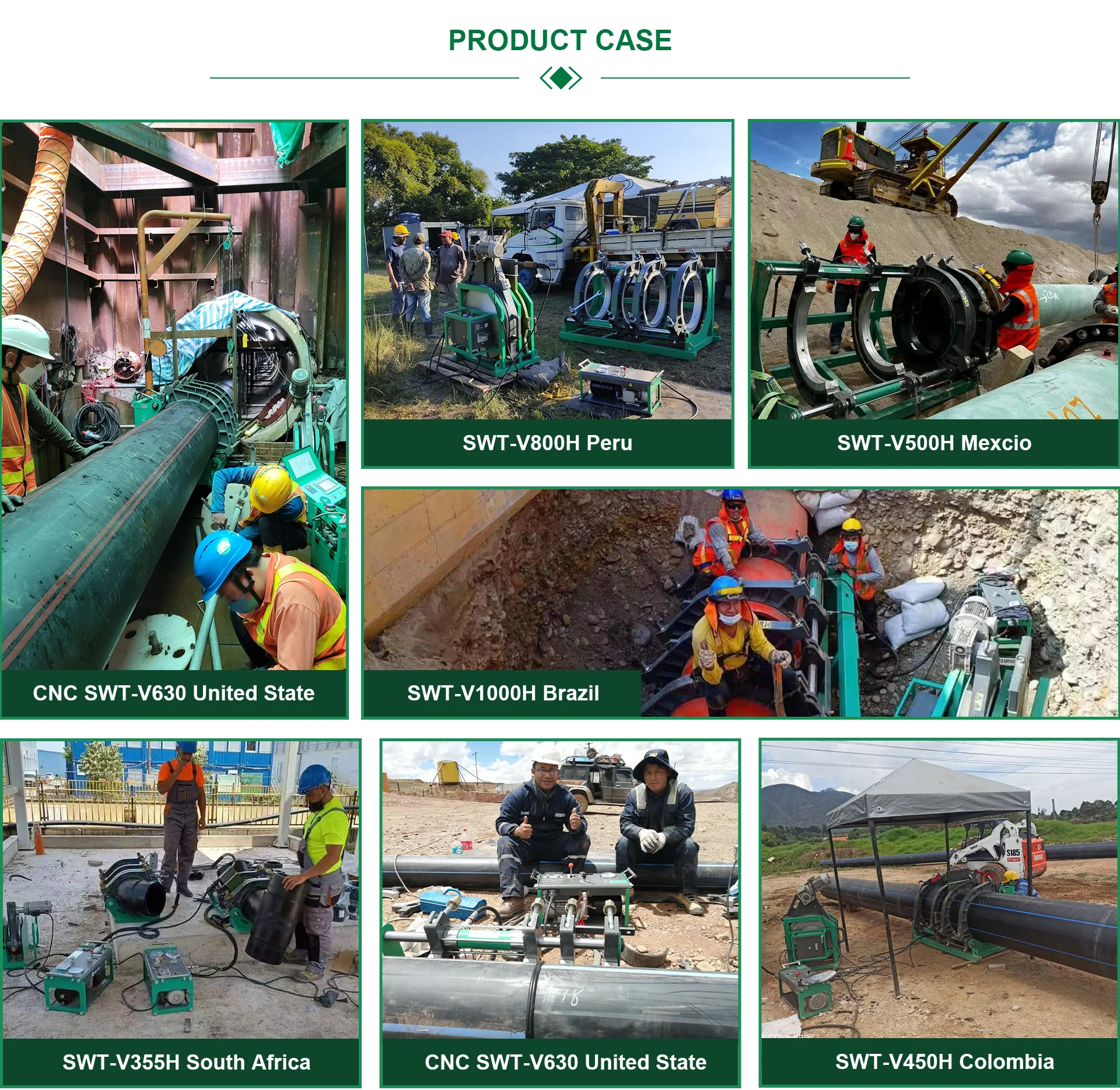

Product Case
