cleanroom project supplier iso class modular clean room with clean hvac system
- Category: >>>
- Supplier: Guangzhou Bacclean Tech Co. Ltd.
Share on (1601043762060):
Product Overview
Description
Product Information
About the hardwall cleanroom
A Cleanroom or clean room is a controlled environment where pollutants like dust, airborne microbes, and aerosol particles are filtered out in order to provide the cleanest area possible. It is typically used in manufacturing or scientific research, that has a low level of environmental pollutants such as dust, airborne microbes, aerosol particles and chemical vapors. More accurately, a cleanroom has a controlled level of contaimination that is specified by the number of particles per cubic meter at a specified particle size. A cleanroom can be classified into different levels of contamination depending on the amount of particles allowed in the space, per cubic meter. Cleanrooms also control variables like temperature, air flow, and humidity.
Then how does a cleanroom work? Essentially, cleanrooms work to remove pollutants, particles, and contaminants from outside ambient air. Outside air is first circulated to a filter system. The filters (either HEPA or ULPA) then clean and decontaminate this outside air according to their specifications. The filtered air is then forced into the cleanroom. Additionally, contaminated air within the cleanroom is forced outside the room by registers, or it is recirculated back into the filters, and the process restarts.
Then how does a cleanroom work? Essentially, cleanrooms work to remove pollutants, particles, and contaminants from outside ambient air. Outside air is first circulated to a filter system. The filters (either HEPA or ULPA) then clean and decontaminate this outside air according to their specifications. The filtered air is then forced into the cleanroom. Additionally, contaminated air within the cleanroom is forced outside the room by registers, or it is recirculated back into the filters, and the process restarts.
What can Bacclean do for your cleanroom | ||
Cleanliness class | Available from Class 100 to Class 100,000 | |
Clean Room Drawing | Available | |
Clean Room Construction | 1. Structure: Wall panel, ceiling filtering system, windows, doors, various fittings etc. | |
2. Electric: Lighting, swithch, cables, wires, control box etc. | ||
3. Clean air conditioner and air exhaust: Available | ||
Cleanroom floor | Self-leveling expoxy or according | |
Cleanroom equiopmemt& accessories | Air shower, pass box, dispensing booth, FFU, clean bench,changing room, HEPA box etc. | |
Recommend for cleanliness class of workshop cleanroom | ||||||||
Rank | Class100 | Class 1,000 | Class 10,000 | Class 100,000 | ||||
Semiconductor Chip industry | √ | |||||||
Electronic component industry | √ | √ | ||||||
Operating room | √ | √ | ||||||
Precision products | √ | √ | ||||||
Aseptic rearing animals | √ | √ | √ | √ | ||||

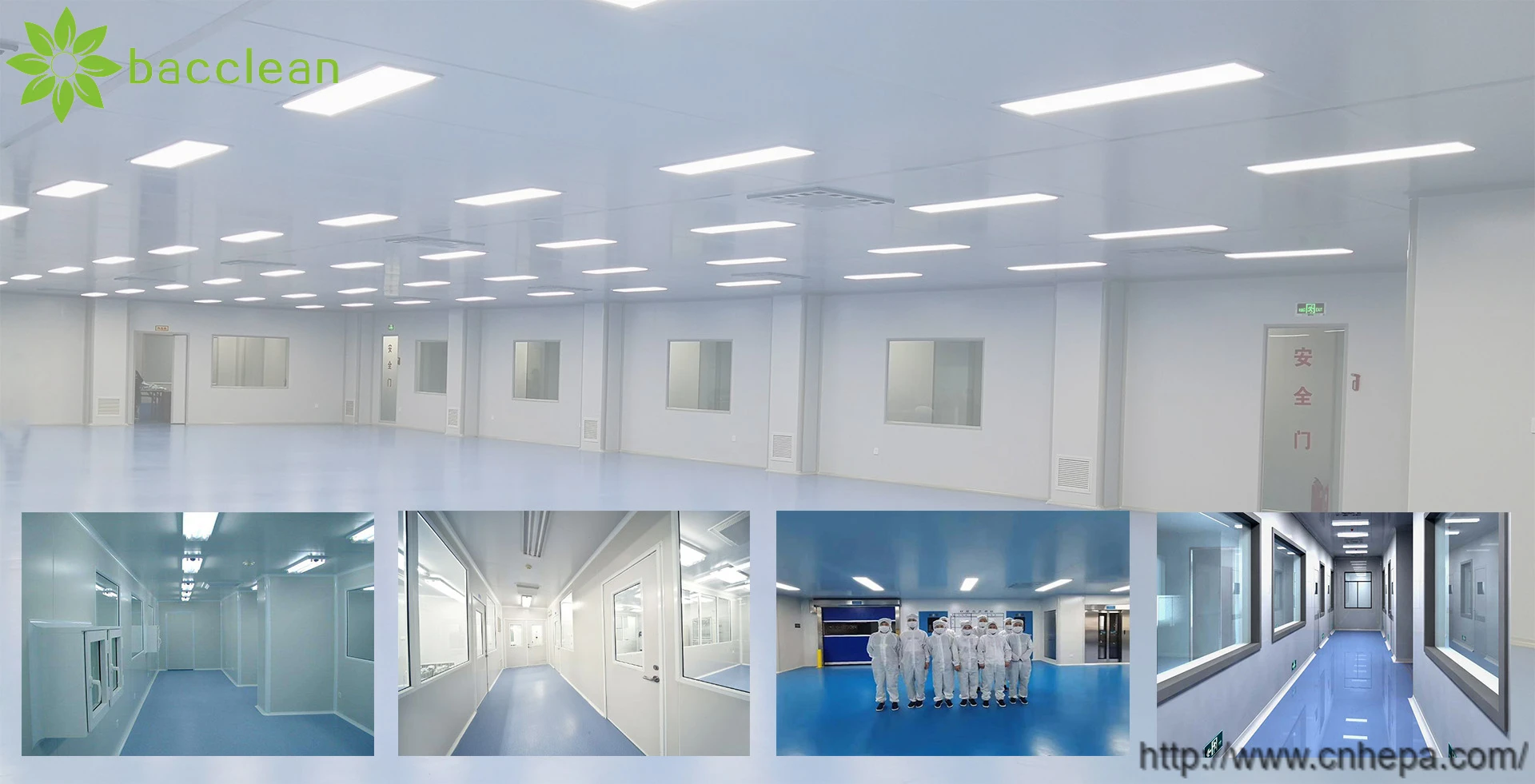

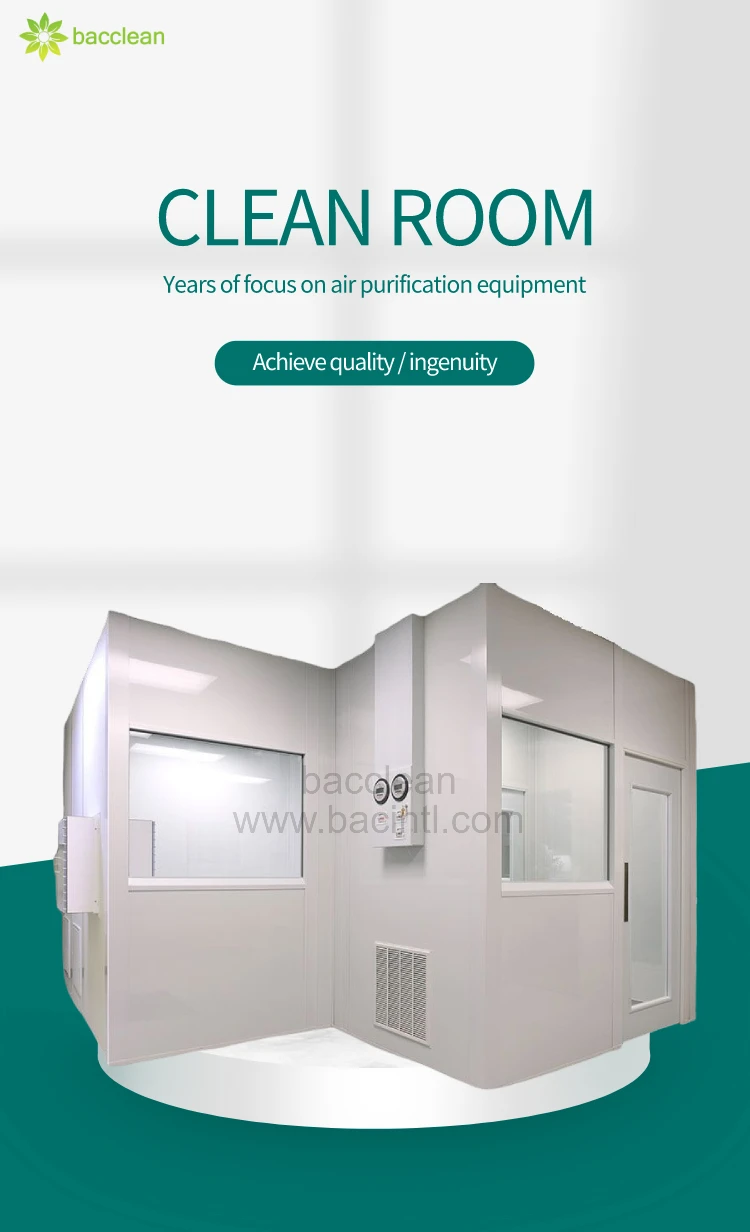

Modular clean room is mainly composed of wall panels, roof, doors, Windows, connectors, ground and other accessories. Such as air shower, changing room, pass box, cargo air shower, FFU, hepa box, clean air conditioner, dispensing room, clean bench, cleanroom floor etc.

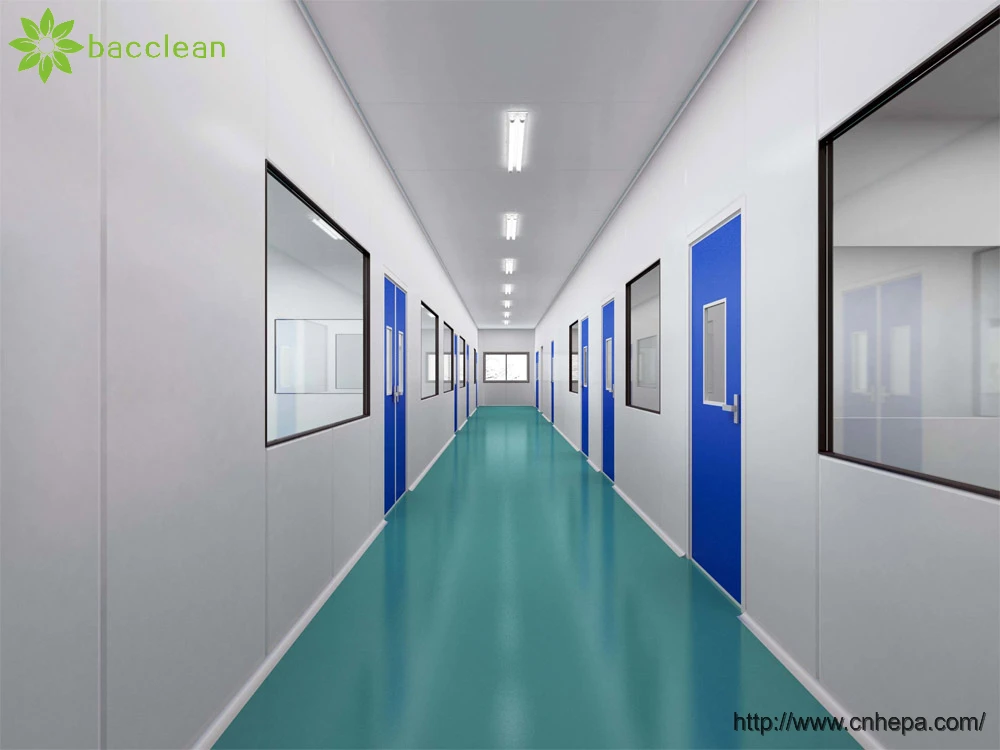

Bacclean cleanroom window
Bacclean cleanoom window adopts integrated structure design, which is perfect combination with clean wall panel, it is not only in good sealing performance and simple installation, but also easy to clean.

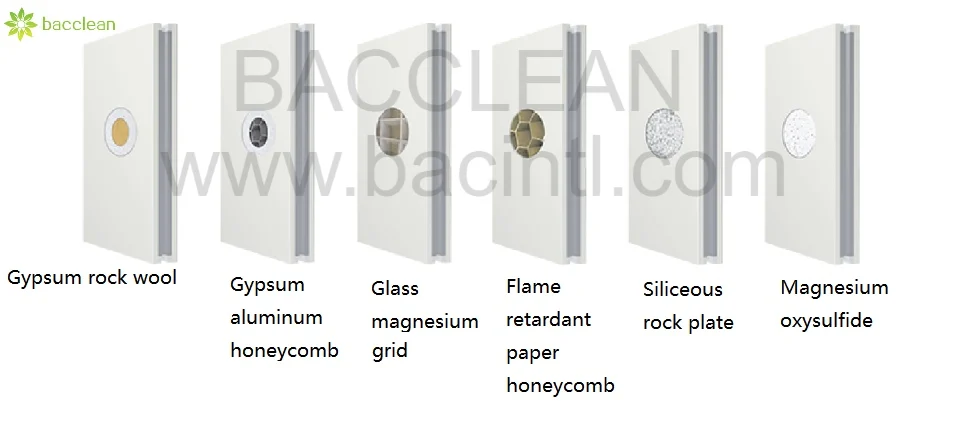

Bacclean Cleanroom ceiling and four sides panels
Bacclean modular clean room board adopts special color steel plate, color aluminum plate and other metal plate as the panel, lined with rock wool, aluminum honeycomb, glass magnesium plate and other core materials. Bacclean cleanroom has excellent performance which is suitable for many indoor environmental requirements of the purification room union.
The panel thickness is 50mm. Of course, the panel size can be customized according to your need.

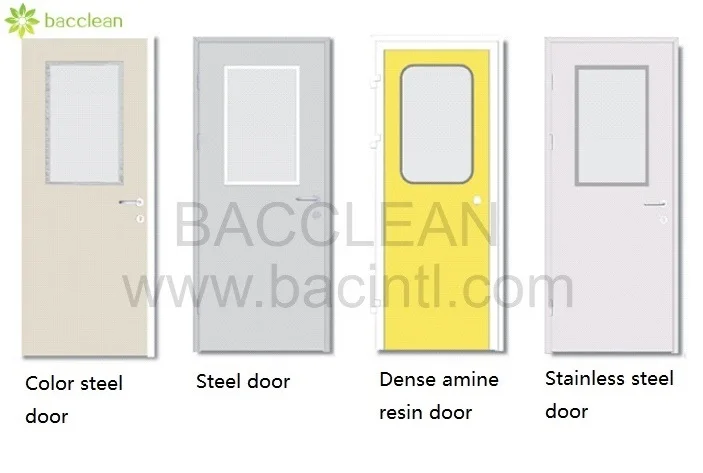

Bacclean cleanroom door
There are four kinds of material for cleanroom door. They are Color steel door, steel door, dense amine resin door and stainless steel door. Of course, electronic interlocking, window, door lock, emergency push rod, magnetic lock, automatic door closer and hinge are available according to clients' need.
Some drawing of cleanroom
.
Cleanliness level | Maximum allowable volumen of dust/m³ | Maximum allowable volume of microorganisms | ||||
>=0.5um | >=5um | Floating bacteria /m³ | Settlement bacteria/dish.30min | |||
100 | 3500 | 0 | 5 | 1 | ||
1000 | 350000 | 2000 | 100 | 3 | ||
10000 | 3500000 | 20000 | 500 | 10 | ||
300000 | 10500000 | 61800 | NA | 15 | ||
Product Display
Application

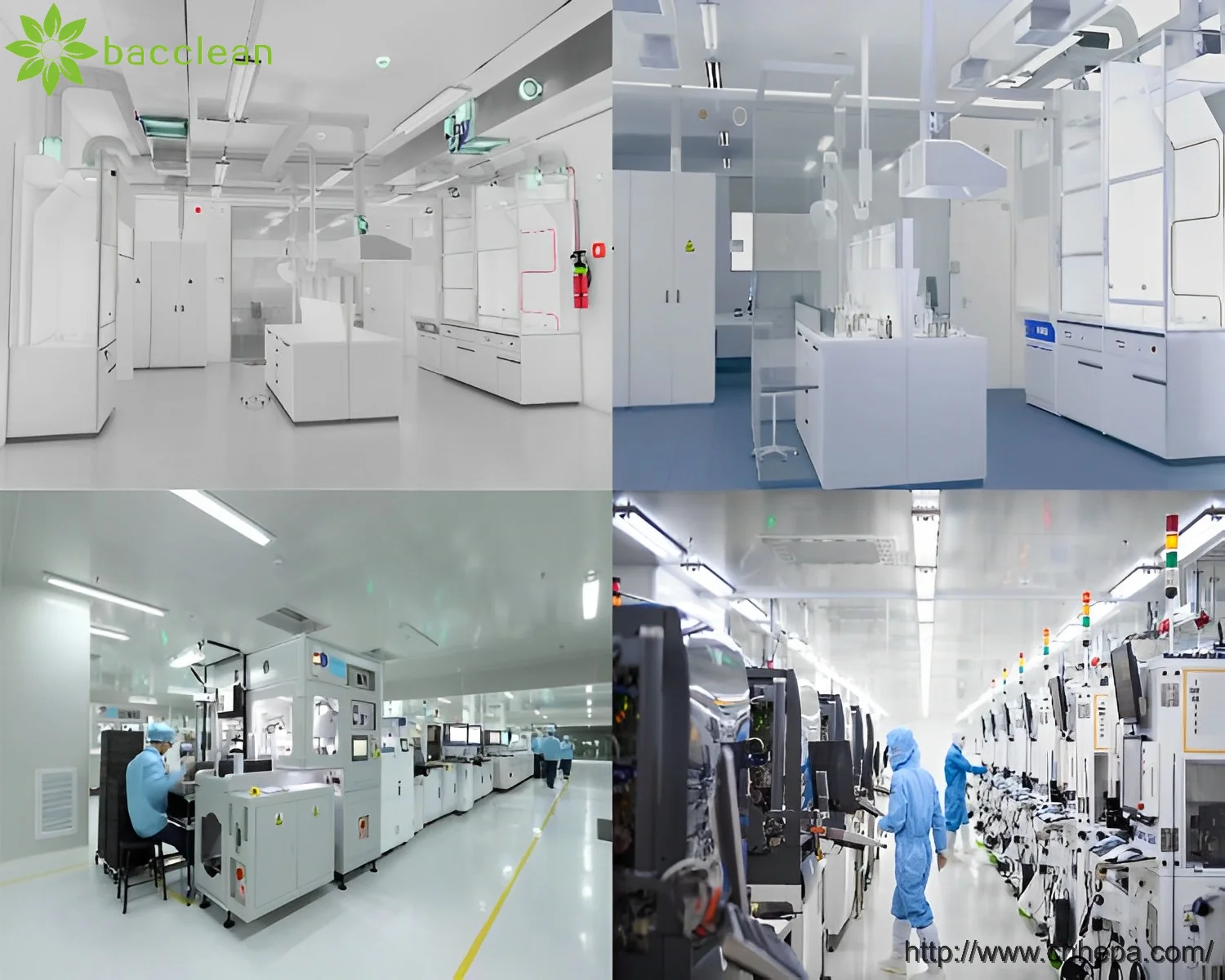

Apllication of cleanroom
Petrochemical Industry, Precision Electronic Industry, Power Industry, Military Industry, Mechanical Engineering, Metallurgical Industry, Thermal Power Industry, Transportation, Building Industry, Pharmaceutical,Food Industry, Precision Industry, Auto Industry, Rubber Industry, Financial Institutions.
Hot-Sale Products
Guangzhou Bacclean Tech Co., Ltd
Guangzhou Bacclean Tech Co., Ltd. is located in Guangzhou and is specialized in manufacturing Air shower,Pass box,Clean bench,Clean shed and Filter.
Bacclean has strong technical force, with the domestic advanced numerical control processing equipment & the factory area is over 8,000㎡.
The company specializes in the production of air shower, cargo air shower, pass box, clean bench, HEPA box, FFU, LAF, air purifier, laminar flow ceiling, dispensing booth, clean booth, modular cleanroom, automatic roll filter machine, ULPA filter, HEPA filter, separator HEPA filter, gel seal HEPA filter, mini pleat HEPA filter, high temperature resistance HEPA filter, medium filter, V bank filter, pocket filter, pre-filter, pleat filter, activated carbon air filter, etc.
ABOUT US
Certificate Display
The company has won the honorary title of "National High-tech Enterprise" and owns dozens of product patents and a number of high-tech products.
Meanwhile has the certifications for UL, ROHS, REACH, CE, ISO9001, ISO14001, ISO16890, EN1822, etc.
Meanwhile has the certifications for UL, ROHS, REACH, CE, ISO9001, ISO14001, ISO16890, EN1822, etc.
