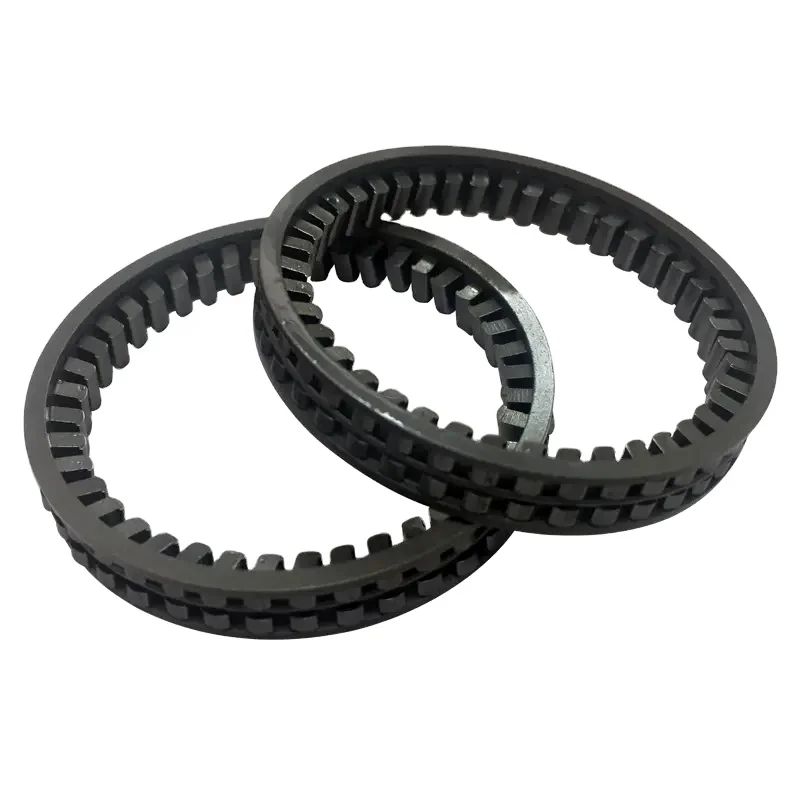

FE425 Sprag Cage One Way Bearing Sprag Freewheel Clutch Overrunning Clutch
- Category: >>>
- Supplier: Changzhou Tianniu Transmission Equipment Co. Ltd.
Share on (1601043789523):
Product Overview
Description
Product Description
FE series Freewheel-clutches transmit or support torque moment by friction contact in one direction and permit idling in the opposite direction.
USED AS:
1.Indexing elements to change from oscillating to intermittent rotary motion.
2.Backstops to prevent self reversing due to load condition when the machine is not activated.
3.Overrunning clutches to maintain driven unit activated even during slowdown, or in the case of two speed operation (by
independent motors) to switch to the higher speed by passing the slower.
LUBRICATION
Lubrication is especially important to obtain maximum life of freewheel clutches.
Good lubrication decreases drag. Please refer to our Lubrication Selection Table for proper selection.
Clutches (except the sealed Clutches of series FND, FPD, FK 62...-RS, FK 62...-2RS, FKN...-RS , and FKN...-2RS) are shipped rust protected not lubricated.
USED AS:
1.Indexing elements to change from oscillating to intermittent rotary motion.
2.Backstops to prevent self reversing due to load condition when the machine is not activated.
3.Overrunning clutches to maintain driven unit activated even during slowdown, or in the case of two speed operation (by
independent motors) to switch to the higher speed by passing the slower.
LUBRICATION
Lubrication is especially important to obtain maximum life of freewheel clutches.
Good lubrication decreases drag. Please refer to our Lubrication Selection Table for proper selection.
Clutches (except the sealed Clutches of series FND, FPD, FK 62...-RS, FK 62...-2RS, FKN...-RS , and FKN...-2RS) are shipped rust protected not lubricated.

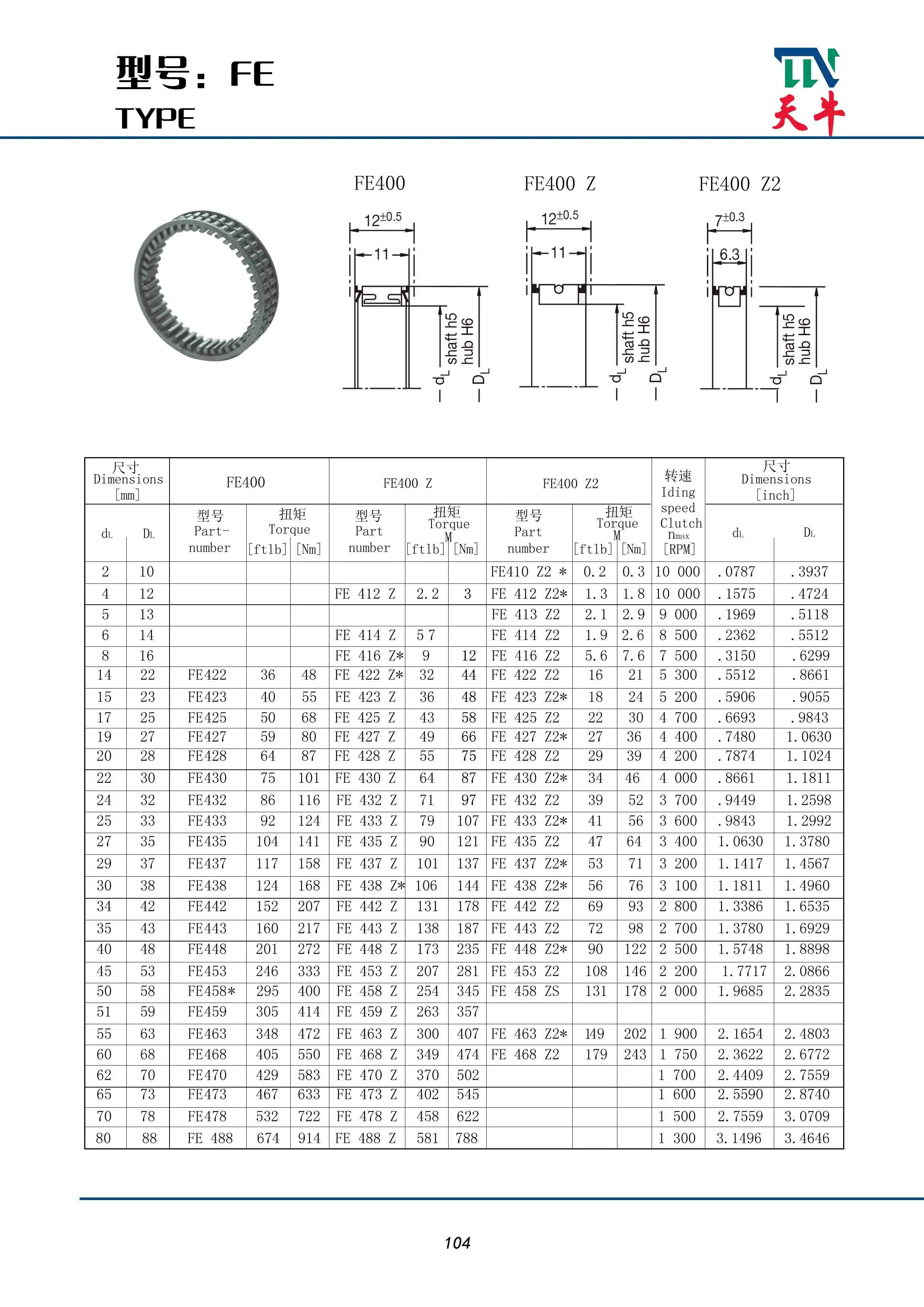

Product Parameters
Technical Data
Item | FE428 one way bearing |
Material | GCr15 |
Bore dia. | 20 mm |
Outer dia. | 28 mm |
Width | 11 mm |
Torque capacity | 87 N.m |
Package | Carton box or as your requirements |
Marks
A large quantity of freewheel-clutches with varying design features and dimensions are available , depending on requirements such as: Torque, indexing frequency, idling speed and environment
The supporting equipment around the clutch has to be built accurately and of high quality for the
clutch to operate properly .This is why we offer support units or complete assemblies of freewheel clutches.
The supporting equipment around the clutch has to be built accurately and of high quality for the
clutch to operate properly .This is why we offer support units or complete assemblies of freewheel clutches.
Product Display
Production Flow
Packaging & Shipping
Product application
Certifications
Clients Visit
Company Information
FAQ
Q: Why do we choose your company?
A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.
Q: What is the delivery time?
A: For small quality or samll size of clutches, we can deliver upon receiving advance.
For large quantity or large size, we have to produce 10-15 working days.
Q: Can you supply with sample clutch?
Of course! We can provide with a sample to your checking quality.
Q: What is the warranty period of the clutches?
One-year Guarantee.
A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.
Q: What is the delivery time?
A: For small quality or samll size of clutches, we can deliver upon receiving advance.
For large quantity or large size, we have to produce 10-15 working days.
Q: Can you supply with sample clutch?
Of course! We can provide with a sample to your checking quality.
Q: What is the warranty period of the clutches?
One-year Guarantee.
