Best quality fireproof glass various sizes fire resistant glass for construction
- Category: >>>
- Supplier: Sichuan Dagui Special Glass Technology Co. ltd.Sichuan ltd.
Share on (1601043823908):
Product Overview
Description
Product | Nano silicon fireproof glass | |

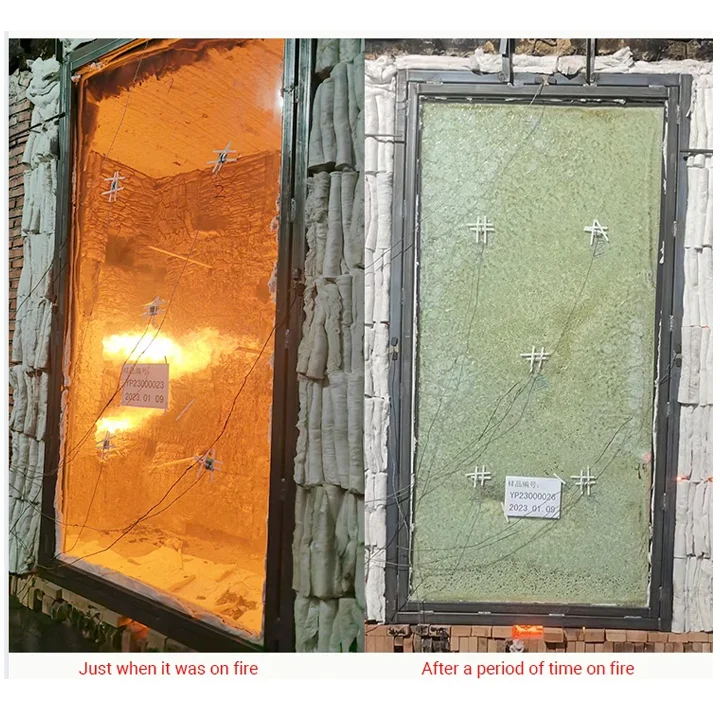

Fire resistance | five fire resistance levels: 0.5h, 1.0h, 1.5h, 2.0h, 3.0. It can be made into insulated and non-insulated fireproof glass | |
Optical properties | light transmittance 65% | |
UV radiation resistance | After 1000 hours of UV aging test, there is no significant discoloration, bubbles or turbidity, and the relative change rate of visible light transmittance before and after the test is not greater than 10%. | |
Heat resistance | No change in product appearance within the temperature range of 25℃+70℃ | |
Cold resistance performance | No change in product appearance within the temperature range of 25℃+70℃ | |
PS：The transparent glass can be replaced with low-e glass and combined with fire-proof glue to achieve the functions of fire prevention, energy saving, heat preservation, sound insulation and heat insulation. | ||
Model | Thickness (mm) | Fire resistance time | Structural configuration | Recommended maximum size (mm) |
FFB-25-A1.00 | 25 | 60 | 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered (5-layer structure) | 1500*4200 |
FFB-35-A1.50 | 35 | 90 | 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered++ 5mm nano silicon fireproof glue + 5mm tempered (7-layer structure) | 1500*4200 |
FFB-45-A2.00 | 45 | 120 | 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered (9 layers Structure) | 1500*4200 |
FFB-75-A3.00 | 75 | 180 | 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered + 5mm nano silicon fireproof glue + 5mm tempered +5mm nano silicon fireproof glue +5mm tempered +5mm nano silicon fireproof glue +5mm tempered +5mm nano silicon fireproof glue+ +5mm tempered (15-layer structure) ） | 1500*4200 |
Q1: What types of nano silicon fireproof glass can be made?
A: In terms of fire resistance time, it can be made into 0.5h, 1.0h,1.5h, 2.0h, 3.0h; in terms of heat insulation, it can be made into insulated and non-insulated types.
Q2: Are you a factory?

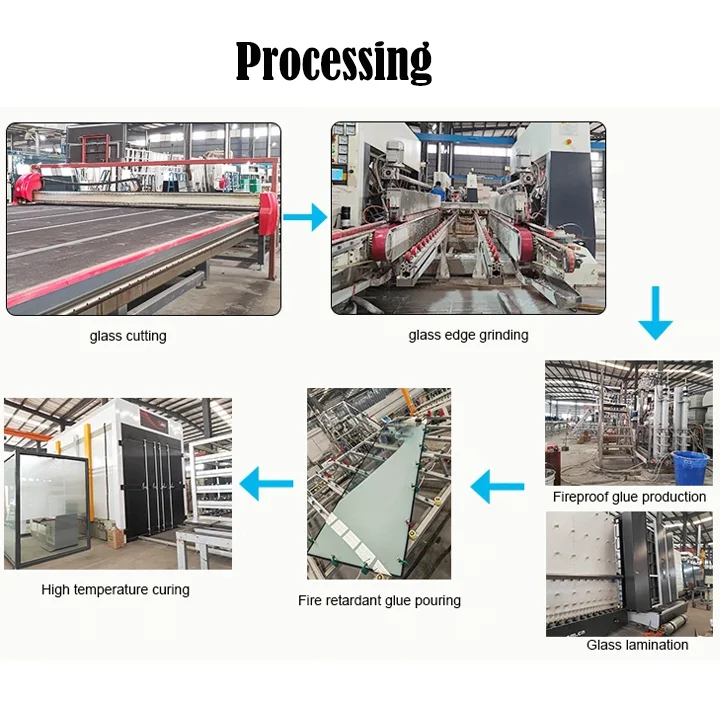

A:Yes, we are a professional fireproof glass manufacturer with professional production equipment, production lines and quality inspection processes.
Q3: What are the advantages of nano silicon fireproof glass?

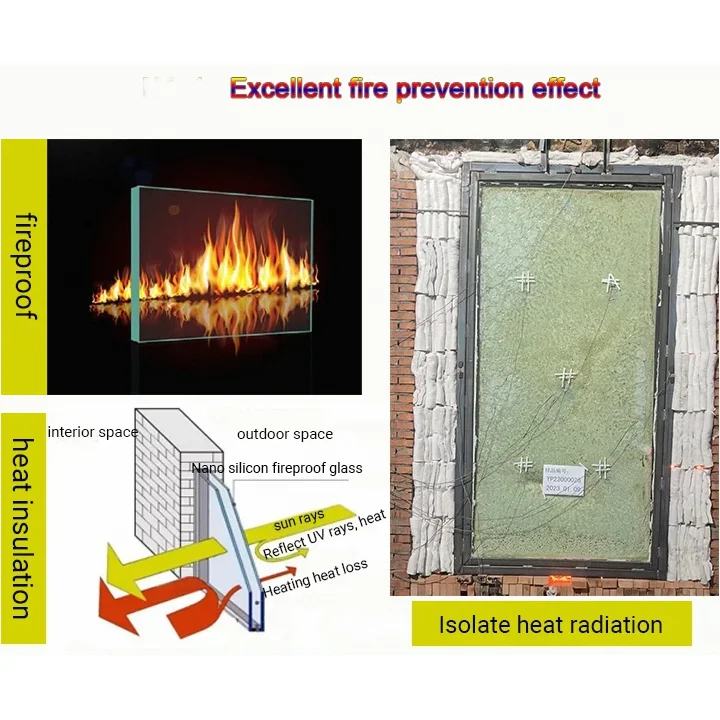

A: Nano silicon fireproof glass is a high-performance product independently developed and designed by us. It has the advantages of fire resistance, isolation of flame heat radiation, resistance to ultraviolet radiation, and long service life.
Q4: Is it configured with frames or profiles?
A: We can configure profiles of different materials such as stainless steel, aluminum alloy, galvanized steel, etc. according to customer needs, which meet the size of fire-resistant glass.
Q5. What are your payment terms?
A: T/T 30% as deposit, 70% beforedelivery. We will show you photos of the products and packaging before you pay the balance.
Q6. How about your delivery time?
A:Generally, it will take 7 to 10 days after receiving the advance payment. The specific delivery time depends on the items and quantity of your order.
