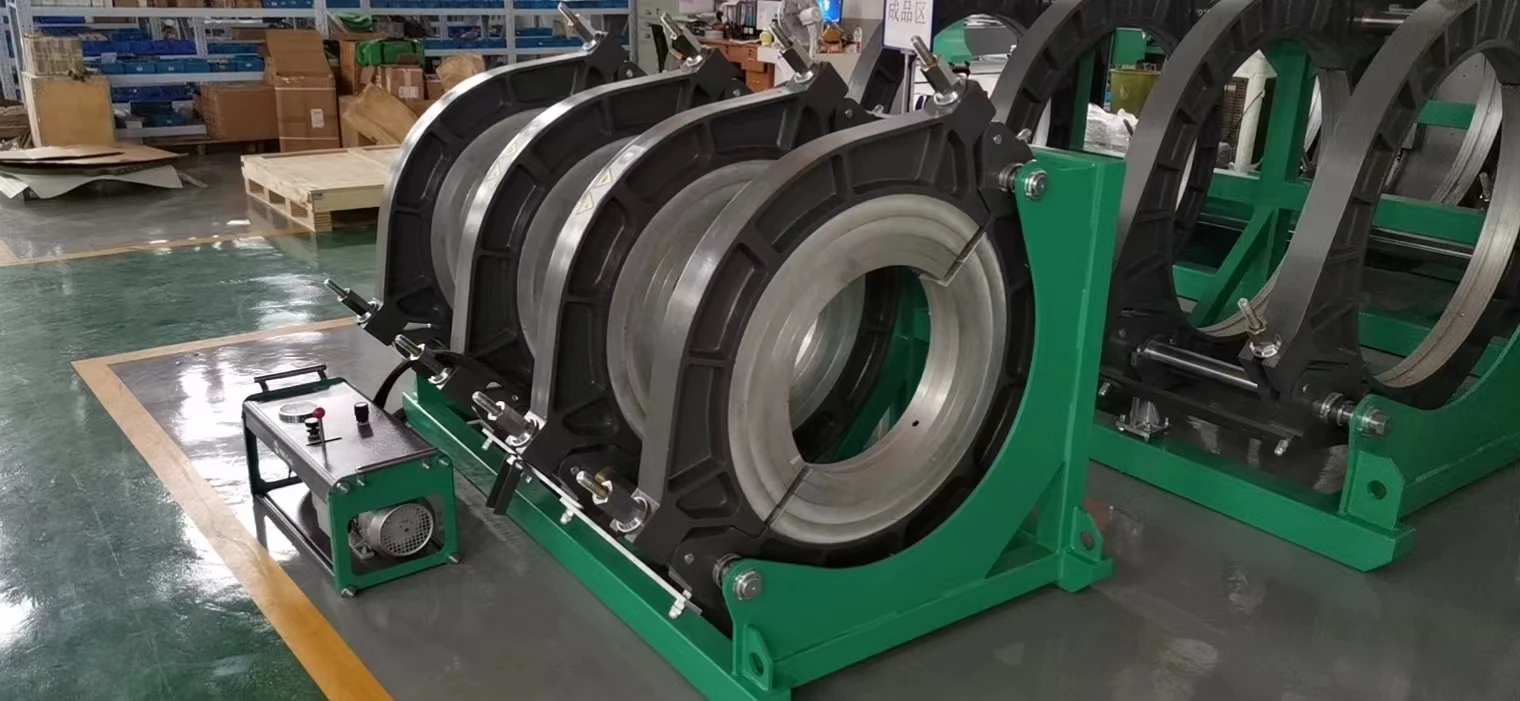

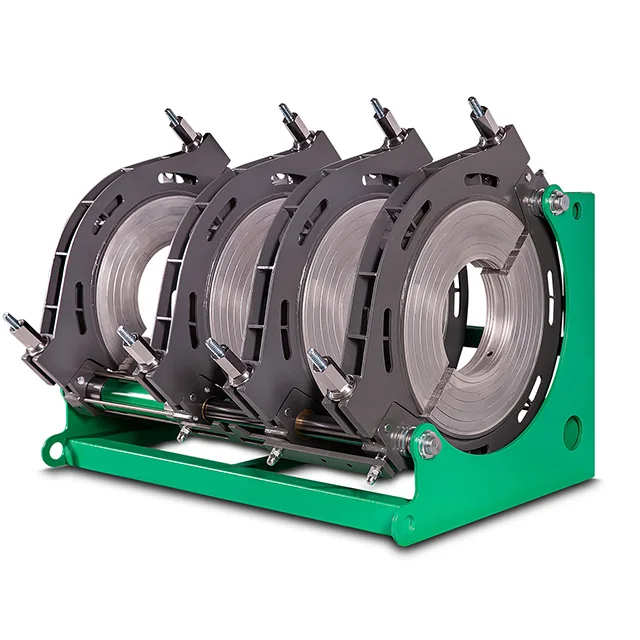

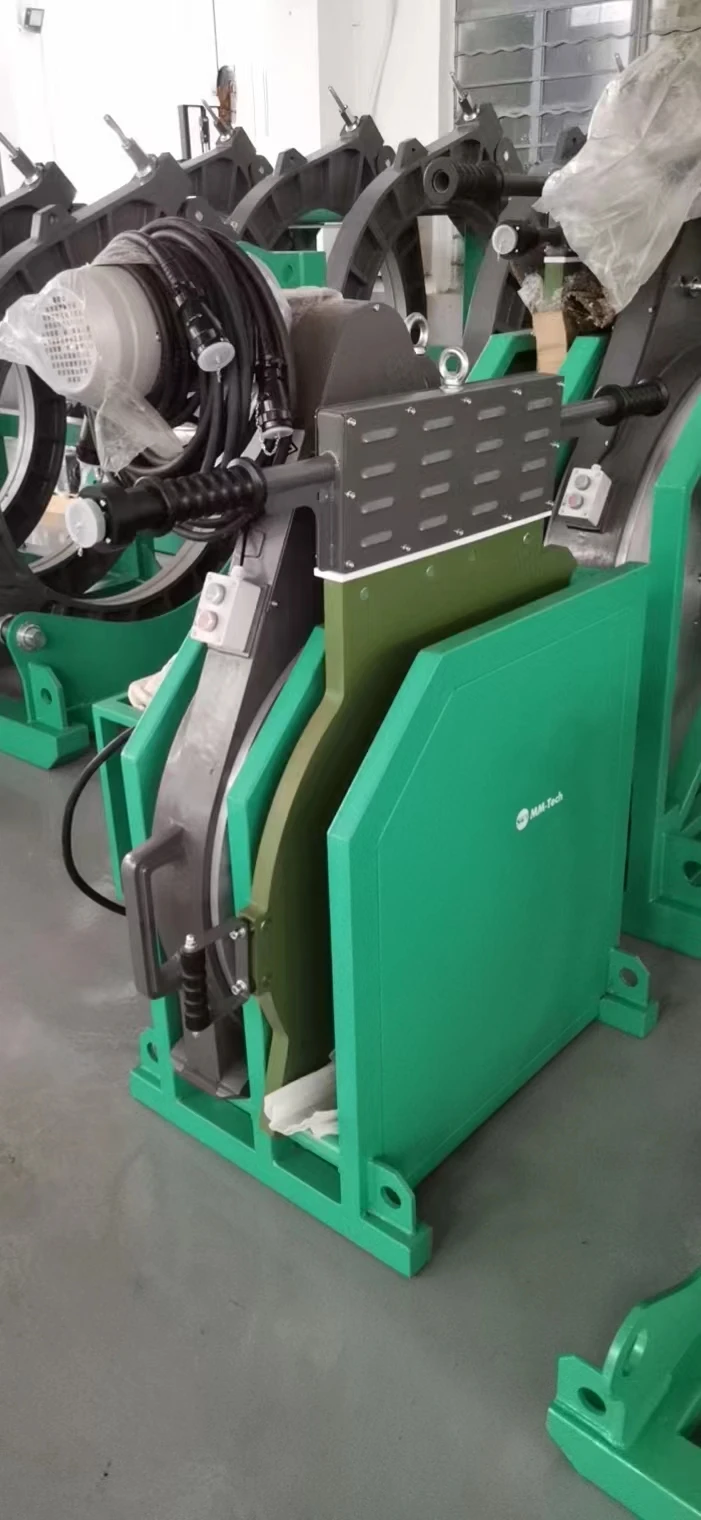

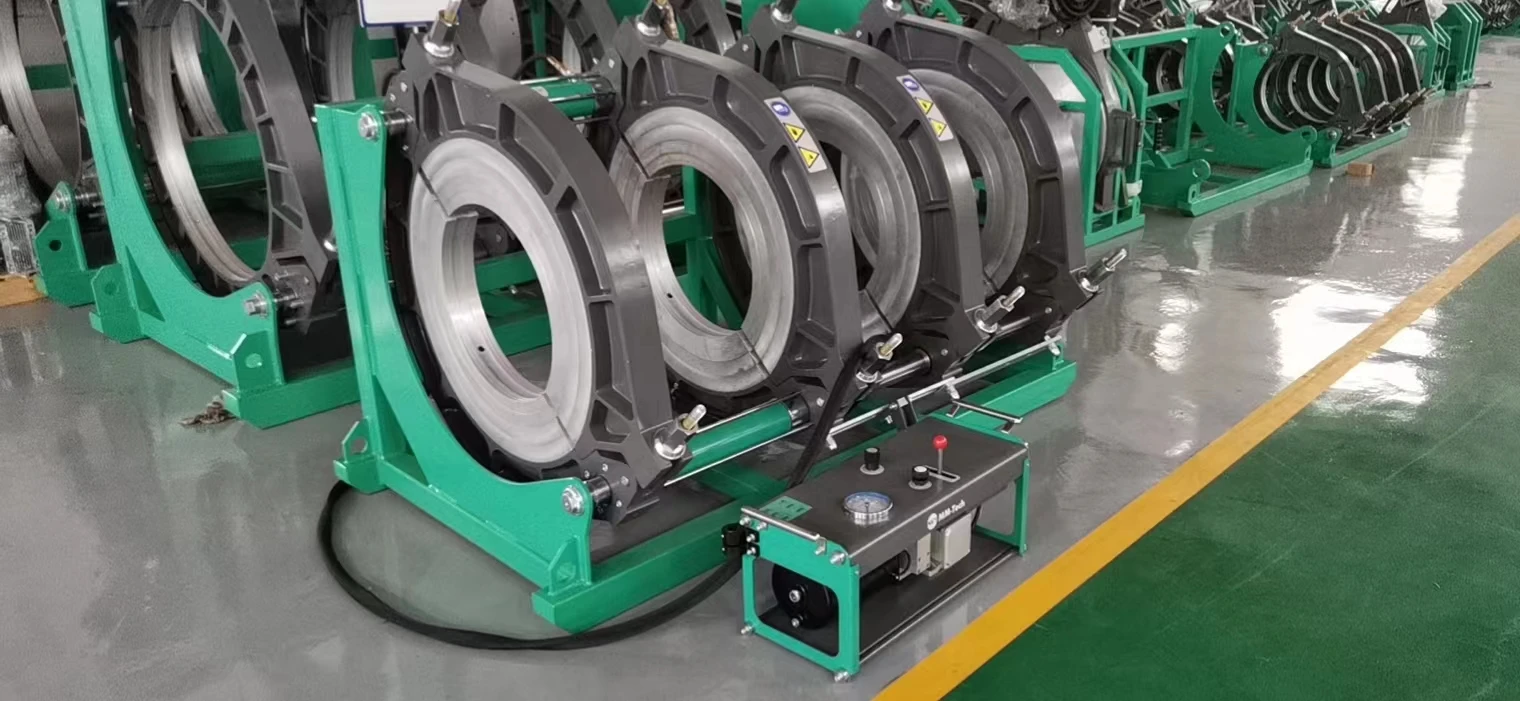

High Quality 800mm HDPE Butt Fusion Welding Machine Polyethylene Butt Fusion Joint Machine for Building Material Shops
- Category: >>>
- Supplier: Hebei Mingmai Technology Co. Ltd.
Share on (1601043853055):
Product Overview
Description
Product Profile
PE PPR Pipe Hot Melt Hdpe Pe Butt Fusion Welding Machine For 90 To 315 Mm

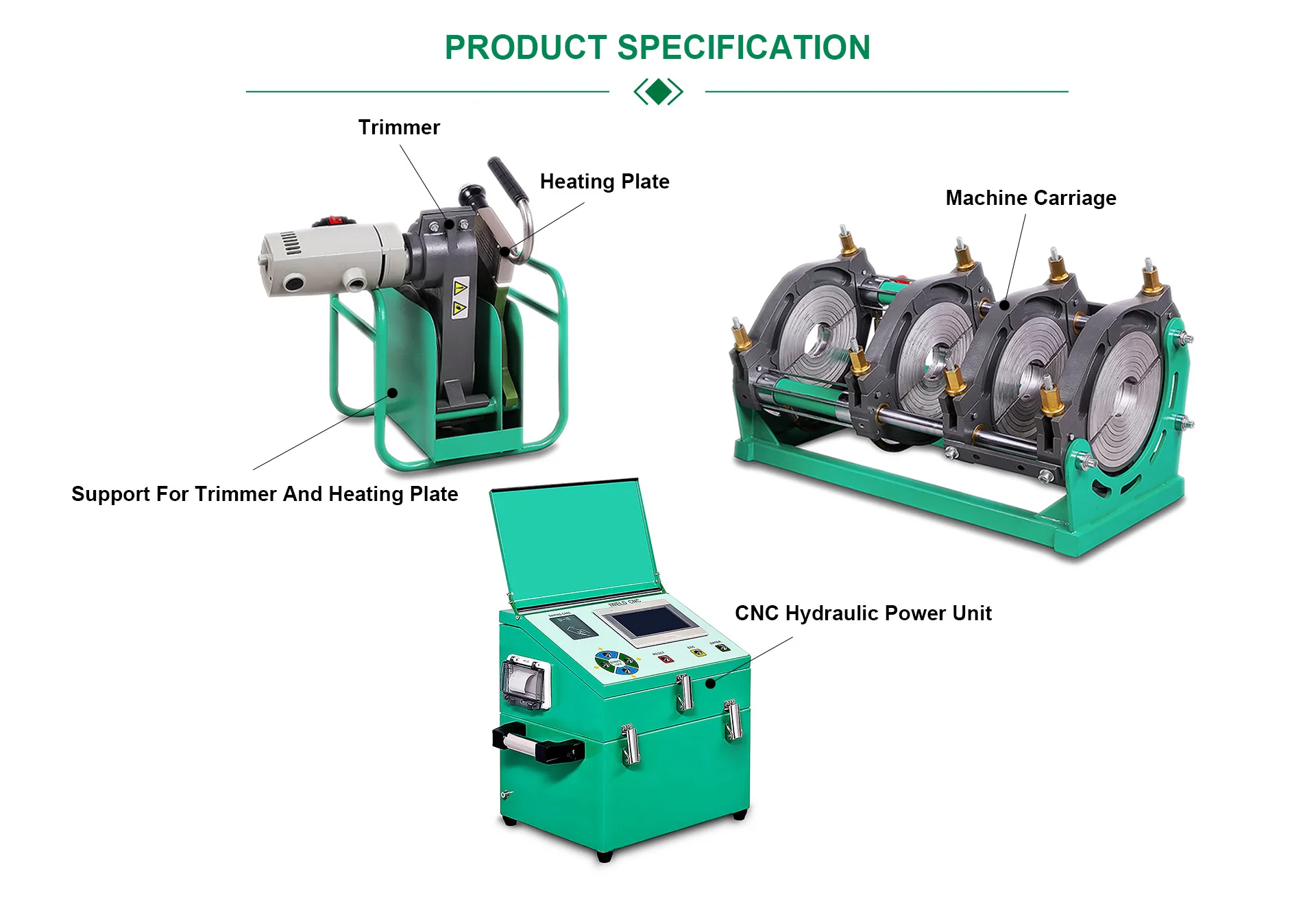

Automatic Butt Fusion Machine SWT-V315A CNC 90MM-315MM (3" IPS -10" IPS) Product Details | ||||||
WELDING RANGE O.D. | 90MM - 315MM | PISTON AREA | 20.02 cm² | |||
POWER SUPPLY | 220V±10%, 50/60HZ | TEMPERATURE RANGE | MAX. 320ºC | |||
HEATER POWER | 3.0KW | PACKING DIMENSION | 930*620*630 MM | |||
TRIMMER POWER | 1.5KW | 630*600*730 MM | ||||
PUMP POWER | 0.75KW | 650*340*380 MM | ||||
WORKING PRESSURE RANGE | 0 - 80 BAR | GROSS WEIGHT | 241KGS | |||
V-CNC series Characteristics | ||||||

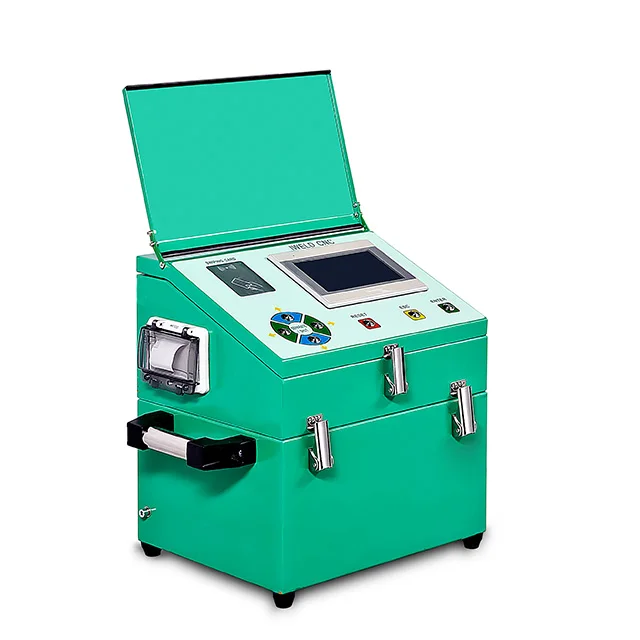

WELDING CONTROL SYSTEM | FULLY MONITORED BY CNC CONTROL UNIT | |||||
DATA LOGGING CAPACITY | 2000 REPORTS | |||||
WELDING MONITORING SYSTEM | AMBIENT TEMPERATURE, INPUT VOLTAGE, HEATING TEMPERATURE, WELDING PRESSURE, WELDING TIMES, HEATING OPERATION, TRIMMING OPERATION, MEMORY CONTROL | |||||
WELDING STANDARD | DVS, ISO, WIS, UNI AND OTHERS UPON REQUEST | |||||
LANGUAGES | AVAILABLE UPON REQUEST | |||||
WARRANTY PERIOD | 2 YEARS | |||||

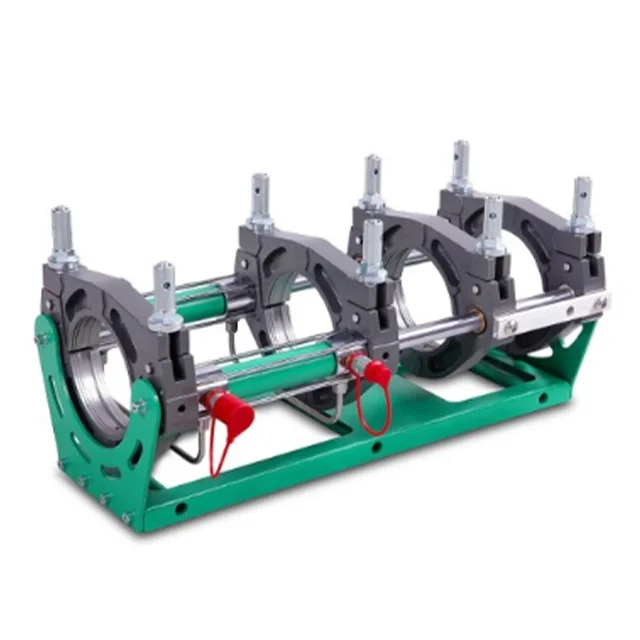

The MM-TECH CNC series automatic hydraulic butt welding machines V160 CNC is applied to joint PE, PP, PPR, and PVDF pipes and moulded fittings.
Selection of components with a long service life ensures a low maintenance and repair, friendly and reliable operation
Selection of components with a long service life ensures a low maintenance and repair, friendly and reliable operation
