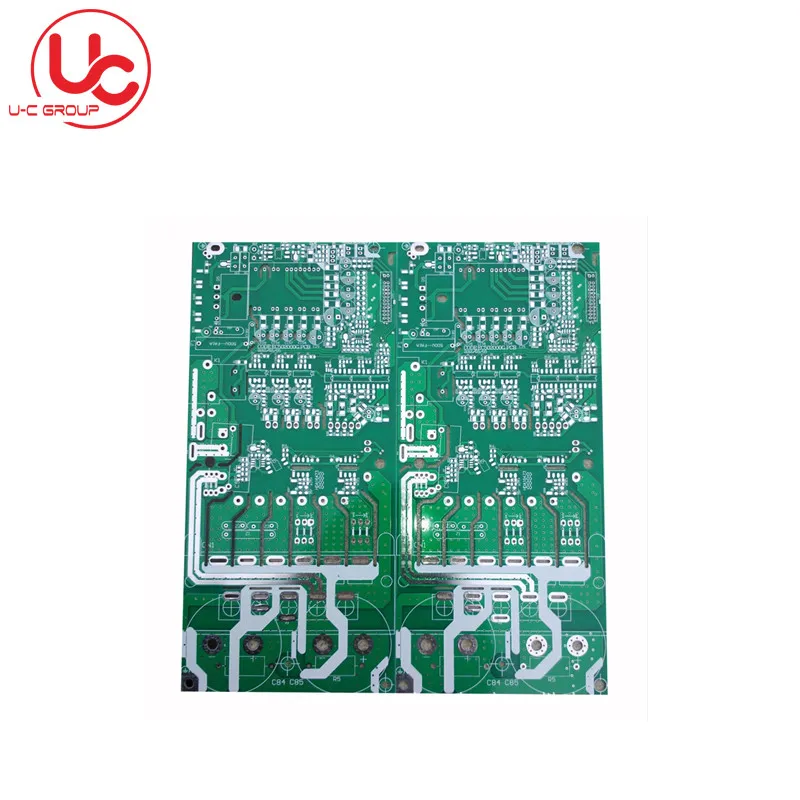

OEM Musical Instrument PCB Assembly Factory PCBA
- Category: >>>
- Supplier: Shenzhen UC Industrail Limited
Share on (1601043950366):
Product Overview
Description
Our Services
One-stop PCB and PCBA electronic manufacturing services
We will reply your inquiry within 2-12 hours,offer you competitive adavntage products with nice price.Looking for to having a chance serve you.
1.PCB manufacturing service | Need Gerber file(CAM350 RS274X), PCB files(Protel 99,AD,Eagle),etc |
2.Components sourcing services | BOM list included detailed Part number and Designator |
3.PCB assembly services | The above files and Pick and Place files,assembly drawing |
4.Programming & Testing services | Program,instrouction and test method etc. |
5.Housing assembly services | 3D files，step or others |
6.Reverse engineering services | Samples and others |
7.Cable & wire assembly services | Specification & others |
8.Others services | Value-added services |
Manufacturing Capacity
PCB Techinecal Capacity | ||
Layers | Mass production: 2~30 layers / Pilot run: 64 layers | |
Max. Thickness | 394mil (10mm) / Pilot run: 17.5mm | |
Material | FR-4, Halogen-Free, Ceramic filled etc | |
Min.Width /Spacing | Inner layer: 3mil/3mil (HOZ), Outer layer: 4mil/4mil(1OZ) | |
Max. Copper Thickness | UL certificated: 6.0 OZ / Pilot run: 12OZ | |
Min. Hole Size | Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm) | |
Surface Finish | HASL-LF, ENIG ,Immersion Silver, ENEPIG, Gold Finger | |
Special Process | Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity,Back drilling, and Resistance control etc | |
PCBA technical Capacity | ||
Position accuracy:20 um | ||
SMT | Components size:0.6 x 0.3mm(0201) 130×79mm,CHIP,QFP,BGA | |
Max. PCB size:680×500mm | ||
Max. PCB width:450mm | ||
Wave Solder | Min. PCB width: no limited | |
Component height:Top 120mm/Bot 15mm | ||
Testing | ICT,Probe flying,burn-in,function test,temperature cycling | |

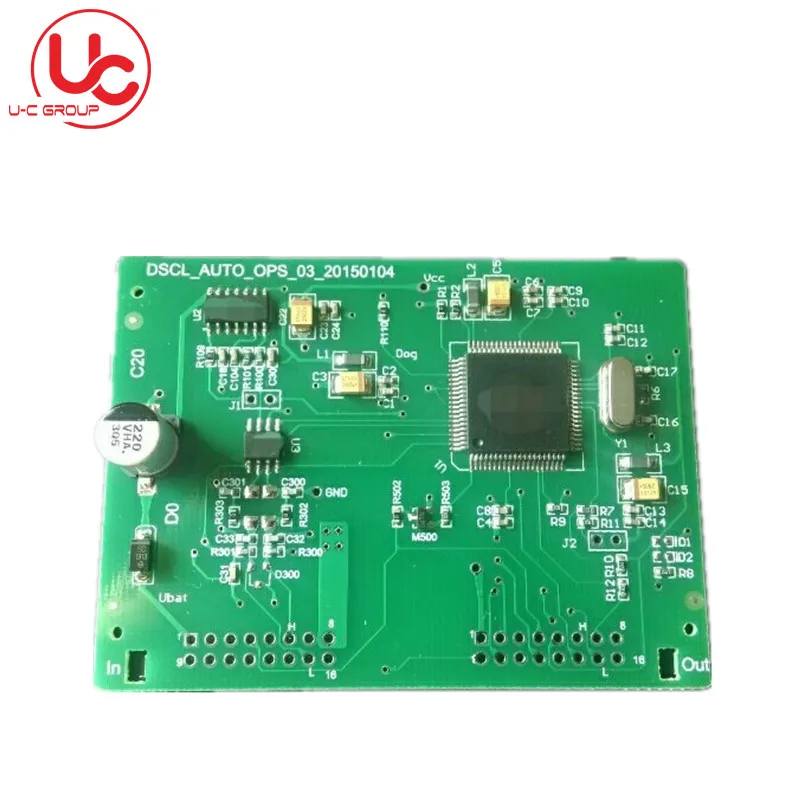

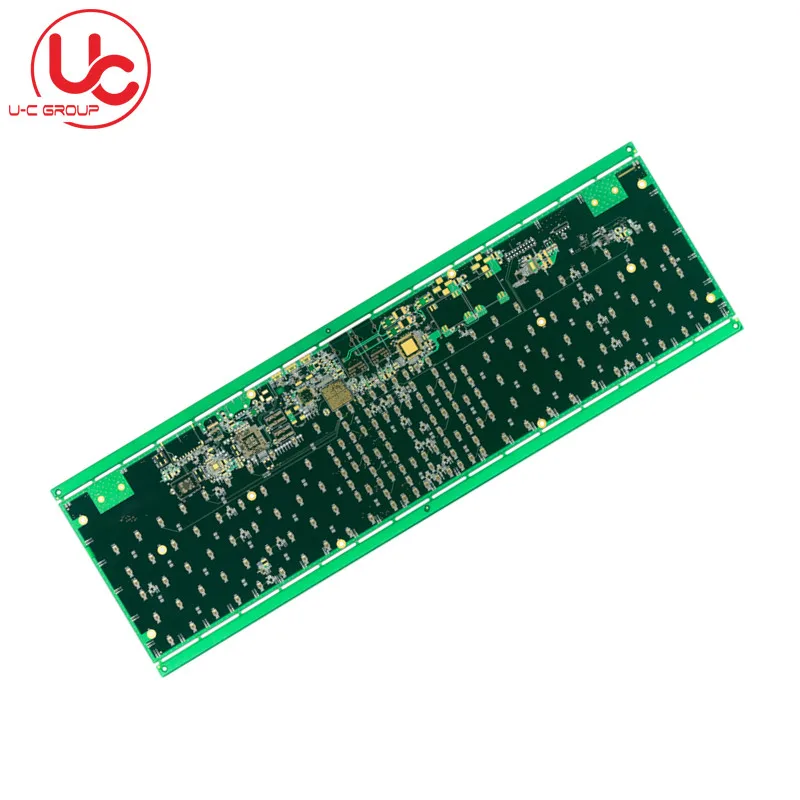

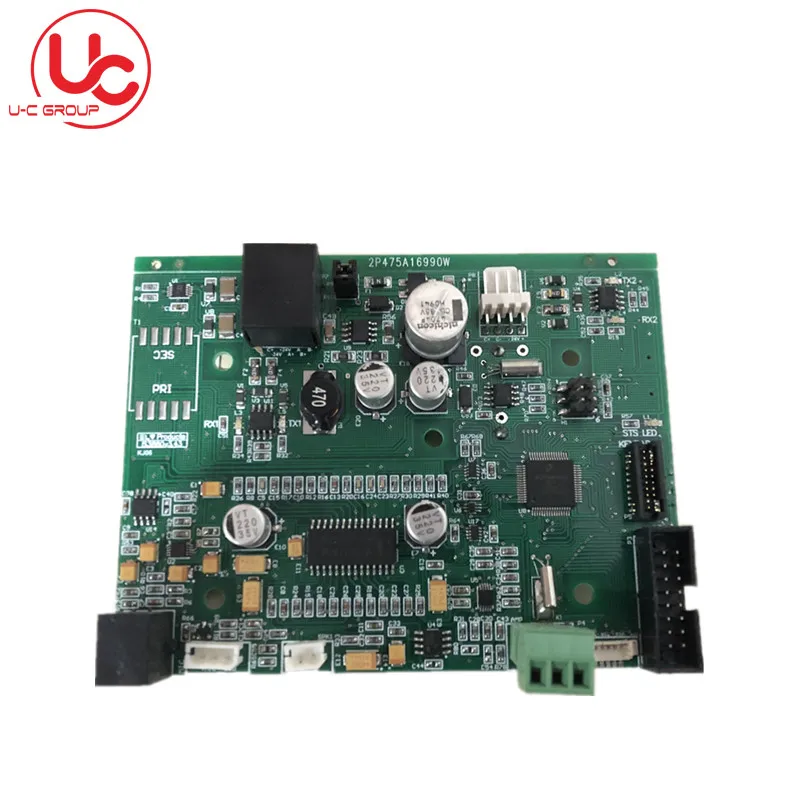

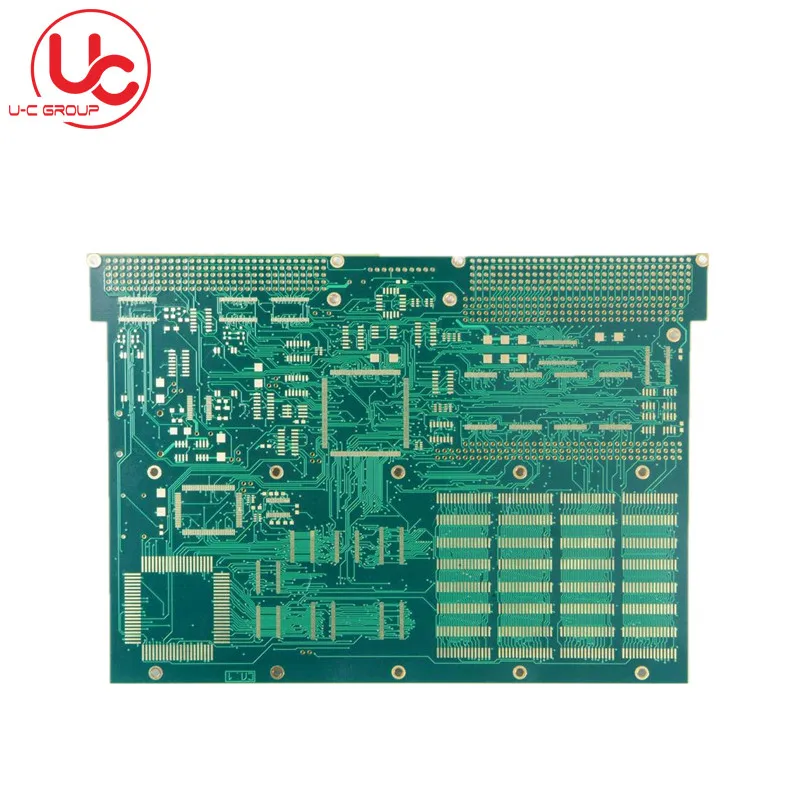

Some our products show
Recommend Products
Product packaging
Package:
Each products With ESD bags or do it on your request.
We provide a hard outer packing carton, to ensure that no problems during transport .
Delivery Time & Shipping methods:
Sample:2~3 weeks by DHL,UPS,FedEx etc.
Order :3~4 weeks depend on the quantity of order)
We can get the best price from professional shipping company with long-term cooperation
Sample:2~3 weeks by DHL,UPS,FedEx etc.
Order :3~4 weeks depend on the quantity of order)
We can get the best price from professional shipping company with long-term cooperation

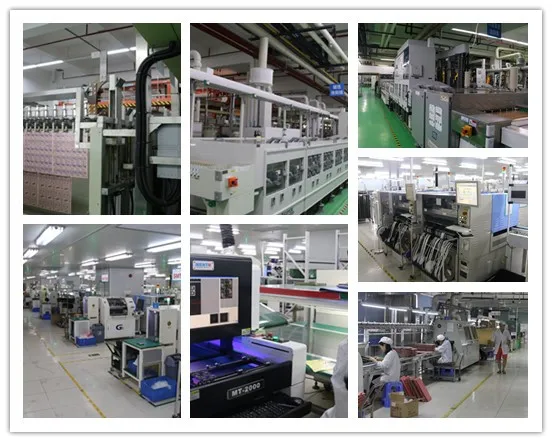

Company Profile
U-C GROUP LIMITED with customers to provide them with the highest-quality PCB and PCBA electronic manufacturing services to achieve their goals. Our flexibility is in meeting customer requirements and our superior customer service. We help companies introduce their new products to market in the fastest time possible by providing high quality, quick-turn assembly.We provide one-stop electronic manufacturing service to help you qualify your designs and provide quality samples to your customers.
Our Team & Company Activities
We have different activities in every year,we also have the different exhibitons,HongKong Exhitions,Russia,India,Indonesia Exhibition etc.
Our Customer's Visit
Welcome to you visit to our company ,we also can meet you on Exhibition
FAQ
Q1.What is needed for quotation?
A: PCB Circuit Boards: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)
PCBA: PCB information, BOM, (Testing documents...)
Q2. What file formats do you accept for production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Q3. Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
Q4. MOQ?
A: We accept small order,1PCS is available.We are able to handle Small as well as large volume production with flexibility.
Q5.Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
