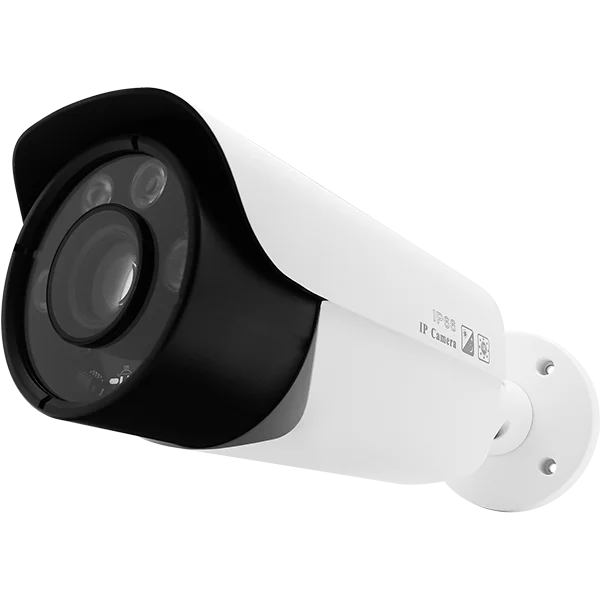

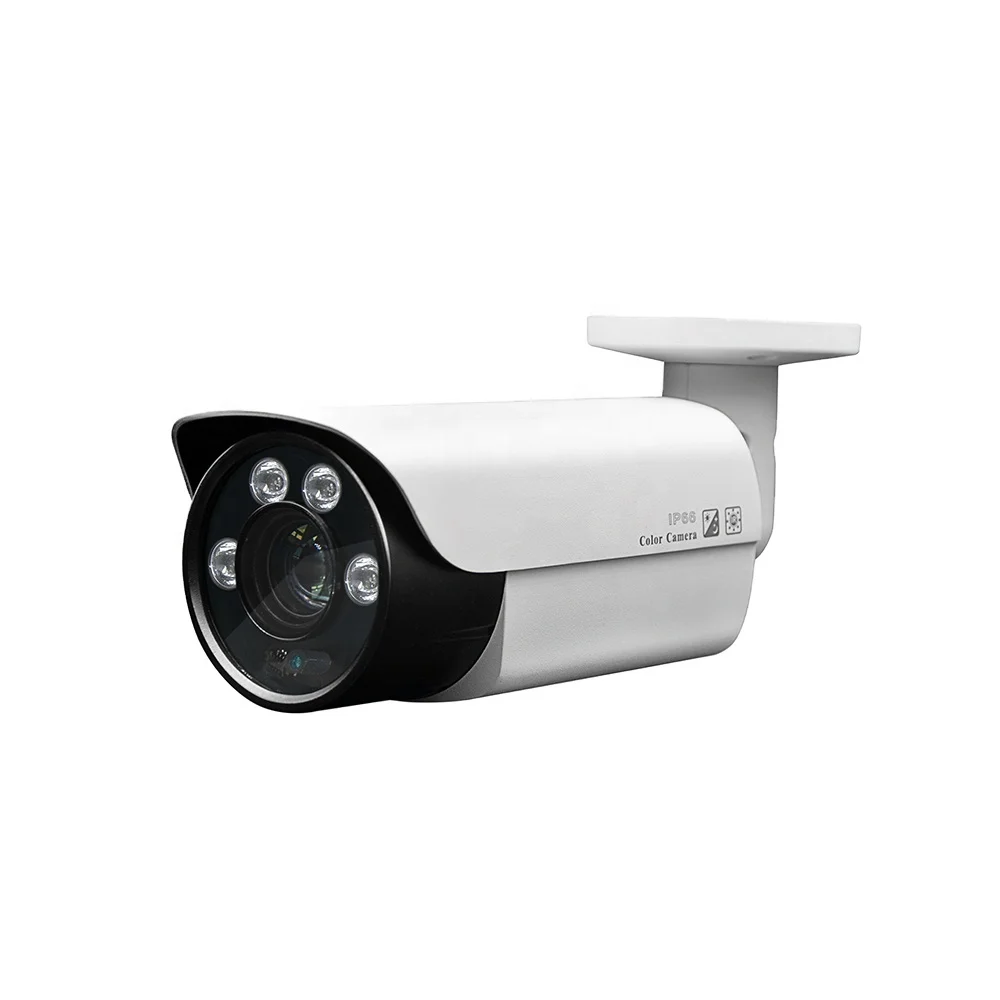

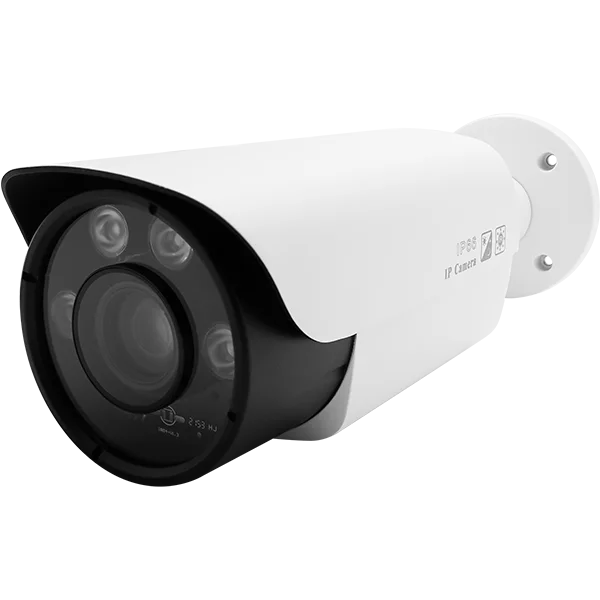

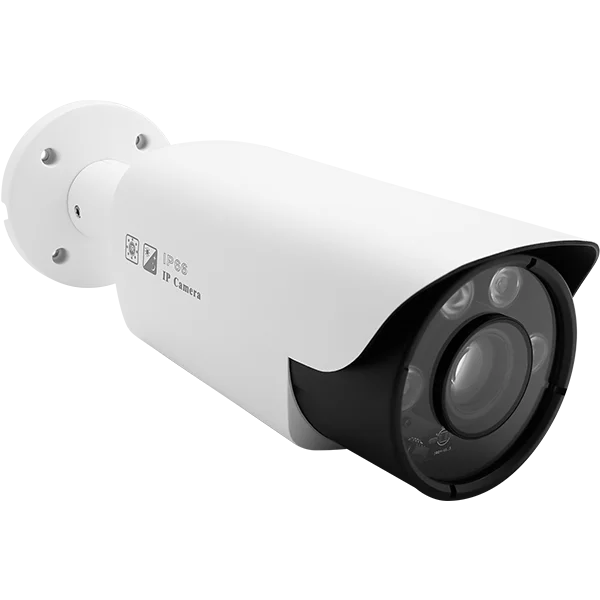

3.3 12mm AOC manual Varifocal lens 5MP Bullet 4 IN 1 HD Camera,support UTC/DIP control
- Category: >>>
- Supplier: Shenzhen YCX Electronics Co. Ltd.
Share on (1601043983201):
Product Overview
Description
Product Description
Specification
5MP Varifocal Bullet 4 IN 1 HD Camera
Features:
4-in-1 HDTVI/HDCVI /AHD / CVBS optional output
UHD resolution 20fps@2560×1944P CMOS sensor
Ultra low illumination 0.05Lux
Up to 300M long distance and high speed real time monitoring
OSD menu control up the coaxial cable (UTC)
Low light and prefect night vision
Day/Night (ICR), AWB, AGC, DNR
Lightning protection
Strong water-proof housing, IP66
4 pcs Powerful Array IR LEDs, IR distance 70-80 meters
2.8-12mm manual varifocal lens
UHD resolution 20fps@2560×1944P CMOS sensor
Ultra low illumination 0.05Lux
Up to 300M long distance and high speed real time monitoring
OSD menu control up the coaxial cable (UTC)
Low light and prefect night vision
Day/Night (ICR), AWB, AGC, DNR
Lightning protection
Strong water-proof housing, IP66
4 pcs Powerful Array IR LEDs, IR distance 70-80 meters
2.8-12mm manual varifocal lens
Technical Parameters
Model | YC-A855AHZ86A | |||||
Camera | ||||||
Image Sensor | 1/2.5" CMOS | |||||
Chipset | C18+FH8538E | |||||
Effective Pixels | 2592(H)×1944 (V) | |||||
Video Resolution | TVI/AHD: 20 fps@2560×1944P, CVI 30 fps@2560×1440P, (20fps/12.5fps) adjustable | |||||
Electronic Shutter | AUTO, 1/25 - 1/50,000s | |||||
Min. Illumination | 0.05Lux@F1.2(AGC ON), 0Lux IR on | |||||
Video System | PAL/NTSC | |||||
Video Output | 1 channel, HDCVI / HDTVI/AHD/CVBS , adjustable | |||||
Video Switch | DIP switch | |||||
Day/Night | Auto/Color/(B/W)/EXT | |||||
White Balance | ATW/Manual | |||||
DNR | 2D NR | |||||
OSD Menu | Multiple languages OSD menu control up the coaxial cable (UTC) | |||||
Coaxial Audio | TVI signal optional | |||||
IR Led | ||||||
Warm Led | 4pcs Powerful Array IR LEDs | |||||
Distance | 70-80M | |||||
Lens | ||||||
Focal length | 2.8-12mm manual varifocal lens | |||||
General | ||||||
Power Supply | 12 VDC ± 10% | |||||
Power Consumption | < 5 W | |||||
Operating Temp. | -30℃-(+60)℃, 10%-90%RH | |||||
Warranty
*2 years free repair and lifetime technical support provided after the shipment date.
*Any product proves defective under normal usage, we will repair or replace it by free of Charge.
*If you could repair the products by yourself, we will supply the spare parts.
* If you couldn't repair the products, please sent back to us, and we repair and afford 50% freight charge.
*All our products are 100% passed strictly quality inspection before delivery. our detective rate is less than 1%
OEM & ODM
*OEM Silkprint LOGO/Sticker/Box/Manual/Software/Carton Box, Free of Charge with MOQ
*ODM Projects acceptable and welcome to your enquiries!f
Payment Terms
*T/T, Paypal, Western Union, Sinosure & L/C
*We accept T/T 30% deposit to arrange production,70% balance payment when goods ready.
*If order value less than 20,000 USD , we should get 100% payment before production
*Sinosure & L/C acceptable according to the order amount
MOQ
Welcome trial order! Sample Order no MOQ; after sample order, MOQ 10pcs per model.
Silkprint OEM logo MOQ 100pcs, OEM Design box MOQ 1000pcs.
How to order from us?
* Please confirm the model no. & quantity that you would like to purchase with our sales person, or email to us
* We will send you a Proforma Invoice to specify net cost of mentioned goods, and other relevant charges once you confirm the
order.
* After you arrange the payment and send us the bank slip, Your order will be put into production, and let your know the delivery
date in 2 days.
*When the goods are ready, we will send by DHL, by air or by sea, or other shippiong method appointed by the customers. and let
you know the tracking number and estimated time of arrival.
Technical Support
Professional technical support team 24 Hours Online!
*2 years free repair and lifetime technical support provided after the shipment date.
*Any product proves defective under normal usage, we will repair or replace it by free of Charge.
*If you could repair the products by yourself, we will supply the spare parts.
* If you couldn't repair the products, please sent back to us, and we repair and afford 50% freight charge.
*All our products are 100% passed strictly quality inspection before delivery. our detective rate is less than 1%
OEM & ODM
*OEM Silkprint LOGO/Sticker/Box/Manual/Software/Carton Box, Free of Charge with MOQ
*ODM Projects acceptable and welcome to your enquiries!f
Payment Terms
*T/T, Paypal, Western Union, Sinosure & L/C
*We accept T/T 30% deposit to arrange production,70% balance payment when goods ready.
*If order value less than 20,000 USD , we should get 100% payment before production
*Sinosure & L/C acceptable according to the order amount
MOQ
Welcome trial order! Sample Order no MOQ; after sample order, MOQ 10pcs per model.
Silkprint OEM logo MOQ 100pcs, OEM Design box MOQ 1000pcs.
How to order from us?
* Please confirm the model no. & quantity that you would like to purchase with our sales person, or email to us
* We will send you a Proforma Invoice to specify net cost of mentioned goods, and other relevant charges once you confirm the
order.
* After you arrange the payment and send us the bank slip, Your order will be put into production, and let your know the delivery
date in 2 days.
*When the goods are ready, we will send by DHL, by air or by sea, or other shippiong method appointed by the customers. and let
you know the tracking number and estimated time of arrival.
Technical Support
Professional technical support team 24 Hours Online!
