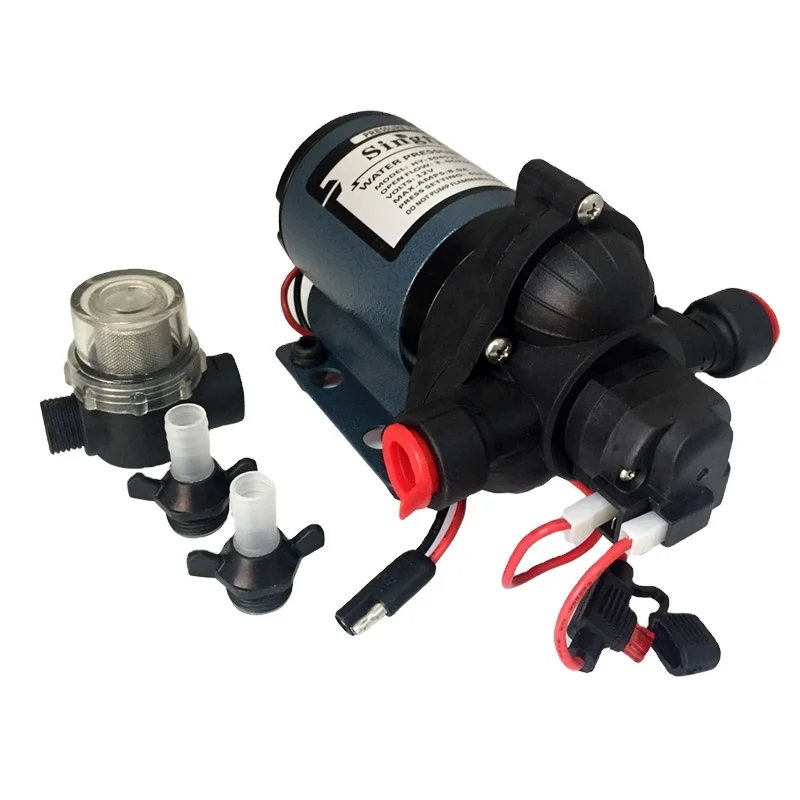

Singflo 3 GPM 12V RV Water Pump Diaphragm marine pump water pump
- Category: >>>
- Supplier: Xiamen Youme Electric Co. Ltd.Xiamen Ltd.
Share on (1601044012950):
Product Overview
Description
Products Description
Max 3.0 Gallons Per Minute capacity flow, and 45 PSI pressure,This series pump can be used for general water transfer, sprayer pumps, small rain system, or other industry usage(perfect for water heater shower, caravans, RV, knapsack sprayer) , use it with fresh or salt water or other liquid with weak acid&alkaline is ok.

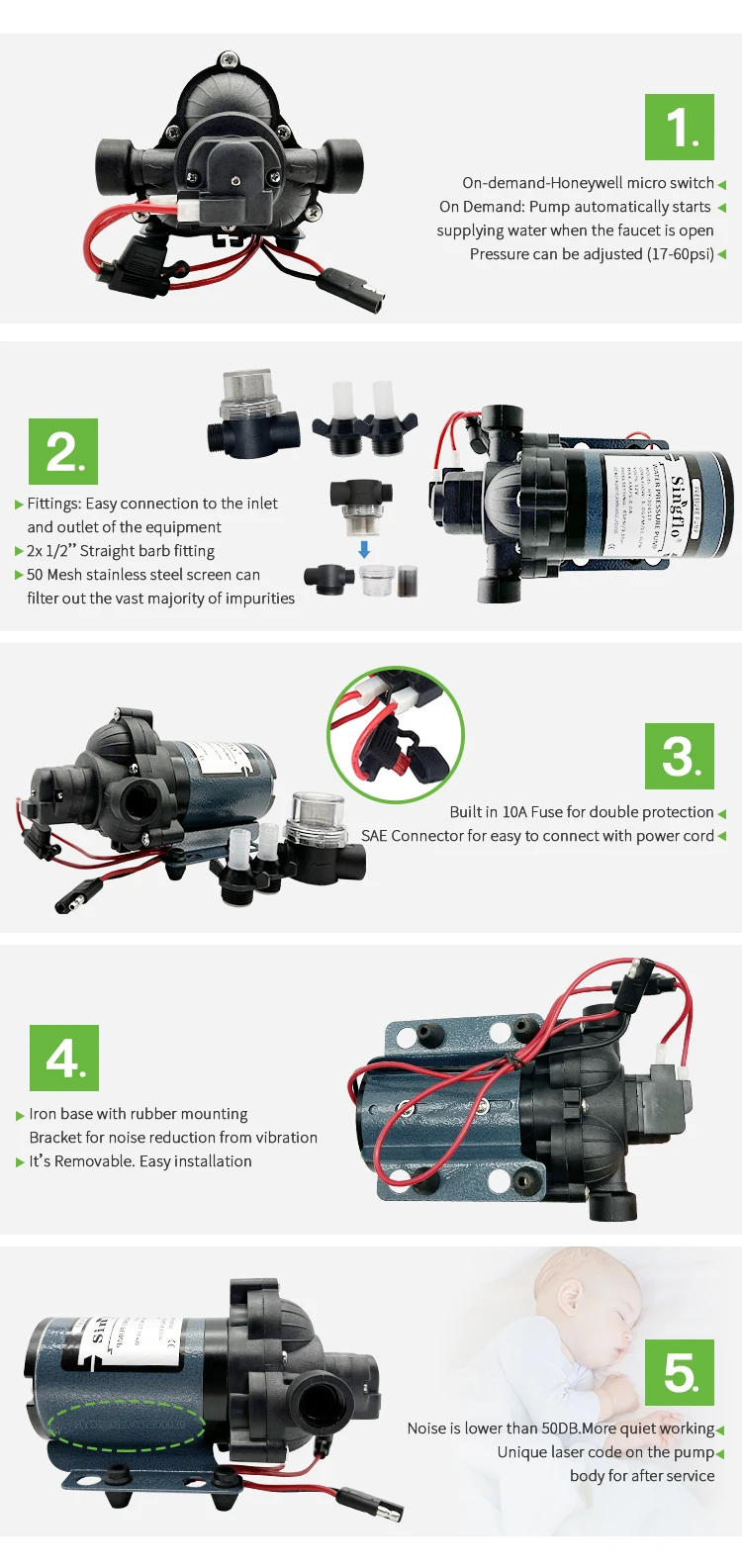

The pump with built-in pressure switch, can be working automatically when the tap turn on-off.
The pump with built-in pressure switch, can be working automatically when the tap turn on-off.
Feature:
Type: 3 Chamber Diaphragm
Port Size: 1/2''NPT Feamle thread
Liquid: 140°F [60 °C] Max
Self-priming: 6feet [about 1.8M]
Max pressure：45psi
Self-priming: 6feet [about 1.8M]
Max pressure：45psi
Flow rate: 3.3GPM
Run Dry: Yes (within 30 second)
Motor: Permanent Magnet, Intermittent
Duty Protection: Automatic Restart
Volts: 12/24 VDC motors standard
Approved Certificate: CE and RoHS
Run Dry: Yes (within 30 second)
Motor: Permanent Magnet, Intermittent
Duty Protection: Automatic Restart
Volts: 12/24 VDC motors standard
Approved Certificate: CE and RoHS
√ High volume flow rate, Built-in check valve
√ Permanent Magnet motor with longer lifetime
√ Antivibration pad,easy installation
√ Self-priming,Top quality Automatic Pressure Switch.
√ Add a fuse Protected, Thermally Protected
√ Low Noise,with excellentresistant to chemical corrosion
√ Antivibration pad,easy installation
√ Self-priming,Top quality Automatic Pressure Switch.
√ Add a fuse Protected, Thermally Protected
√ Low Noise,with excellentresistant to chemical corrosion
Model | Volt/V | Flow(LPM/GPM) | Pressure(PSI/Bar) | Amp Draw(A) |
HY-30451T | 12 | 11.5/3.0 | 45/3.1 | 8.0 |
HY-30452T | 24 | 11.5/3.0 | 45/3.1 | 4.0 |
HY-30453T | 115 | 11.5/3.0 | 45/3.1 | 1.2 |
HY-30454T | 220 | 11.5/3.0 | 45/3.1 | 0.8 |
Details Images
You May Like
About products
Company Profile
FAQ
Q: What's your payment terms?
A: Usually we accept T/T ,Western Union or PayPal.
Q: What's your shipping item?
A: We ship items via EMS, DHL, UPS, TNT, China Post or Hong Kong Post.
Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 10-15days after order confirmation (by air or by sea)
Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm pump,Marine pump,RV pump )for over 10 years with excellent quality and competitive
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice, the pump warranty is 12 months.we can supply 1% spare parts for after service.
Q: Why i find some price on your items show only 1-20USD/pcs, when can i get the price at 1usd?
A: 1-20USD is just a price range for your reference here.
Guarangee:
1. We offer 12 months limited Warranty of Manufacturer for defective items (excluding items damaged and /or misused after receipt).
2. If you have any problems with the item received, please let us know within 7 days after received. Please contact us before send items back! If problem really exists, a replacement or a refund is available after we receive the items in goods condition.
Note: If area is remote area. You should pay the remote fee before delivery.
A: Usually we accept T/T ,Western Union or PayPal.
Q: What's your shipping item?
A: We ship items via EMS, DHL, UPS, TNT, China Post or Hong Kong Post.
Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 10-15days after order confirmation (by air or by sea)
Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm pump,Marine pump,RV pump )for over 10 years with excellent quality and competitive
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice, the pump warranty is 12 months.we can supply 1% spare parts for after service.
Q: Why i find some price on your items show only 1-20USD/pcs, when can i get the price at 1usd?
A: 1-20USD is just a price range for your reference here.
Guarangee:
1. We offer 12 months limited Warranty of Manufacturer for defective items (excluding items damaged and /or misused after receipt).
2. If you have any problems with the item received, please let us know within 7 days after received. Please contact us before send items back! If problem really exists, a replacement or a refund is available after we receive the items in goods condition.
Note: If area is remote area. You should pay the remote fee before delivery.
