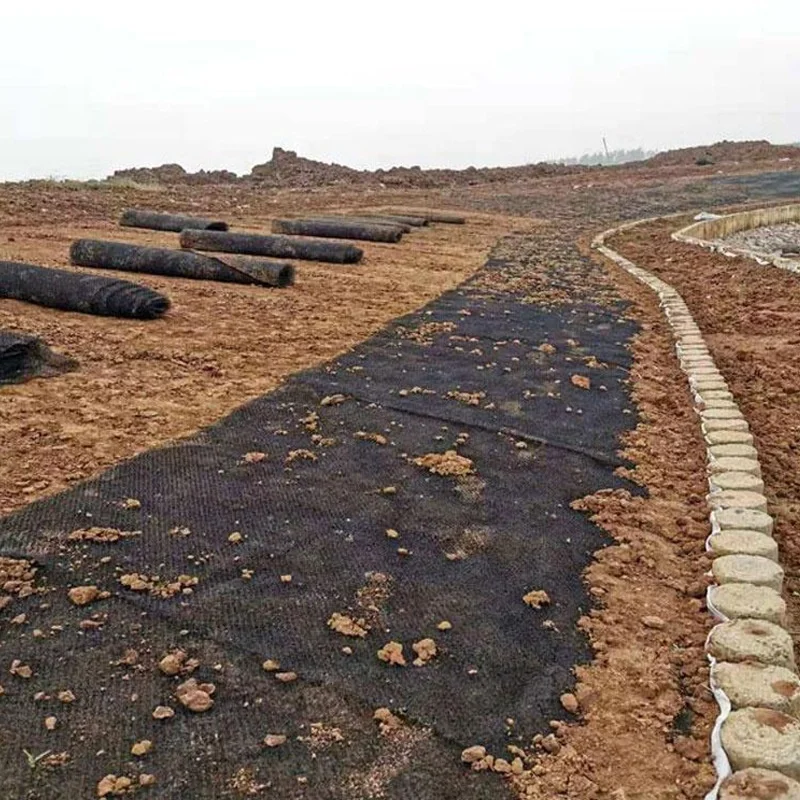

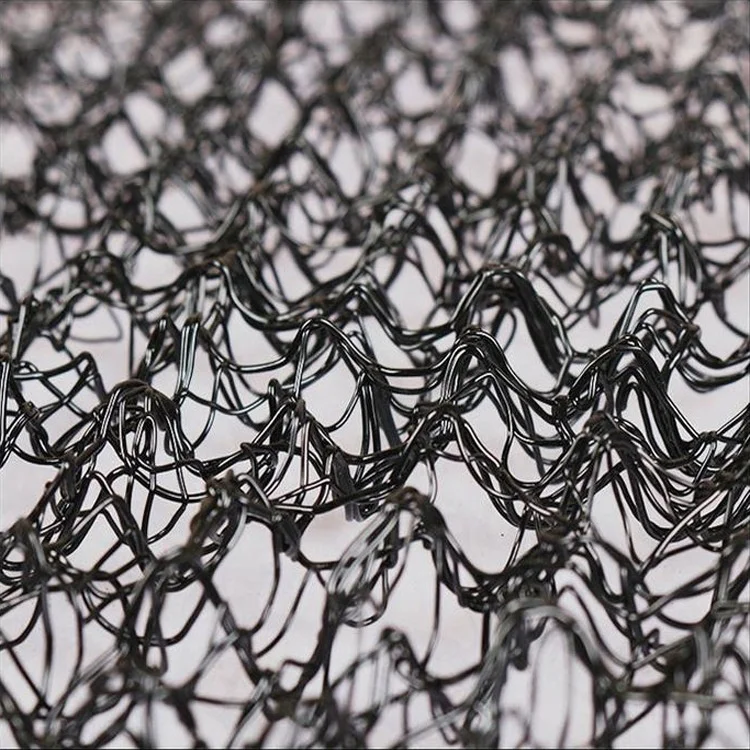

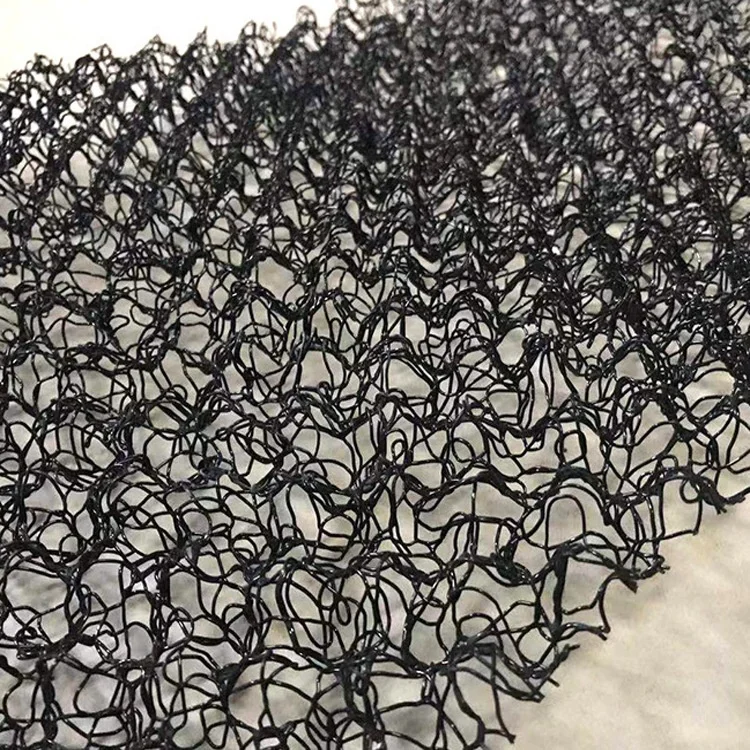

Slope Protection 400gsm 500gsm PA 3D geomat for Soil Erosion Prevention
- Category: >>>
- Supplier: Shandong Bring Plenitude New Materials Co. Ltd.
Share on (1601044136855):
Product Overview
Description
Manufacture outlet wiremesh 3D geomat pad for erosion control and slope protection
Product Description

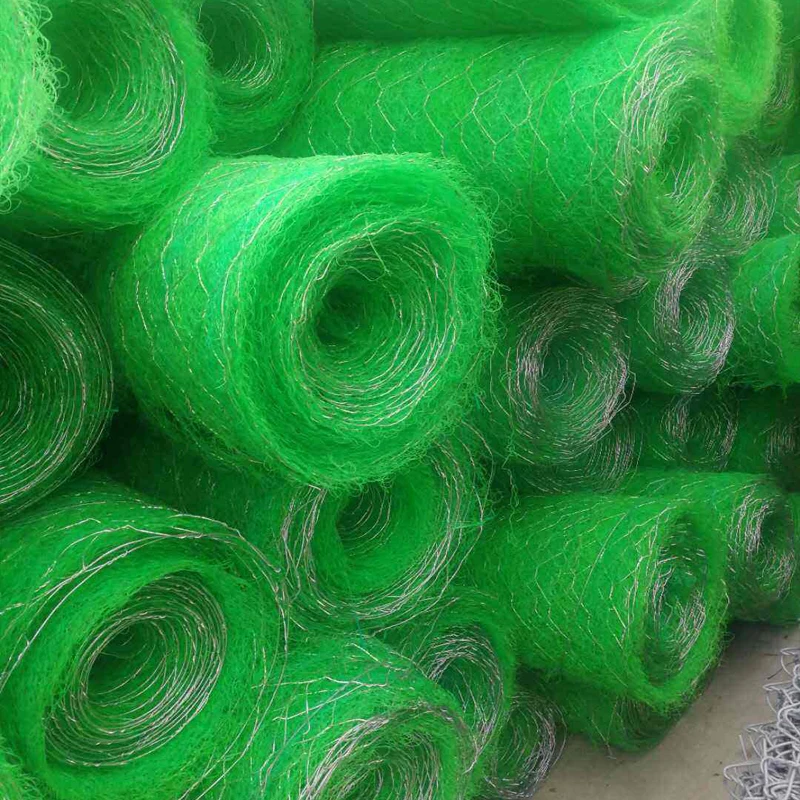

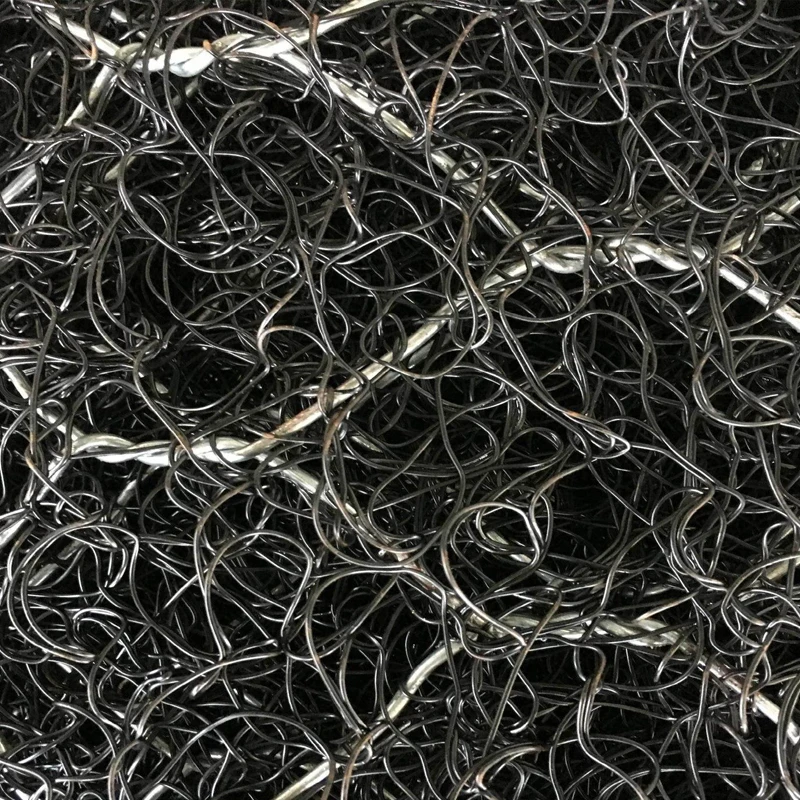

 | Reinforced Mike Pad
Mike Reinforced Pad is a unique combination of geo-textile synthetic material along with hexagonal wire mesh designs that are created to maintain a perfect advantage of allowing natural growth while protecting the erosion and safekeeping the soil as well as preventing the rock fall. |
Features
1) Structural voids are conducive to the deposition of natural soil, which is conducive to grow grass.
2) It has certain ductility and adapts to basic changes.
3) Simple construction, manual laying, saving construction costs.
4) Using high-quality steel wire, long service life.
|  |
Specification
| Item | Mesh(mm) | Mesh Wire(mm) | Selvedge Wire(mm) | Optional Material | Working Life(Year) | Remark |
Hexagonal Wire Mesh | 60x80 | 2.0~3.0 | 2.7~3.4 | Zn-10%Al-rare earth alloy coated steel wire | 40~70 | There are differences in working life in different environments |
| 80x120 | Se-Cr-Zn alloy coated steel wire | 30~60 | ||||
| 100x120 | Galvanized Steel Wire | 0.5~5 | ||||
| Item | Melting Point(℃) | Void Index(%) | Polymers | Density(Kg/m³) | Anti-UV Performance | |
| Geotextile Material | 150 | ≥90 | Polypropylene | 900 | Stable | |
| Customization Available | ||||||

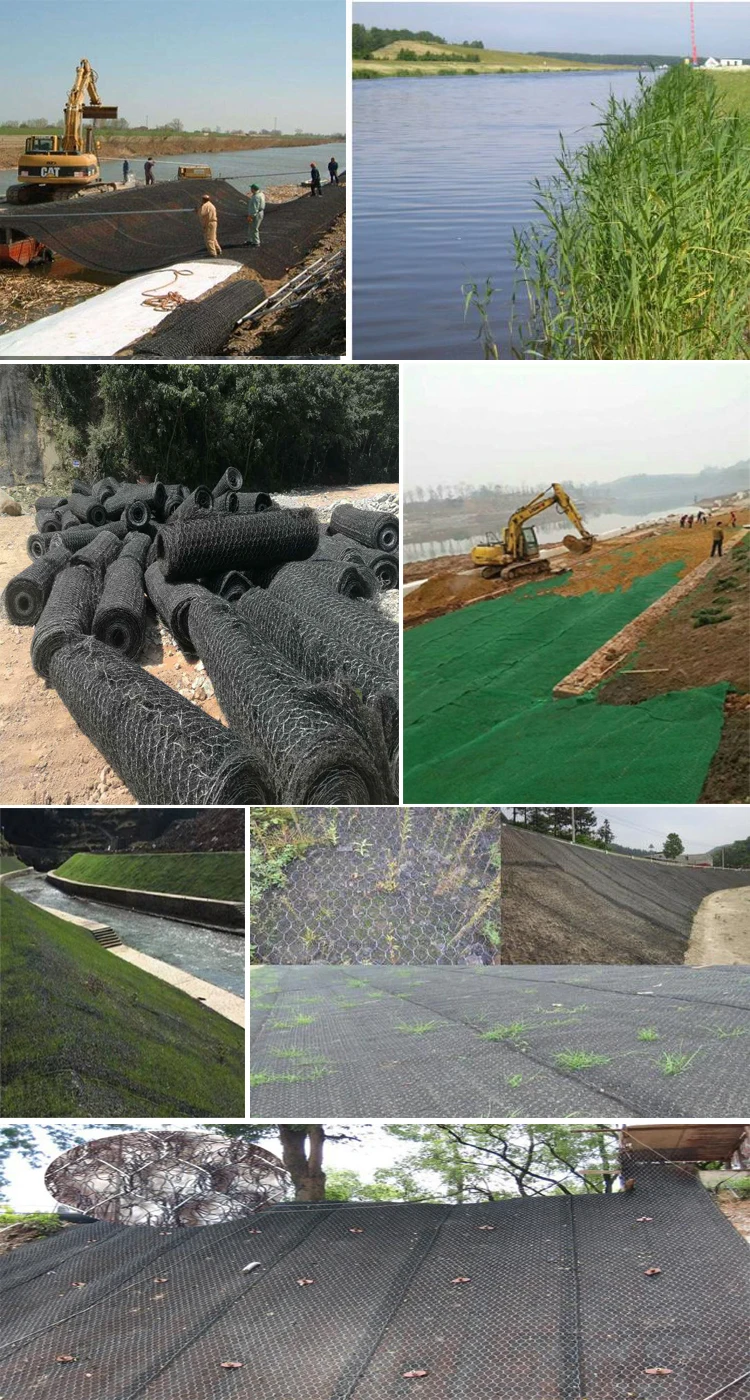

Application
a) Public / railway embankment, embankment, cutting, bridge abutments
b) Landslides, mudslides and control engineering
c) Inland port, coastal protection, urban construction of retaining structures, river training works

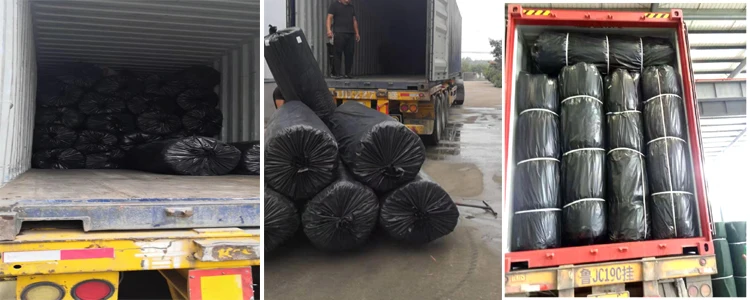

Packing & Delivery
Packaging details: 50m 100m per roll or as per request.
Loading Port: Qingdao
Company Information
Shandong Bring Plenitude New Materials Co.,Ltd. is located in Tai’an city, China. Which is a large private enterprise specializing in the production and management of geotechnical and waterproof materials. Include geomembrane, steel and plastic/fiberglass/polyester geogrid, non woven geotextile, geocell, geomat, waterproofing sheet, GCL etc., They are widely used in water conservancy, tunneling, railway, highway, electric power, municipal, port and other large-scale projects. Our workshop quipped with a number of advanced production lines, the company and has obtained ISO9001, ISO14001 and other certifications, our products are not only popular in domestic engineering projects and bidding, but also exported to more than 30 countries and enjoyed a high popularity and reputation. Shandong Bring Plenitude New Materials Co.,Ltd. is looking forward to cooperating with you and welcomes your visit.
Certifications
The company has passed ISO9001 / ISO14001 / OHSAS18001 and CE certificate.
