Multi Span Film Greenhouse For Tomatoes Seed Growing For Sale
- Category: >>>
- Supplier: Wuxi Zewo Special Steel Co. Ltd.
Share on (1601044174916):
Product Overview
Description
Products Description

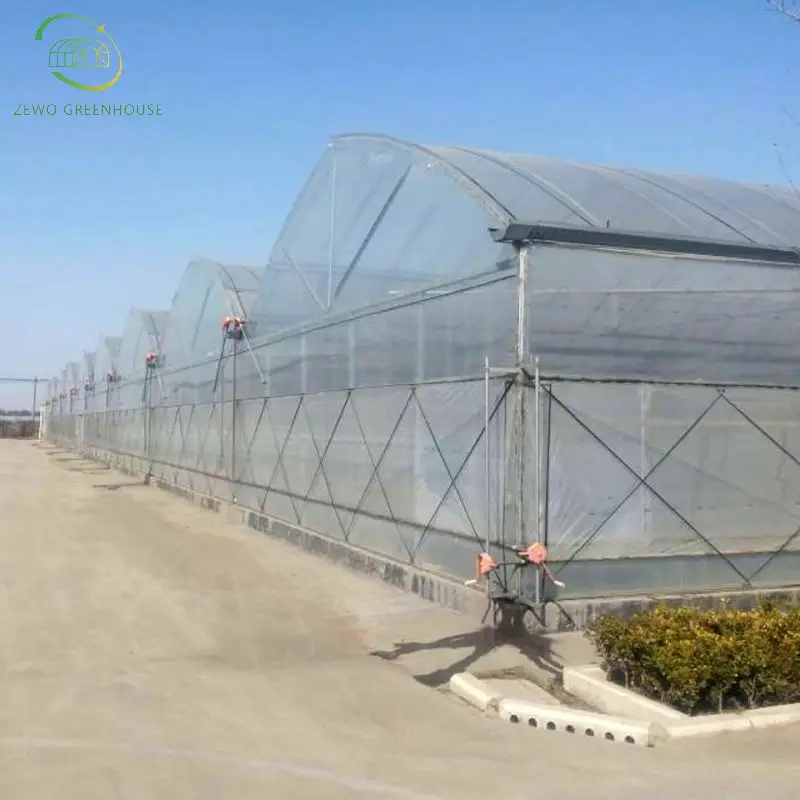

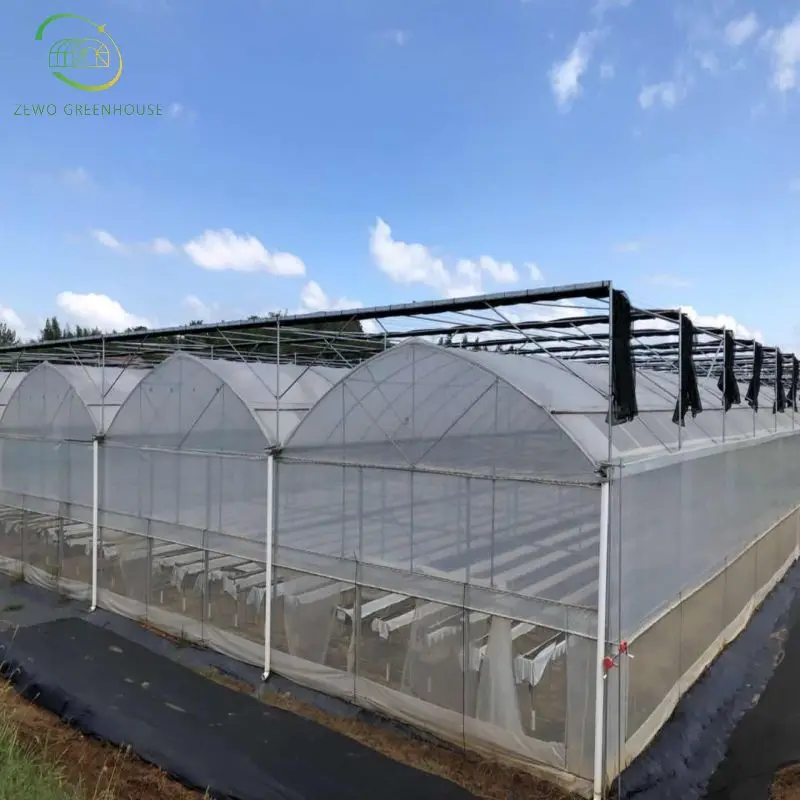

The multi-span greenhouse is an arch-shaped greenhouse with a plurality of greenhouses connected. The span of each multi-span greenhouse is usually between 4 and 12 meters, the height is 3 to 5 meters, and the total area is several thousand square meters,even tens of thousands of square meters. The covered area of multi-span greenhouse is large, and the greenhouse temperature is stable. High-tech intelligent greenhouses are generally equipped with high automation facilities such as external sunshade system,internal covering system, internal thermal insulation system, wet curtain fan forced ventilation cooling system, top ventilation system, heating system, power distribution/control system, etc.
Basic Paramenters | Wind Load | 0.4KN/㎡ | |
Snow Load | 0.3KN/㎡ | ||
Maximum drainage capacity | 120mm/h | ||
Technical Paramenters | Span Width | 6m,7m,8m or customized | |
Column Spacing | 4.0m or customized | ||
Shoulder high | 3.0m-4.0m or customized | ||
Steel Structure | Hot-dip galvanized steel pipe | ||
Covering Material | Plastic agricultural film | ||
Greenhouse Systems | Top window system,fan system,wet curtain system,external shading system,internal shading system,internal thermal insulation system,seedbed system,etc | ||

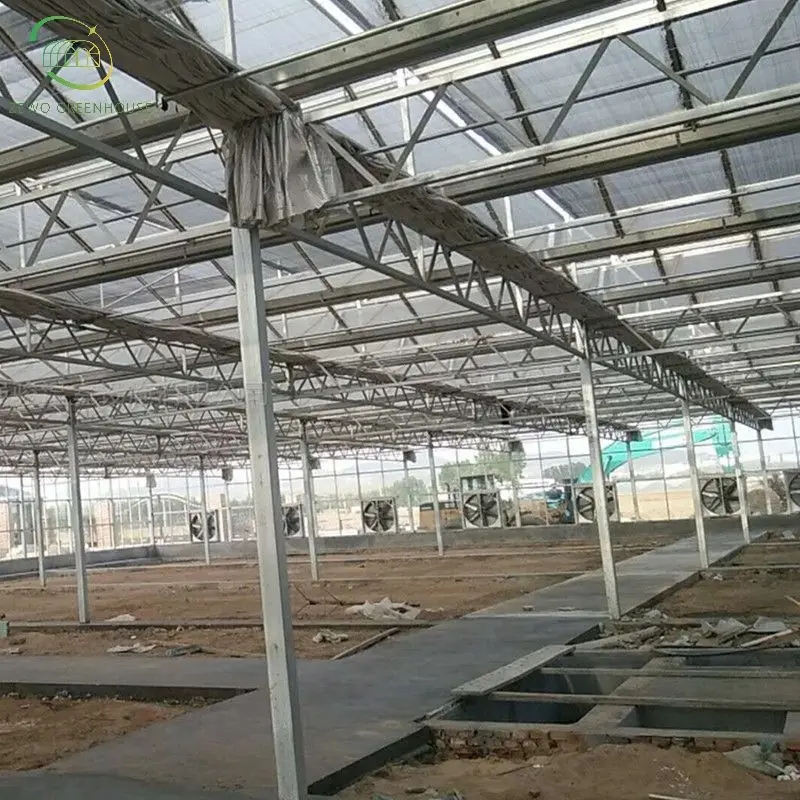

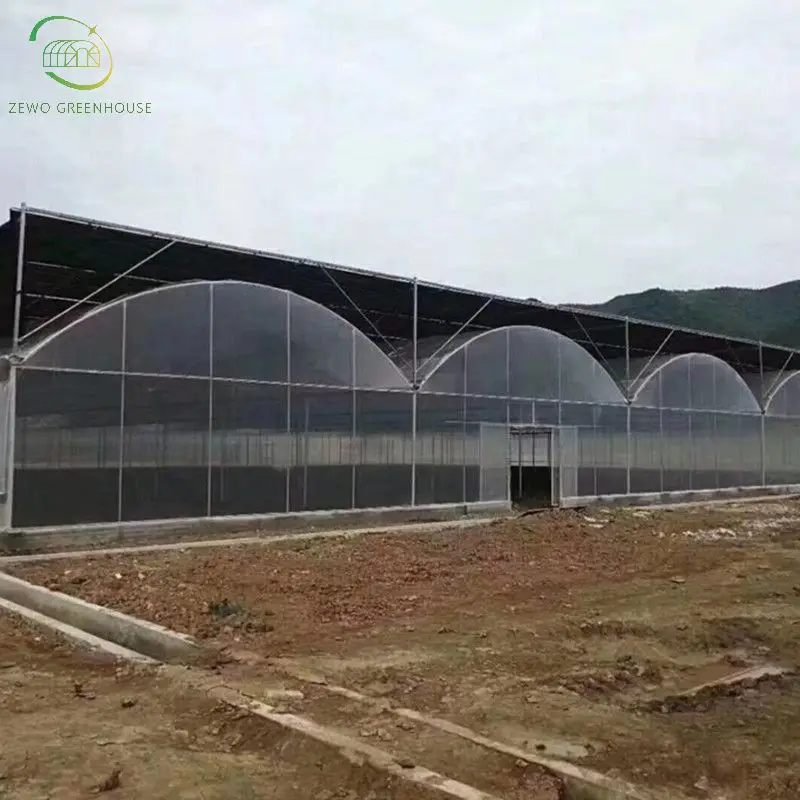

1. The main body of the multi-arch greenhouse:
the skeleton adopts double-sided hot-dip galvanized steel frame structure, and the top and side windows of the greenhouse can be
artificially ventilated or closed according to the change of weather.
(1) Roof form: double arc arch type.
(2) skeleton: hot-dip galvanized low-carbon steel.
(3) Greenhouse frame: span 8m, bay 4m, arch bar spacing 1m, shoulder height 3.5m and top height. 5.5 meters, the external shading
height is 6 meters.
artificially ventilated or closed according to the change of weather.
(1) Roof form: double arc arch type.
(2) skeleton: hot-dip galvanized low-carbon steel.
(3) Greenhouse frame: span 8m, bay 4m, arch bar spacing 1m, shoulder height 3.5m and top height. 5.5 meters, the external shading
height is 6 meters.
2. Covering materials for multi-arch greenhouses:
(1) Top: The top of greenhouse is covered with PEP Lide film with a thickness of 0.15mm.
(2) Surrounding: The greenhouse is covered with PEP Lide film with a thickness of 0.15mm.
3. Ventilation system of multi-arch greenhouse:
(1) Ventilation at the top: There is a manual (electric) film rolling window at the top of the greenhouse with a self-locking device, which can stay at any height freely, and the film rolling stroke is more than 1.4m (8 at the top).
(2) Ventilation around: Manual film rolling windows are set around the greenhouse with self-locking devices, which can stay at any height freely, and the film rolling height is more than 1.8 meters. Every window is equipped with a 25-mesh insect net.
(2) Ventilation around: Manual film rolling windows are set around the greenhouse with self-locking devices, which can stay at any height freely, and the film rolling height is more than 1.8 meters. Every window is equipped with a 25-mesh insect net.

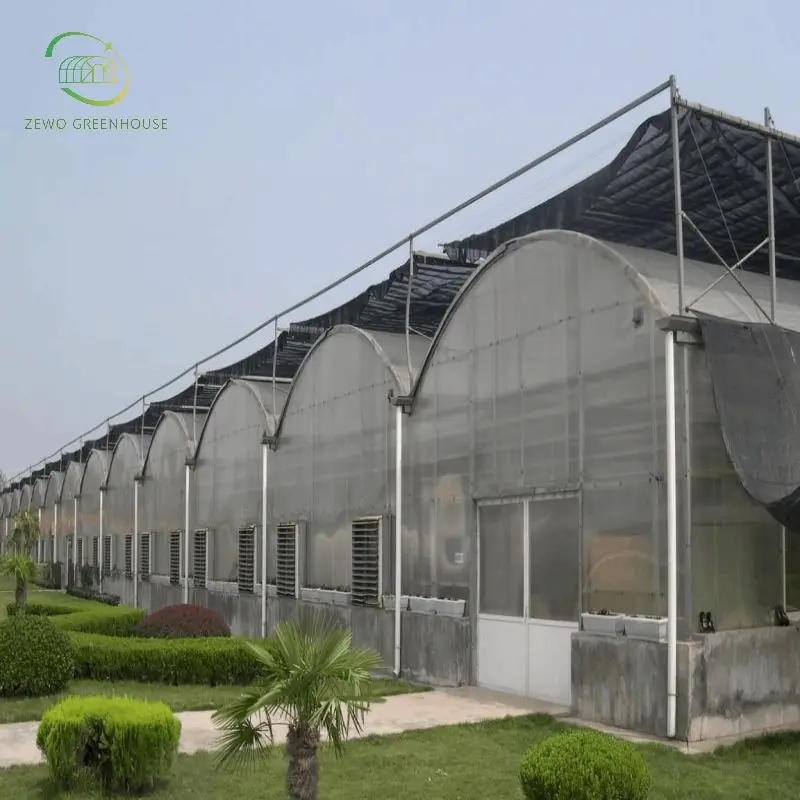

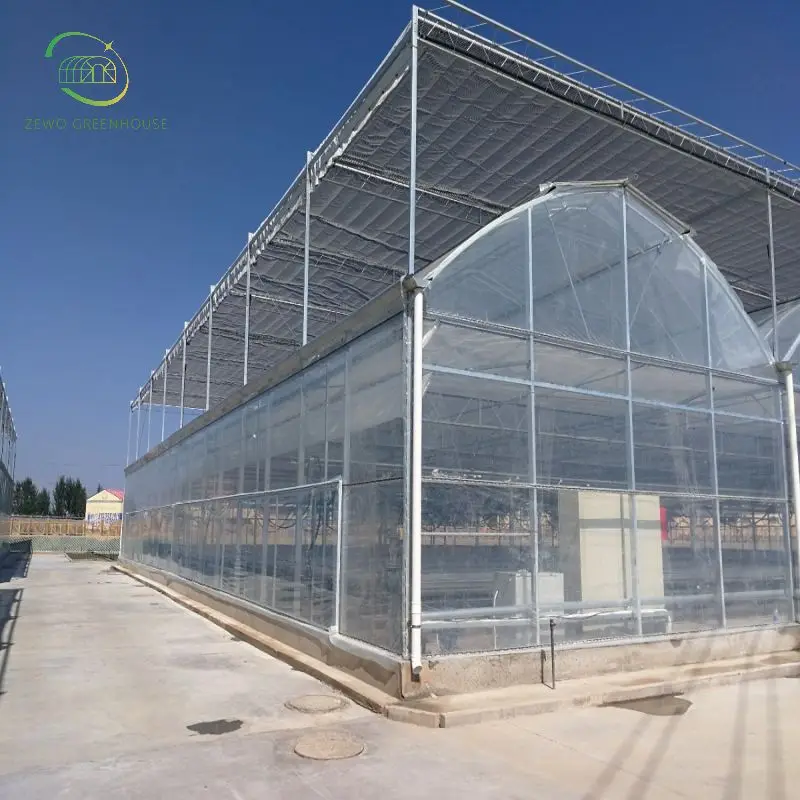

4. External sunshade system:
the steel skeleton adopts double-sided hot-dip galvanized steel frame structure, which has strong wind resistance, is driven by steel wire and runs smoothly. The motor adopts domestic products, and the sunshade net adopts black tiled net, with the sunshade rate of 70%. All the steel parts of the multi-arch greenhouse are hot-dip galvanized on the inner and outer walls, and the inner
and outer walls are completely galvanized, with a thickness of 0.08mm, and there is no obvious sharp burr on the iron parts. All steel pipes meet the national standards.
and outer walls are completely galvanized, with a thickness of 0.08mm, and there is no obvious sharp burr on the iron parts. All steel pipes meet the national standards.

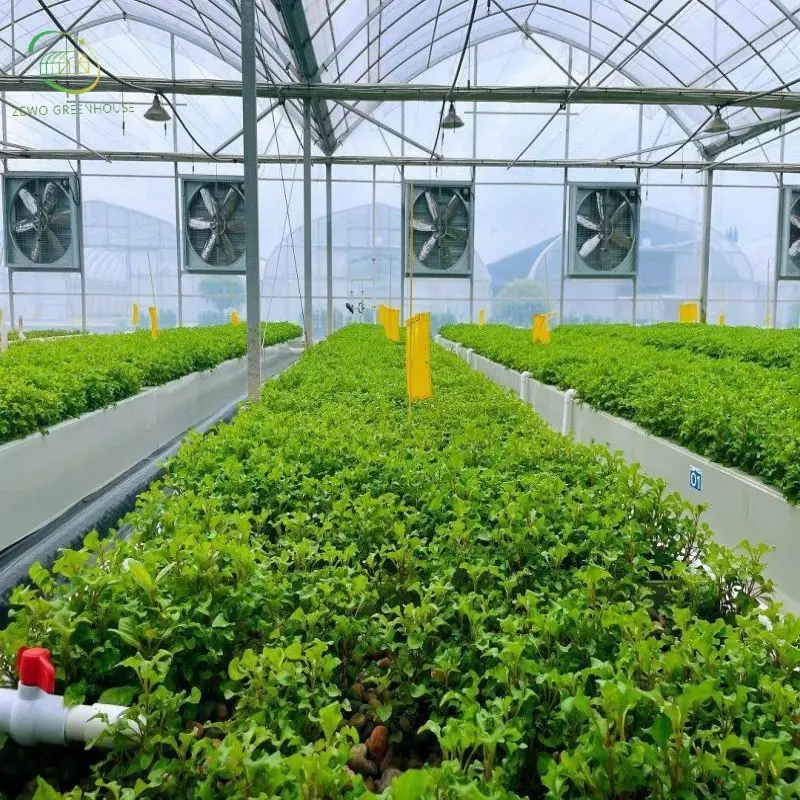

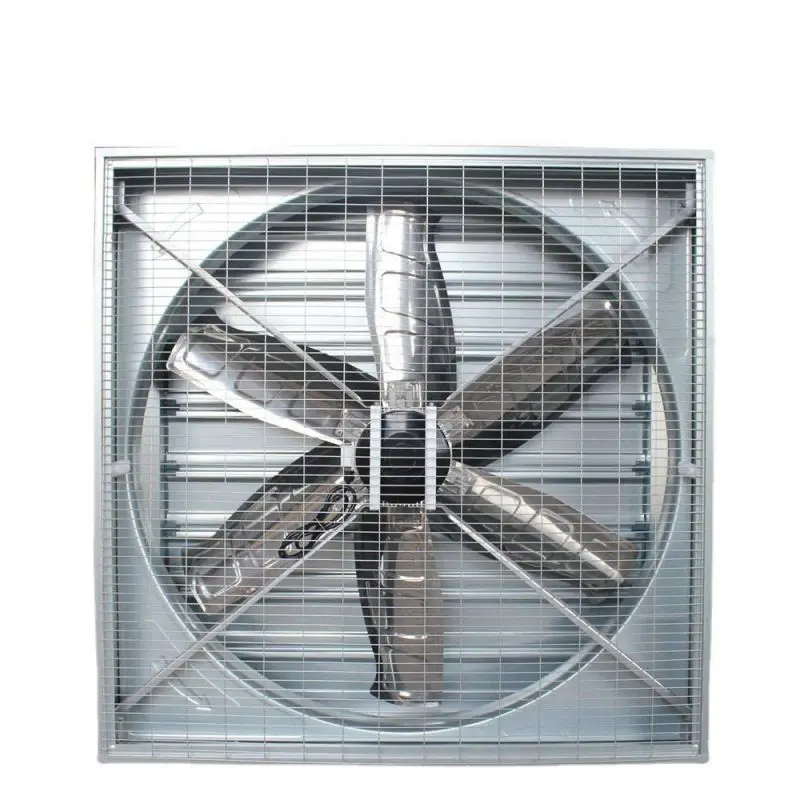

5.Wet curtain-fan cooling system
Wet curtain-fan cooling system is composed of paper porous wet curtain, water circulation system and fan. When unsaturated air flows through the porous and moist wet curtain surface, a large amount of water evaporates, and the sensible heat reflected by
temperature in the air is converted into latent heat of evaporation, thus reducing the temperature of the air itself. When the fan draws air, the cold air cooled by the wet curtain is continuously introduced into the room, so as to achieve the cooling effect.

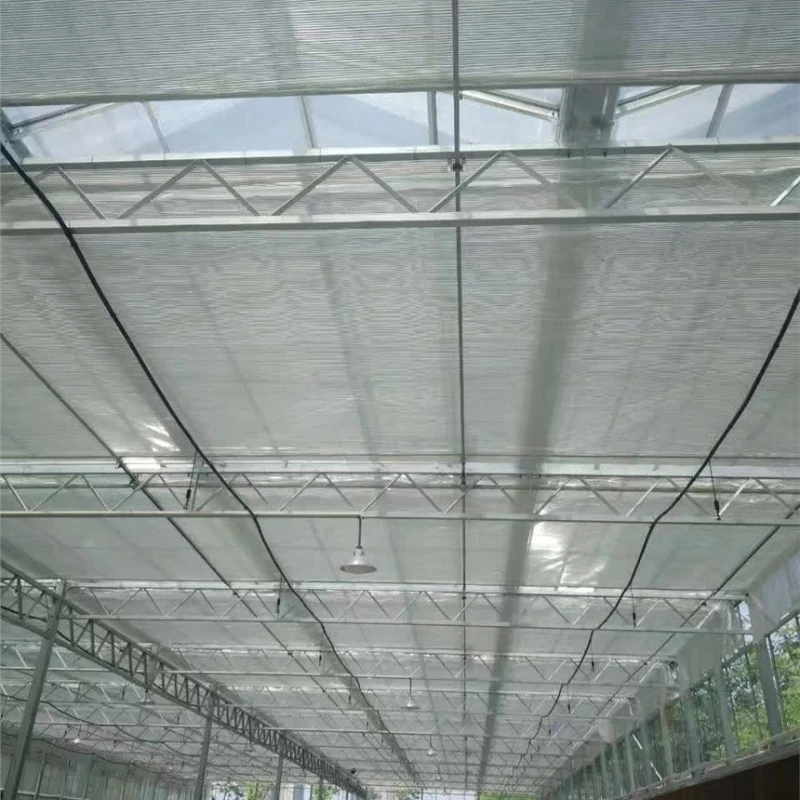

6.Electric internal sunshade system:
1) cooling effect
2) heat preservation function 3) adjust the shading rate
4) Water retention and moisture retention

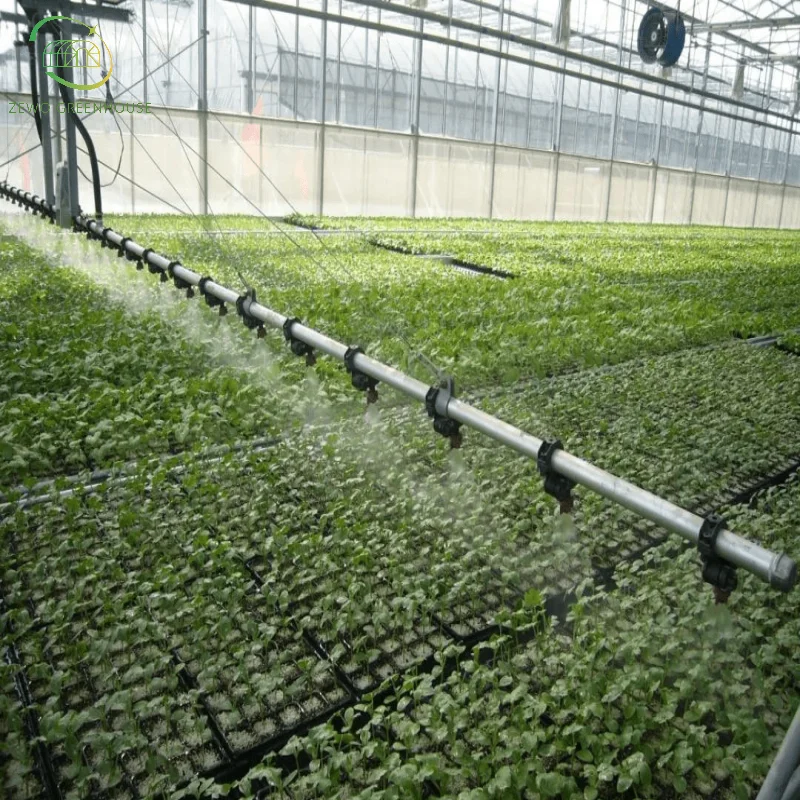

7.Irrigation system:
The function of the greenhouse irrigation system is mainly to be treated with appropriate pressurization, purification, filtration, etc., and then sent to the indoor irrigation equipment through water pipelines. Finally, the crops are irrigated by the irrigators in the greenhouse irrigation equipment

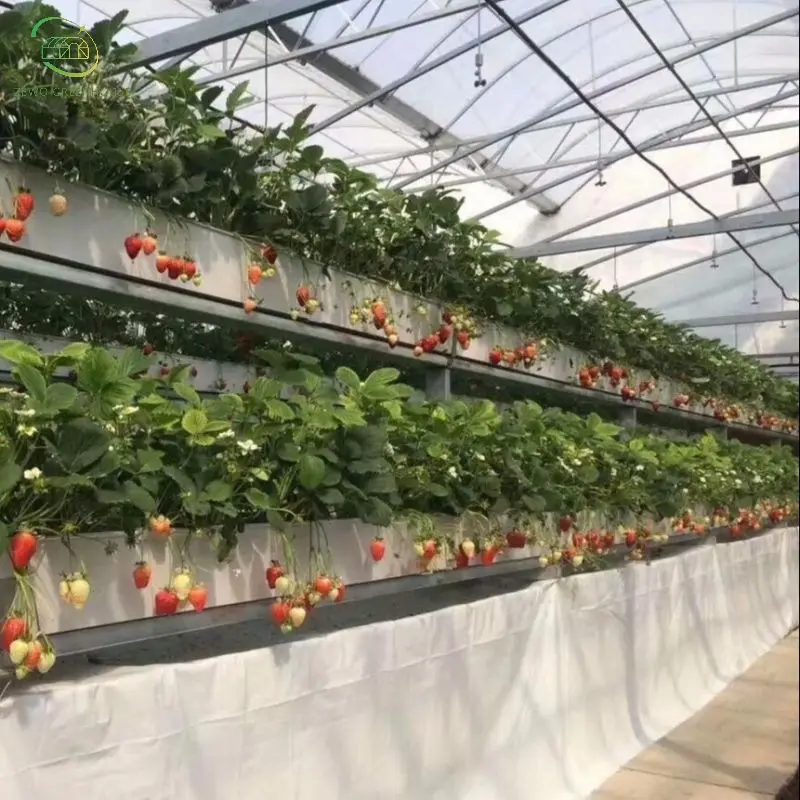

There are four common hydroponics techniques:
1.Deep flow technology, referred to as DFT(Deep Flow Technique)
2.Nutrient film technique, abbreviated as NFT(Nutrient Film Technique)
3.Floating capillary cultivation technique, abbreviated as FCH (Floating Capillary Hydroponics)
4.Fog culture technology, also known as spray culture and Aeroponics.
2.Nutrient film technique, abbreviated as NFT(Nutrient Film Technique)
3.Floating capillary cultivation technique, abbreviated as FCH (Floating Capillary Hydroponics)
4.Fog culture technology, also known as spray culture and Aeroponics.

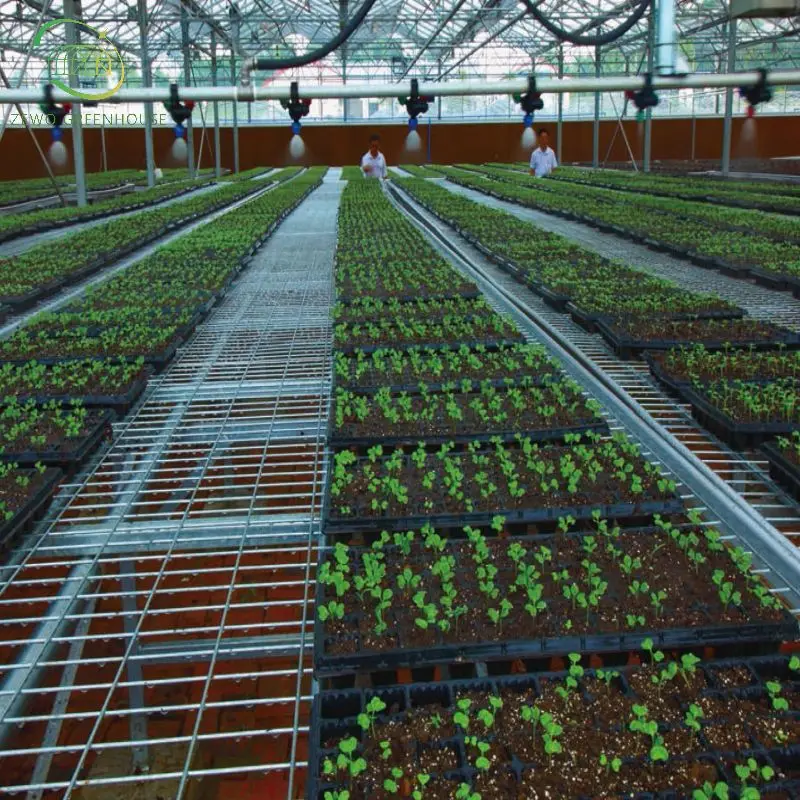

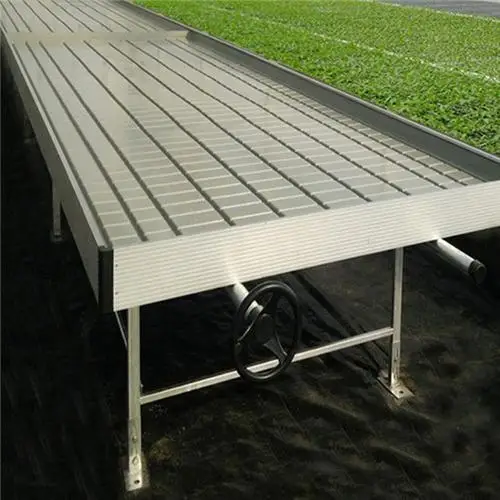

SEED BED
Successful Project
Project in Thailand
Project in India
Project in Russia
Main Products
Why Choose Us
Company Profile
Wuxi Zewo Special Steel Co., Ltd. began to specialize in the production of greenhouse and greenhouse components in 2005.Our products are widely used in agricultural planting, scientific and technological research and development, leisure catering/entertainment, and other occasions and fields.Our products are reliable and long-lasting and backed by years of experience.
90% of our products are exported to all parts of the world.By leveraging our hard-won reputation for honesty, reliability and quality, Wuxi Zewo Special Steel Co., Ltd. aims to continue to be a pioneer in sales.
At the same time we are looking overseas for global partners. If your company is an end user, distributor or agent of greenhouse products, please contact us.
We look forward to working with you in the near future.
At the same time we are looking overseas for global partners. If your company is an end user, distributor or agent of greenhouse products, please contact us.
We look forward to working with you in the near future.
FAQ
1. who are we?
we are manufacturer for types of greenhouse for 9 years.
With professional engineer team for greenhouse design, complete after-sale service and factory direct sale for you now!
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Greenhouse,Multi-Span Greenhouse,Glass Greenhouse,Plastic Film Greenhouse,Greenhouse Accessories.
4.Is there any instruction or manual guide installation?
Yes, English manual with drawing and video shipped together with goods for guiding your installation easily.
we are manufacturer for types of greenhouse for 9 years.
With professional engineer team for greenhouse design, complete after-sale service and factory direct sale for you now!
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Greenhouse,Multi-Span Greenhouse,Glass Greenhouse,Plastic Film Greenhouse,Greenhouse Accessories.
4.Is there any instruction or manual guide installation?
Yes, English manual with drawing and video shipped together with goods for guiding your installation easily.
