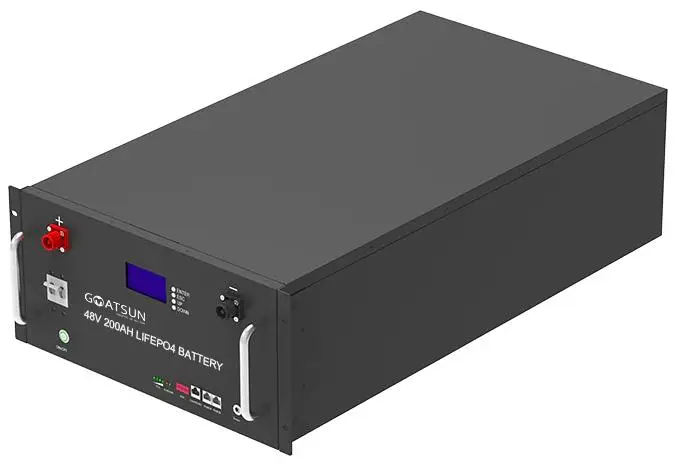

GOATSUN A Grade Lithium Battery Cell 18650 Rack Type High Safety Lifepo4 Battery
- Category: >>>
- Supplier: Hefei Gaoshang New Energy Co. Ltd.Hefei Ltd.
Share on (1601044303361):
Product Overview
Description
Products Description
MODEL NO | GS 48-200 | |||
Battery Chemistry | LiFePO4 | |||
Capacity (Ah) | 200 | |||
Scalability | Max.16pcs in parallel (229.44kWh) | |||
Nominal Voltage (V) | 48V | |||
Operating Voltage(V) | 46-56 | |||
Energy (kWh) | 9.6 | |||
Usable Energy (kWh) | 8.64 | |||
Charge/Discharge Current (A) | Recommend | 100 | ||
Max. | 150 | |||
Peak(2mins,25℃) | 200 | |||
Other Parameter | ||||
Recommend Depth of Discharge | 90% | |||

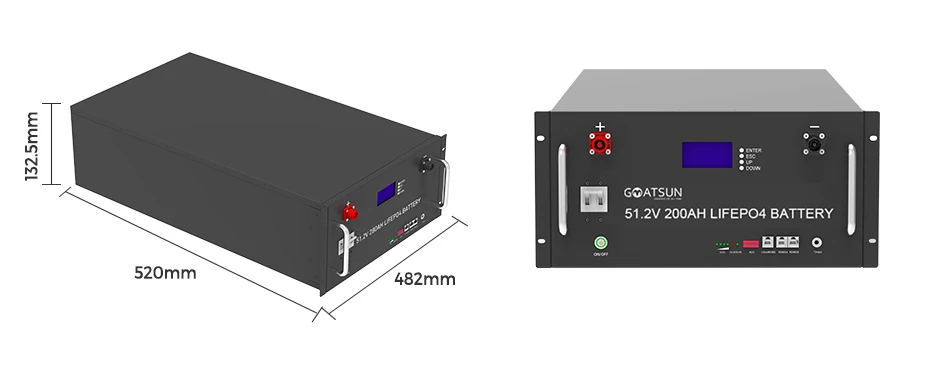

Dimension (W/H/D,mm) | 482*800*221.5 | |||
Weight Approximate (kg) | 120.50 | |||
Master LED Indicator | 4 LED (SOC:25%~100%) | |||
2 LED (working, alarming, protecting) | ||||
IP Rating of Enclosur | IP20 | |||
Working Temperature | Charge:0℃～55℃ Discharge:-20℃～55℃ | |||
Storage Temperature | 0℃～35℃ | |||
Humidity | 5%~95% | |||
Altitude | ≤2000m | |||
Cycle Life (25±2℃,0.5C/0.5C,80%EOL) | ≥6500 | |||

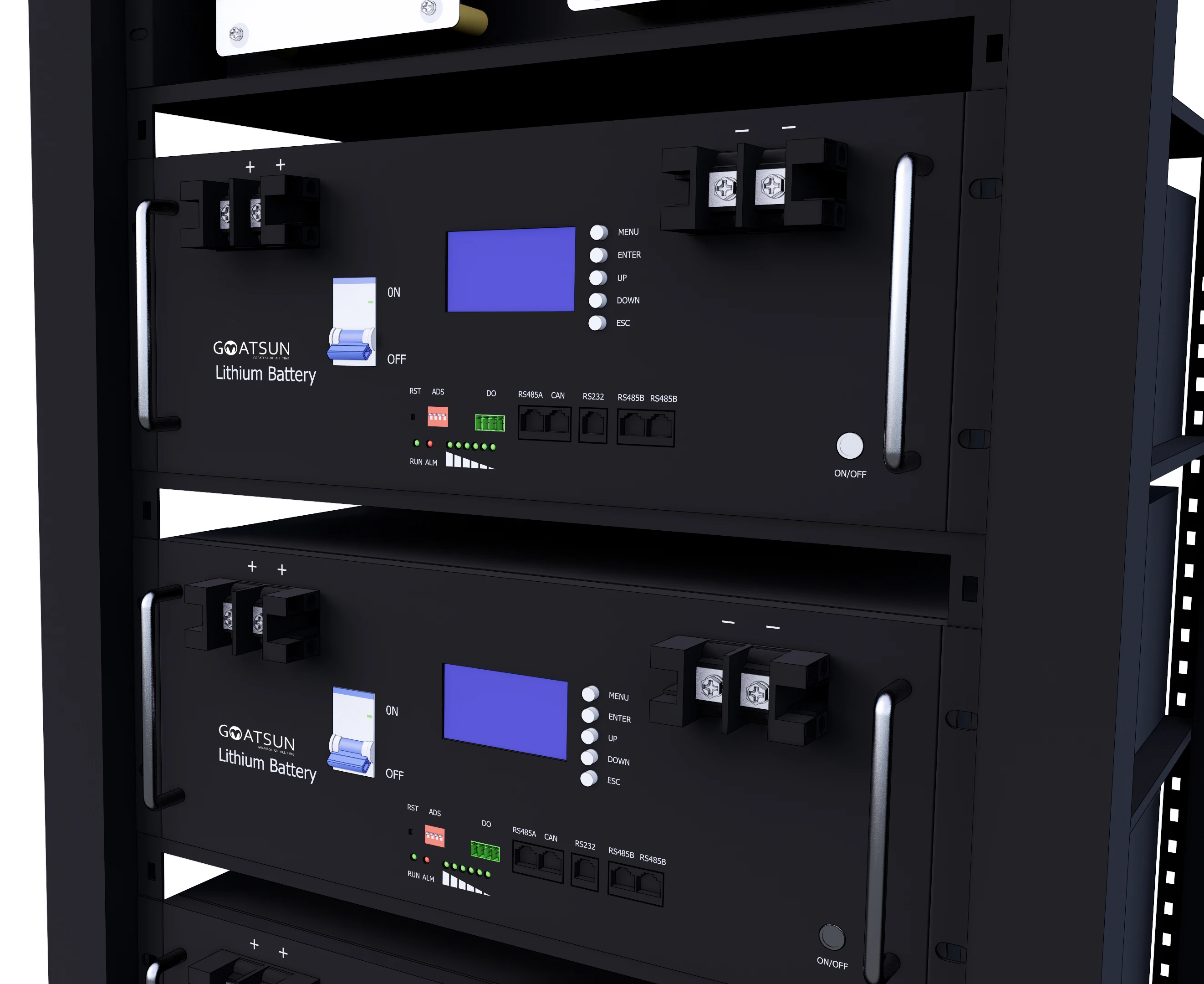

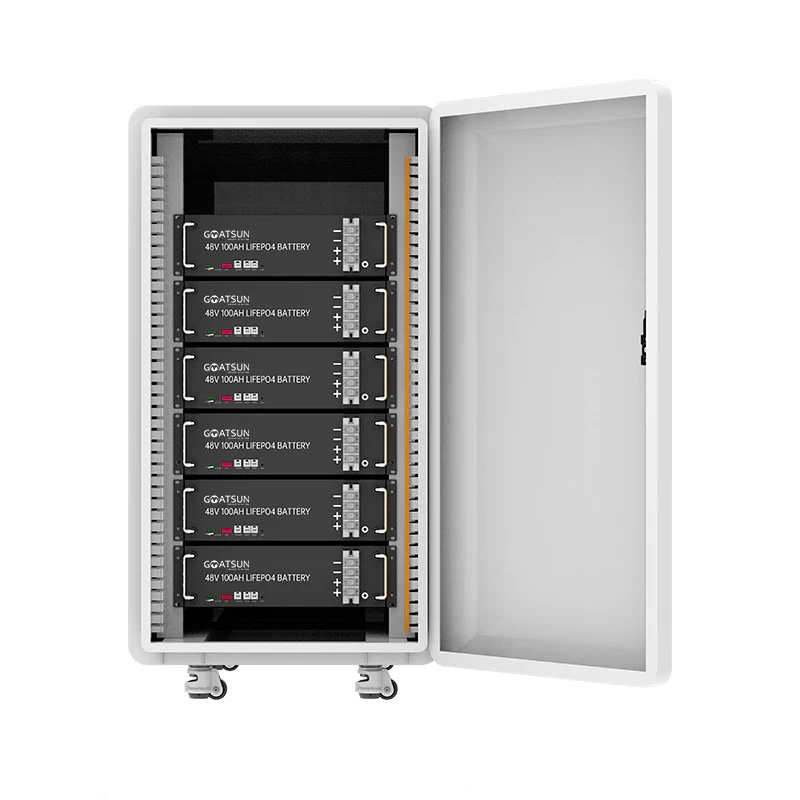

Installation | 19inch Rack-mounted | |||
Communication Port | CAN2.0, RS485 | |||
Warranty Period [3] | 15 years | |||
Life Cycle Power During Warranty Period | 62.80MWh@80% EOL | |||
Certification | UL1973, CB-IEC62619, CE-EMC, MSDS, UN38.3 | |||

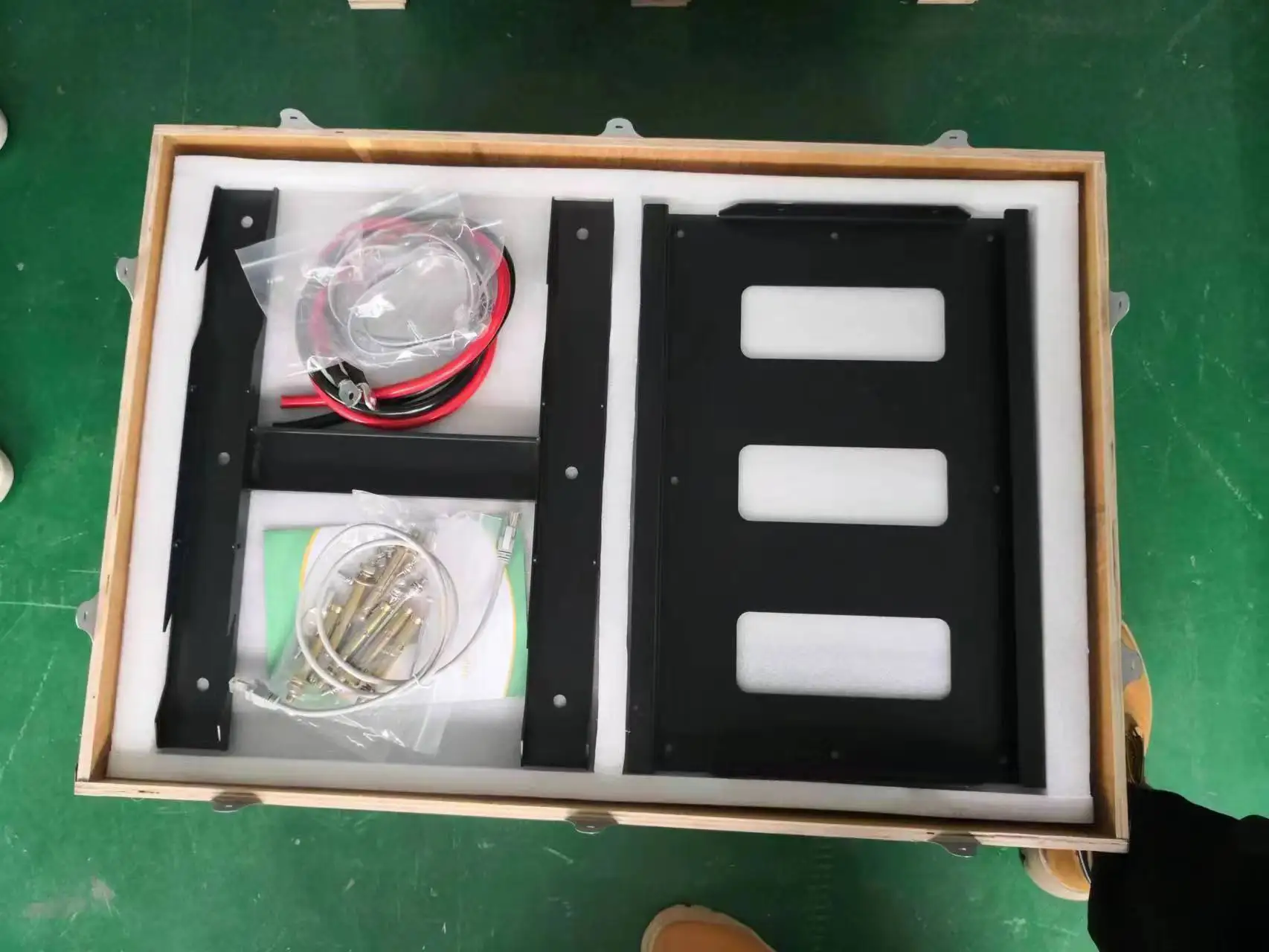

Product packaging
Product packaging
