BMS Storage System Battery Lifepo4 16s Deep Cycle 48v Solar Battery 1000ah
- Category: >>>
- Supplier: Shenzhen Ctechi Technology Co. Ltd.
Share on (1601044329264):
Product Overview
Description
Products Description
Specification
Battery Module Unit
Energy | 2.56KWH | 5.12KWH | 7.68KWH | 10.24KWH | ||||
Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V | ||||
Nominal Capacity | 50Ah | 100Ah | 150Ah | 200Ah | ||||
Working Voltage Range | 40-57.6V | |||||||
Max. Chaging Current | 100A | 100A | 100A/150A | 100A/200A | ||||
Max. Discharging Current | ||||||||
Size(mm) | 3U | 3U/4U | 3U/4U | 5U | ||||
Depth | 380mm | 680mm | 540mm | |||||
Weight(kg) | 24 | 45 | 68 | 96 | ||||
Series | 16S | |||||||

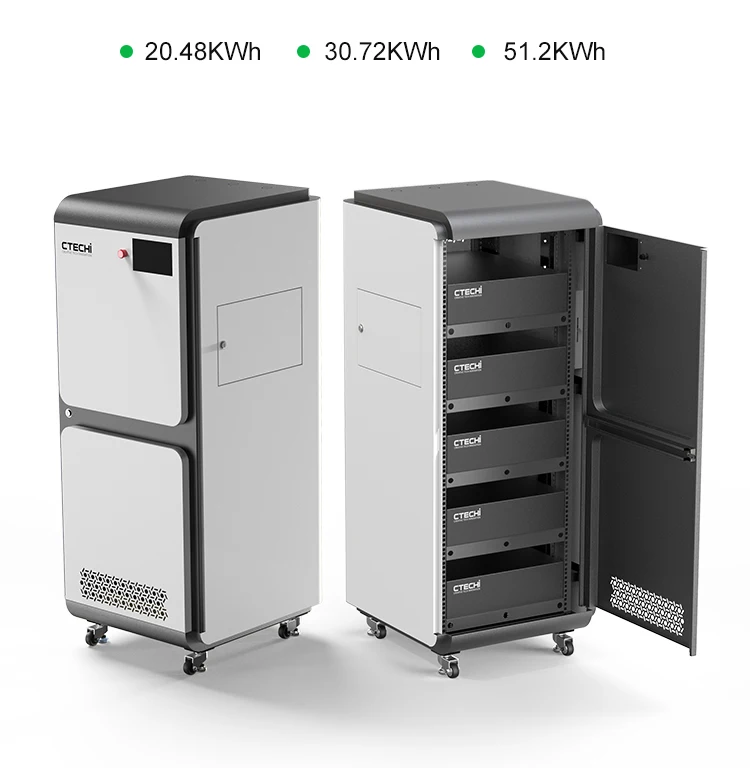

Battery Module Array
Model | CT5KWL1-PK20K | CT5KWL1-PK30K | CT5KWL1-PK50K | ||
Energy | 20.48KWH | 30.72KWH | 51.2KWH | ||
Nominal Voltage | 51.2V | 51.2V | |||
Nominal Capacity | 400Ah | 600Ah | 1000Ah | ||
Working Voltage Range | 40-57.6V | ||||
Max. Chaging Current | 200A | ||||
Max. Discharging Current | |||||
Size(mm) | 19in,32U Depth:660mm | 19in,32U | 19in,48U Depth:800mm | ||
Weight(kg) | 199 | 280 | 450 | ||
Parallel | 4P | 6P | 10P | ||
Detail Description

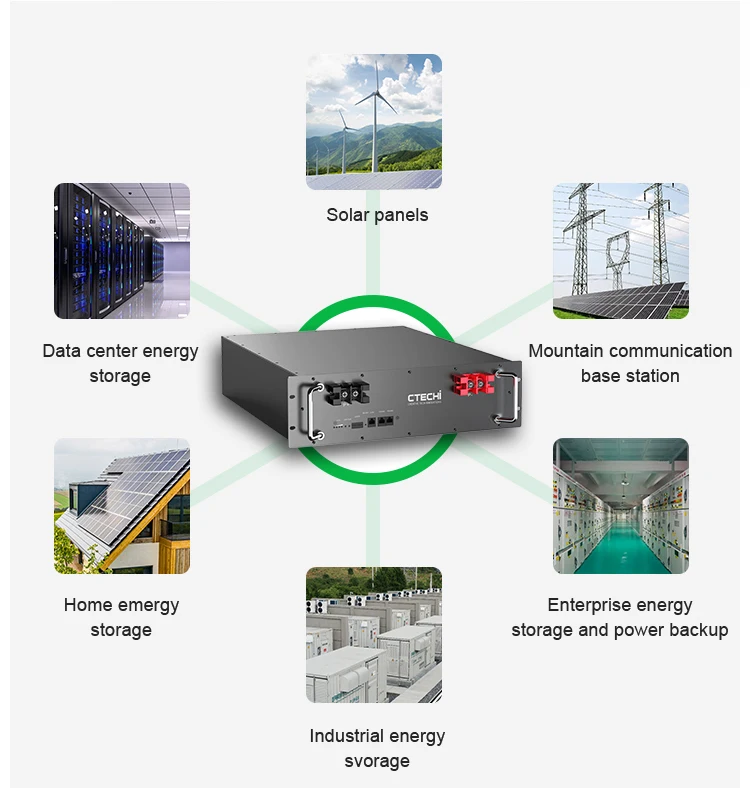

Applications:
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment

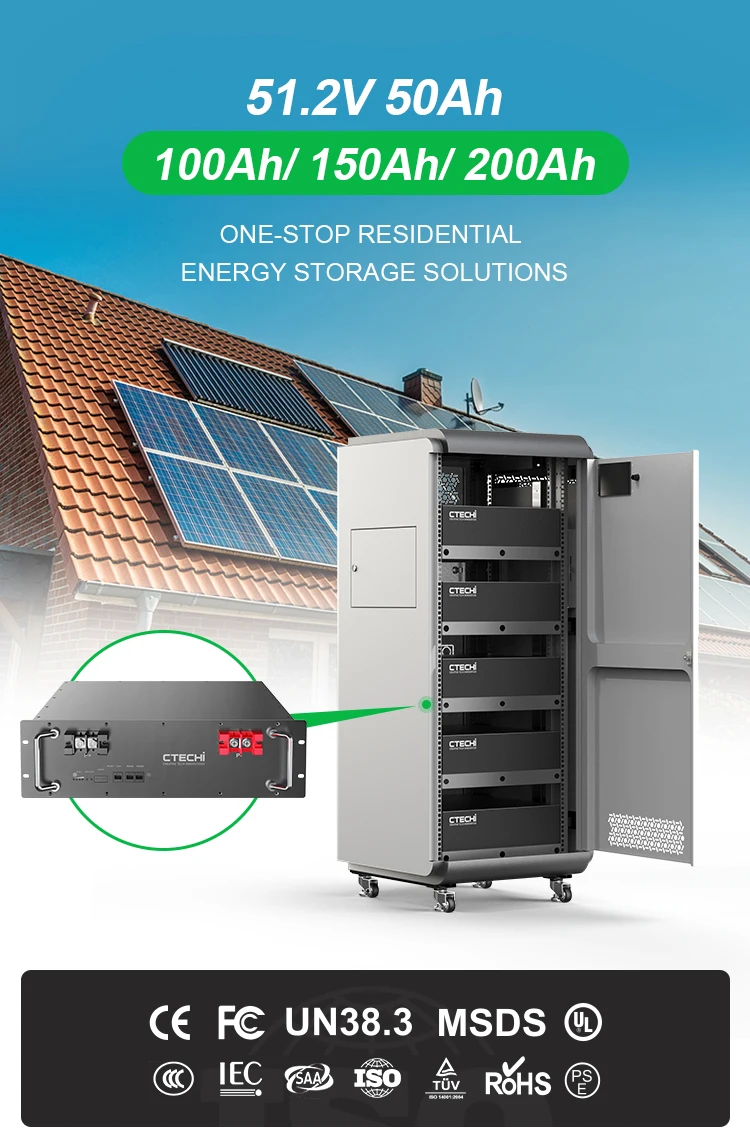

APPLICATION

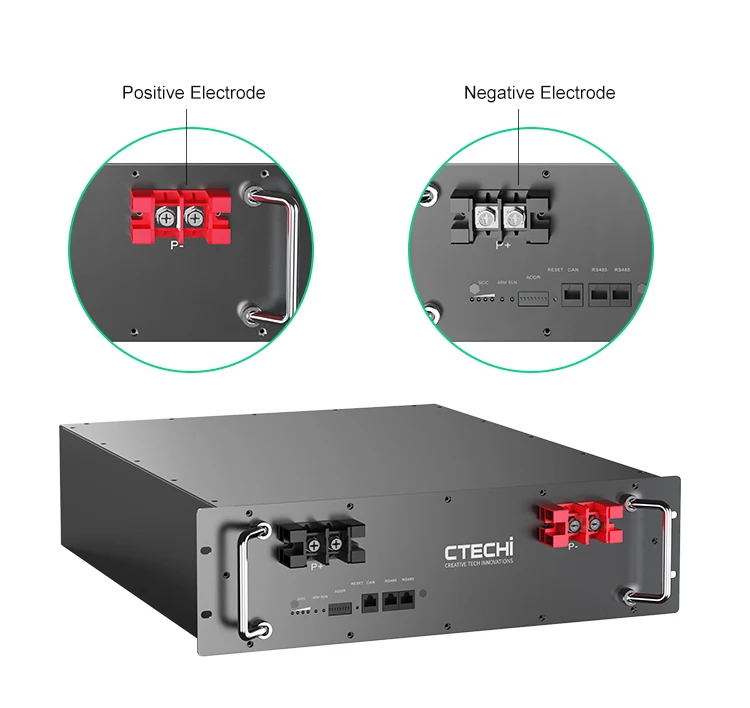

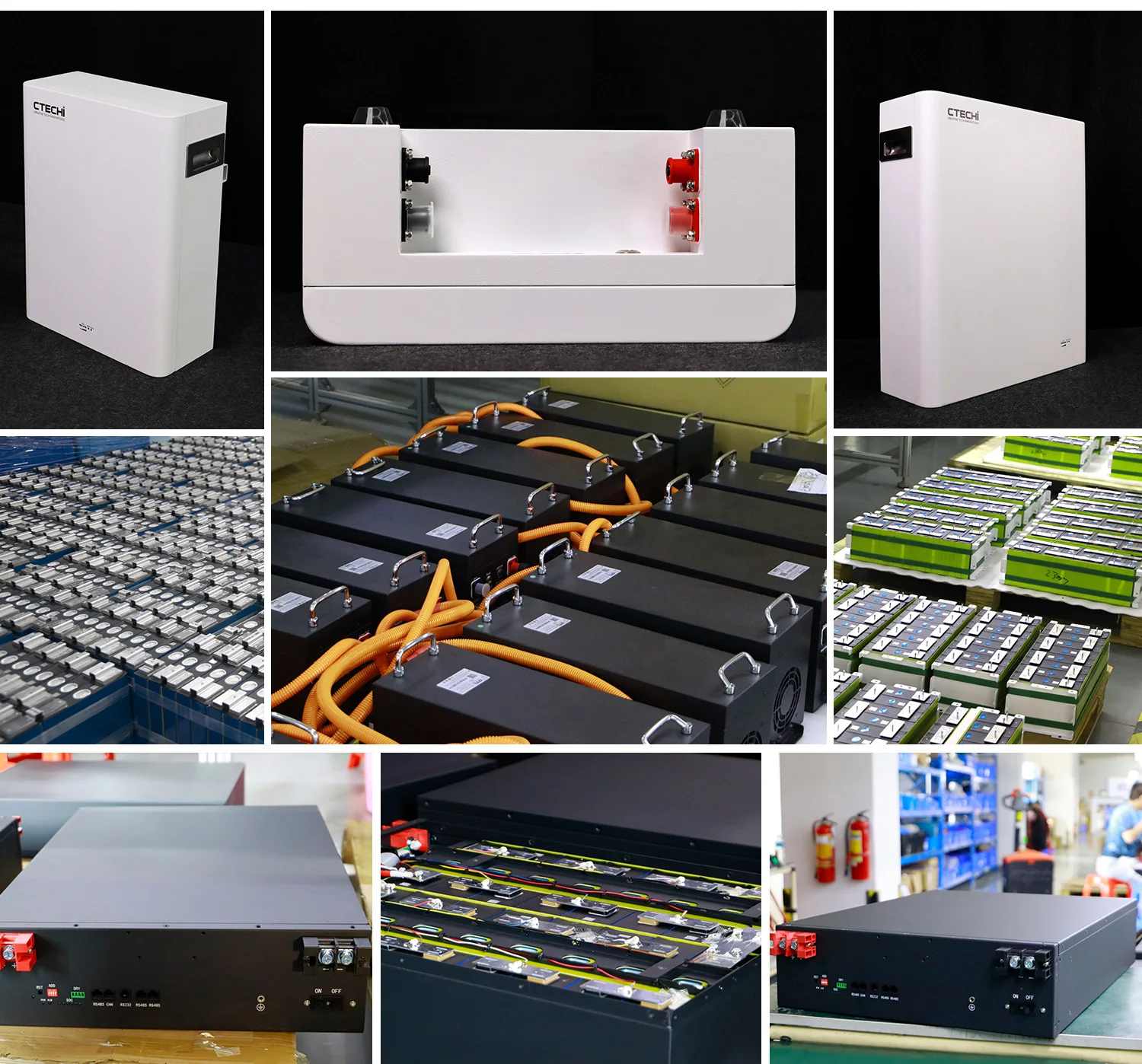

Physical Display
Product Categories
Why Choose Us
1.CTECHi focus on the battery industry for more than 19 years;
2.We have an experienced technical team of over 300 engineers；
3.UL,CE,RoHs,UN38.3,MSDS,IEC etc;
4.Logo customization renderings will be produced within 1 working day；
5.Using A cells, the quality is visible.
3.UL,CE,RoHs,UN38.3,MSDS,IEC etc;
4.Logo customization renderings will be produced within 1 working day；
5.Using A cells, the quality is visible.
