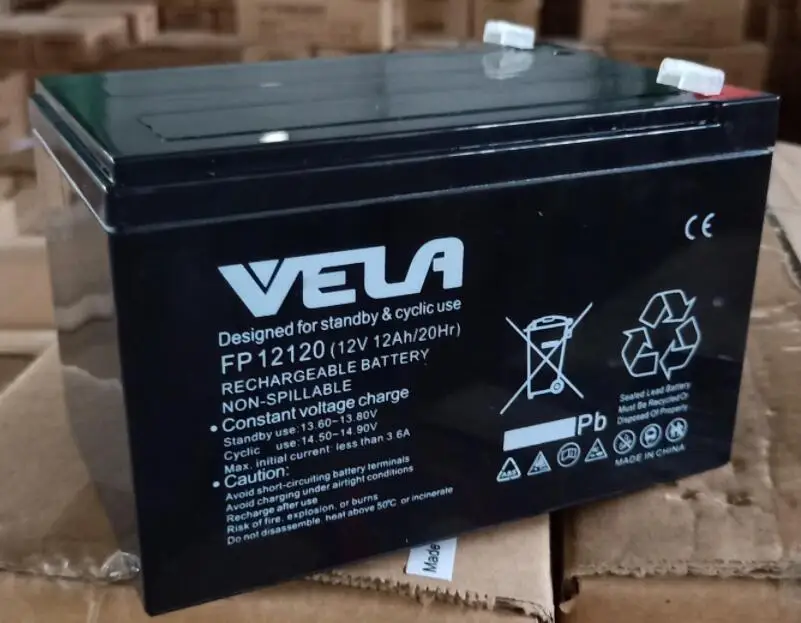

VELA FP12120 Long Service Lead acid Battery with 12V 12ah for solar power
- Category: >>>
- Supplier: Vela Power Technology Co. Ltd.
Share on (1601044340320):
Product Overview
Description
Battery type | VRLA battery/ AGM battery |
Model | FP12120 |
Voltage | 12V |
Capacity | 12 Ah |
Design life | 10 Years at 25℃ |
Dimension | 151*98*95*101 mm |

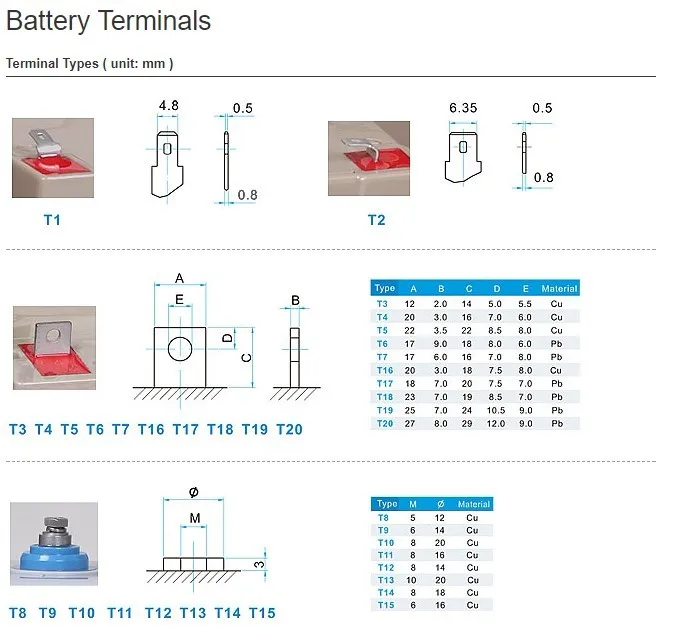

Terminal | T1/T2/T21 |

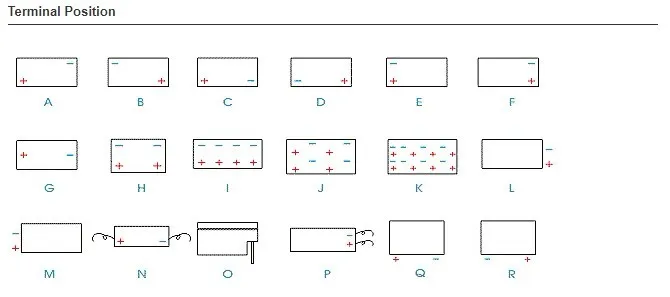

Terminal position | F |
Features
-Spill prevention
-Sealing structure and maintenance free
-Low Self-discharge
-Lower internal resistance
-Exceptional Deep Discharge Recovery
-Long Service Life
-Environmentally friendly
-Good quality and high reliability
-Sealing structure and maintenance free
-Low Self-discharge
-Lower internal resistance
-Exceptional Deep Discharge Recovery
-Long Service Life
-Environmentally friendly
-Good quality and high reliability
UPS battery, battery backup, ups battery price, SLA battery, lead acid battery, sealed lead acid battery, ups battery replacement, battery for UPS, 2V UPS battery, 4V UPS battery, 6V UPS battery, 8V UPS battery, 12V UPS battery, 24V UPS battery, 36V UPS battery, 2V battery, 4V battery, 6V battery, 8V battery, 12V battery, 24V battery, 36V battery
Battery Discharging Characteristics:
The discharging capacity of the battery depends on the discharge rate being used and ambient temperature. The rated capacity of a battery is reduced when it is discharged at a value of current that exceeds its 10-hours or 20-hours rate.
Open Circuit Voltage and Residual Capacity
Residual capacity can be estimated by measuring the open circuit voltage as the picture.
Effect of Temperature on Capacity
At a higher temperature, the capacity of battery increases and conversely at a lower temperature, the capacity of battery decreases. The pictures shows the effects of different temperature in relation to battery capacity.
Self-discharge Characteristics
The time for the capacity to decrease to 50% of nominal capacity at each temperature during storage. If the storage temperature is known, the graph may be used for finding the most useful recommended refresh charge intervals.
Effect of Temperature on Charging Voltage
As temperature rises, electrochemical activity in the battery increases. Similarly, as temperature falls, electrochemical activity decreases. Therefore, as temperature rises, charging voltage should be reduced to prevent overcharge, as temperature falls, charging voltage should be increased to avoid undercharge. In general, to assure optimum service life, use of a temperature compensated charger is recommended. The picture shows the relationship between temperatures and charging voltages in both cyclic and standby applications.
Constant Voltage Charging
Standby service: 2.23-2.30 vpc at 20oC(68oF) to 25oC(77oF) Cycle service: 2.40-2.50 vpc at 20oC(68oF) to 25oC(77oF) It is suggested that the initial current be set within 0.4CAmps. The charging current is decreased to approx 0.5-4mA/Ah under charging voltage 2.30 vpc, and 3-10mA/Ah under charging voltage 2.40vpc when the battery is fully charged at 20oC(68oF) to 25oC(77oF).
Note: it is necessary to ensure that the voltage is correctly set. The charging voltage set too high will increase the corrosion of the positive plates causing loss of capacity and ultimately shortening the life of the battery.
Note: it is necessary to ensure that the voltage is correctly set. The charging voltage set too high will increase the corrosion of the positive plates causing loss of capacity and ultimately shortening the life of the battery.
Cyclic Life
Giving due consideration to the above factors, the actual life of a battery in cycle service is dependent on the depth of
discharge of each cycle. The greater the depth of discharge of each cycle, the less the number of cycles available from the battery.
discharge of each cycle. The greater the depth of discharge of each cycle, the less the number of cycles available from the battery.
Standby Life
The estimated life under float service of FP type is 7 years at 20oC/68oF; LFP type is 12 years at 20oC/68oF; CFP type is more than 20 years at 20oC/68oF. The float service life is affected by the factors listed above and the number of discharging, the depth of discharging the battery suffers during its life time. The more discharges suffered and the deeper the discharges, the shorter the battery life. The higher the temperature, the shorter the battery life. If the battery temperature remains at an elevated level for an extended period of time, the expected life is reduced by 50% for each 8 to 10oC of constant temperature
above 20oC/68oF.
above 20oC/68oF.
Advantage
✔Nonspillable
✔Seal and maintenance free
✔High quality and hiah reliability
✔Exceptional deep discharge recovery
✔Low self discharge
✔Low service life
✔Solid copper terminals
✔Computer-aided design and manufacturing
Recommend Products
Application
Solar system
Alarm system
Telecommunications system
Emergency lighting system
Computer
Electronic Cash Registers
Electric bicycle and wheelchair
Cable TV
Electrical tools
TV and video recorder
Communications Equipment
Control Equipment
Security Equipment
Geophysical equipment
Marine Equipment
Medical equipment
Electric Test Equipment
Vending machine
UPS

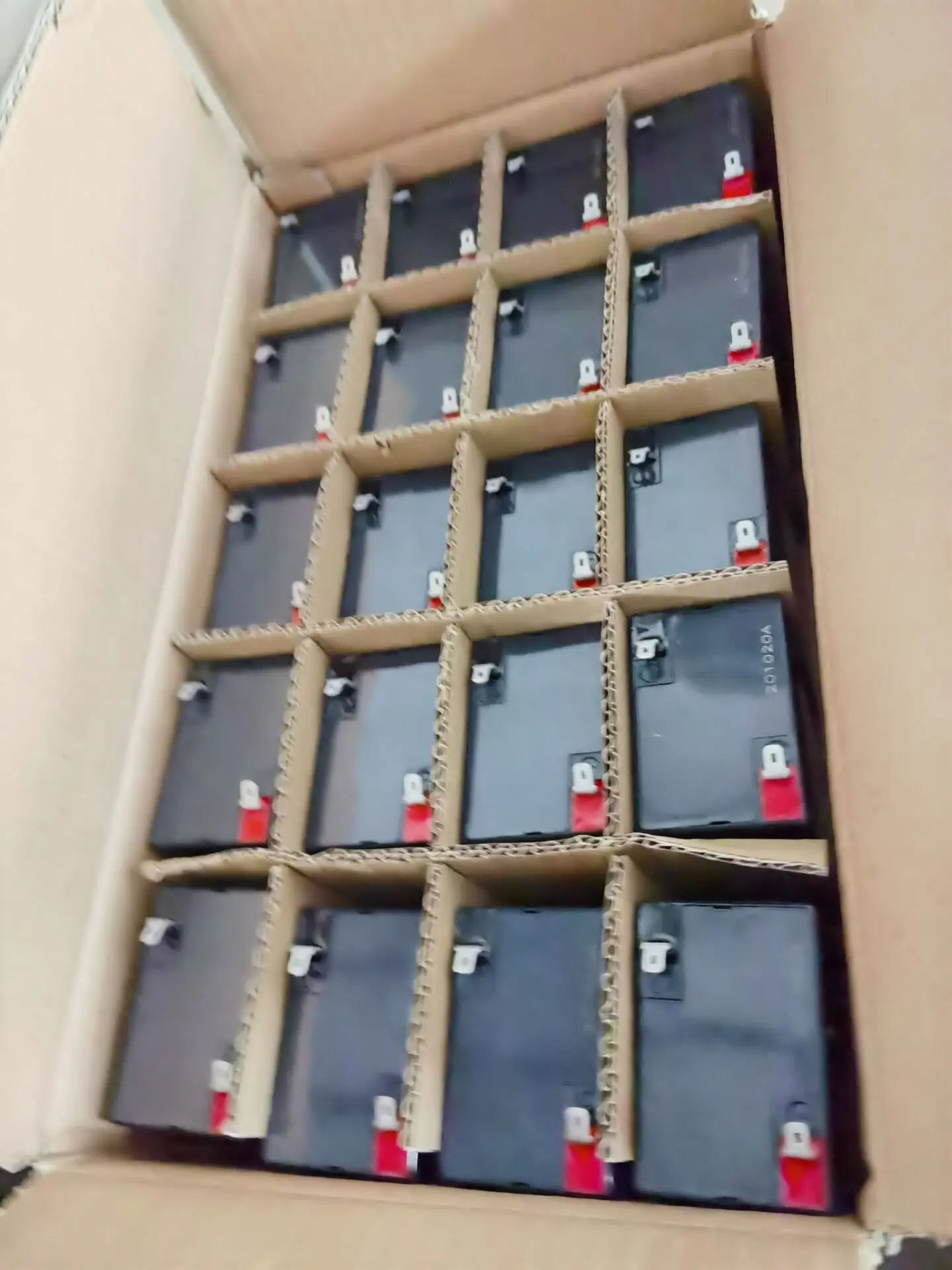

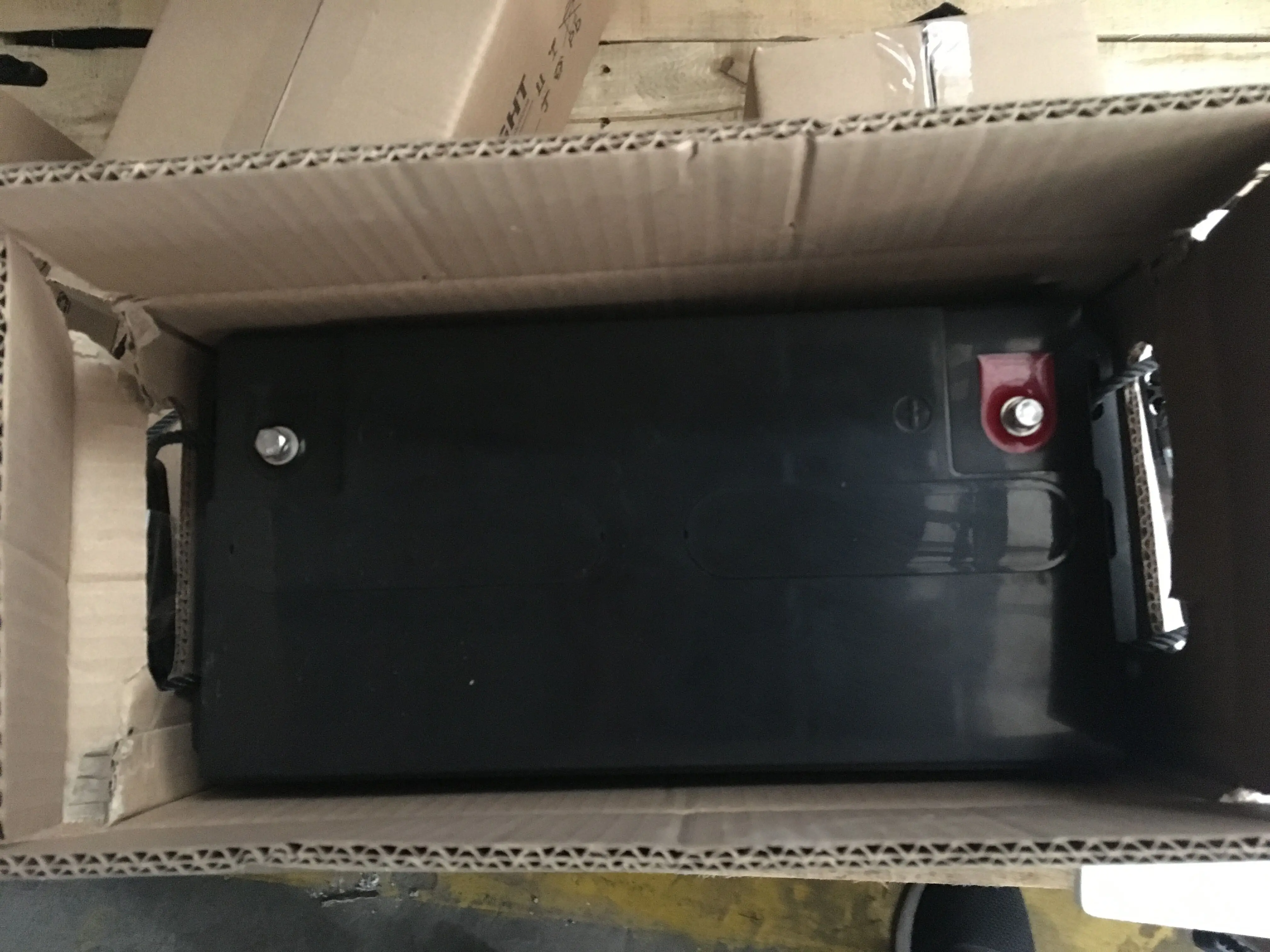

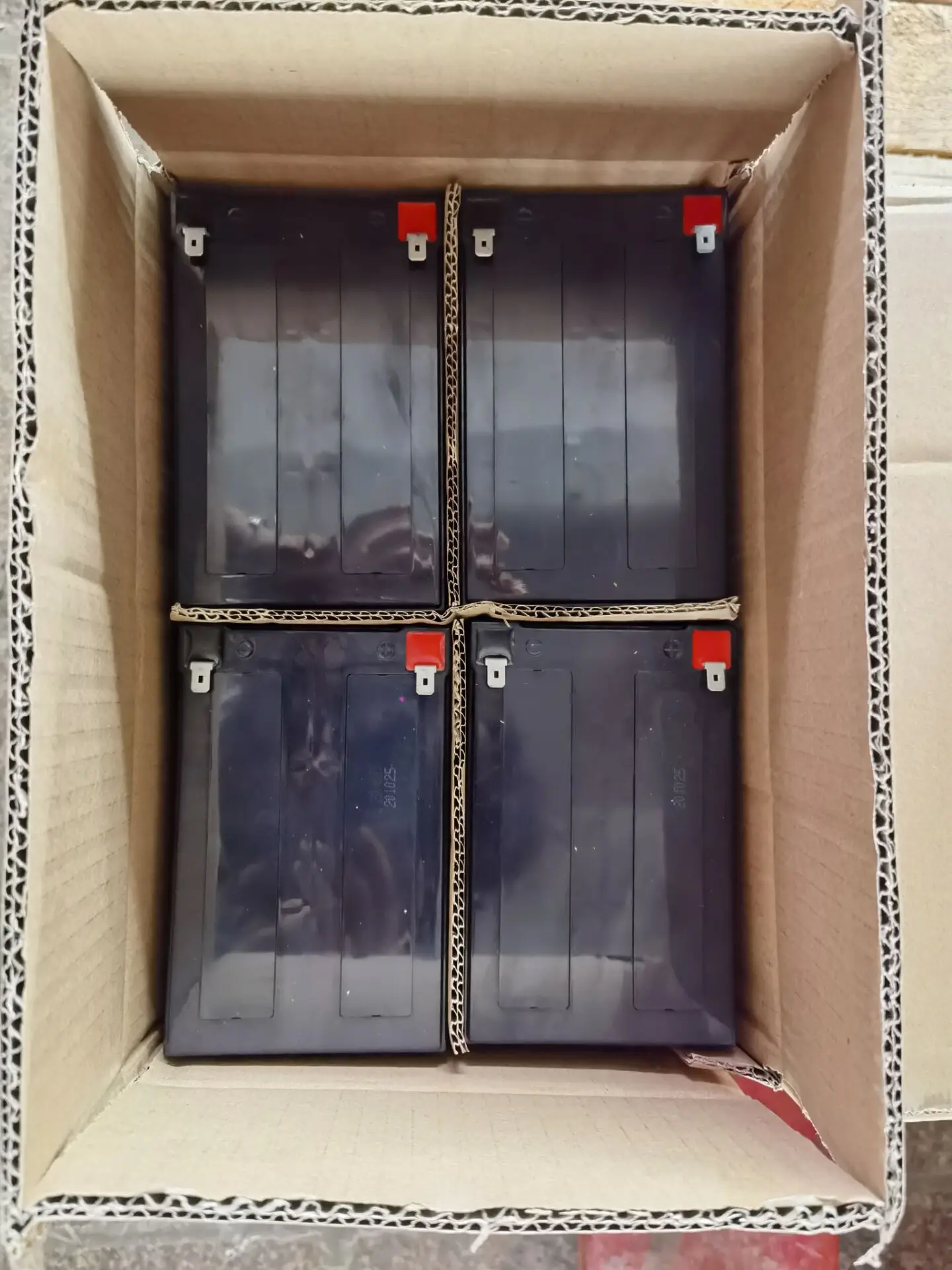

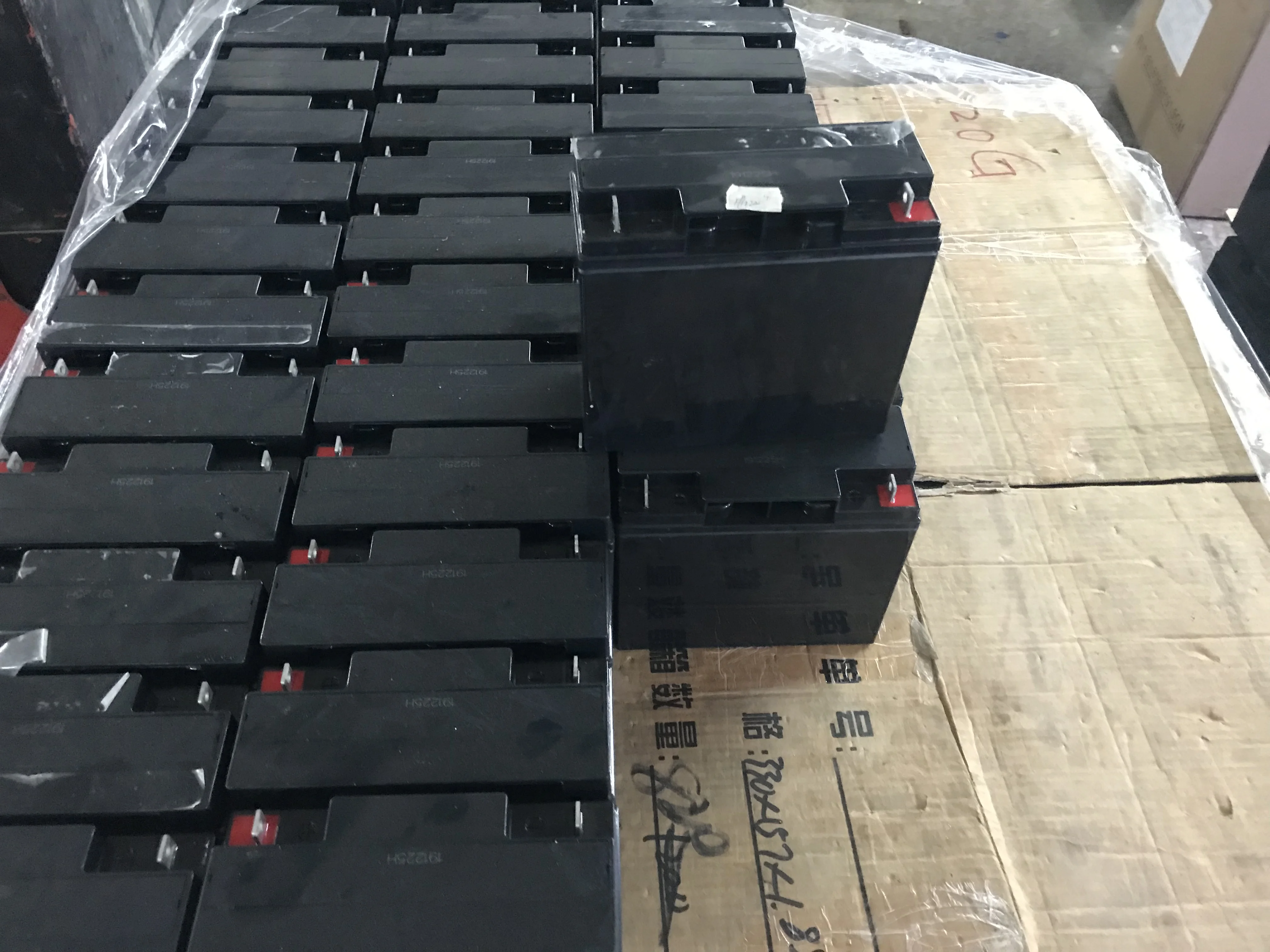

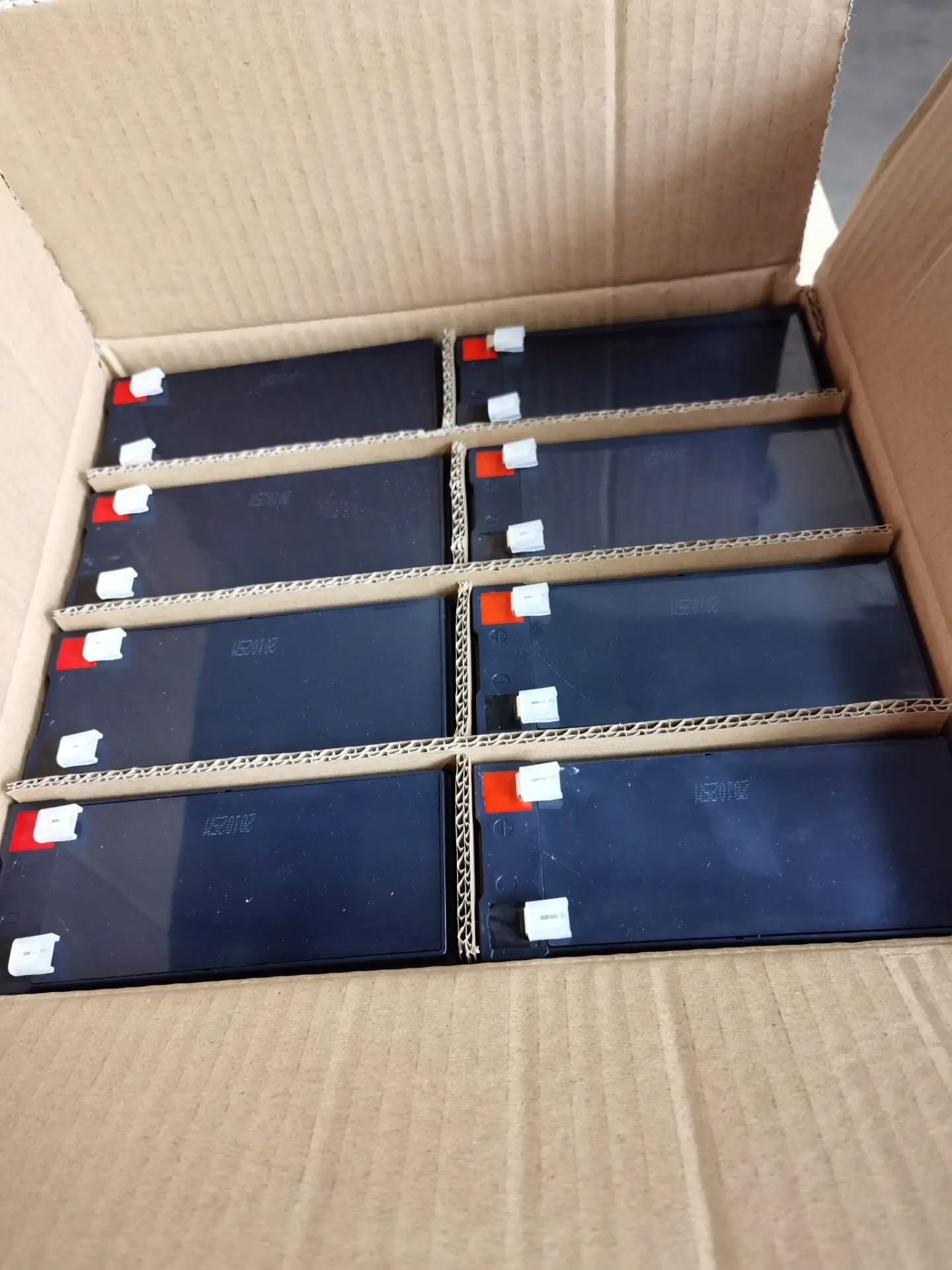

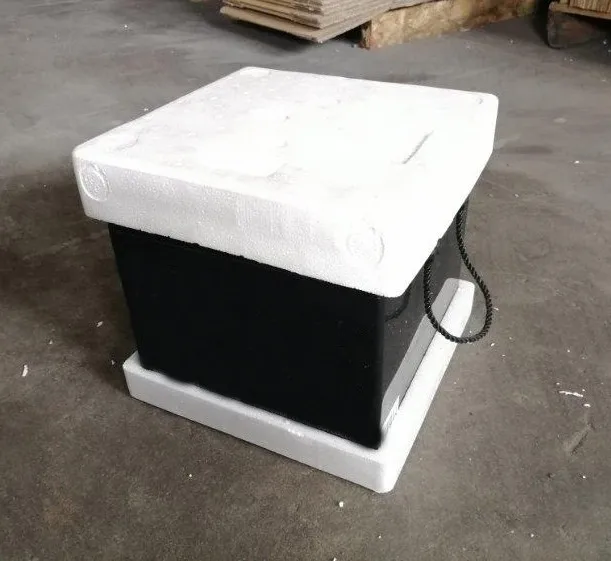

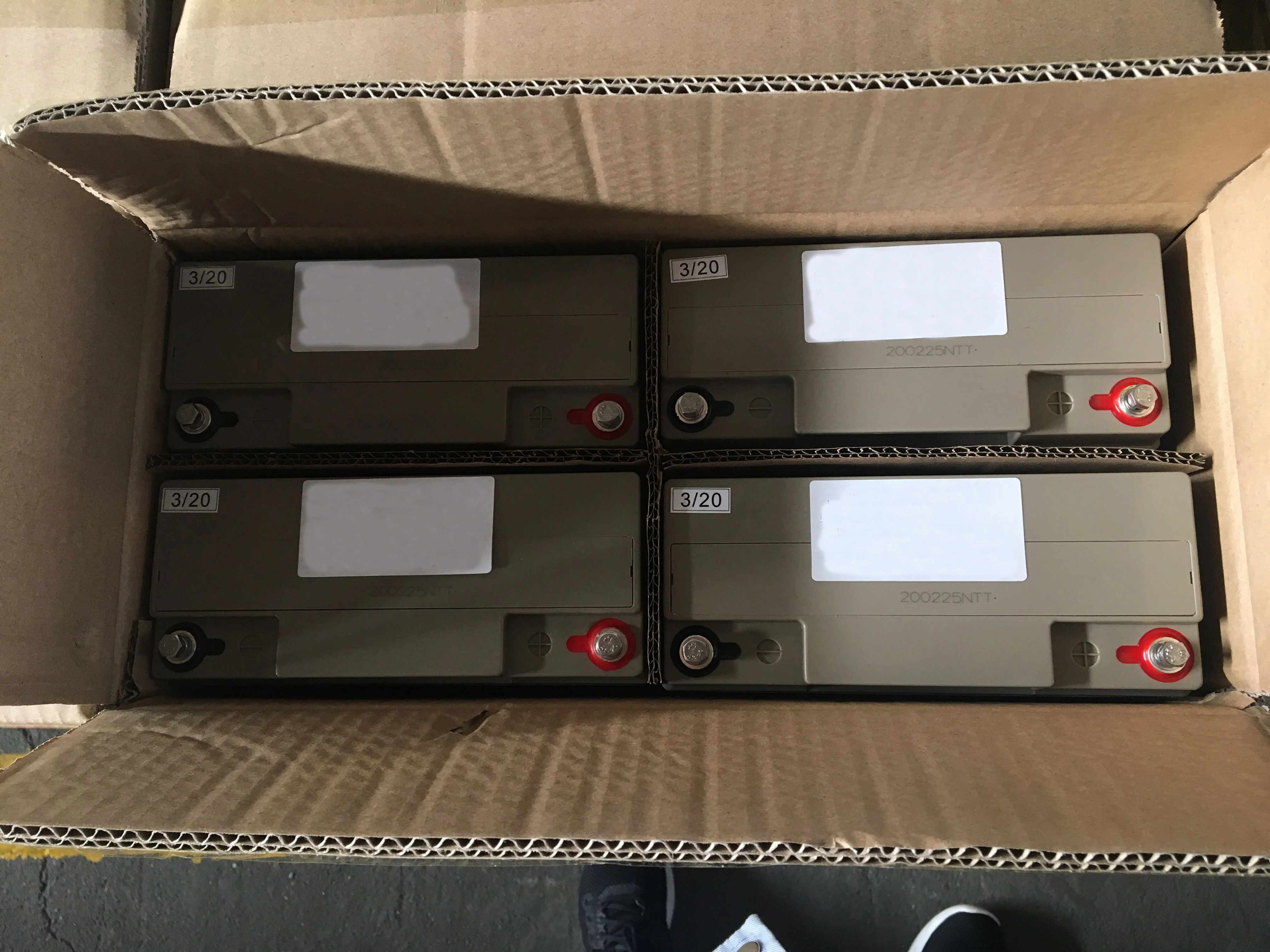

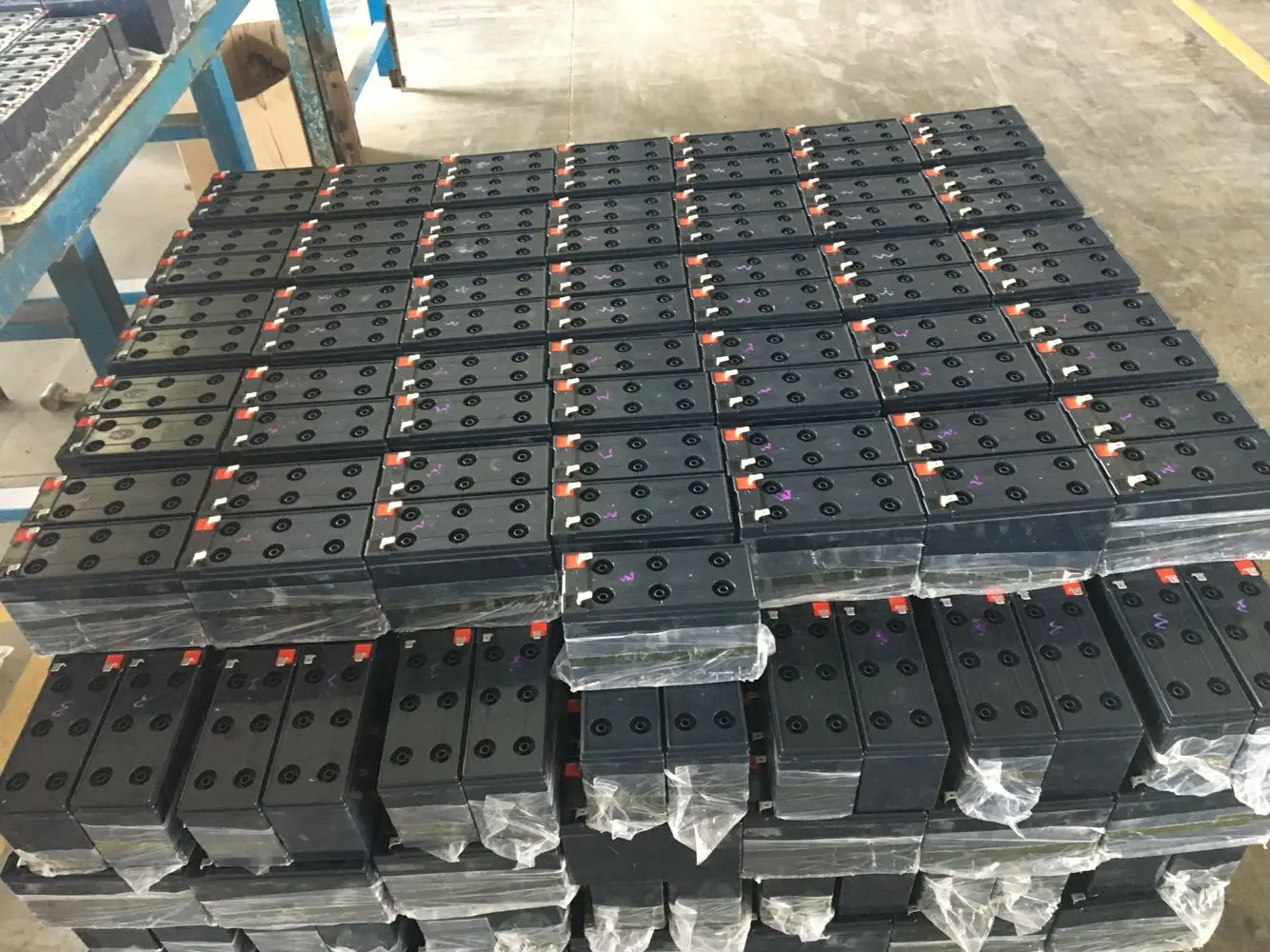

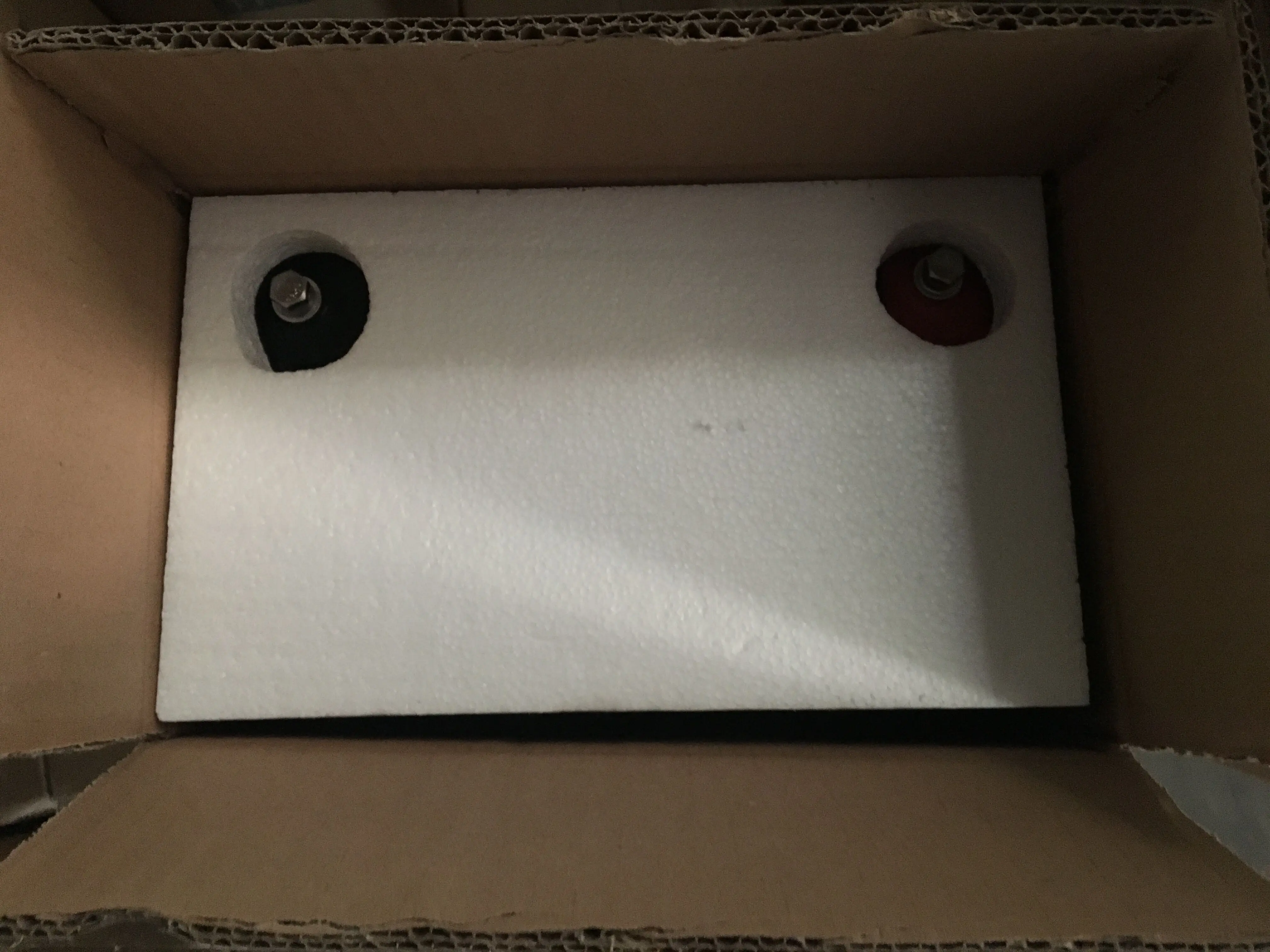

Packing & Delivery
About us

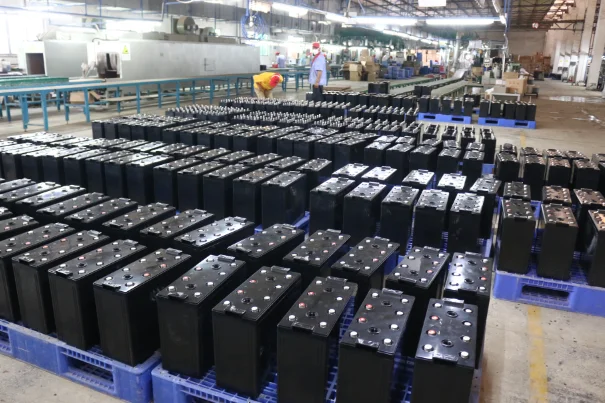

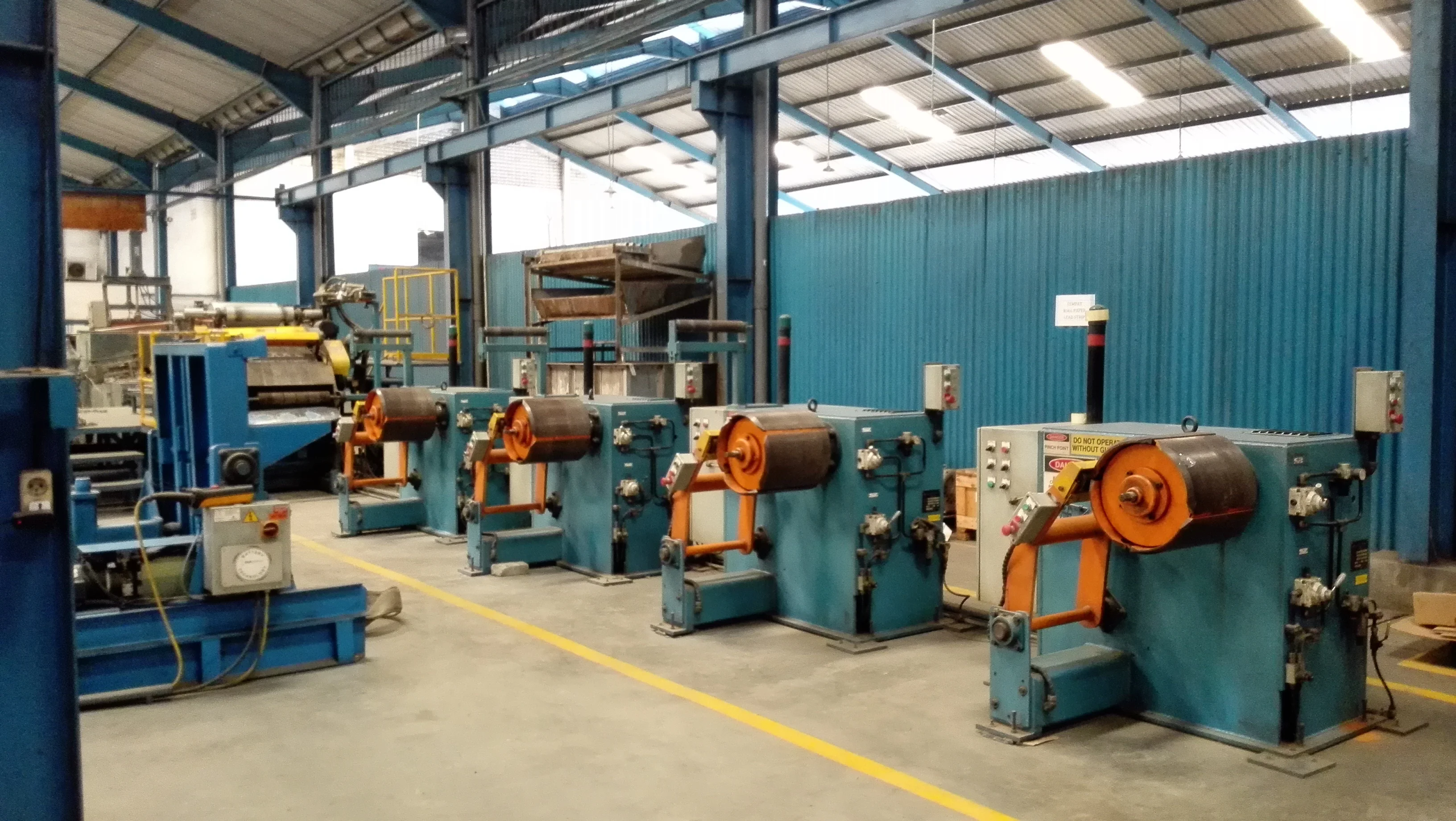

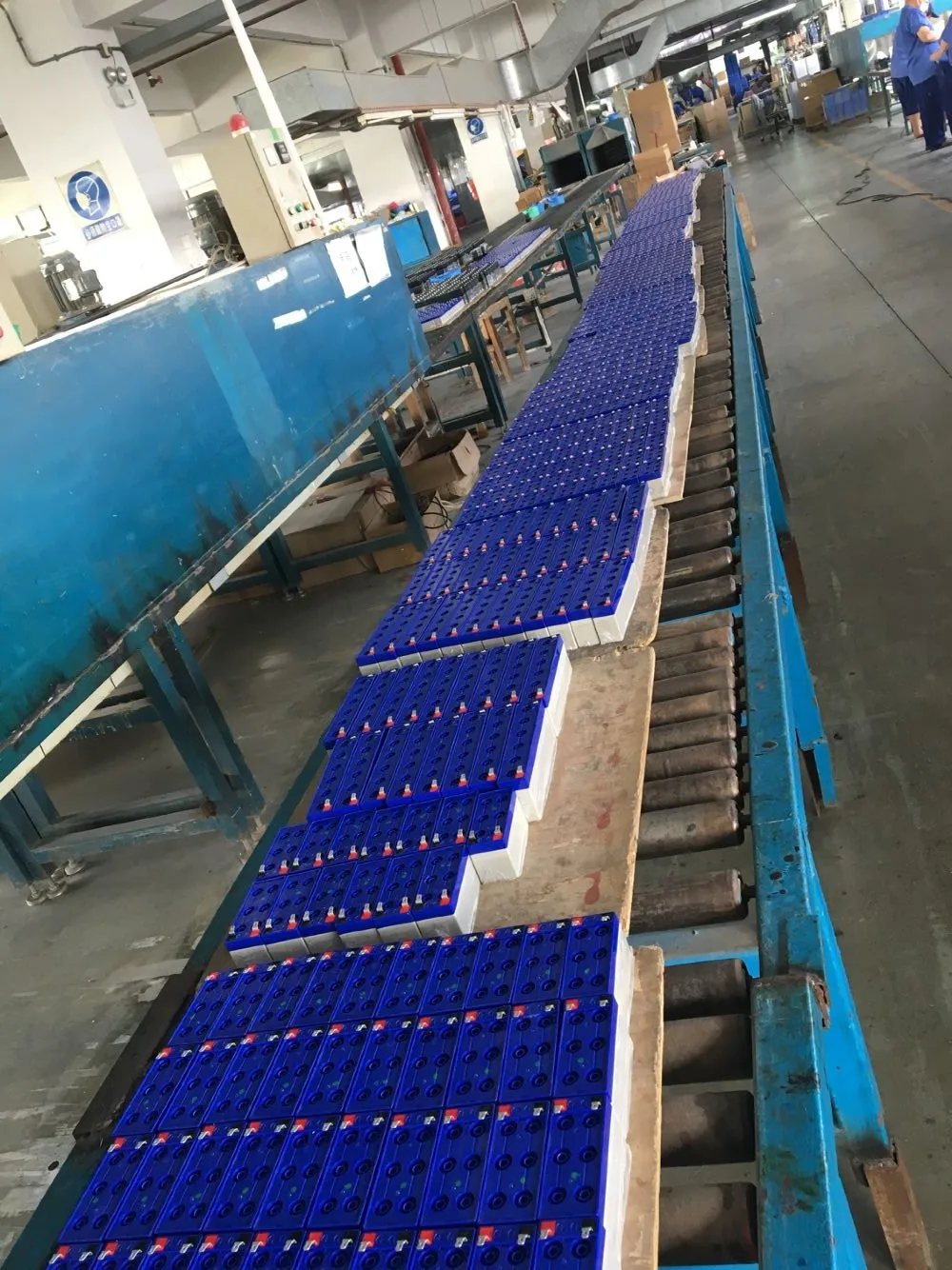

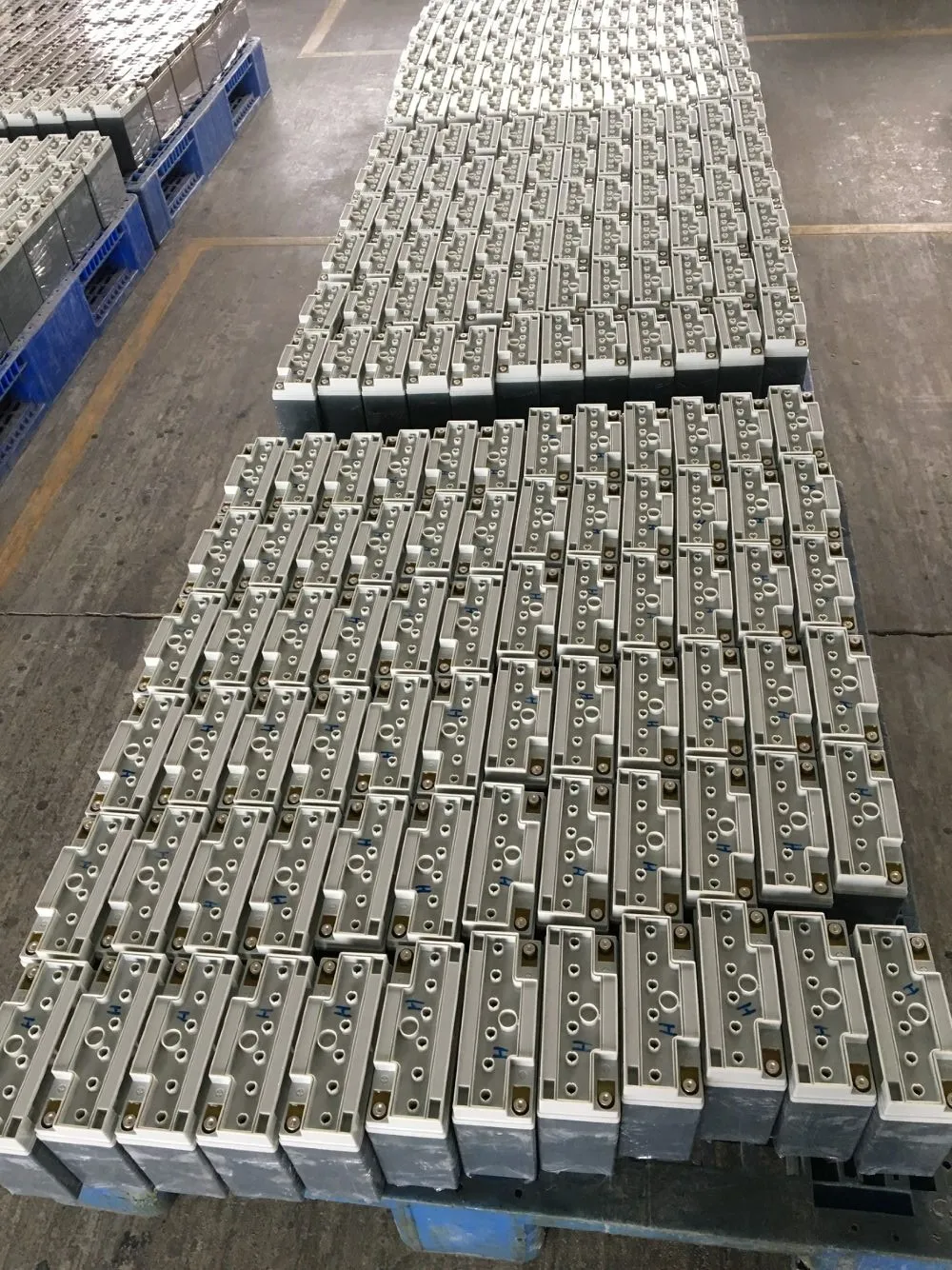

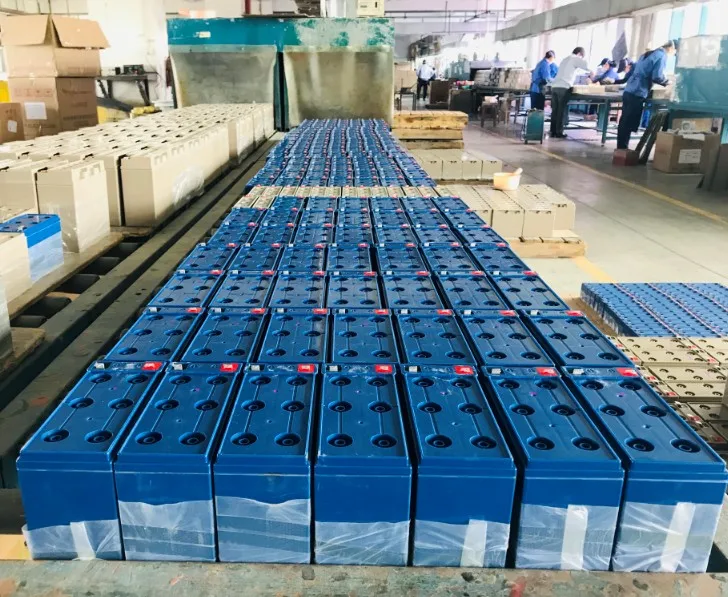

Company Introduction
With more than twenty years history, Vela Power Technology is a professional manufacturer and supplier in China. We produce the car, truck, motorcycle and industry battery for different models to meet with customer needs.

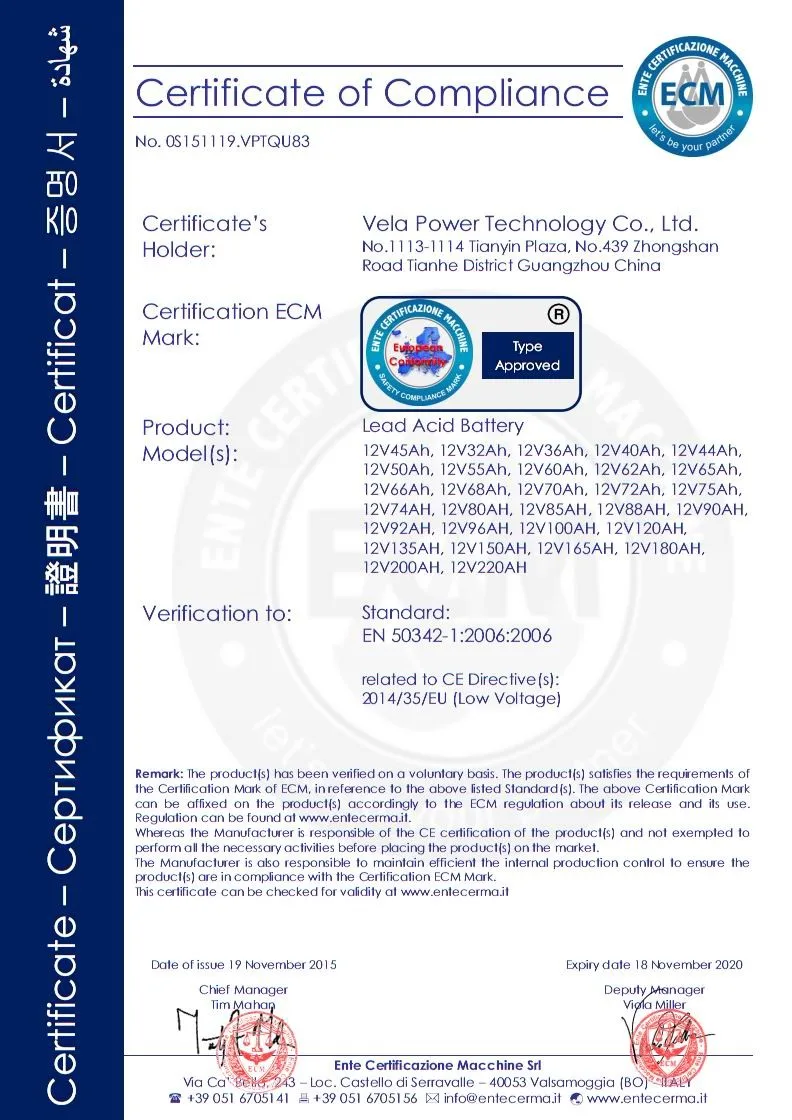

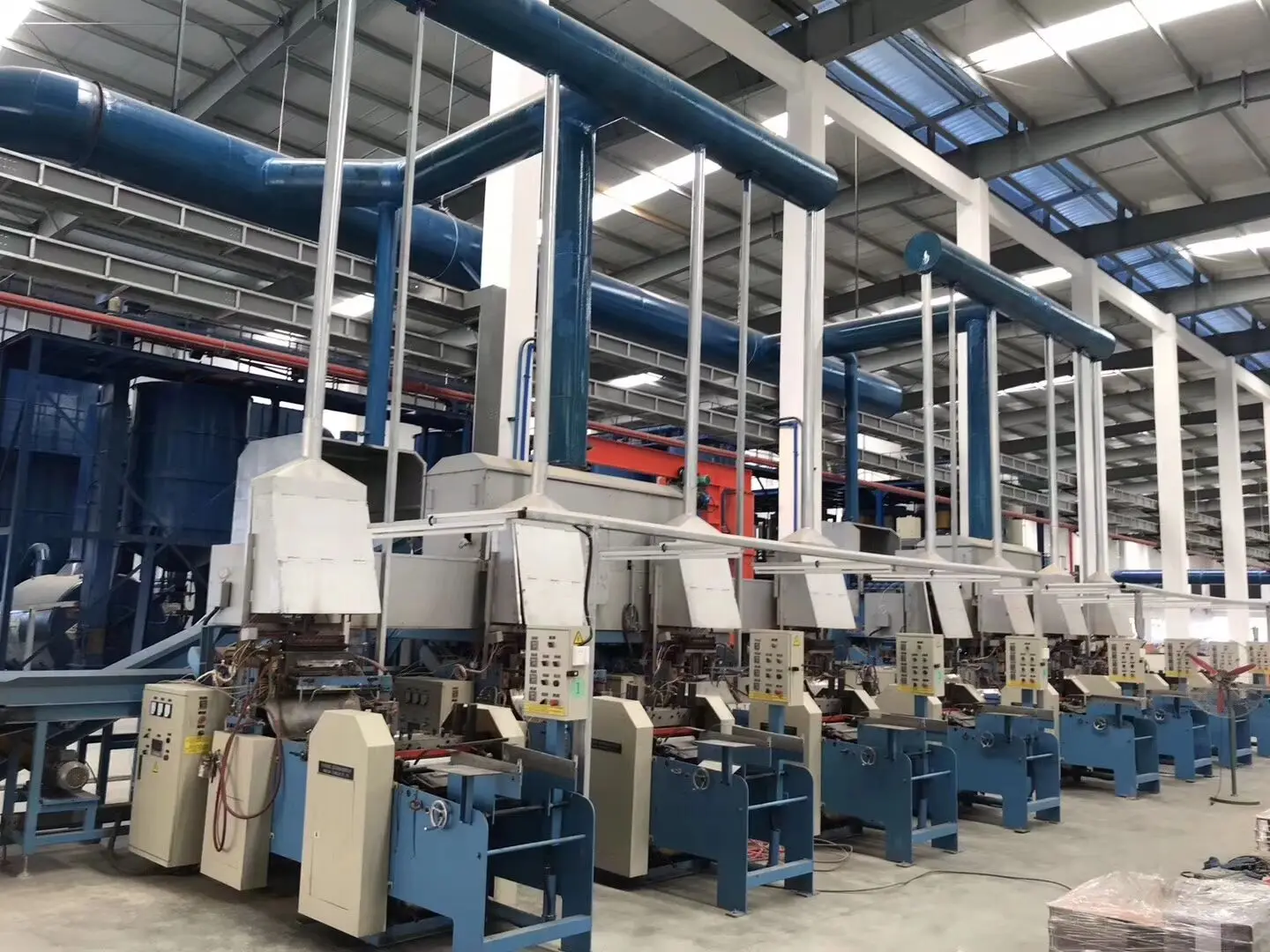

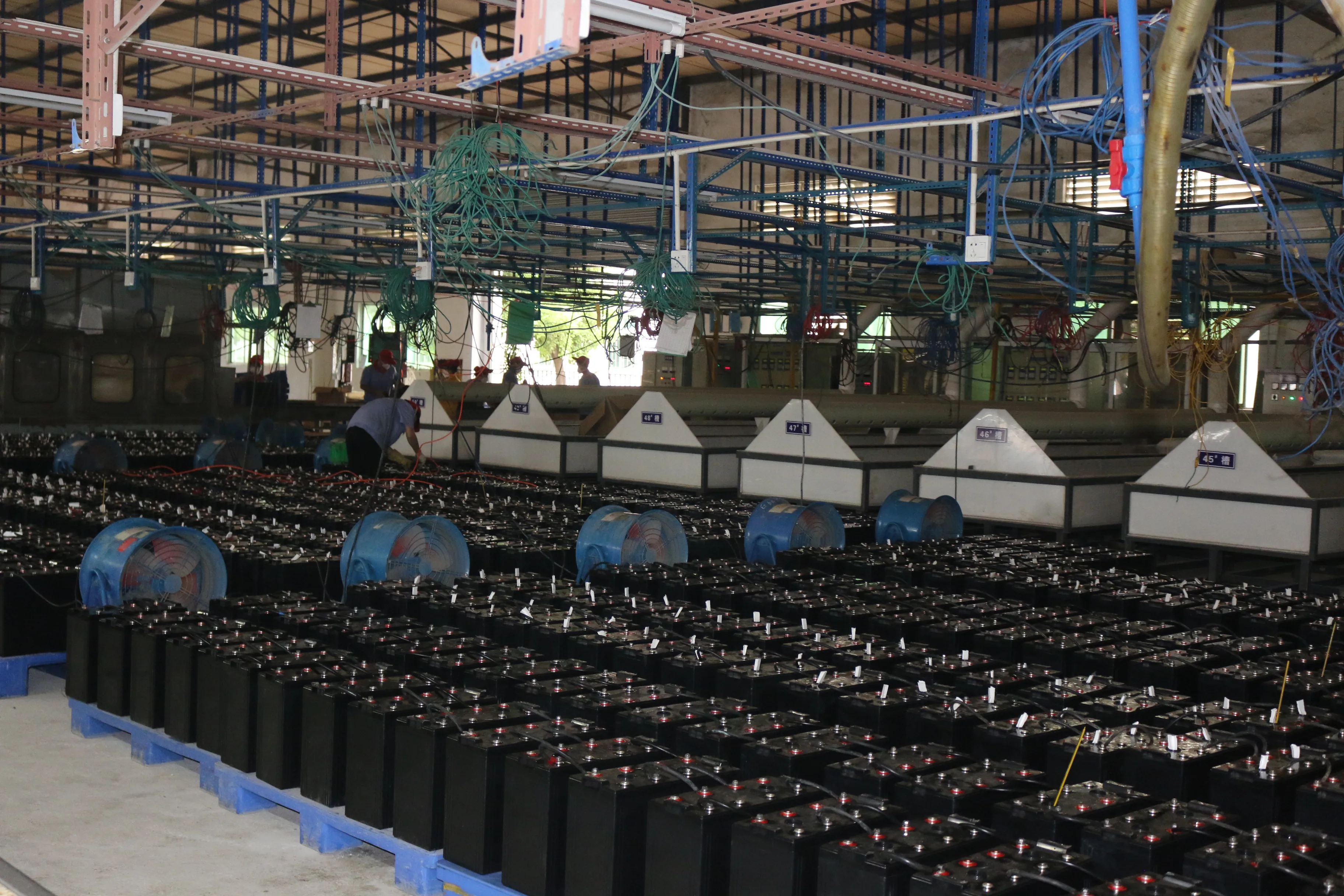

We have factories in China and Indonesia. The domestic factories have production experience over 20 years and the product quality is reliable. Our products have passed the certificates of ISO9001, CE, ROHS, UL ect. In order to expand our global business, apart from domestic factories, we have our own factory in Indonesia and the price is more competitive. Our batteries in Indonesia are deeply supported by our repeat and new customers.
We test the equipment termly and strictly monitor the products quality. Our high quality products and services enable us to have many loyal overseas customers. We wish the cooperation with you in the future.
