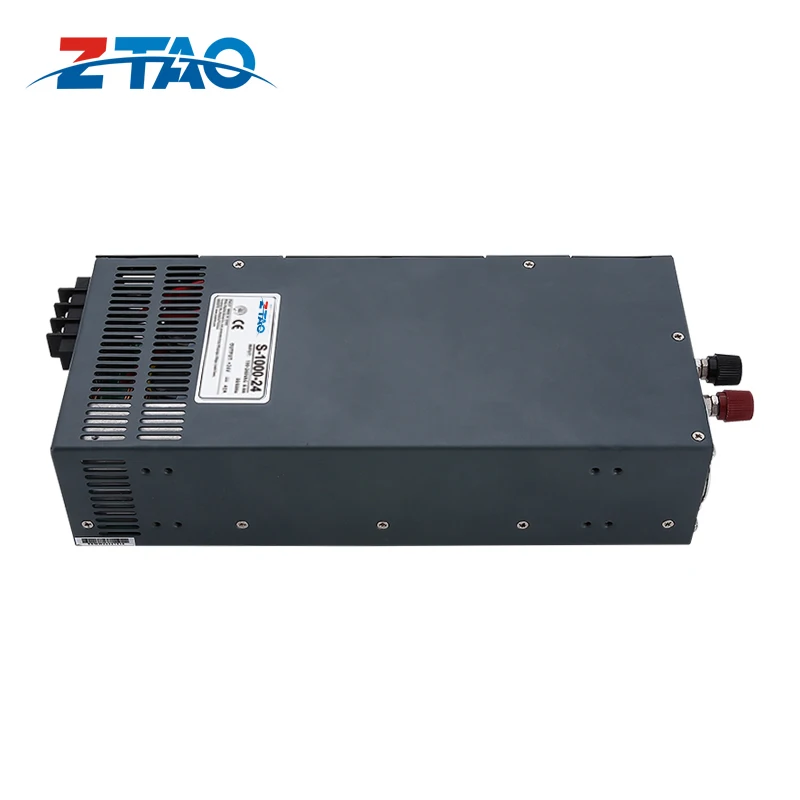

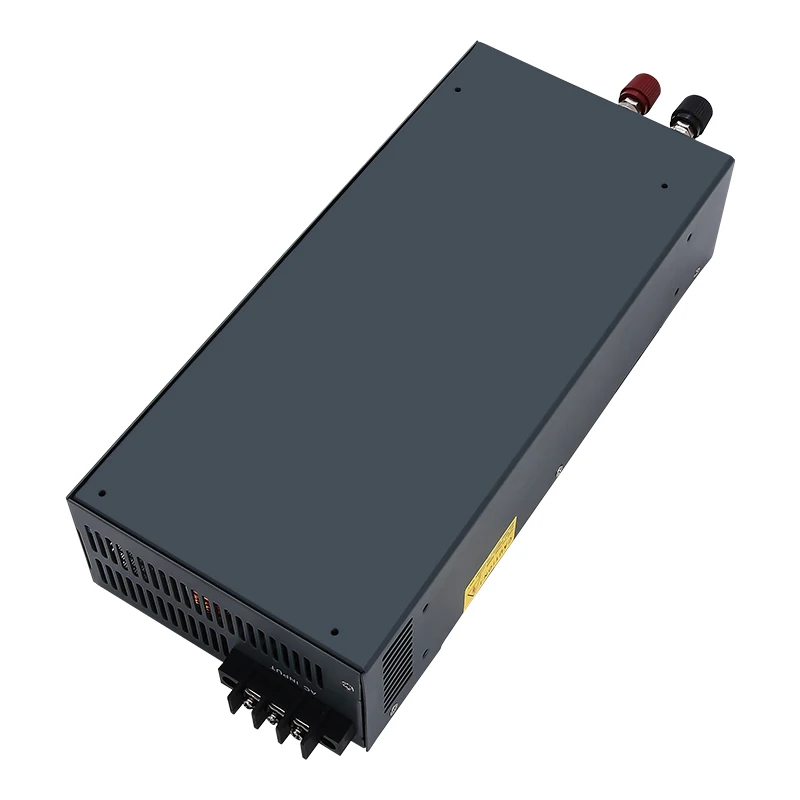

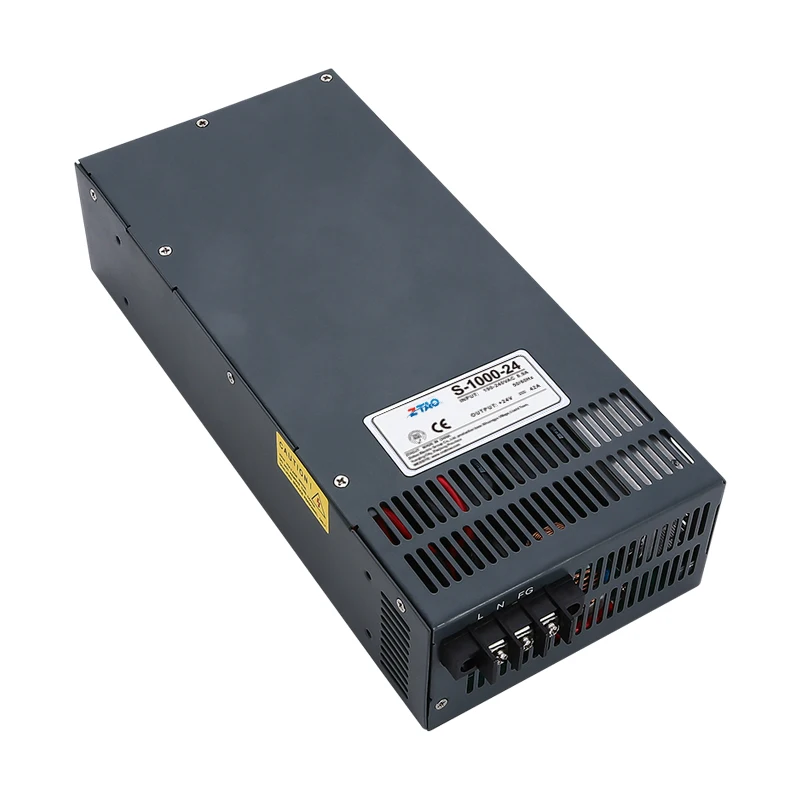

  • High watt switch power supply 1000w up to 4.5kW single or two and three output voltage 12v up to 48v Psu with high voltage
High watt switch power supply 1000w up to 4.5kW single or two and three output voltage 12v up to 48v Psu with high voltage
High watt switch power supply 1000w up to 4.5kW single or two and three output voltage 12v up to 48v Psu with high voltage
High watt switch power supply 1000w up to 4.5kW single or two and three output voltage 12v up to 48v Psu with high voltage
High watt switch power supply 1000w up to 4.5kW single or two and three output voltage 12v up to 48v Psu with high voltage
High watt switch power supply 1000w up to 4.5kW single or two and three output voltage 12v up to 48v Psu with high voltage
High watt switch power supply 1000w up to 4.5kW single or two and three output voltage 12v up to 48v Psu with high voltage
High watt switch power supply 1000w up to 4.5kW single or two and three output voltage 12v up to 48v Psu with high voltage

High watt switch power supply 1000w up to 4.5kW single or two and three output voltage 12v up to 48v Psu with high voltage

Share on (1601044348940):


Price:$36.15 - $44.08

Quantity:


Product Overview

Description







Features
1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.THREE YEARS WARRANTY!
7.Direct Manufacturer

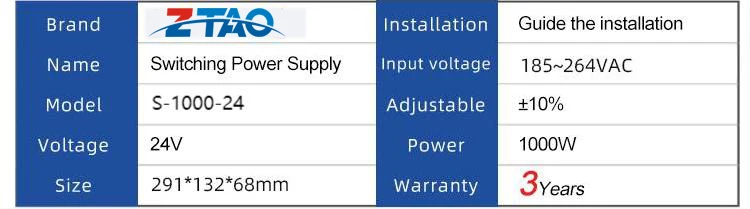

Product Paramenters


Hot Sale Single Output 1000w Smps Ac to Dc 24v Adjustable Led Switching Power Supply
https://zhitao.en.alibaba.com/

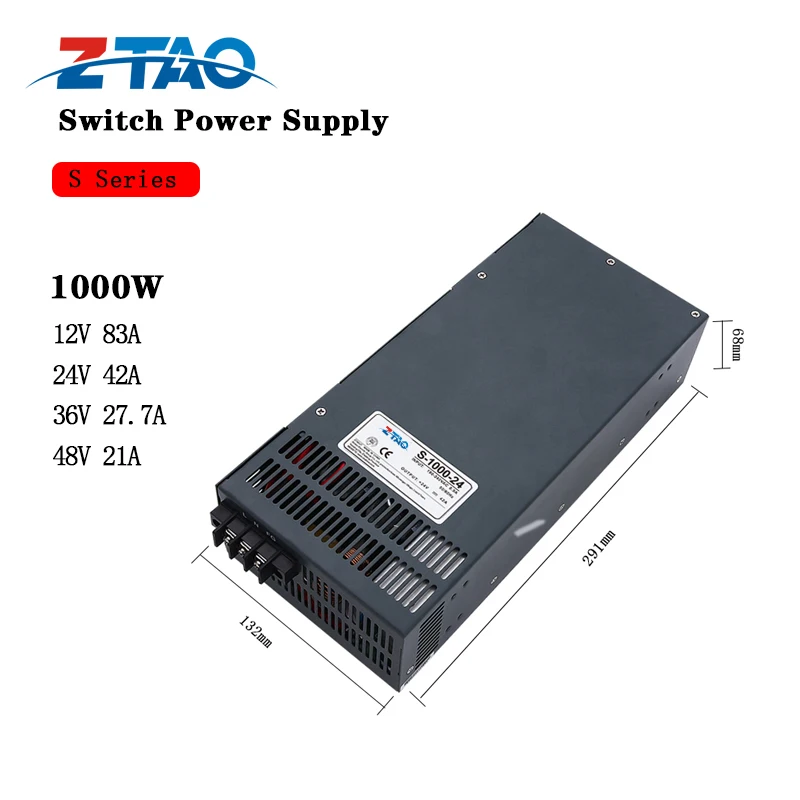

   MODEL
S-1000-12
S-1000-24
S-1000-36
S-1000-48








  OUTPUT
DC Voltage
12V
24V
36V
48V
Rated Current
83A
42A
27.7A
21A
Current range
0~83A
0~42A
0~27.7A
0~21A
Rated power
1008W
1008W
1008W
1008W
Ripple&noise
200mVp-p
240mVp-p
240mVp-p
240mVp-p
Voltage ADJ.
12~14V
24~28V
36~38V
48~53V
Voltage tolerance
±2.0%
±1.0%
±1.0%
±1.0%
Line regulation
±0.5%
±0.5%
±0.5%
±0.5%
Load regulation
±1.0%
±1.0%
±1.0%
±1.0%
Setup,Rise,Time
200ms, 50ms/230VAC (full load)
Hold up time
20ms/230VAC (full load)




     INPUT
Voltage range
185~264VAC or 260~373VDC
Frequency range
50~60Hz
Efficiency
82%
83%
83%
83%
AC current
7.5A 190~230VAC
Inrush current
Cold start: 50A/230VAC
Leakage current
<6mA/240VAC


Product Description

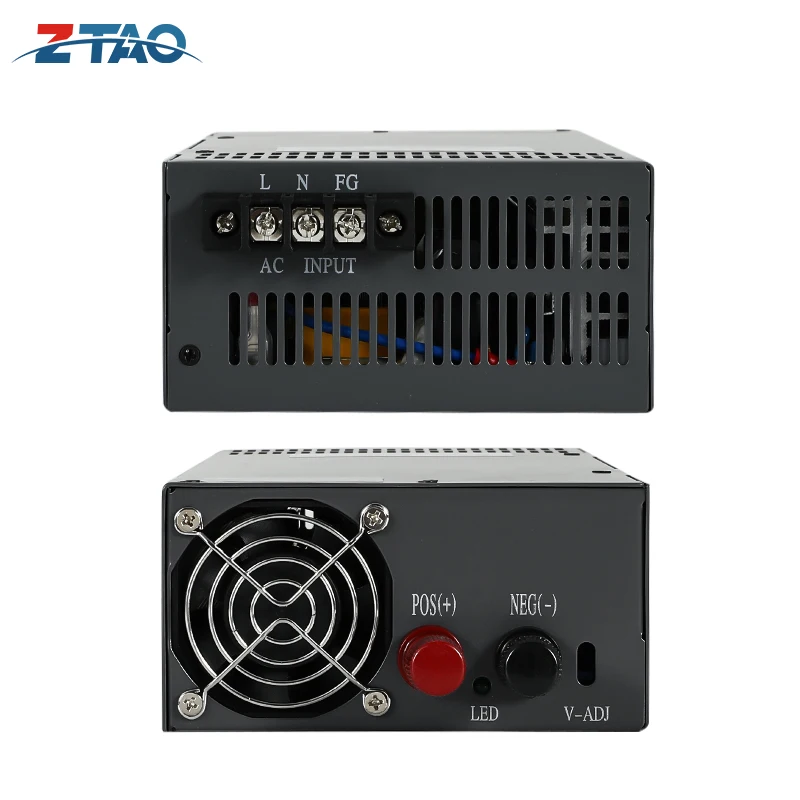

Details Images




01.
PURE COPPER
TRANSFORMER
High temperature resistance of enameled wire with excellent magnetic core
02.
FILTER CAPACITOR
High voltage withstand,low loss and large capacity
03.
DUST PROTECTION COVER
Prevent accidental touch and improve safety performance


Recommend Products




Product Usage









Product usage introduction

AND Our Services & Strength
1. 3 years warranty
2. Supply at factory price
3. Faster delivery: Sample order in stock,and 3-7days for bulk production
4. Sales return,refund and replacement
5. Had awarded CE,FCC & ROHS certification
6. Any inquiries will be replied within 24 hours
