Slag steel slag aluminum ash gold mining ball mill quartz sand overflow type high aluminum stainless steel ball mill tianze
- Category: >>>
- Supplier: Zhengzhou Tianze Environmental Protection Technology Co. Ltd.
Share on (1601044390389):
Product Overview
Description

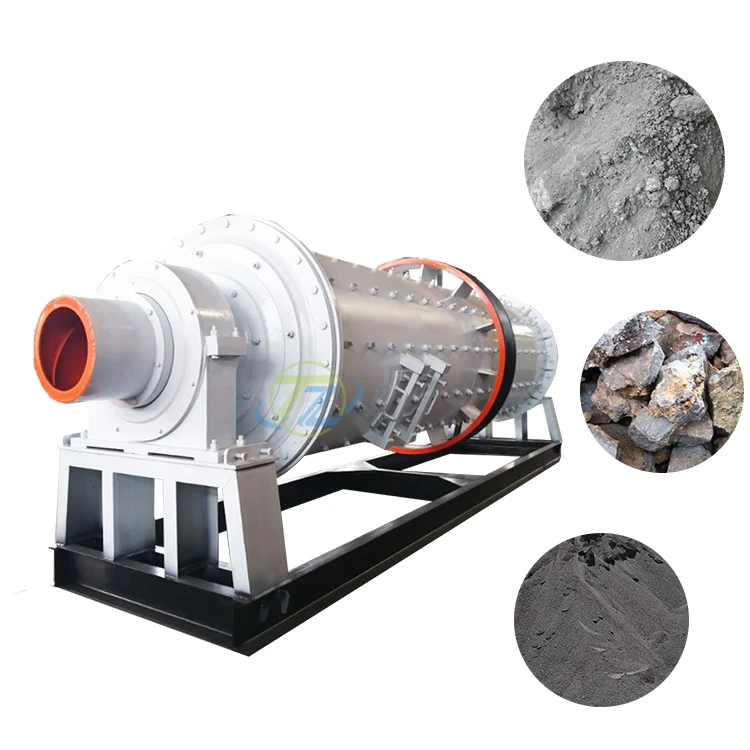

Cone Overflow Type Wet Mill Steel Slag Aluminum Ash Copper Slag Mill Production Line Cement Ore Ball Mill tianze
Ball mill is the key equipment for crushing materials after they are crushed. This type of mill is loaded with a certain number of steel balls as grinding media in its cylinder.
It is widely used in cement, silicate products, new building materials, refractory materials, fertiliser, black and non-ferrous metal beneficiation and glass ceramics and other production industries to grind various ores and other grindable materials.

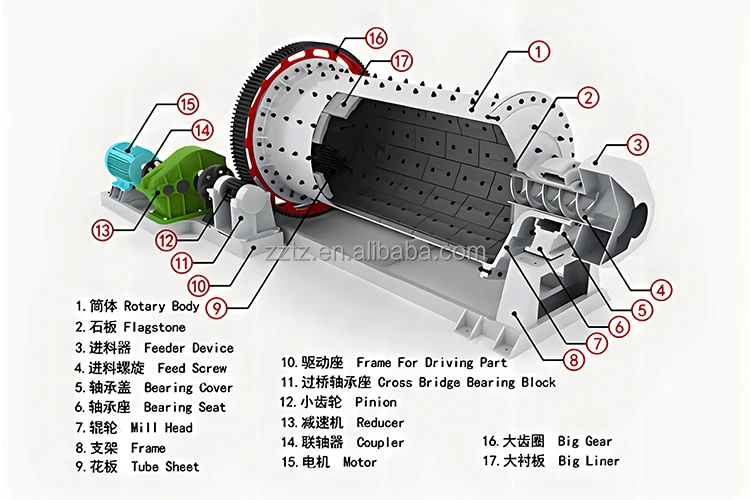

The ball mill consists of feeding part, discharging part, rotary part, transmission part (reducer, small transmission gear, motor, electric control) and other main parts. The hollow shaft is made of cast steel, and the inner village can be dismantled and replaced, the big gear of rotary is made of casting and hobbing, and the cylinder is set with wear-resistant lining plate, which has good wear resistance. The machine runs smoothly and works reliably.

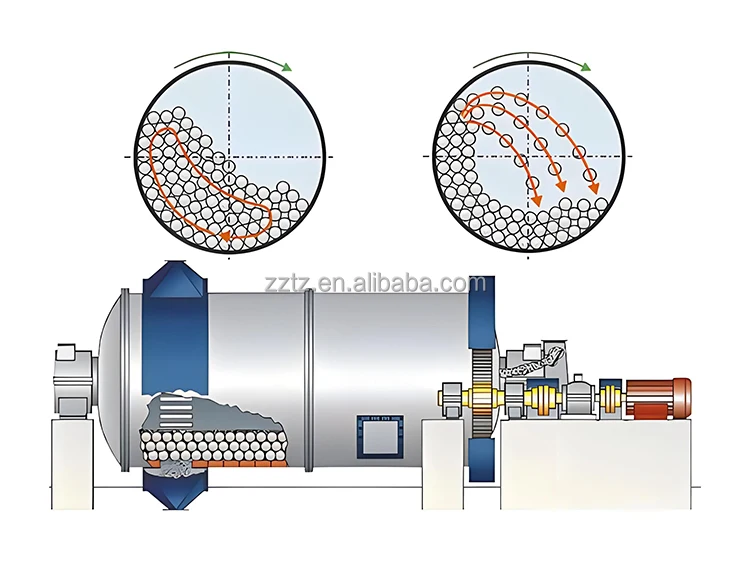

Principle of ball mill machine
Ball mill is composed of horizontal cylinder, inlet and outlet hollow shaft and grinding head, etc. The cylinder is a long cylinder, the cylinder is equipped with grinding body, the cylinder is made of steel plate, there are steel lining plate and cylinder fixed, the grinding body is generally steel ball and just section, and according to different diameters and a certain proportion of loaded into the cylinder.
According to the particle size of the grinding material to be selected, the material from the ball mill feed end of the hollow shaft into the cylinder, when the ball mill cylinder rotation, the grinding body due to inertia and centrifugal force, friction, so that it is attached to the cylinder liner by the cylinder to take away, when brought to a certain height, due to its own gravity and was thrown down, the falling grinding body as a projectile as the cylinder to the material to be crushed.
Features of ball mill machine
1. Using belt drive, simple to use, easy to maintain, economical and durable.
2. Thickened lining plate, effectively reduce the barrel deformation and screw breakage.
3. The mill is a double-bin structure, the front bin is coarse broken, the back bin is fine grinding, higher efficiency.
4. Multi-slot pulley has more friction to improve transmission efficiency.
Technical Parameters
Speci fication And Model | Power(kw) | Feed Port Diameter(mm) | Production Capacity(t) |
Φ900*3000 | 18.5 | 320 | 0.8-1.2 |
Φ900*4000 | 22 | 460/360 | 1.1-1.6 |
Φ1000*4000 | 30 | 460/360 | 2.5-3.5 |
Φ1200*4500 | 45 | 500/400 | 3-5 |
Φ1500*5700 | 110 | 560/500 | 5-10 |
Φ1830*7000 | 185 | 600 | 8-15 |

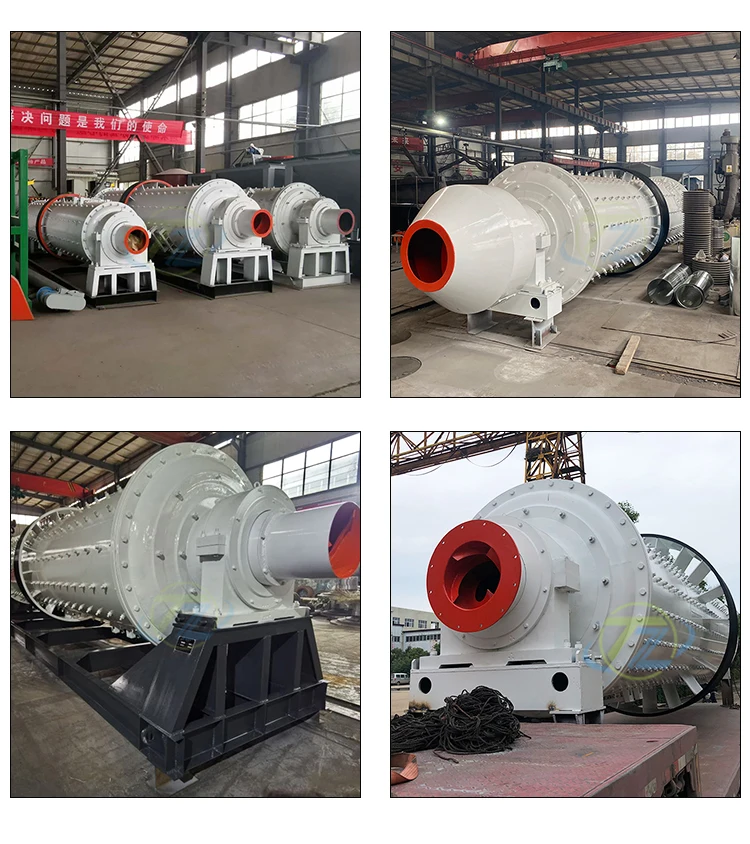

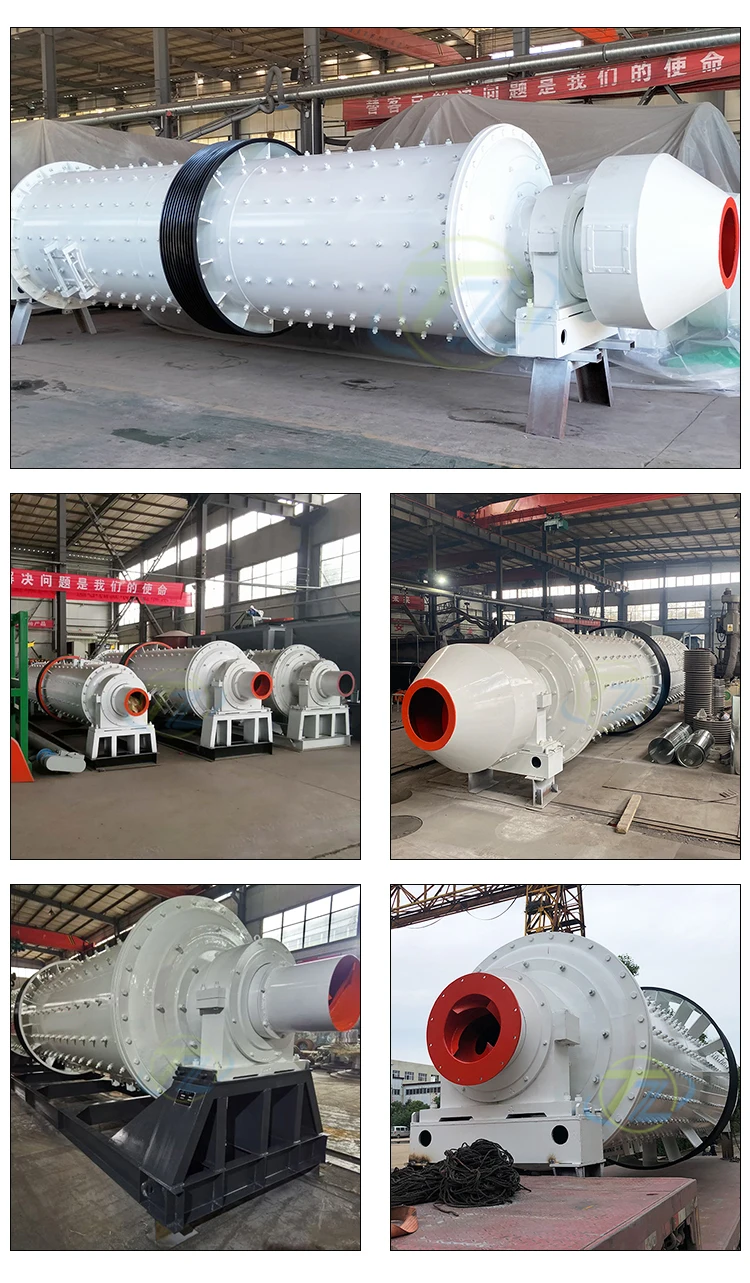

Detailed Images
Ball mill production line planning diagram

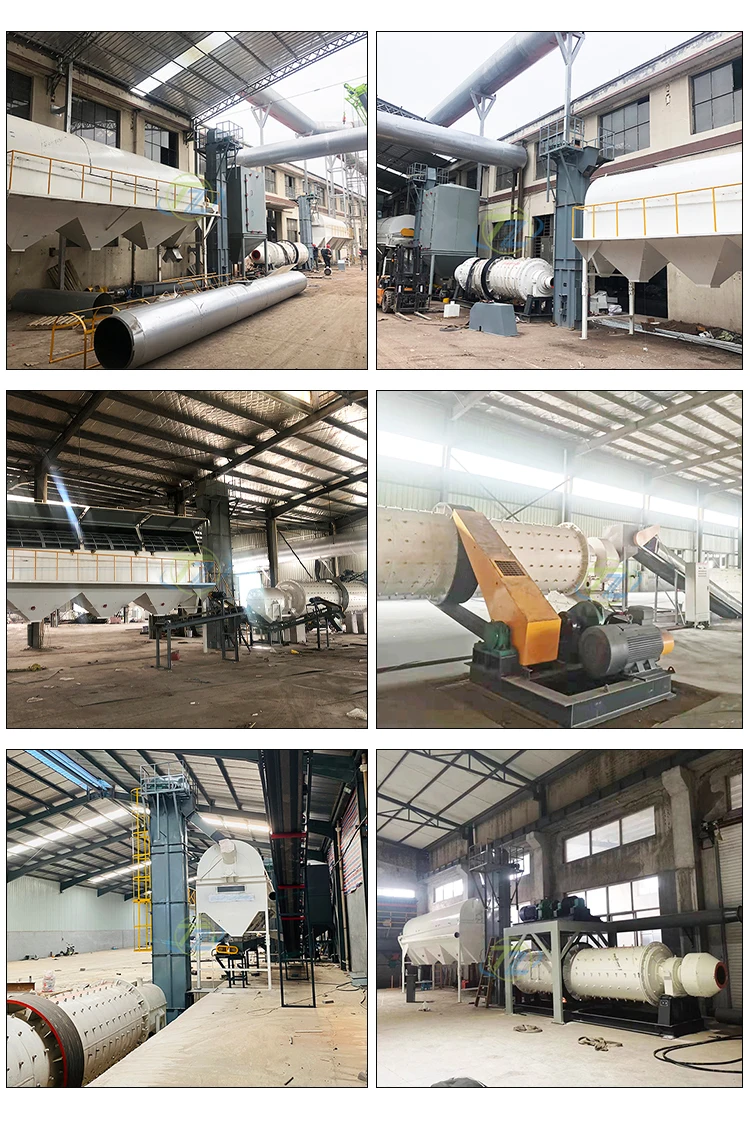

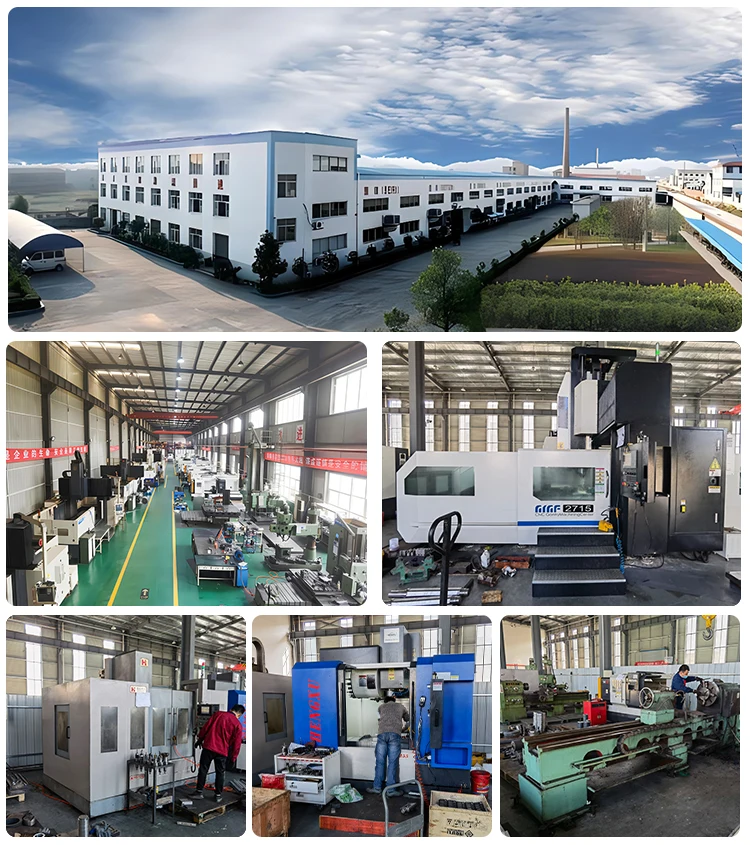

Factory workshop
Other related machine
Click on the photos to learn more
Aluminum ash slag separator rotary furnace
Packaging & Shipping
Ball mill machine packing and delivery
(1) Simple packaging.Other in wooden boxes;
(2) Delivery the machine by 20-foot container/40-foot container;
(3) Delivery the machine within 7 days after receiving balance payment
About Us
Service before sale:
1.24 hours online to answer questions that you want to know about the ball mill machine(Wechat ,Whatsapp ,QQ , TradeManager ),or you can putthe questions all you want to know about the ball mill and sent to my mailbox, I will give you a satisfactory answer.
2.My company is specialized in producing ball mill machine, my edible ball mill machine is very advanced in the international, My company may transform ball mill according to customer requirements, we can also accept customer design drawings to manufacture ball mill machine.
After-sales services:We offer one year warranty for the whole machine except easy broken parts, Providing the spare parts with favorable price all the time 24 hours online service.
FAQ
Q: How about the quality of your products?
A:We put the quality in the first place based on the honesty. Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before the delivery. You can also use Trade Assurance by Alibaba for product quality protection, punctual shipment protection and payment protection.
Q: How about the price?
A: We pursue small profits but quick turnover, and we can give you lower price than other trading companies. Besides, customers from Alibaba can get a discount. If the product is really suitable and can benefit you, the price is negotiable.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Can you help chose suitable products?
A: Yes. We have many experts who have worked in this field for many years. They can help you select the most suitable products according to your actual condition. And they can design proper process flow based on your special situation. If necessary, we can even send professionals to your local place for site planning and work-flow design.
About Us
Zhengzhou Tianze Environmental Protection Technology Co., Ltd. Founded in 2010, and has 6 technical R & D personnel, annual sales of more than 5000 sets of machinery, is one of the earliest production of ball mill machine in China. Advanced and reasonable design, easy operation and maintenance.
Each technology, quality indicators are in line with industry standard. Currently, we have product agents and after-sales service providers in many countries and regions of the world!
The company has passed the ISO9001: 2000 quality management system certification and has a number of invention patents.
Zhengzhou Tianze Environmental Protection Technology Co., Ltd. regards quality as life, adheres to integrity, mutual benefit and common prosperity, and carries things with virtue; in accordance with the current high-standard production process, to ensure product quality and service quality.
Welcome global users to discuss cooperation.
