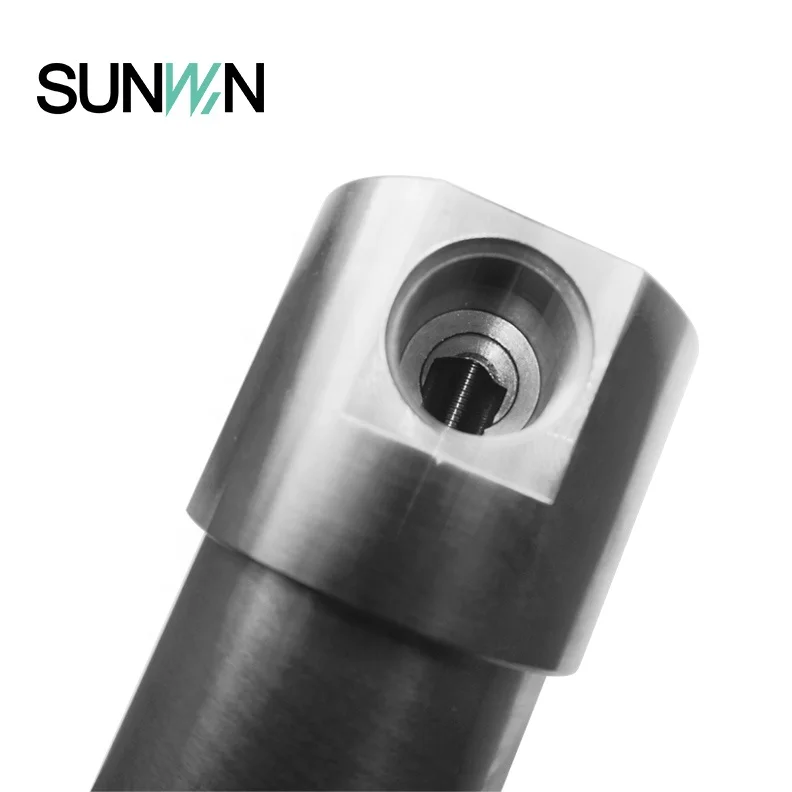

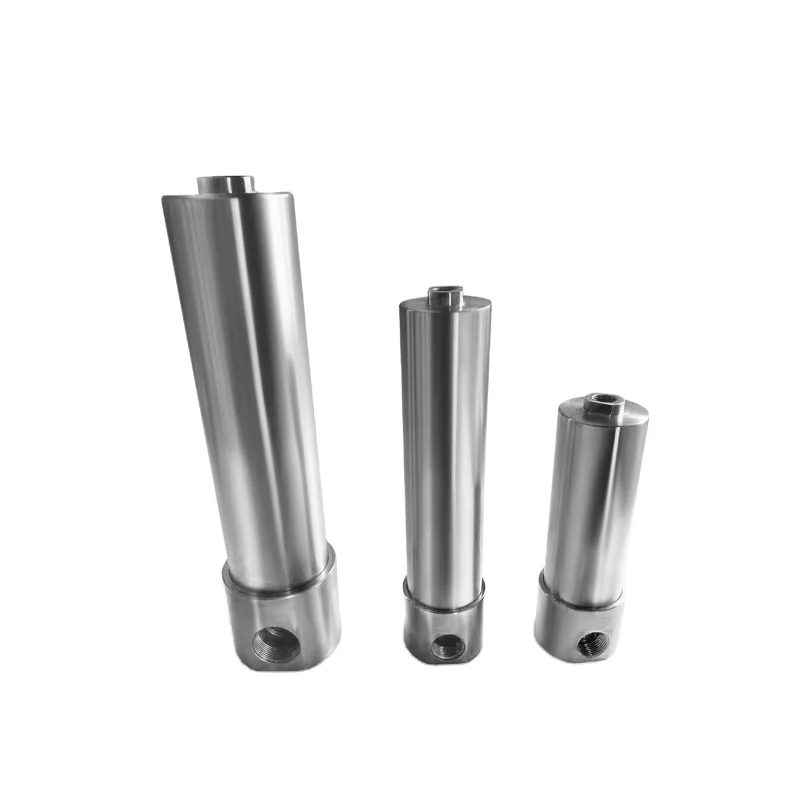

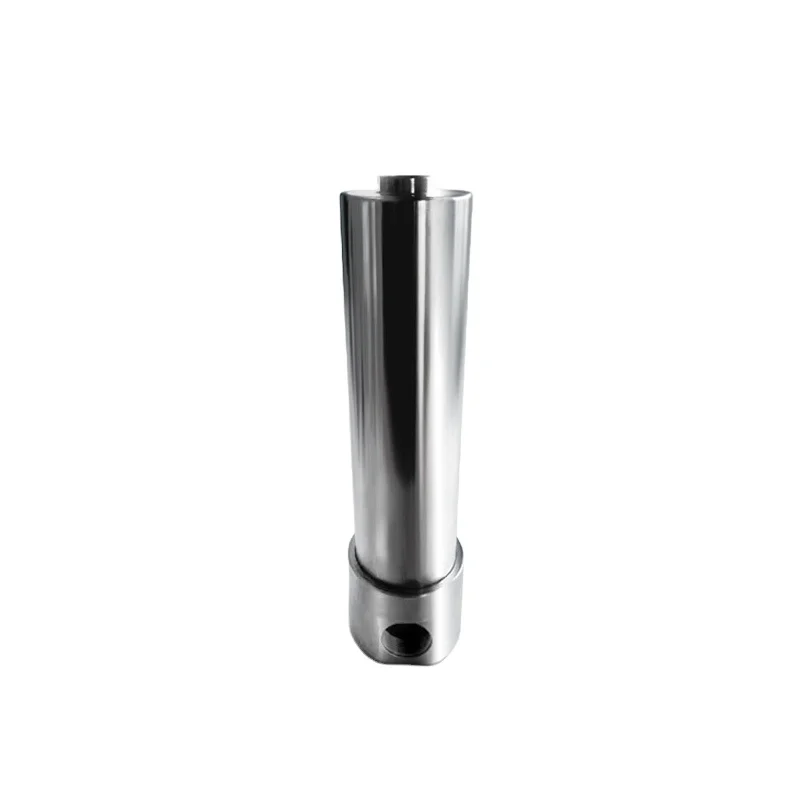

Sunwin 40bar Air Filter for 7.5kw Air Compressor
Sunwin 40bar Air Filter for 7.5kw Air Compressor
Sunwin 40bar Air Filter for 7.5kw Air Compressor
Sunwin 40bar Air Filter for 7.5kw Air Compressor
Sunwin 40bar Air Filter for 7.5kw Air Compressor
Sunwin 40bar Air Filter for 7.5kw Air Compressor
Sunwin 40bar Air Filter for 7.5kw Air Compressor

Sunwin 40bar Air Filter for 7.5kw Air Compressor

Share on (1601044408115):


Price:$55.00 - $340.00

Quantity:


Product Overview

Description



Product






When pressure increase of the compressed air, the requirements for the compressed air filtration and install equipment also increase.

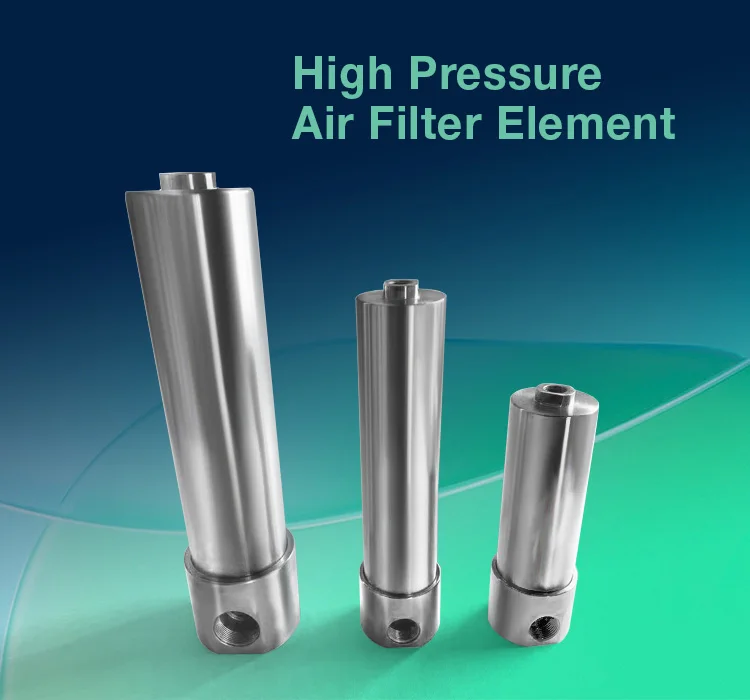

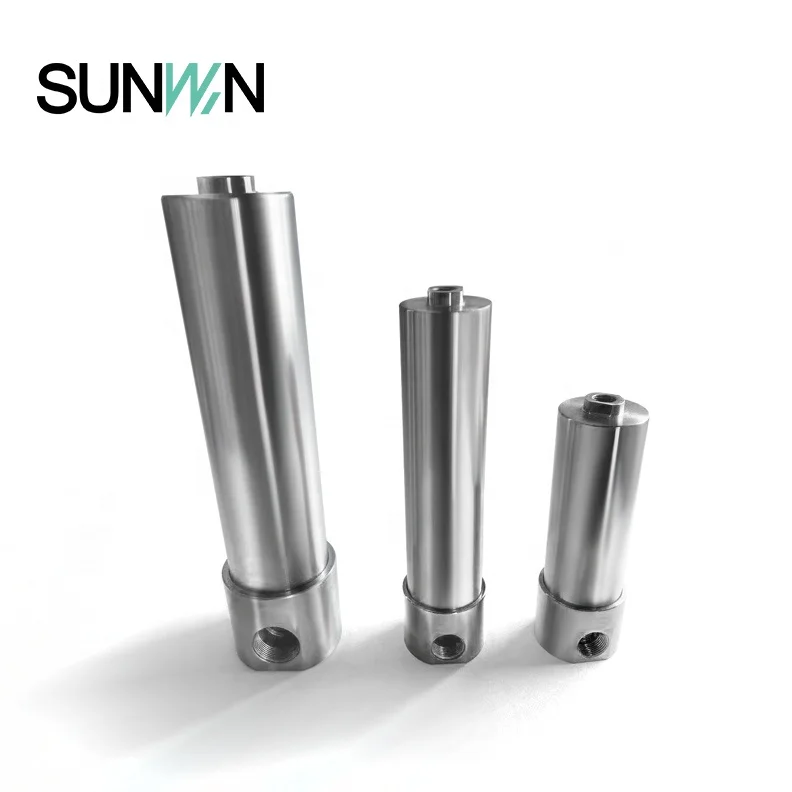

SUNWIN® high-pressure filter’s construction and design are implemented in all details for highest possible operating safety. Also ensures great separation performance under high pressure conditions.
HW series high pressure compressed air filters with a particularly robust housing and higher temperature resistance of up to 100°C.


Product Parameters




Model
Capacity
Nm3/min
Air Connections
Dimensions(mm)
      L                  W                  H
Weight （kg）
C/T/A/AA/H-001/4.0
1.4
Rc3/4"or Rc1"
88
80
274
4
C/T/A/AA/H-002/4.0
2.4
Rc3/4"or Rc1"
88
80
274
4.5
C/T/A/AA/H-003/4.0
3.8
Rc3/4"or Rc1"
88
80
370
7
C/T/A/AA/H-006/4.0
6.5
Rc1-1/2"
118
106
520
12
C/T/A/AA/H-008/4.0
8.5
Rc1-1/2"
118
106
520
12.5
C/T/A/AA/H-010/4.0
10.5
Rc1-1/2"
118
106
600
15
C/T/A/AA/H-013/4.0
13.5
Rc1-1/2"
118
106
600
15.5
C/T/A/AA/H-015F/4.0
18
DN50
310
133
860
38
C/T/A/AA/H-020F/4.0
25
DN65
379
133
1040
65
C/T/A/AA/H-025F/4.0
28
DN65
370
159
1215
78
C/T/A/AA/H-030F/4.0
35
DN80
451
219
1129
97
C/T/A/AA/H-040F/4.0
45
DN80
451
219
1129
102
C/T/A/AA/H-050F/4.0
55
DN100
513
273
1207
144
C/T/A/AA/H-060F/4.0
65
DN100
513
273
1207
145
C/T/A/AA/H-080F/4.0
85
DN125
560
325
1187
210


Features

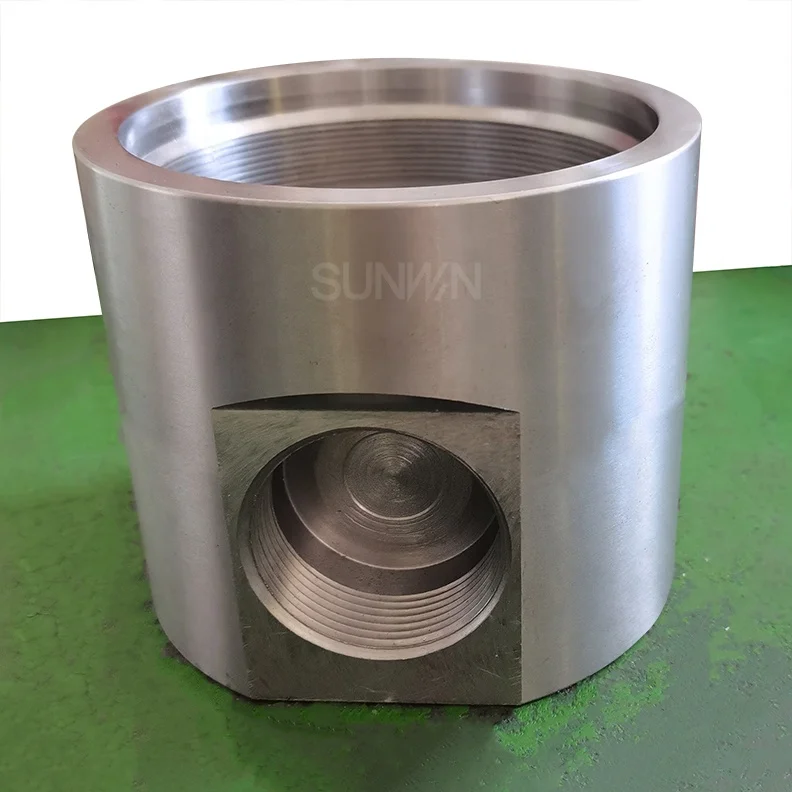

◆ The filter housing produced with the numerical control precision machining and the high temperature pressure test experiment.
◆ The materials include stainless steel, carbon steel respectively 4.0Mpa 5.0Mpa pressure levels.
◆ This air filter is suitable for special gas, high efficiency, corrosion resistance and high temperature resistance as corrosion-resistant surface treatment was performed both.

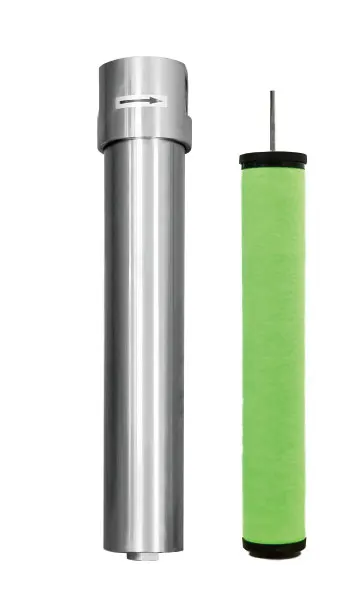

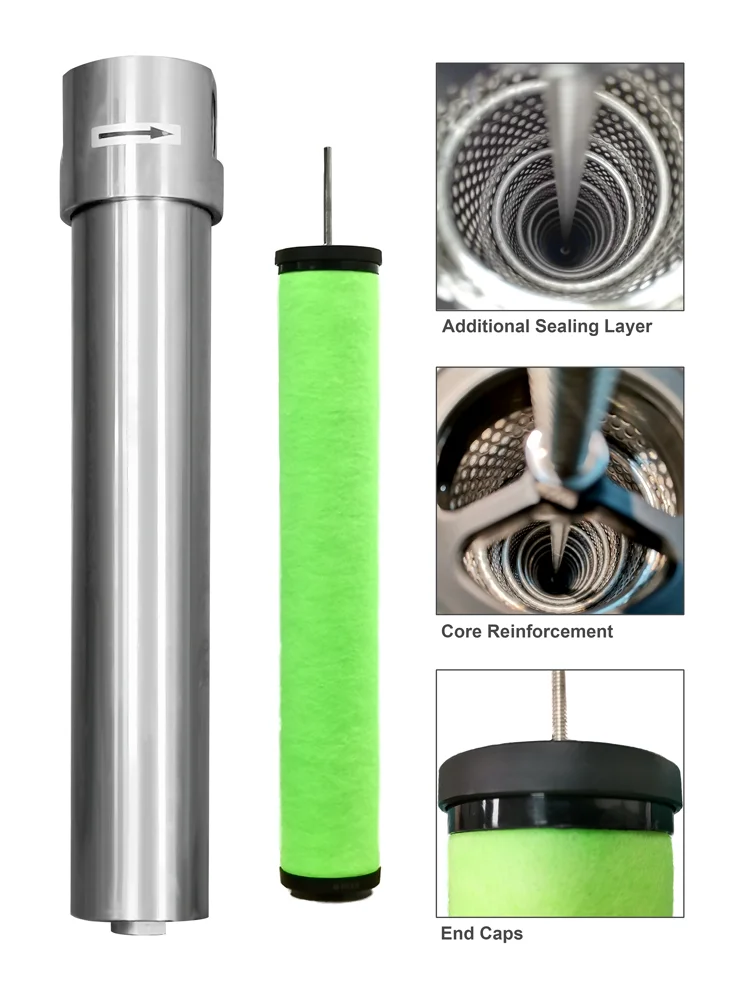

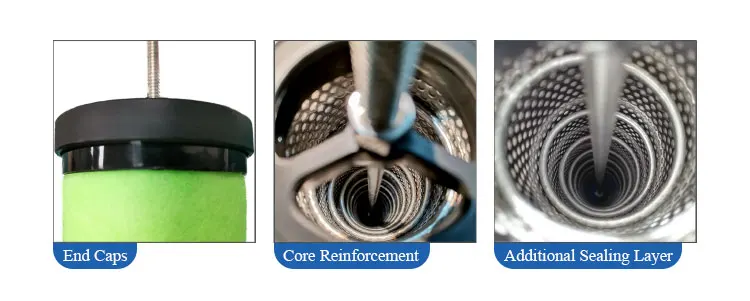

◆ The filter element with advanced materials and stable stainless steel bones, to achieve efficient precision filtration effect.

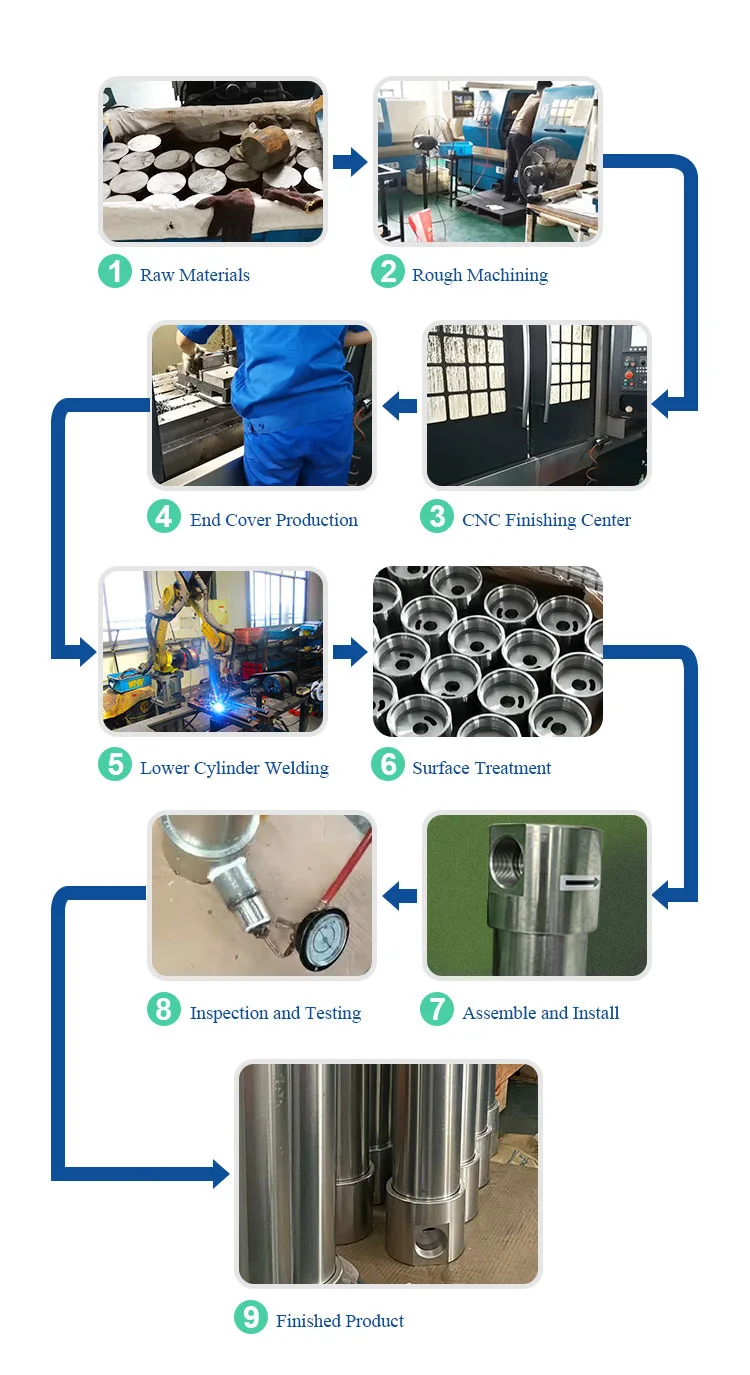

Workshop










Application
