Product Overview

Description

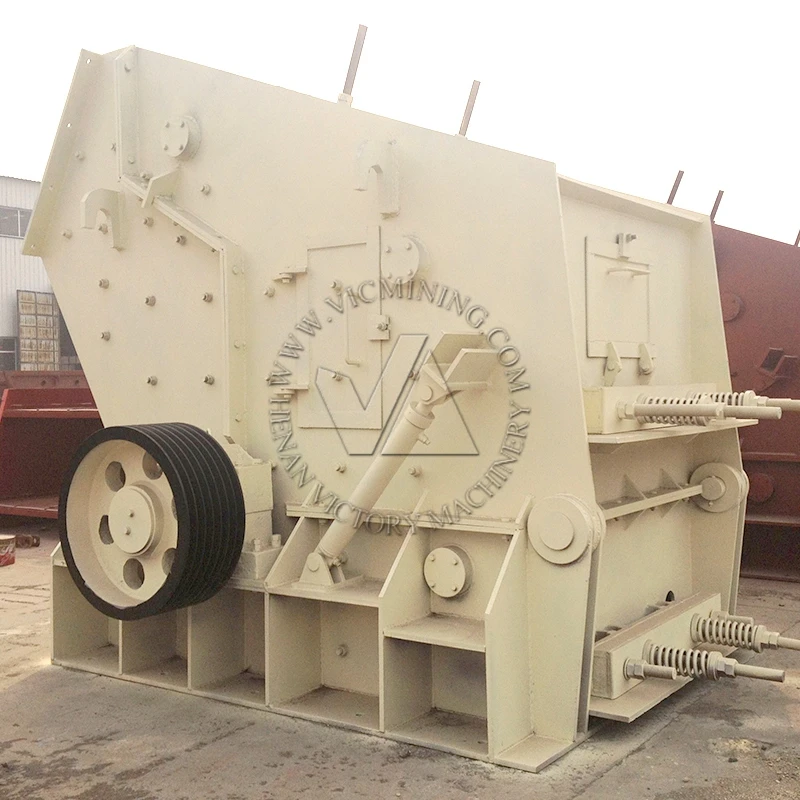

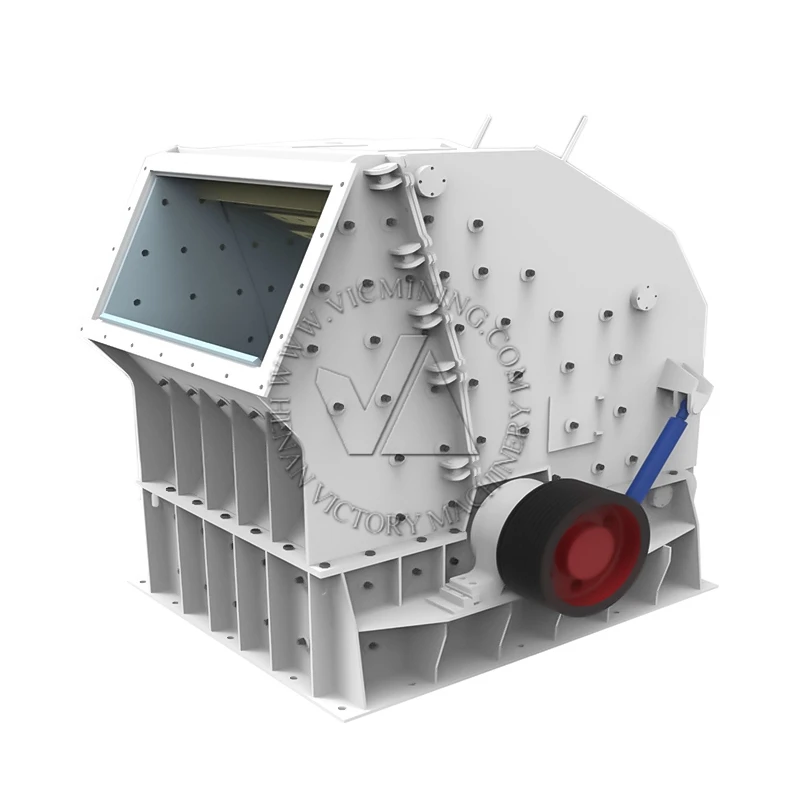

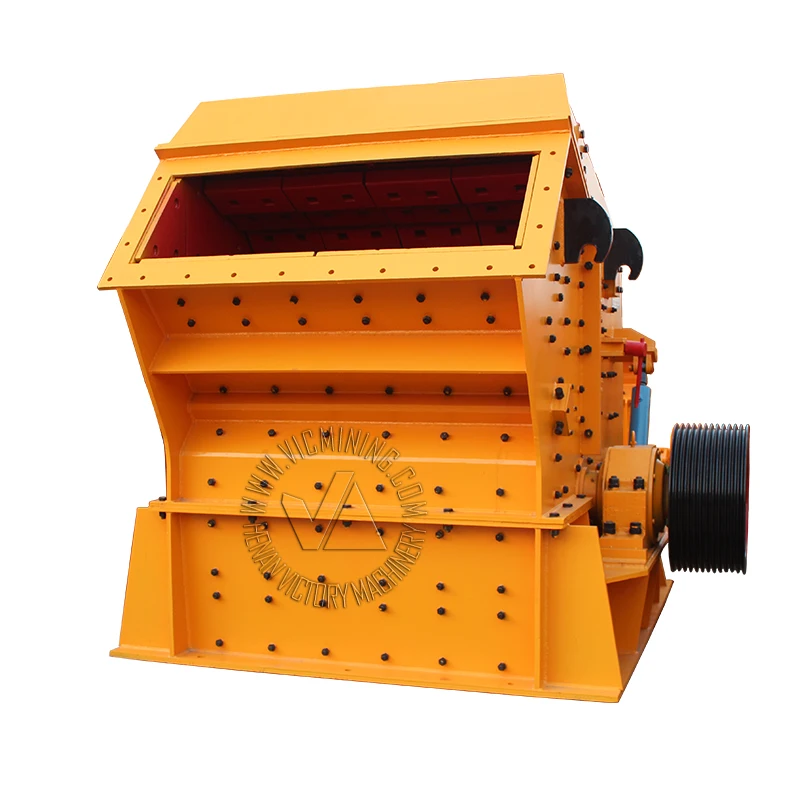

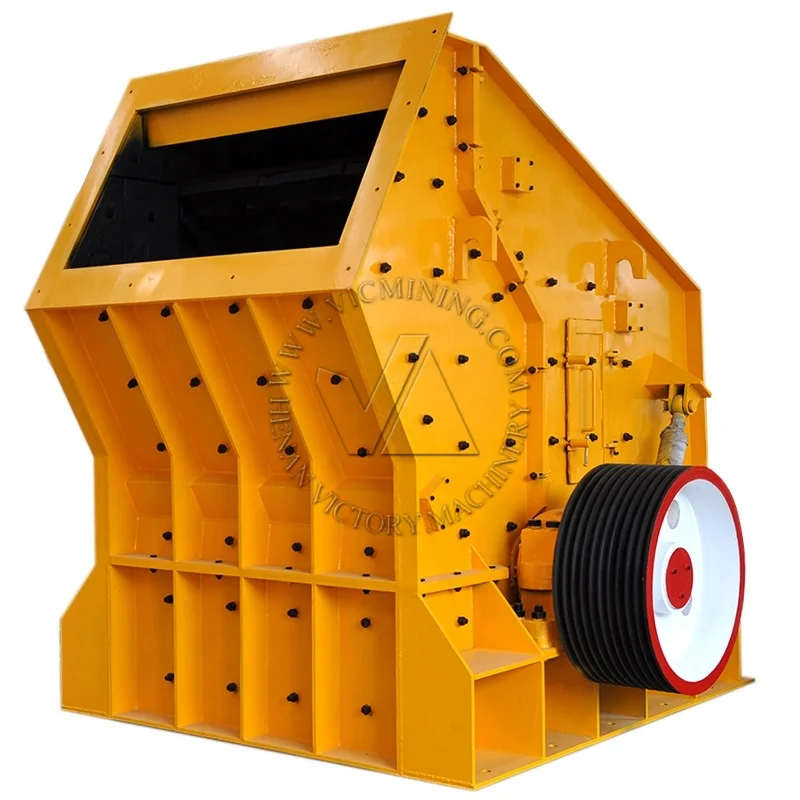

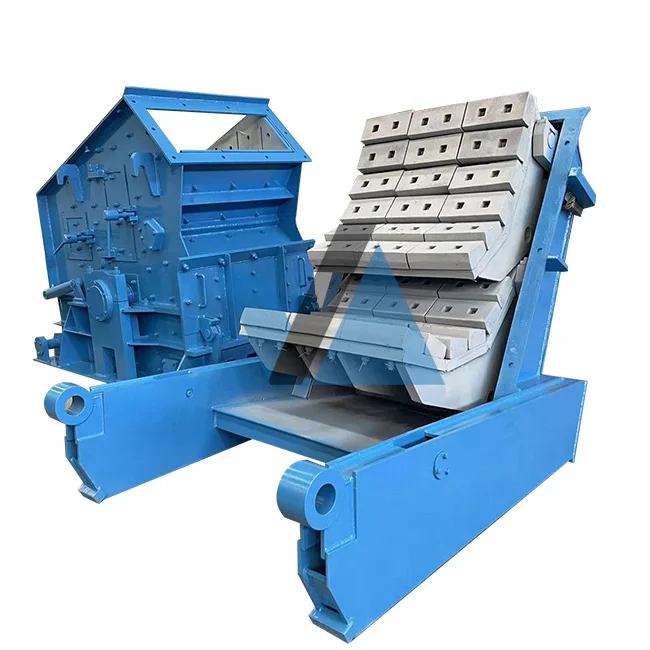

Mining machinery impact crusher stone crusher machine



Product Introduction



The impact crusher is the latest generation of impact crusher developed by our company. It adopts the latest manufacturing technology, special structural design, the finished product is cubic, no tension and crack, the grain shape is quite good, and it can crush various coarse and medium materials with the feed size not exceeding 500mm and the compressive strength not exceeding 350MPa. It is widely used in various ore crushing, railway, highway, energy, cement, chemical, construction and other industries. Our company's series of impact crusher are divided into two series: two-chamber and three-cham- ber. The unique structure adopts seamless connection, high chrome hammer and special impact lining. It simplifies the crushing process and use low energy. The finished product is cube; The particle size can be adjusted.



Performance Features





1.Key less connection, easy maintenance, economic and reliable; good impact resistance and wearing resistance.

2.Large feeding opening size, high crushing chamber, suitable for the high hardness material, large block, and less powder of finished products .

3.Full-featured of crushing, high capacity, low wear and high comprehensive eciency.

4 .Compact structure, strong machine rigidity, and large moment of inertia of the rotor.

Working principle

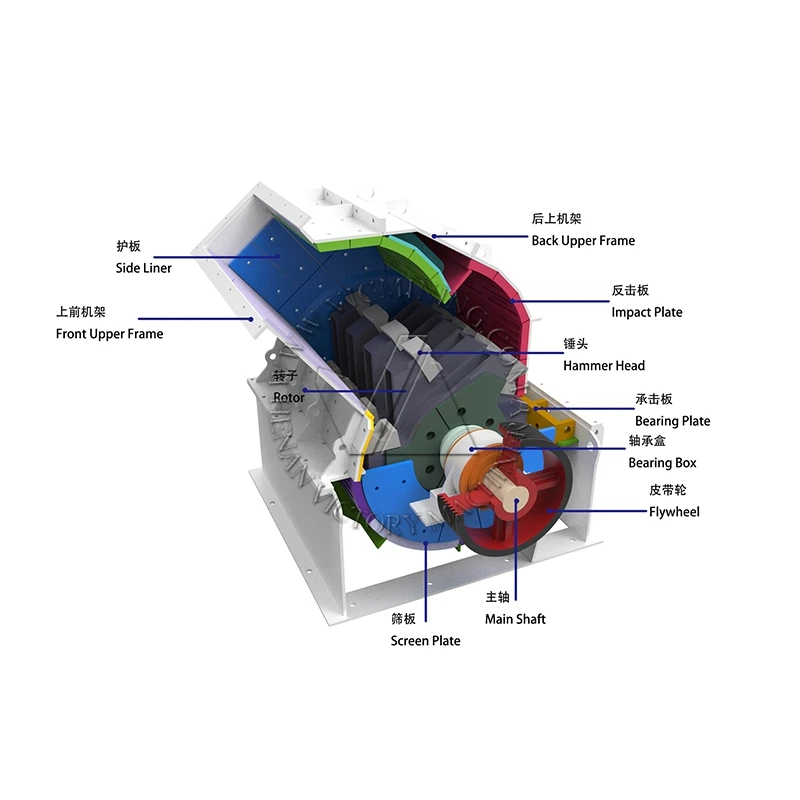

When the machine is working, the rotor rotates at high speed under the driving of the motor. When the material enters the action area of the hammer, it collides with the hammer on the rotor, and then is thrown to the impact crush device to crush again. Then the spring is returned to the action area of the hammer and re-crushed. The material is broken into the counter-attack chambers from large to small repeated-ly, until the material is crushed to the required particle size and discharged from the discharge port. Adjusting the gap between the counter-rack and the rotor can change the material discharge size and material shape.





Application













Technical Parameters



Model

Rotor Size (mm)

Feed Opening Size (mm)

Max. Feeding Size (mm)

Capacity (t/h)

Power (kw)

Total Weight (t)

Overall Dimension(L*W*H) (mm)

PF-1007	Φ1000×700	400×730	300	30-70	45	12	330×1660×2300
PF-1010	Φ1000×1050	400×1080	350	50-90	55	15	2370×1700×2390
PF-1210	Φ1250×1050	400×1080	350	70-130	110	17.7	680×2160×2800
PF-1214	Φ1250×1400	400×1430	350	100-180	132	22.4	2650×2460×2800
PF-1315	Φ1320×1500	860×1520	500	130-250	220	27	3180×2720×2620
PF-1520	Φ1500×2000	830×2040	700	300-500	44	50.6	3959×3564×33
