Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
ADH IPG 1500w 3000W Fixed Table Fiber Laser Cutting Machine with Raytools Head Raycus optional
- Category: >>>
- Supplier: Anhui Donghai Machine Tool Co. Ltd.
Share on (1601044416264):
Product Overview
Description
Products Description

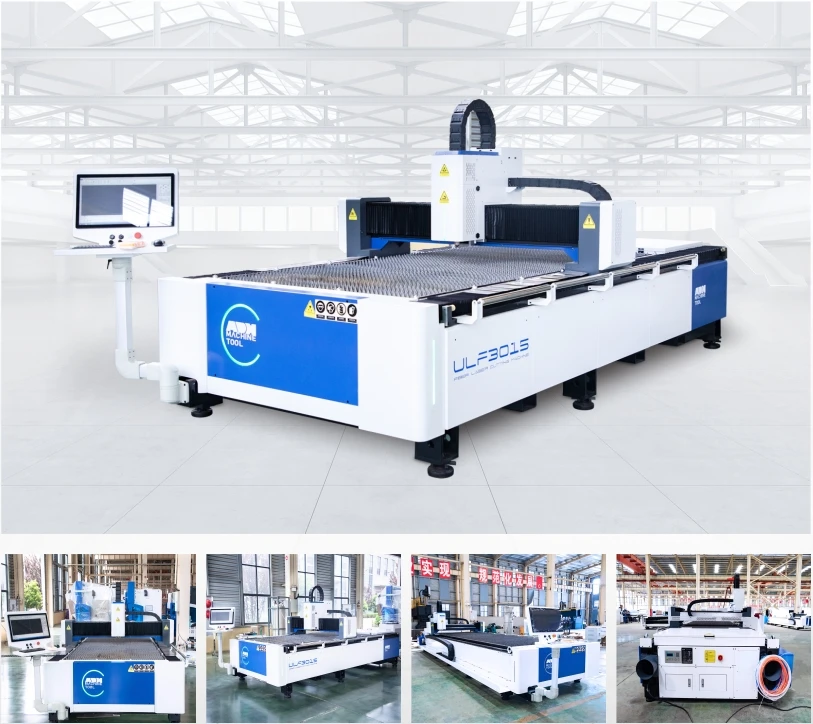

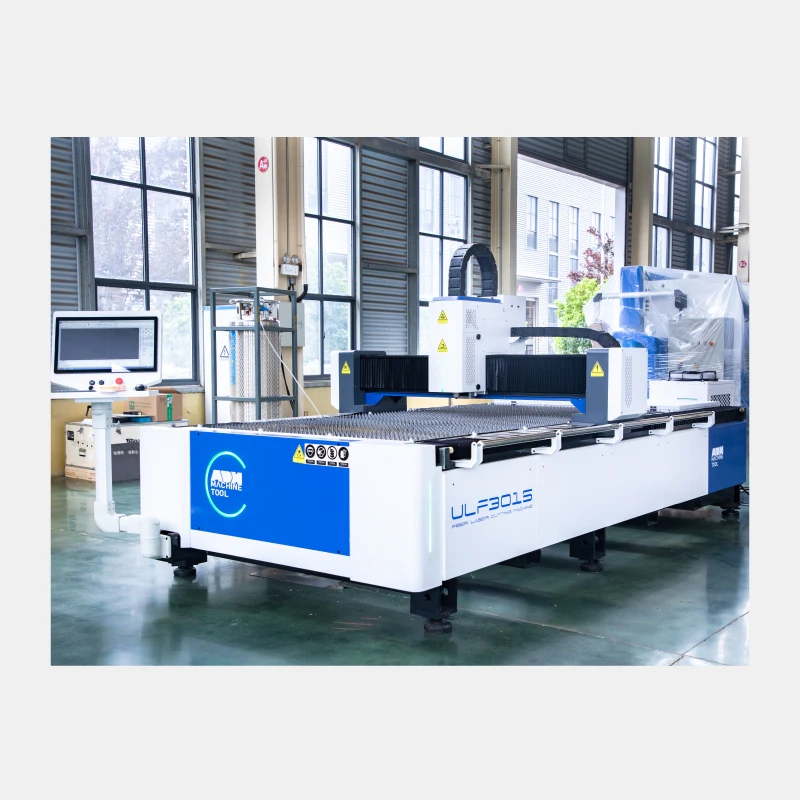

Model: ULF Single Table Laser Cutting Machine
Mainly used for fast cutting of various metal materials such as carbon steel, silicon steel, stainless
steel, aluminum alloy, titanium alloy, galvanized sheet, galvanized aluminum-zinc sheet, copper, etc.
Mainly used for fast cutting of various metal materials such as carbon steel, silicon steel, stainless
steel, aluminum alloy, titanium alloy, galvanized sheet, galvanized aluminum-zinc sheet, copper, etc.
It adopts a high-performance fiber laser generator with high photoelectric conversion efficiency and
fast cutting speed. It has the characteristics of maintenance-free, low operating cost, and high stability.
fast cutting speed. It has the characteristics of maintenance-free, low operating cost, and high stability.
Widely used in industries such as kitchen appliances, lighting hardware, chassis cabinets,
advertising signage, display equipment, and sheet metal processing.
advertising signage, display equipment, and sheet metal processing.
Main component

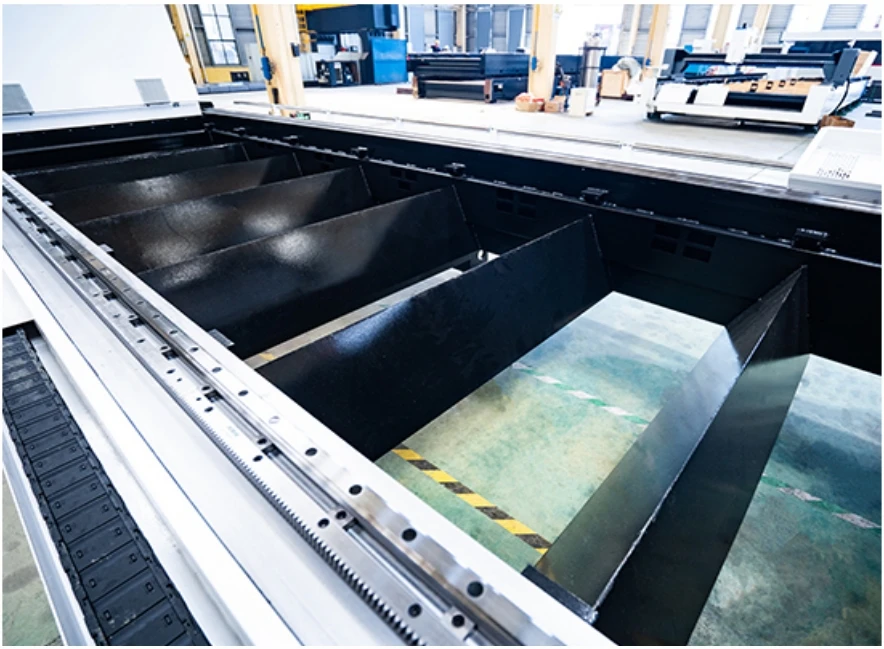

Bed
The machine tool bed is made of high-quality steel structural materials, undergoes fine iron plate welding, high-temperature tempering, and aging treatment to ensure that the machine tool structure remains undistorted. It maintains high rigidity, good stability, and long-term accuracy.

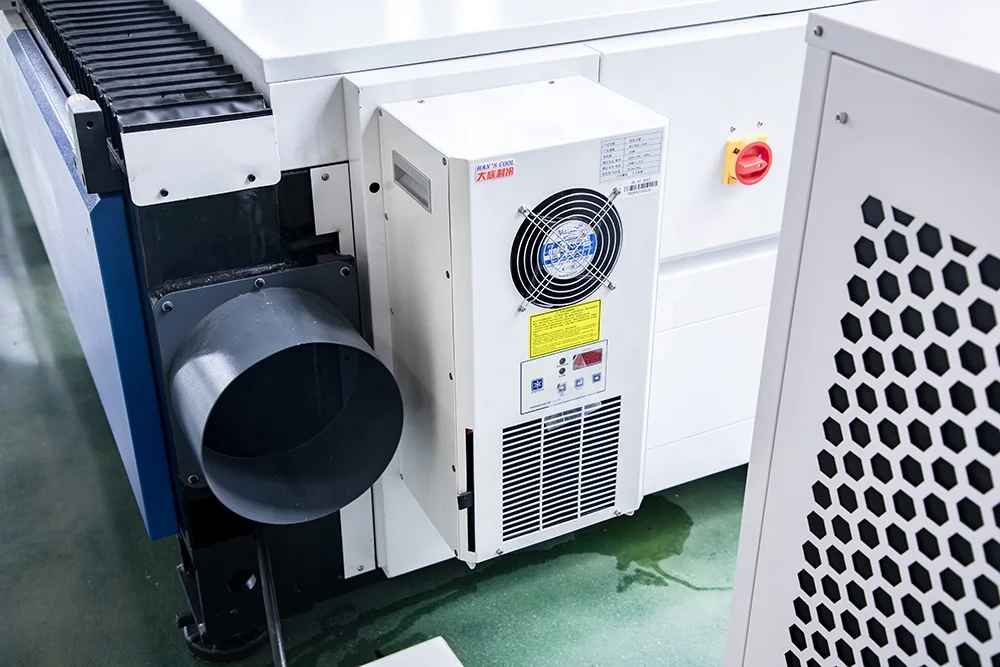

Equipped with a dual-channel partition dust removal system for better suction and exhaust effect.

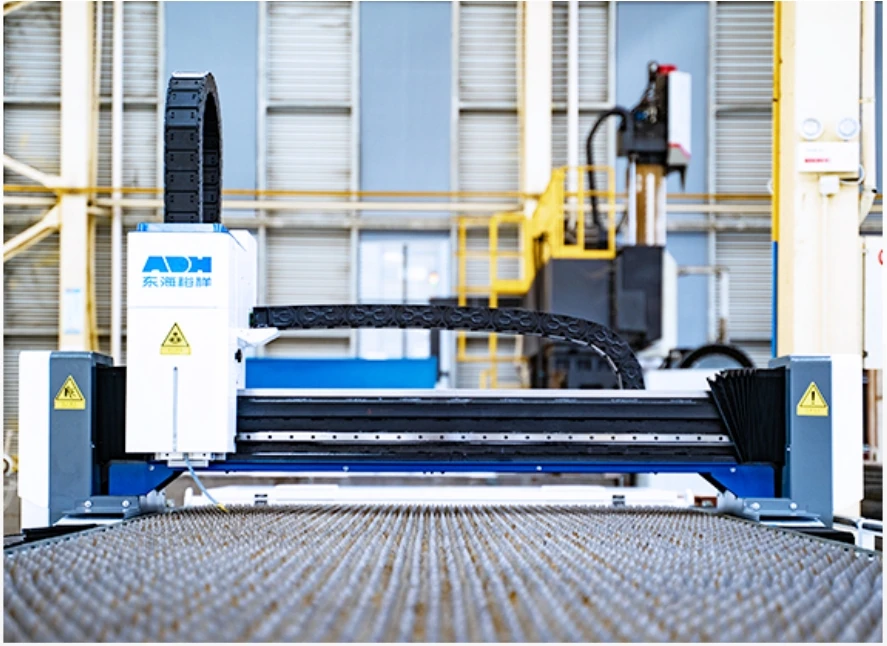

Crossbeam
The unique crossbeam design undergoes annealing treatment and is processed as a whole in the machining center. It is lightweight and impact-resistant, ensuring long-term stability during high-speed operation.
It is manufactured using drawing and precision machining processes, resulting in a lightweight structure with high rigidity and excellent dynamic performance. It reaches the optimal critical state of the machine tool's dynamic performance, minimizing the load on the gantry as much as possible.

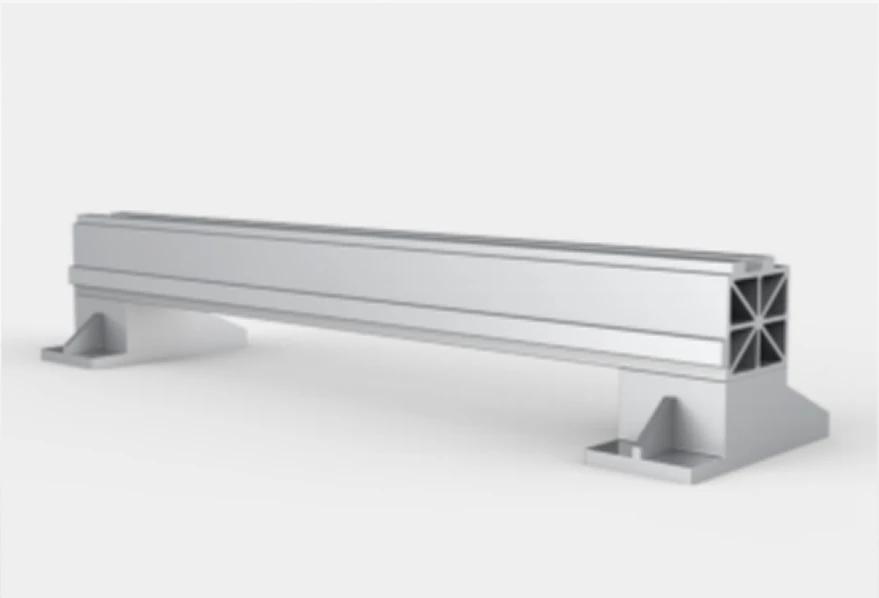

Aluminum Crossbeam (Optional)
The equipment adopts a die-cast integrated aluminum crossbeam structure, which is formed by pressing steel molds with aerospace-grade aluminum alloy materials. It undergoes strict CNC high-temperature annealing treatment to ensure that the equipment remains lightweight and resistant to deformation. It exhibits minimal deformation, lighter weight, higher strength, and greatly improves the dynamic response speed and cutting accuracy of the equipment.

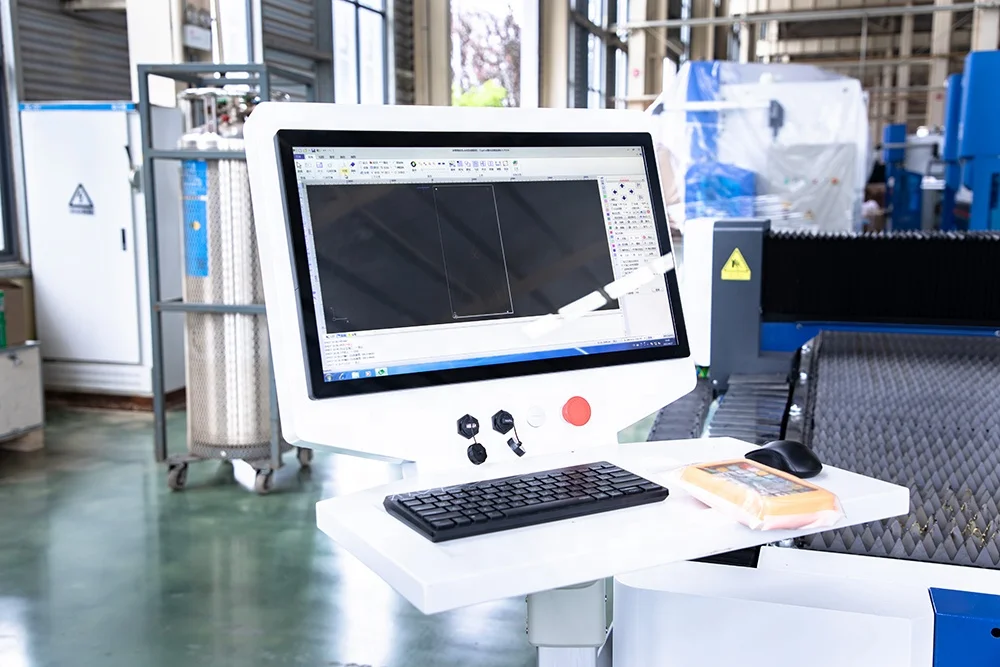

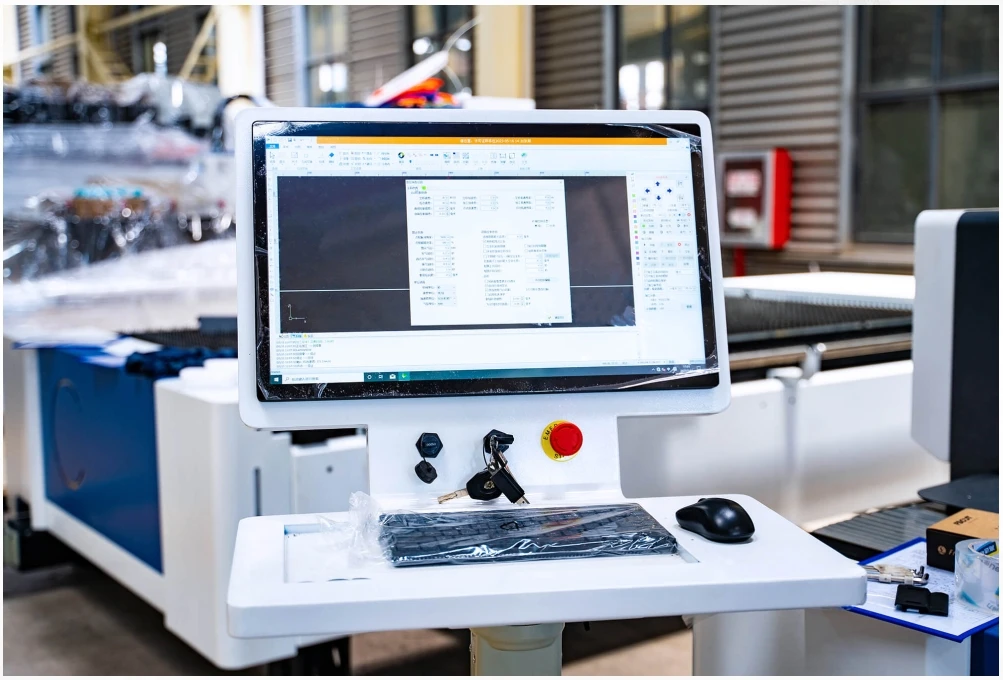

CONTROLLER
The equipment utilizes the FSCUT bus numerical control system developed by a leading domestic CNC system developer. As one of the most professional laser processing numerical control systems, it features a compact and specialized structure, modular design, and excellent performance. It is easy to operate and learn, allowing for precise operation and control of the equipment.
LASER SOURCE
LASER SOURCE
Raycus Laser
A third-generation fiber laser with a module for stable operation. Featuring a unique patented design, it is manufactured in China, ensuring convenient maintenance.
Capable of operating in harsh environments and supporting synchronized laser source control. Boasting efficient electro-optical conversion and excellent beam quality.
CUTTING HEAD
IPG Laser
Ideal for cutting high reflective materials such as aluminum and copper, it is the best fiber laser cutting machine. With a photoelectric conversion rate exceeding 30%, it operates within a temperature range of 10-40 degrees and can be temperature-controlled using air conditioning. The wavelength range is between 1070-1090nm, with high beam quality, TEM00 mode, and an M2 value lower than 1.4.
Raytools Cutting Head - Switzerland
It can be used with different focal lengths and controlled by the machine system. During the cutting process on different thicknesses of metal sheets, the focus will automatically adjust to achieve optimal cutting results.
High cutting speed, reaching up to 1200 pieces/minute.
Reduces procurement and maintenance costs by 20%.
Offers excellent cost-performance ratio, with a straight cutting speed of up to 140m/min.

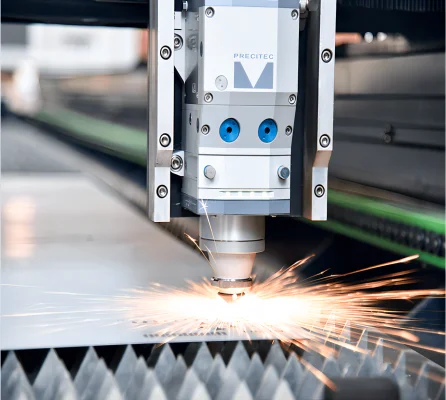

Precitec Cutting Head - Germany
Electric focus position adjustment enables automated machine setup and perforation operations.
Compact and slim design with fast acceleration and cutting speed.
Fully sealed optical path with protective window and LED operation status display.
Pressure monitoring in the nozzle area (gas cutting) and the head.
The machine employs state-of-the-art transmission systems from renowned German/Japanese brands.
It is characterized by its high strength, low noise levels, and extended lifespan.
Additionally, it achieves exceptional positioning accuracy and superior synchronization performance.
Additionally, it achieves exceptional positioning accuracy and superior synchronization performance.
The machine is equipped with a precision-ground gear and rack transmission system, which surpasses the vibration limitations of screw-driven systems during high-speed, long-distance operations, enabling high-speed and high-precision transmission.
This guarantees the accuracy and lifespan of the machine tool even under the high-speed operation of a megawatt-level laser.

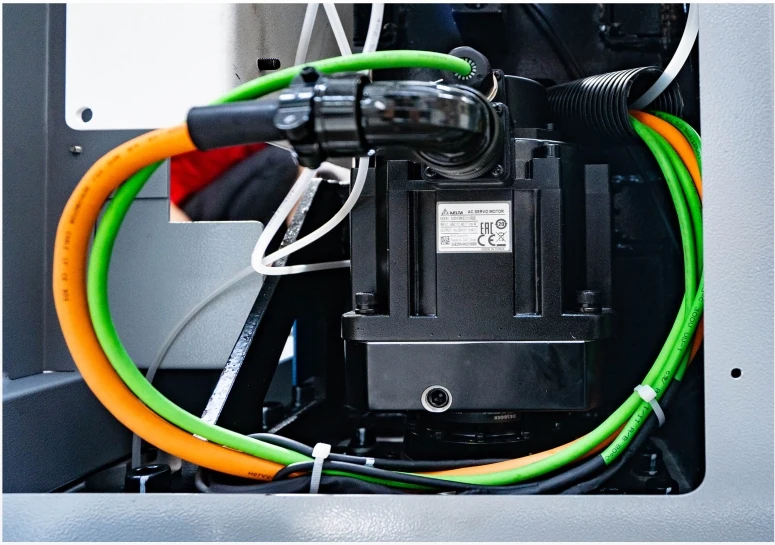

The machine incorporates Delta servo motors, a distinguished brand from Taiwan known for their high speed, precision, feedback, and inertia capabilities. These motors meet the demands for high-quality and high-productivity operations.
Utilizing an imported high-inertia servo system, the amplifier exhibits the highest level of responsiveness, drastically reducing the tuning time. This allows for rapid acceleration and deceleration, ultimately enhancing the mechanical stability.
Utilizing an imported high-inertia servo system, the amplifier exhibits the highest level of responsiveness, drastically reducing the tuning time. This allows for rapid acceleration and deceleration, ultimately enhancing the mechanical stability.

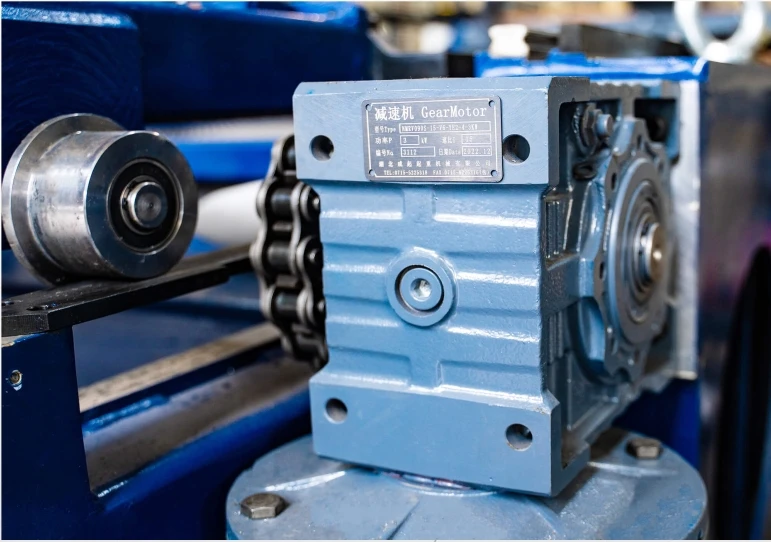

The machine is equipped with original DESBOER gearboxes from Japan, which incorporate innovative technology from DESBOER. These gearboxes are renowned for their high torque, high precision, stable performance, and long lifespan.
They are especially well-suited for applications that require prolonged high-speed operation.
They are especially well-suited for applications that require prolonged high-speed operation.

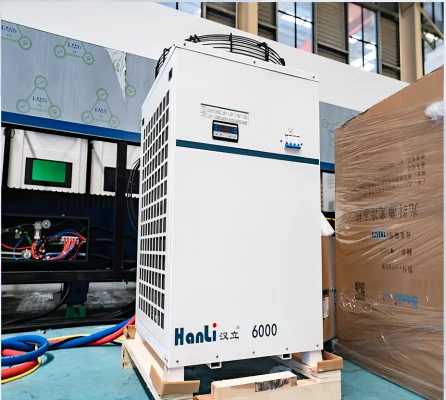

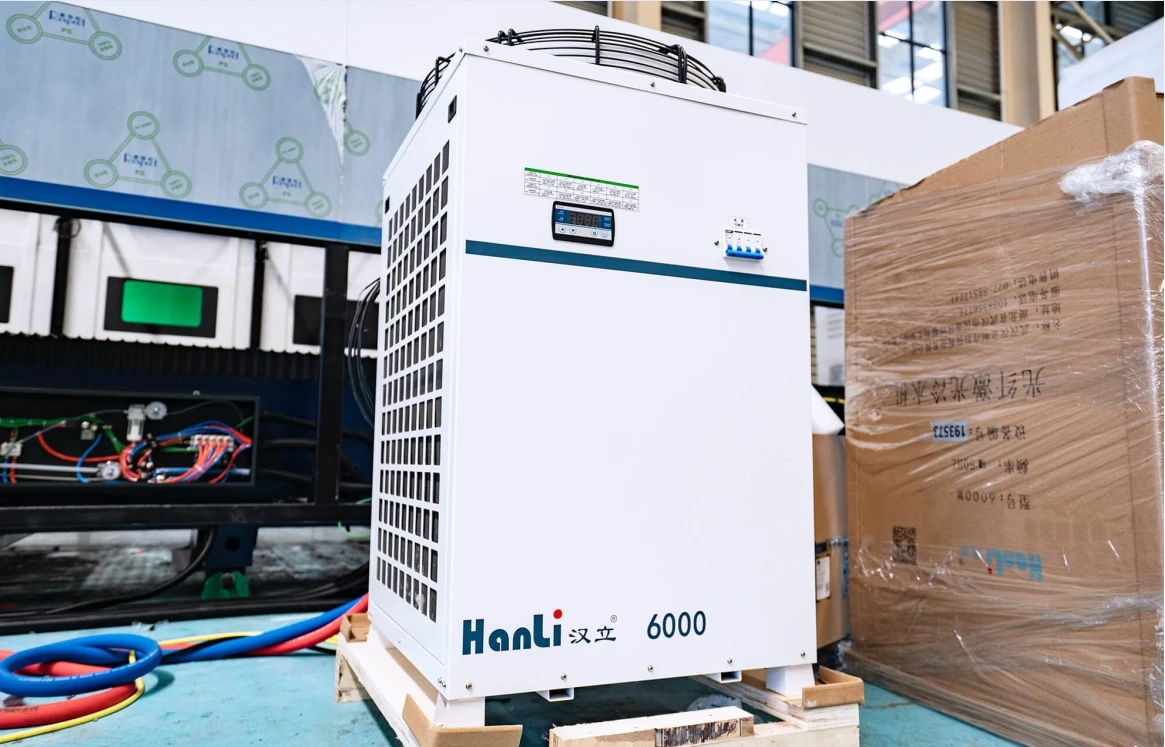

COOLING SYSTEM
The intelligent dual-temperature and dual-control water cooling system is adopted, which has safety alarm functions such as over-temperature alarm, flow protection, and water level protection. It can ensure the normal operation of the equipment even in high temperature difference and high humidity environments.
It has intelligent dual-temperature automatic tracking function, which can achieve over-temperature alarm protection, cooling, and maintaining constant temperature functions, effectively preventing atomization effect and focal drift.
It has intelligent dual-temperature automatic tracking function, which can achieve over-temperature alarm protection, cooling, and maintaining constant temperature functions, effectively preventing atomization effect and focal drift.
Product Paramenters
Model | Max. cuttomg size（mm） | X travel（mm） | Y travel（mm） | Z travel（mm） | X, Y Position accuracy（mm） | X，Y repeat Position accuracy（mm） | Main Motor（KW） |
ULF 3015 | 3000 x1500 | 1550 | 3100 | 120 | ≤±0.03 | ±0.02 | 5 |
ULF 4015 | 4000 x1500 | 1550 | 4100 | 120 | ≤±0.03 | ±0.02 | 5 |
ULF 6015 | 6000 x1500 | 1550 | 6100 | 120 | ≤±0.03 | ±0.02 | 5 |
ULF 4022 | 4100 x2200 | 2220 | 4100 | 120 | ≤±0.03 | ±0.02 | 5 |
ULF 6022 | 6100 x2200 | 2220 | 6100 | 120 | ≤±0.03 | ±0.02 | 5 |
ULF 6026 | 6000 x2600 | 2600 | 6100 | 160 | ≤±0.03 | ±0.02 | 8 |
ULF 8026 | 8000 x2600 | 2600 | 8100 | 160 | ≤±0.03 | ±0.02 | 8 |
ULF 13026 | 13000 x2600 | 2600 | 13000 | 160 | X≤±0.03 Y≤±0.05 | ±0.02 | 8 |
ULF 24026 | 15000 x2600 | 2600 | 15000 | 160 | X≤±0.03 Y≤±0.1 | ±0.02 | 17 |
ULE 3015 | 3000 x1500 | 1520 | 3050 | 220 | ≤±0.03 | ±0.02 | 8 |
ULE 4015 | 4000 x1500 | 1520 | 4050 | 220 | ≤±0.03 | ±0.02 | 8 |
ULE 4020 | 4000 x2000 | 2020 | 4050 | 220 | ≤±0.03 | ±0.02 | 8 |
ULE 6020 | 6000 x2000 | 2020 | 6050 | 220 | ≤±0.03 | ±0.02 | 12 |
ULE 6025 | 6000 x2500 | 2550 | 6100 | 280 | ≤±0.03 | ±0.02 | 14 |
ULE 8025 | 8000 x2500 | 2550 | 8100 | 280 | ≤±0.03 | ±0.02 | 17 |
ULE 12025 | 12000 x2500 | 2550 | 12500 | 280 | X ≤±0.03 Y ≤±0.05 | ±0.02 | 17 |
About us
EMPLOYEES: 617 SALES & SERVICES OFFICES: 67 R&D TECH: 43
Founded in March 2002, Anhui Donghai Machine Tool Co., Ltd. (Brand: ADH) is a high-tech enterprise specializing in the production of press brake, hydraulic guillotine, fiber laser cutter etc.
ADH is a comprehensive leading enterprise in the machine tool industry in China, which integrates automatic control system design, new product research and development, and equipment manufacturing innovation platform formation.
Our factory is located in Bowang District, Ma'anshan City, Anhui Province, only 30 kilometers away from Nanjing Lukou International Airport and can be reached within 30 minutes by car.
ADH is a comprehensive leading enterprise in the machine tool industry in China, which integrates automatic control system design, new product research and development, and equipment manufacturing innovation platform formation.
Our factory is located in Bowang District, Ma'anshan City, Anhui Province, only 30 kilometers away from Nanjing Lukou International Airport and can be reached within 30 minutes by car.

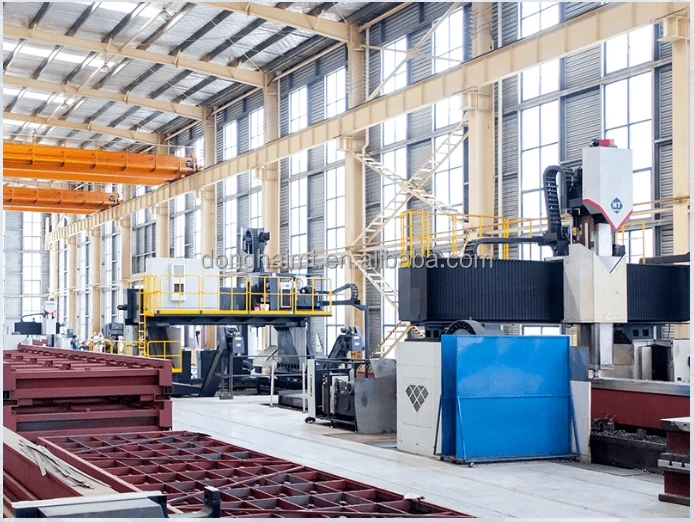

Manufacturing Technique
Our frame is manufactured through large-scale processing equipment, which includes overall processing, heat treatment, shot
blasting, and welding. As a result, our equipment's frame is more stable and durable, while ensuring final processing accuracy.
blasting, and welding. As a result, our equipment's frame is more stable and durable, while ensuring final processing accuracy.

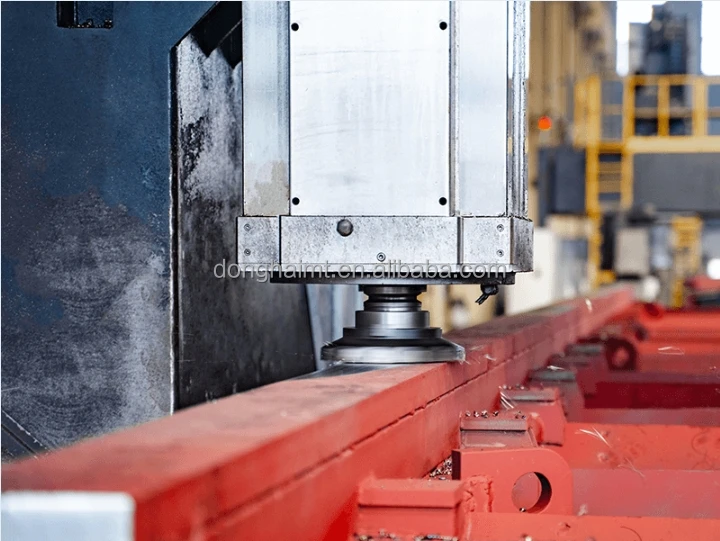

The gantry pentahedron machining center is adopted to complete the whole machine processing at one time, so as to ensure the
machine accuracy and the bending accuracy.
machine accuracy and the bending accuracy.

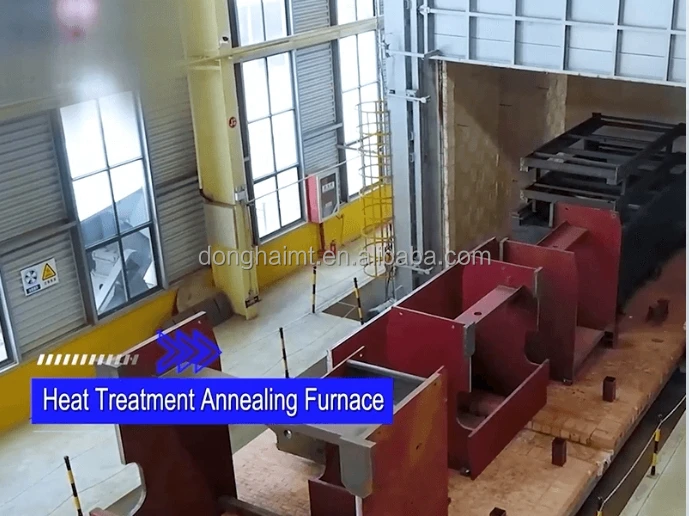

The body and important welding parts are tempered to eliminate welding stress and ensure the stability of the machine for long-term use。

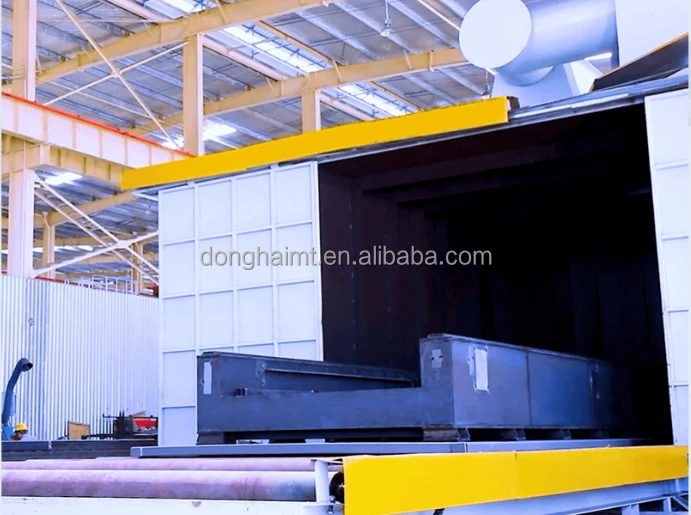

Shot blasting can remove surface rust and oxide scale and improve paint adhesion, so as to improve the anti rust ability of the
whole machine;
At the same time, it can further eliminate the internal stress of parts and prolong the service life of the machine;
whole machine;
At the same time, it can further eliminate the internal stress of parts and prolong the service life of the machine;
Quality, Delivery

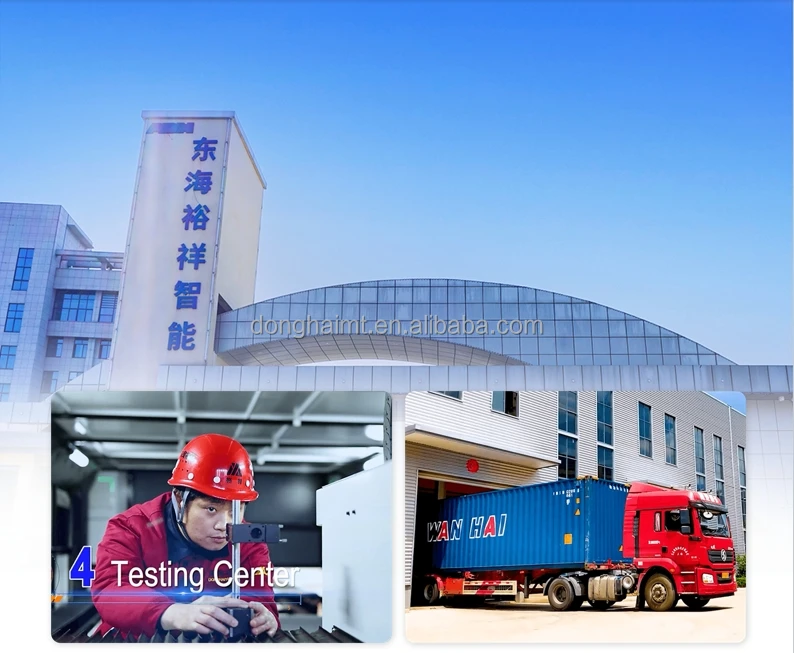

Quality Control
Our machine manufacturing leads the industry in China, setting benchmarks for quality and performance.
Our quality inspection process rigorously follows industry standards, ensuring the reliability of our machines.
Continuous operation of testing machines guarantees compliance with the highest standards before our products are dispatched.
Delivery
Offers customizable packaging options, including wooden cases, for sea transportation to ensure machine integrity upon delivery.
Standard machines are available for delivery within a 20-day timeframe.
The machine employs an advanced fixing method that guarantees stability and eliminates vibration during container transport.
Service
IMPROVE SERVICE QUALITY
Anhui Donghai Machine Tool has a huge global customer source market, has a good basic service network and efficient service capabilities for modern sales, has a core position of customer service in a central city, has efficient information diffusion and demonstration effects, and has become a zoning. Focus on sales layout. Strengthen different forms of customer care, strengthen customer care through related theme services, continue to form a good reputation, and quickly improve brand reputation and customer satisfaction.
IMPROVE SERVICE QUALITY
Donghai Machine Tool makes full use of the advantages of more than 60 offices, combines actual conditions, builds unique service brands, promotes the promotion of new products, strengthens in-termal management, improves service processes, improves technical level and service quality, improves customer experience, and customer satisfaction.
FAST RESPONSE
We require all service points to provide 24-hour fast service support and ensure service resources: personnel, spare parts, tools, etc.
STRENGTHEN TRAINING
In order to improve the overall quality of the service network, we will formulate corresponding training plans and training support for service stations to improve service quality, maintain technical level and customer satisfaction from all aspects.
IMPROVE SERVICE QUALITY
Donghai Machine Tool makes full use of the advantages of more than 60 offices, combines actual conditions, builds unique service brands, promotes the promotion of new products, strengthens in-termal management, improves service processes, improves technical level and service quality, improves customer experience, and customer satisfaction.
FAST RESPONSE
We require all service points to provide 24-hour fast service support and ensure service resources: personnel, spare parts, tools, etc.
STRENGTHEN TRAINING
In order to improve the overall quality of the service network, we will formulate corresponding training plans and training support for service stations to improve service quality, maintain technical level and customer satisfaction from all aspects.
