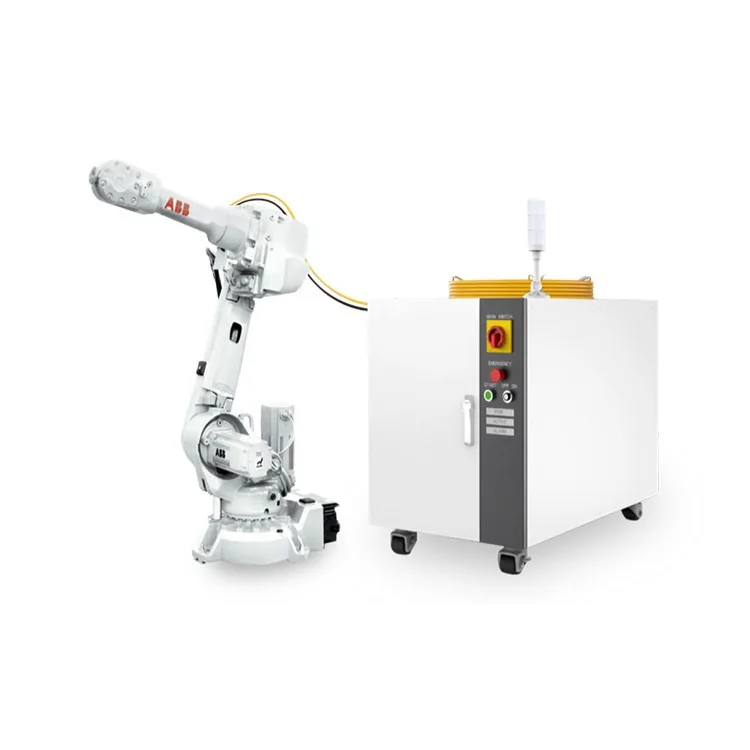

DOYA 6 Axis Robot Arm Laser Welding Machine 6 Axis Laser Welding Robot for Stainless Steel Aluminum 2000W 3000W 6000W
- Category: >>>
- Supplier: Wuhan Doya Optic & Electric Equipment Co. Ltd.
Share on (1601044451085):
Product Overview
Description

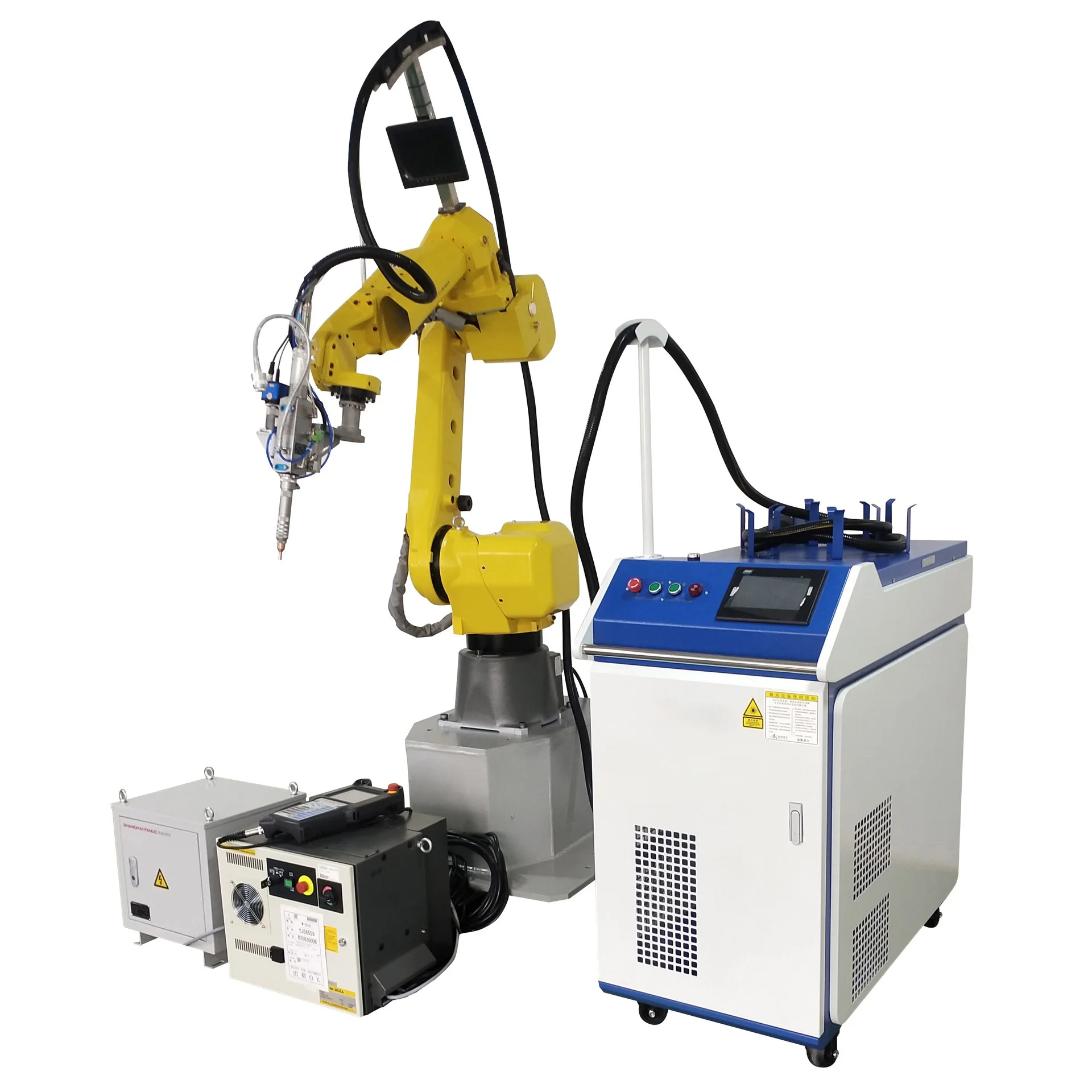

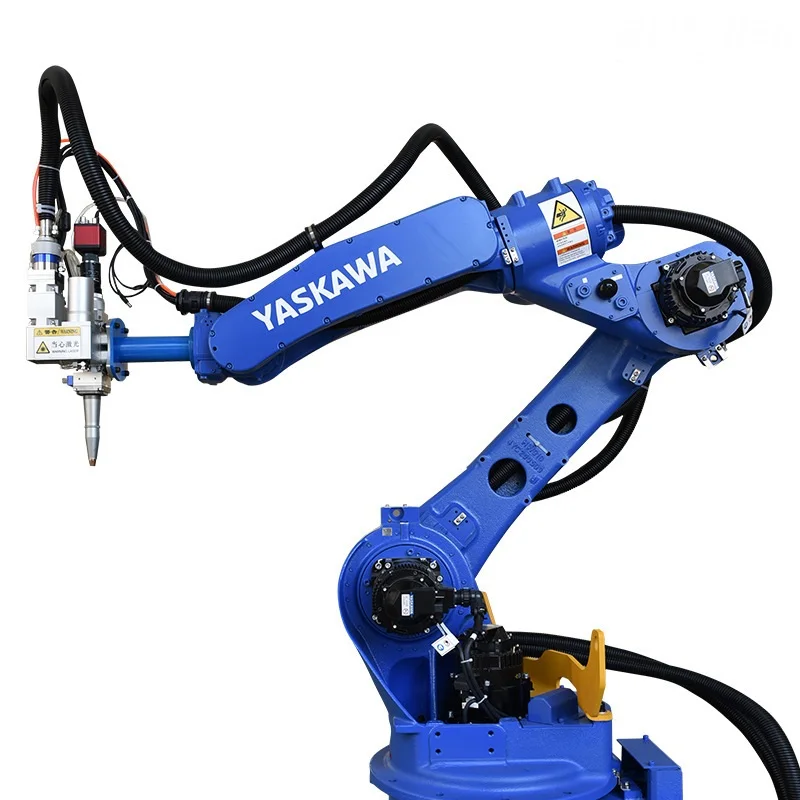

6 Axis Robot Arm Automatic Laser Welding Machine

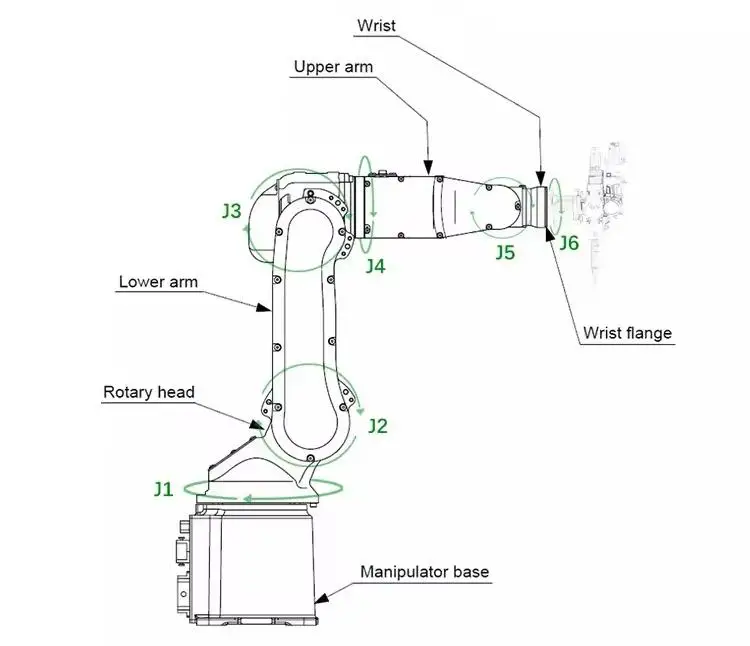

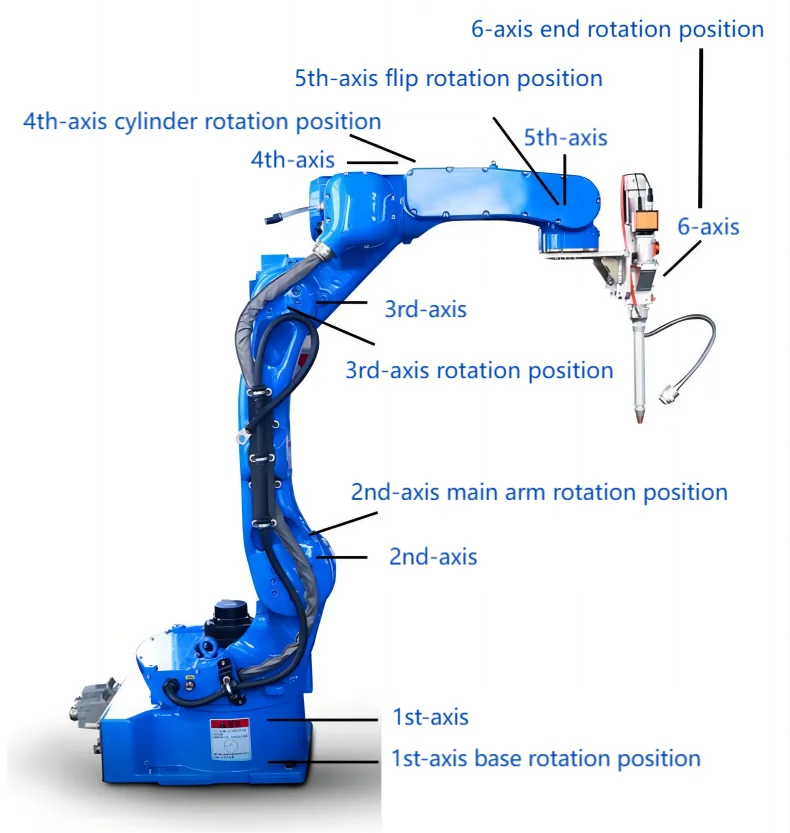

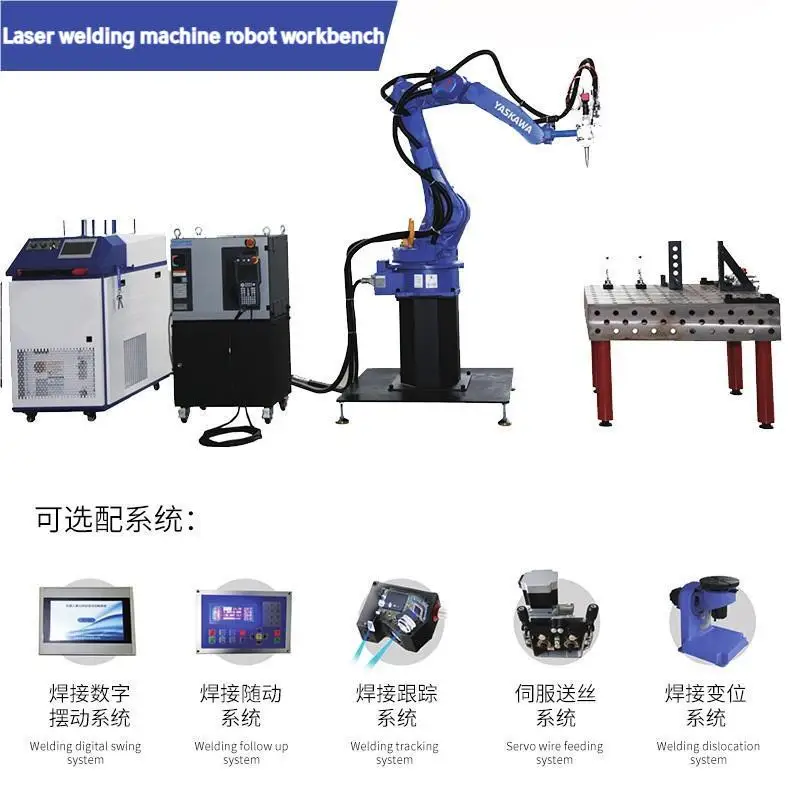

Six-axis robot laser welding machine is the most typical robot laser welding machine. It mainly consists of joints and connecting arms. The robotic arm and wrist cooperate to complete the target trajectory movement, and the space has 6 degrees of freedom. The six-axis robot consists of six joints: rotation (S axis), lower arm (L axis), upper arm (U axis), wrist rotation (R axis), wrist swing (B axis) and wrist rotation (T axis). The synthesis of 6 joints realizes 6 degrees of freedom movement at the end, which makes the 6-axis automatic robot have many advantages such as high flexibility, large load, and high positioning accuracy.
Laser welding uses a high-powered laser to generate energy. The laser beam is focused to a fine point, concentrating the heat on a small area. This heat melts the material and allows the materials to bond–creating a weld.
Laser power: 2000W/ 3000W/ 6000W
Laser source brand: BWT/ Raycus/ Max(optional)
Cooling system: Water cooling
Laser source brand: BWT/ Raycus/ Max(optional)
Cooling system: Water cooling
Advantages:
1. Welding robot can work in harmful environment.
2. It can runs 24 hours, and greatly improve the production efficiency.
3. Stabilize and improve the welding quality of work pieces.
4. Reduced requirements for workers to operate skills.
5. Simple operation, convenient for users.
2. It can runs 24 hours, and greatly improve the production efficiency.
3. Stabilize and improve the welding quality of work pieces.
4. Reduced requirements for workers to operate skills.
5. Simple operation, convenient for users.
Application:

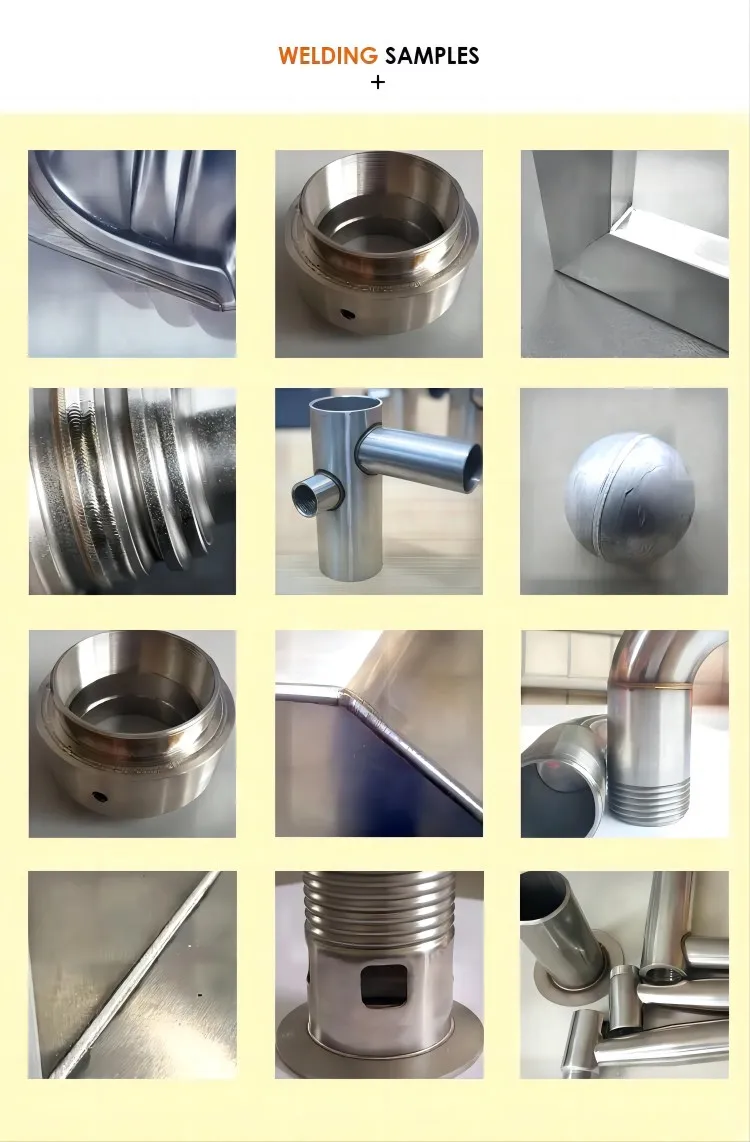

Applicable to stainless steel, carbon steel, iron plate, aluminum, copper, alloy, steel, galvanized, etc. It is widely used in complex and irregular welding processes in cabinets, kitchens and bathrooms, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home appliances and other industries.
Applicable to stainless steel, carbon steel, iron plate, aluminum, copper, alloy, steel, galvanized, etc. It is widely used in complex and irregular welding processes in cabinets, kitchens and bathrooms, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home appliances and other industries.
Model | DCW-2000 | DCW-3000 | DCW-6000 | ||||
Average Output Power | 2000W | 3000W | 6000W | ||||
Laser wavelength | 1080±10nm | ||||||
Robot | Yaskawa -- 6-axis welding robot | ||||||
Maximum load on wrist | 12KG | ||||||
Repositioning accuracy | ±0.03mm | ||||||
Range of motion | Lower arm | J1 | 340º/370º | ||||
J2 | 235º | ||||||
J3 | 455º | ||||||
Upper arm | J4 | 380º | |||||
J5 | 380º | ||||||
Range of motion | J6 | 900º | 4.79mm | ||||
Max speed | Lower arm | J1 | 260º/s | ||||
Laser Source | J2 | 240º/s | |||||
Cooling Type | J3 | 260º/s | |||||
Water Chiller | Upper arm | J4 | 430º/s | ||||
Work Size | J5 | 450º/s | |||||
Control System | J6 | 720º/s | |||||
Thickness of welding material | ≤5mm | ≤7mm | ≤9mm | ||||
Total power | ≤8kw | ≤10kw | ≤12kw | ||||
Welding gap requirements | ≤0.3mm | ||||||
Voltage | 380V±10% | ||||||
Gross Weight | 200KG | ||||||
After-sales service & Customer visiting:
1.Two years for laser source, one year for other spare parts free and lifelong maintenance.
2.Plenty of technical support online is available.
3.Quick Back-up PartsAvailable&Technical Assistance.
4."Training Video","Instruction Book",and"Operation Manual"will be offered.
According to different products and size, we use different packaging materials, our packaging staff are very experienced, and we absolutely guarantee the safety of the products during transportation.
Recommended by seller View more >>
Contact Information:

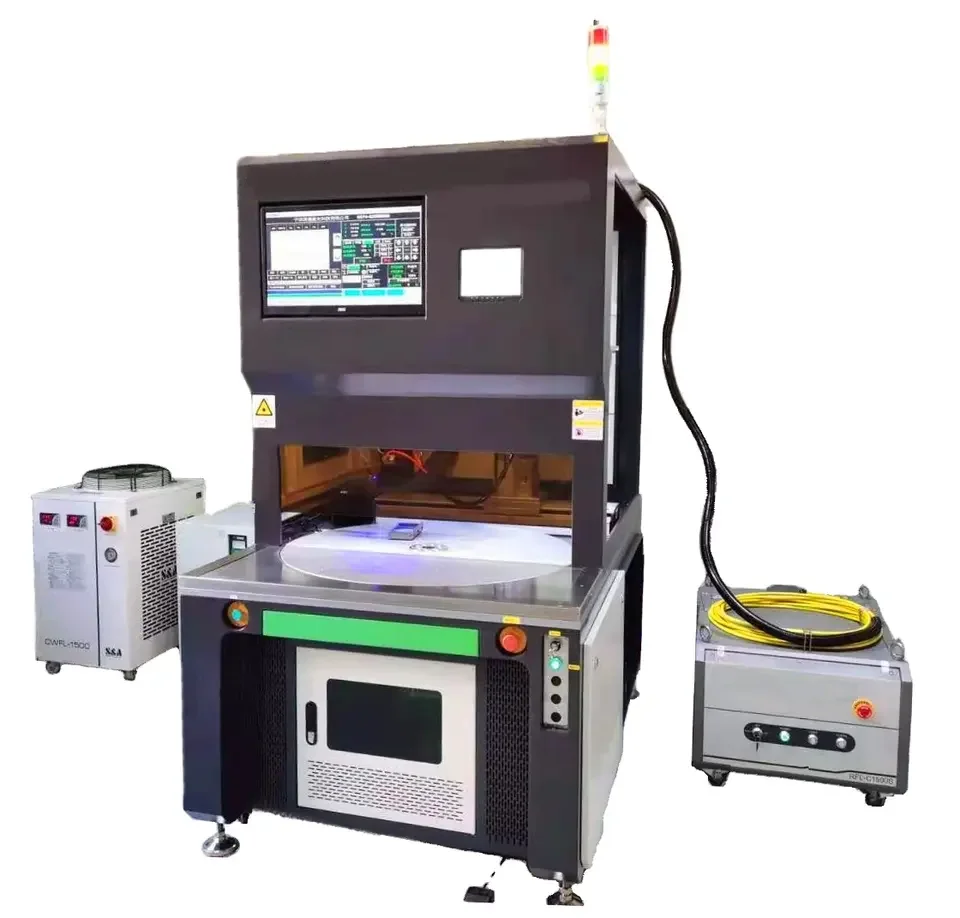

1KW 1.5KW 2W Raycus CCD Monitoring System Automatic Platform Welders 3 Axis 4 Axis 5 Axis Fiber Laser Welding Machine for Matel
