Product Overview
Description
Product Overview
The Filtering Process
Raw water enters the inside of the screen-cylinder from the filter’s Inlet and flows through the screen to the filter’s Outlet.The dirt particles are trapped on the inner screen surface and formulate a “filtration cake” that causes a differential pressure across the screen. A pressure differential switch senses the pressure differential and when it reaches the pre-set value, the cleaning process
begins.
begins.

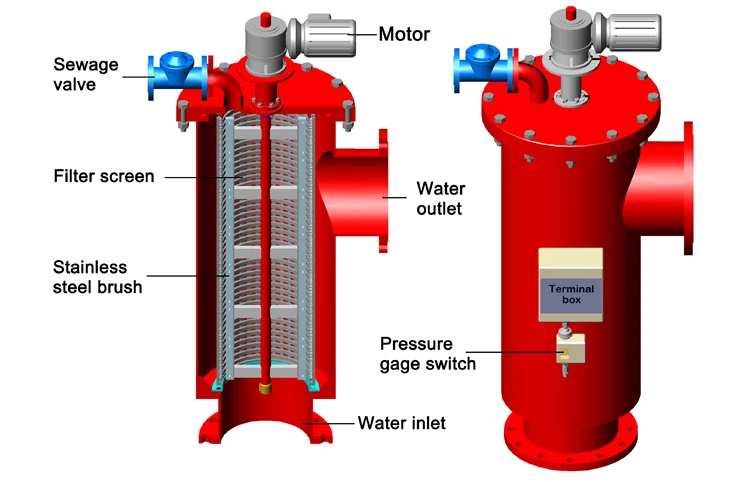

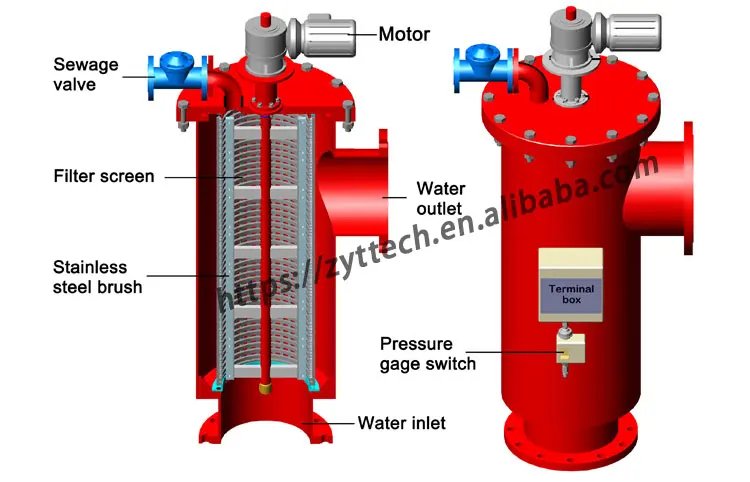

The Self Cleaning Process
During the self cleaning process, filtered process water continues to flow. The Drain Valve opens and the Motor rotates the stainless steel brush which sweeps the inner surface of the cylindrical screen. The particles trapped on the screen are dislodged
by the brushes and flushed out the drain valve. The whole process takes 30 seconds.
During the whole process water supply is uninterrupted.
by the brushes and flushed out the drain valve. The whole process takes 30 seconds.
During the whole process water supply is uninterrupted.
The Control System
Two types of control boards are available for the A600 filters: PLC/Timer.The self cleaning cycle begins under any one of the following conditions:
1. Receiving a signal from the Pressure Differential Switch
2. Time interval parameter set at the control board
3. Manual Start
1. Receiving a signal from the Pressure Differential Switch
2. Time interval parameter set at the control board
3. Manual Start
FEATURES AT A GLANCE

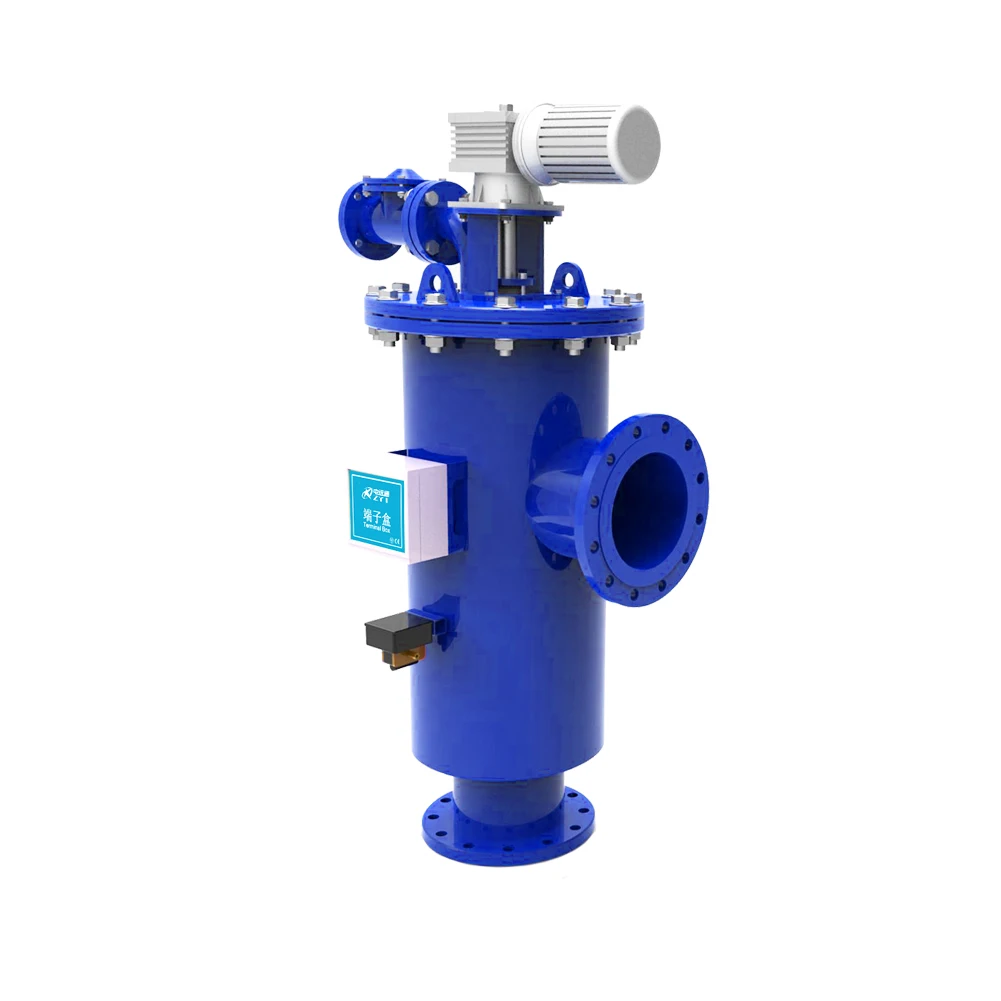

China AIGER A600 irrigation brush water automatic self cleaning filter is vertical type, small footprint saves valuable installation space. The cleaning mode is motor brush with good cleaning effect.
PRODUCT SPECIFICATIONS

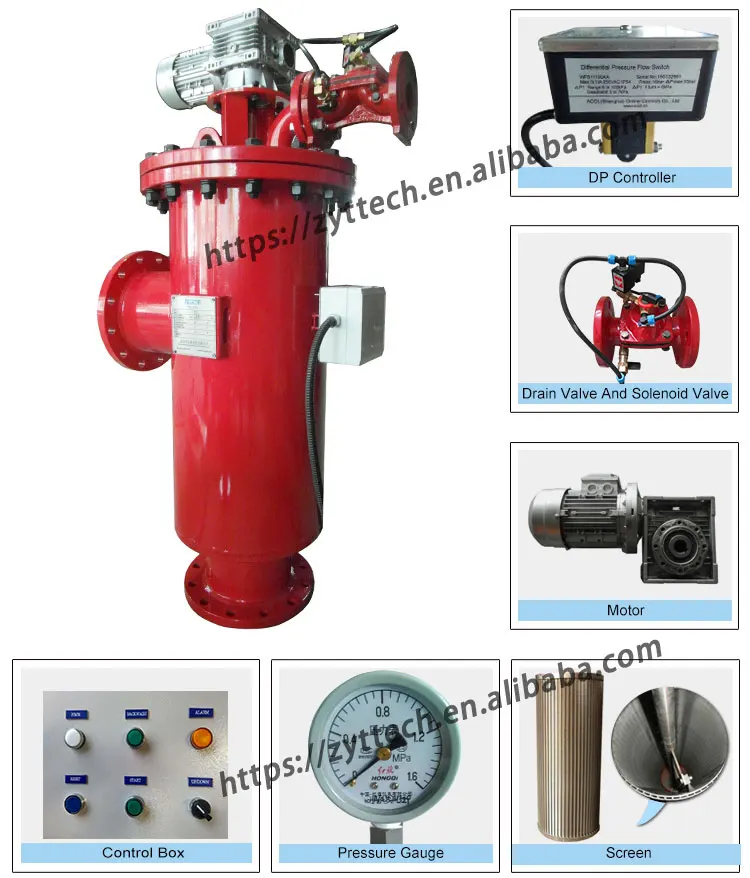

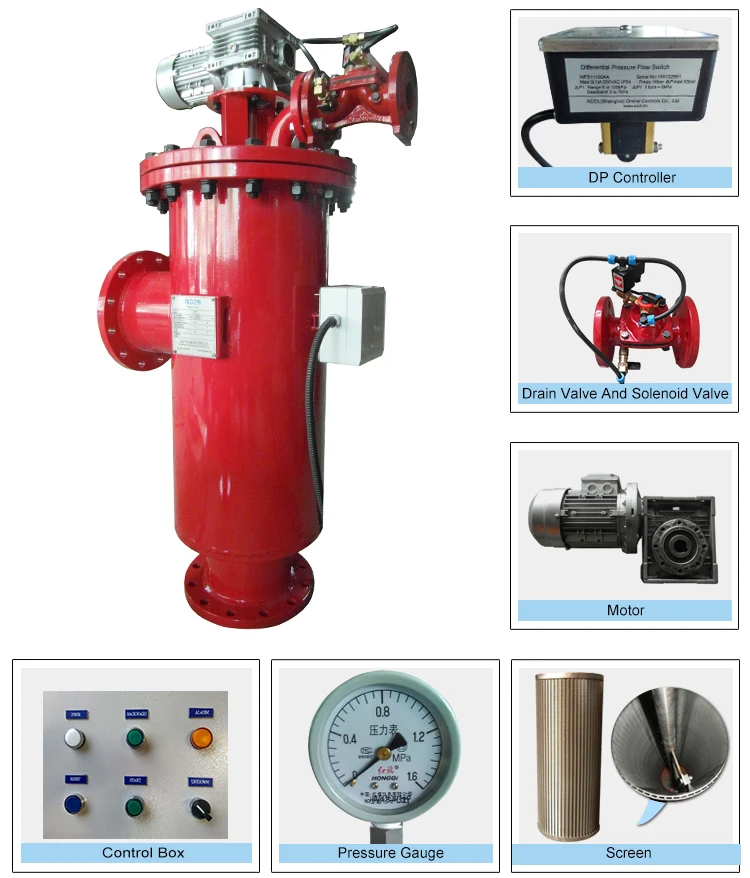

PRODUCT CONFIGURATION

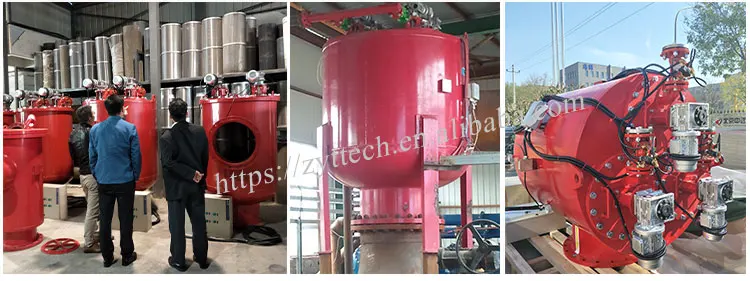

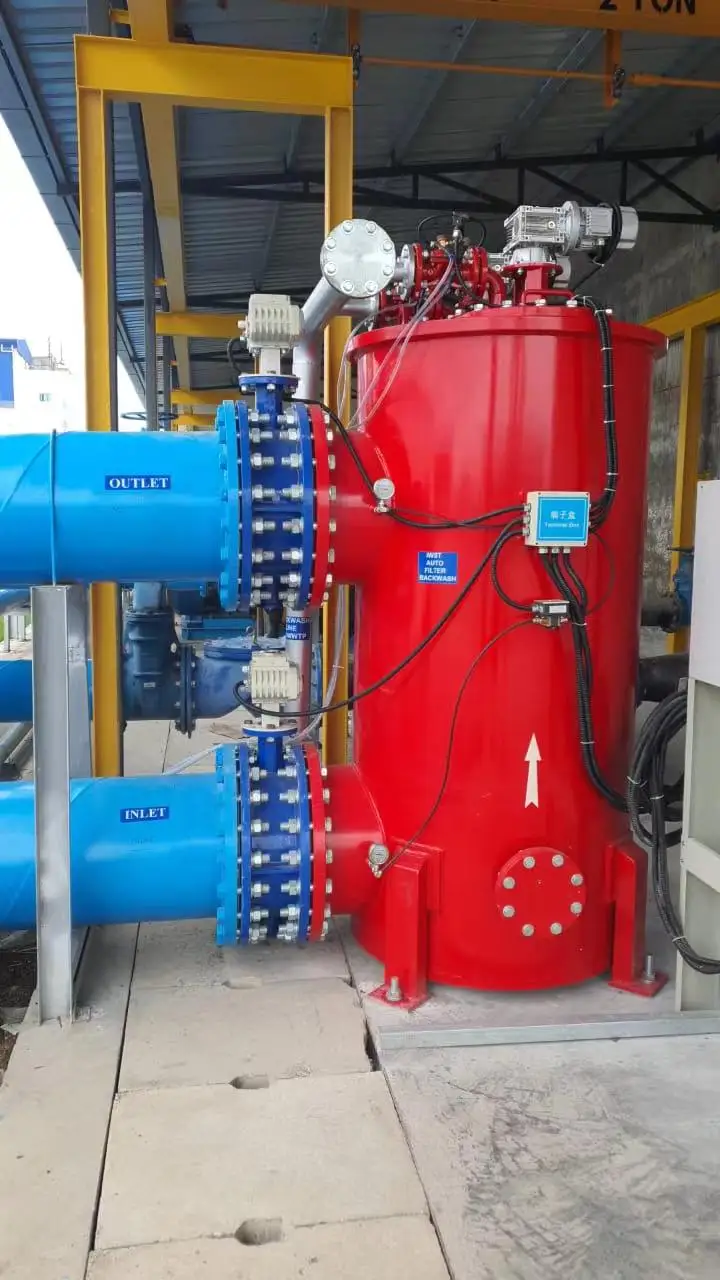

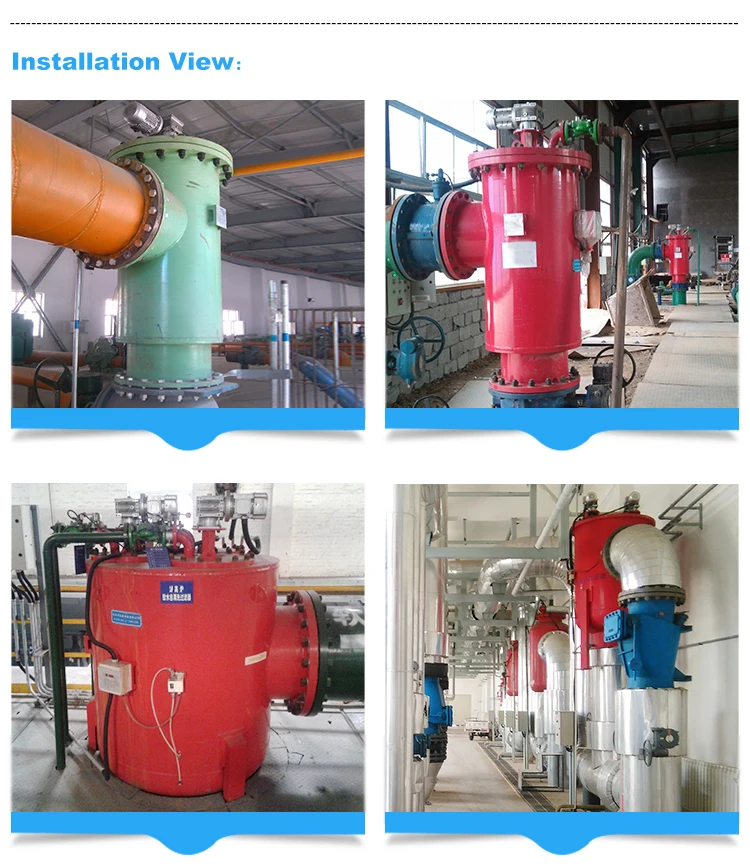

Successful Project

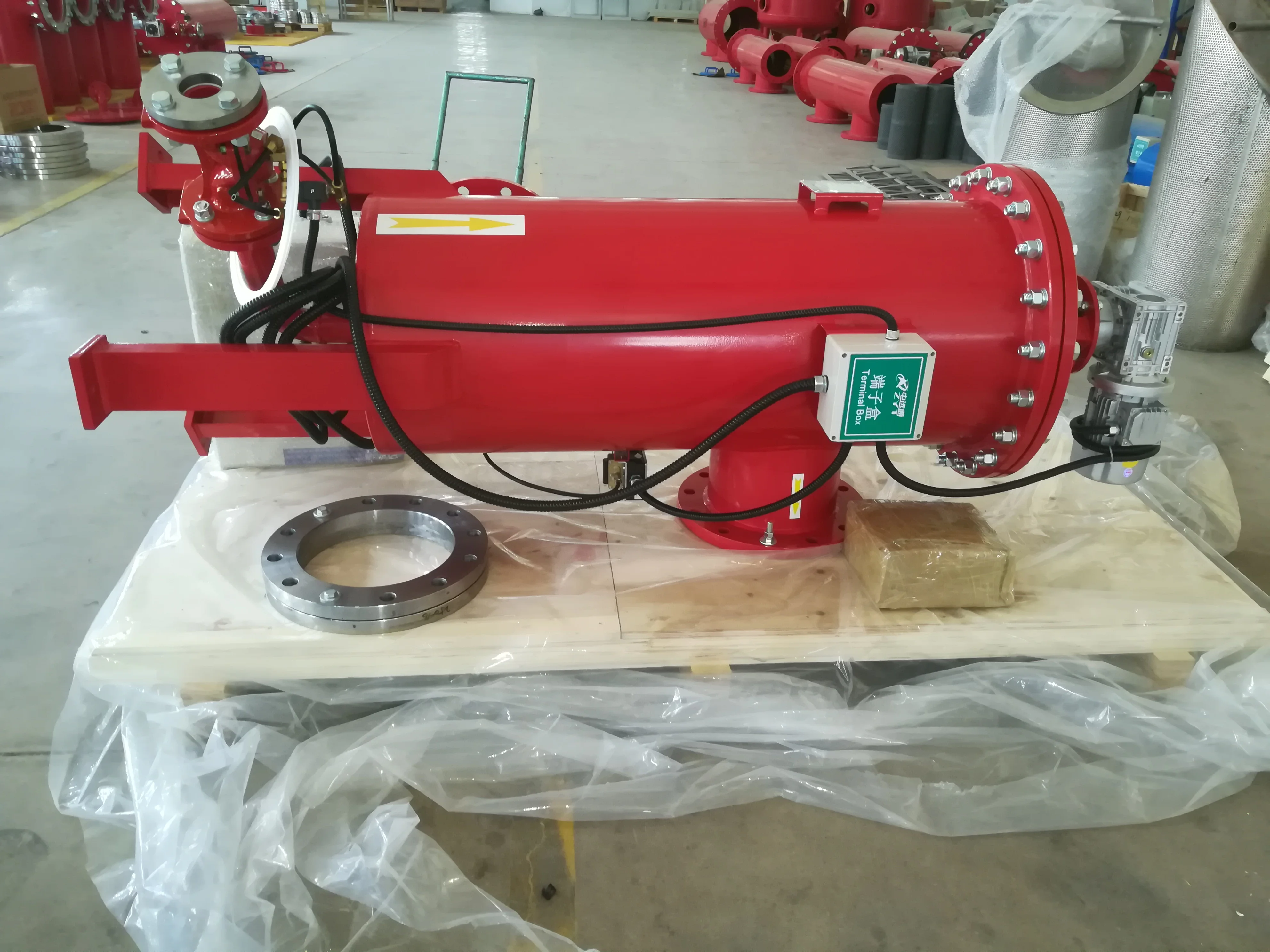

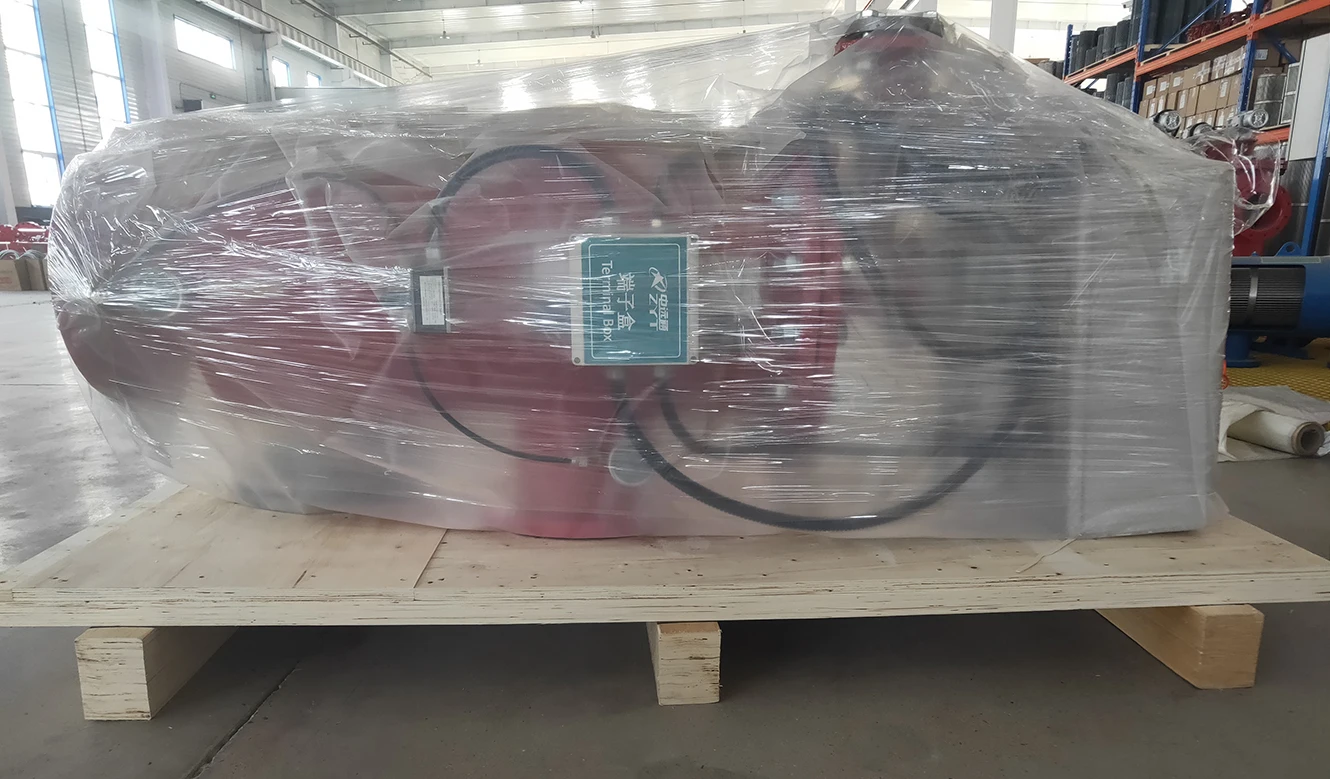

Product Packaging

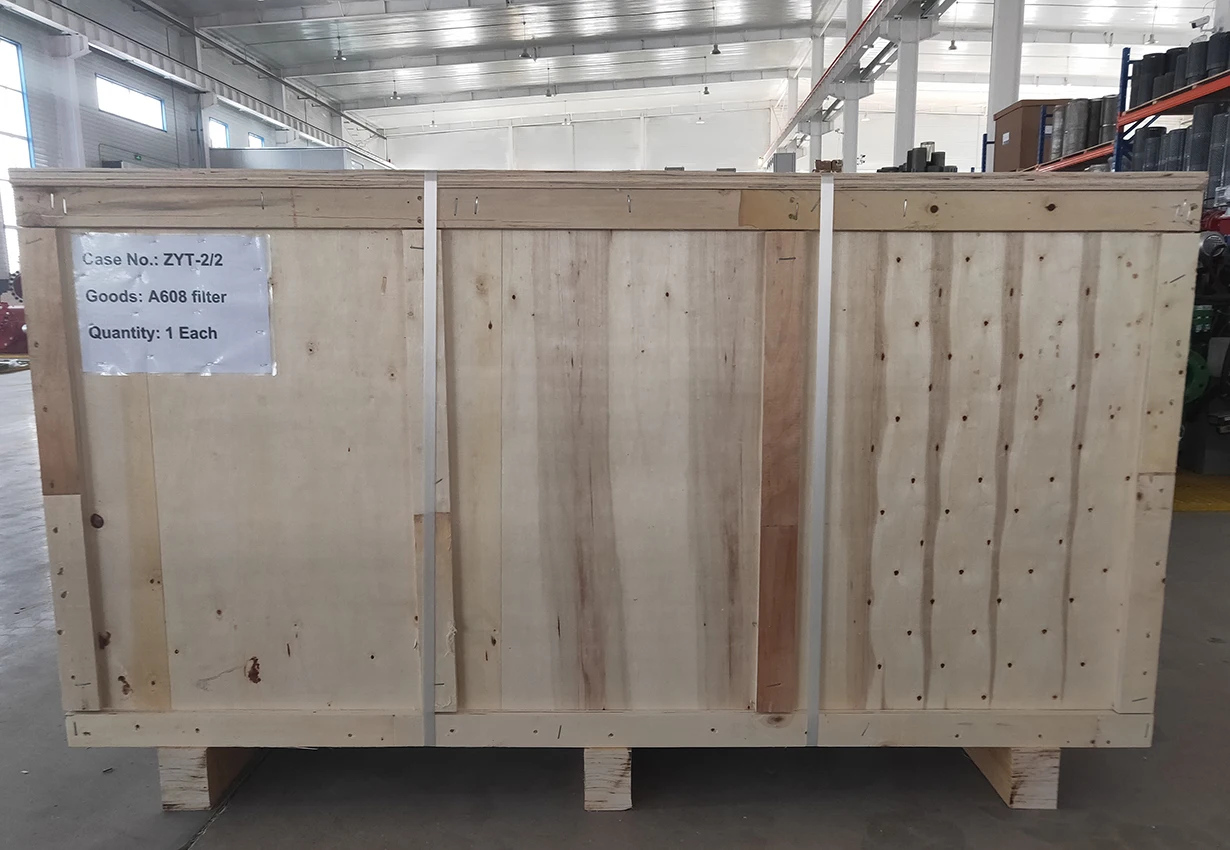

China AIGER A600 irrigation brush water automatic self cleaning filter is wrapped in plastic film and then loaded into the wooden box.
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally China AIGER A600 irrigation brush water automatic self cleaning filter is 25 days, and China AIGER A600 irrigation brush water automatic self cleaning filter is also according to quantity.
Q: Do you provide samples ? is China AIGER A600 irrigation brush water automatic self cleaning filter free or extra ?
A: Sorry, we could not offer the sample for free charge.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
A: We are factory.
Q: How long is your delivery time?
A: Generally China AIGER A600 irrigation brush water automatic self cleaning filter is 25 days, and China AIGER A600 irrigation brush water automatic self cleaning filter is also according to quantity.
Q: Do you provide samples ? is China AIGER A600 irrigation brush water automatic self cleaning filter free or extra ?
A: Sorry, we could not offer the sample for free charge.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
