Price:$60,000.00 - $61,000.00

Quantity:


Product Overview

Description



Products Description




Application:

This CE Certificate 2 Side Central Drum Paper Roll 4 Color Flexo Printing Machine CI is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, non-woven bag, vest bag and clothes bag, etc.

Features:
* Central impression type printing machine with better color registration. Due to the big drum, the printed material is 00supported by the big drum, and greatly improving color registration, especially with extensible materials
* All colors printing station drived by the central drum, Less transmission errors because of less gear transmission, 00increase the registration precision.
* Adopting high-quality motor, high-quality inverter, save the electricity, reduce the run fluctuation
* The machine is equipped with blower and heater; and the heater employed central temperature control system, 00automatic temperature controller, and separated heat source.
* The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.
* Roller adopts special steel processing, and through special treatment, greatly reduce the beating range.
* Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment, small resistance, 00beating small, achieves finally perfect printing effect.
* Accurate printing effect achieved by special gear transmission device
* The printing machine all can choose advance configurations to achieve the high quality, the high-definition effect.


Specification


Model
YTC-41000
Material feeding width
1000mm
Max Printing Width
960mm
Colors
4 Colors
Material
Non-woven fabric. Paper. Film. Aluminum foil. PVC.OPP.PE.BOPP.PE.NY.PET.CPP.
Thickness of plate
 1.14mm.1.7mm 2.28mm.2.84mm. 3.94mm ,Customized is available
Printing length
 Standard is 400mm，Customized is available from 280-1000mm
Maximum machine speed
200m/min
Printing speed
120m/min
Register precision
 longitudinal registration≤0.1mm
Transversal registration≤0.1mm
Structure type
Central impression（central drum）
Gear module
1.5mm
Heating method
Electricity heating
Max. oven temp.
Max. 80℃(room temp. 20℃）
Web fixing method forun/rewinder
Safety chuck+ Air expanding shaft
Unwinder/rewinder paper
core 3＂
Max.unwinder/rewinder dia.
800mm
Adhesive tape thickness for stick printing cylinder
0.38mm


                                                                           SUITABLE MATERIAL
Kraft paper
40-350g/㎡
woven
15-120g/㎡
Single-sided coated paper
30-350g/㎡
Weave fabric
15-500g/㎡
Copy paper
15-350g/㎡
Firecrackers and paper
40-350g/㎡

Paper money and incense
25-350g/㎡
PVC
10-120g/㎡
Silicone paper
50-350g/㎡
OPP
10-120g/㎡
Coated paper
30-350g/㎡
PE
10-120g/㎡
Dust-free paper
25-350g/㎡
PET
10-120g/㎡
Release paper
40-350g/㎡
CPP
10-120g/㎡
Composite paper
30-350g/㎡

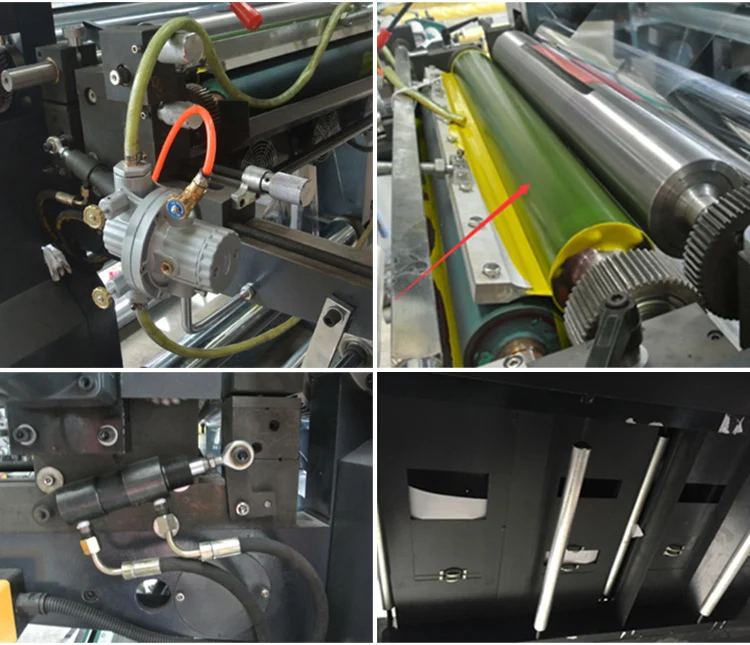

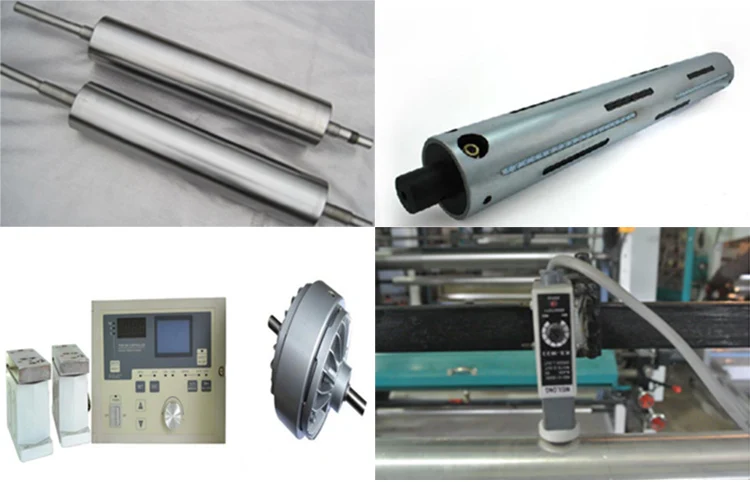

Details Images






Recommend Products




Product packaging




Company Profile


We are specializing in manufacturing printing & packaging machinery like Flexo Printing Machine CI, Paper Cup Machine, Pocket Envelope Making Machine, Paper bag making machine, Paper die cutter machine, Paper cutting machine, Paper folding machine, Flexo Printing Machine For Paper and most of relevant machine.

Quality is our culture, our product has widely sold to Europe, South America, Southeast Asia, Middle East countries because of our good quality.

With us, your money is safe, and your business is safe!
