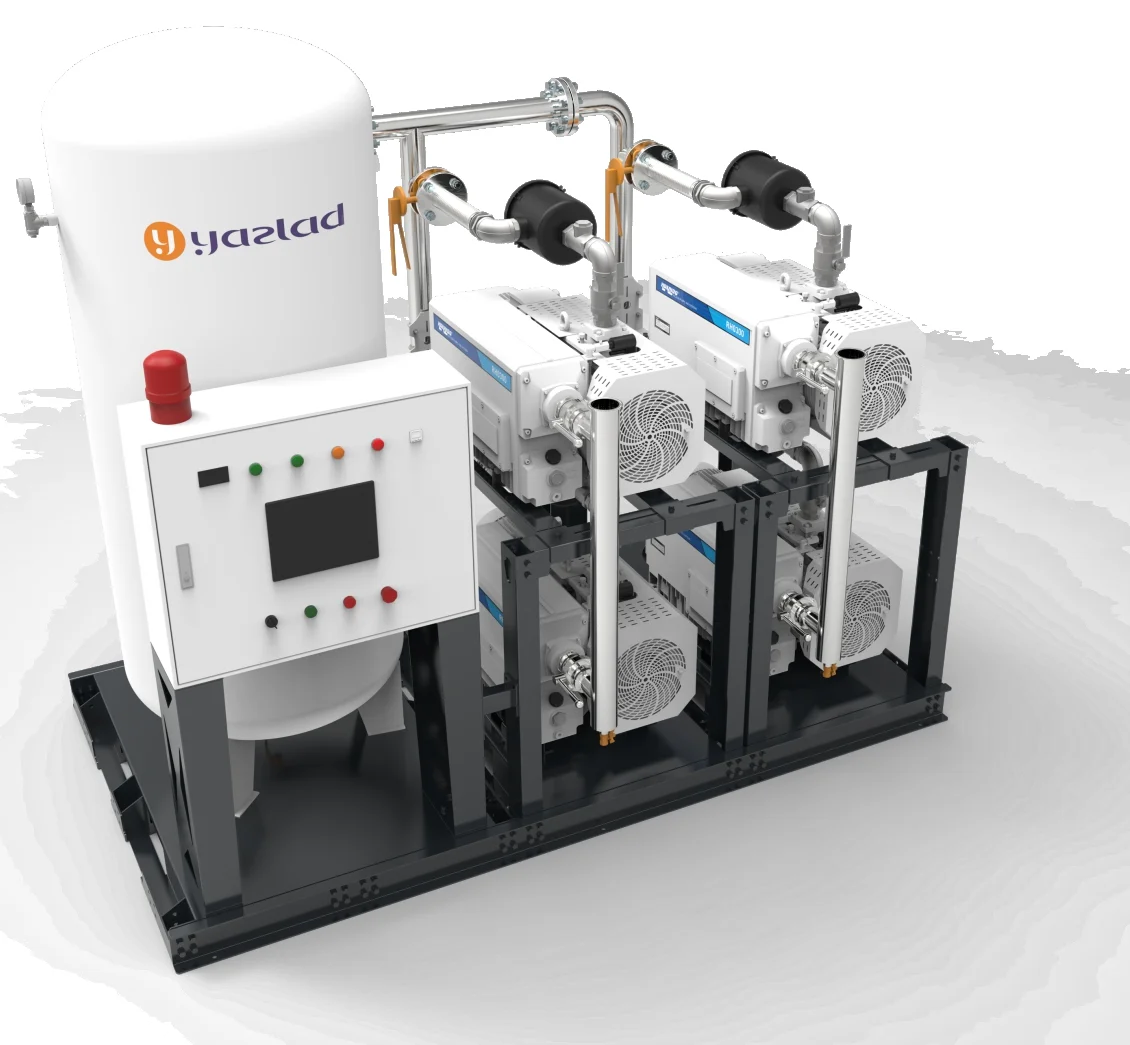

Medical Rotary Vane Vacuum Pump sistema de vacio for medical gas system
- Category: >>>
- Supplier: Changsha Skyfavor Medical Devices Co. Ltd
Share on (1601044492968):
Product Overview
Description
MEDICAL VACUUM SYSTEM
Medical vacuum system consists of vacuum pumps, receiver tank, control panel, pipes, valves and base, etc. which is fully meet with NFPA 99 and also manufactured in ISO9001, ISO14001, ISO13485, ISO45001 system. The vacuum pump is available in both oil-lubricated rotary vane and oil-free claw type.
The system is skid mounted with compact component layout, easy for use, installation and maintenance.
Up to six vacuum pumps can be connected in one system to meet hospital flow demand.
Each vacuum pump is equipped with filter, unloading valve, check valve and temperature sensor, to ensure the reliability and quality.
The system is skid mounted with compact component layout, easy for use, installation and maintenance.
Up to six vacuum pumps can be connected in one system to meet hospital flow demand.
Each vacuum pump is equipped with filter, unloading valve, check valve and temperature sensor, to ensure the reliability and quality.
Oil-lubricated rotary vane vacuum pump
Duplex Oil-free claw vacuum pump System
Hospital Medical Oil-free screw vacuum pump
Recommend Products
Details Images

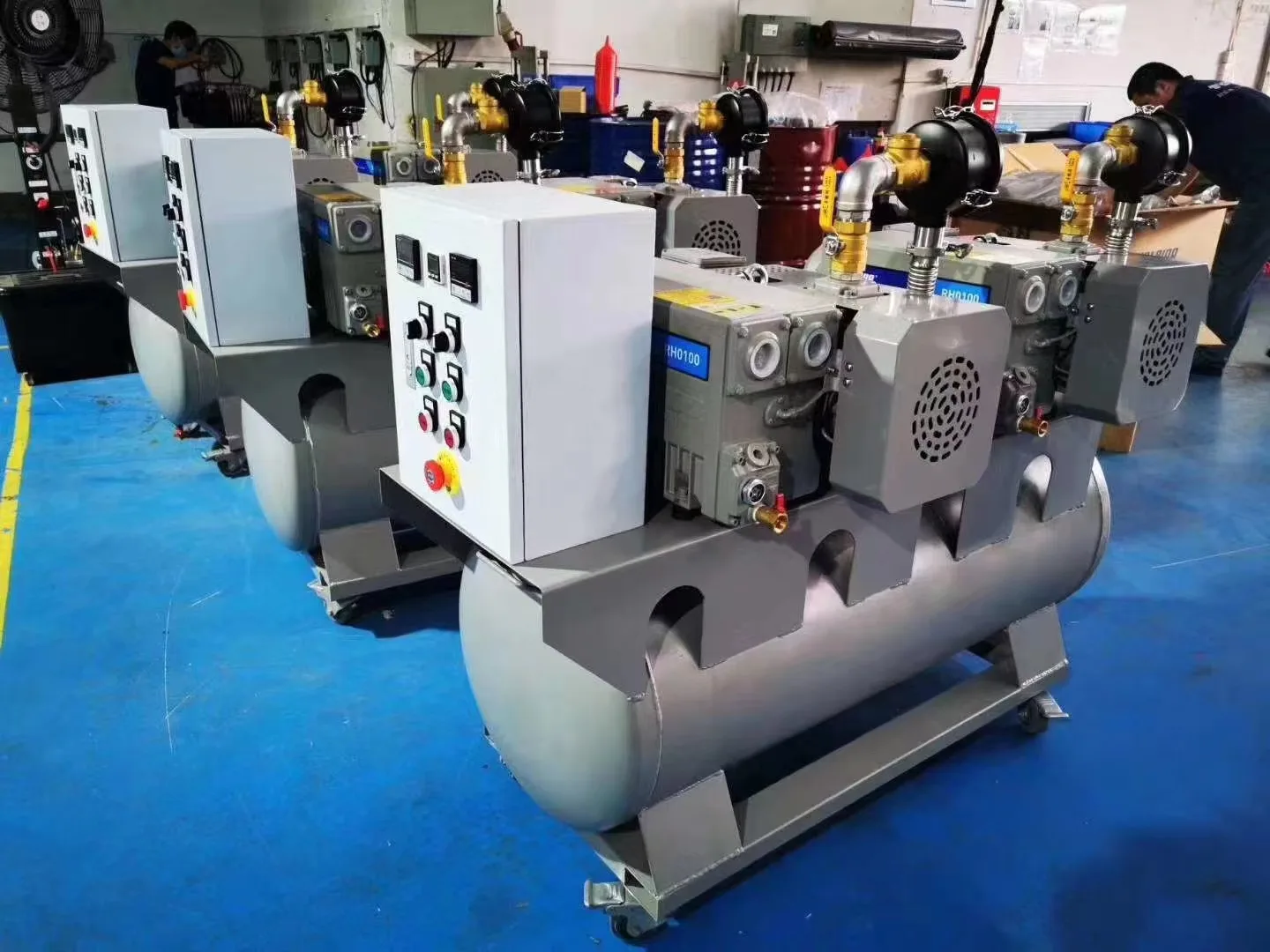

Horizontal type tank vacuum system
Vacuum pump

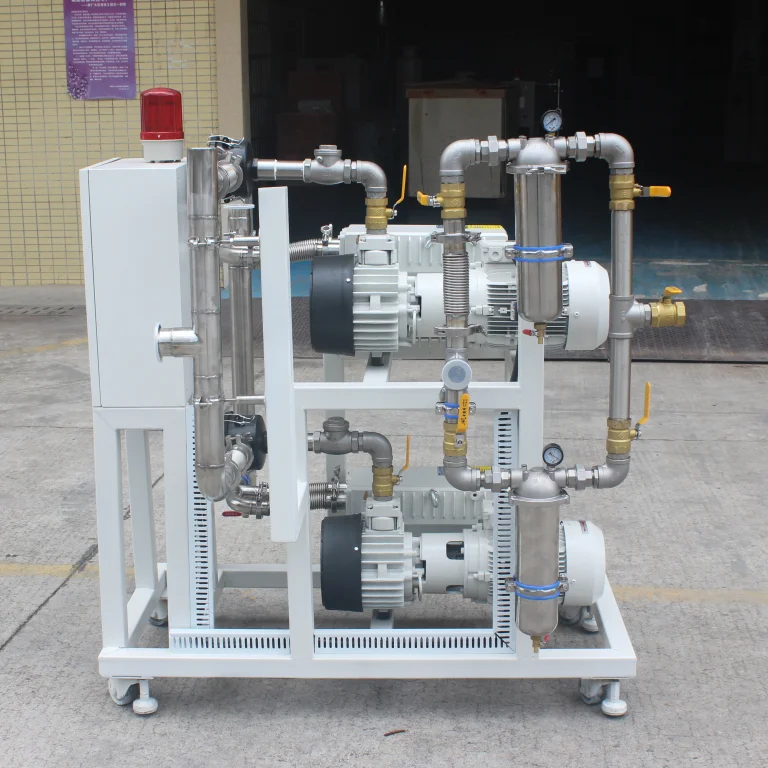

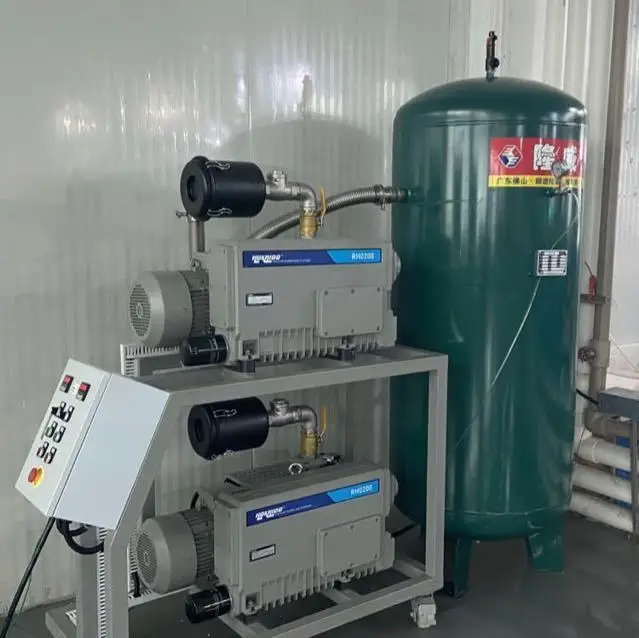

Vertical type tank vacuum pump

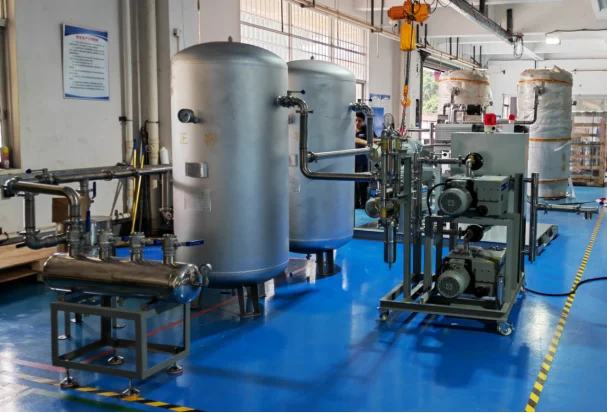

Split type medical vacuum system

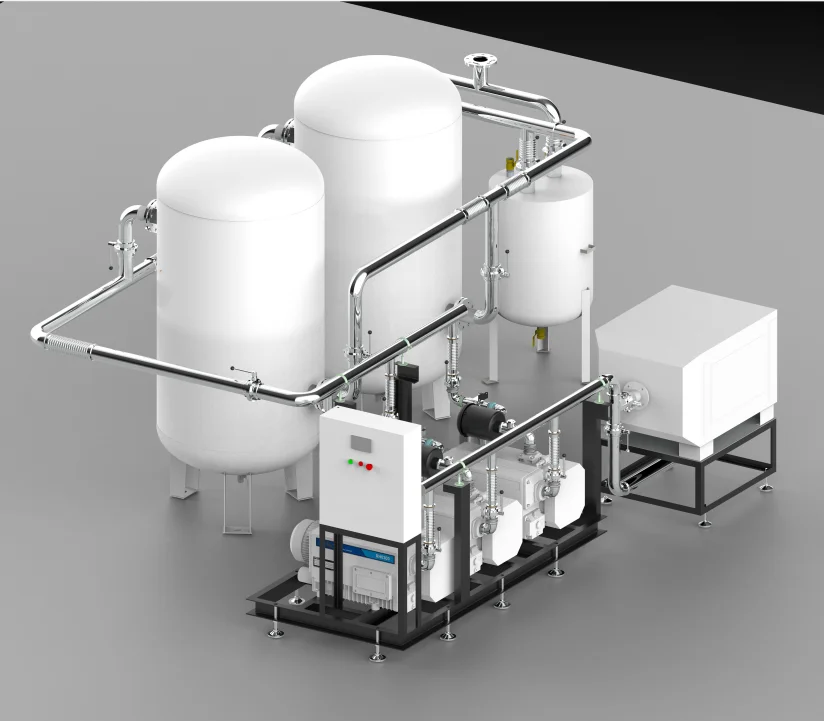

Intergrated skid-mounted vacuum system
Medical Vacuum System - MEDYV Series
Oil-lubricated rotary vane vacuum pump
System | Model No. | Each pump | Pumping speed | Touch screen |
KW | m³/h | inch | ||
Duplex | MEDYV ROT-3.0D | 3 x 2 | 100 | 7 |
MEDYV ROT-5.5D | 5.5 x 2 | 200 | 7 | |
MEDYV ROT-7.5D | 7.5 x 2 | 300 | 7 | |
Triplex | MEDYV ROT-6.0T | 6 x 3 | 200 | 7 |
MEDYV ROT-11T | 11 x 3 | 400 | 7 | |
MEDYV ROT-15T | 15 x 3 | 600 | 7 |
Oil-free claw vacuum pump
System | Model No. | Each pump | Pumping speed | Touch screen |
KW | m³/h | inch | ||
Duplex | MEDYV CLAW-3.0D | 3 x 2 | 100 | 7 |
MEDYV CLAW-4.0D | 4 x 2 | 180 | 7 | |
MEDYV CLAW-5.5D | 5.5 x 2 | 250 | 7 | |
MEDYV CLAW-7.5D | 7.5 x 2 | 360 | 7 | |
Triplex | MEDYV CLAW-3.0T | 3 x 3 | 200 | 7 |
MEDYV CLAW-4.0T | 4 x 3 | 360 | 7 | |
MEDYV CLAW-5.5T | 5.5 x 3 | 500 | 7 | |
MEDYV CLAW-7.5T | 7.5 x 3 | 720 | 7 |
Oil-free screw vacuum pump
System | Model No. | Each pump | Pumping speed | Touch screen |
KW | m³/h | inch | ||
Duplex | MEDYV SCREW-4.0D | 4 x 2 | 110 | 7 |
MEDYV SCREW-5.5D | 5.5 x 2 | 150 | 7 | |
MEDYV SCREW-7.5D | 7.5 x 2 | 280 | 7 | |
Triplex | MEDYV SCREW-4.0T | 4 x 3 | 220 | 7 |
MEDYV SCREW-5.5T | 5.5 x 3 | 300 | 7 | |
MEDYV SCREW-7.5T | 7.5 x 3 | 560 | 7 |
Remark:
1. The vacuum plant is operated at an ambient temperature of 0-40 °C. Please contact our company for special environmental temperature requirements.
1. The vacuum plant is operated at an ambient temperature of 0-40 °C. Please contact our company for special environmental temperature requirements.
2. System capacity measured at pressure -60kPa.
3. System capacity is for working vacuum pump, not including the vacuum pump on standby.
4. The receiver tanks are generally configured as 200L, 300L, 500L, 1000L, 2000L, 3000L. Other specifications can be configured according to the specific use and requirements of the customer.
5. Above configurations are for regular, if any other specifications, please contact our staff.
Vacuum System Rotary Vane Vacuum Plant
The oil-lubricated vacuum pump is a durable long-life pump that has been used for many years in hospital
and clinics. The use of oil facilitates higher efficiency of the pump, lower operating temperatures, and lower sound levels. Oil-sealed rotary vane pumps are ideal for most hospital applications.
and clinics. The use of oil facilitates higher efficiency of the pump, lower operating temperatures, and lower sound levels. Oil-sealed rotary vane pumps are ideal for most hospital applications.
Oil free Claw Type Medical Vacuum System
Our claw vacuum pumps are 100% free of oil and contact during operation. This makes the pump particularly low-maintenance.
The two claw rotors of the vacuum pump rotate in opposite directions to each other in the cylinder. Caw technology ensures a high degree of efficiency and low energy consumption.
The two claw rotors of the vacuum pump rotate in opposite directions to each other in the cylinder. Caw technology ensures a high degree of efficiency and low energy consumption.
Specifications
* Compact design, simple structure, easy to operate and maintain, low operating cost
* Can work continuously for a long time under high pressure with low noise
* No contact between the rotor and pump cavity, no friction, and long service life
* Completely tested before shipment
* Compact design, simple structure, easy to operate and maintain, low operating cost
* Can work continuously for a long time under high pressure with low noise
* No contact between the rotor and pump cavity, no friction, and long service life
* Completely tested before shipment

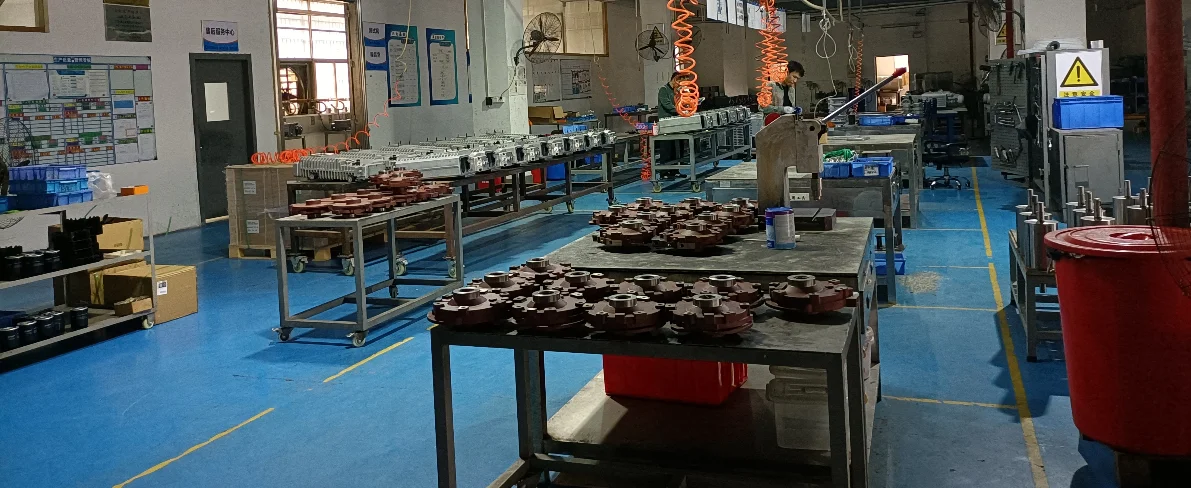

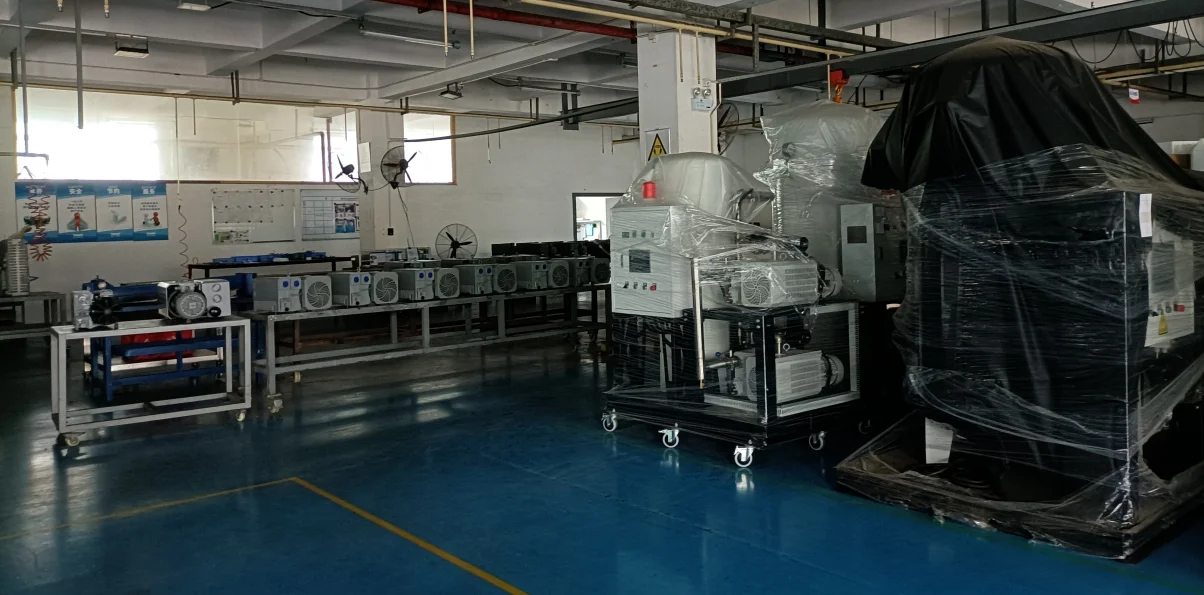

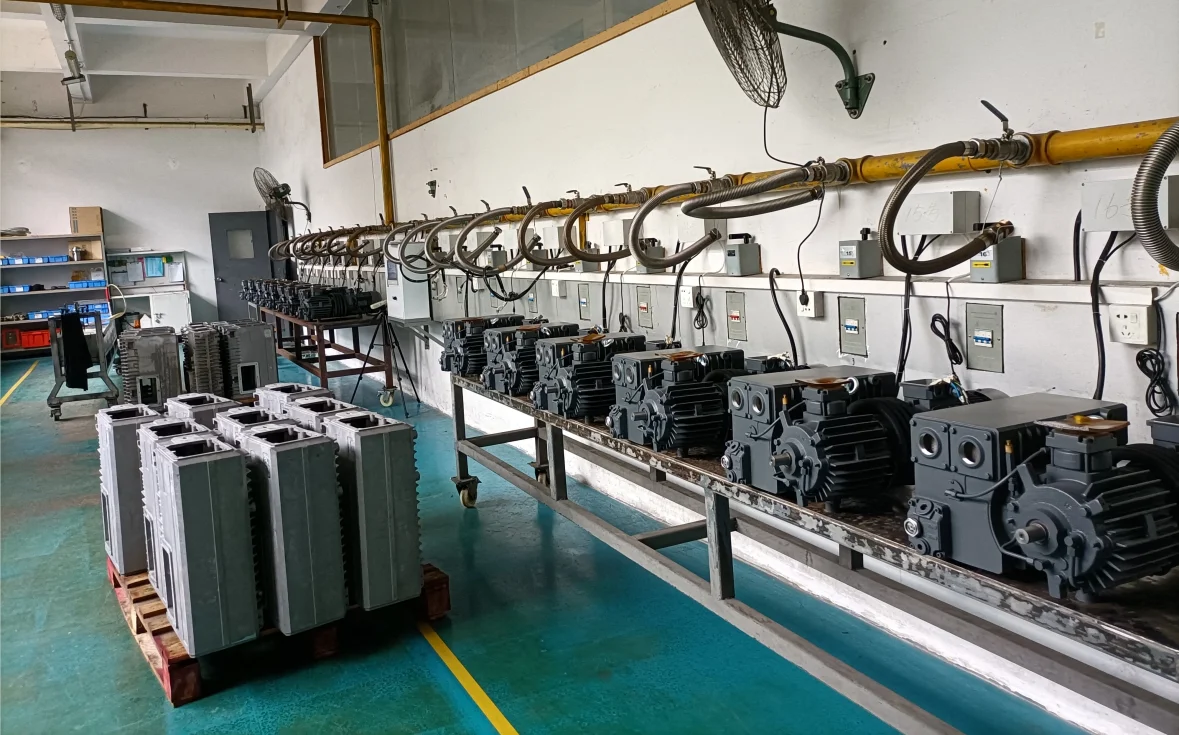

Factory production
1. Can you do OEM or ODM service for the vacuum pump system?
Yes. Please send us the detail requirements, we can do according to your request. Like the capacity, working pressure, electric power voltage and hz, tank, etc.
2. What is the MOQ of Medical Rotary Vane Vacuum Pump?
1 set is also OK.
3. What is the delivery time of Medical Oil-lubricated Rotary Vane Vacuum Pump for Hospital？
Generally one month.
Please check delivery time before ordering.
4. What is the package of the medic gas manifold?
Wooden box which can protect the manifold medical from cratches, etc.
