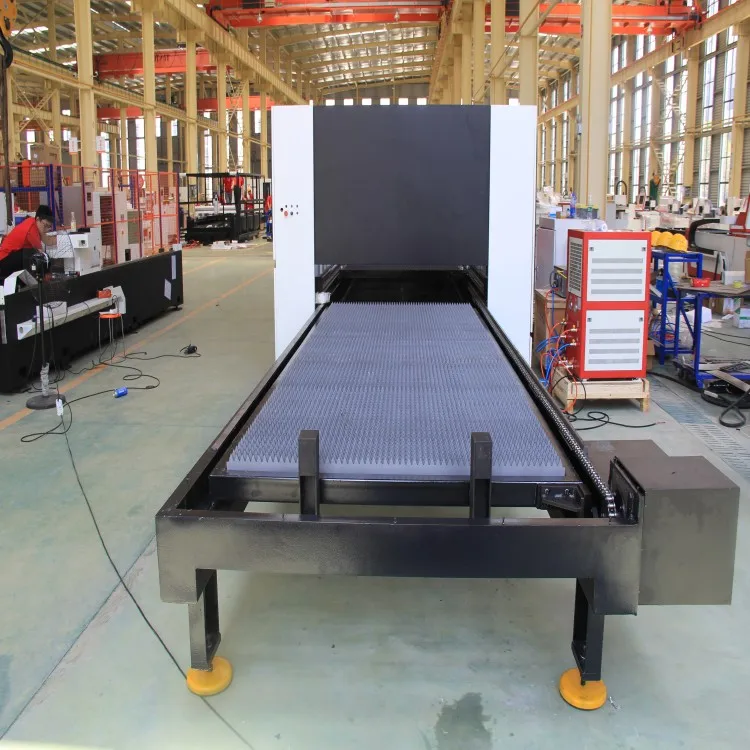

ADH ULE 4015 Raycus 2000W Fiber Laser Cutting Machine
- Category: >>>
- Supplier: Anhui Donghai Machine Tool Co. Ltd.
Share on (1601044494109):
Product Overview
Description
Products Description

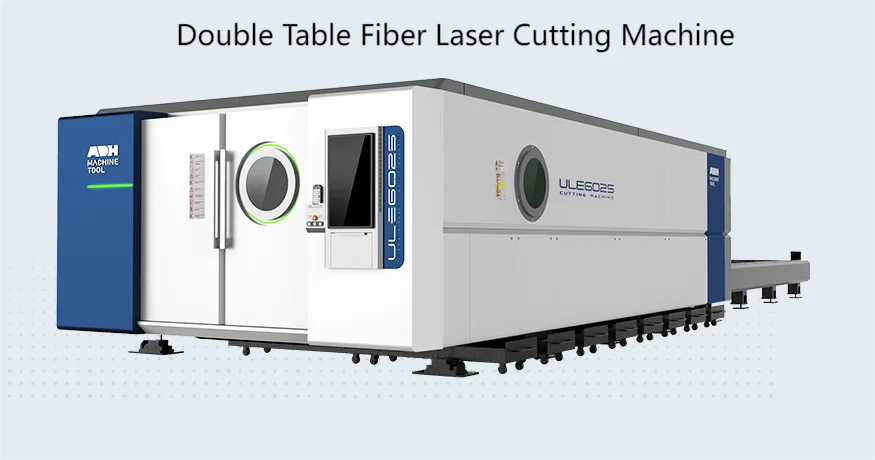

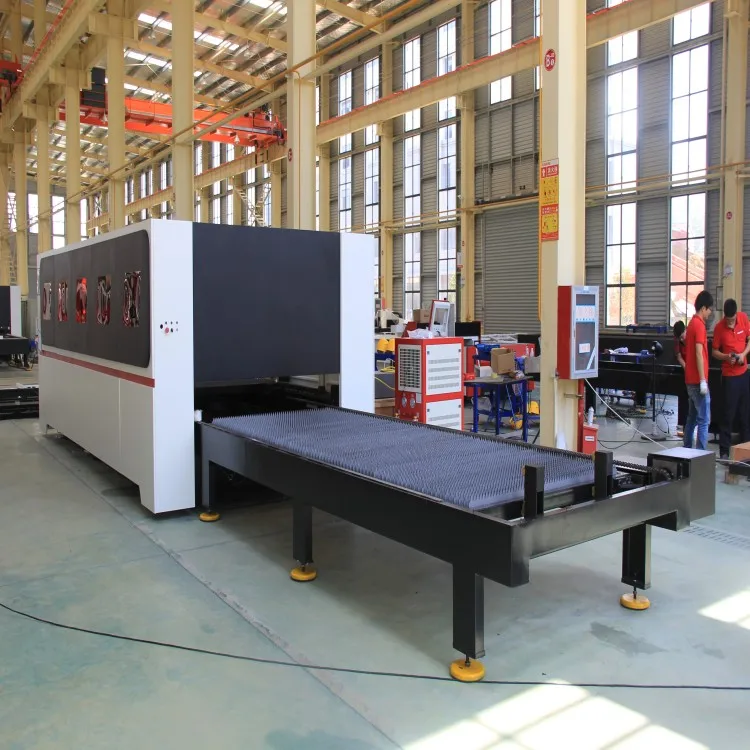

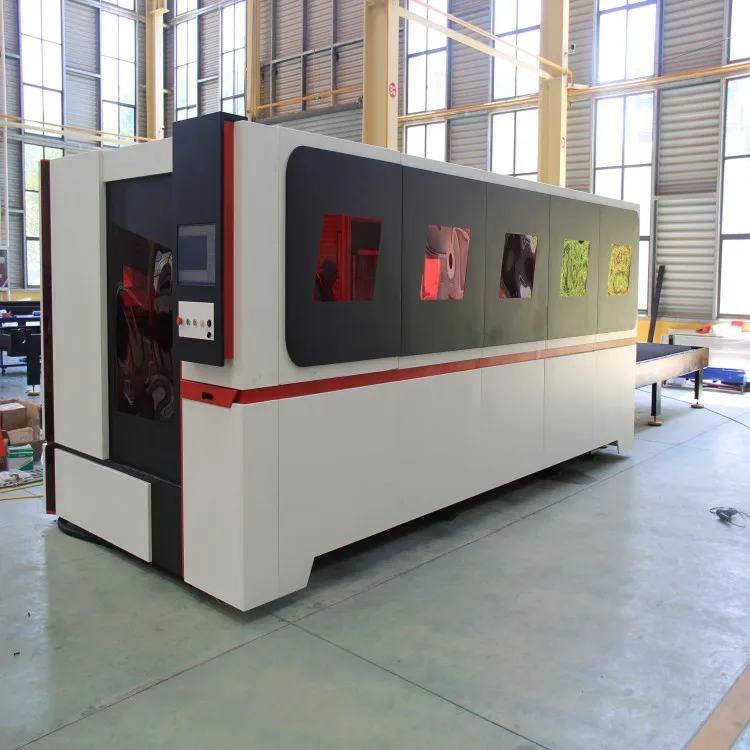

fiber laser cutting machine
The laser cutting machine focuses the laser light emitted from the laser into a high power density laser beam through the optical path system. The laser beam irradiates the surface of the workpiece, causing the workpiece to reach the melting or boiling point, and at the same time, the high-pressure gas coaxial with the beam blows away the melted or vaporized metal. As the relative position of the beam and the workpiece moves, the material will eventually form a slit, thereby achieving the purpose of cutting.
Main component

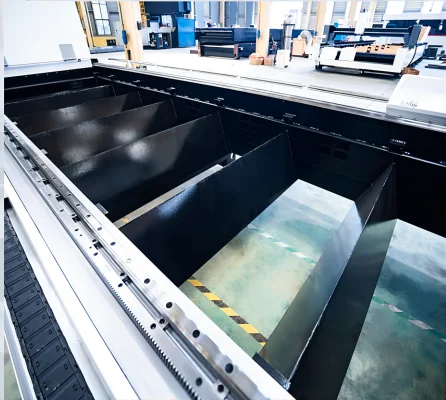

Mechanical Bed

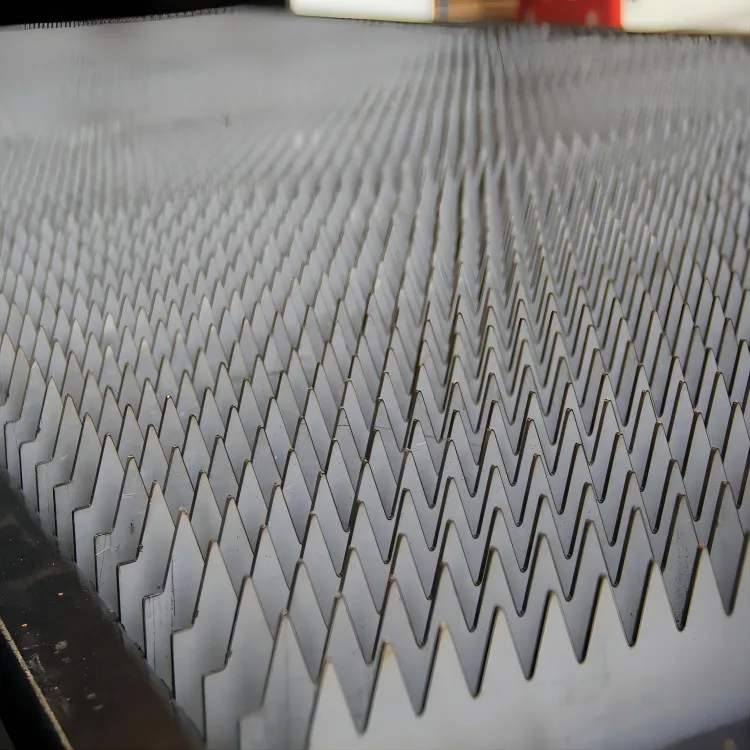

The internal structure utilizes a combination of hollow and fish-scale anti-burn design, providing comprehensive protection for
the overall structure.
The bed is welded using multiple rectangular pipes, with stiffeners placed inside the pipes to enhance its strength and tensile
properties.
The entire frame undergoes high-temperature annealing and is shot blasted at high speed. Additionally, stress relief technology is
applied to effectively prevent bed deformation and ensure no deformation occurs even after 20 years of use.
the overall structure.
The bed is welded using multiple rectangular pipes, with stiffeners placed inside the pipes to enhance its strength and tensile
properties.
The entire frame undergoes high-temperature annealing and is shot blasted at high speed. Additionally, stress relief technology is
applied to effectively prevent bed deformation and ensure no deformation occurs even after 20 years of use.

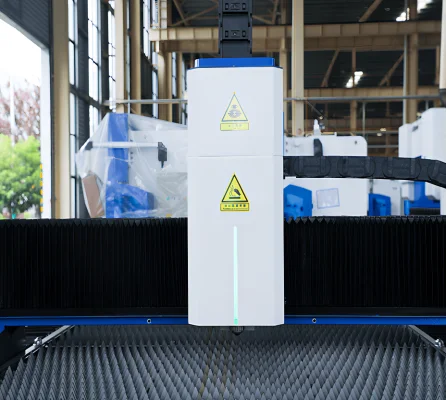

Beam
Through finite element analysis, our design achieves both high rigidity and a lightweight construction, optimizing the performance
of the product.
This product boasts high speed, excellent dynamic characteristics, and rapid acceleration.
of the product.
This product boasts high speed, excellent dynamic characteristics, and rapid acceleration.

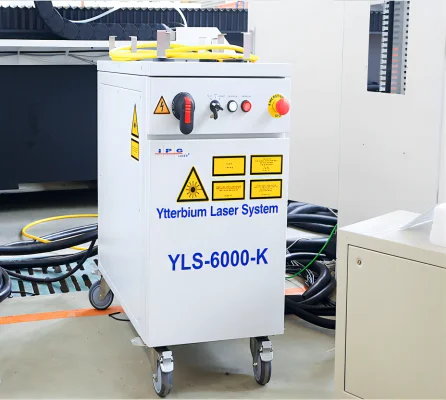

Laser Source
Our fiber laser source lineup comprises renowned brands such as Raycus (China), n-Light (USA), and IPG (Germany), with power
capacities ranging from 1000W to 20,000W.
We offer a fiber laser source with a constant beam parameter product (BPP) across its full power range, ensuring good beam quality
with a small spot size. Additionally, this source boasts an electro-optic conversion efficiency of over 30%.
Our laser source boasts a modular "plug and play" design, with a compact and robust structure that enables effortless
installation.
capacities ranging from 1000W to 20,000W.
We offer a fiber laser source with a constant beam parameter product (BPP) across its full power range, ensuring good beam quality
with a small spot size. Additionally, this source boasts an electro-optic conversion efficiency of over 30%.
Our laser source boasts a modular "plug and play" design, with a compact and robust structure that enables effortless
installation.

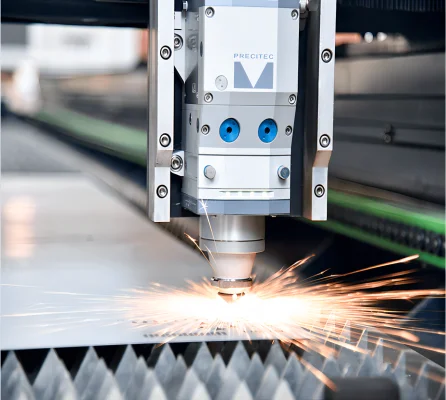

Cutting Head
The auto-focusing laser cutting head has the ability to adjust its focus based on the thickness of the material being processed.
This feature makes it suitable for processing sections with varying thicknesses, resulting in reduced cutting time and improved
cutting quality.
The cutting head's patented anti-collision protection structure, along with its waste cutting micro-connection, prevents plate
warping and enables high-speed and stable cutting operations.
This feature makes it suitable for processing sections with varying thicknesses, resulting in reduced cutting time and improved
cutting quality.
The cutting head's patented anti-collision protection structure, along with its waste cutting micro-connection, prevents plate
warping and enables high-speed and stable cutting operations.

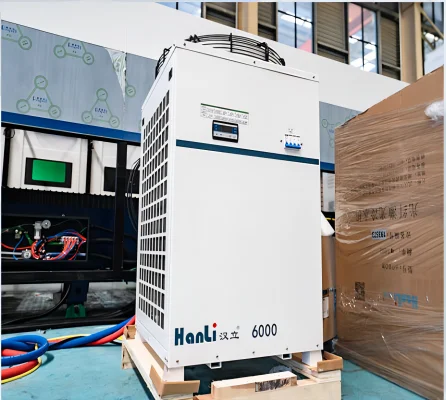

Water Chiller
With features such as over-temperature alarm, flow protection, water level protection, and other safety alarm notifications.

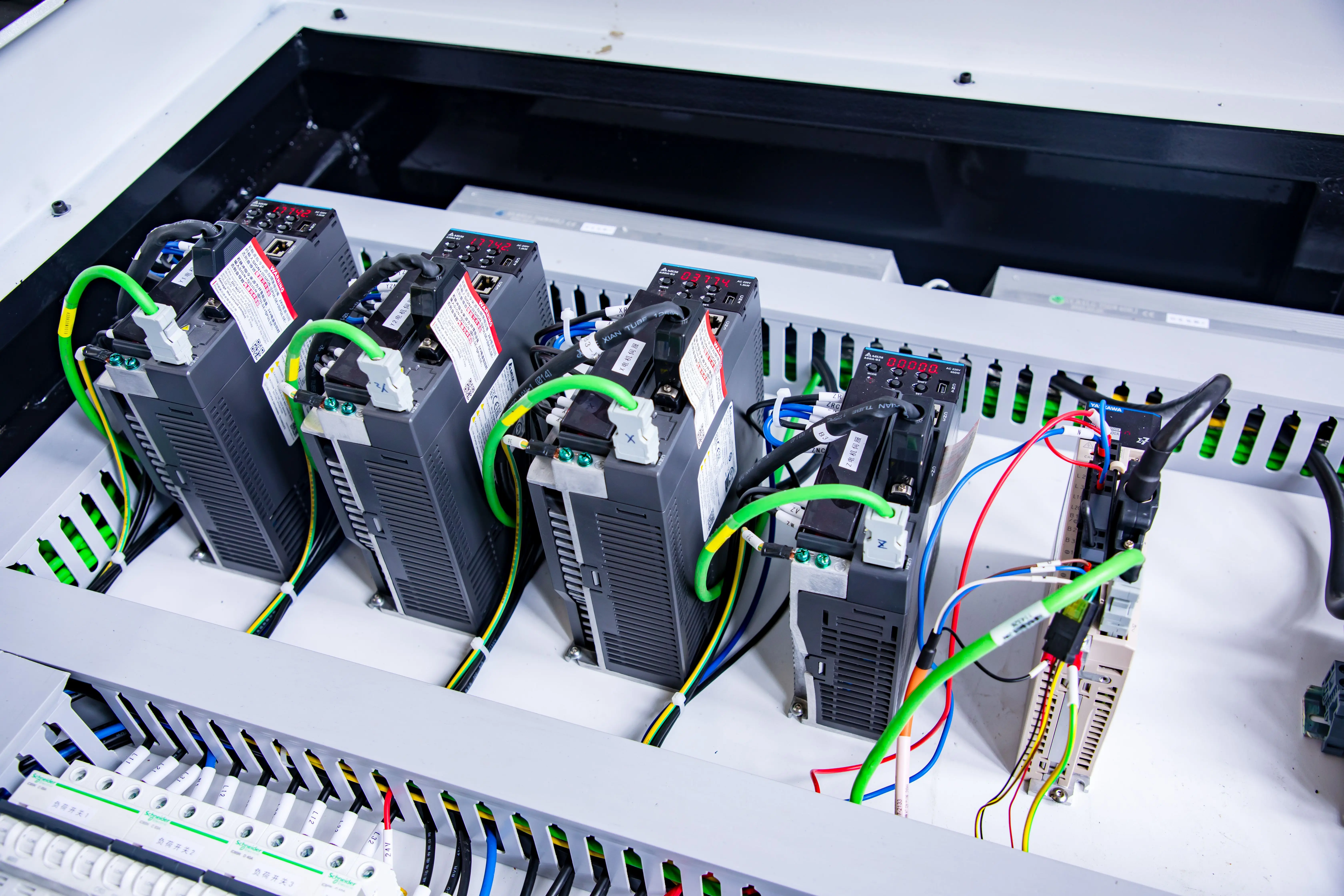

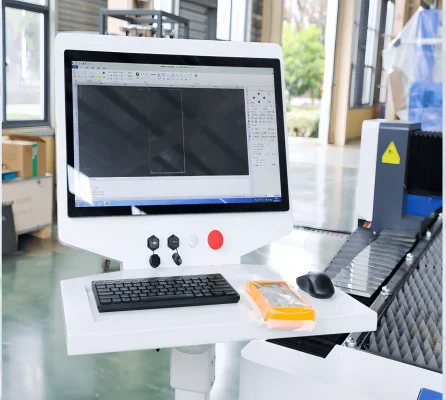

Control System
Cypcut cutting software is a fiber laser cutting software uniquely developed in China. It is specifically designed to optimize the
performance of fiber laser cutting machines.
Cypcut cutting software boasts easy installation and straightforward debugging, coupled with outstanding performance. It also
supports power-based speed adjustment, providing additional flexibility to its users.
Additionally, the software allows for separate import linear speed settings and boasts a robust cutting process database.
performance of fiber laser cutting machines.
Cypcut cutting software boasts easy installation and straightforward debugging, coupled with outstanding performance. It also
supports power-based speed adjustment, providing additional flexibility to its users.
Additionally, the software allows for separate import linear speed settings and boasts a robust cutting process database.
Product Paramenters
Model | 1500W/3000W/6000W/12000W |
Laser range | 3*1.5(m)/4*1.5(m)/6*1.5(m)/4*2(m)/6*2(m) |
Maximum moving speed | 120m/min |
Maximum acclelration | 1.2g |
Positioning accuracy | ±0.05mm |
Repeated positioning accuracy | ±0.02mm |
Operating voitage | 380V/50Hz |
Cooling method | water-cooled |
About us
Our product
FAQ
Q：Is your company a factory or a trading company?
A：We are a manufacturer. Since our establishment in 2002, we have more than 20 years of production experience.
Q：How long does it take for machine delivery?
A：Normally, we deliver the goods within 30 days. If the machine is a non-standard customized product, it may take longer. However, the delivery time of such a machine will not exceed 50 days.
Q：Does your company accept OEM customization?
A：Yes, we accept OEM customization, which includes customized appearance, color, configuration, etc. However, please note that prices for custom products may be slightly higher. Please contact our sales team for more details.
