Product Overview
Description
Products Description
Wet Or Dry Shotcrete Machine

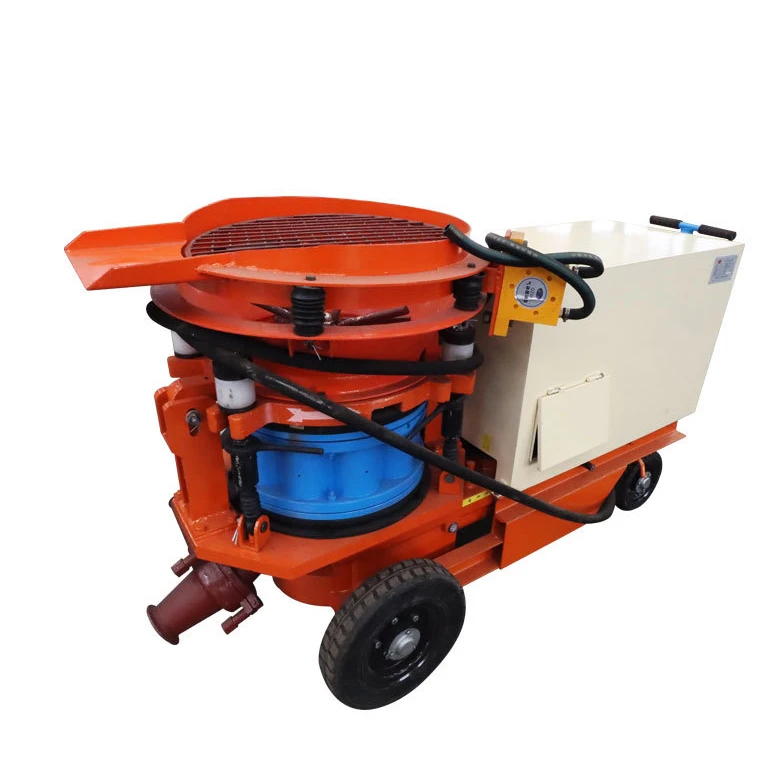

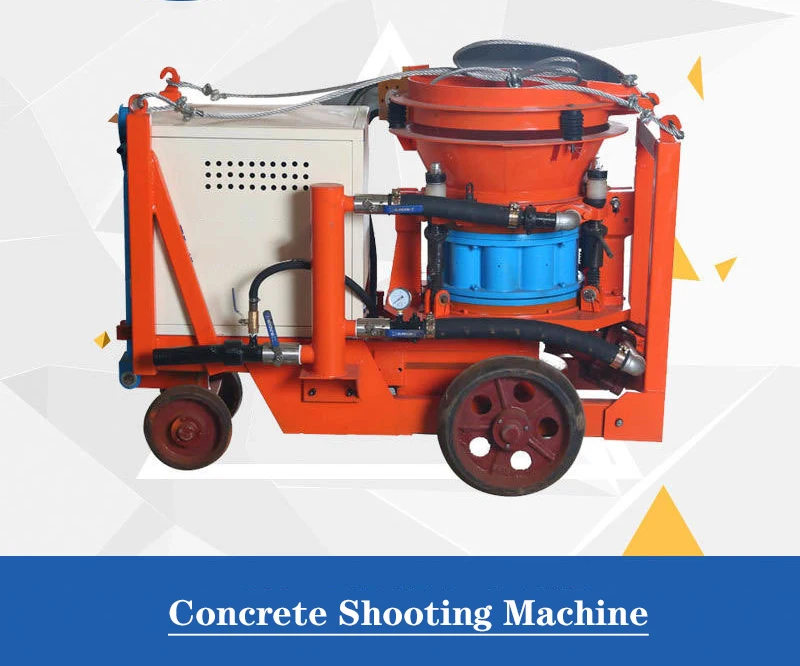

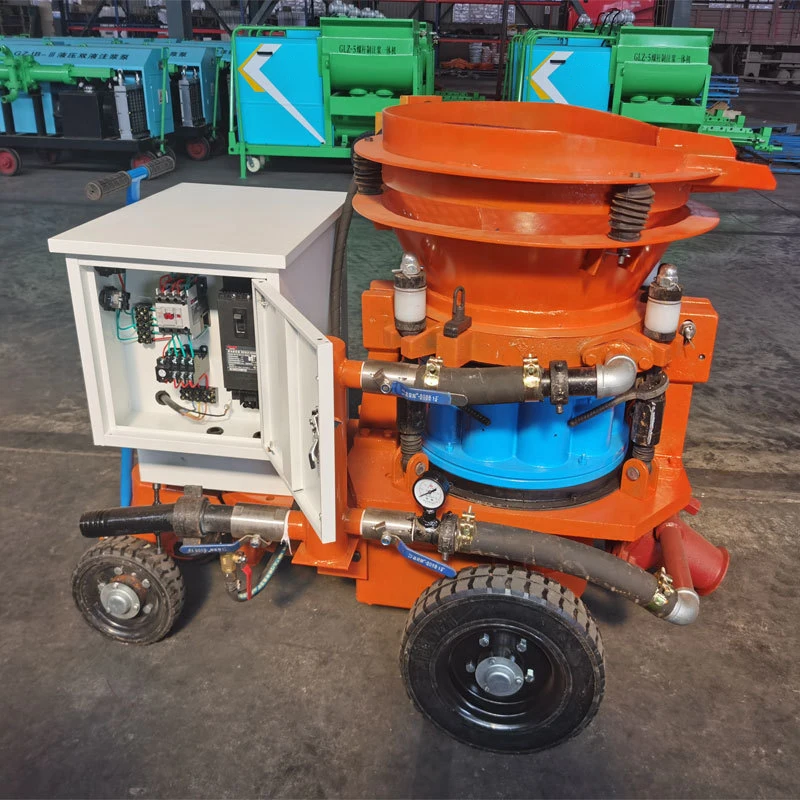

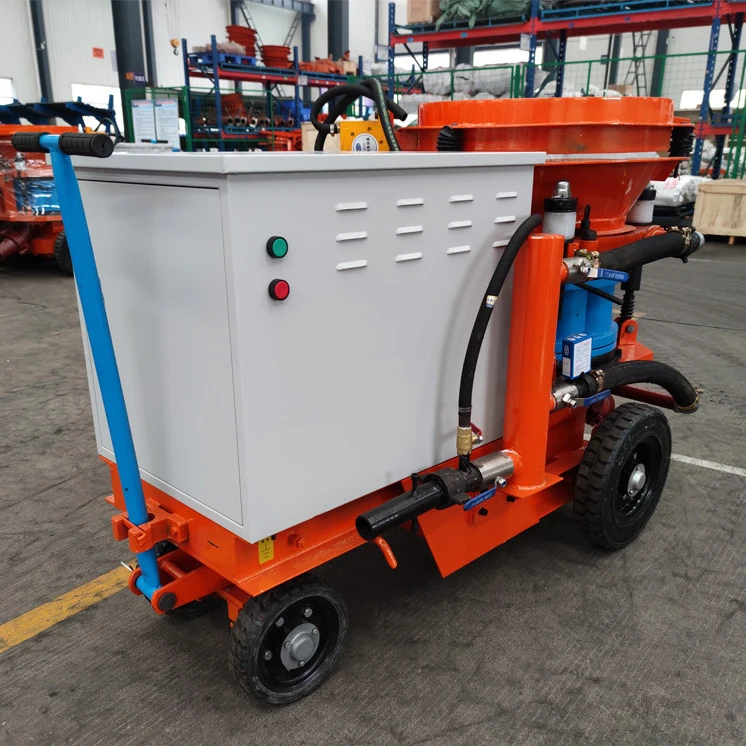

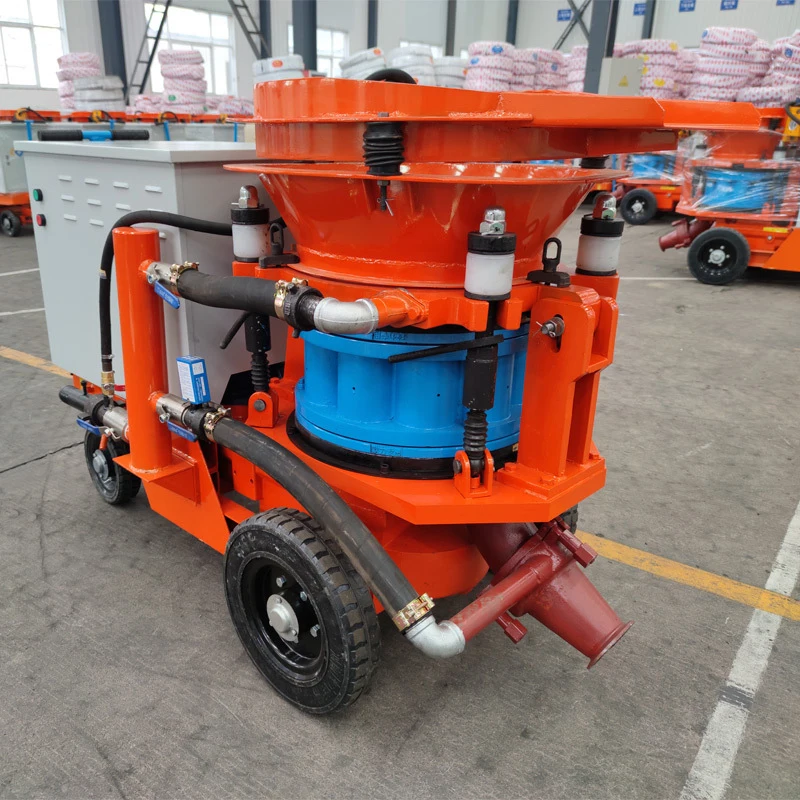

The main features of JL-5D are strong feeding vibration and fast discharging. It is widely used in mine tunnels, culverts, subways, hydropower projects, underground projects, and sprayed concrete construction operations in coal mines and high marshes mine roadways.

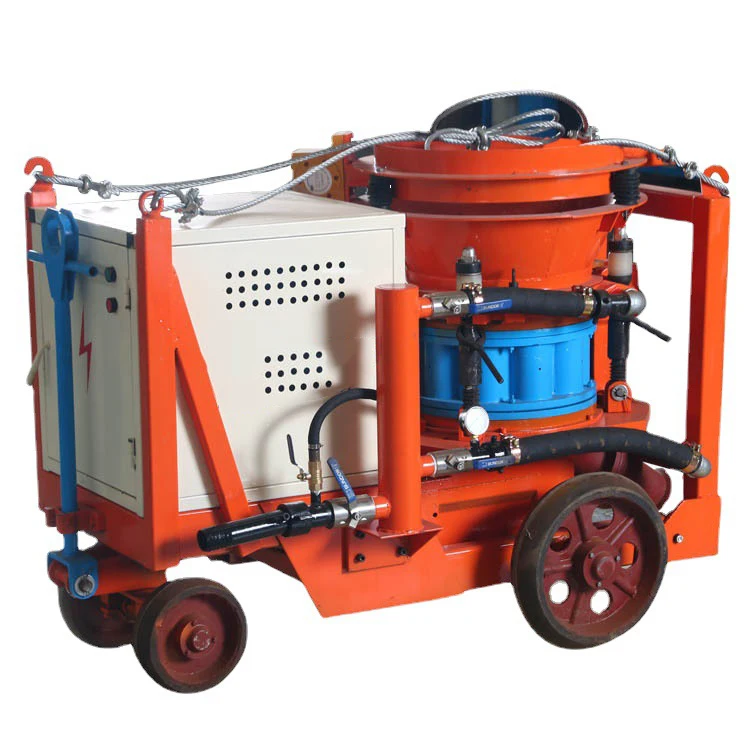

JL-6D is equipped with lifting hook and anti-collision frame, which makes the machine more convenient to lift and transport during use, and can effectively protect the material head during the lifting process, and the electric control box is not damaged.
JL-7D is a concrete spraying operation equipment independently developed by our company with larger capacity, higher efficiency and more reasonable structure.
3. Equipped with polymer elastic material cavity, which eliminates the adhesion and blockage of the machine and improves the construction efficiency.
4. The replacement cycle of wearing parts is long, and it is made of special materials to make it highly wearable.
5. The whole machine has good sealing performance, strong performance, high construction efficiency and less working time.
6. Simple operation, convenient maintenance and short downtime.
Advantage
1. The air volume can be controlled in time to ensure the continuity of materials and admixtures.
2. The feed inlet is enlarged, the processing capacity per unit time is large, and the output is also increased.3. Equipped with polymer elastic material cavity, which eliminates the adhesion and blockage of the machine and improves the construction efficiency.
4. The replacement cycle of wearing parts is long, and it is made of special materials to make it highly wearable.
5. The whole machine has good sealing performance, strong performance, high construction efficiency and less working time.
6. Simple operation, convenient maintenance and short downtime.
Product Paramenters
Model | JL-5D | JL-6D | JL-7D |
Production Capacity(m³/H) | 5 | 6 | 7 |
Work Pressure （Mpa） | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Delivery pipe inner diameter(mm) | φ51 | φ57 | φ57 |
Maximum conveying distance（m） | level：200 vertical：20 | level：200 vertical：20 | level：200 vertical：20 |
Maximum Aggregate Size（mm） | φ20 | φ20 | φ20 |
Maximum air consumption（m³/min） | 8 | 12 | 12 |
Feeding height（mm） | 1100 | 1100 | 1100 |
Power（kw） | 5.5 | 7.5 | 7.5 |
Voltage level（V） | 380 | 380 | 380 |
Dimensions（mm） | 1450*710*1100 | 1620*850*1150 | 1660*800*1100 |
Total Weight(kg) | 650 | 780 | 800 |
Water cement ratio | 0.4-0.45 | 0.4-0.45 | 0.4-0.45 |
Usage
Because the concrete spraying technology has the characteristics of simple process, saving concrete, steel and wood, saving labor, improving construction efficiency, and reducing engineering costs.

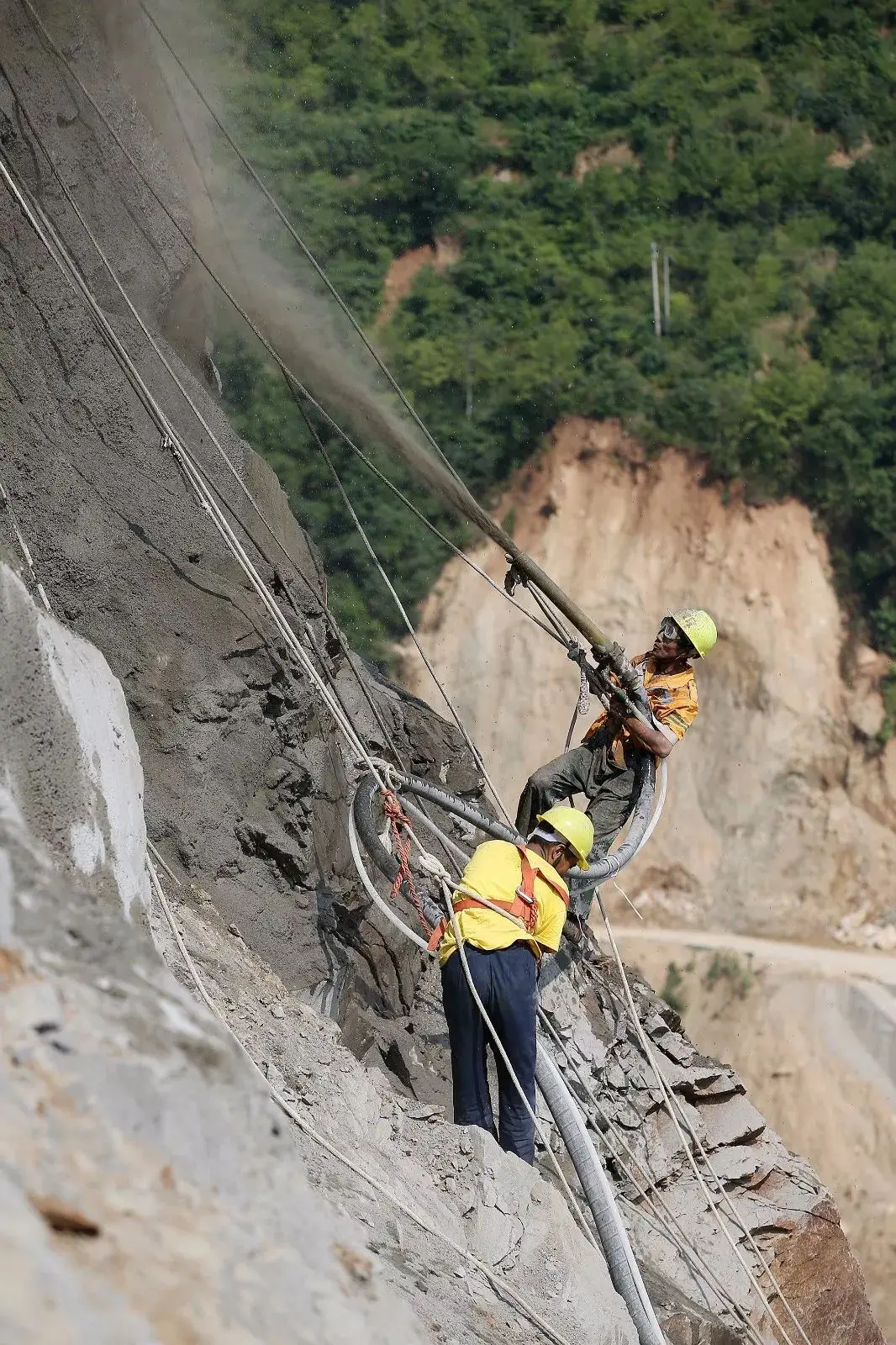

The application of concrete spraying machines is becoming more and more common. At present, it has been widely used in the construction of railways, highways, water conservancy, tunnels, civil engineering, national defense, dams, coal and other construction projects, and has become an ideal construction solution for temporary and permanent support of tunnels, road slope protection, coal foundation pits, and underground projects. work machinery.
Recommend Products
Company Profile
Zhengzhou Jialongli Co., Ltd. is a professional company engaged in the development and sales of air compressor production and application equipment. The products are widely used in industrial gas sources, various mining and engineering project construction. The enterprise takes technology development as the core, adheres to the action program of "emphasizing details, seeking efficiency, casting quality and creating the future", and takes "unlimited scientific and technological innovation, high ambition and pioneering" as the business philosophy. Looking around the world, with the confidence of striving for world-class, we will provide customers with products and services, and strive to move forward for the rise of China's national equipment manufacturing industry and the construction of green mine engineering!
Spare Parts Area
Parts Production Area
Parts Production Line
Parts Production Line
Machine Production Workshop
Production Line Equipment
Drilling Rig Production Area 1
Drilling Rig Production Area 2
Production Line Equipment
FAQ
Q1: Why customer choose us?
A: JiaLongLi are specialized in DTH Drilling Rig, Underground Loader, Water Well Drilling Rig. Germany Standard and 10 years exporting experience help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Zhejiang,China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 3 to 7 days, if urgently order, pls contact our sales in advance.
Q4: How long is your water well drilling rig warranty?
A: One year for the whole machine, except consumble spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 10 years.
Q6:What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other
currency.
currency.
Q7: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.
Q8: How about your after-sales service?
A: 1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service avaiable.
