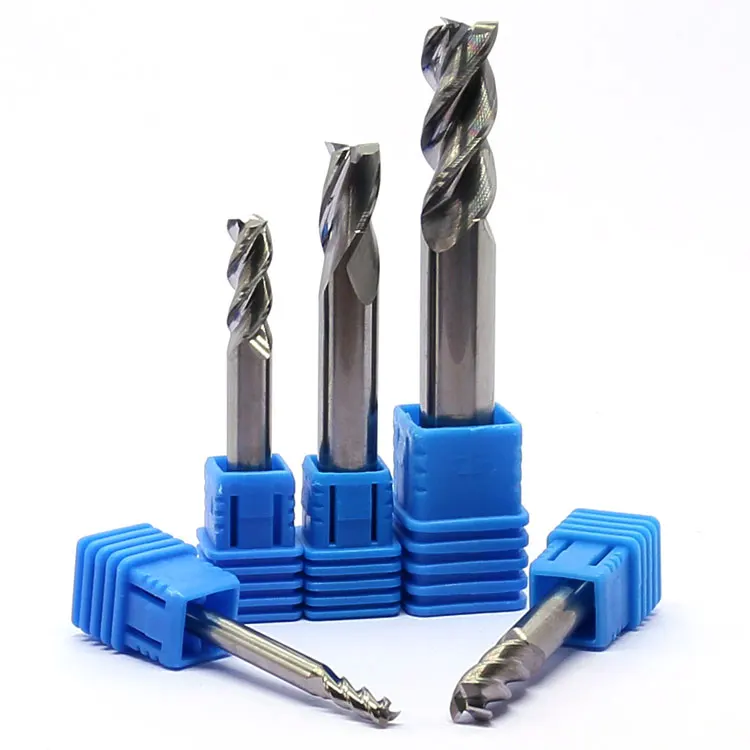

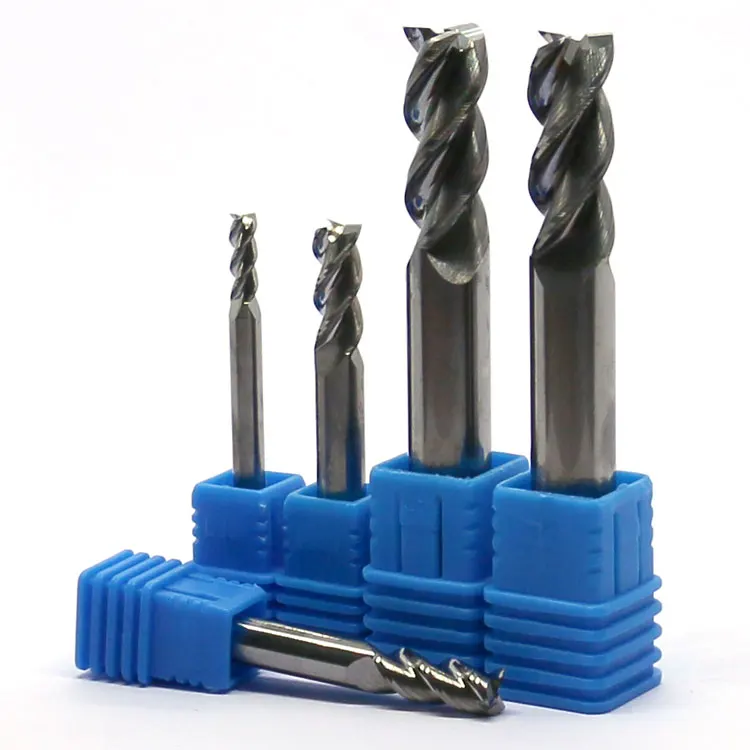

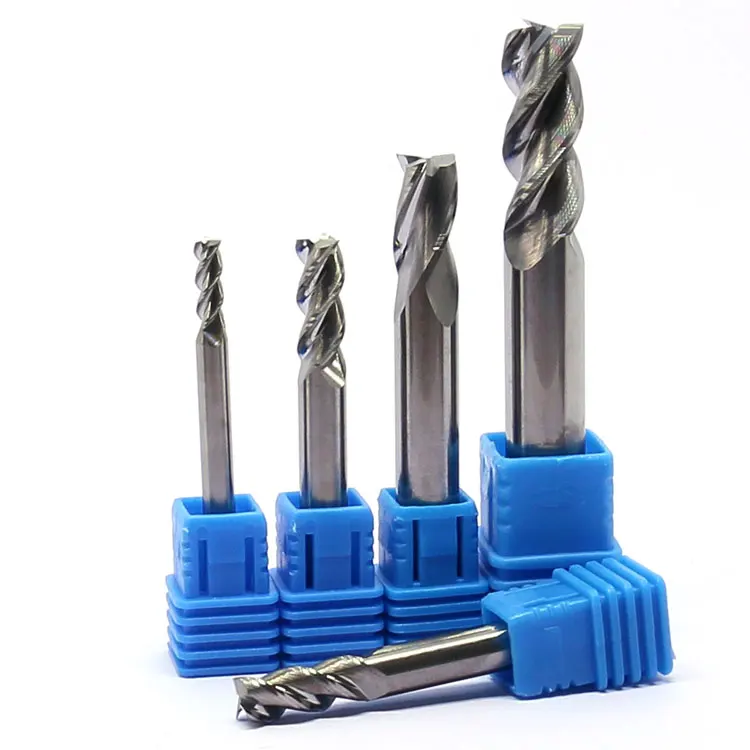

Aluminum Cutting Solid Carbide Square Endmills dia 1mm 3mm
- Category: >>>
- Supplier: Dongguan Harmonie Cutting Tools Co. ltd.
Share on (1601044548955):
Product Overview
Description
Product Overview

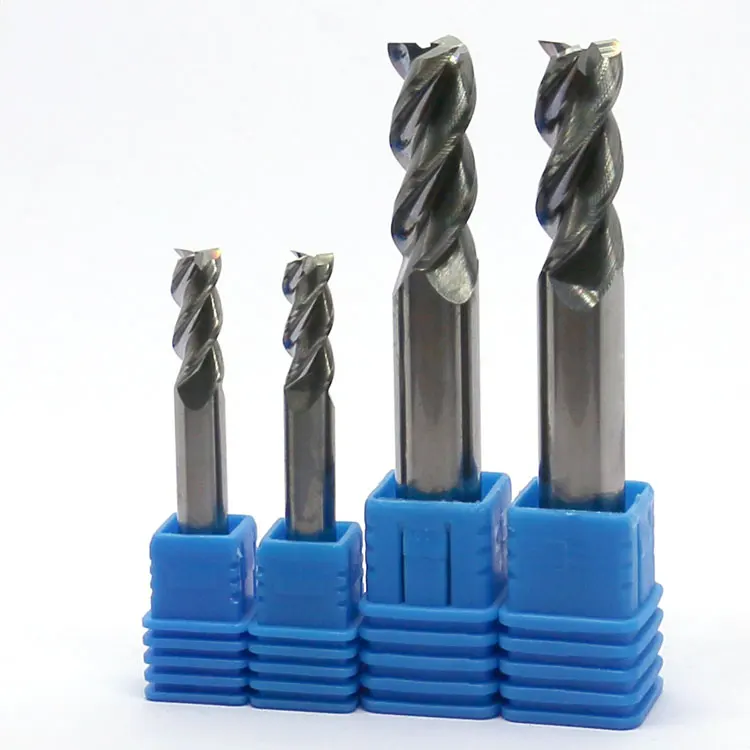

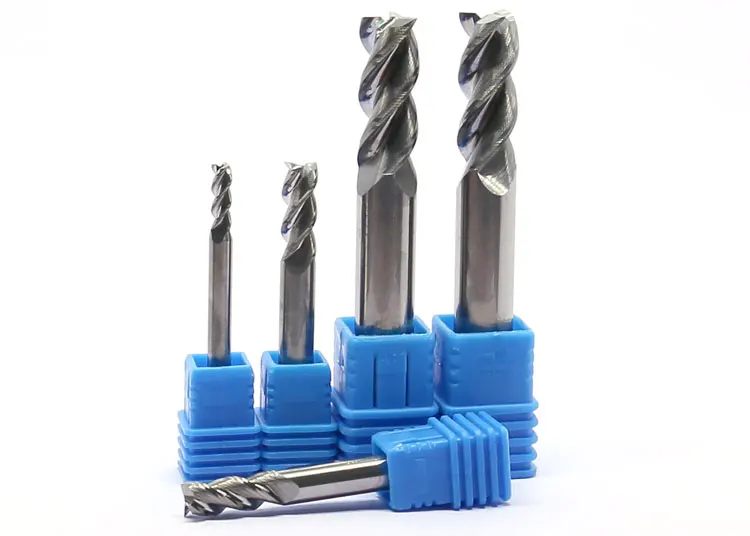

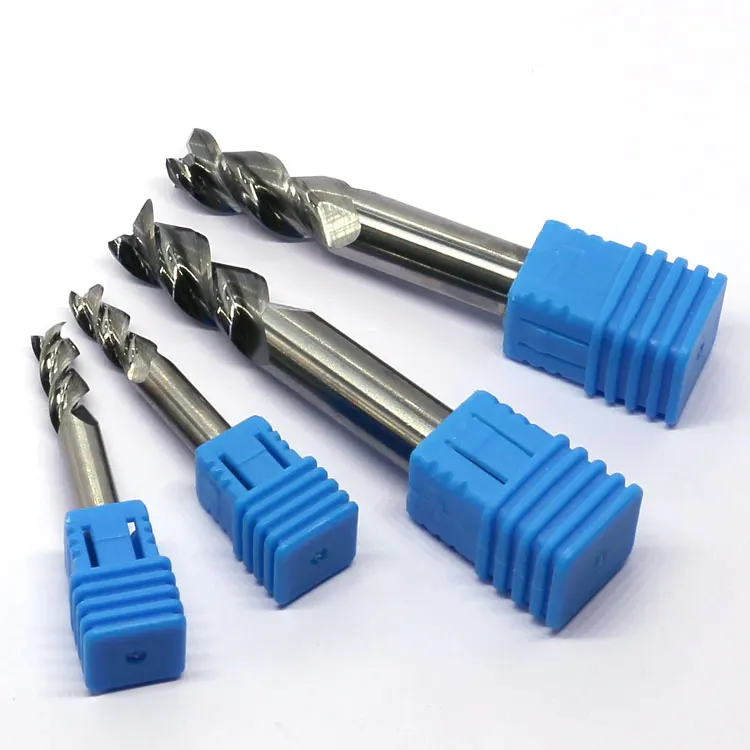

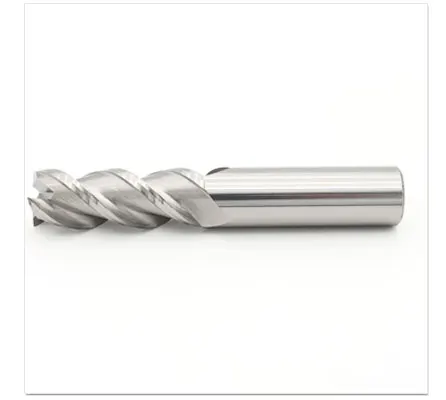

Square End Mills For Aluminum Milling
These mills are specifically designed for high metal removal rates in aluminum.
They have two or three large flutes with a high helix angle, and eccentric grinds on the outside diameter. The point is square end where the corners are sharp and generate a 90° corner. CNC milling of aluminum can be difficult, because the material can stick to the flutes and the chips can pack.
These mills come with coating, or as uncoated.
They are available in a wide variety of diameter sizes from 1mm to 20mm.
They have two or three large flutes with a high helix angle, and eccentric grinds on the outside diameter. The point is square end where the corners are sharp and generate a 90° corner. CNC milling of aluminum can be difficult, because the material can stick to the flutes and the chips can pack.
These mills come with coating, or as uncoated.
They are available in a wide variety of diameter sizes from 1mm to 20mm.
Product specifications vary in weight. Please contact us before placing an order, so we can calculate the correct shipping cost based on the final product specifications.
PRODUCT SPECIFICATIONS
Product Name | Square End Mills For Aluminum Milling |
Material | Carbide |
Standard size(Shank Diameter) | 4mm,6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm |
Flutes | 3 Flutes |
Suitable for | Aluminum,Copper |
Advantages | High Precision,Good Surface & Performace |
Customized support | OEM, ODM, OBM |
Certification | ISO9001:2015 , Supplier Assessment Certificate |
MOQ | 10 Pieces |
Delivery Time | sample order 1-3 days, big order 3-15 days |
Payment | 30% payment before produce, 70% balance payment before delivery |

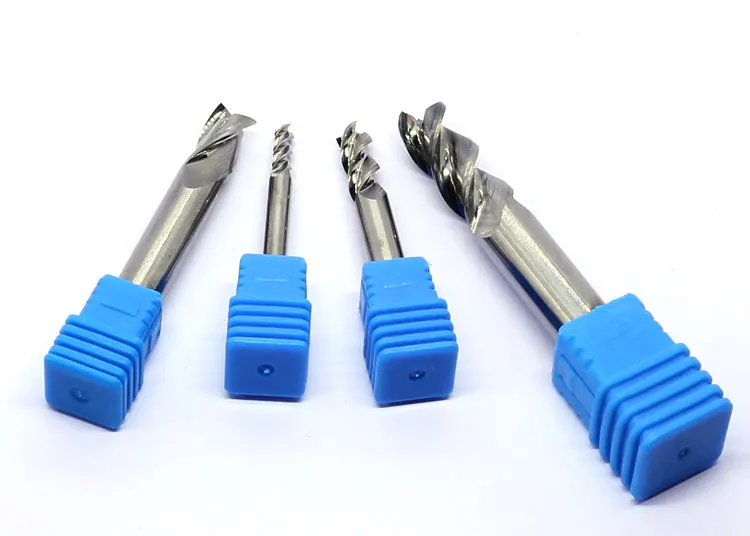

Details Images
SMOOTH CHIP REMOVAL
General wear-resistant and less bur, improve efficiency, No sticking, no chip accumulation,
fast processing.
fast processing.

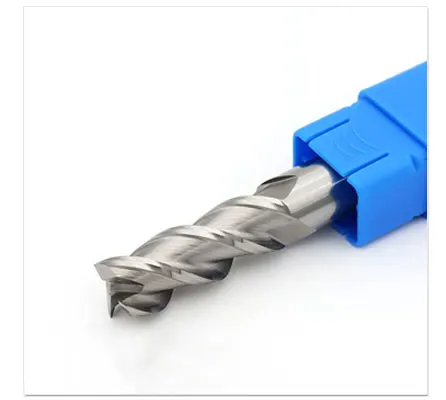

DESIGN OF 45 DEGREES HELIX
Designed for outstanding performance and accelerated metal removal rates in aluminum
and non-ferrous materials.
Designed with a high helix for improved part finish and shearing action.
and non-ferrous materials.
Designed with a high helix for improved part finish and shearing action.
Size Information

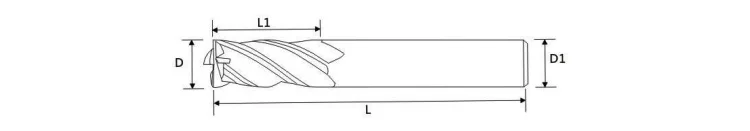

Cutter Dia. (D) | Shank Dia.(D1) | Flute Length(L1) | Overall Length(L) |
1 | 4 | 3 | 50 |
1.5 | 4 | 4.5 | 50 |
2 | 4 | 6 | 50 |
2.5 | 4 | 7.5 | 50 |
3 | 4 | 9 | 50 |
3.5 | 4 | 10 | 50 |
4 | 4 | 12 | 50 |
4 | 4 | 16 | 75 |
4 | 4 | 20 | 100 |
5 | 6 | 15 | 50 |
5 | 5 | 15 | 50 |
5 | 5 | 20 | 75 |
6 | 6 | 18 | 50 |
6 | 6 | 24 | 60 |
6 | 6 | 30 | 75 |
8 | 8 | 24 | 60 |
8 | 8 | 30 | 75 |
8 | 8 | 35 | 100 |
10 | 10 | 30 | 75 |
10 | 10 | 45 | 100 |
12 | 12 | 35 | 75 |
12 | 12 | 45 | 100 |
14 | 14 | 45 | 100 |
16 | 16 | 45 | 100 |
18 | 18 | 45 | 100 |
20 | 20 | 45 | 100 |
Hot Products
Customized Service
Company Profile

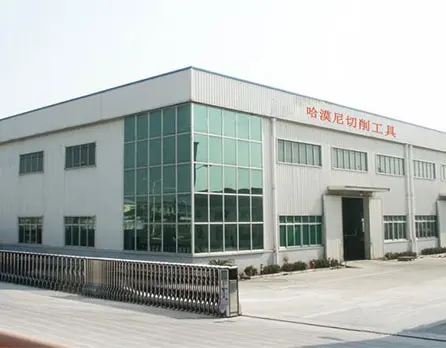

OUR COMPANY
Dongguan Harmonie Cutting Tools co.,Ltd. is a professional tool manufacturer, Founded in 2009. Our company specializes in the production, research, development and technical services of CNC cutting tools, Products are widely used in precision parts, mould manufacturing, 3C medical treatment,
automobile manufacturing and other fields, especially in non-ferrous metal surface processing with deep research and unique tool design, which can cooperate with customers to design and optimize processing plans.
automobile manufacturing and other fields, especially in non-ferrous metal surface processing with deep research and unique tool design, which can cooperate with customers to design and optimize processing plans.

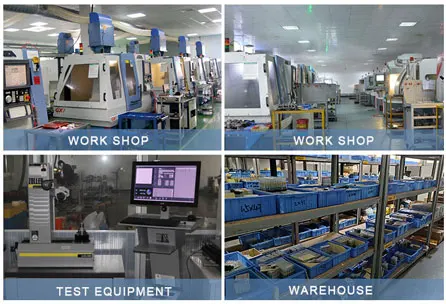

The Company priority to the introduction of the advanced manufacturing machines broad, including but not limited to CNC cutter grinding machine tools from TTB Five-axis linkage in Switzerland and WALTER Germany, as well as cutter checking and inspection instruments from EOUER in Germany, all tremendously enhances the manufacturing capacity of the company, quality of products and competitiveness in market expansion.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Why is the shipping cost displayed as so expensive after placing an order?
A: Because on the Alibaba platform, a product page can only set the weight for one product specification. However, different product specifications have varying weights, which can lead to the platform displaying shipping costs that are either too high or too low.
Please inform us of your detailed specifications before placing an order, and we will calculate the accurate shipping cost based on the actual weight.
A: Because on the Alibaba platform, a product page can only set the weight for one product specification. However, different product specifications have varying weights, which can lead to the platform displaying shipping costs that are either too high or too low.
Please inform us of your detailed specifications before placing an order, and we will calculate the accurate shipping cost based on the actual weight.
Q: Are sample avaliable?
A: Yes, you can ask some samples for testing after confirming our prices, but pls pay the sample and freight fee, the sample fee will be returned to you after you making official order.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15 days
if the goods are not in stock, it is according to quantity.
if the goods are not in stock, it is according to quantity.
