FarSun Solar Metal Roof Bracket PV Aluminium Mounting Kit Triangle Brackets Mount
- Category: >>>
- Supplier: Xiamen Farsun Technology Co. Ltd.
Share on (1601044566040):
Product Overview
Description

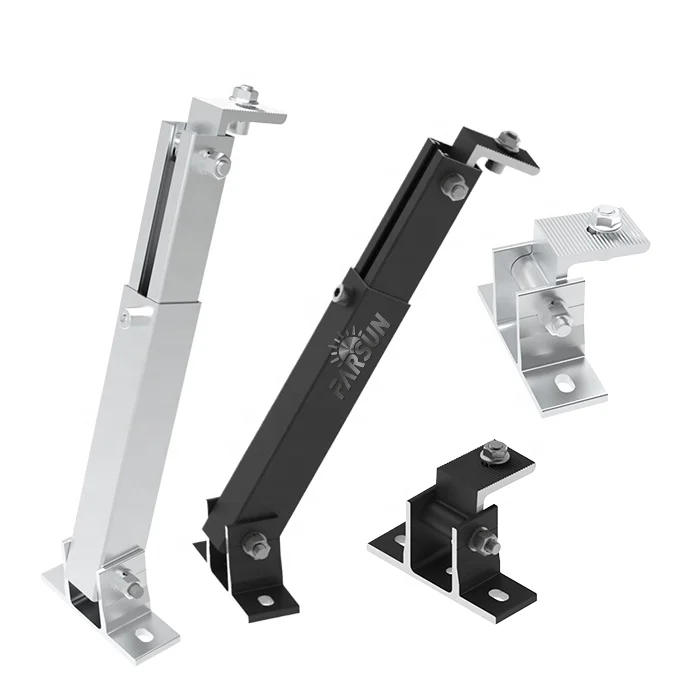

FS Solar Metal Roof Bracket PV Aluminium Mounting Kit Triangle Brackets Mount
Products Description
1. Adjustable flat roof mounting structures are widely used for both crystalline and thin film module
2. Easy & quick installation
3. Only 3-4 kinds of components and no more than two kinds of tools in whole system fixation
4. All flat roof components are made with high quality aluminum & stainless steel
2. Easy & quick installation
3. Only 3-4 kinds of components and no more than two kinds of tools in whole system fixation
4. All flat roof components are made with high quality aluminum & stainless steel
Product Paramenters
Dimensions of structure (wxdxh) | 35x35x360mm / 35x35x660mm |
Adjustable length | 390-690mm / 700-1290 mm |
Material thickness | 1.2mm~1.5mm |
Material | Aluminum Al6005-t5 |
Material screws & nuts | SUS304 Stainless Steel |
Angle | 15-30° / 30-60° |
Suitable for | Flat Surfaces |
Color | Silver / Black |
Dimensions bracket | 105x35x54mm |
Rubber | 35x35x2mm |
Screws | M8x50mm / M8x20mm / ST6.3x80mm |

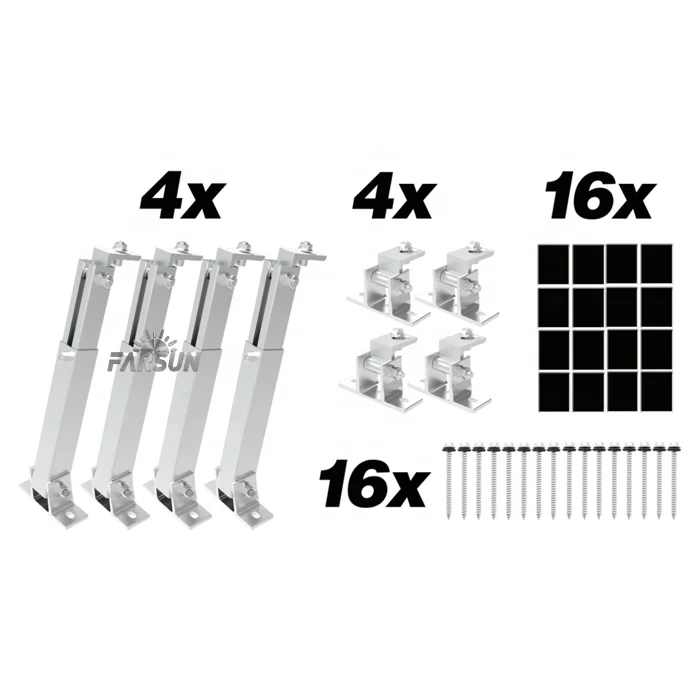

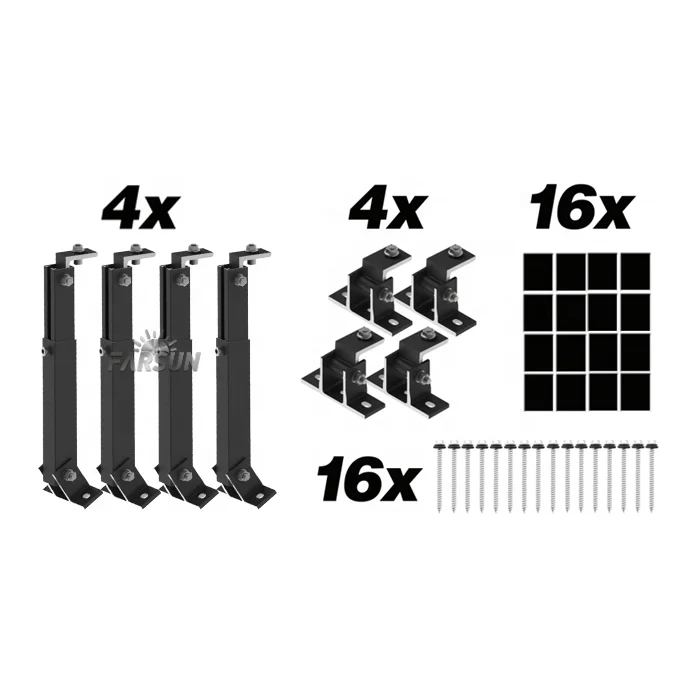

Package of delivery | 16x Self Tapping Screw, 16x EPDM |
4x Rear Leg, 4x Front Leg |

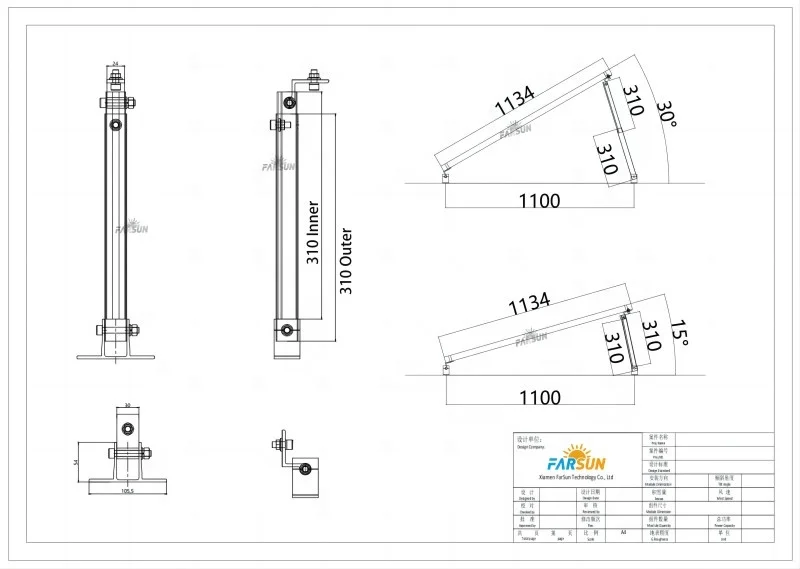

Installation Instructions
Adjiustable Solar Panel Mounting Tilt Angle Bracket Aluminium Frame Pv Panel Stand Racking Structure for Two Panels RV.OEM&ODM Service are also available.

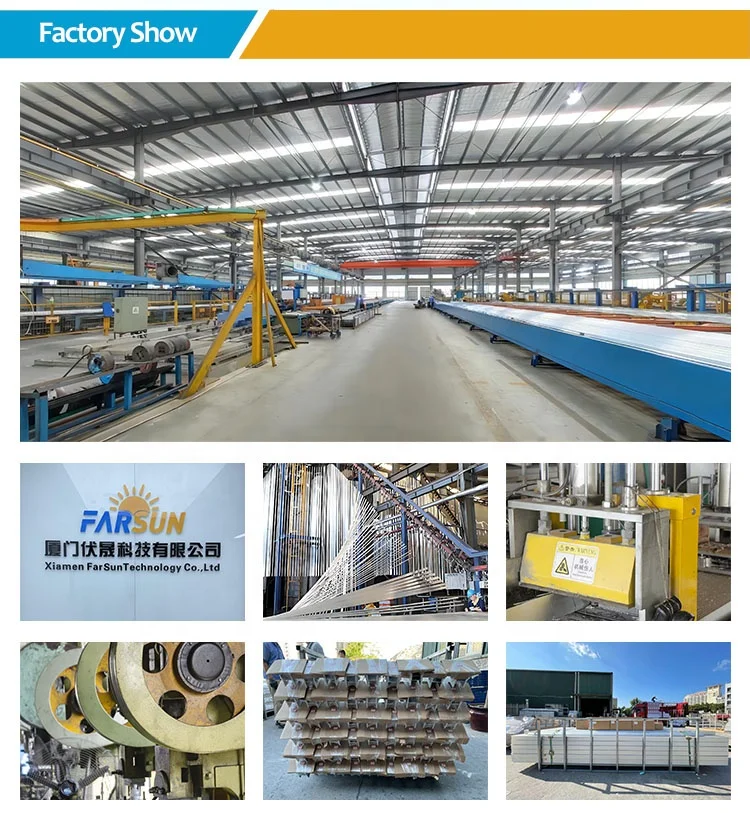

Factory Show
Necessary info. for us to design and quote |
* What is your pv panels dimension?_mm Length x__mm Width x_._mm Thickness |
* How many panels are you going to mount?____Nos. |
* What kind of roof do you have?__(Tin/metal/flat/slate/shingle roof) |
* What is your planned PV assmebly array?_Nos. in a row |
* How is weather there,such as wind speed and snow load? |
__m/s anit-wind speed and__KN/m2 snow load. |
