Big Discount Hengwang 600m Cheap Price Crawler Portable Well Borehole Drilling Machine Water Well Drilling Rig For Sale
Product Description
HW-260L(CRAWLER TYPE) Super hydraulic transmission, CNC control, automatic drilling experience
Drilling Rock:20M~40M/Hour
HW series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The well drilling rig machine can work on different formations, well drilling diameter up to 245mm. The drill machine adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.
The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me or send an inquiry, then we will send you formal quotation, thanks！
Product Paramenters
deep well drilling rig machine for rock | ||||||||||||
Model | HQZ160L | HQZ180L | HQZ260L | HQZ320L | HQZ400L | HQZ500L | ||||||
Overall weight (T) | 2.6 | 4.5 | 4.8 | 9 | 10 | 11.5 | ||||||
Dimension (mm ) | 2300*1200*1900 | 3500*1700*2250 | 3900*1850*2350 | 5300*2200*2800 | 5400*2200*2870 | 6000*2200*2950 | ||||||
Drilling diameter(mm ) | 138-203 | 130-254 | 130-305 | 130-325 | 130-325 | 130-350 | ||||||
Drilling depth(m) | 160 | 180 | 260 | 320 | 400 | 500 | ||||||
One-time advance length of the drill(mm) | 2000 | 3600 | 3600 | 6600 | 6600 | 6600 | ||||||
Traveling speed(km/h ) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | ||||||
Climbing ability(max ) | 30 | 30 | 30 | 30 | 30 | 30 | ||||||
Minimum Ground Clearance(mm) | 250 | 250 | 250 | 230 | 300 | 350 | ||||||
Working Air Pressure(mpa ) | 1.45 - 2.5 | 1.45-2.5 | 1.7-3.0 | 1.7-3.3 | 1.7-3.5 | 1.7-3.5 | ||||||
Air consumption | 15 - 27 | 17 - 31 | 17-31 | 17-35 | 17-35 | 17-42 | ||||||
Main machine power(kw) | 73 /Yuchai | 42/ Yunnei | 76/Yunnei | 85/Yuchai | 110/Yuchai | 115/Yuchai | ||||||
The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me or send an inquiry, then we will send you formal quotation, thanks！
Features:
1.High drilling efficiency, power provided by 85KW diesel engine
2.High efficiency, large rotary torque
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,Easy to operating
1.High drilling efficiency, power provided by 85KW diesel engine
2.High efficiency, large rotary torque
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,Easy to operating

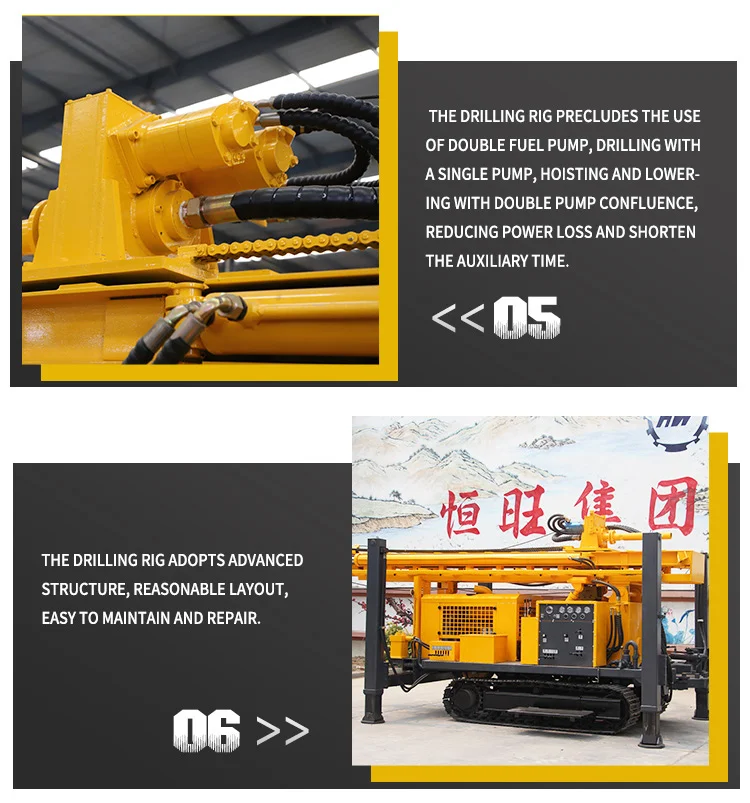

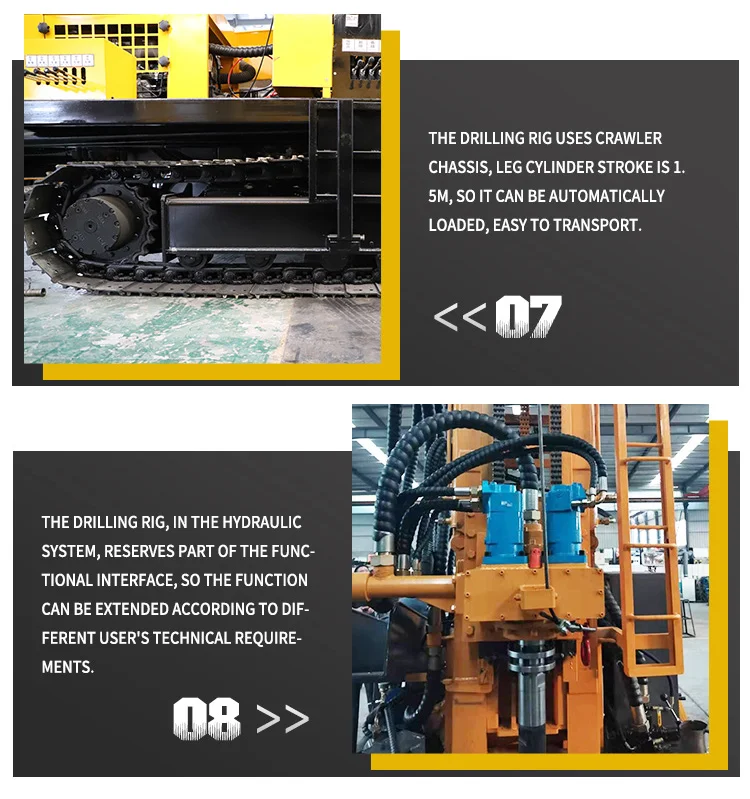

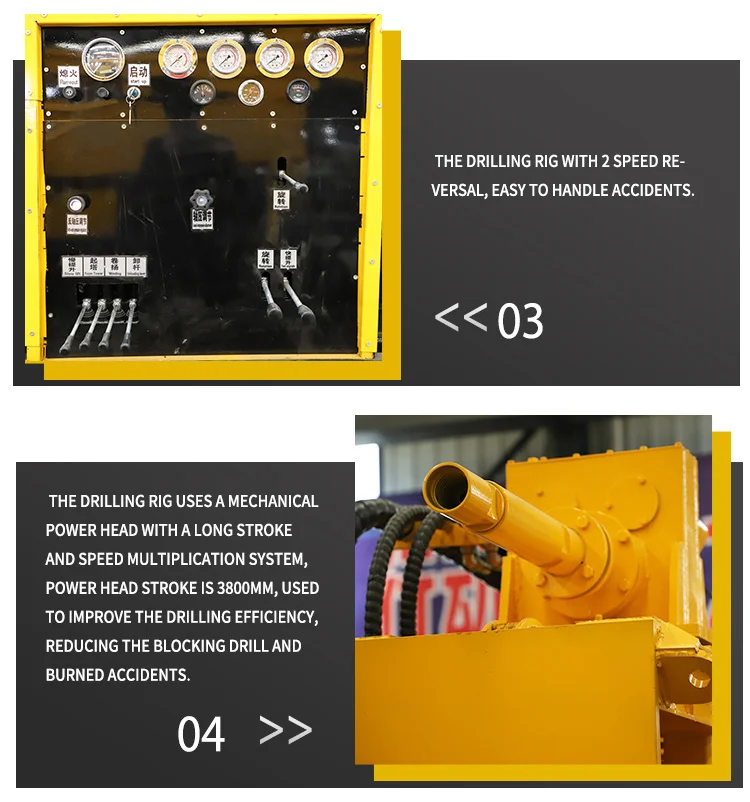

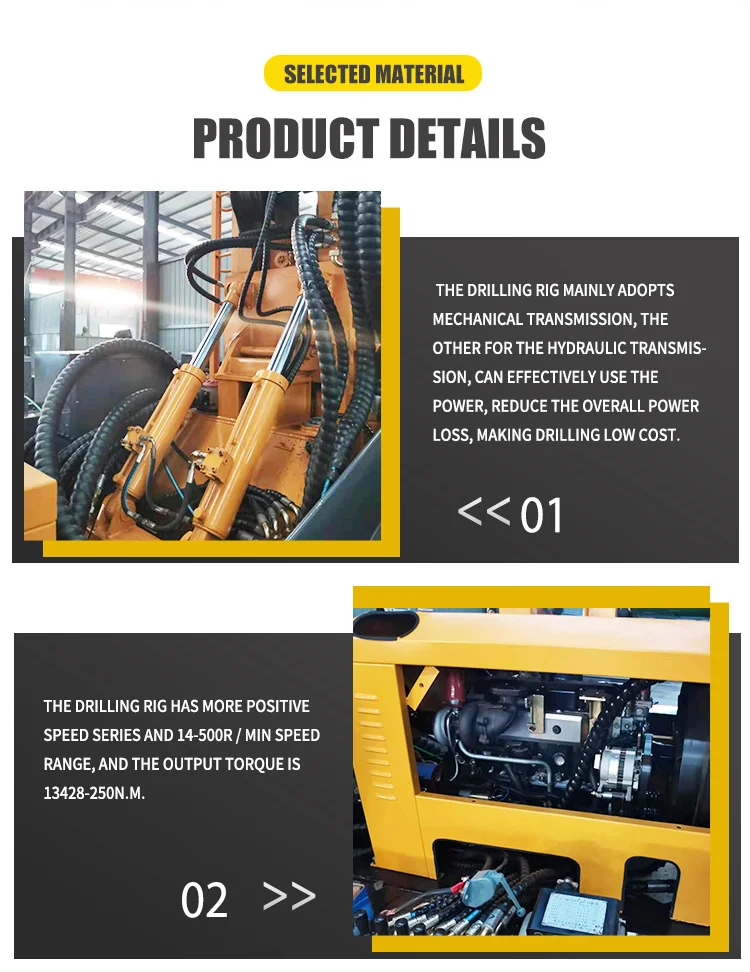

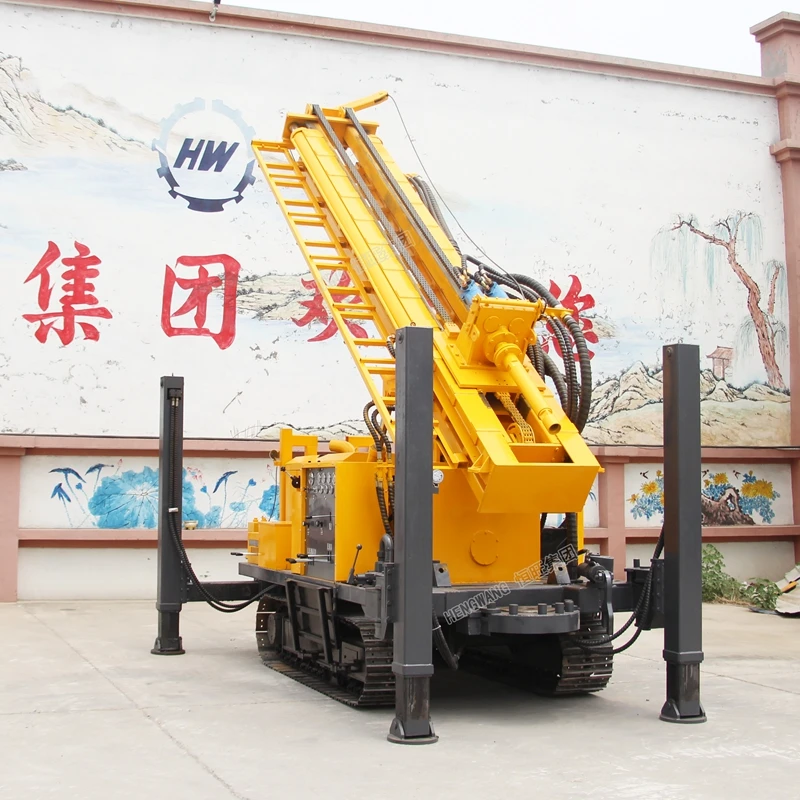

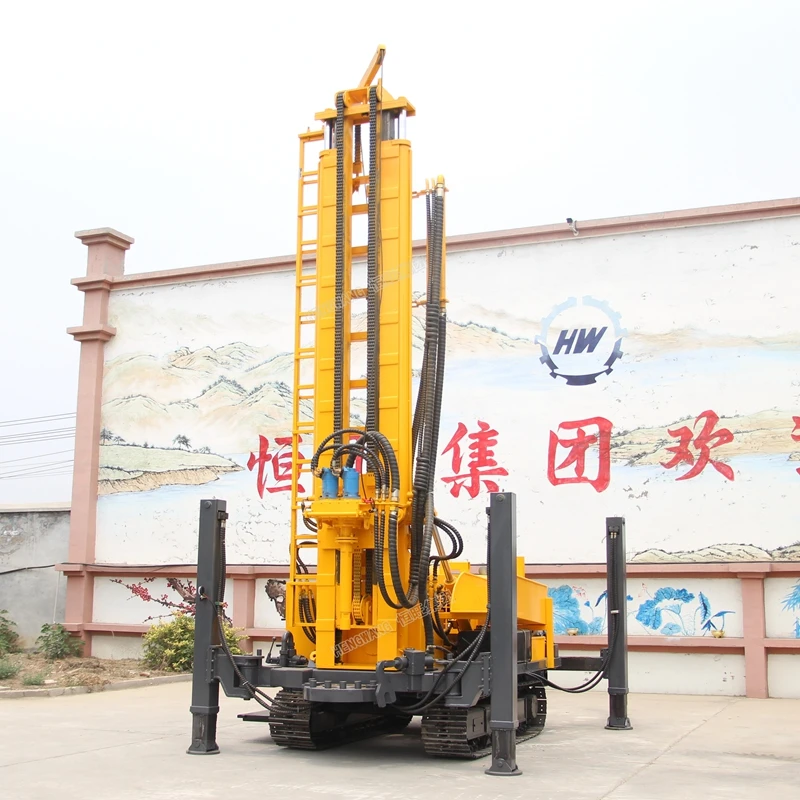

Detailed Images

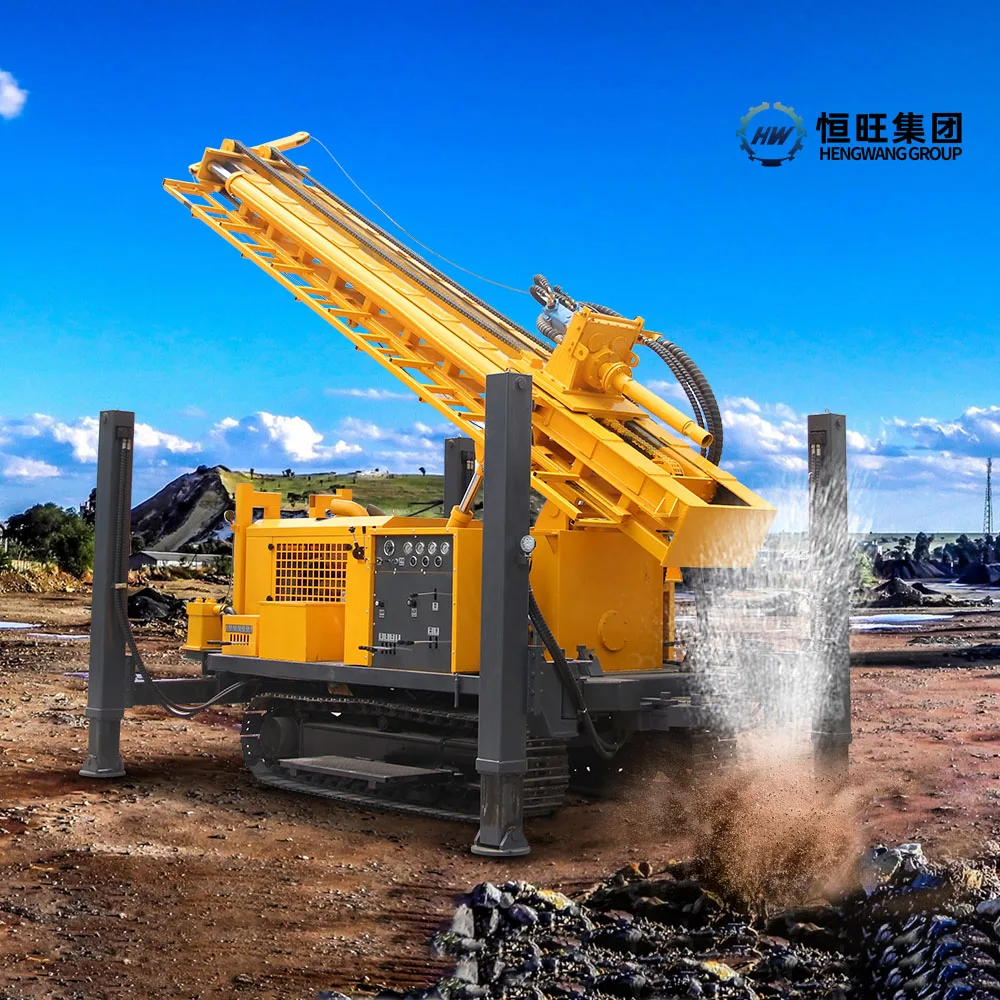

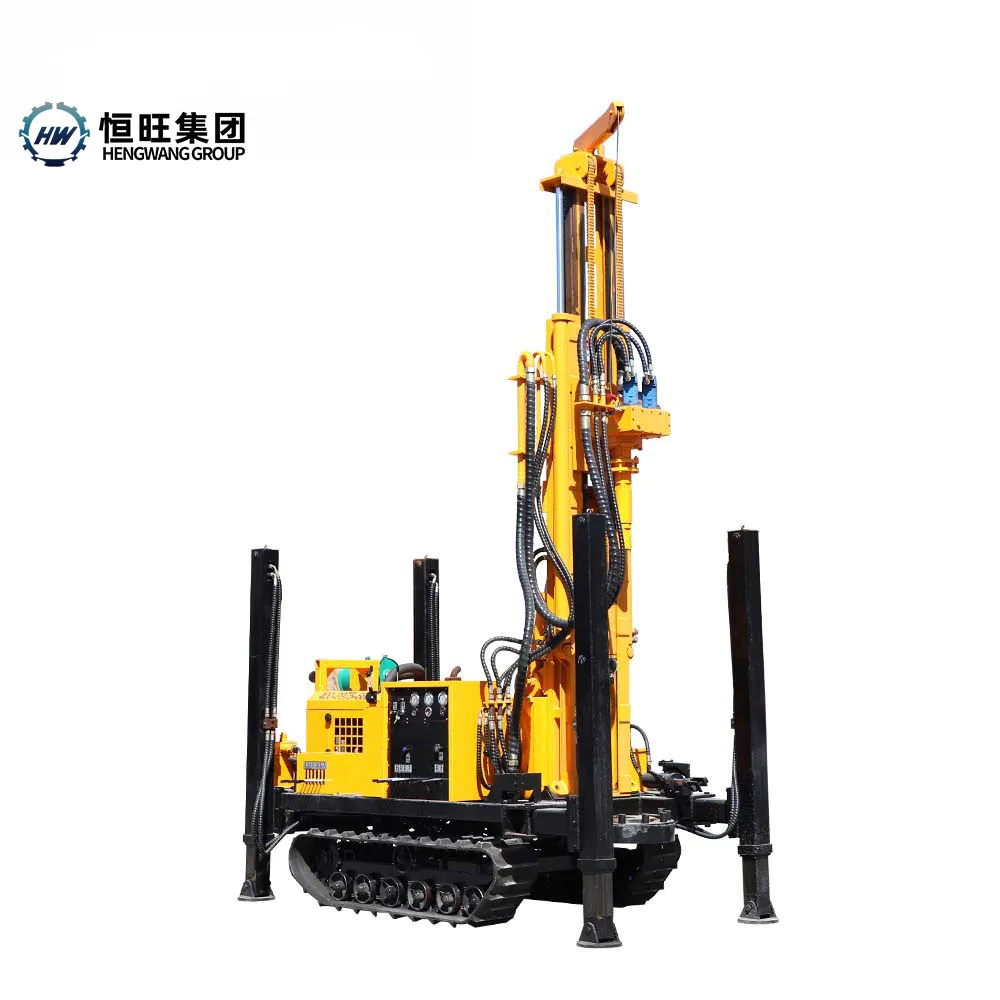

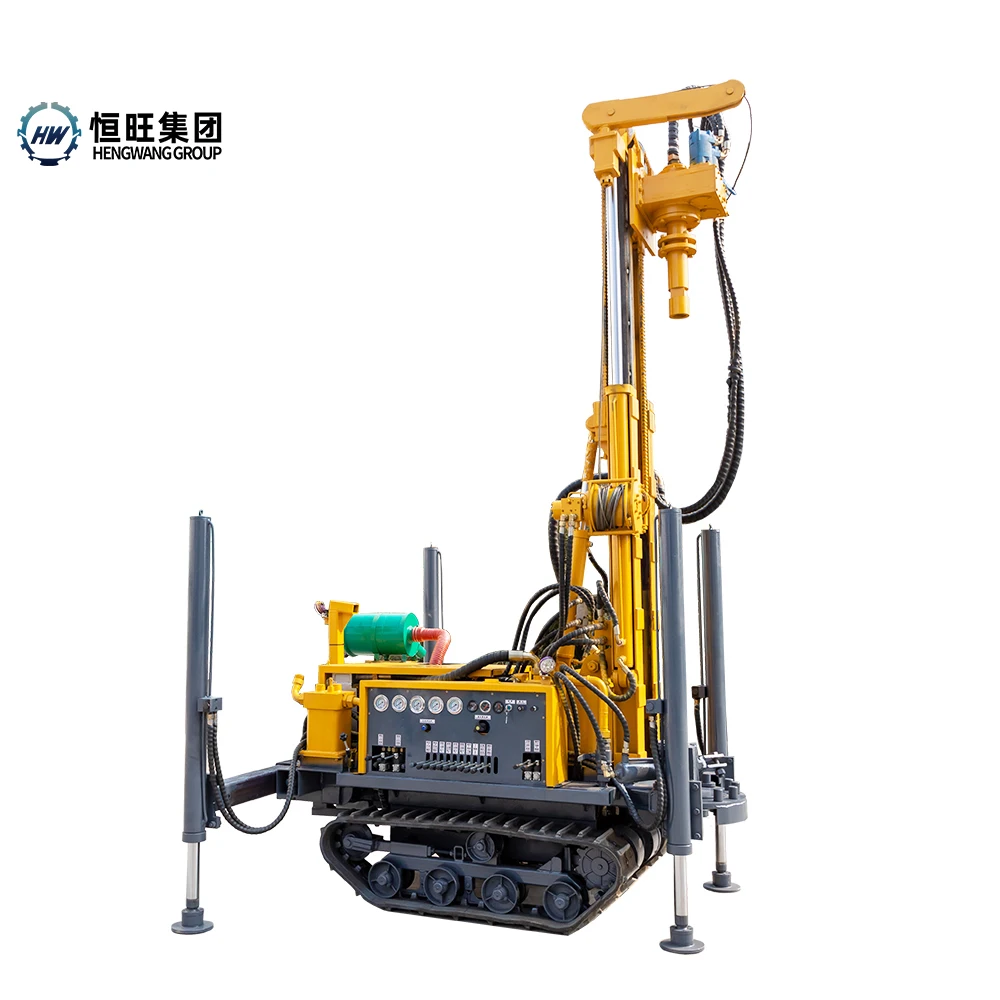

Big Discount Hengwang 600m Cheap Price Crawler Portable Well Borehole Drilling Machine Water Well Drilling Rig For Sale

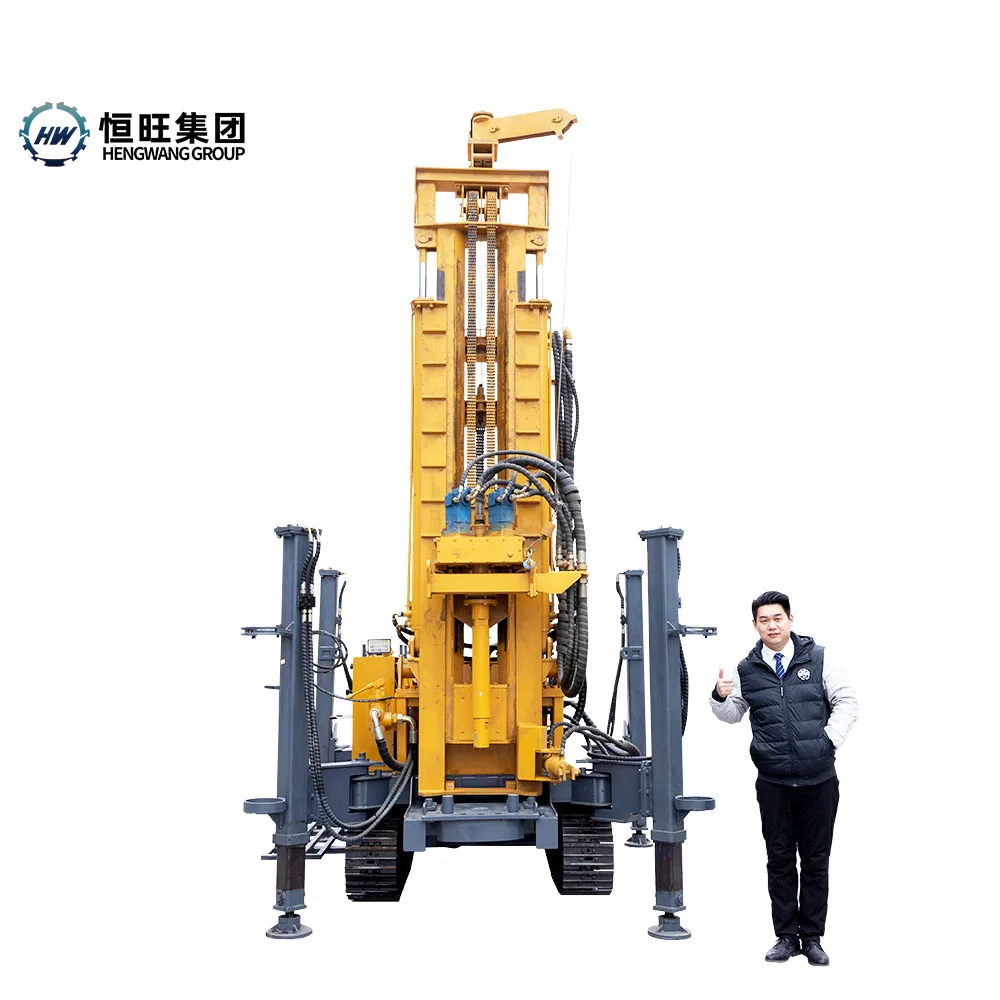

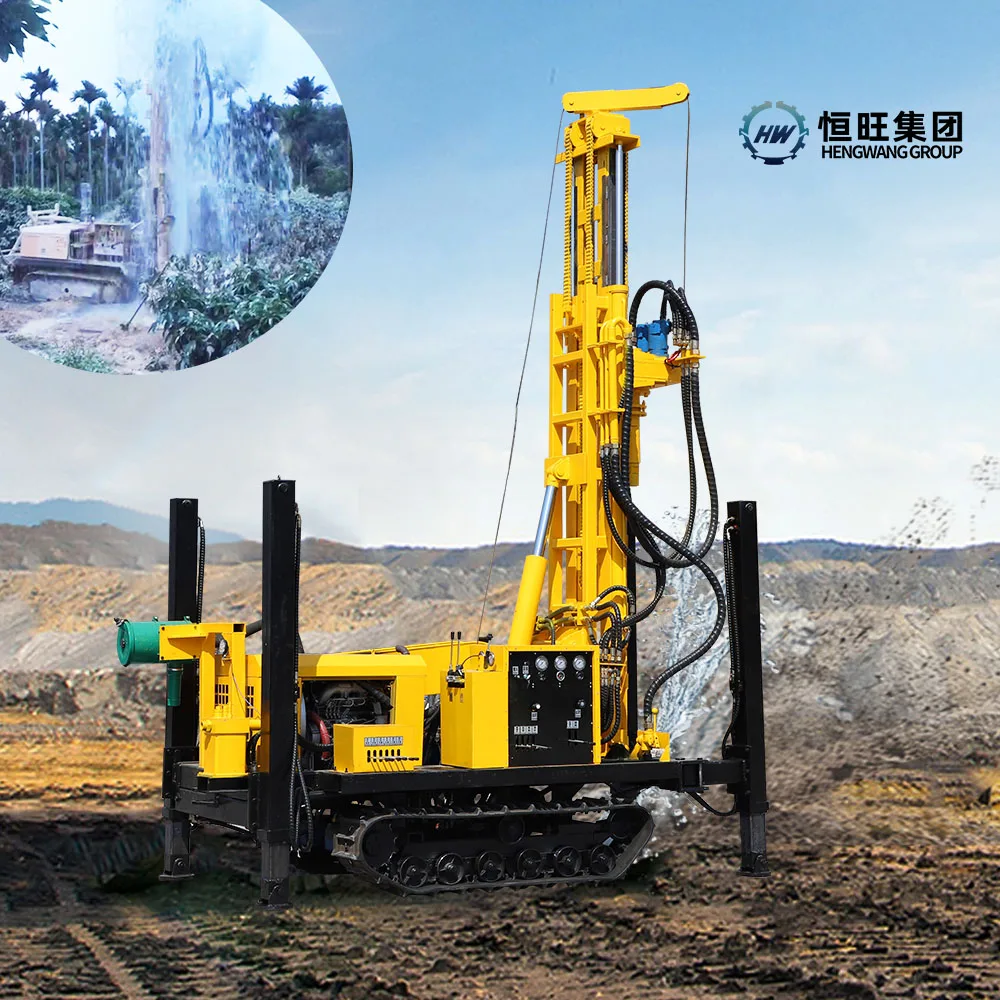

Big Discount Hengwang 600m Cheap Price Crawler Portable Well Borehole Drilling Machine Water Well Drilling Rig For Sale

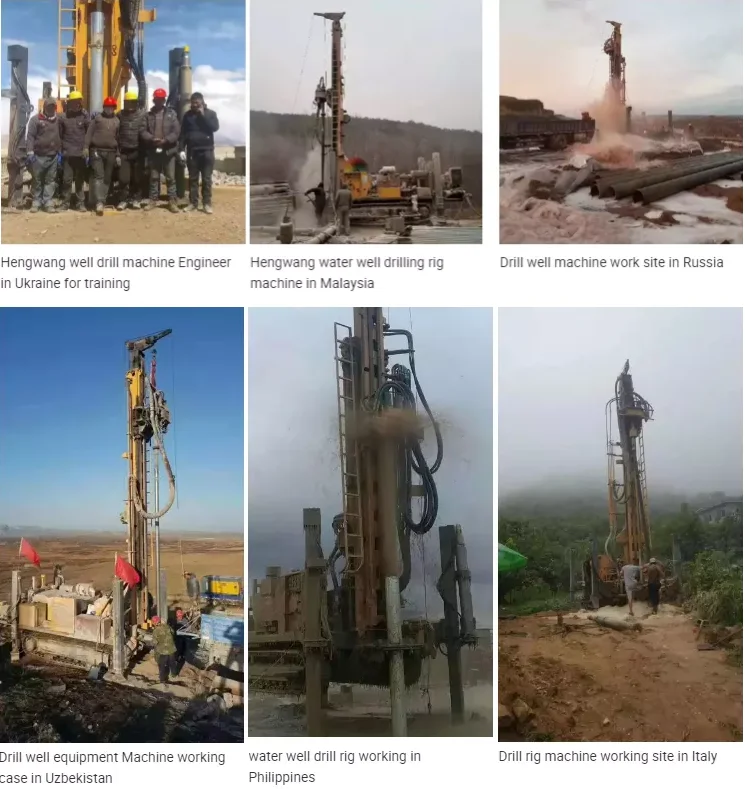

Application
