Ecotec Petroleum Dispenser Service Station Pump Fuel Dispenser for Gas Station
- Category: >>>
- Supplier: Zhejiang Ecotec Energy Equipment Co. Ltd.Zhejiang Ltd.
Share on (1601044583086):
Product Overview
Description
Product Information

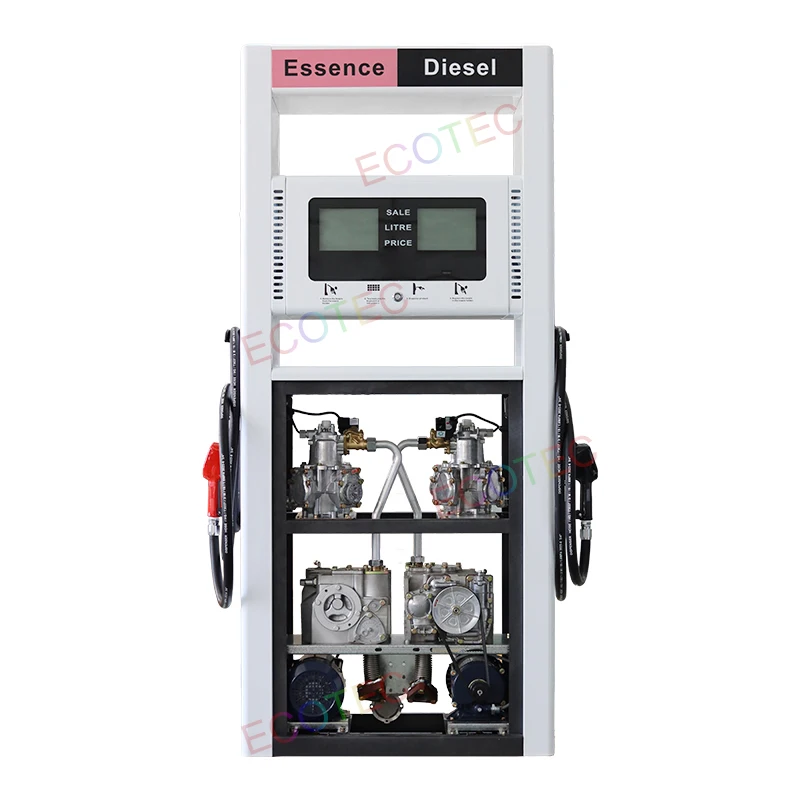

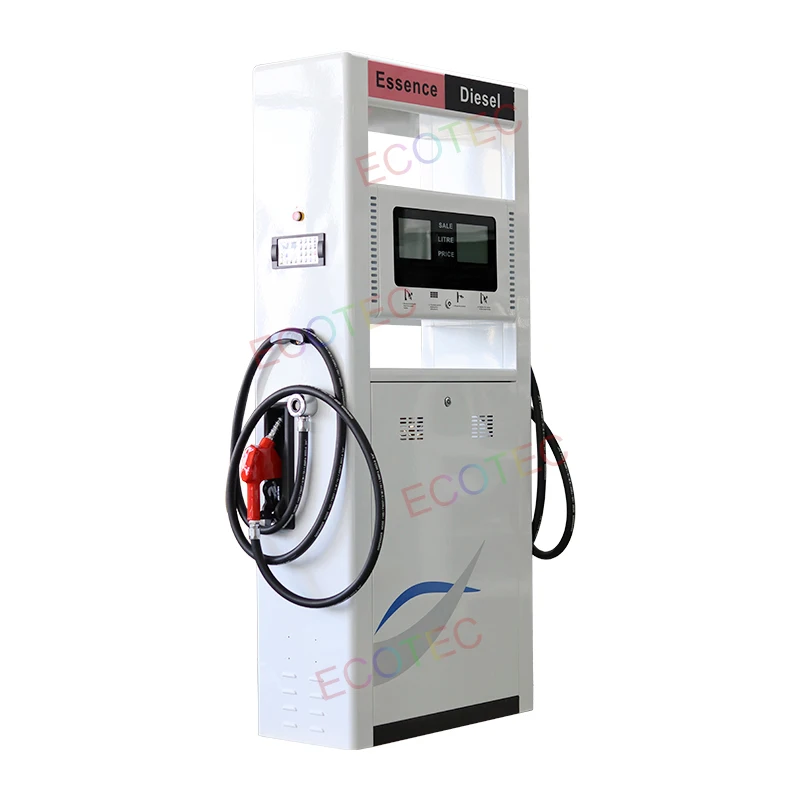

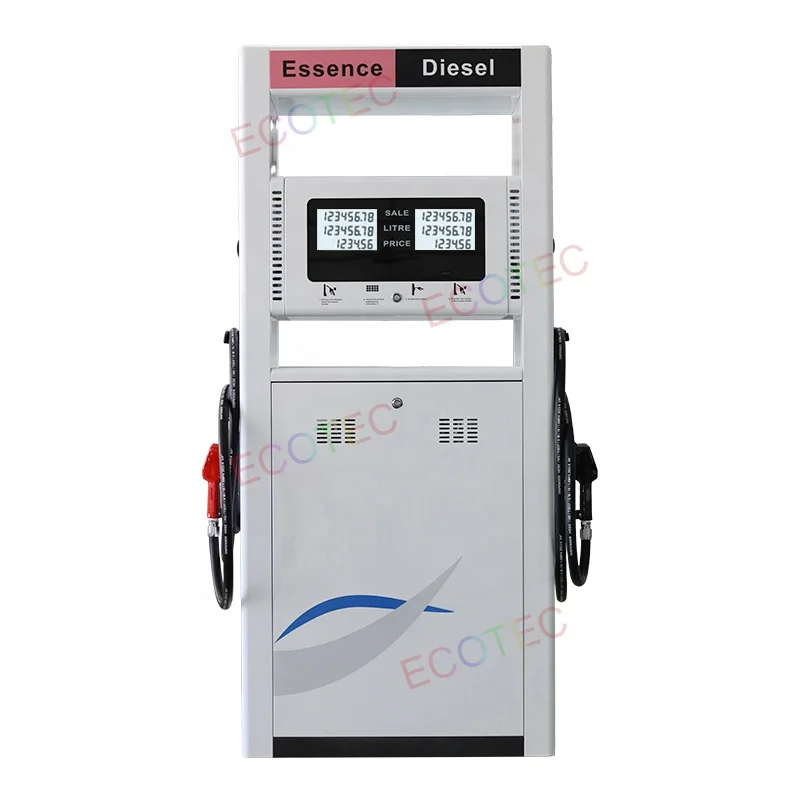

Ecotec Petroleum Dispenser Service Station Pump Fuel Dispenser for Gas Station
ET-D series fuel dispenser is designed for multi nozzle fuel dispenser, this model is available for fromsingle nozzle to eight
nozzle, and all nozzles can working at the same time by using WA tvpe controller
A simple and attractive design with durable materialin addition to composite plastic nozzle boots withautomatic switch and countless design configuration lasts longer and offers certain benefit to its users
ET Vane Pumps
ET Vane Pumps for fuel dispenser can be used to transfer gas-liquid mixture with the function of separation theair from gasoline, kerosene, diesel etc.
ET-FM flowmeter
ET-FM flowmeter adopts advanced technology, which can be widely used for different fuel dispensers.
Ecotec Fuel Nozzle
Ecotec Fuel Nozzle designed according to differentfuel dispenser, different application suitable for Diesel Gasoline Kerosene and Gasohol.

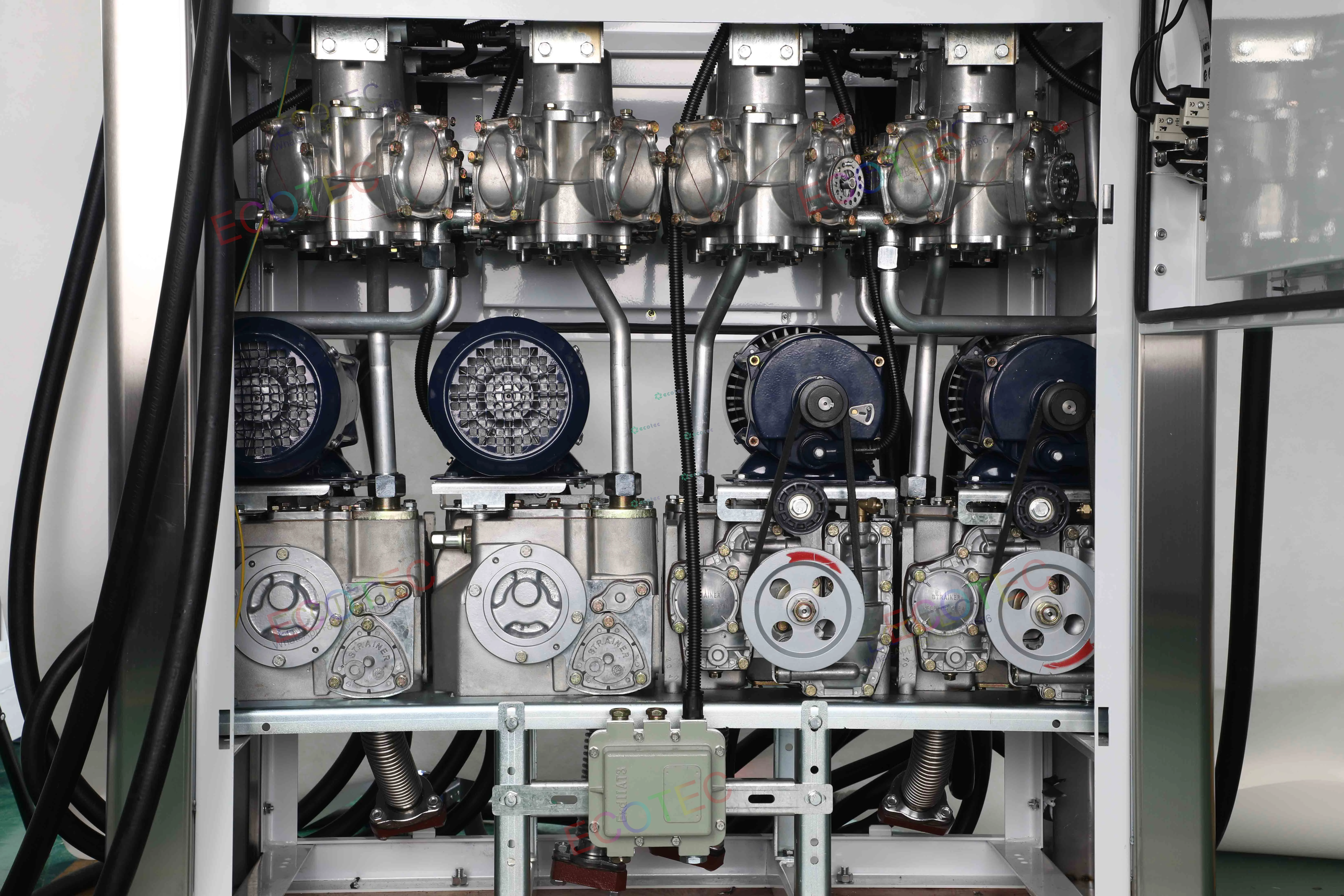

Pump And Flow Meter
Ecotec fuel dispenser can be designed for varies nozzle number, pump available for Tokheim, Tatsuno, Bennett, floe meter available
for Tatsuno, Bennett, Gilbarco and Wayne floe meter.
for Tatsuno, Bennett, Gilbarco and Wayne floe meter.

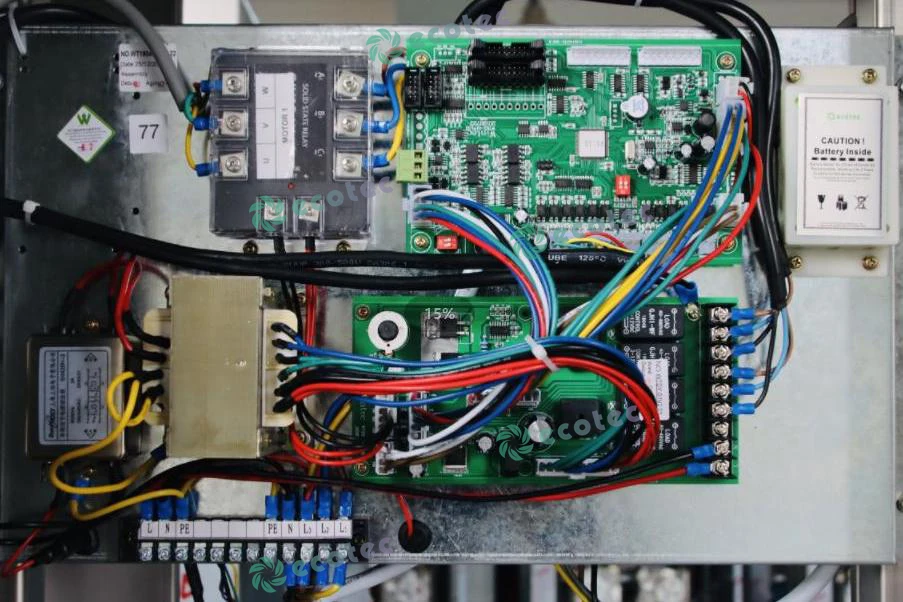

Fuel Controller
WA Series Controller is specially designed for single and double nozzle fuel dispenser as well as LPGDispenser and CNG dispenser
with its stability easy-operation and automation-friendly.WB Series Controller is developed for multi-nozzle fuel dispenser, one
controller can control 10 NozzlesWith Enalish operation menu in Keyboard, it is very easy to do any set or operation
with its stability easy-operation and automation-friendly.WB Series Controller is developed for multi-nozzle fuel dispenser, one
controller can control 10 NozzlesWith Enalish operation menu in Keyboard, it is very easy to do any set or operation
Main Technical Parameters | ||||||
Motor rated power | 750W (or 1000W ) | |||||
Inlet oil pressure | Submersible pump series≤0.3MPa | |||||
Max permissible error | ±0.20% | |||||
Ambient temperature | -25℃～＋55℃(low temperature area: -40℃～＋55℃) | |||||
Relative humidity | ≤95% | |||||
Vapor recovery | 95% ～ 105% (with vapor recovery feature) | |||||
Unit price setting range | 1.00 ～ 99.99 yuan /L | |||||
Display after power failure | ≥15 minutes | |||||
Noise | ≤80dB(A) | |||||
Flow range | 5L/min ～ 50L/min (±10%) | |||||
Large flow 10L/min ～ 100L/min (±10%) | ||||||
LMaximum flow with vapor recovery feature 45L/min (±10%) | ||||||
Power | Common: AC380V+10%, -15% (50Hz±1Hz) | |||||
Single-phase: AC220V+10%, -15% (50Hz±1Hz) | ||||||
Vehicle-mounted: DC12/24V±10% | ||||||
Single measurement range | Amount: 0.01 ～ 9999.99 yuan | |||||
Volume: 0.01 ～ 9999.99 L | ||||||
Cumulative measurement range | Amount: 0.01 ～ 99999999.99 yuan | |||||
Volume: 0.01 ～ 99999999.99 L | ||||||

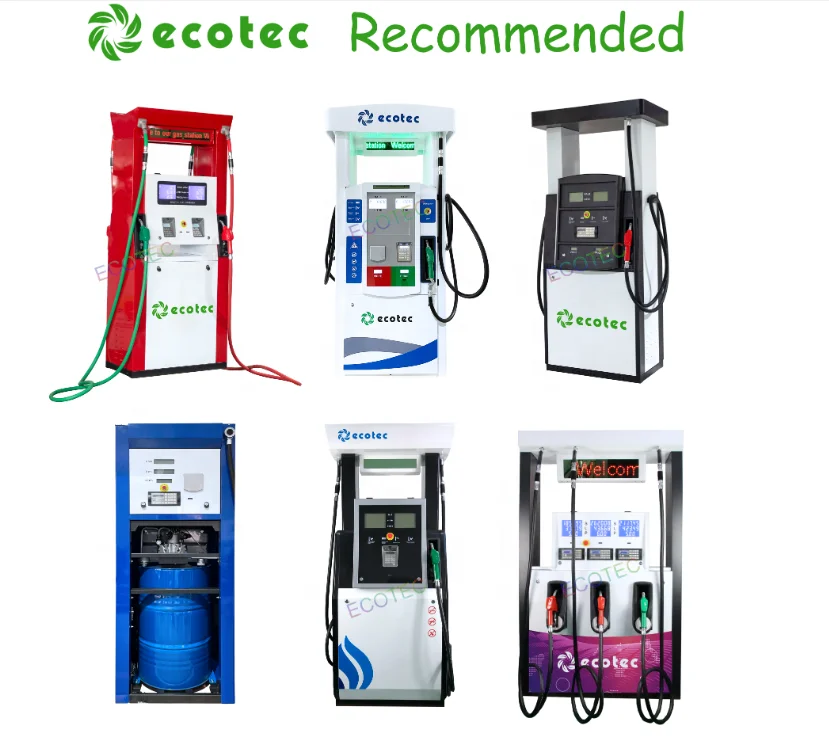

Recommend Products
Packaging & delivery
Fuel dispenser accessories and some other parts are transported in pallet packaging
Fuel Dispenser transportation
Fuel dispenser are usually packed and transported in wooden boxes and cartons
Our Advantages
Ecotec design and manufacturing
Precise, convenient and safe, Customer and user first is the top priority in Ecotec design and manufacturing, J series is the
dispenser with highest accuracy, quality, durability and reliability that always provides utmost satisfaction for all
Ecotec top after-sale support
Ecotec offer 1 year warranty and full life tech support for all products. More customer choose ecotec considering the quick
response and professional aftersell support.
Owner and User
Fuel dispenser is the essential dispenser for service stations, benefits to both service station owners and drivers, user-friendly and safe best partner that provide greatest fulfillment for all
Wide Range of product lineup
Product lineup meets various requirement of sites and customers, the best model with the best function,
suitable for single nozzle to 8 nozzle
suitable for both suction and submersible
suitable for Gilbarco, Tatsuno, Tokhem Bennett, LPG and CNG dispenser
suitable for regular flow rate and high flow rate
Option with TV, LED, Printer, Bank Card reader etc
Precise, convenient and safe, Customer and user first is the top priority in Ecotec design and manufacturing, J series is the
dispenser with highest accuracy, quality, durability and reliability that always provides utmost satisfaction for all
Ecotec top after-sale support
Ecotec offer 1 year warranty and full life tech support for all products. More customer choose ecotec considering the quick
response and professional aftersell support.
Owner and User
Fuel dispenser is the essential dispenser for service stations, benefits to both service station owners and drivers, user-friendly and safe best partner that provide greatest fulfillment for all
Wide Range of product lineup
Product lineup meets various requirement of sites and customers, the best model with the best function,
suitable for single nozzle to 8 nozzle
suitable for both suction and submersible
suitable for Gilbarco, Tatsuno, Tokhem Bennett, LPG and CNG dispenser
suitable for regular flow rate and high flow rate
Option with TV, LED, Printer, Bank Card reader etc

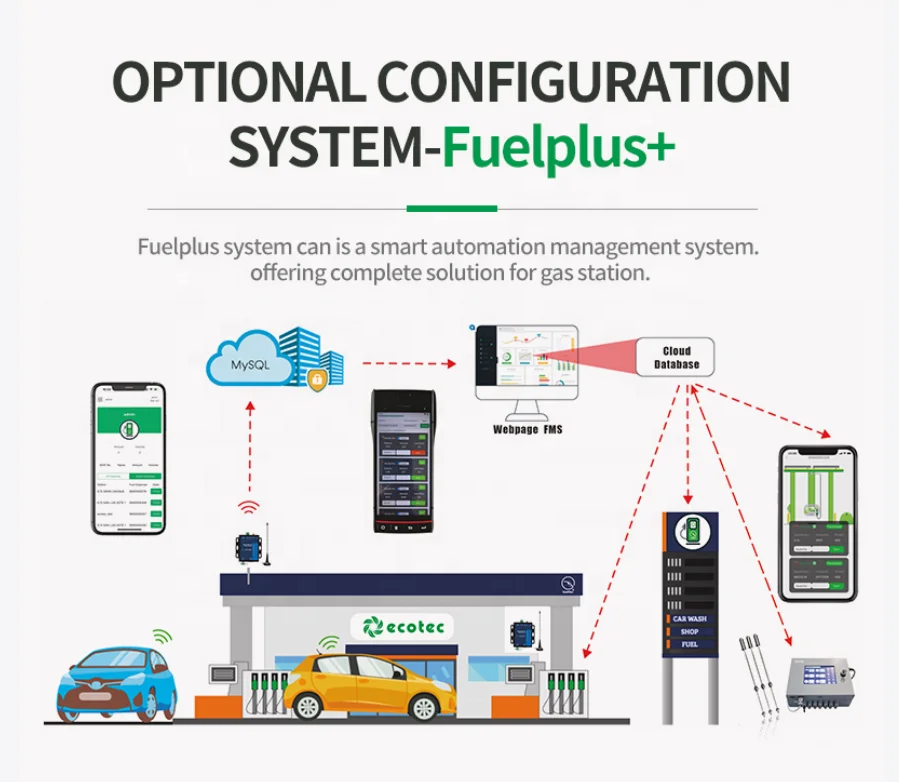

Fuelplus FMS——A easy way to manage the gas station
Fuelplus have several controlon different user roles, station owner can achieve full control of station on ful weather, employeecan query all record, report and control fueling in office, driver and achieve self-service
Company Profile
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer′s need, and struggle for it, Looking forward to cooperate with you better products with better price.
Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can package service from
Design, Manufacturing, Delivery and after-sale service, we have exported to over 60 countries now, and have agent in Africa,
Middle East, Asia and South American countries.
Here Eectec Energy are on the position to offer the below products:
1. Fuel station: Fuel dispenser, Pump, Meter, fuel accessoires, Ablue and contrainer stations
2. LPG station: LPG dispenser, LPG pump, LPG meter, LPG Tank, LPG skid and other LPG station equipment
3. CNG station: CNG dispenser, CNG compressor, CNG cylinder and skid type CNG station
4. LNG Station: LNG dispenser, LNG pump, LNG pumping skid, LNG vaporizor etc
5. Valves for petroleum industrial: Ball valve, Gate Valve, Global valve, Check valve with differnet standard
6. Station Automation system: Station Retail system, Cell phone APP system, Tank Gauging system
7. Auto Parts: Tyre inflator, Wheel Balancer, Car Washing Machine etc
Customer and Dedication is what we standarding for, we will alwasy focus customer
Design, Manufacturing, Delivery and after-sale service, we have exported to over 60 countries now, and have agent in Africa,
Middle East, Asia and South American countries.
Here Eectec Energy are on the position to offer the below products:
1. Fuel station: Fuel dispenser, Pump, Meter, fuel accessoires, Ablue and contrainer stations
2. LPG station: LPG dispenser, LPG pump, LPG meter, LPG Tank, LPG skid and other LPG station equipment
3. CNG station: CNG dispenser, CNG compressor, CNG cylinder and skid type CNG station
4. LNG Station: LNG dispenser, LNG pump, LNG pumping skid, LNG vaporizor etc
5. Valves for petroleum industrial: Ball valve, Gate Valve, Global valve, Check valve with differnet standard
6. Station Automation system: Station Retail system, Cell phone APP system, Tank Gauging system
7. Auto Parts: Tyre inflator, Wheel Balancer, Car Washing Machine etc
Customer and Dedication is what we standarding for, we will alwasy focus customer
FAQ
1. Who are we?
We are based in Zhejiang, China, start from 2019,sell to Africa(30.00%),Eastern Asia(25.00%),Mid East(20.00%),South
America(5.00%),Southeast Asia(5.00%),South Asia(5.00%),North America(5.00%),Oceania(3.00%),Central America(2.00%). There are total about 100 stuff in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; always final Inspection before shipment; quick respond after sale and full life tech support.
3.What can you buy from us?
FUEL DISPENSER,LPG TANK,LPG SKID,SUBMERSIBLE PUMP,Container Station
4. Why should you buy from us not from other suppliers?
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price. Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Arabic
We are based in Zhejiang, China, start from 2019,sell to Africa(30.00%),Eastern Asia(25.00%),Mid East(20.00%),South
America(5.00%),Southeast Asia(5.00%),South Asia(5.00%),North America(5.00%),Oceania(3.00%),Central America(2.00%). There are total about 100 stuff in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; always final Inspection before shipment; quick respond after sale and full life tech support.
3.What can you buy from us?
FUEL DISPENSER,LPG TANK,LPG SKID,SUBMERSIBLE PUMP,Container Station
4. Why should you buy from us not from other suppliers?
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price. Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Arabic
