5kw wind turbine generator 48v for 5kw 10kw Home Power supply System Solar Power System Hybrid inverter

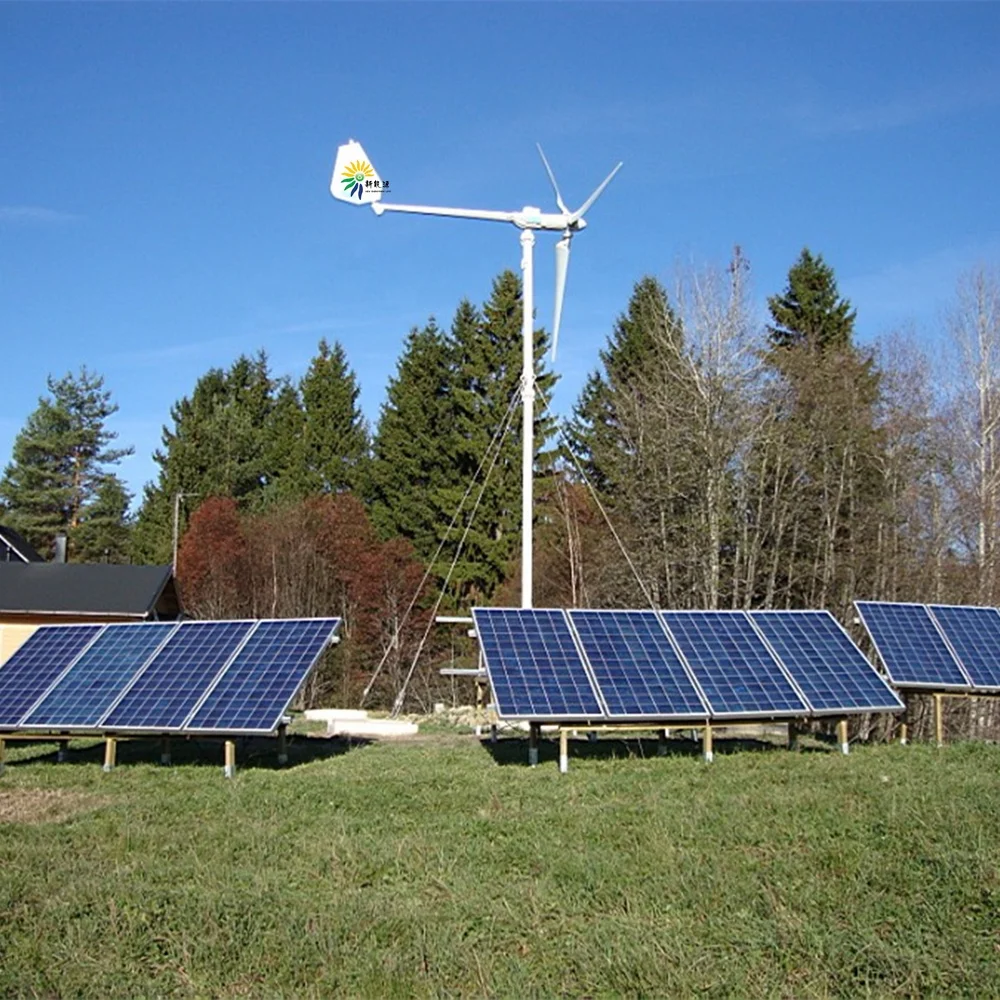

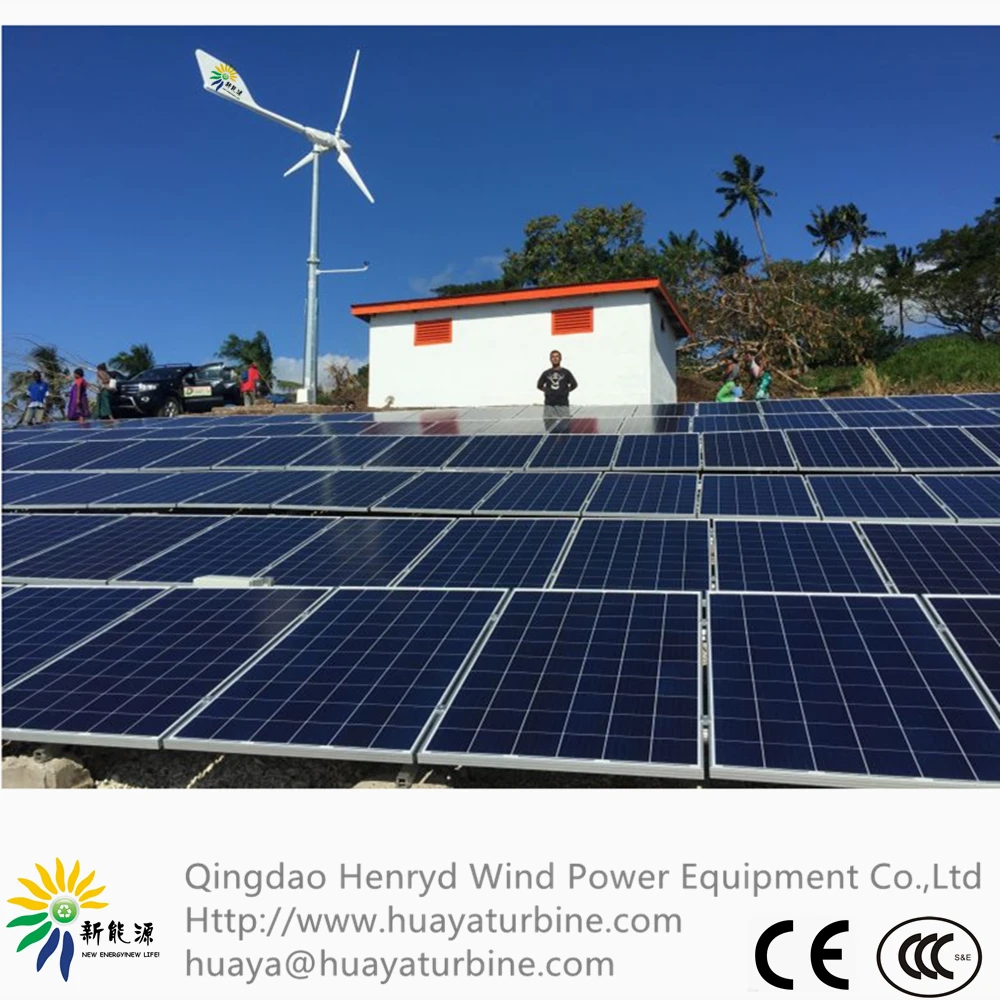

1. wind solar hybrid system assembly

Off grid system:

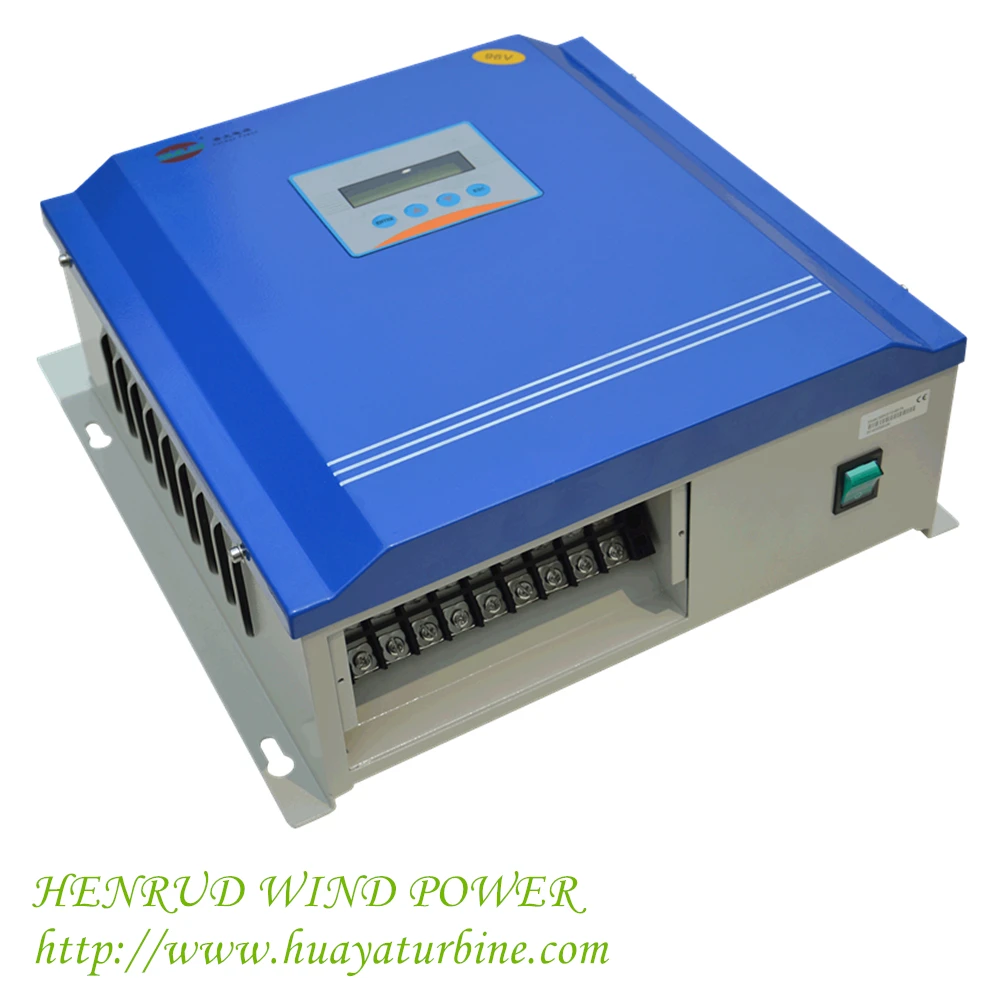

Wind turbine generator with tower/mono solar panel +   hybrid controller with dump load + battery group

+ inverter

(grid power, diesel power as backup power for whole system)

On grid system:

Wind turbine generator with tower/mono solar panel +   hybrid PWM on grid controller with dump load +

grid tie inverter

Wind turbine power range: 300w, 500w, 1kw, 1.5kw, 2kw, 2.5kw, 3kw, 5kw, 10kw, 20kw;

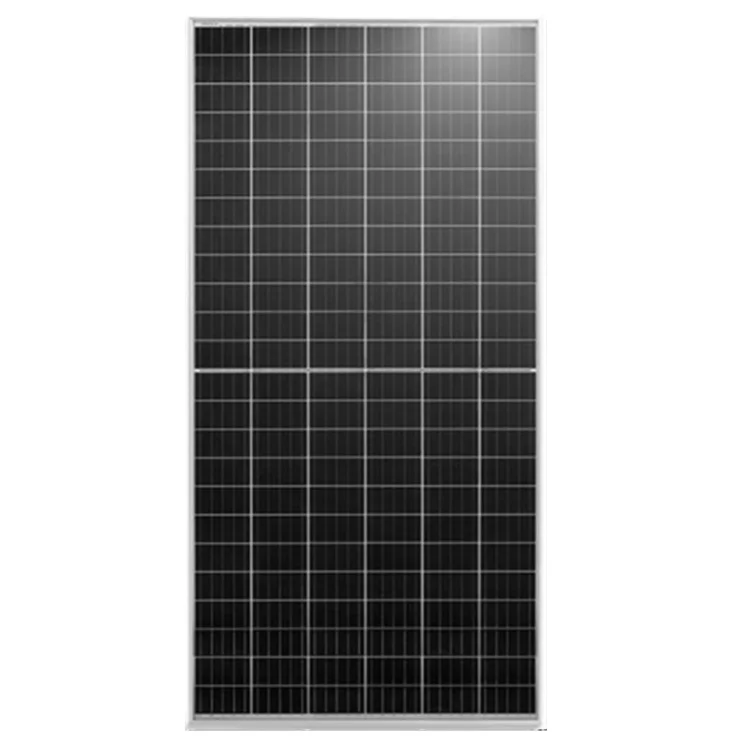

Mono Solar panel: 50w, 100w, 150w, 200w, 250w, 300w per piece.

2. wind solar hybrid system application

home, street light, garden, signal station, , island...

3. Steady hybrid system:

300w wind turbine + 200w solar panel;

500w wind turbine + 300w solar panel

500w wind turbine + 500w solar panel

1kw wind turbine + 500w solar panel/1kw solar panel

1.5kw wind turbine + 500w solar panel/1kw solar panel/1.5kw solar panel

2kw wind turbine + 500w solar panel/1kw solar panel/2kw solar panel

2.5kw wind turbine + 500w solar panel/1kw solar panel/1,5kw solar panel/2kw solar panel/2.5kw solar

panel/3kw solar panel

3kw wind turbine + 1kw solar panel/2kw solar panel/3kw solar panel/5kw solar panel

5kw wind turbine + 2kw solar panel/3kw solar panel/4kw solar panel/5kw solar panel/10kw solar panel

10kw wind turbine + 2kw, 3kw, 5kw, 10kw 20kw solar panel

15kw wind turbine + 5kw, 10kw, 15kw solar panel

20kw wind turbine + 5kw 10kw 15kw 20kw solar panel

Low average wind speed place, we will provide the system design plan accordingly.

4. We provide wind solar hybrid system design according to user daily/monthly power

comsumption, local average wind speed, monthly sunshinet day.

For more details, pls contact with us via e-mail.

5. wind turbine technical data and assembly

pls pay a visit to our home page: //www.huayaturbine.com

Low wind place, normal wind place, we recommend fixed pitch wind turbine;

Rich wind place, we recommend variable pitch wind turbine.

Blades and hub,permanent magnet generator and nacelle

blades with protection film

C.W blades, low noise level, high efficiency

FRB material, 3 pcs blades per set

Adjust blades rotor balance before delivery

Clamp hub, safety and reliable

Aluminum housing and nacelle

Rare earth material, high efficiency

low start up torque 0.7N.m.

Provide plate form test record for each set

We sell the pma seperately.

 Wind turbine main body, blades, pma, tail, controller, inverter: plywood case

Tower: soft packages

Delivery by sea, by air or express.

FOB/C&F, CIF

500w-3kw wind turbine : 3-5 working days after payment

5kw-30kw wind turbine: 7-10 working days after payment

50kw-60kw 15-20 days after payment

Tower needs about 10 working days after payment

 Provide professional wind turbine technical support;

Provide on/off grid system design, wind solar hybrid system design service.

 Completely system provider and designer;

Wind turbine type, model, capacity selection professional support;

Tower design, foundation drawing support;

Provide Pma, hub, flange drawing;

Provide OEM service, customized service.

 Support paypal /west union payment, TT payment;

We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine

 manufactures in China. We keep improving and develop in the small wind turbine field. We

are not the leading small wind turbine exporter, but we are the leading wind turbine manufacture

and designer now.

 We manufacture 300w-30kw fixed pitch wind turbine;

2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;

1kw, 2kw, 3kw, 5kw Vertical axis wind turbine;

On grid system/off grid system, wind solar hybrid system; Water heating system;

For more details, pls contact with us via e-mail.

 1. Wind turbine model selection

It depends your local annual average wind speed, daily/monthly home power consumption.

Low average wind speed place, select larger blades rotor, higher rated working voltage;

Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out

vertical axis wind turbine.

The safety and steady working system is the first choice.

2. Wind turbine tower selection

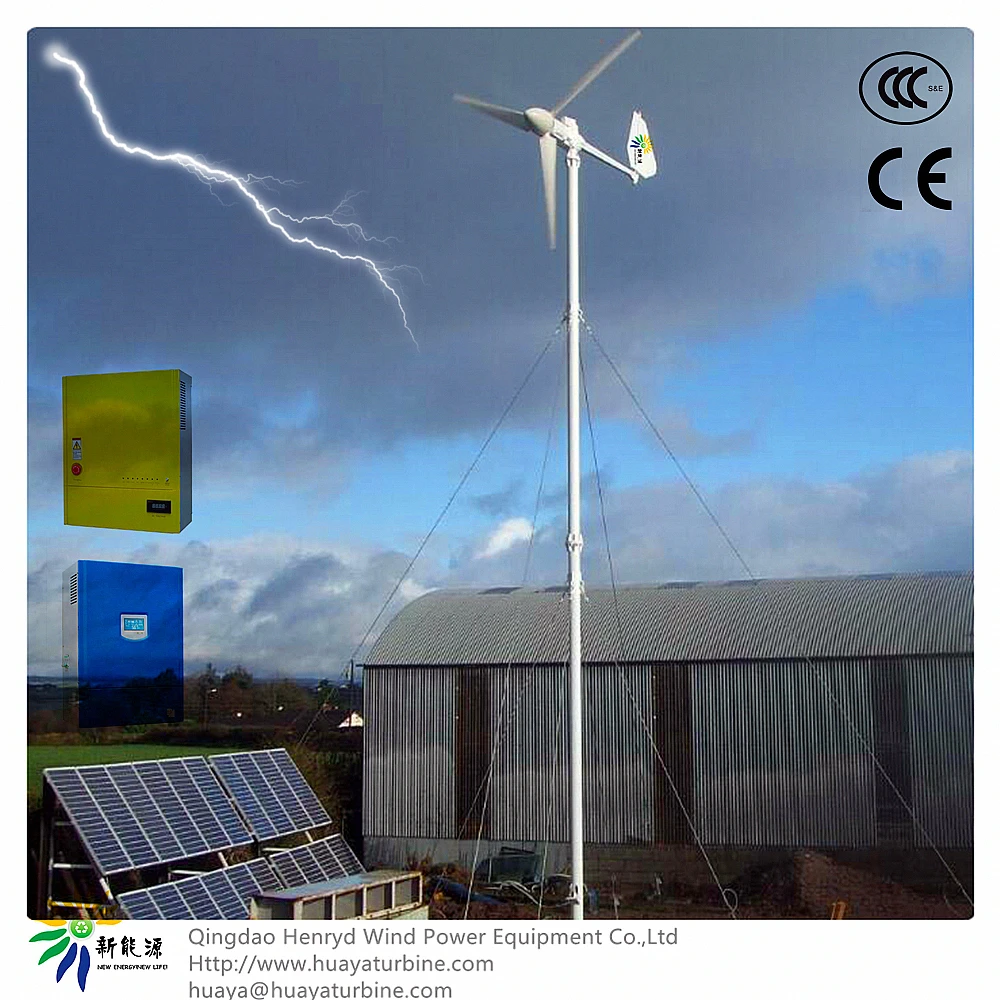

Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.

Guy wire tower cost is lower, easy to delivery. But the installation area is larger;

Tilting up tower is for 500w-5kw wind turbine.  Easy installation, small installation area. But the delivery cost is higher.

Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.

Stand alone tower for the installation place with crane.

The tower height:  Make sure blades rotor is higher than wind turbine surrounding barrier height.

3. Working system selection

On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;

Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group

 + inverter;

Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.

Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.

For more question, pls contact with us directly.  We will give you a professional response.

Why select us:

We are the wind turbine designer and manufacture. We know our wind turbine advantage

 and disadvantage in different wind condition.

I have more than 10 years wind turbine sales experience. We provide the right wind turbine

 and working system to different user according to their different situation and request.

In 2004, there are 4 small wind turbine manufacture. Now there are so much trading

company and manufacture, we know Chinese small wind turbine market well and can

 provide user more useful advise.
