Product Overview
Description

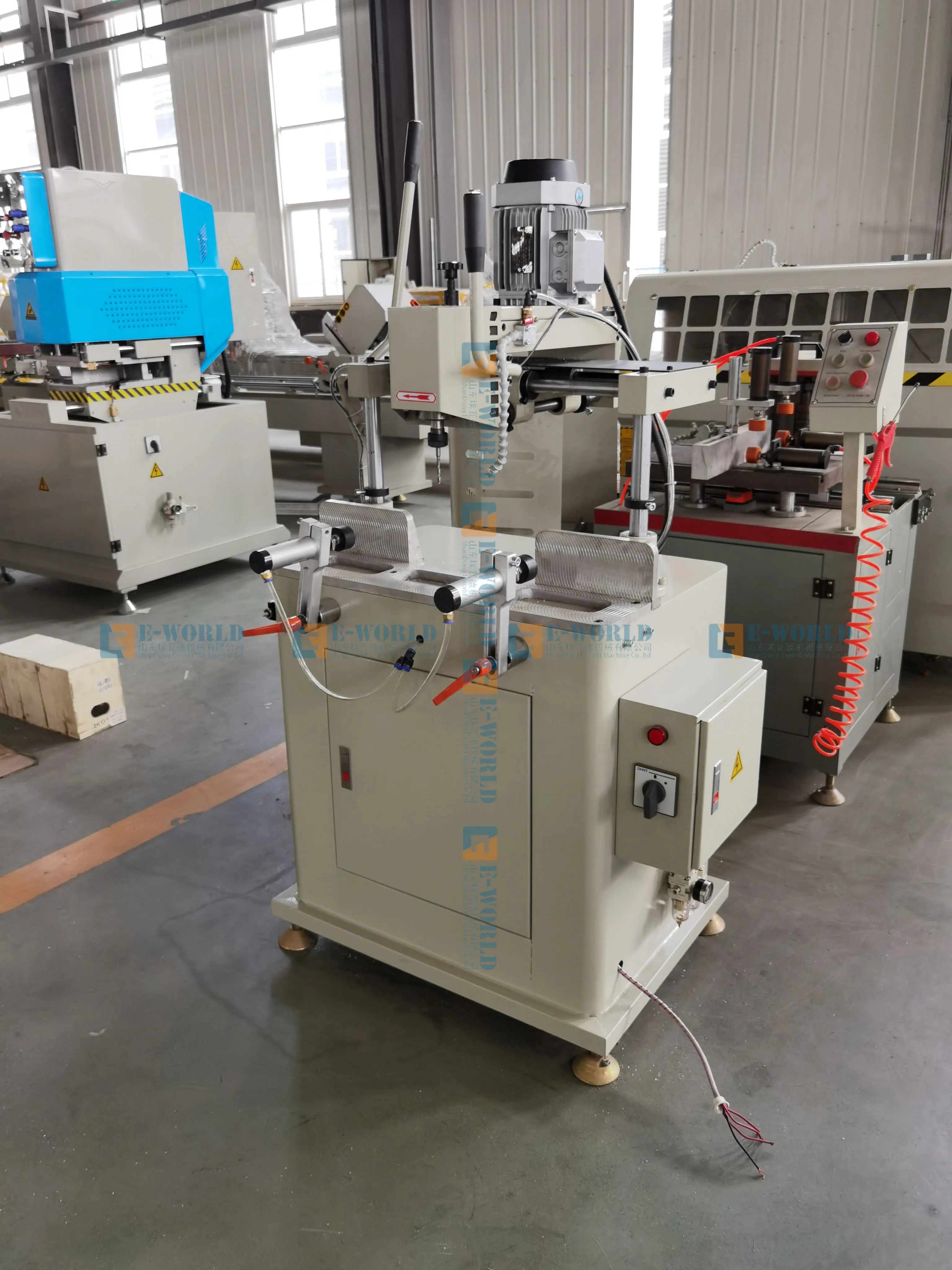

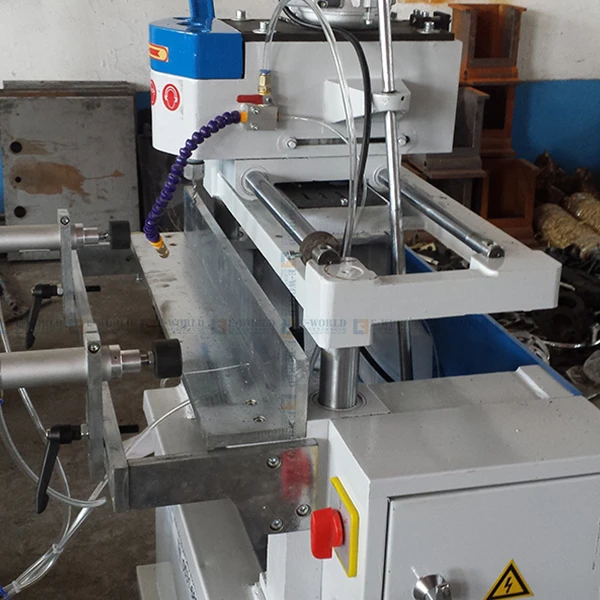

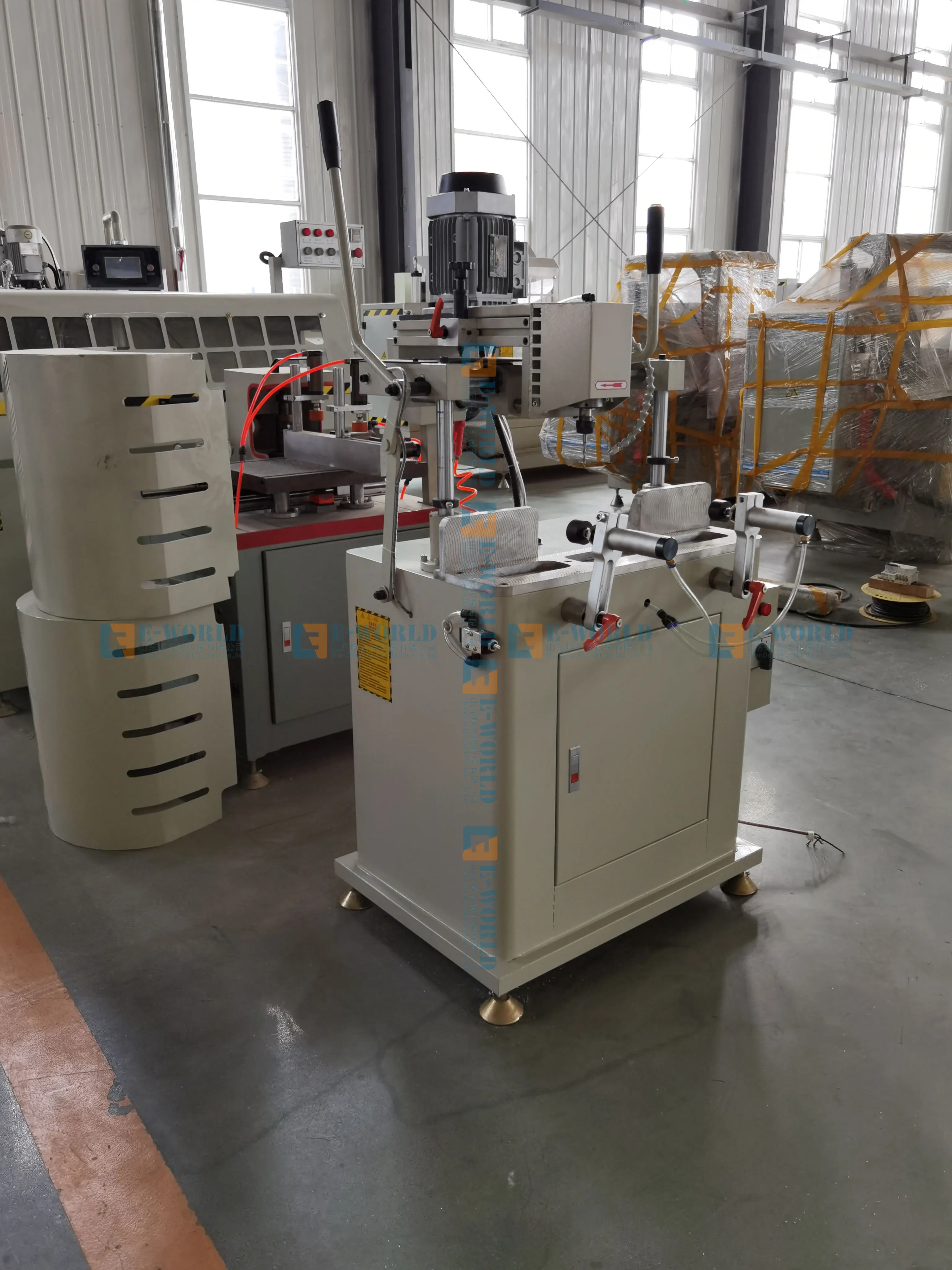

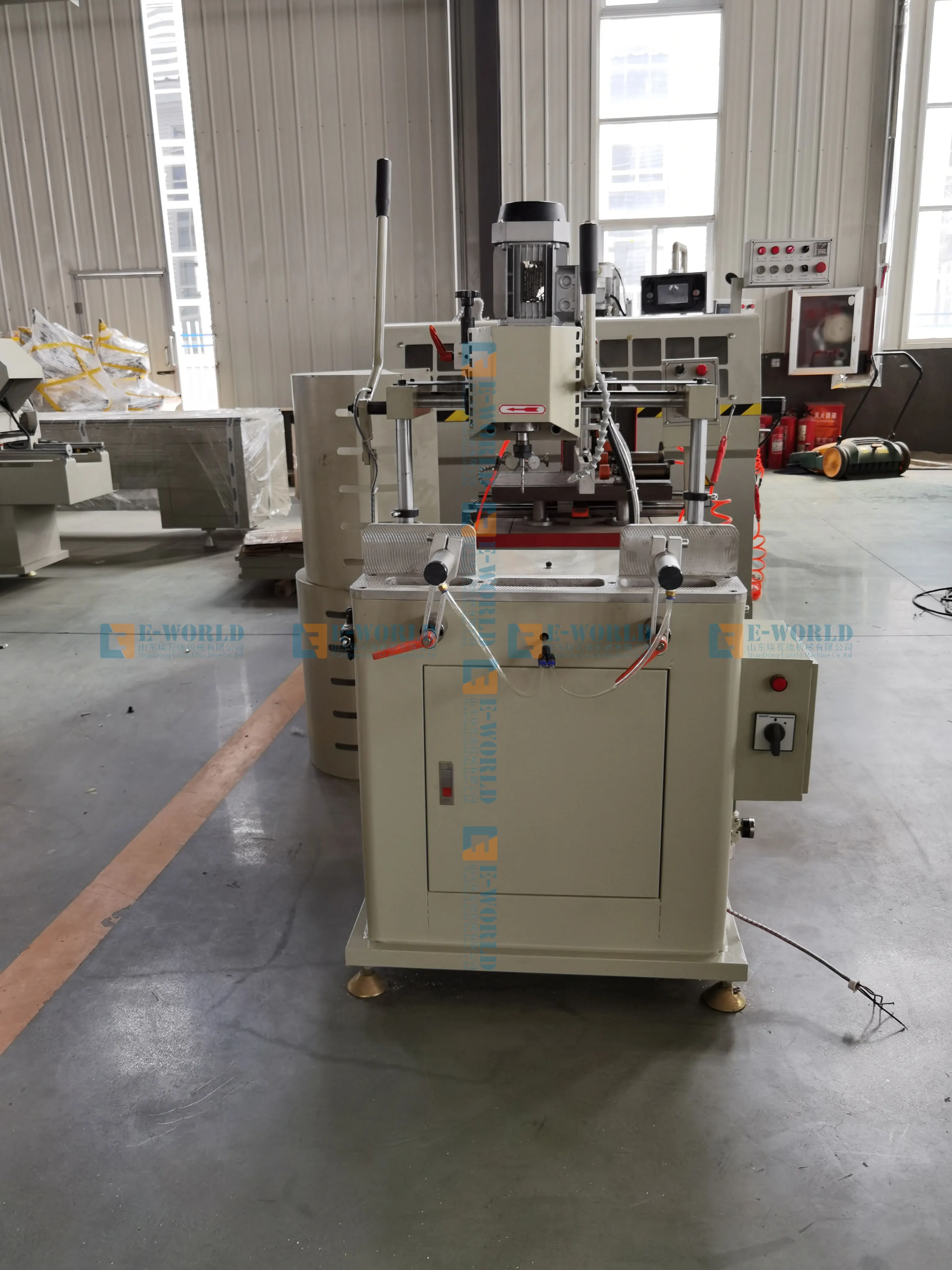

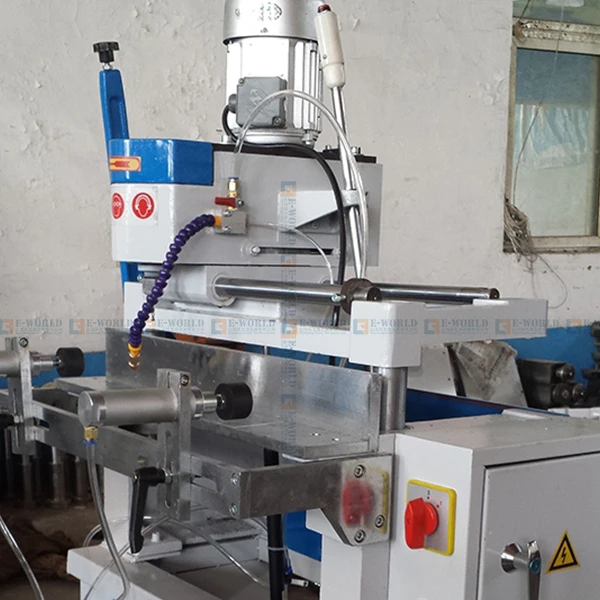

New design lock hole copy milling machine for drilling holes on PVC and aluminum profile/window copy routing machine
Machine features

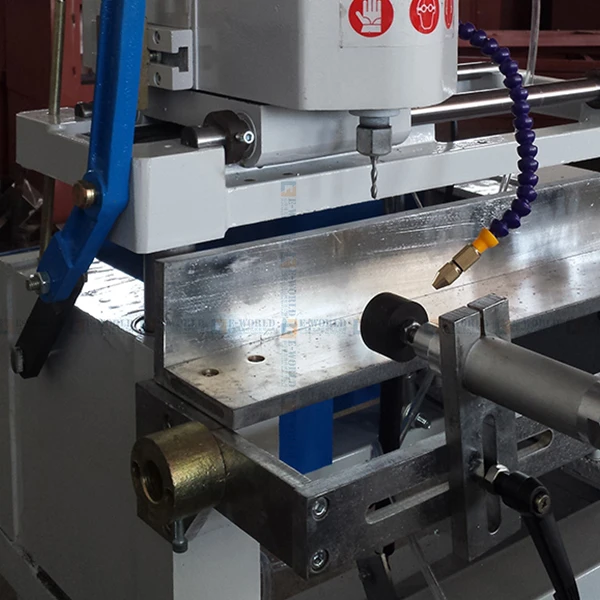

1).Lock hole copy milling machine is a special machine used for processing transmission device installing holes and grooves for PVC/UPVC/plastic/Vinyl and aluminum doors and windows.
2).Lock hole copy milling machine consists of long horizontal holes, and the copy routing of vertical long holes.
3).The belt is accelerated to achieve the high milling speed (12000 r/min).
4).With the pneumatic driving system,it can process the water slots. Both vertical and horizontal processing is available with only one clamping. One time clamping can achieve 2 working procedures which ensures the precise position between holes and grooves
efficiently. 1 cutter is for the lock hole milling, 3 cutters are for the copy-router milling. This machine can also make water slot milling.
efficiently. 1 cutter is for the lock hole milling, 3 cutters are for the copy-router milling. This machine can also make water slot milling.
5).The lock hole milling machine has two funtions: copy-routing, lock hole milling, sometimes, you donot need to buy the copy-routing machine, just buy this lock hole milling machine is enough. This machine can also make Aluminum window profile.
6).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
6).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
Name | Lock hole copy milling machine |
Model number | SZJ01 |
Working air pressure | 0.4~0.6Mpa |
Air consumption | 30L/min |
Power supply | 380V 50Hz |
Input power | 1.85kw (0.75kw,1.1kw) |
Copy-routing range | 300×100mm |
Outside dimension | 1000×1130×1500mm |
weight(about) | 250kg |
NO.1
It is a special machine used for processing transmission device installing holes and grooves for PVC/UPVC/plastic/Vinyl and
aluminum doors and windows.
It is a special machine used for processing transmission device installing holes and grooves for PVC/UPVC/plastic/Vinyl and
aluminum doors and windows.
NO.2
It consists of long horizontal holes, and the copy routing of vertical long holes
It consists of long horizontal holes, and the copy routing of vertical long holes

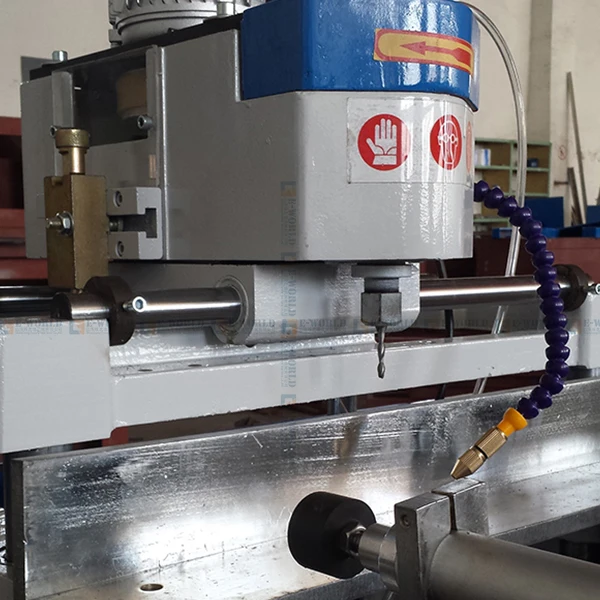

The belt is accelerated to achieve the high milling speed (12000 r/min)
