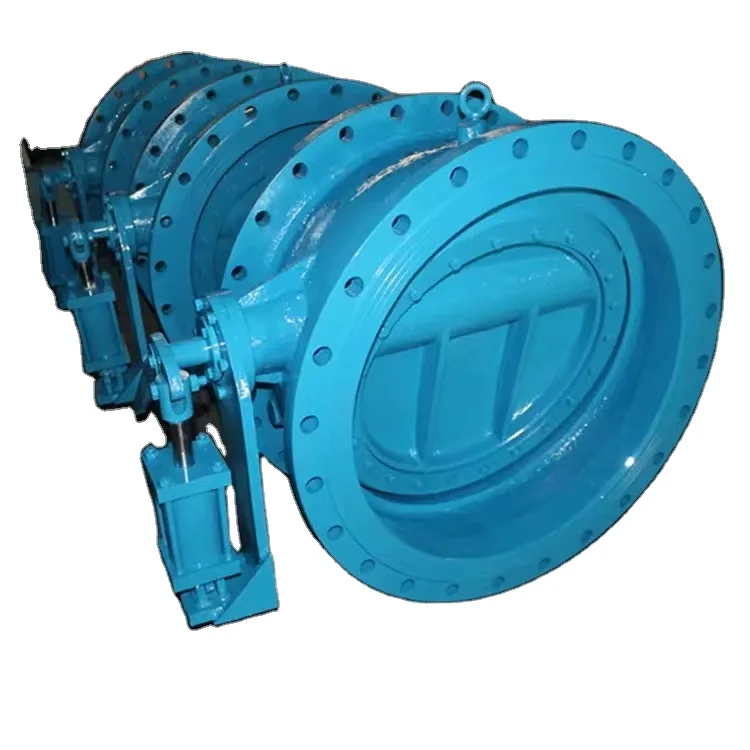

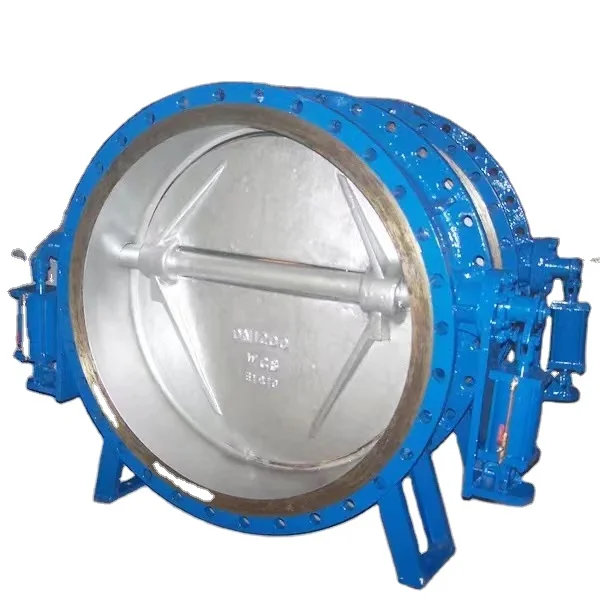

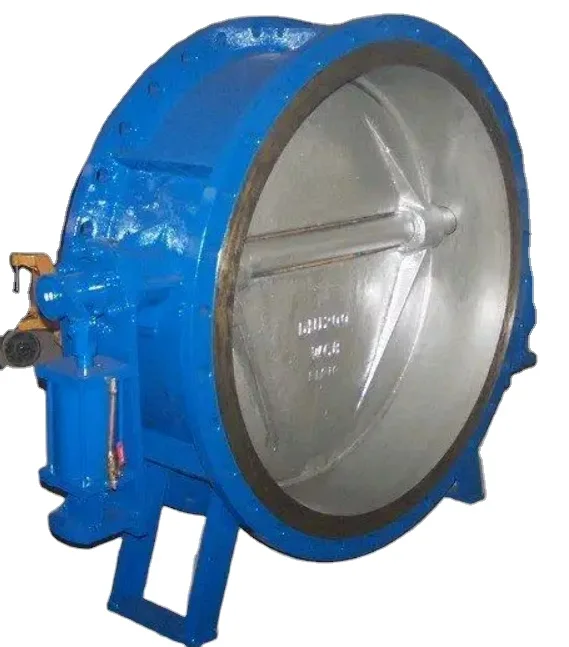

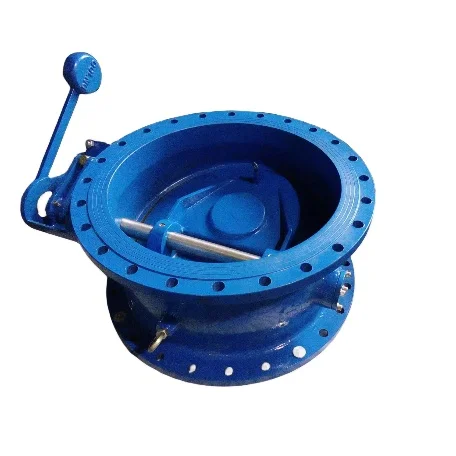

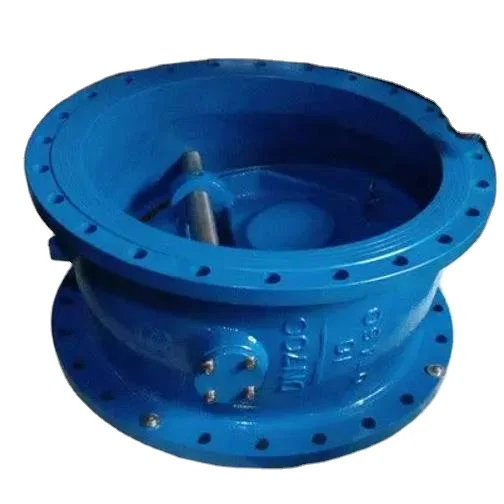

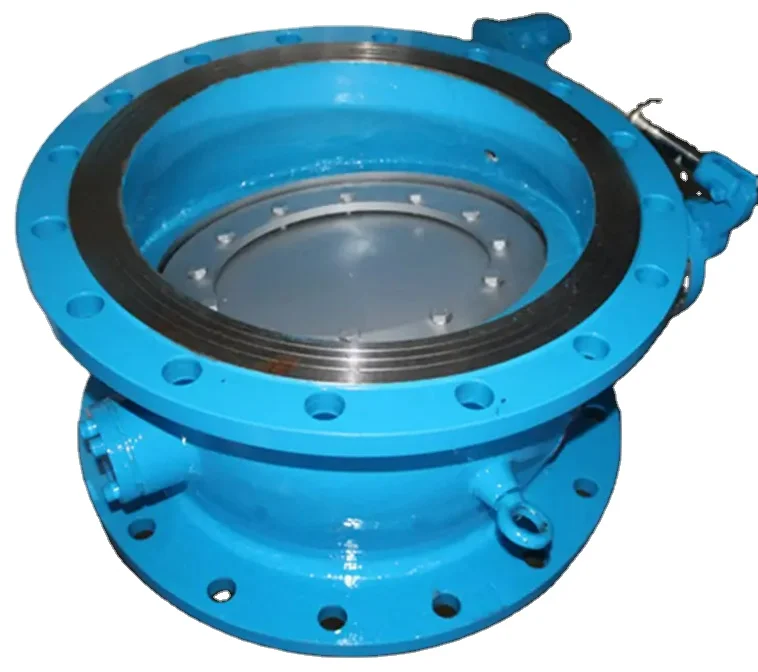

customization factory manufacture HH47 16Q flow regulating butterfly buffer flange check valve
- Category: >>>
- Supplier: Shanghai Biaoyi Valve Co. Ltd.
Share on (1601044723673):
Product Overview
Description
Why Choose Us
Accept customization
1, material customization
2, size customization
3, color customization
4, Pressure customization
5, logo customizationPlease tell
our customer service about your needs, and we will give you a suitable quotation as soon as possible according to your needs! thank you
3, color customization
4, Pressure customization
5, logo customizationPlease tell
our customer service about your needs, and we will give you a suitable quotation as soon as possible according to your needs! thank you
Our company participates in large-scale urban construction projects in China.
1、Project of China Railway
2、Project of GREENTOWN CHINA HOLDINGS LTD.
3、Project of Hangzhou asian games village
4、Project of Shenzhen Fangda Plaza
4、Project of Shenzhen Fangda Plaza
Product Description
The valve is mainly composed of valve body, valve disc, buffer device and micro regulating valve. The product has the characteristics of novel structure, small volume, small fluid resistance, stable operation, reliable sealing, smooth wear resistance and good cushioning performance. It is the best product for domestic water and urban sewage.
Main features
1.Small volume and installation space.
2.Low fluid resistance.
3.Flexible design - easy for additional functions.
4.Online maintenance, debugging and inspection are convenient.
2.Low fluid resistance.
3.Flexible design - easy for additional functions.
4.Online maintenance, debugging and inspection are convenient.
5.Good sealing performance.
6.Smooth operation.
7.Wear resistance and good cushioning performance.
Relevant implementation standards
Flange: GB/T17241.6 GB/T 9113
Test: GB/T13927 API598
Nominal Pressure: 1.0MPa~1.6MPa
Working Temperature: 0~80℃
Body Material: Ductile Iron
Connection Method: Flange
Sealing type: soft sealing
Applicable medium: water and liquid with properties close to water
item | value |
Application | General |
Port Size | DN200~DN1400 |
Warranty | 3 years |
Place of Origin | China |
Shanghai | |
Model Number | HH47-16Q |
Power | Hydraulic |
Temperature of Media | Medium Temperature, Normal Temperature |
Brand Name | |
Structure | Check |
Media | Water |
Customized support | OEM, ODM, OBM, Software reengineering |
Product name | HH47-16Q |
Flange | GB/T17241.6 GB/T 9113 |
Test | GB/T13927 API598 |
Nominal Pressure | 1.0MPa~1.6MPa |
Working Temperature | 0~80℃ |
Body Material | Ductile Iron |
Connection Method | Flange |
Sealing type | soft sealing |
Applicable medium | water and liquid with properties close to water |
Main parts and materials
Body | Ductile iron、WCB | ||
Disc | Ductile iron、WCB | ||
Seat | 2Cr13 | ||
Stem | 2Cr13 | ||
Seal ring | NBR or EPDM | ||
Packing | PTFE | ||

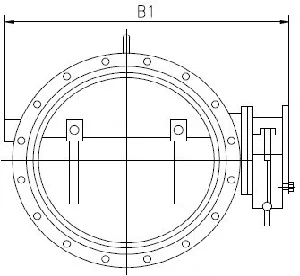

Main structure and connection dimensions
DN(mm) | L | H | B1 |
200 | 230 | 550 | 540 |
250 | 250 | 630 | 600 |
300 | 270 | 690 | 650 |
350 | 290 | 780 | 710 |
400 | 310 | 860 | 770 |
450 | 330 | 910 | 830 |
500 | 350 | 980 | 900 |
600 | 390 | 1070 | 1090 |
700 | 430 | 1200 | 1200 |
800 | 470 | 1320 | 1320 |
900 | 510 | 1430 | 1420 |
1000 | 550 | 1550 | 1550 |
1200 | 630 | 1800 | 1780 |
1400 | 710 | 1980 | 2000 |
