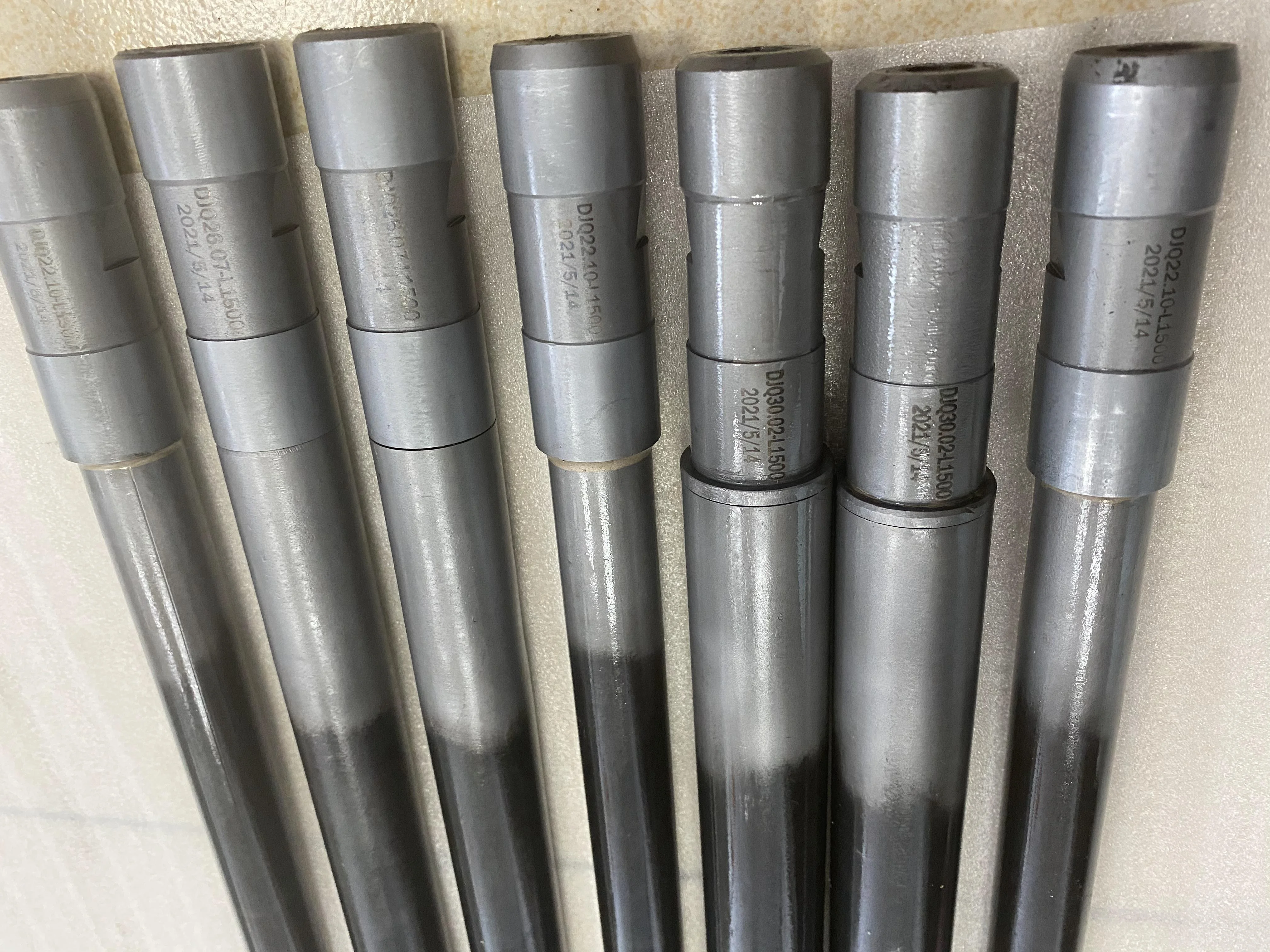

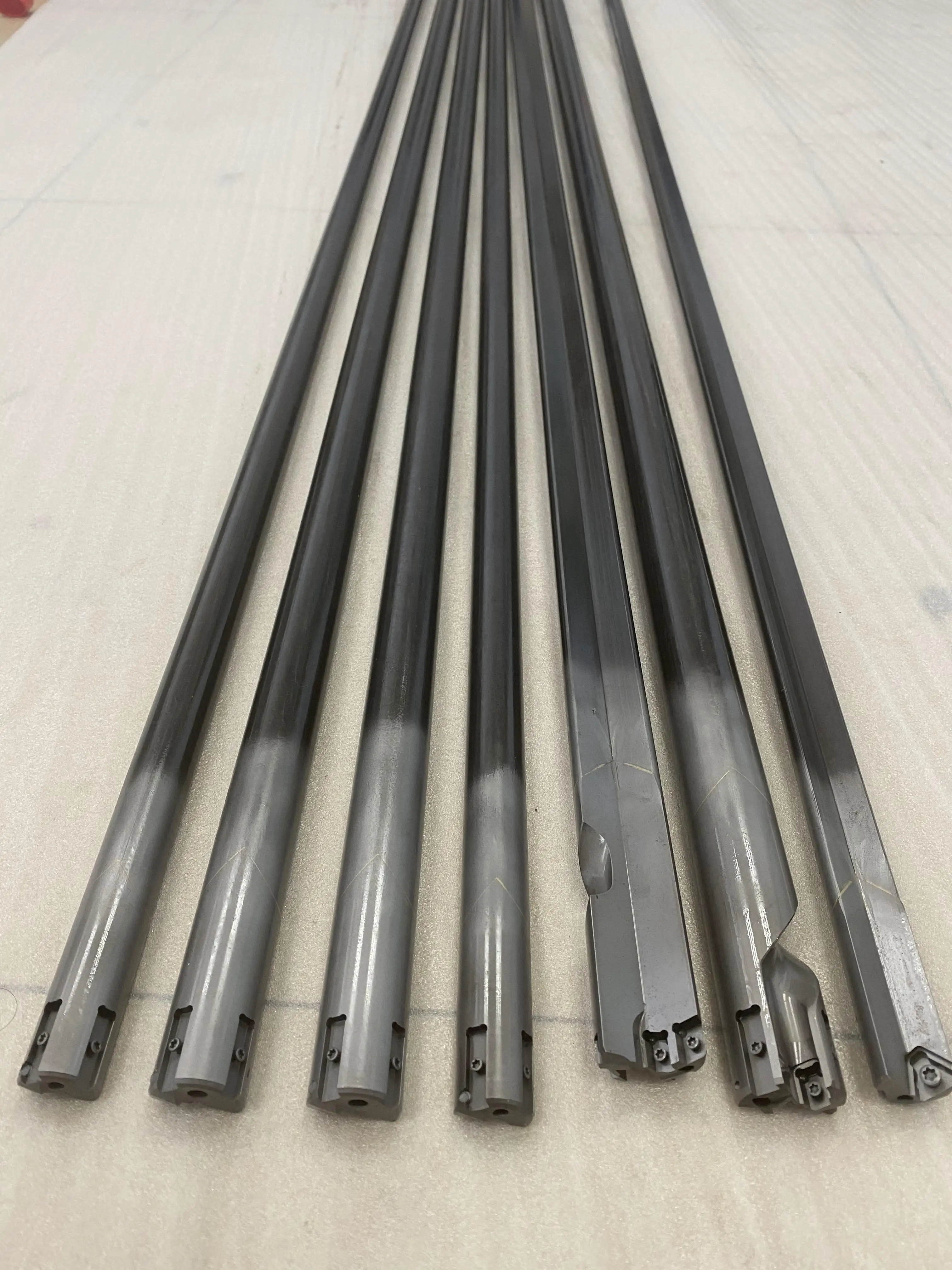

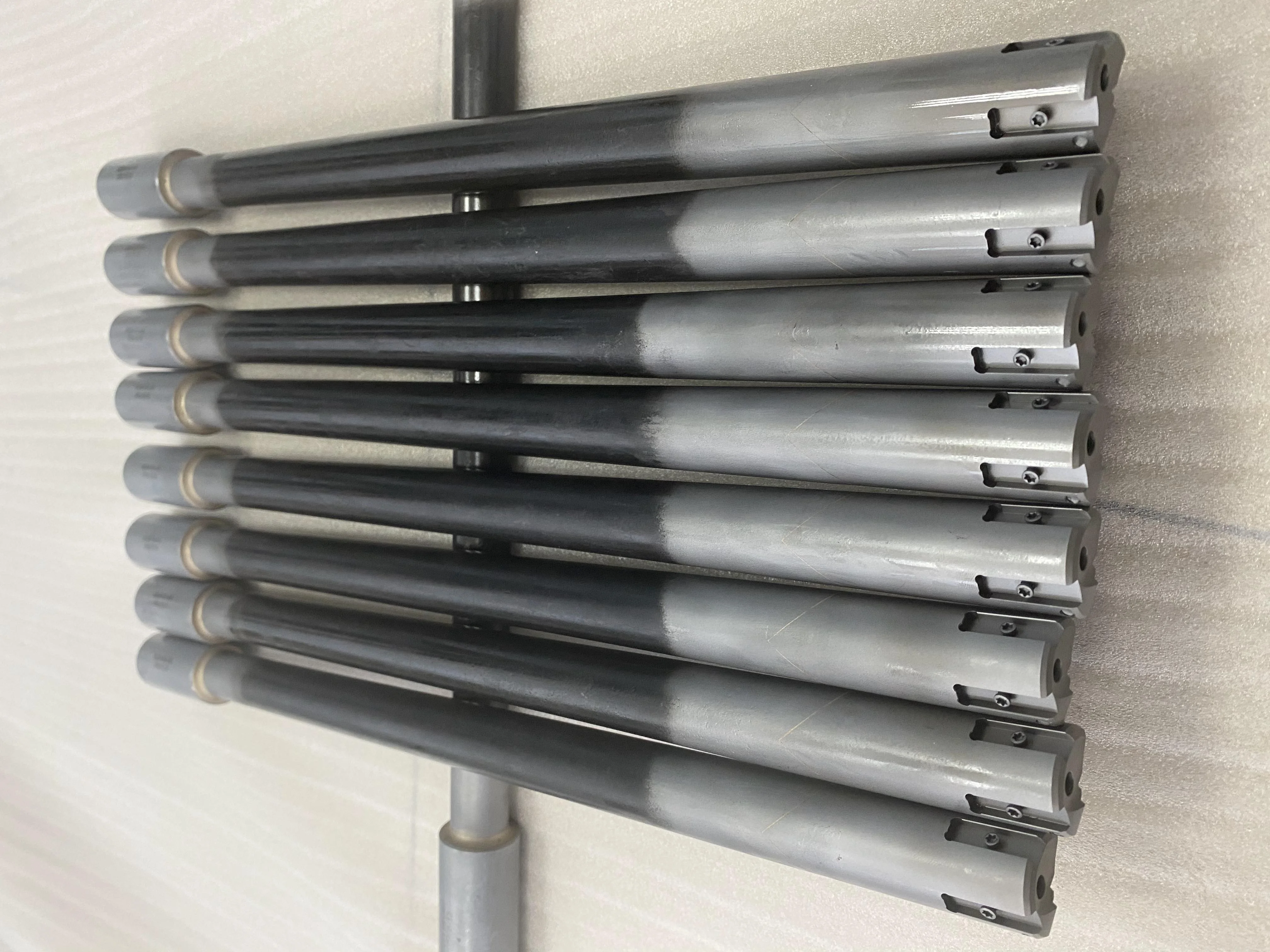

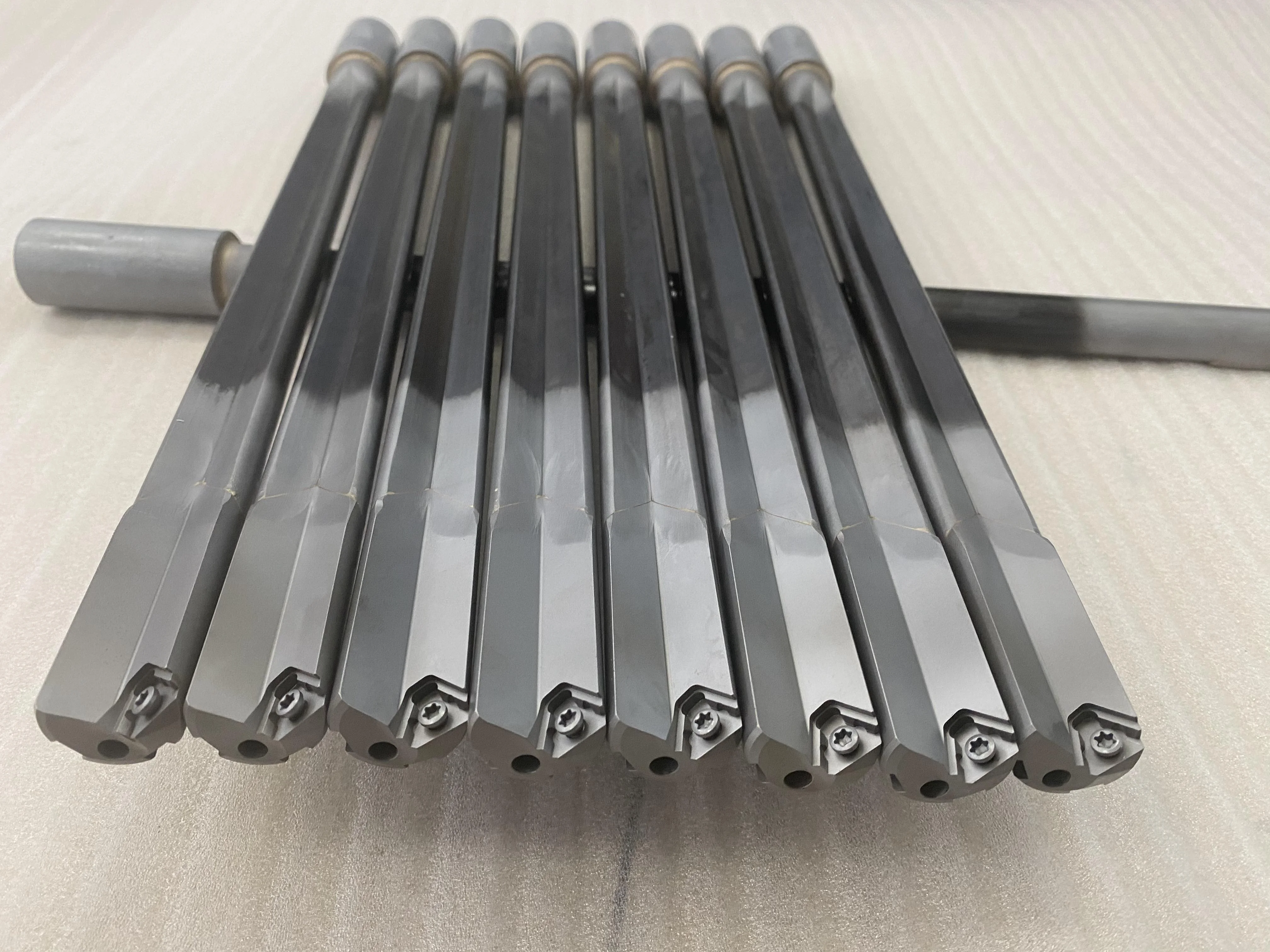

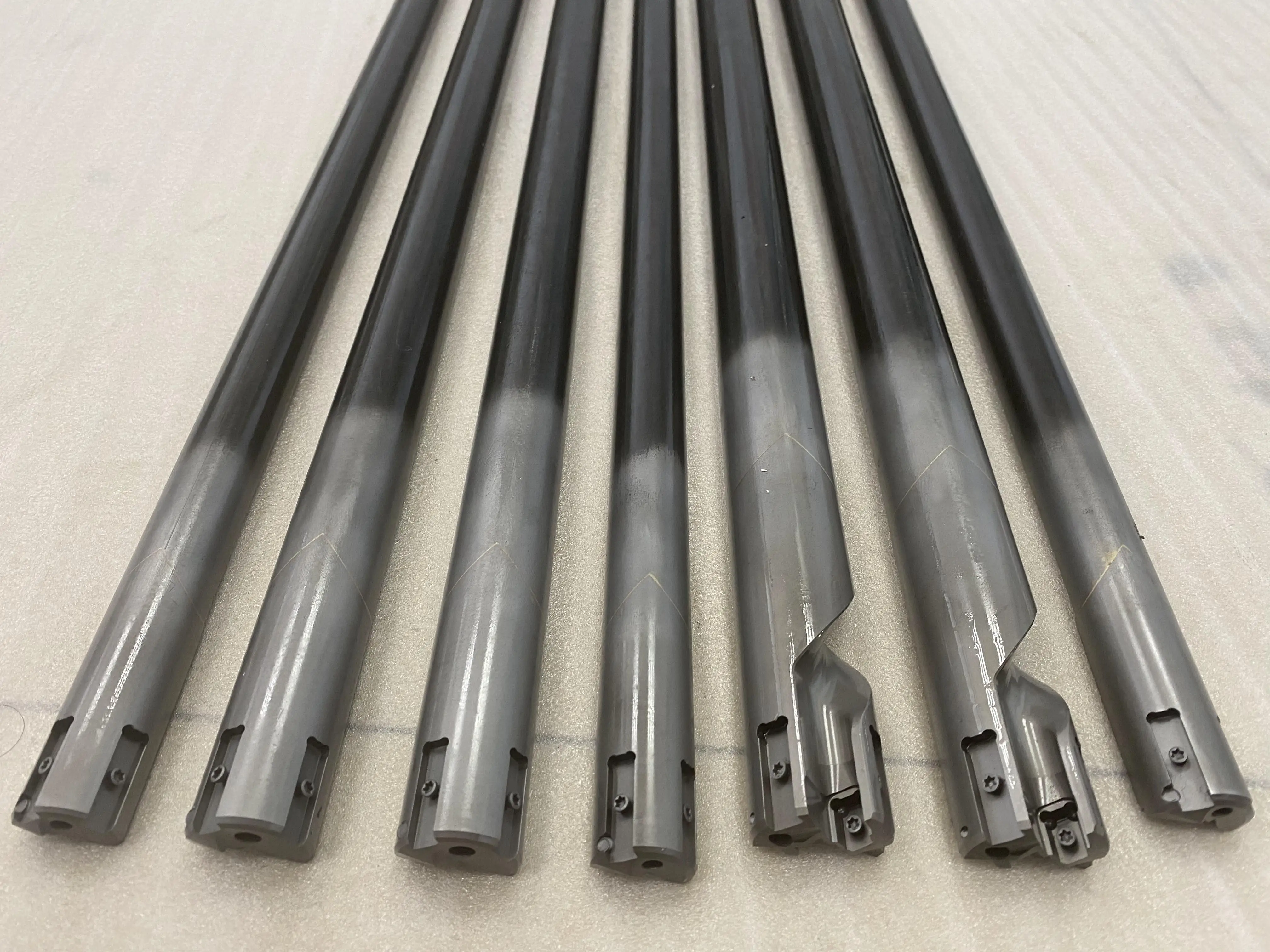

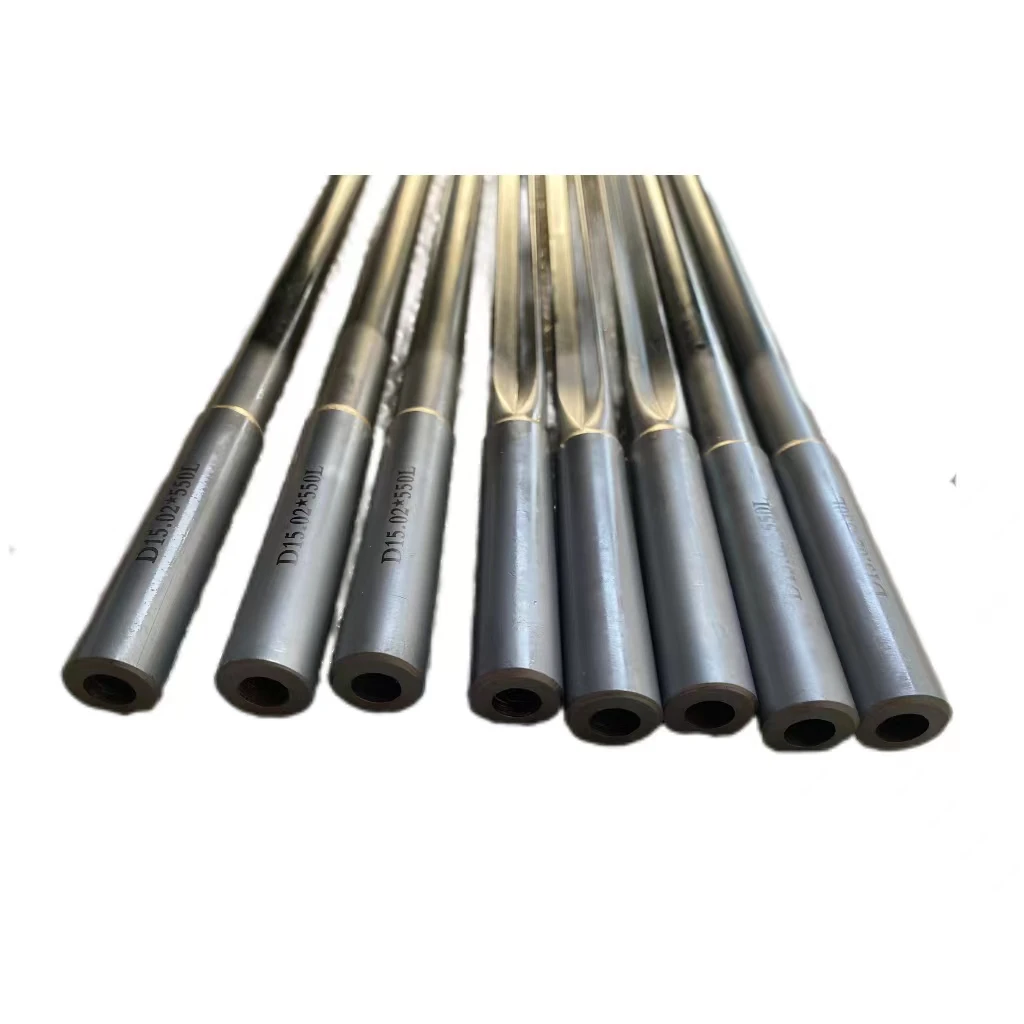

super long gun drill up to 4000mm high precision carbide insert gun drill gun drilling

Product Overview

Description

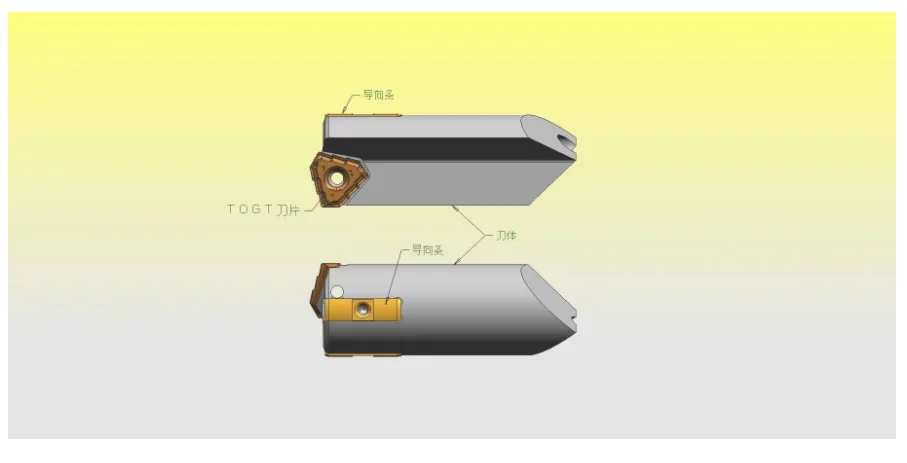

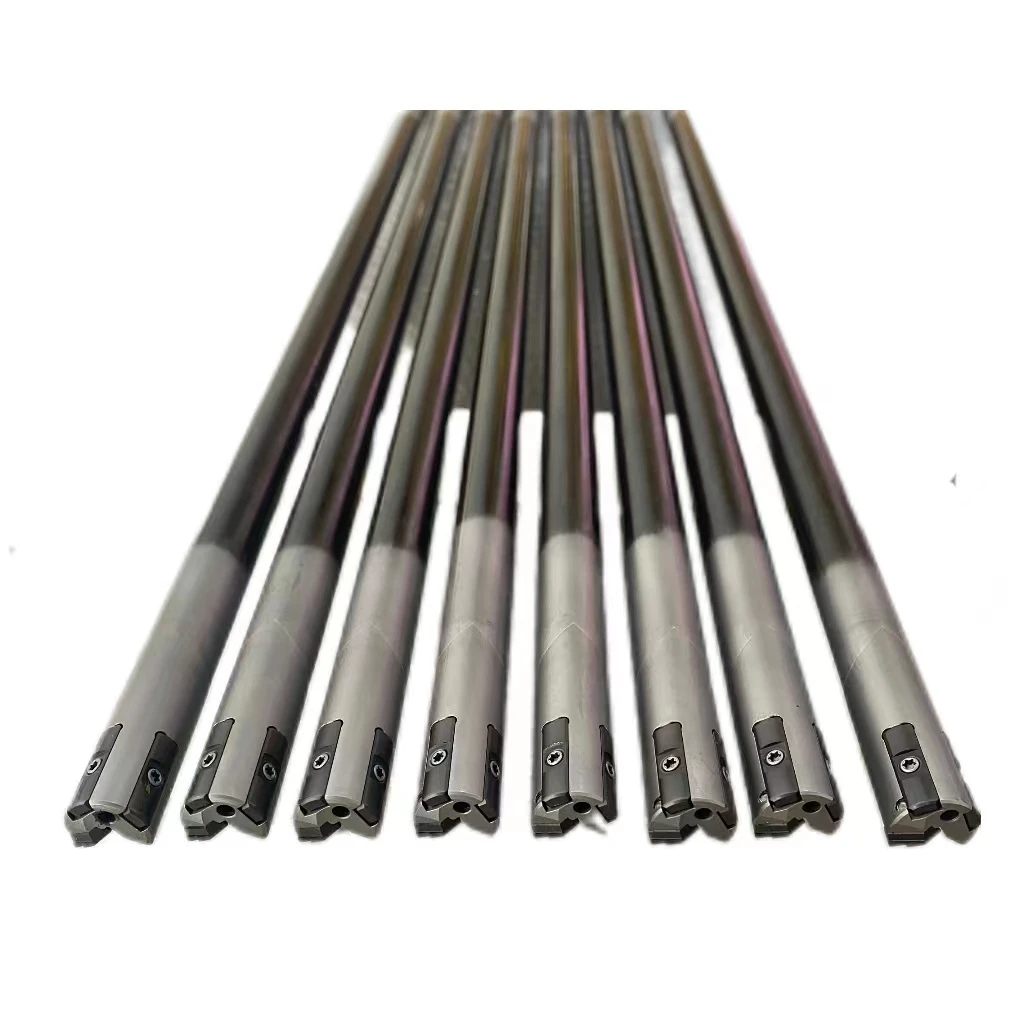

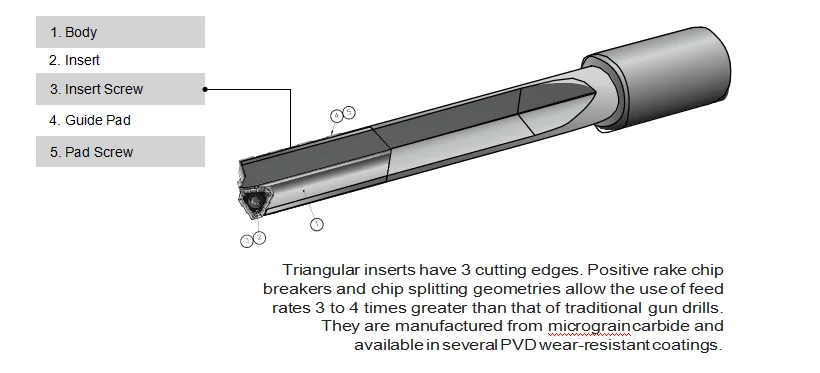

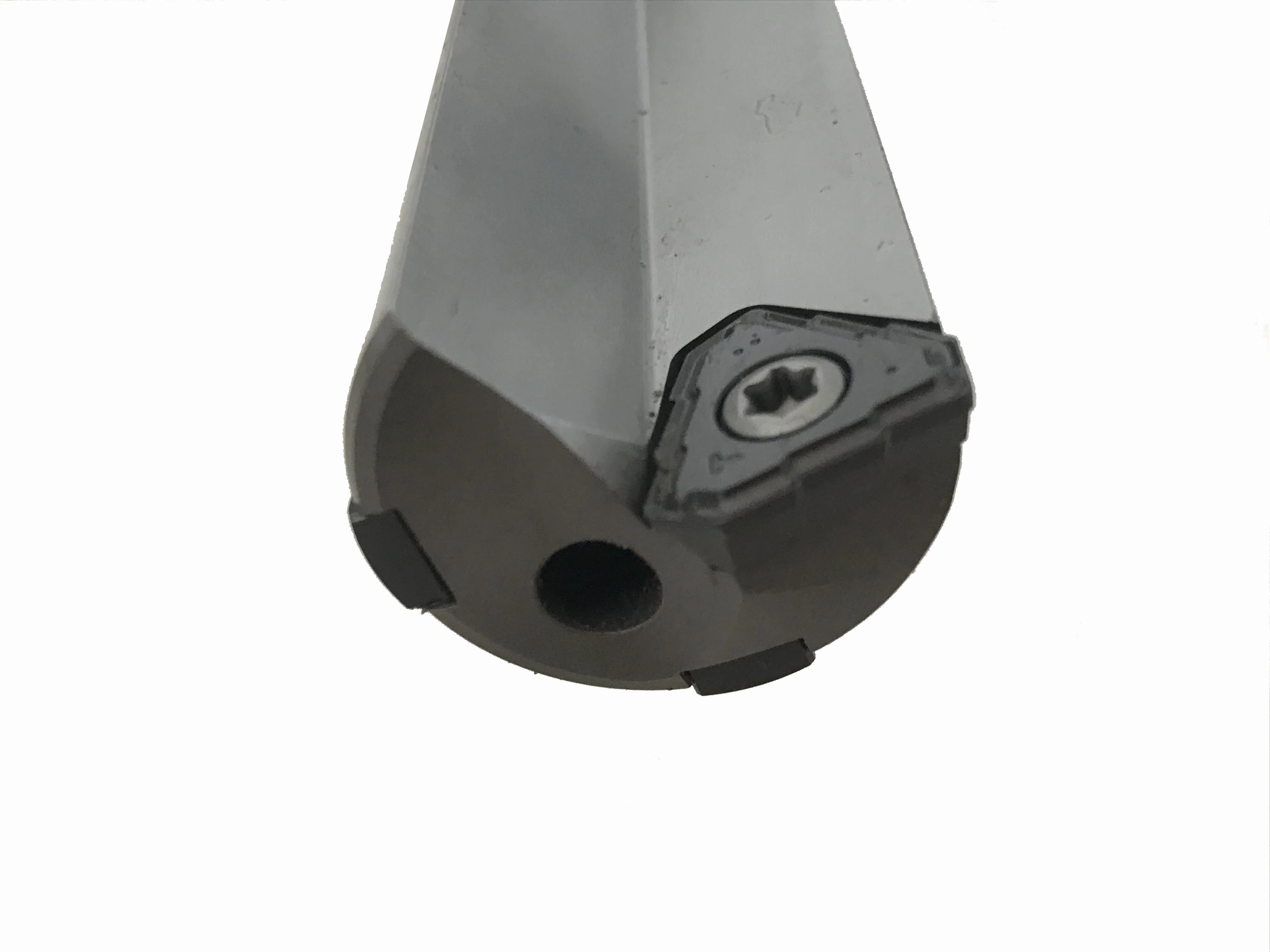

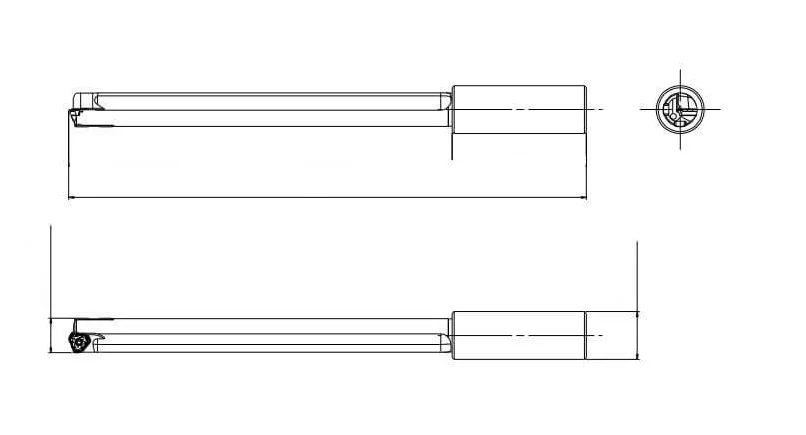

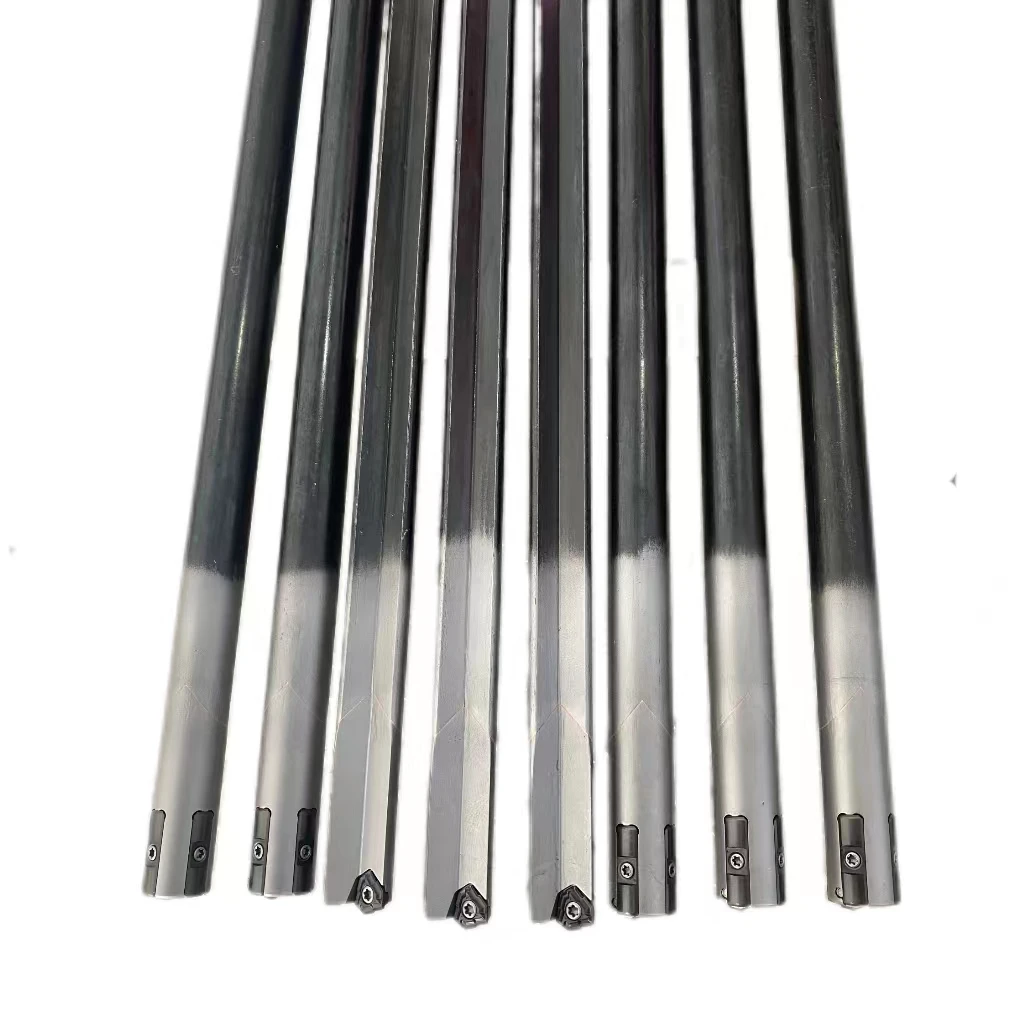

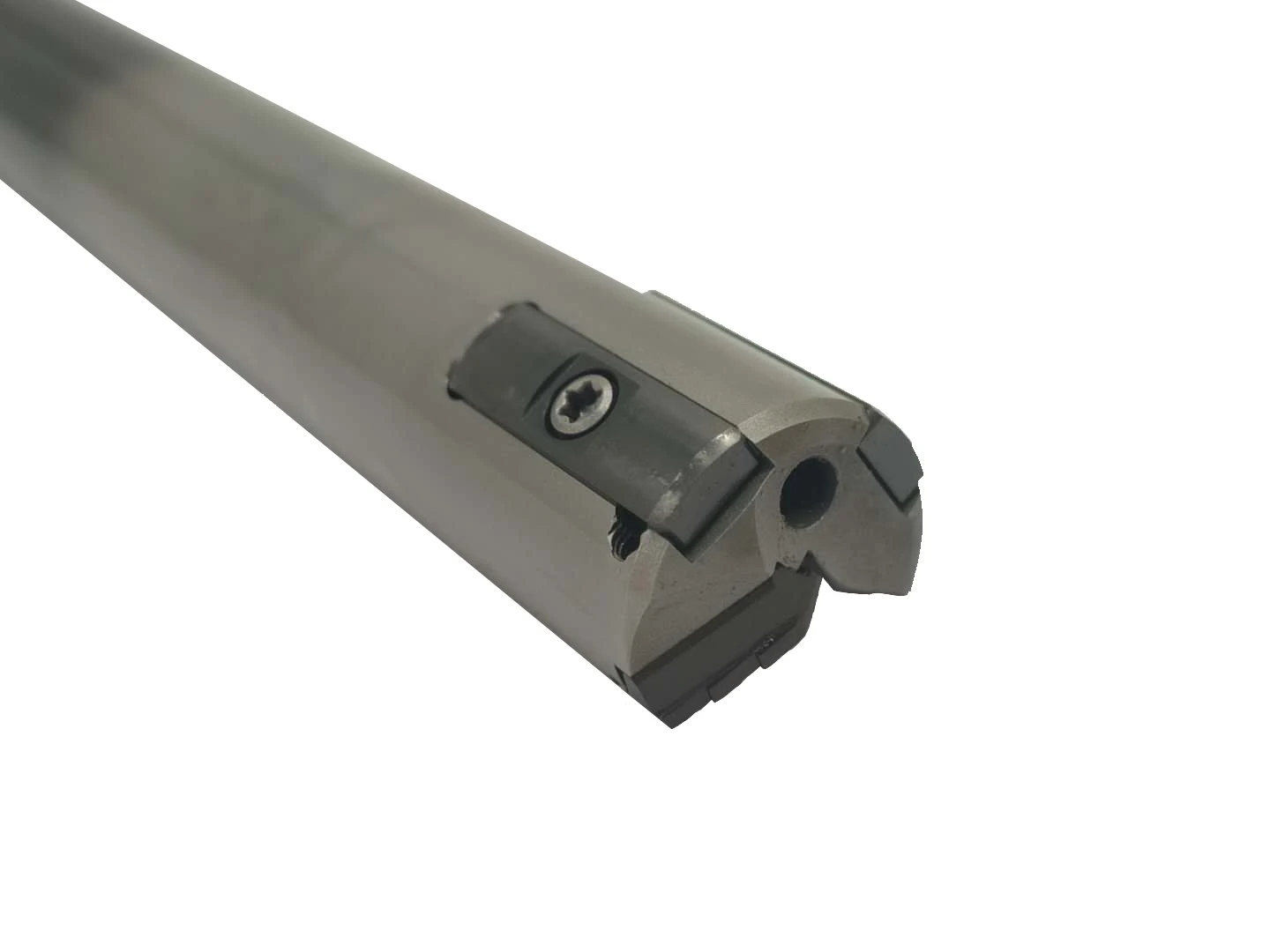

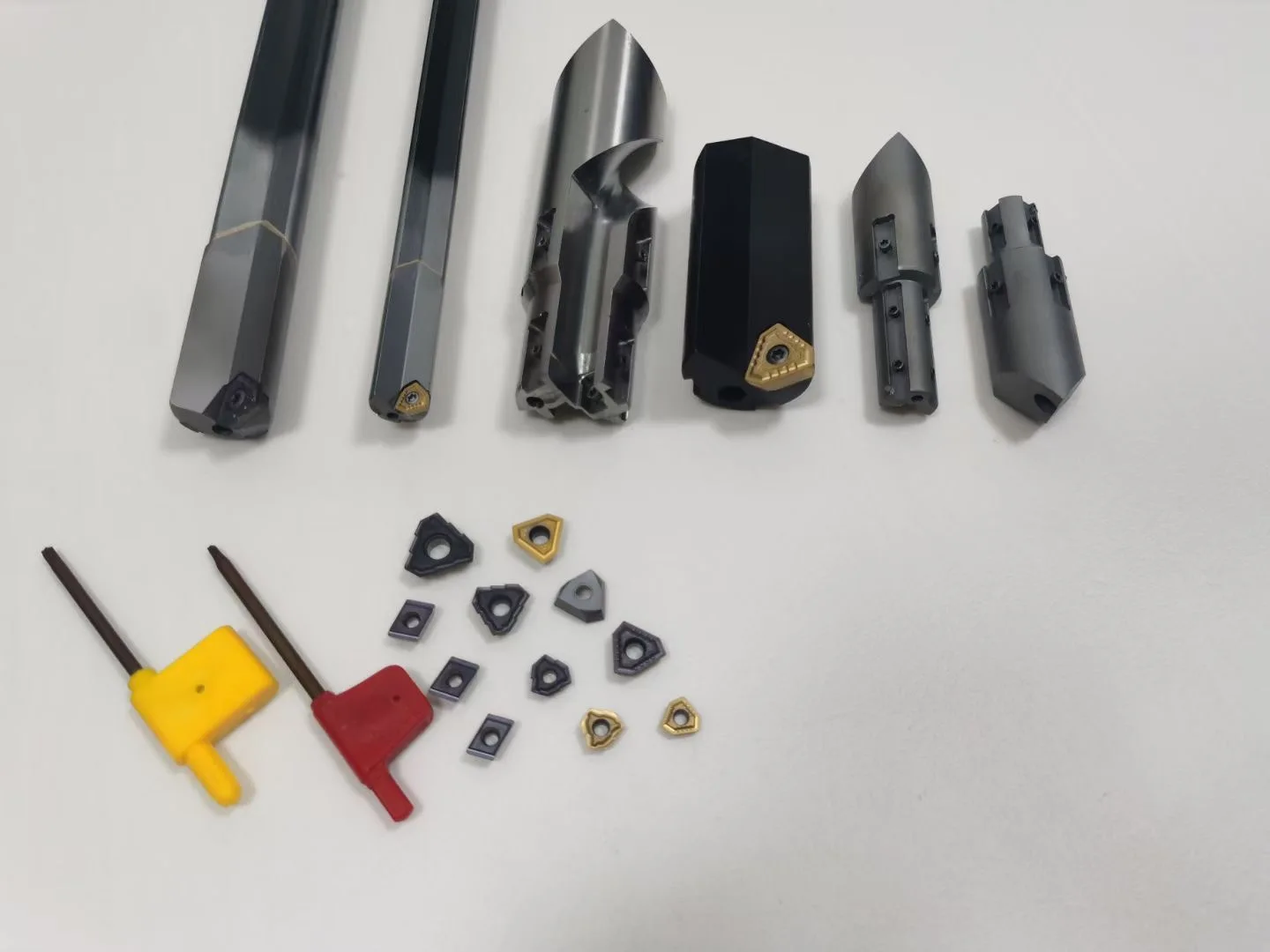

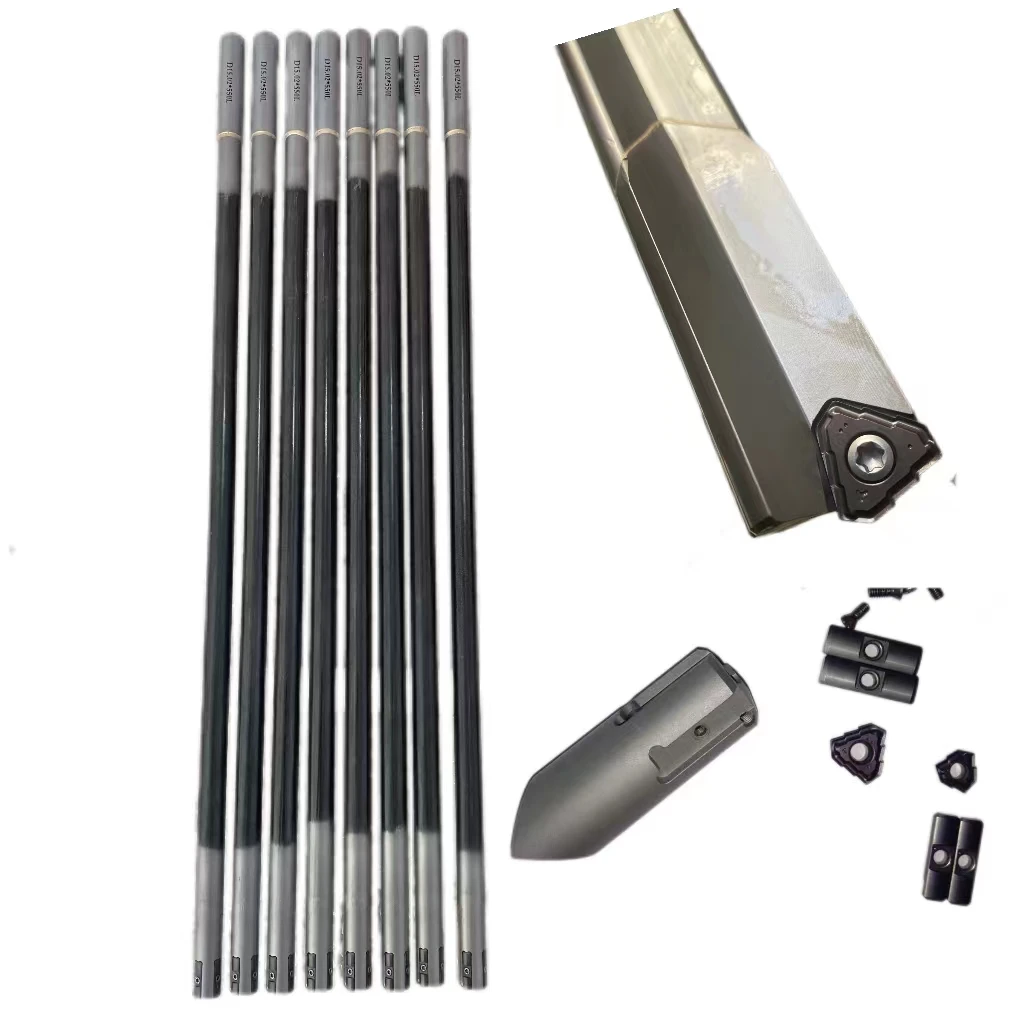

Indexable gun drill and insert pad

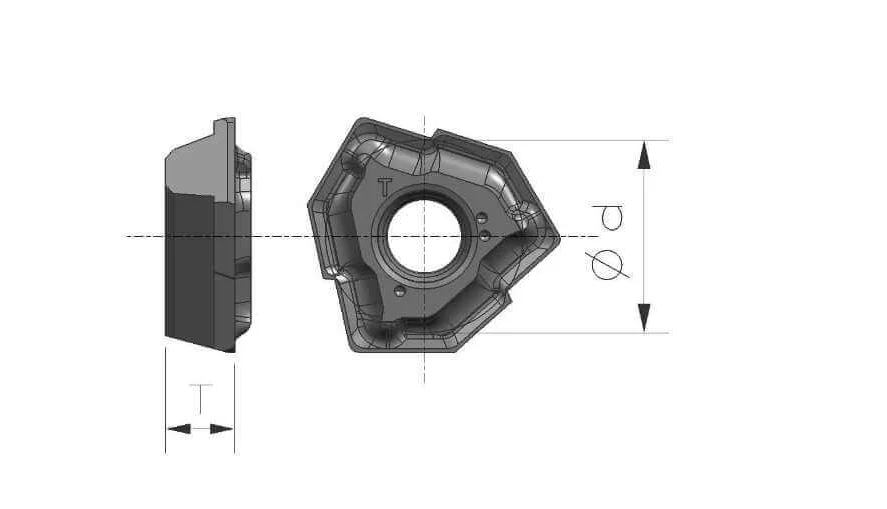

Diameter	Insert type	pad	insert screw	pad screw
11.52	060204R	GP04-055	M2.5x4.5	M2x3.7
12.02	060204R	GP04-055	M2.5x4.5	M2x3.7
12.52-13.52	060204R	GP04-055	M2.5x5	M2x3.7
14.02-15.52	070304R	GP05-060	M2.5x5	M2.2x4.5
16.02-17.52	080305R	GP05-075	M2.5x6	M2.2x4.5
18.02-18.52	090305R	GP06-085	M2.5x6	M2.5x5
19.02-19.52	090305R	GP06-085	M2.5x6	M2.5x6
20.02-20.52	100305R	GP06-085	M3x7	M2.5x6
21.02-21.52	100305R	GP06-100	M3x7	M2.5x6
22.02-24.52	110405R	GP06-100	M3.5x9	M2.5x6
25.02-25.52	120405R	GP06	M4x10	M2.5x6
26.02-27.52	120405R	GP06	M4x10	M2.5x6
28.02-29.02	120405R	GP06	M4x10	M2.5x6
29.52	130408R	GP06	M4x10	M2.5x6
30.02-32.02	130408R	GP07	M5x11	M3x6.5





ADVANTAGES

•Versatility for use on lathe, machining centers and deep hole machines.

•High efficiency by specifically developed cutting edge geometry for ideal chip formation.

•Shortens downtime resulting from quick exchange of worn parts

•Easy to use, no sharpening, no length adjustment, easy inventory of wear parts.

•Lengthens tool life due to full coating, edge treatment and indexable design

•Quick availability due to stocked wear parts and most common body sizes.





Dezhou Kabaide Cutting Tool Co.,Ltd is s a deep hole drilling bit manufacturer and supplier of china deep hole drilling machine,located in Dezhou City ,Shandong Province China .we focus has been on the development and production of drilling tools: deep hole gun drilling tools with diameters from 1mm-4000mm, BTA drill head and reaming tools as well as the associated service,
As part of our scrupulous inspection procedure, we test our drills and under for assembly integrity, leakage, and specified oil flow.
we have our own technique process, and registered our own brand.Nowadays,our products are sold well in domestic market and overseas,and are highly praised by our customers.

As a good private owned company, we have innovative,capable and flexible structure,and complete and scientific quality control system.Our gun drills are high hardness,good rigidity,high accuracy,long lasting,and good cost performance.

Continuous improvement of the process, solid progress to produce the gun drills, creating a national brand,and to pursue the excellence is our eternal goal.
