Cinco 12V 80AH GEL solar battery lead acid solar battery for 5kw solar energy storgy system used can be parallel
Cinco 12V 80AH GEL solar battery lead-acid solar battery for 5kw solar energy storgy system used can be parallel
Cinco 12V 80AH GEL solar battery lead-acid solar battery for 5kw solar energy storgy system used can be parallel
Cinco 12V 80AH GEL solar battery lead-acid solar battery for 5kw solar energy storgy system used can be parallel
Cinco 12V 80AH GEL solar battery lead-acid solar battery for 5kw solar energy storgy system used can be parallel
Cinco 12V 80AH GEL solar battery lead-acid solar battery for 5kw solar energy storgy system used can be parallel
Cinco 12V 80AH GEL solar battery lead-acid solar battery for 5kw solar energy storgy system used can be parallel

Cinco 12V 80AH GEL solar battery lead acid solar battery for 5kw solar energy storgy system used can be parallel

Share on (1601044748613):


Price:$69.00 - $75.00

Quantity:


Product Overview

Description







GEL Solar Battery
GEL series battery by combining the newly developed nanometer GEL electrolyte, high tin content cathode plate and AGM separator,this series battery enjoys excellet discharging performance,long cycle life and stable performance at high and low temperature surrounding.
Application range: solar energy storage, solar Power system, wind energy systems, UPS, EPS, telecommunication /communication systems,electricity power systems etc.


Products Description



1. Valve sealed design,no free electrolyte,maintenance-free.
2. Designed floating service life:12 years(2V),10 Years(12V) as 25℃
3. Wide operating temperature range from -40℃ to 60℃
4. Nnometer gel electrolytes eliminate the acid stratification and proling cycle life
5. Low self-discharge rate:≤3%/month


Product Paramenters


Model

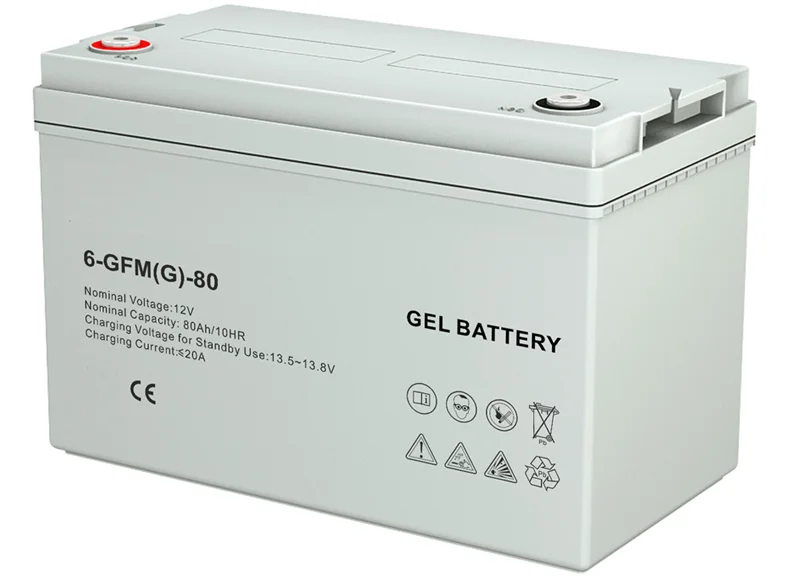

6-GFM(G)-80
Nominal Voltage

12V
Nominal Capacity

80Ah
Design life

12Years
Dimension
Length
330mm
Width
171mm
Height
216mm
Total Height
219mm
Reference weight

25.2kg
Charateristics
Rated Capacity
10Hour rate
80.0Ah
3Hour rate
63.3Ah
1Hour rate
51.3Ah
Interal resistance(Full charged at 25℃)

7.8mΩ
Self-discharge (at 25℃.)
3％ of the capacity per month
Discharge Temperature
-40～60℃
Charge Temperature
-20～50℃
Storage Temperature
-20～50℃
Cyclic charging voltage (at 25℃)
14.4～15.0V
Initinal current (at 25℃)
 20.0A
Temperature Compensation
 -30mV/℃
Float Use (at 25℃)
13.5-13.8V
Temperature Compensation (at 25℃)
 -20mV/℃
Dimension
Rate Capacity
Lengh(mm)
Width(mm)
Height(mm)
Total Height(mm)
AGM 12V 38AH
197
165
170
170
AGM 12V 45AH
197
165
170
170
AGM 12V 50AH
229
138
212
215
AGM 12V 65AH
350
166
175
175
AGM 12V 70AH
260
168
212
215
AGM 12V 80AH
260
168
212
215
AGM 12V 90AH
330
171
216
219
AGM 12V 100AH
330
171
216
219
AGM 12V 120AH
407
170
220
233
AGM 12V 150AH
483
170
241
241
AGM 12V 200AH
522
240
219
222
AGM 12V 220AH
522
240
219
222
AGM 12V 250AH
520
268
220
223
