Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
Fiber laser cutting machine 1000W 2000W metal plate sheet pipe tube laser cutter machine
- Category: >>>
- Supplier: Shandong Igolden CNC Technology Co. Ltd.
Share on (1601044805598):
Product Overview
Description
Products Description

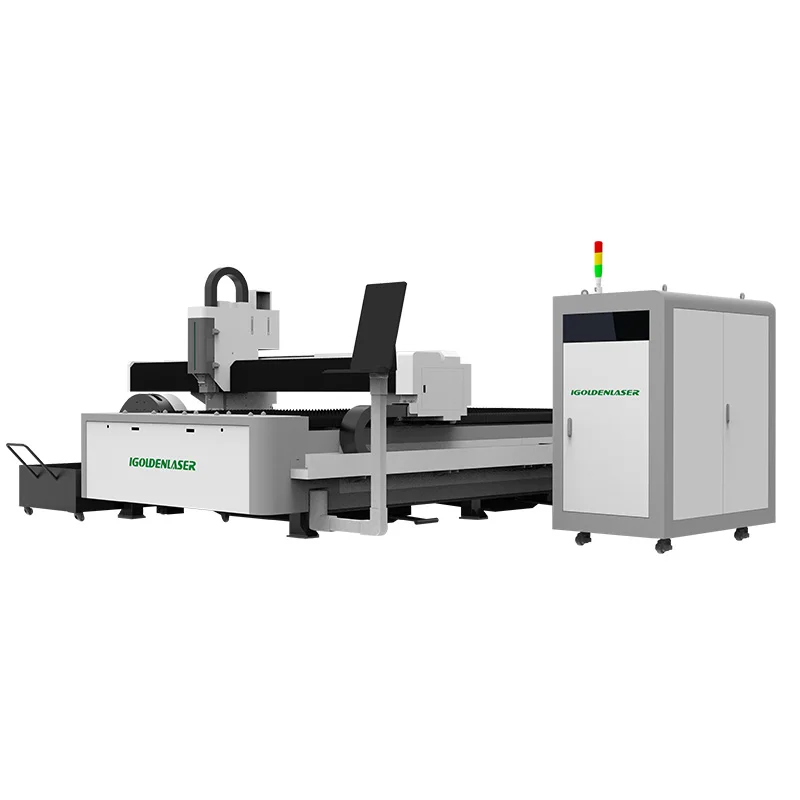

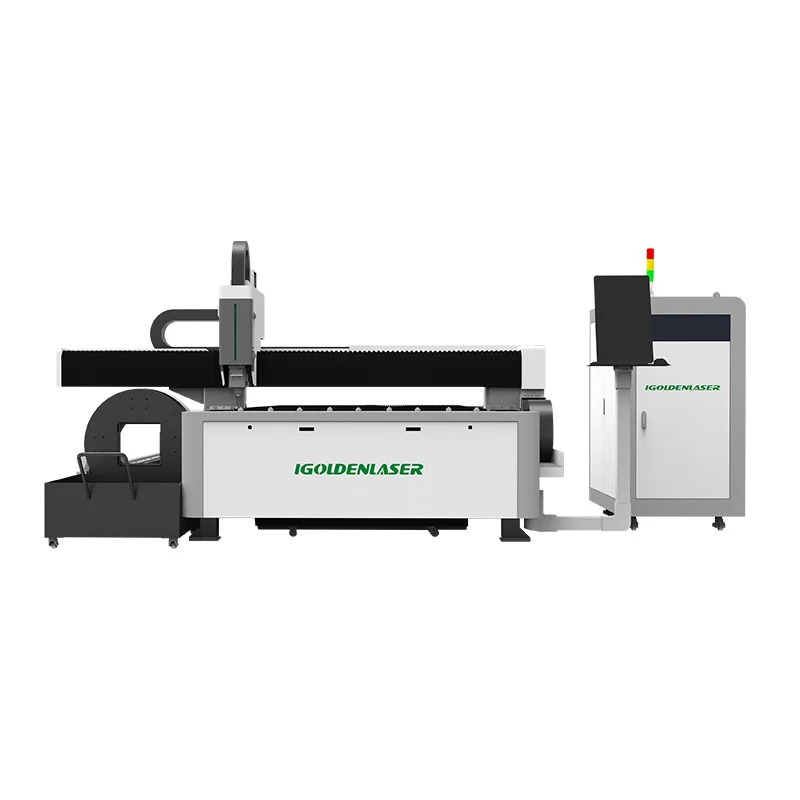

Laser pipe and tube cutting machine
The dual-use fiber laser cutting machine can realize the cutting of two different materials on the same equipment. It can cut both metal plates and tubes (including square tubes, round tubes, channel steel, angle steel, etc.).One machine with multiple functions, high cost performance, professional pipe cutting control system, high precision, full function, easy to use, simple operation, suitable for comprehensive processing and manufacturing enterprises.
Cutting Parameters
Model | iGR-FT |
Fiber Laser | JPT |
Control System | Shanghai Cypcut |

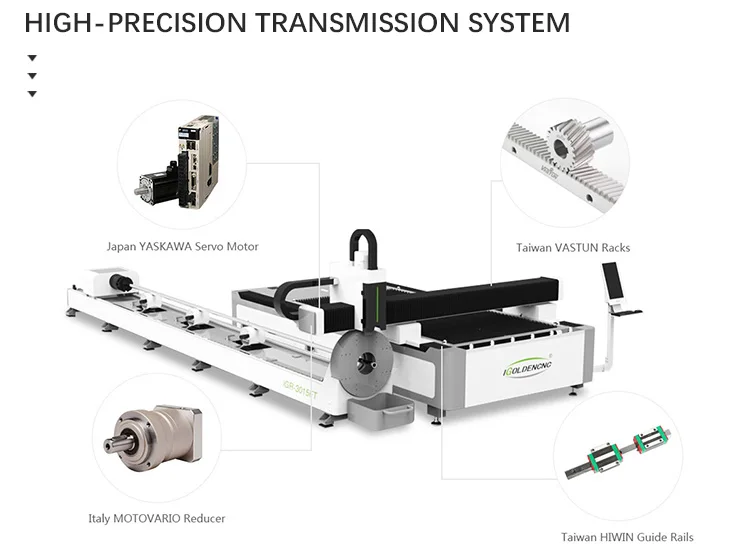

Servo motor | Japan Yaskawa |
Cutting head | RayTools |
Gantry | Aviation aluminum beam |
Guide rail | Taiwan T-WIN square rail |
Rack&pinion | Taiwan T-WIN famous brand |
Water chiller | HanLi |
Proportional valve | Japan SMC |
Electronics | France Schneider |
Voltage | Three-phase 380V 50/60Hz |
Product Details

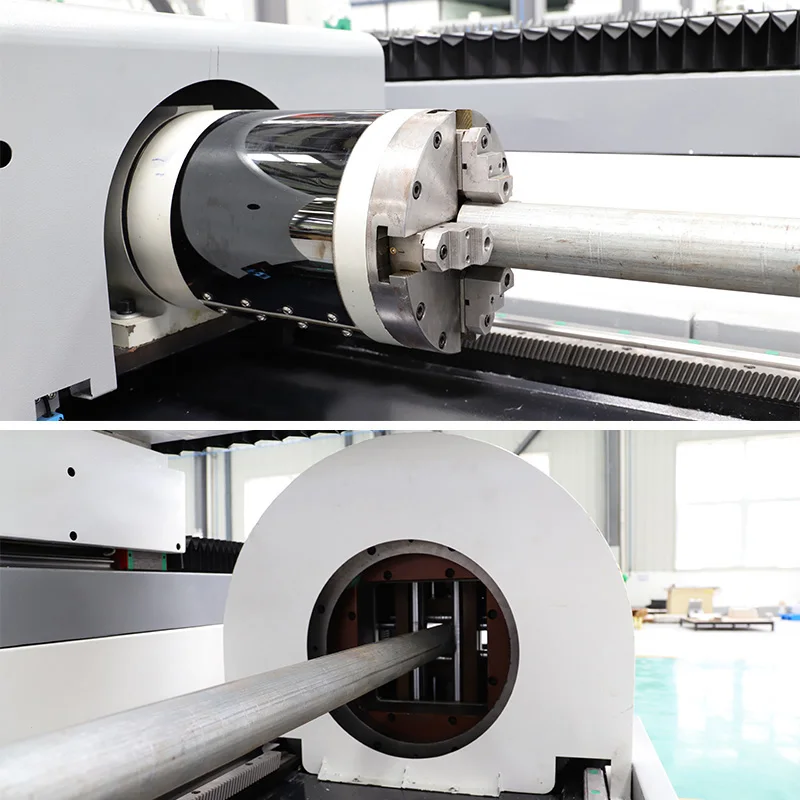

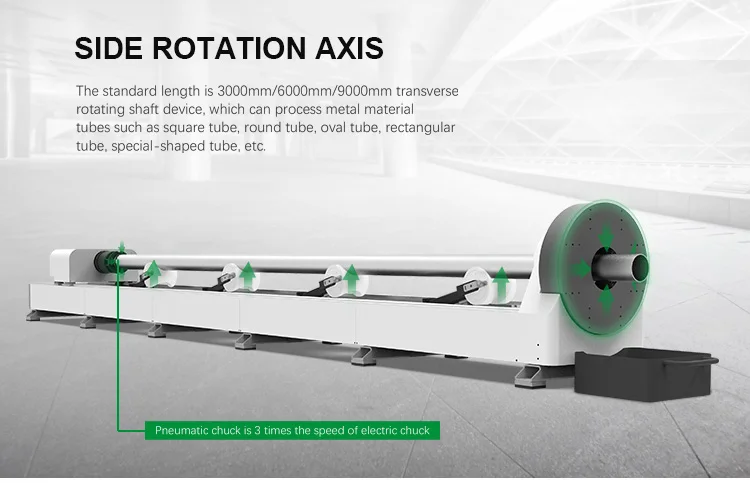

Double Pneumatic Automatic Chuck
Electric clamp design is adopted on both sides, one-click opening of the clamp, automatic worry-free, the speed is 3 times that of the electric chuck, reducing the waiting time for loading and unloading;Pneumatic clamping, large and stable clamping force, no loosening or slipping of heavy pipes, ensuring cutting accuracy;

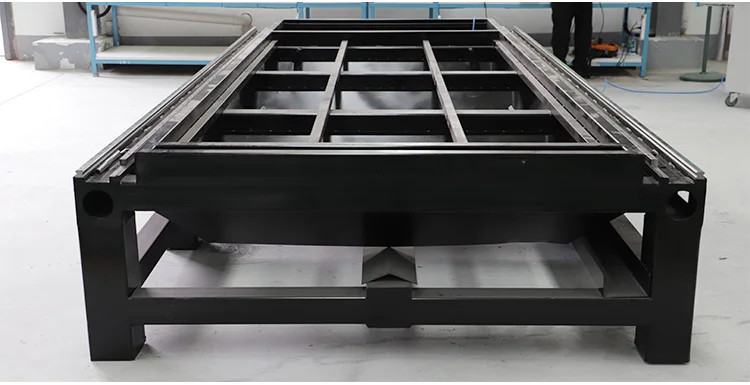

Heavy duty steel welded machine frame
The machine frame is annealed and milled by a large gantry to accurately drill all installation basic holes at once. Higher tensile strength and dimensional stability. Effectively improve the accuracy of the bed, reduce the processing error of the workpiece. Increase the resistance and stability of the guide rail. It reduces the loss of the equipment when it is used. It keeps the precision of the cheap laser cutter for a long time and does not deform for 20 years. The affordable laser cutter has good stability and reduces the processing errors caused by the vibration of the bed.
High quality aluminum beam
1.High precision. After manual aging, solution treatment and finishing, the beam has good integrity, rigidity, toughness and ductility.
2.Fast speed. Aluminum alloy has the features of light weight and strong rigidity, which is conducive to high-speed movement during processing, and high flexibility is conducive to high-speed cutting of various graphics on the basis of high precision.
3.High efficiency. The lighter weight beam can ensure the rapid operation of the flatbed laser cutting machine, improve the processing efficiency, and at the same time ensure the processing quality.

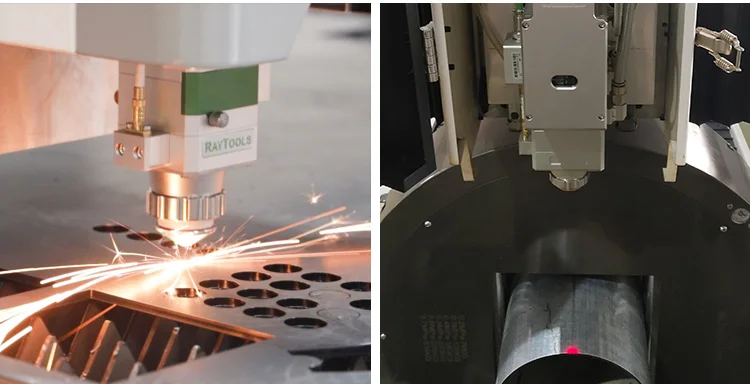

Auto-focus laser cutting head
The laser head has a built-in motor drive unit, and the focusing lens is driven by a linear mechanism to automatically change the position within 20mm. The user can set continuous focus through the program to complete the rapid perforation of thick plates and automatic cutting of plates of different thicknesses and materials. The compound lens group equipped with D28 integrates the light beam and optimizes the optical and water-cooled design so that the laser head can work stably for a long time.
Automatic edge seeking function
Auto-induct materials cutting edge and adjust cutting range according to their inclination angle automatically in case any incorrect position.

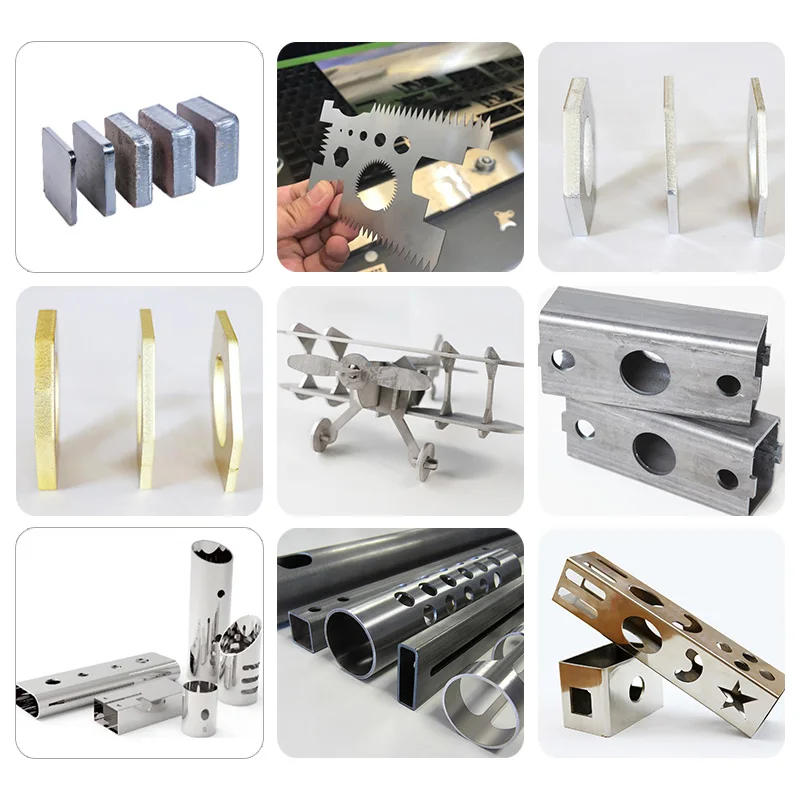

Sample
Why Choose Us
Packing & Delivery
Recommend Products
FAQ
Q1: How to choose the right power?
A1: The power of the machine is determined by the material being processed. You can tell us materials and thickness you want to cut, our professional technicians will recommend the most suitable power for you.
Q2: If we have special needs and want to customize the machine, is this possible?
A2: Yes, please send us your requirements and our engineers will provide you with the suitable solution.
A1: The power of the machine is determined by the material being processed. You can tell us materials and thickness you want to cut, our professional technicians will recommend the most suitable power for you.
Q2: If we have special needs and want to customize the machine, is this possible?
A2: Yes, please send us your requirements and our engineers will provide you with the suitable solution.
Q5: Can you arrange the shipment for me ?
A5: Yes, of course we can. Our products have been shipped to dozens of countries and regions in the world, and we are very experienced. You can tell us the nearest port to you and the dedicated manager will check the freight for you and help you handle subsequent transportation.
A5: Yes, of course we can. Our products have been shipped to dozens of countries and regions in the world, and we are very experienced. You can tell us the nearest port to you and the dedicated manager will check the freight for you and help you handle subsequent transportation.
