Agricultural Sawtooth Greenhouse with mushroom grow tent
- Category: >>>
- Supplier: Shandong Yading International Trade Co. Ltd.
Share on (1601044817111):
Product Overview
Description
Product Description

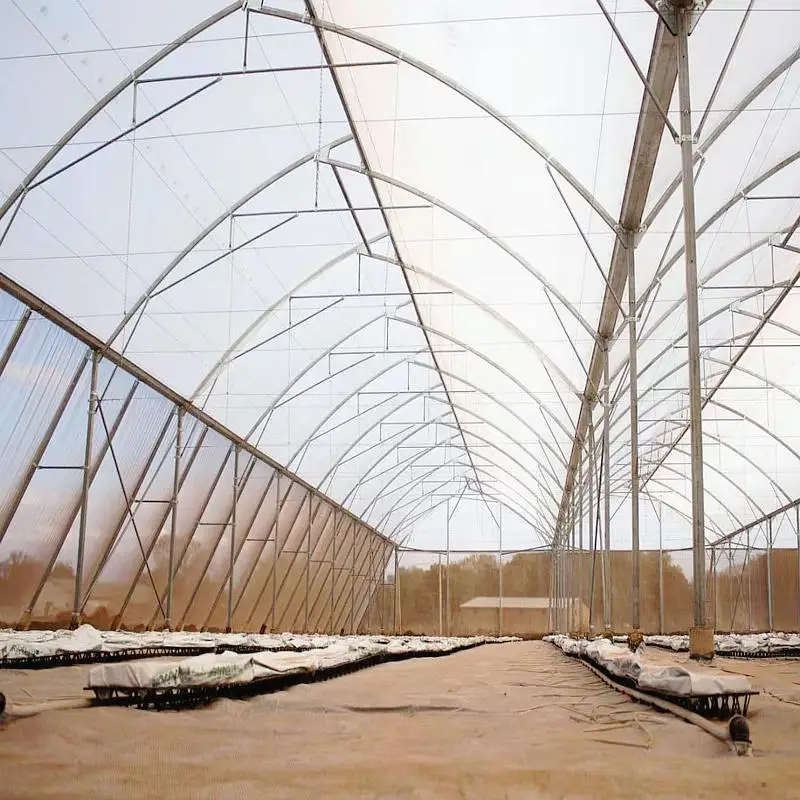

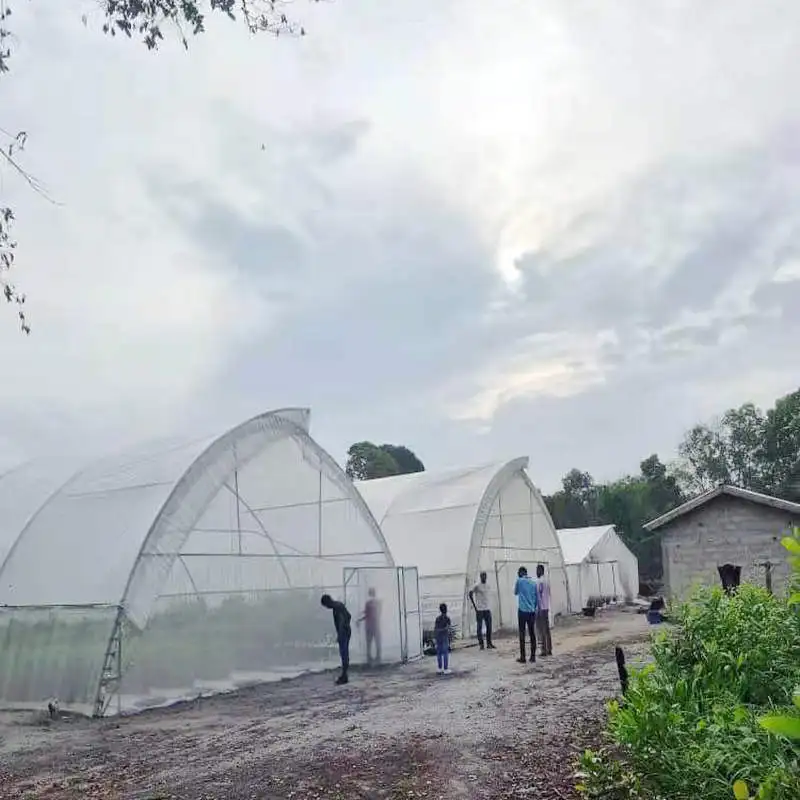

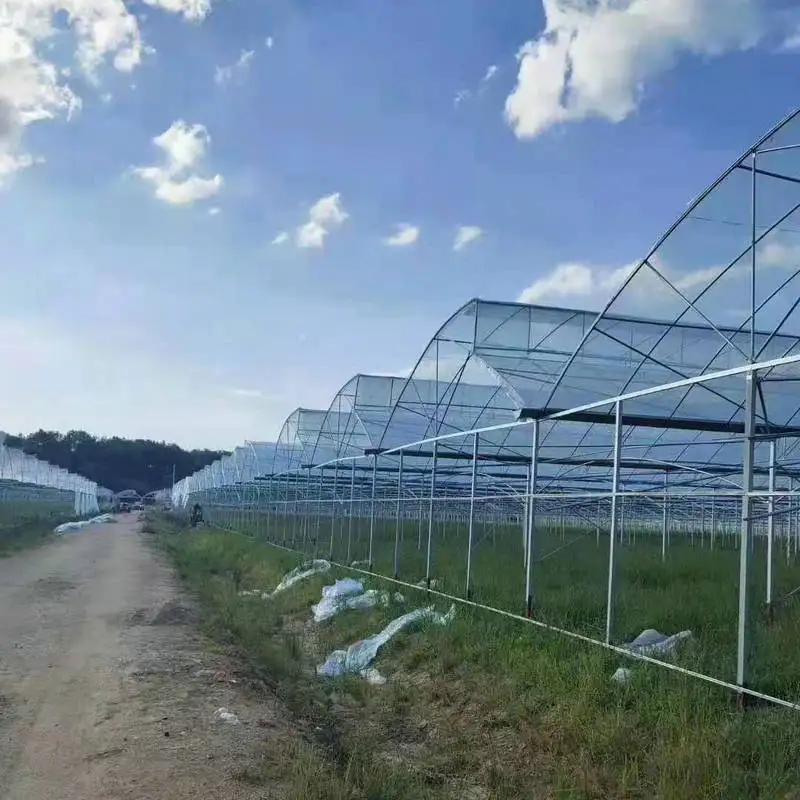

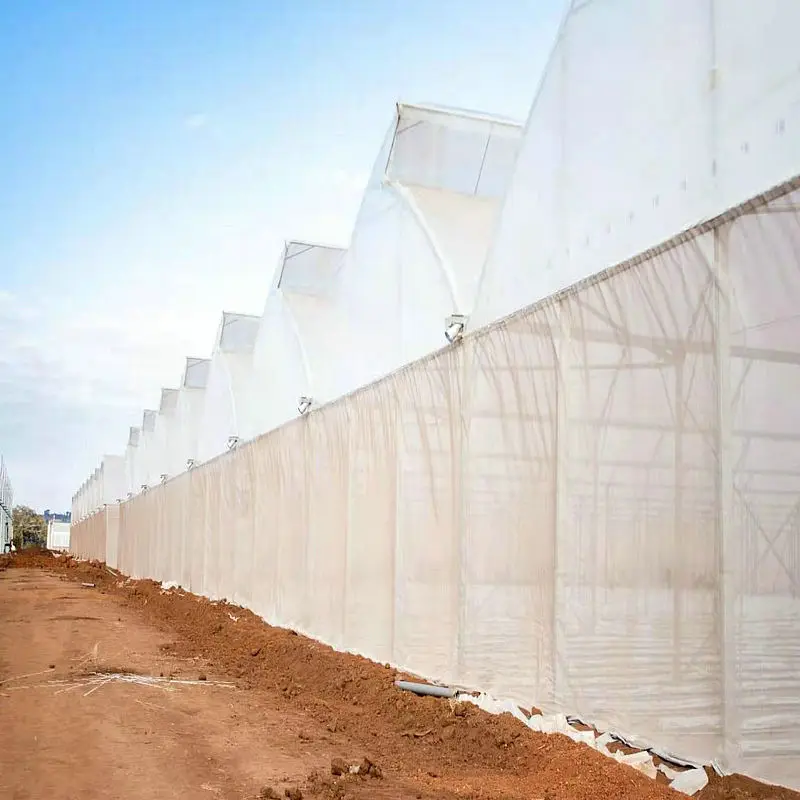

Sawtooth Type Multi-Span Agricultural Film Greenhouse
* The sawtooth multi-span film greenhouse is a greenhouse specially designed for tropical regions.
* The surface of the greenhouse is covered with plastic film, which is economical and easy to install.
* The sawtooth greenhouse has a high space utilization rate. There are special ventilation windows on the top and the surroundings, which have very strong ventilation capacity and can effectively resist strong winds.
* It can be used in fields such as planting, aquaculture, animal husbandry, exhibitions, ecological restaurants, teaching and research of vegetables and fruits.
Specification
Product Name | Sawtooth type multi-span agricultural film greenhouse |
Span | 6m/8m/9.6m/10m/12m/Customized |
Length | 20m/50m/100m/Customized |
Shoulder Height | 3m-6m / Customized |
Roof Height | 5.5m-8.5m / Customized |
Wind Load | 0.6 kn/㎡ / Customized |
Snow Load | 0.5 kn/㎡ / Customized |
Max Rain Quantity | 140mm/h |
Greenhouse Details

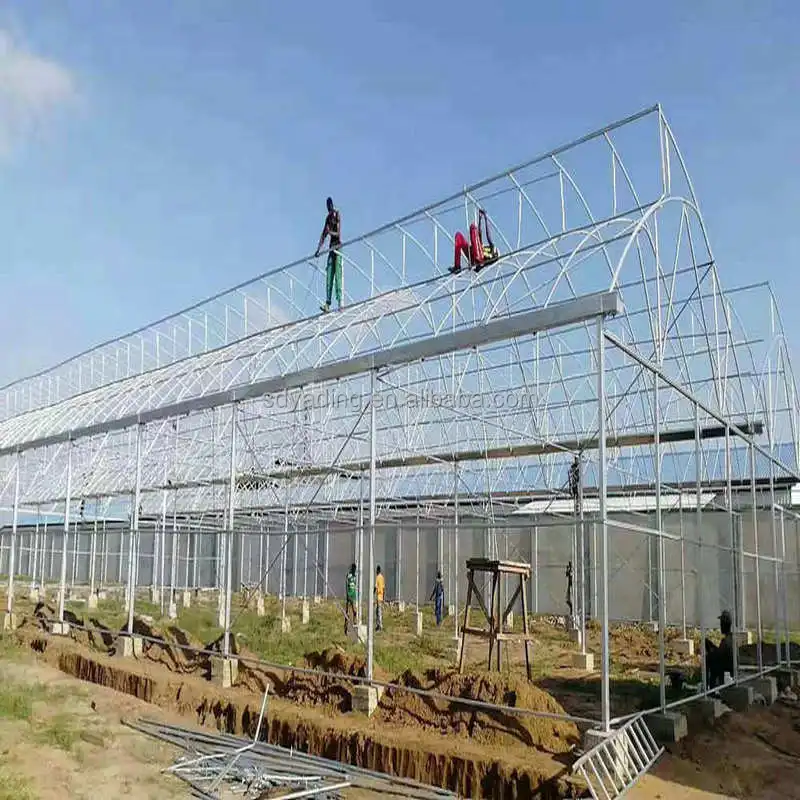

Hot galvanized structure
1. Suitable for use in tropical and coastal areas;
2. Suitable for use in areas with hurricanes;
3. The steel materials used in the frame structure and connecting parts of the greenhouse are all hot-dip galvanized;
4. The greenhouse frame structure design
complies with the Chinese national standard "GB50017-2003 Steel Structure Design Code"; 5. The steel used in the greenhouse
complies with the Chinese national standard "GB700-88 Carbon Structural Steel Standard";
complies with the Chinese national standard "GB50017-2003 Steel Structure Design Code"; 5. The steel used in the greenhouse
complies with the Chinese national standard "GB700-88 Carbon Structural Steel Standard";

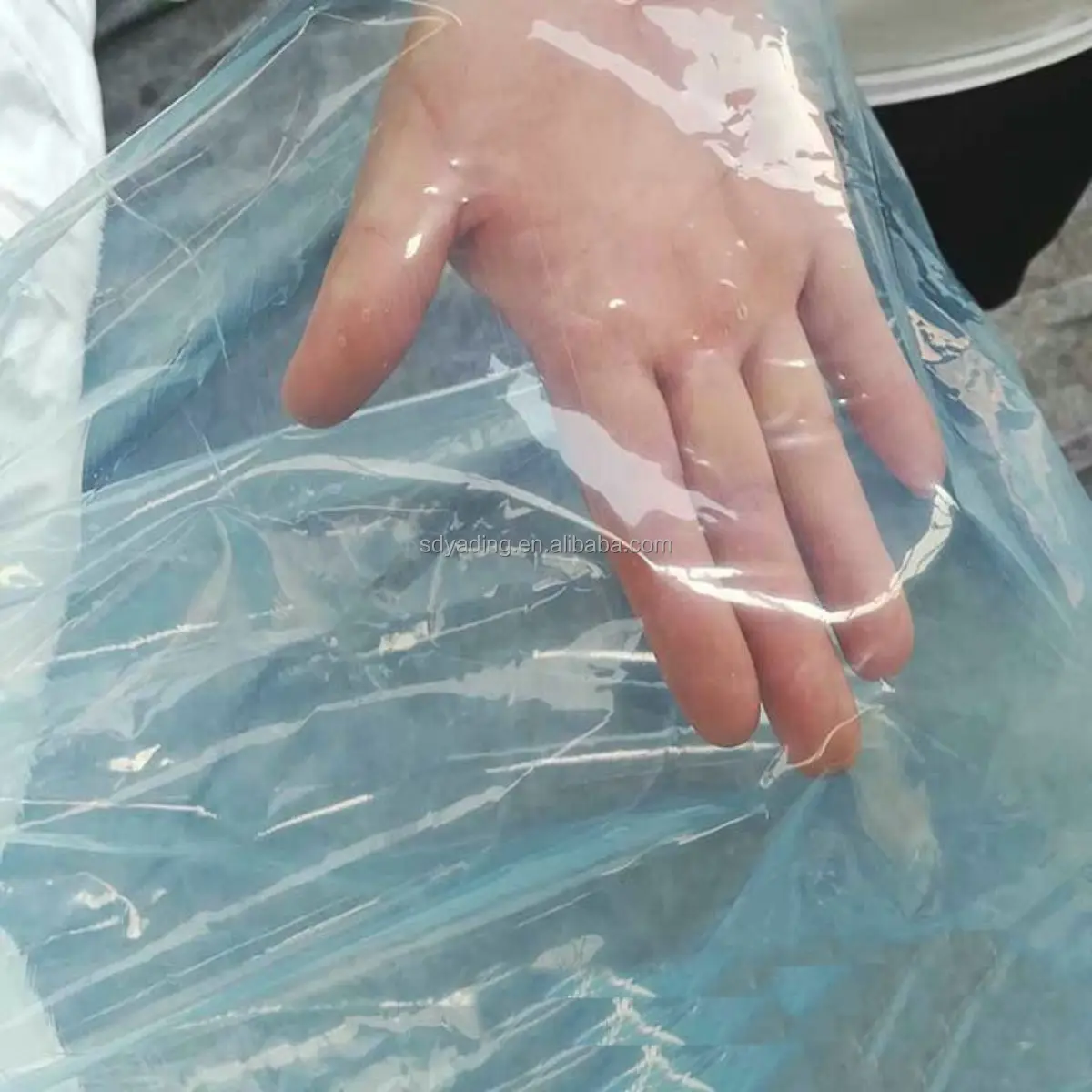

Covering film
1.It splits sun lights when it gets inside the greenhouse to reach everywhere
2.It has chemical resistance against agriculture pesticides.
3.It helps to avoid problem of fogging on plastic covers.
4.It reduces creation of condensation drops which keeps plant healthier and protects efficiency in greenhouse.
2.It has chemical resistance against agriculture pesticides.
3.It helps to avoid problem of fogging on plastic covers.
4.It reduces creation of condensation drops which keeps plant healthier and protects efficiency in greenhouse.
External shading system
1. The external shading system is fixed on the top of the greenhouse frame, and the shading net is supported by columns and beams.
2. The framework of the sunshade system is the same as that of the greenhouse, using hot-dip galvanized steel pipes.
3. The outer sunshade net is made of black HDPE material and fixed with black polyester rope.
2. The framework of the sunshade system is the same as that of the greenhouse, using hot-dip galvanized steel pipes.
3. The outer sunshade net is made of black HDPE material and fixed with black polyester rope.

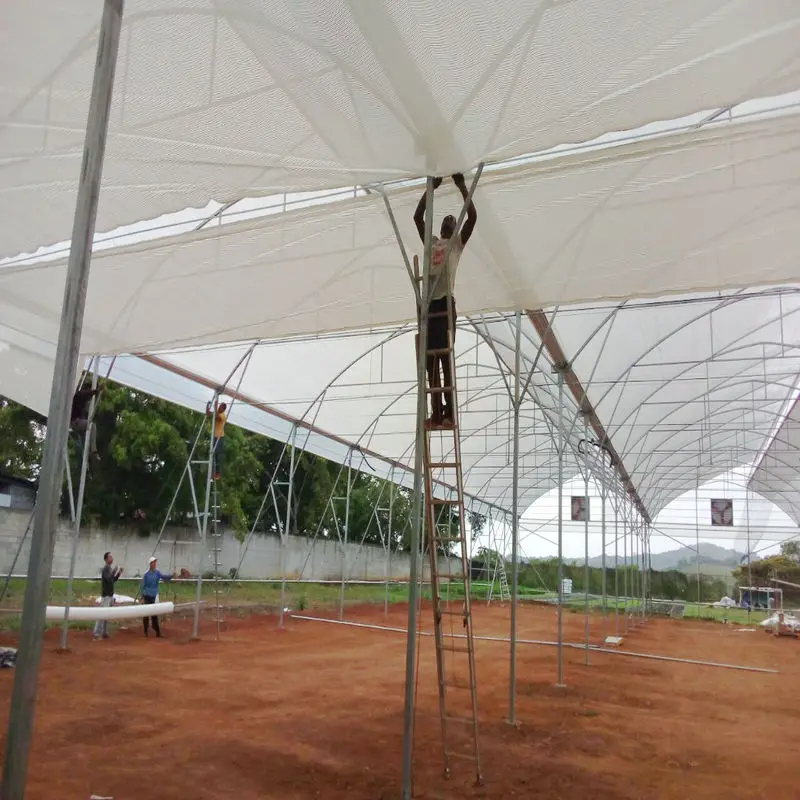

Internal shading system
1. The internal shading system is fixed under the circular arch of the greenhouse.
2. The sunshade net of the internal sunshade
system is made of aluminum foil + polyester yarn, and the white filter can reflect sunlight and reduce the heat in the greenhouse.
3. The sunshade net has a moisturizing and anti-condensation function, and the woven structure allows sufficient water vapor to
pass through and prevents condensation on the lower part of the sunshade net.
system is made of aluminum foil + polyester yarn, and the white filter can reflect sunlight and reduce the heat in the greenhouse.
3. The sunshade net has a moisturizing and anti-condensation function, and the woven structure allows sufficient water vapor to
pass through and prevents condensation on the lower part of the sunshade net.

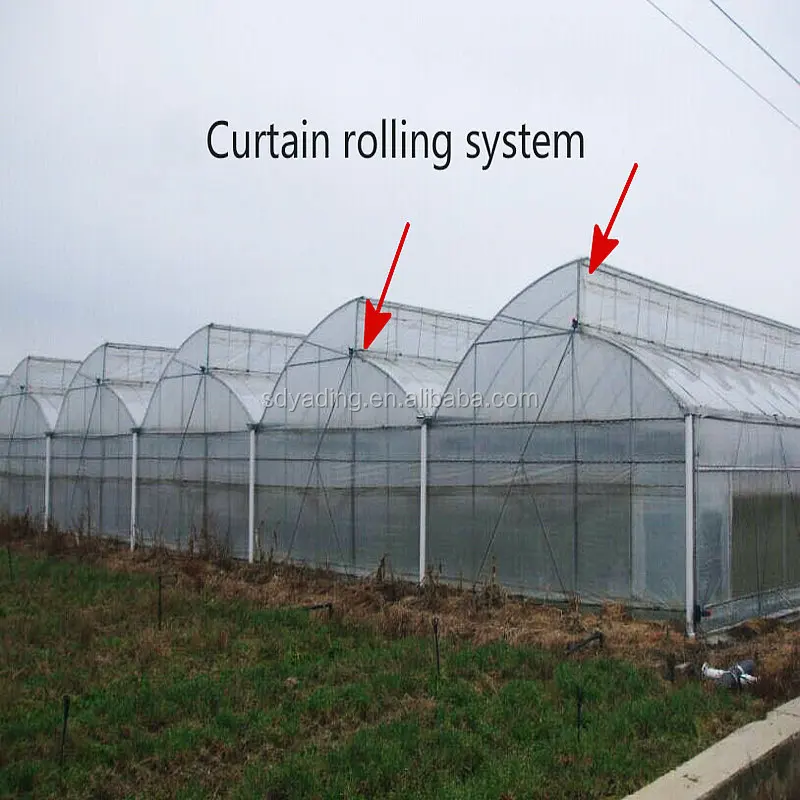

Ventilation system
1. Each vault on the top of the greenhouse has vents, and the vents are waterproofed.
2. There are vents on both sides of the greenhouse.
3. Insect nets are installed at each vent.

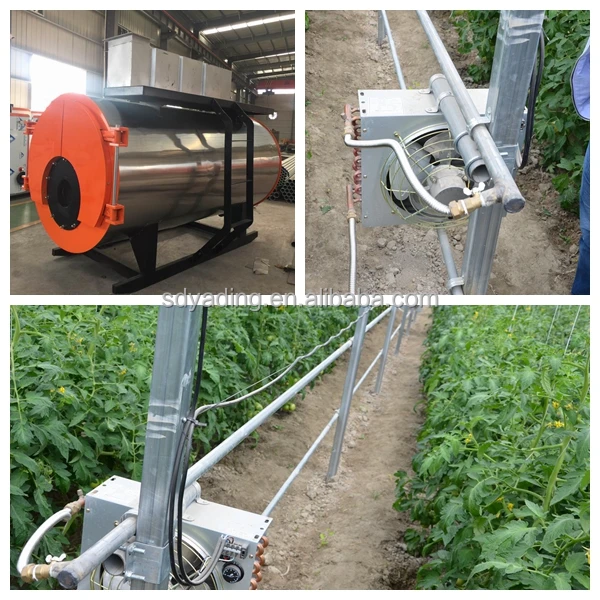

Heating system
1. According to the area to be heated, different specifications and quantities of radiators can be selected.
2. The heating methods of the radiator include water heating, electric heating, gas, oil and so on.

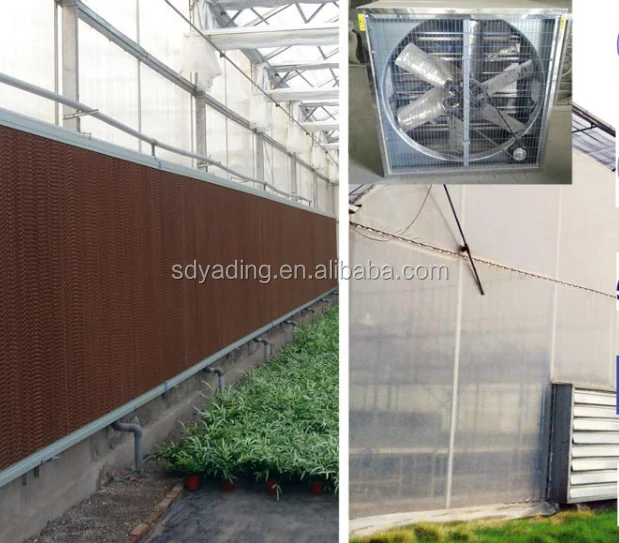

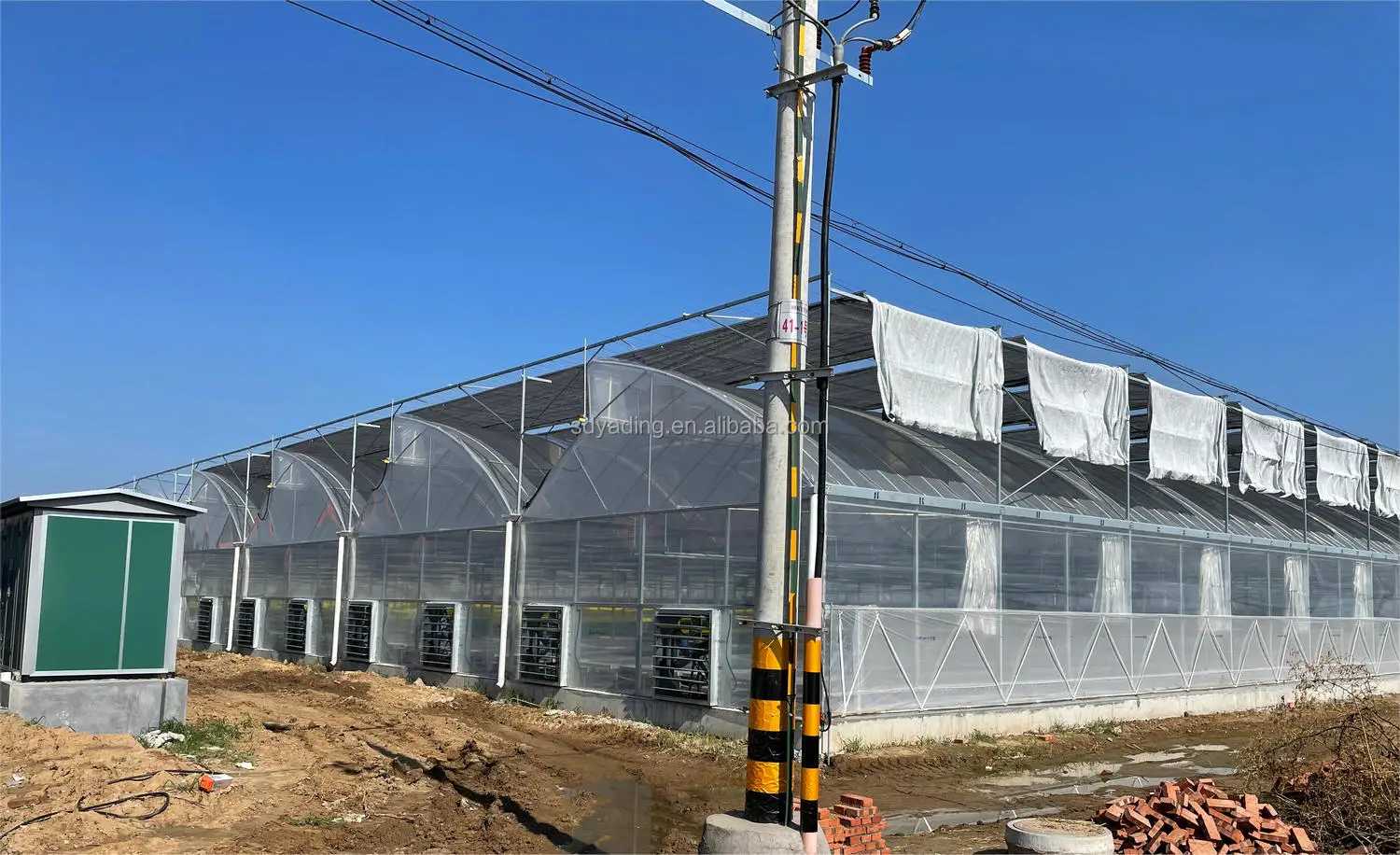

Cooling system
1. Through the combination of Cooling fan and Cooling pad, the temperature in the greenhouse can be reduced by more than ten
degrees. Combined with the circulation fan and sunshade system, it will have a better cooling effect.
degrees. Combined with the circulation fan and sunshade system, it will have a better cooling effect.
2. In addition, there are high-pressure spray cooling systems and air-conditioning cooling systems.

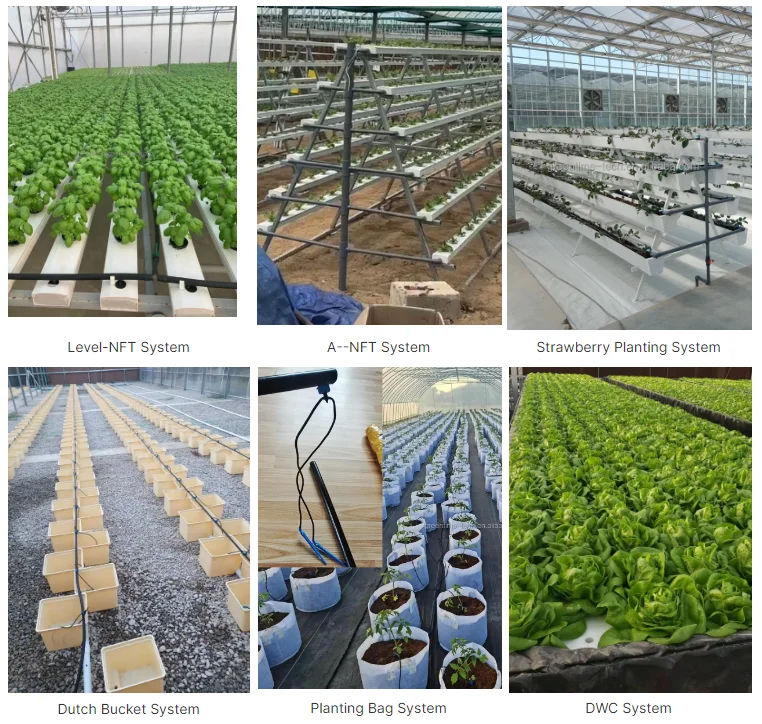

Hydroponic System
