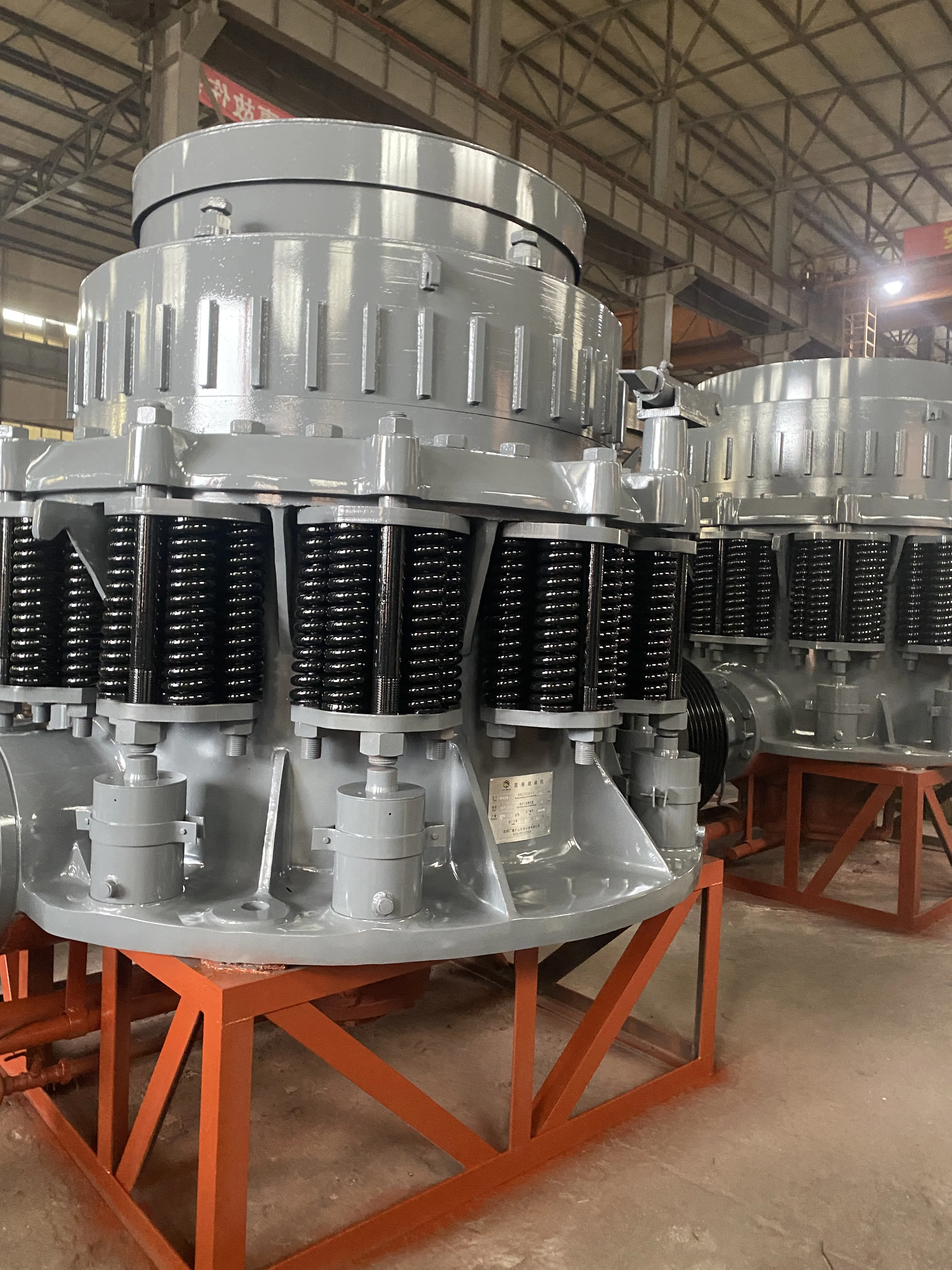

BYHI Symons Cone Crusher Scrap Metal Crusher Machinestone Crusher Plant In Crushing
- Category: >>>
- Supplier: Shenyang Boyiqiang Heavy Machinery Equipment Co. Ltd.
Share on (1601044827551):
Product Overview
Description
Products Description

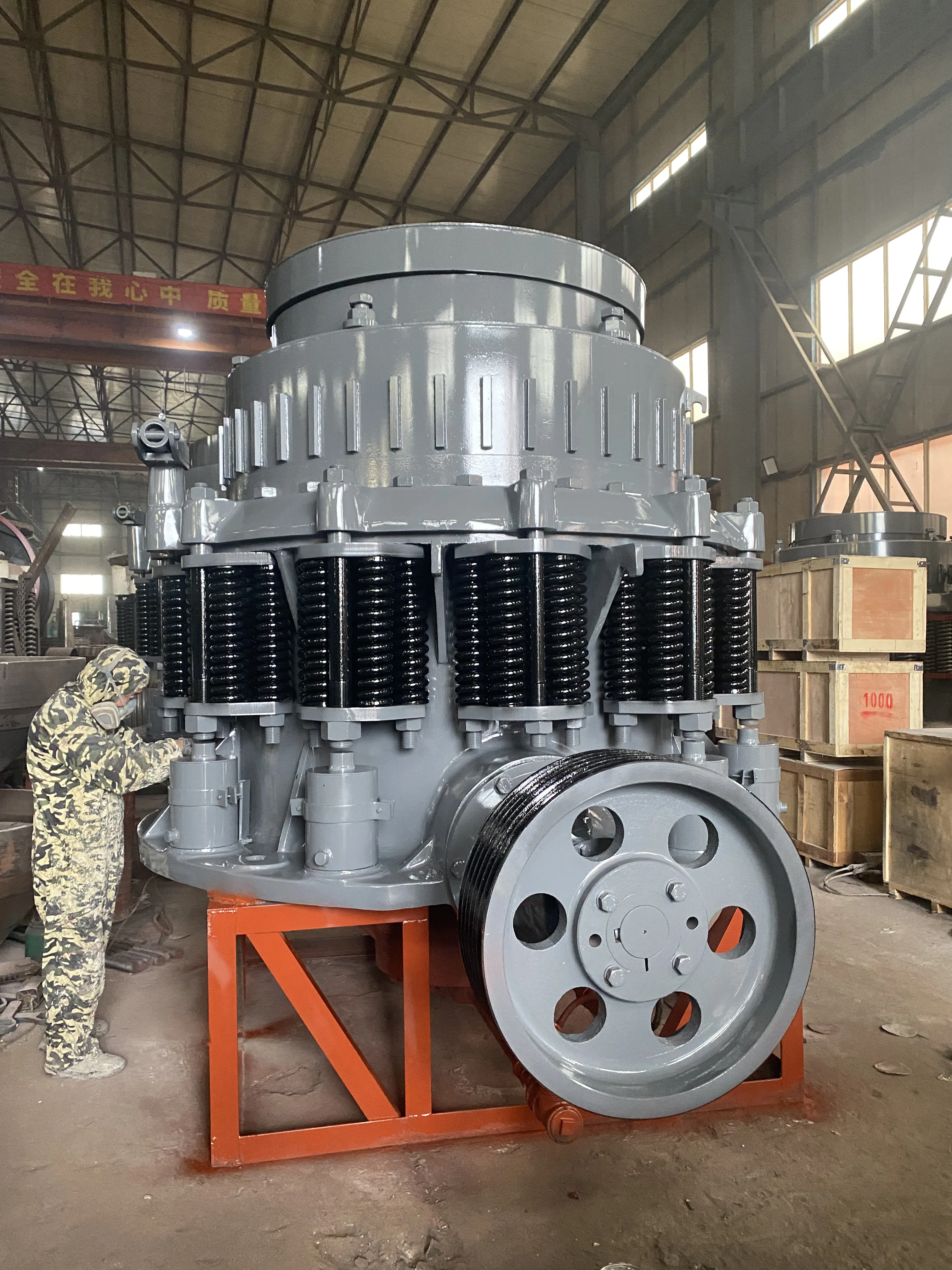

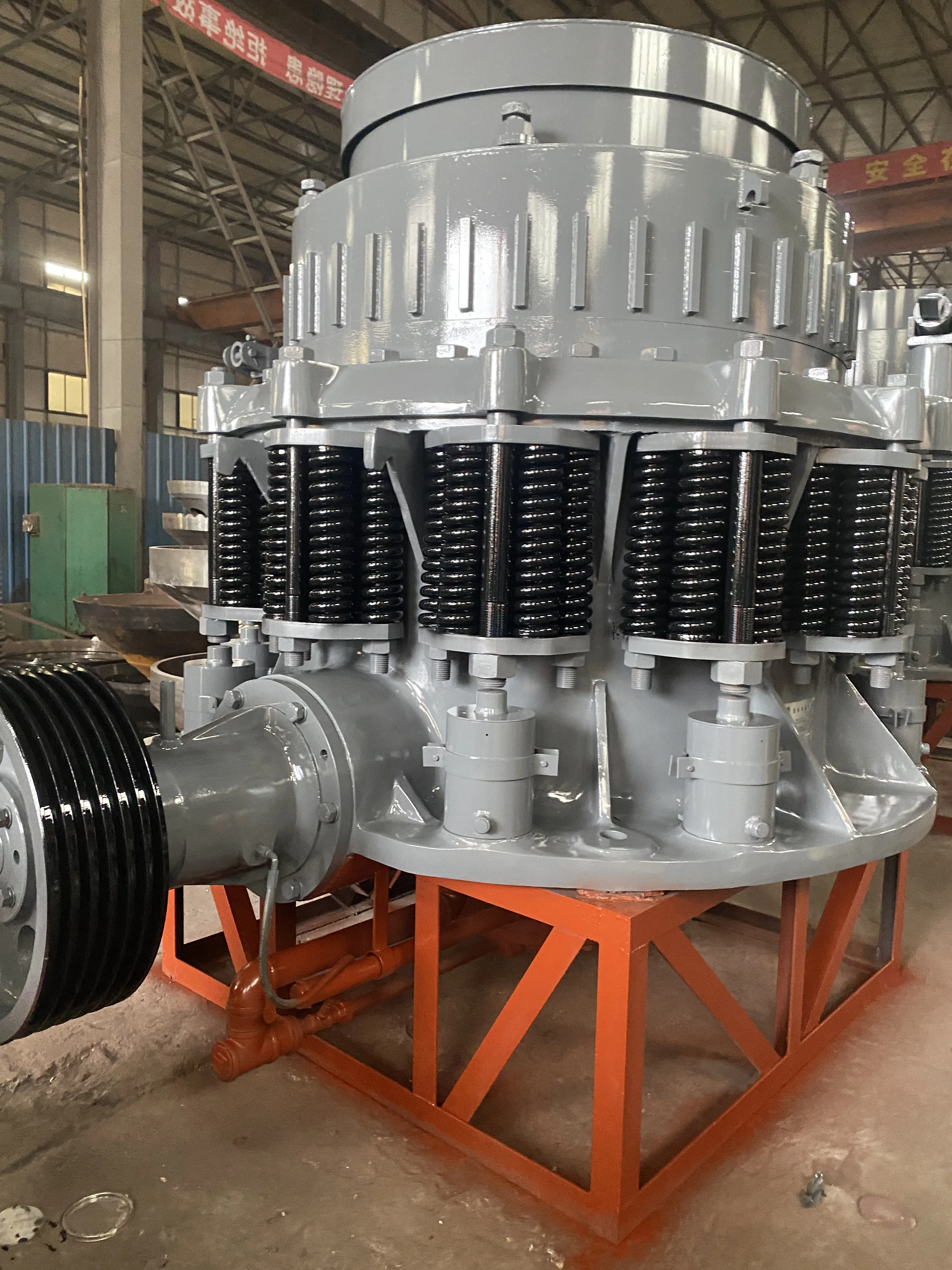

Cone crusher
Cone crusher is used in metallurgy, chemical industry, building materials, hydropower, road construction and other industrial sectors for different hardness of various ores or rocks in the crushing and fine crushing equipment.
In 1986, our company introduced the Symmons cone crusher from Nordberg company, which is also a spring-insured cone crusher. Nordberg has produced more than 17,000 Symmons cone crusher units throughout the world, accounting for about 70 percent of the world's total existing cone crusher units. Simmons is better than other cone crushers in terms of output, product size uniformity, fineness, component life, operation rate and production maintenance management cost.

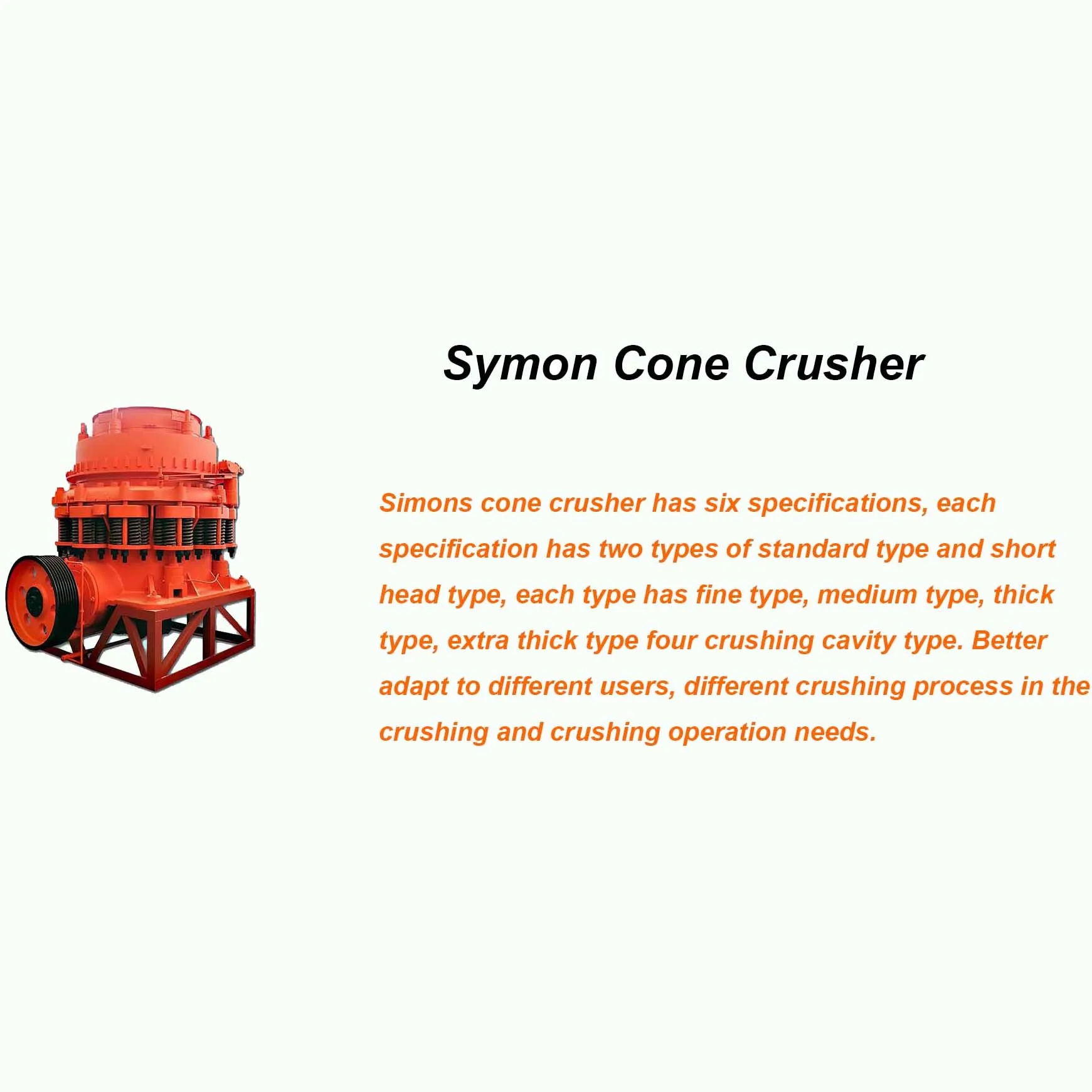

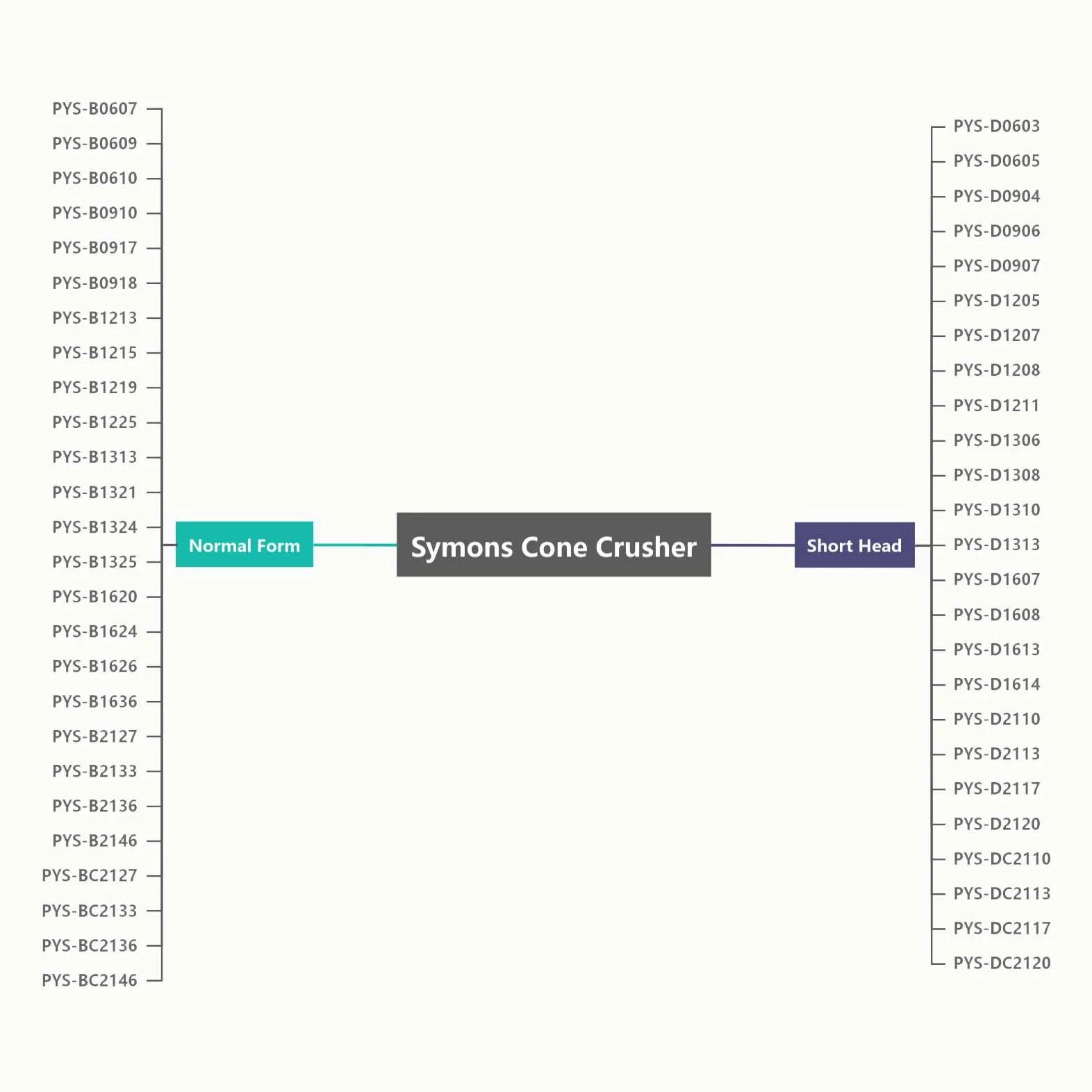

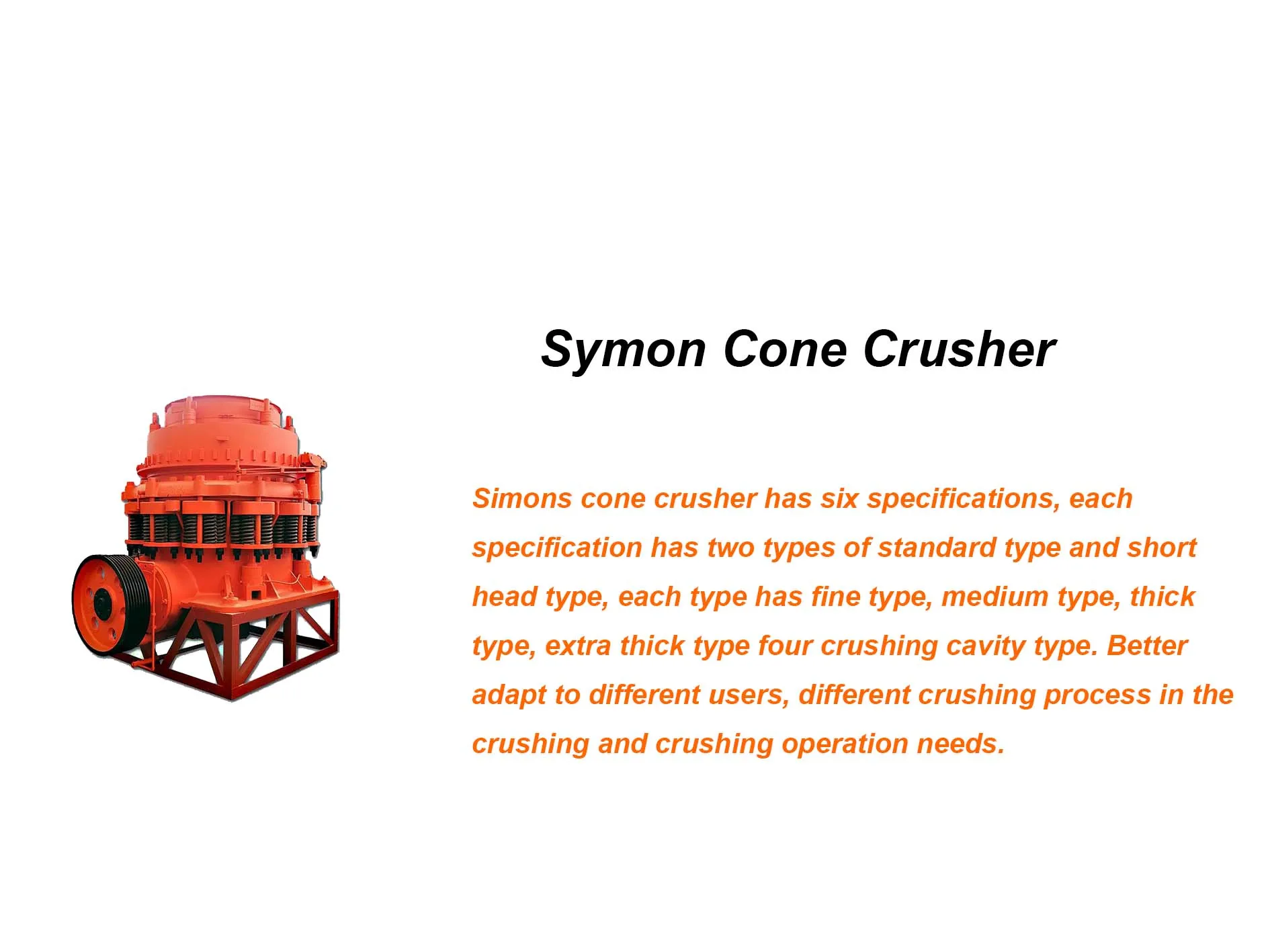

Symmons cone crusher has six specifications, each specification has standard type and short head type two forms, each form also has fine, medium, coarse, especially coarse type four broken cavity type. That is in other words, each specification has eight broken cavity types for users to choose, which can better meet the needs of crushing and crushing operations in different users and different crushing processes.
Compared with the standard type, the broken cavity of the short head is longer, which is suitable for the particle size of the
broken feed and requires a fine product size.
Symmons cone crusher has six specifications, each specification has standard type and short head type two forms, each form also has fine, medium, coarse, especially coarse type four broken cavity type. That is in other words, each specification has eight broken cavity types for users to choose, which can better meet the needs of crushing and crushing operations in different users and different crushing processes.
Compared with the standard type, the broken cavity of the short head is longer, which is suitable for the particle size of the
broken feed and requires a fine product size.
Product Paramenters
Open Circuit Flow Parameters Of Standard Simmons Cone Crusher
ts | The cavity type | Recommended minimum drain outlet mm | Feed port corresponding to the recommended minimum drain | Diameter of the large end of the crushing cone | main motor | ||||||
Close the Mouth mm | Open edge mm | power kw | speed r/min | Voltage v | |||||||
PYS-B0607 PYS-B0609 PYS-B0610 | Fine type Thick type Tough type | 3 6 9 | 57 83 100 | 72 109 109 | 600 | 22 | 985 | 380 | |||
PYS-B0910 PYS-B0917 PYS-B0918 | Fine type Thick type Tough type | 9 13 25 | 83 159 163 | 102 175 178 | 900 | 75 | 985 | 380 | |||
PYS-B1213 PYS-B1215 PYS-B1219 PYS-B1225 | Fine type medium-sized Thick type Tough type | 9 13 19 25 | 127 156 178 231 | 131 156 191 250 | 1200 | 110 | 985 | 380 | |||
PYS-B1313 PYS-B1321 PYS-B1324 PYS-B1325 | Fine type medium-sized Thick type Tough type | 13 16 19 25 | 109 188 216 238 | 137 210 241 259 | 1295 | 155 | 980 | 380 | |||
PYS-B1620 PYS-B1624 PYS-B1626 PYS-B1636 | Fine type medium-sized Thick type Tough type | 15 22 25 38 | 188 213 241 331 | 209 241 269 368 | 1676 | 220 | 490 | 6000 | |||
PYS-B2127 PYS-B2133 PYS-B2136 PYS-B2146 | Fine type medium-sized Thick type Tough type | 19 25 31 38 | 253 303 334 425 | 278 334 369 460 | 2134 | 315 | 490 | 6000 | |||
PYS-BC2127 PYS-BC2133 PYS-BC2136 PYS-BC2146 | Fine type medium-sized Thick type Tough type | 19 25 31 38 | 253 303 334 425 | 278 334 369 460 | 2134 | 400 | 490 | 6000 | |||
Open Circuit Flow Output Of Standard Simmons Cone Crusher t/h
ts | The cavity type | the production capacity of the corresponding exhaust outlet t/h | ||||||||||||||
6 | 9 | 13 | 16 | 19 | 22 | 25 | 31 | |||||||||
PYS-B0607 PYS-B0609 PYS-B0610 | Fine type Thick type Tough type | 16 | 18 18 | 23 23 23 | 27 27 27 | 32 32 36 | 36 41 45 | 41 45 50 | 45 54 63 | |||||||
PYS-B0910 PYS-B0917 PYS-B0918 | Fine type Thick type Tough type | 45 | 59 59 | 72 72 | 81 91 | 91 109 | 118 118 | 136 136 | ||||||||
PYS-B1213 PYS-B1215 PYS-B1219 PYS-B1225 | Fine type medium-sized Thick type Tough type | 63 | 91 100 | 109 118 | 127 136 141 | 141 145 154 | 154 163 181 190 | 168 181 200 209 | ||||||||
PYS-B1313 PYS-B1321 PYS-B1324 PYS-B1325 | Fine type medium-sized Thick type Tough type | 109 | 127 132 | 145 159 172 | 154 172 195 | 163 200 218 236 | 181 227 249 276 | |||||||||
PYS-B1620 PYS-B1624 PYS-B1626 PYS-B1636 | Fine type medium-sized Thick type Tough type | 181 | 204 | 227 258 | 258 290 299 | 295 336 354 | ||||||||||
PYS-B2127 PYS-B2133 PYS-B2136 PYS-B2146 | Fine type medium-sized Thick type Tough type | 381 | 408 | 499 608 | 617 726 789 | |||||||||||
PYS-BC2127 PYS-BC2133 PYS-BC2136 PYS-BC2146 | Fine type medium-sized Thick type Tough type | 544 | 580 | 712 862 | 880 1034 1125 | |||||||||||
Performance Parameters Of Closed Flow Of Standard Symons Cone Crusher
ts | The cavity type | Recommended minimum drain outlet mm | Diameter of the large end of the crushing cone | main motor | ||||
power kw | speed r/min | voltage v | ||||||
PYS-B0607 PYS-B0609 PYS-B0610 | Fine type Thick type Tough type | 6 9 13 | 600 | 22 | 985 | 380 | ||
PYS-B0910 PYS-B0917 PYS-B0918 | Fine type Thick type Tough type | 9 13 25 | 900 | 75 | 985 | 380 | ||
PYS-B1213 PYS-B1215 PYS-B1219 PYS-B1225 | Fine type medium-sized Thick type Tough type | 9 13 19 25 | 1200 | 110 | 985 | 380 | ||
PYS-B1313 PYS-B1321 PYS-B1324 PYS-B1325 | Fine type medium-sized Thick type Tough type | 13 16 19 25 | 1295 | 155 | 980 | 380 | ||
PYS-B1620 PYS-B1624 PYS-B1626 PYS-B1636 | Fine type medium-sized Thick type Tough type | 15 22 25 38 | 1676 | 220 | 490 | 6000 | ||
PYS-B2127 PYS-B2133 PYS-B2136 PYS-B2146 | Fine type medium-sized Thick type Tough type | 19 25 31 38 | 2134 | 315 | 490 | 6000 | ||
Performance Parameter Table Of Circuit Process Of Short Symons Cone Crusher
specifications | The cavity type | Recommended minimum drain outlet mm | Feed port corresponding to the recommended minimum drain | Diameter of the large end of the crushing cone | MAIN MOTOR | ||||||
Close the mouth mm | Open edge mm | power kw | speed r/min | voltage v | |||||||
PYS-D0603 PYS-D0605 | Fine type Tough type | 3 5 | 19 38 | 35 51 | 600 | 22 | 985 | 380 | |||
PYS-D0904 PYS-D0906 PYS-D0907 | Fine type Thick type Tough type | 3 3 6 | 13 33 51 | 41 60 76 | 900 | 75 | 985 | 380 | |||
PYS-D1205 PYS-D1207 PYS-D1208 PYS-D1211 | Fine type medium-sized Thick type Tough type | 5 8 13 16 | 29 44 56 89 | 57 73 89 117 | 1200 | 110 | 985 | 380 | |||
PYS-D1306 PYS-D1308 PYS-D1310 PYS-D1313 | Fine type medium-sized Thick type Tough type | 3 6 8 16 | 29 54 70 98 | 64 89 105 133 | 1295 | 155 | 980 | 380 | |||
PYS-D1607 PYS-D1608 PYS-D1613 PYS-D1614 | Fine type medium-sized Thick type Tough type | 5 6 10 13 | 35 54 98 117 | 70 89 133 133 | 1679 | 220 | 490 | 6000 | |||
PYS-D2110 PYS-D2113 PYS-D2117 PYS-D2120 | Fine type medium-sized Thick type Tough type | 5 10 13 16 | 51 95 127 152 | 105 133 178 203 | 2134 | 315 | 490 | 6000 | |||
PYS-DC2110 PYS-DC2113 PYS-DC2117 PYS-DC2120 | Fine type medium-sized Thick type Tough type | 5 10 13 16 | 51 95 127 152 | 105 133 178 203 | 2134 | 400 | 490 | 6000 | |||
Performance Parameter Table Of Closed Circuit Flow Of Shot Head Symons Cone Crusher t/h
specifications | The cavity type | Recommended minimum drain outlet mm | Feed port corresponding to the recommended minimum drain | ||
Close the mouth mm | Open edge mm | ||||
PYS-D0603 PYS-D0605 | Fine type Thick type | 3 5 | 19 38 | 35 51 | |
PYS-D0904 PYS-D0906 PYS-D0907 | Fine type medium -sized Thick type | 3 3 6 | 13 33 51 | 41 60 76 | |
PYS-D1205 PYS-D1207 PYS-D1208 PYS-D1211 | Fine type medium-sized Thick type Tough type | 5 8 13 16 | 29 44 56 89 | 57 73 89 117 | |
PYS-D1306 PYS-D1308 PYS-D1310 PYS-D1313 | Fine type medium-sized Thick type Tough type | 3 6 8 16 | 29 54 70 98 | 64 89 105 133 | |
PYS-D1607 PYS-D1608 PYS-D1613 PYS-D1614 | Fine type medium-sized Thick type Tough type | 5 6 10 13 | 35 54 98 117 | 70 89 133 133 | |
PYS-D2110 PYS-D2113 PYS-D2117 PYS-D2120 | Fine type medium-sized Thick type Tough type | 5 10 13 16 | 51 95 127 152 | 105 133 178 203 | |
PYS-DC2110 PYS-DC2113 PYS-DC2117 PYS-DC2120 | Fine type medium-sized Thick type Tough type | ditoo | ditoo | ditoo | |

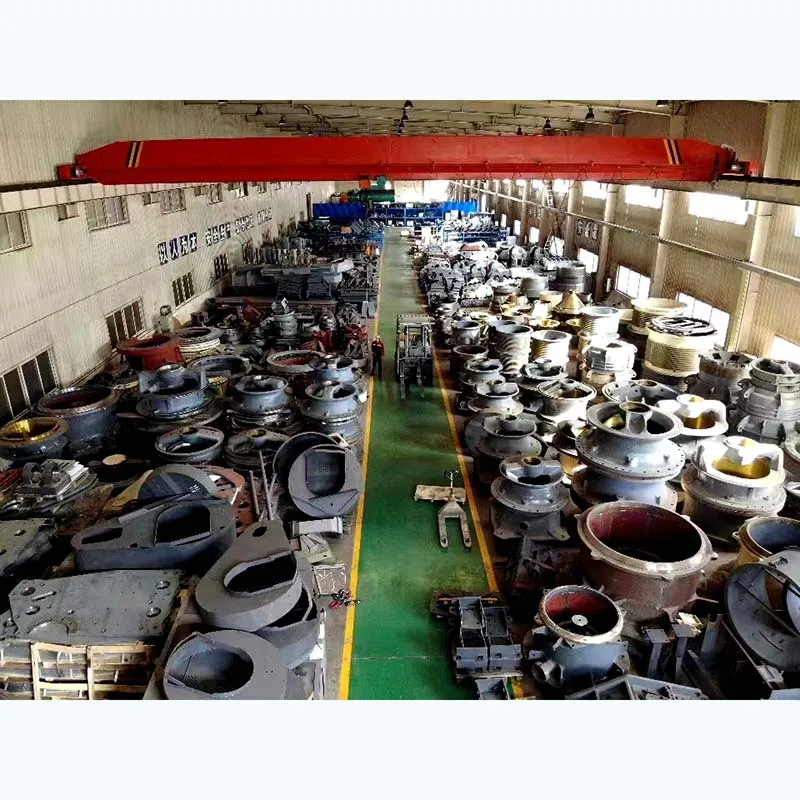

Company Profile
Shenyang Heavy Machinery Group has produced China's first crusher since 1951 for 40 years, 40 years for the development of China's
national economy, and foreign aid, export has provided various forms, specifications of the crusher more than 4000 sets. Our
company is the leading factory of crusher design and manufacture, in the past 40 years from small to large, from single variety to
foreign advanced technology; has become the design, manufacture, varieties and specifications and most advanced technology in
China; is also one of the manufacturers with the most complete varieties and specifications in the world; is a hundred garden of
crusher.
In this hundred garden:
After several updates and won the national silver medal award of 12 specifications of complex, simple pendulum E type crusher
series.
After years of test, research and development, advanced and reliable and won the national Science and Technology Progress Award of
14 specifications of light and heavy hydraulic rotary crusher series.
There is the introduction of the United States FULLER world famous brand "TRAYLOR" the world's largest 72-90,60-110 and other five
specifications of hydraulic rotary crusher series.
After many improvements, the production of the largest batch of spring insurance, hydraulic adjustment of the 15 specifications of
the cone crusher series.
There are 12 specifications single cylinder hydraulic cone crusher series developed by itself, imitating the United States A-C and
won the National Science and Technology Conference award.
There are the introduction of American Nordberg global reputation "Symons" 25 specifications of spring insurance, hydraulic
adjustment cone crusher series.
There is the introduction of the United States Nordberg newly developed 12 specifications of rotary disk crusher series.
There are self-developed high efficiency of 5 specifications counterattack crusher series.
There are continuously improved, structurally advanced spring or hydraulic adjustment of the five gauge roller crusher series.
There are years of continuous improvement of advanced and reliable crushing coal, limestone and other 20 specifications of hammer
crusher series.
There are imitation beauty PC advanced, efficient 10 specifications of the ring coal crusher series.
In addition to providing the above various types and specifications of the crusher, the company can also timely design and
manufacture a variety of non-standard crusher for users with special needs.
national economy, and foreign aid, export has provided various forms, specifications of the crusher more than 4000 sets. Our
company is the leading factory of crusher design and manufacture, in the past 40 years from small to large, from single variety to
foreign advanced technology; has become the design, manufacture, varieties and specifications and most advanced technology in
China; is also one of the manufacturers with the most complete varieties and specifications in the world; is a hundred garden of
crusher.
In this hundred garden:
After several updates and won the national silver medal award of 12 specifications of complex, simple pendulum E type crusher
series.
After years of test, research and development, advanced and reliable and won the national Science and Technology Progress Award of
14 specifications of light and heavy hydraulic rotary crusher series.
There is the introduction of the United States FULLER world famous brand "TRAYLOR" the world's largest 72-90,60-110 and other five
specifications of hydraulic rotary crusher series.
After many improvements, the production of the largest batch of spring insurance, hydraulic adjustment of the 15 specifications of
the cone crusher series.
There are 12 specifications single cylinder hydraulic cone crusher series developed by itself, imitating the United States A-C and
won the National Science and Technology Conference award.
There are the introduction of American Nordberg global reputation "Symons" 25 specifications of spring insurance, hydraulic
adjustment cone crusher series.
There is the introduction of the United States Nordberg newly developed 12 specifications of rotary disk crusher series.
There are self-developed high efficiency of 5 specifications counterattack crusher series.
There are continuously improved, structurally advanced spring or hydraulic adjustment of the five gauge roller crusher series.
There are years of continuous improvement of advanced and reliable crushing coal, limestone and other 20 specifications of hammer
crusher series.
There are imitation beauty PC advanced, efficient 10 specifications of the ring coal crusher series.
In addition to providing the above various types and specifications of the crusher, the company can also timely design and
manufacture a variety of non-standard crusher for users with special needs.
Our company has nearly 50 years of manufacturing cone crusher history, is the leading enterprise in the production of cone crusher in China. In the past 40 years, our company has provided more than 1500 cone crushers for domestic and foreign users.

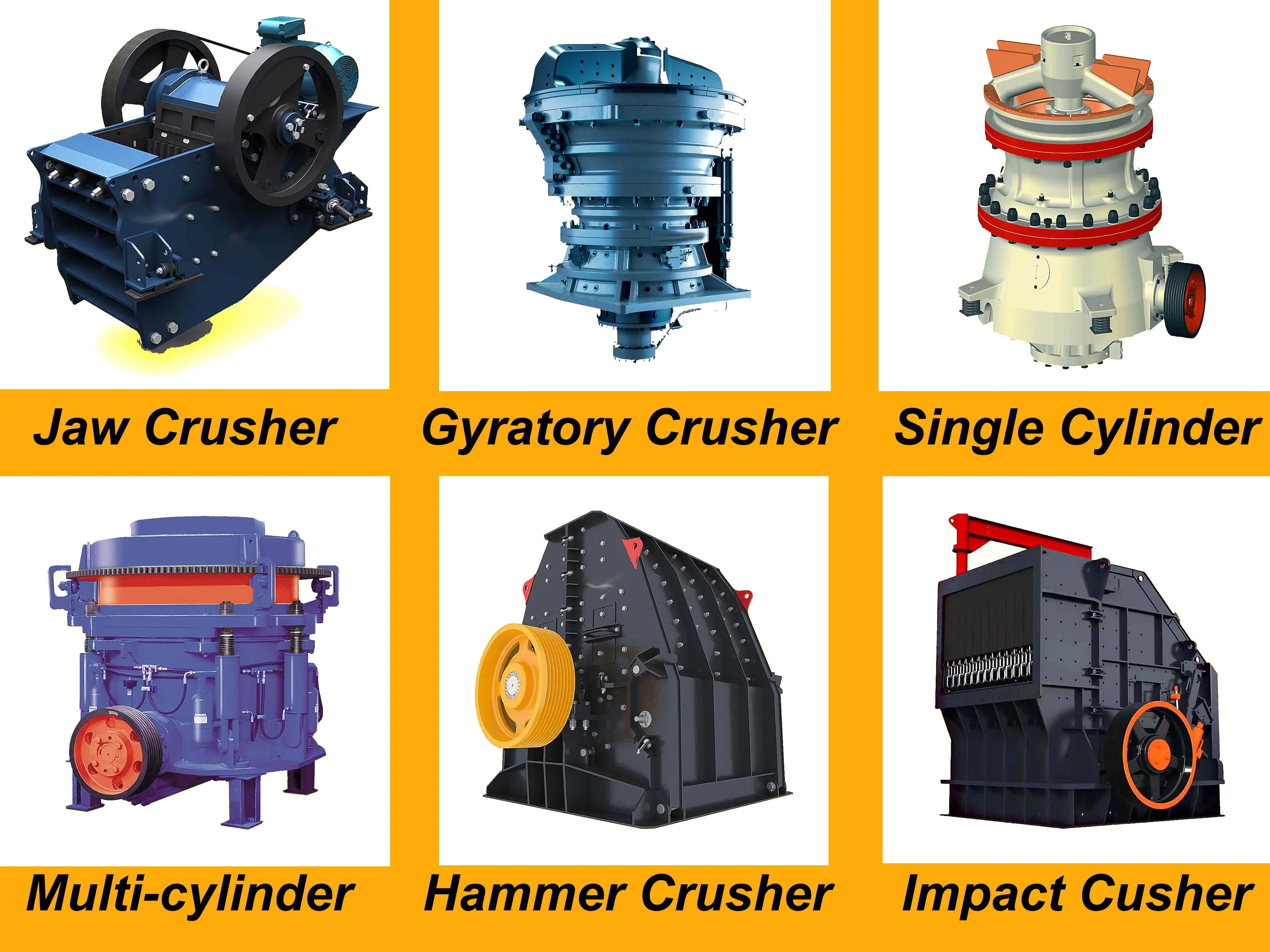

Our Advantages
Single cylinder hydraulic cone crusher
Ring cone crusher
Multi cylinder hydraulic cone crusher
Symons cone crusher
The cone crusher designed by our company has three model series, each series has five specifications, and each specification has three kinds of crushing chamber types, such as standard type, medium type and short head type, which can meet the needs of different users, different crushing processes and fine crushing operations.
Recommend Products
Solution 1
Solution 2
Ring cone crusher
Jaw crusher
Multi-sylinder hydraulic cone crusher
Single cylinder hydraulic cone crusher
Ball mill
Coal mill
Heavy plate feeder
.
Oscillating screen

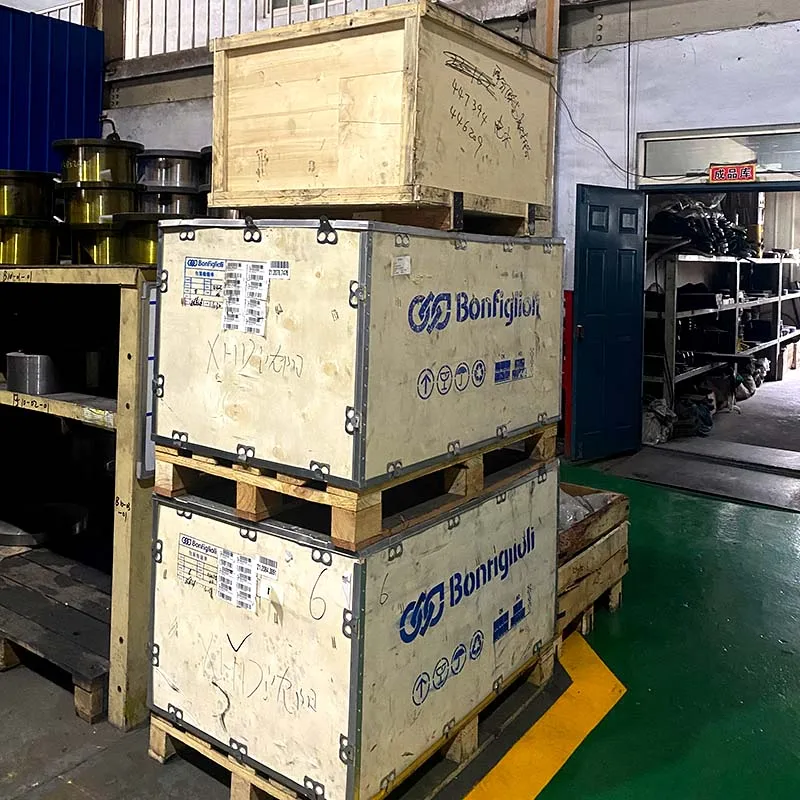

Product packaging
Certifications
FAQ
How to install?
We will provide a detailed installation process diagram, or feel free to ask our service personnel
If you would like us to recommend products to you, please provide the following information:
Broken material
Maximum material size (mm)
Desired output size
Maximum material size (mm)
Desired output size
Warranty period, whether to provide relevant accessories?
The warranty period of the machine is one year, and we will provide the relevant accessories at the best price
