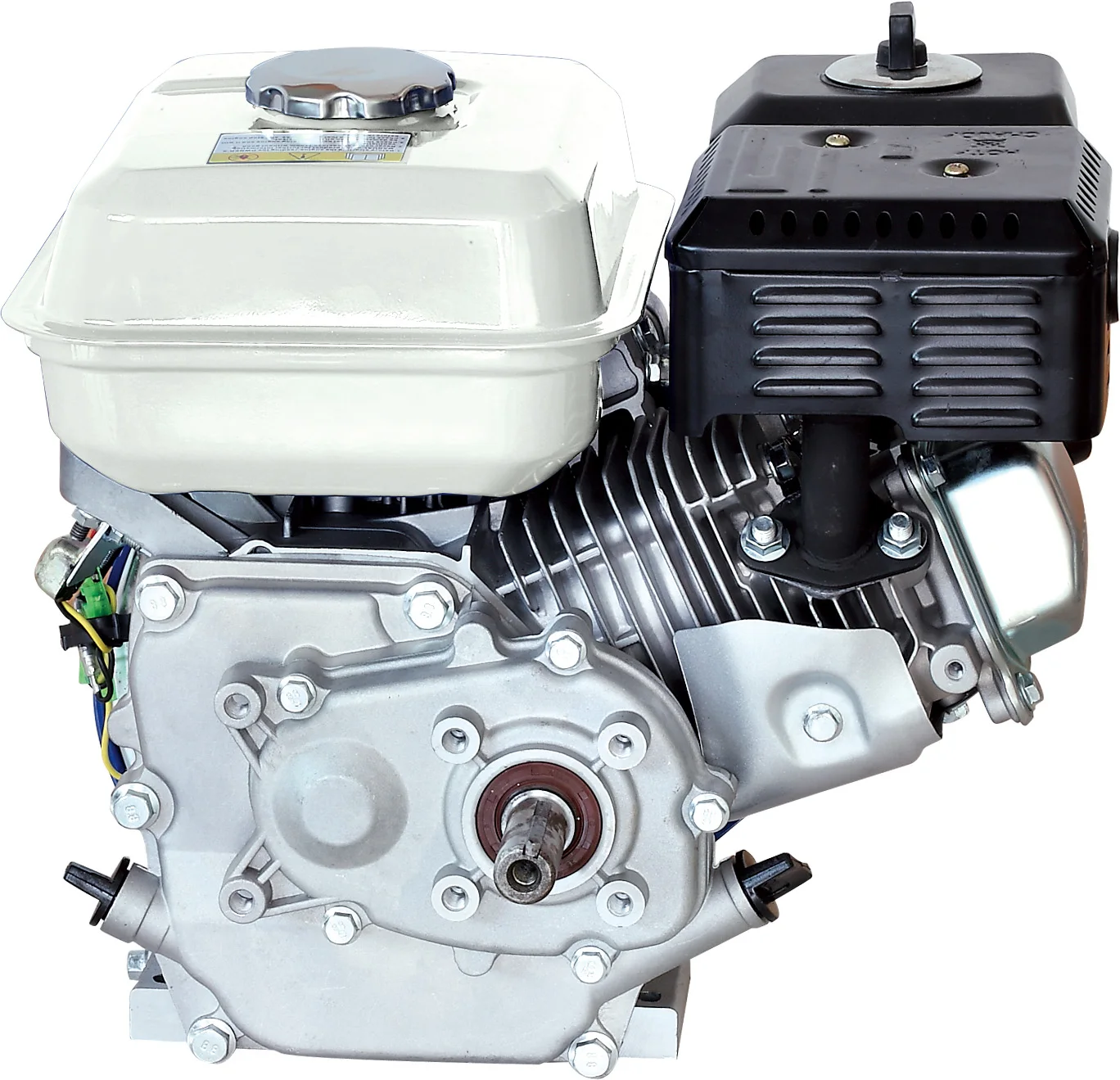

EZONE EZ 154F Horizontal 4 Stroke Single Cylinder Mini Small Petrol Gas Gasoline Engines Engine
- Category: >>>
- Supplier: Taizhou Ezone Pump Industry Co. Ltd.Taizhou Ltd.
Share on (1601044842662):
Product Overview
Description
Product Parameters
FEATURES:
6.5HP EZ-168FC-1 engine.We continuously improve the design of cylinder, air-cleaner, muffer and fuel tank to make this product to
fit any purpose. Our advanced transistor magnet ignition system make it very easy to start the engine. We reduce the environment
pollution to the lowest through the advanced design of muffler and air-cleaner To saticfy any of your repuirements. we can provide
you multiform design of same model.
fit any purpose. Our advanced transistor magnet ignition system make it very easy to start the engine. We reduce the environment
pollution to the lowest through the advanced design of muffler and air-cleaner To saticfy any of your repuirements. we can provide
you multiform design of same model.
Model | EZ-154F | EZ-156F | EZ-168F | EZ-168F-1 | |||
Max output | 2.5HP | 3HP | 5.5HP | 6.5HP | |||
Type | Forced air colling, 4-stroke, OHV, Single-cylinder, inclined by 25 degree | ||||||
Rated Power | 1.8KW/3600rpm | 2KW/3600rpm | 3.6KW/3600rpm | 4.1KW/3600rpm | |||
Max. Torque | 3.5N.m/2500rpm | 4.5N.m/2500rpm | 9.9N.m/2500rpm | 12.4N.m/2500rpm | |||
Fuel tank capacity | 1.6L | 3.6L | |||||
Fuel Consumption | ≤450g/KW.h | ≤420g/KW.h | ≤395g/KW.h | ≤395g/KW.h | |||
Oil capacity | 0.4L | 0.6L | |||||
Oil Consumption | ≤6.8g/KW.h | ||||||
Min. Stable Speed Unloaded | 3600rpm | ||||||
Reduction Ratio | 1:1 | ||||||
Bore x Stroke | 54x38 mm | 56x40 mm | 68x45 mm | 68x54 mm | |||
Displacement | 87cc | 99cc | 163cc | 196cc | |||
Compression Ratio | 7:1 | 8.5:1 | |||||
Starting System | Recoil Start | Recoil/Electric Start | |||||
Ignition System | Transisterized Magnto Ignition | ||||||

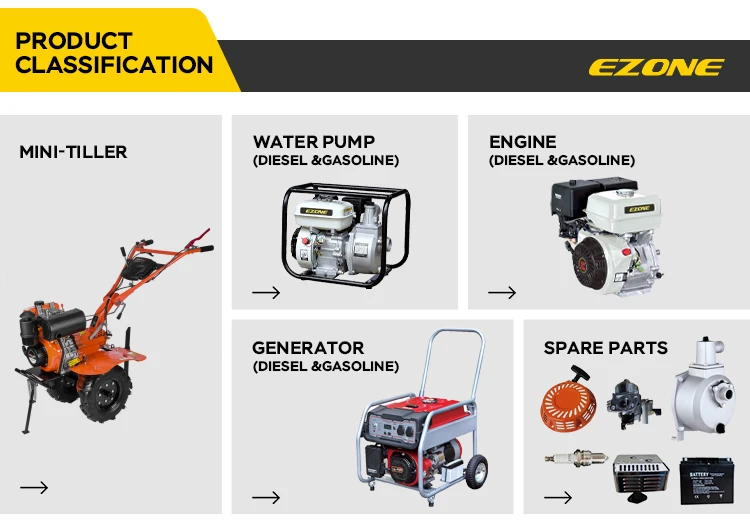

Product Classification
Company Information

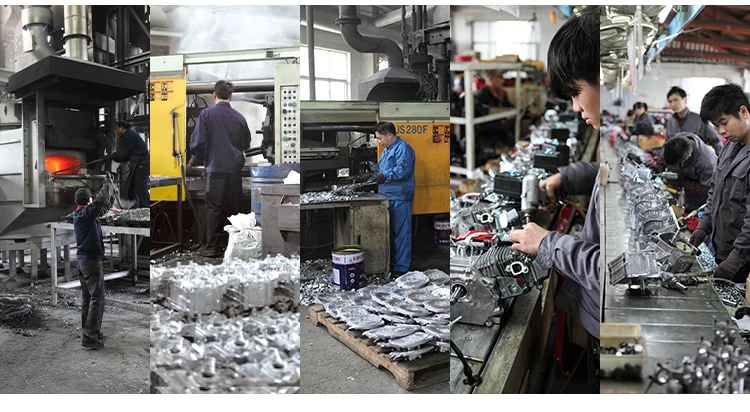

EZONE designs, manufactures and distributes products that are made from quality materials to meet high standards. Our range of products includes gasoline water pumps,electric pumps, cast iron pumps, gasoline engins, and gasoline generators.Since we have over 25 years experience for opening molds and making aluminum products, most spare parts included are produced by us, like pump body, crankcase,cylinder series and so on. Thanks to technical breakthrough and delicacy management, EZONE have undergone a steady and rapid growth. Besides the expanded workshop and increased number of employees, we control quality much more scientifically, through strictly checking our suppliers before choosing, inspection before warehousing, examination during assembly and test before package. Welcome to visit us! And wish to cooperate with you in future.

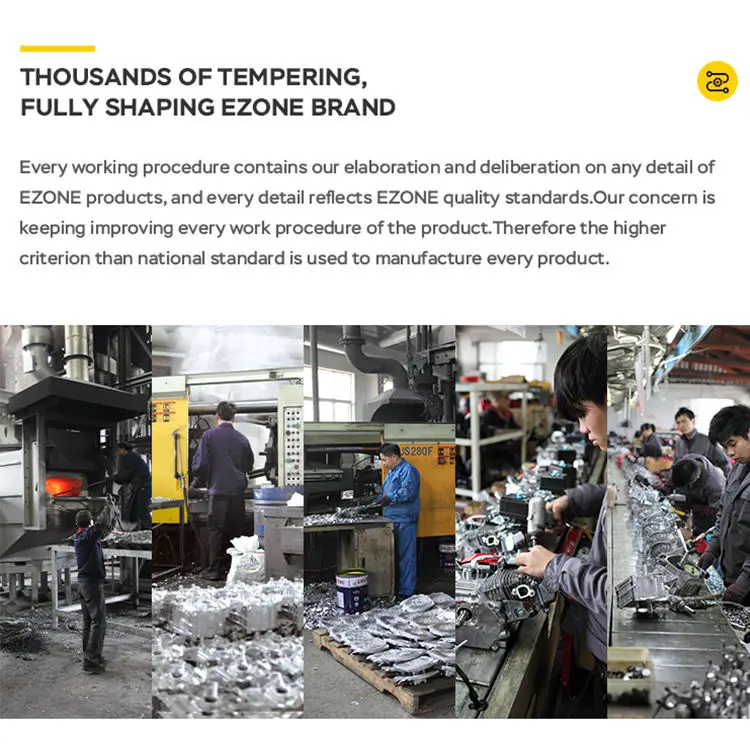

Every working procedure contains our elaboration and deliberation on any detail of EZONE products, and every detail reflects EZONE quality standards. Our concern is keeping improving every work procedure of the product. Therefore the higher criterion than national standard is used to manufacture every product.

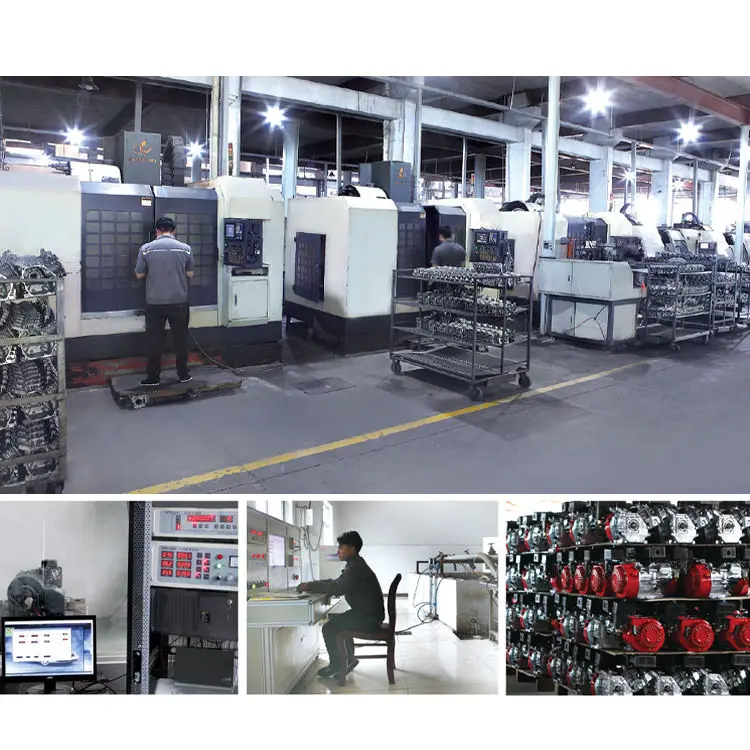

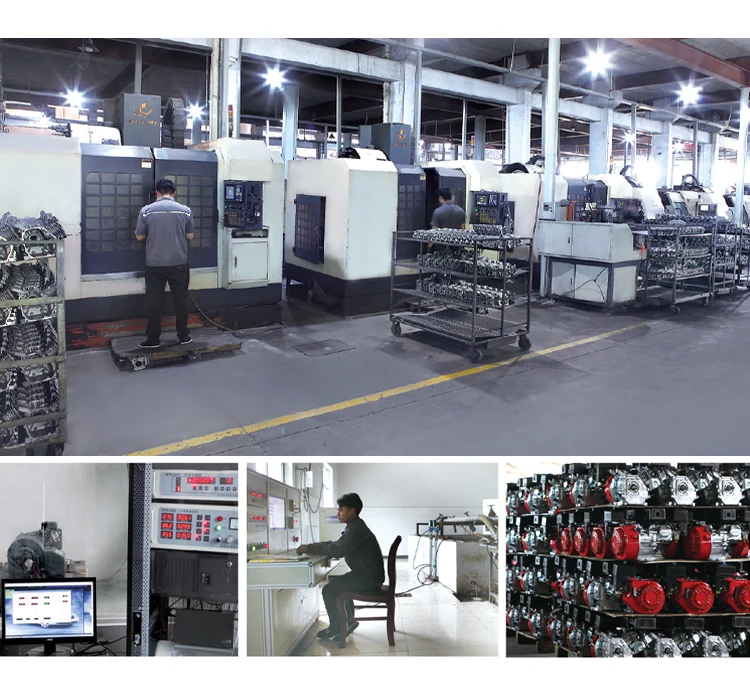

EZONE has established a complete quality tracking system to monitor the production status of each process, ensure the accuracy and systemization of data operations in the production process, and realize the monitoring and traceability of the inspection system. Our production facilities are equipped with sophisticated analytical instruments to meet customer requirements and meet the most stringent corporate standards. Our products have batch numbers and quality inspection reports, so that the quality inspection department can accurately track.
Certificate & Honour
Our Exhibition
Customer Reviews
FAQ
Q1. How to pay?
A: TT, WEST UNION, DP, DA, Credit card up to you
Q2. What is your term of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally, it will take 15-20 days after receiving your advance payment. Some is 25-30days.The specific delivery time depends on the items and the quantity of your order.
Q4. How to produce customized products?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. How to get a sample?
A: We can supply the sample if we have ready parts in stock.
Q6: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where
