Custom Waterproof 24v Smd5050 60Led 10mm 14.4W 100mm Cuttable RGB IP54 IP65 IP66 IP67 IP68 Silicone Enclosure Led Light Strip
- Category: >>>
- Supplier: Guangdong Metalux Led Limited
Share on (1601044879309):
Product Overview
Description
Products Description
SMD LED Strip Light
※High color consistency, 3 Step Macadam
※High CRI, Ra>90 / Ra>95
※1800K~6000K/Red/Green/Blue/Yellow/Amber/Pink/UV and other custom CCT available
※LM80 compatible, more than 50000 hours lifespan
※LM80 compatible, more than 50000 hours lifespan
※2mm ~ 30mm PCB width available
※Different LED density from 30leds/m to 720leds/m
※ Different power consumption from 2.4w/m to 30w/m
※ Different power consumption from 2.4w/m to 30w/m
※All of Materials Are Accord With RoHS & CE & EMC & ERP2.0 & REACH & FCC & ETL.
※As a manufacturer, we can customize different lengths, board width, voltage, power, color temperature and color rendering index according to customer requirements.
Metalux LED Limited SMD LED Strip Light Parameter | ||||||||
Part Number | YQ-S5N60V12/YQ-S5N60V24 | |||||||
Size ( Width * Height) | 10.0 x 1.6 mm | |||||||
LED Quantity | 60 LEDs/m | |||||||
PCB Width & Color | 10mm & White | |||||||

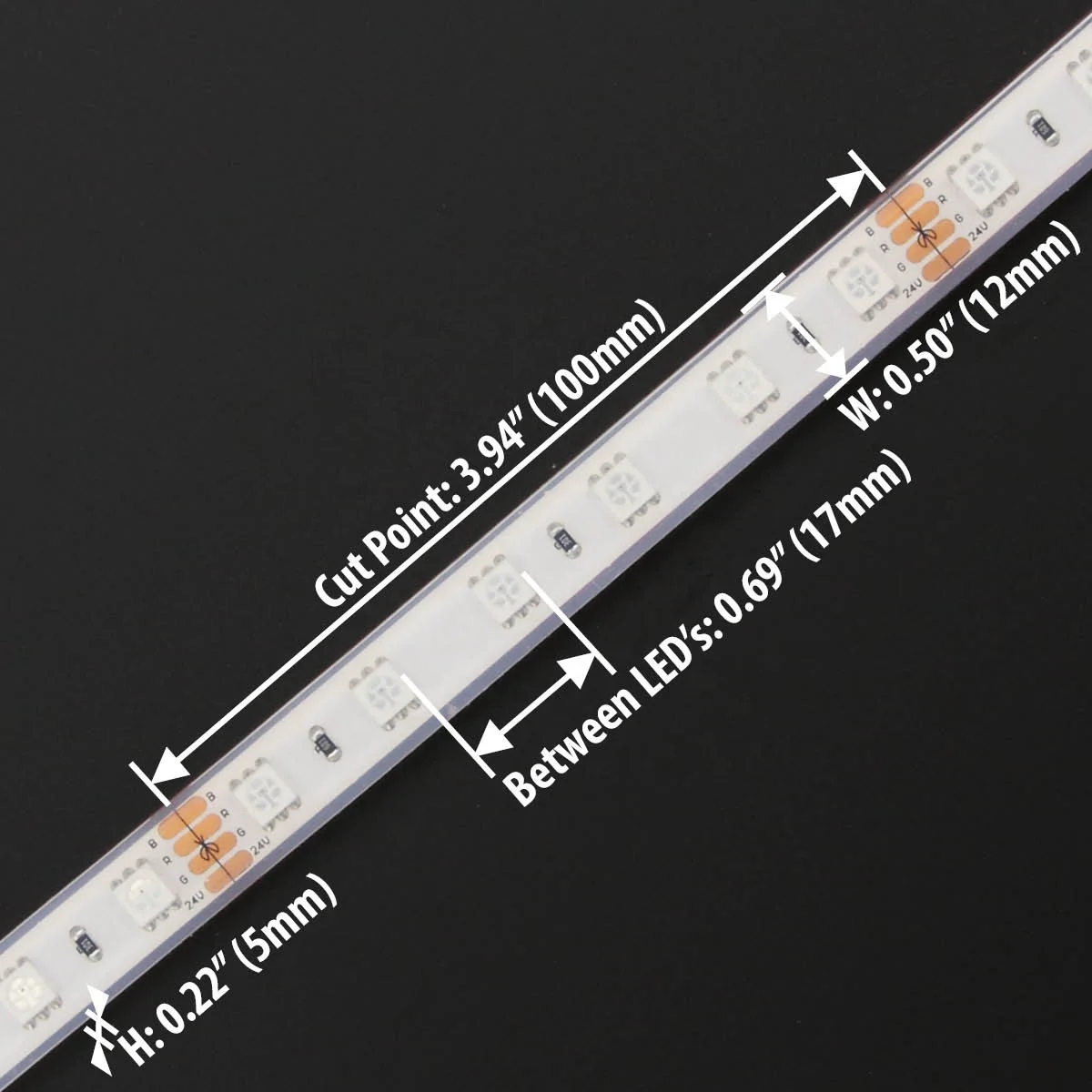

Cutting Step | 24V = 100mm/Cutting, 12V = 50mm/Cutting | |||||||
Input Voltage | DC12V & 24V | |||||||
Power | 14.4W/m | |||||||
IP Grade | IP20-non waterproof | |||||||
Operating Temperature & Beam Angle | -25 to 45 ℃ & 180 ° | |||||||
Cetification | CE & LVD & EMC & RoHS & REACH & ERP2.0 & FCC & ETL | |||||||
Max Length | 15m/pcs | |||||||
Package Bag Size | 5m = 167 x 170mm 10m = | |||||||
Package Carton MEAS | 5m= 10m = | |||||||
Gross Weight | 5m= 50 g 10m = | |||||||
What Are Single Color LED Strip Lights?
※Single color LED strip lights, also known as monochrome LED strip light strips, are a type of LED light that comes in the form of strip lights or tape lights and have the LEDs in a single color.
※Single color led strip lights produce an energy efficient,appealing, and long-lasting solution for under-cabinet lighting, patio/deck lighting, accent lighting, and more.
※Our single color led strip lights come in various colors, LED densities, lengths, PCB width, and weatherproof ratings to match any need indoors or outdoors.
※It enables users to produce the desired color without needing a particular controller or optics.
PRODUCT FEATURE
Single Color 2835
* Made by self-encapsulated 2835 Top LEDs with 99.99% pure gold wire.
* High density and high efficiency.
* Long lifetime of LED up to 54,000 hours.
* Generally use in cove lighting, architectural lights, backlight or decorative lighting etc.
* High density and high efficiency.
* Long lifetime of LED up to 54,000 hours.
* Generally use in cove lighting, architectural lights, backlight or decorative lighting etc.
Single Color 2016
* Made by self-encapsulated 2016 Top LEDs with 99.99% pure gold wire.
* Ultra slim PCB with only 5mm wide.
* High CRI >90/95.
* Low power consumption.
* Extremely narrow especially for furniture edge lighting in limited spaces and art lighting.
* Ultra slim PCB with only 5mm wide.
* High CRI >90/95.
* Low power consumption.
* Extremely narrow especially for furniture edge lighting in limited spaces and art lighting.
High CRI
Average CRI evaluation indicator.
FS CRI>98, as natural as sunshine
The color rendition is as natural as sunshine with the CRI>95 or full spectrum LEDs.
Color Temperature Customization
Color Options
SMD Flex strips are offered in metalux standard white outputs: 3000K Warm White, 4000K Naturall White and 6500K Pure White, up 8000K Cool White, RED, YELLOW, PINK, BULE, GREEN, ICE BLUE, ORANGE, AMBER etc.Temperature Color could also be Customization.
SDCM & Binning
Spectroscopic standard of Metalux LED Limited
Complies with international ANSI standard, Metalux divides every CCT into 2 or 3 bins, which is as
small as 2-step, to ensure customers to get the same color even for different orders.
Complies with international ANSI standard, Metalux divides every CCT into 2 or 3 bins, which is as
small as 2-step, to ensure customers to get the same color even for different orders.
SDCM <3, no visual difference between the same batch of products.
Customer-specific Bin management.
Always the same Bin for different batches.
One bin,3-step,No visual difference forever.
Always the same Bin for different batches.
One bin,3-step,No visual difference forever.

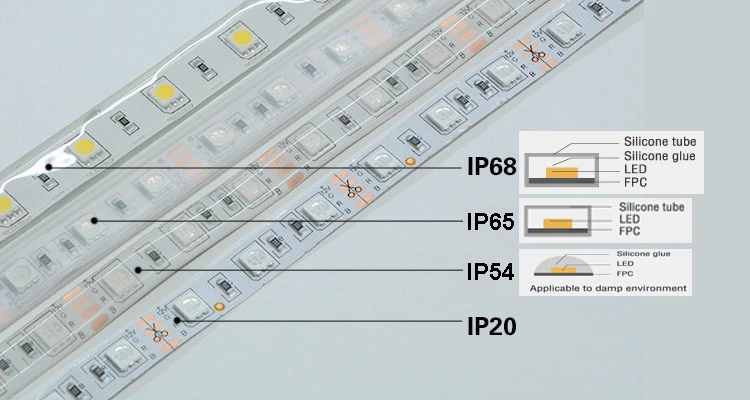

IP Process Technology & Certification
Adopt varieties IP process such as gel coating, silicone tube, NANO and integrated silicone extrusion,
reach IP20、IP55、IP65、IP67、IP68 protection grade and so on.
reach IP20、IP55、IP65、IP67、IP68 protection grade and so on.
Color Application Guidelines
Optimum Irradiated Articles. Optimum Irradiated Articles
Different color temperatures for different environments make it possible to choose appropriate light source as required.
Packaging & Delivery
Delivery Time
※ SMD LED Strip delivery time will be need 5-7days for normal order.
※ LED Module delivery time will be need 3-5days for normal order.
※ Aluminium Profile delivery time will be need 3-5days for normal order.
Remark: The delivery dates mentioned above are all in stock. For special products, please ask the customer service separately and serve you 24 hours a day.
FAQ
1.What is the main market for METALUNX Lighting?
We are selling more to EU and North America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new BENLED Lighting. We are also optimistic about the markets for other American and Asian regions.
2.Why Choose METALUX SMD LED Tape?
This tape is manufactured using the highest quality components available on the market for the price making it a professional and commercial grade product. METALUX LED SMD Tapes carry a typical lifespan of 25000 Hours and come
complete with a 3-year guarantee to ensure superior quality and continued high performance.
complete with a 3-year guarantee to ensure superior quality and continued high performance.
3.Can you cut SMD LED strips?
How to cut led light strips? To cut the SMD strip, you only need a pair of scissors. Of course, use a ruler to measure the length you need before cutting it. The PCB board of the light strip has clearly marked the places that can be cut, and it can be cut along these lines.
4.Who can I contact for help or if I have any questions about SMD Smart?
To learn more about reducing the challenges and costs associated with coordination of benefits, contact our Sales representative or email: info@metalux-led.com
