DMX512 RGB LED tube with addressable 5050RGB3D racehorse flow pixel tube club bar lighting atmosphere LED tube

Product Overview

Description

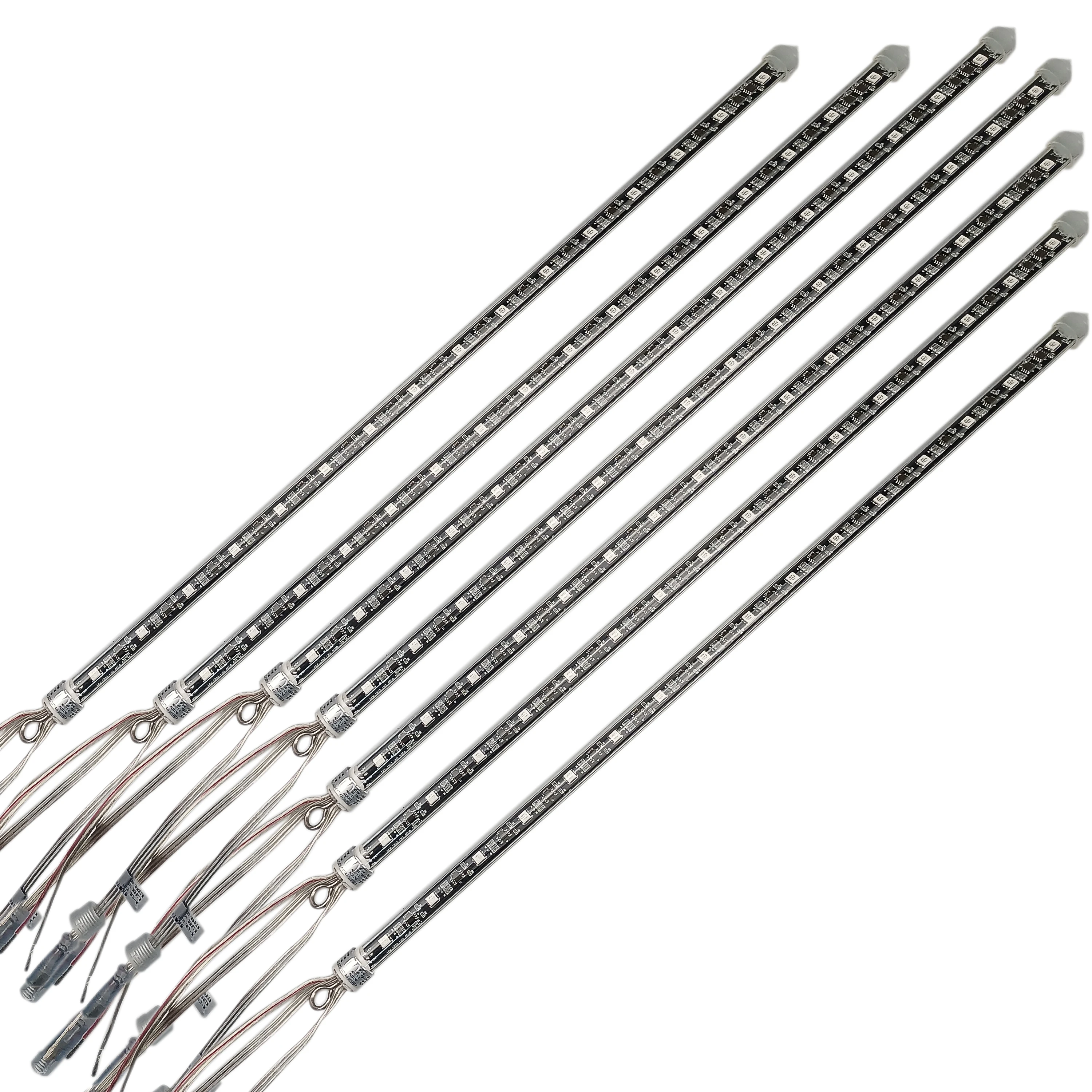

3D LED ceiling light vertical tubes ,DMX 3D Tube, Madrix Compatible



Features

1. Working with DMX512 protocol directly, stable working performance and changing smoothly.

2. Built-in regulator circuit, can better to protect the IC and extend the using time.

3.Wonderful perfomance operated by Madrix software

4. Double-sided light effects can be seen from 360 degree, Transparent tube make the light much clear and pure.

5.Environment friendly, no harsh glare and buzzing noise, no flicker.

6.Parallel DMX signal , avoiding all lights influenced by the failure of one light in serial connection.

7. Waterproof, energy-saving, low-cost of maintenance, and long life span.

8. Length: 0.5M, 1M, 1.5M,2M or customized



Parameters



Model	HD-10032-DMX	HD-10064-DMX	HD-10096-DMX	HD-100128-DMX
Products name	3D DMX LED Vertical Tube Light
Hosing Size	D30*L500mm	D30*L1000m	D30*L1500mm	D30*L2000mm
Housing material	Transparent PC
LED	RGB SMD5050
LED QTY	32PCS	64PCS	96PCS	128PCS
Pixel	8pixel	16pixel	24pixel	32pixel
Beam Angle	360 degree
Input Voltage	DC 5V/12V/24V
Max Power	8W	16W	24W	32W
Protocol	DMX512
Control Mode	DMX/DVI/ARTNET
Adress Setting	Manully
Universe	20 tube one DMX universe	10tube one DMX universe	7 tube one DMX universe	5 tube one DMX universe
Protection	IP65/20	IP65/20	IP65/20	IP65/20
Operting Temperature	-20°C--+60°C
Storage Temperature	-40°C--+60°C
Weight	0.122kg/pcs	0.244kg/pcs	0.345kg/pcs	0.467kg/pc





Trade terms



1.Payment methods:T/T,Western Union,paypal.
2.Lead time;3-5 working days for samples order,bulk order according to your quantity.
3.Delivery ways:DHL,EMS,UPS,FedEx door to door service,by sea, air and etc
4.MOQ:no MOQ for the first order
5.Sample free:the sample fees will returned after you place the large order.
