Cab:  flat-head all-metal enclosed cab, double-row seat, four-door, panoramic curved windshield,

Tank:   It is made of high-quality carbon steel material, welded structure, vertical and horizontal anti-rolling plate, and treated with high-tech anti-corrosion. Stainless steel is available.

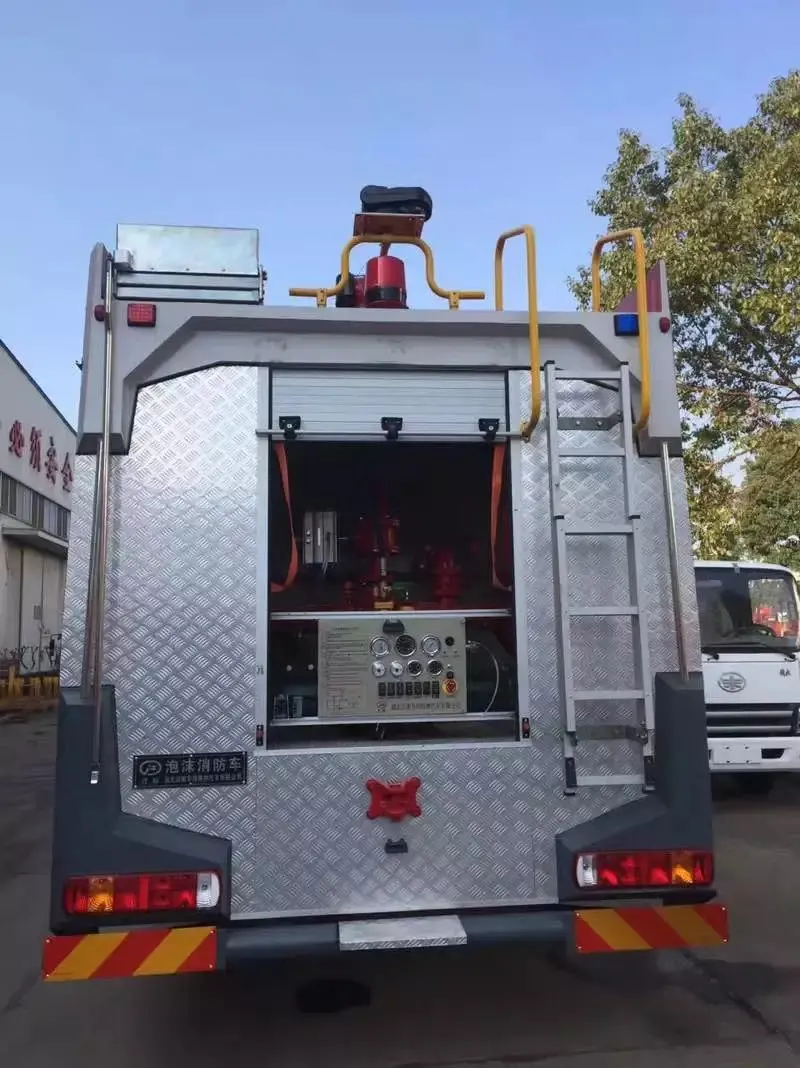

Pump room:  medium or rear pump, left and right sides of the pump room, and left and right sides of the equipment box have new high-strength aluminum alloy rolling shutter doors.

Material box:  Made of aluminum alloy profile built in European technology, built-in tower technology, fully spliced structure.

Electrical configuration:  the front end of the cab is a long row of police lights, and the rear of the car is equipped with 24V, 60W fire field lights. The sides of the vehicle are equipped with red and blue matching strobe lights, and the safety sign lights are installed below, the passenger compartment. The equipment box and the pump room are equipped with lighting lamps, and 100W alarms, rotary warning light switches and communication equipment preparation interfaces are installed.

Tank capacity:15000l

Tank volume: tank volume: 12000L, foam tank volume: 300L

Firearm: Water range: ≥60m; foam range ≥50m

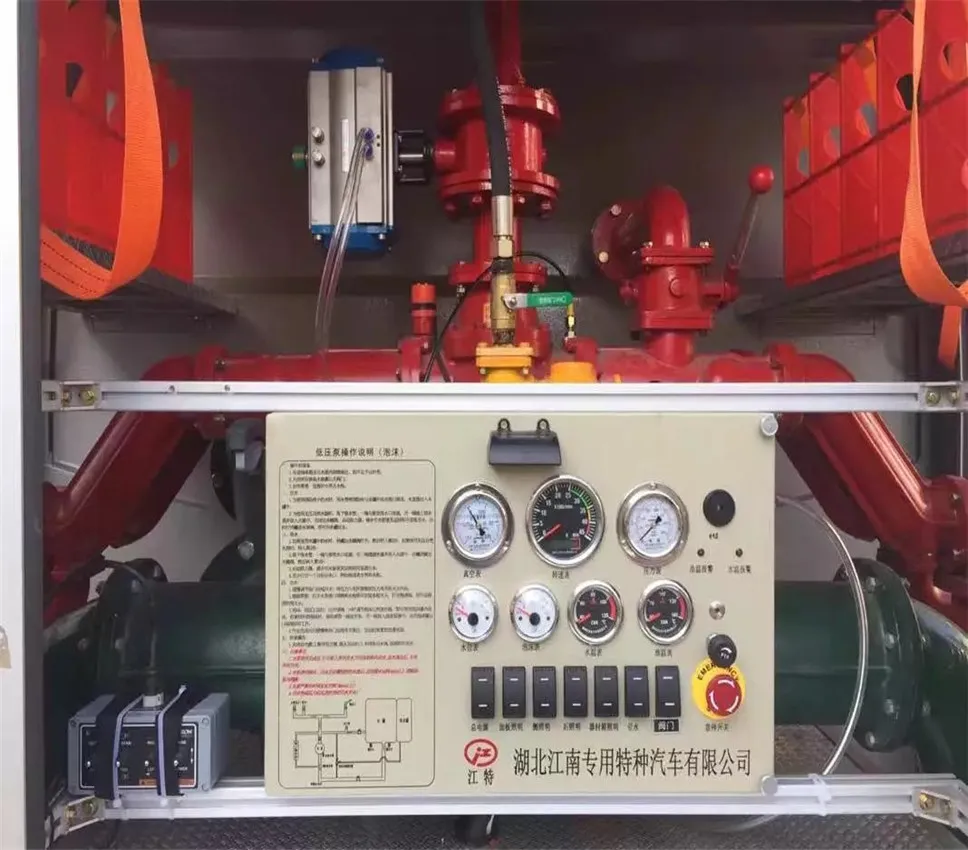

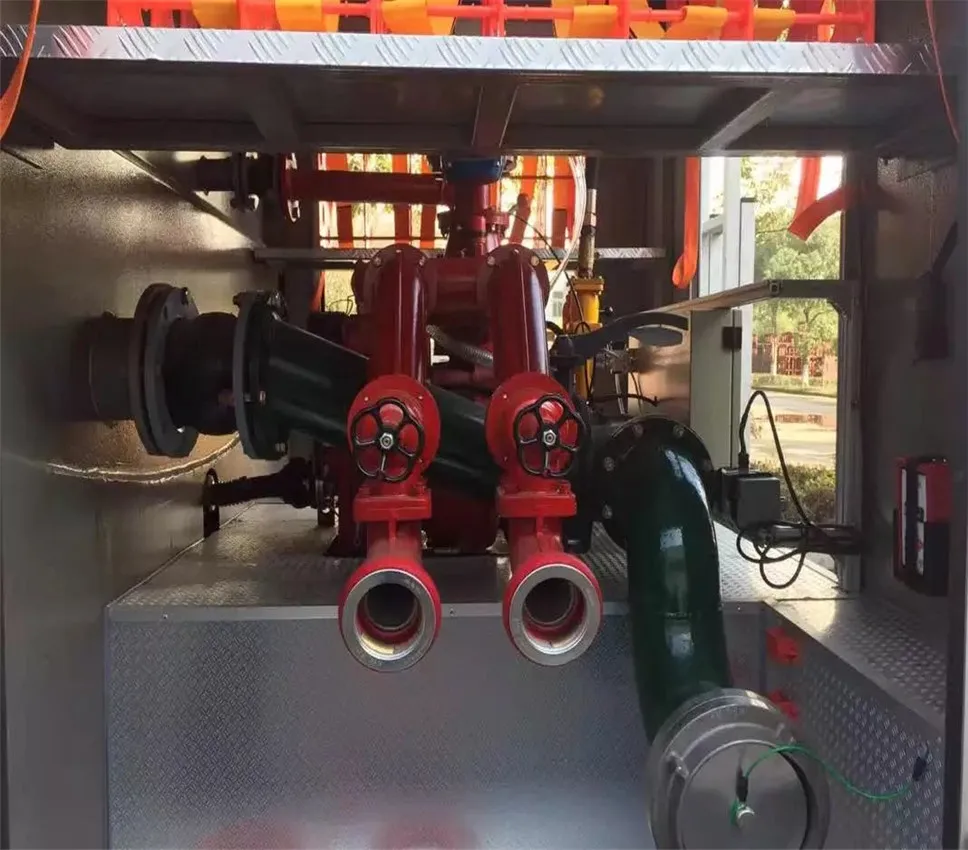

Fire pump: CB10/60 type

Rated flow rate: 60L/s/1.0MPa

Tank

water capacity: 15000L

Dedicated section:

Tank, pump room, equipment boxes, power output and transmission systems, piping systems, electrical systems and other components. .

Tank form is built-in form,

Materials using high-quality carbon steel (Q235A), sheet thickness 5 mm,

Carbon steel tank by high-tech anti-corrosion treatment, durable;

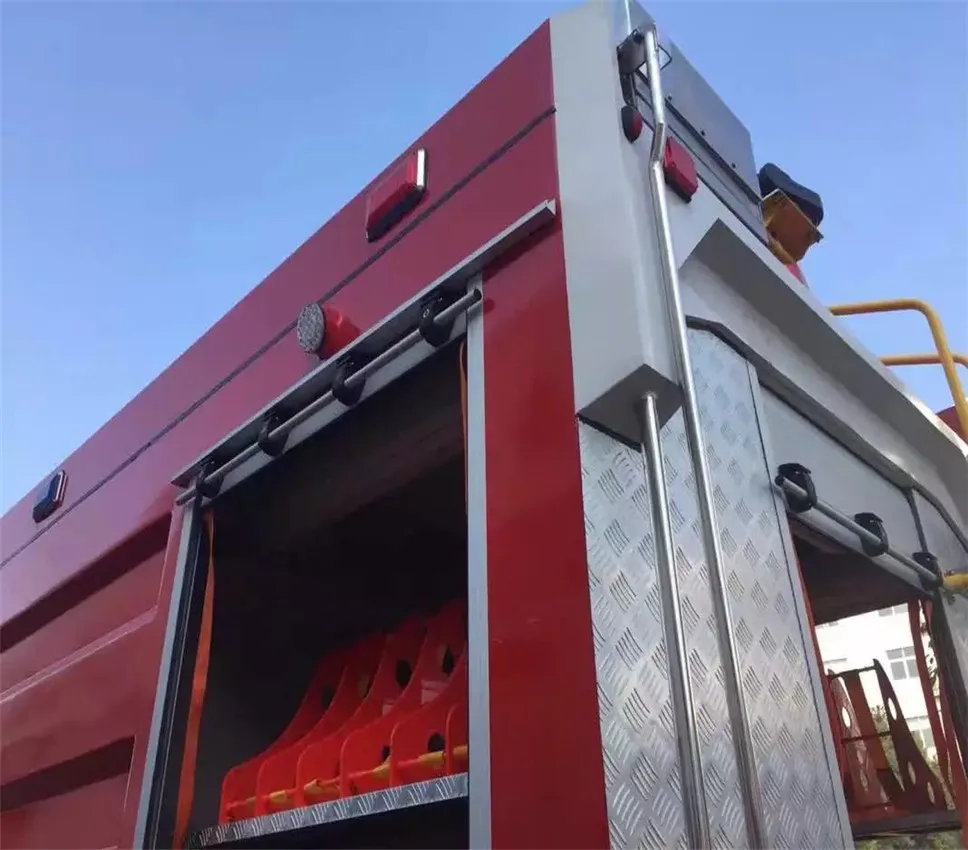

Equipment compartment doors using aluminum curtain doors, rollers, chute guide, opening and closing light, noise;

Equipment compartment on both sides and rear flap type pedal, the gas spring, the door stopper limit device double fixed, safe and reliable performance;

Cab installation control lights, 100W siren, LED lights, lights, lights and rear lights switch indicator, etc.
