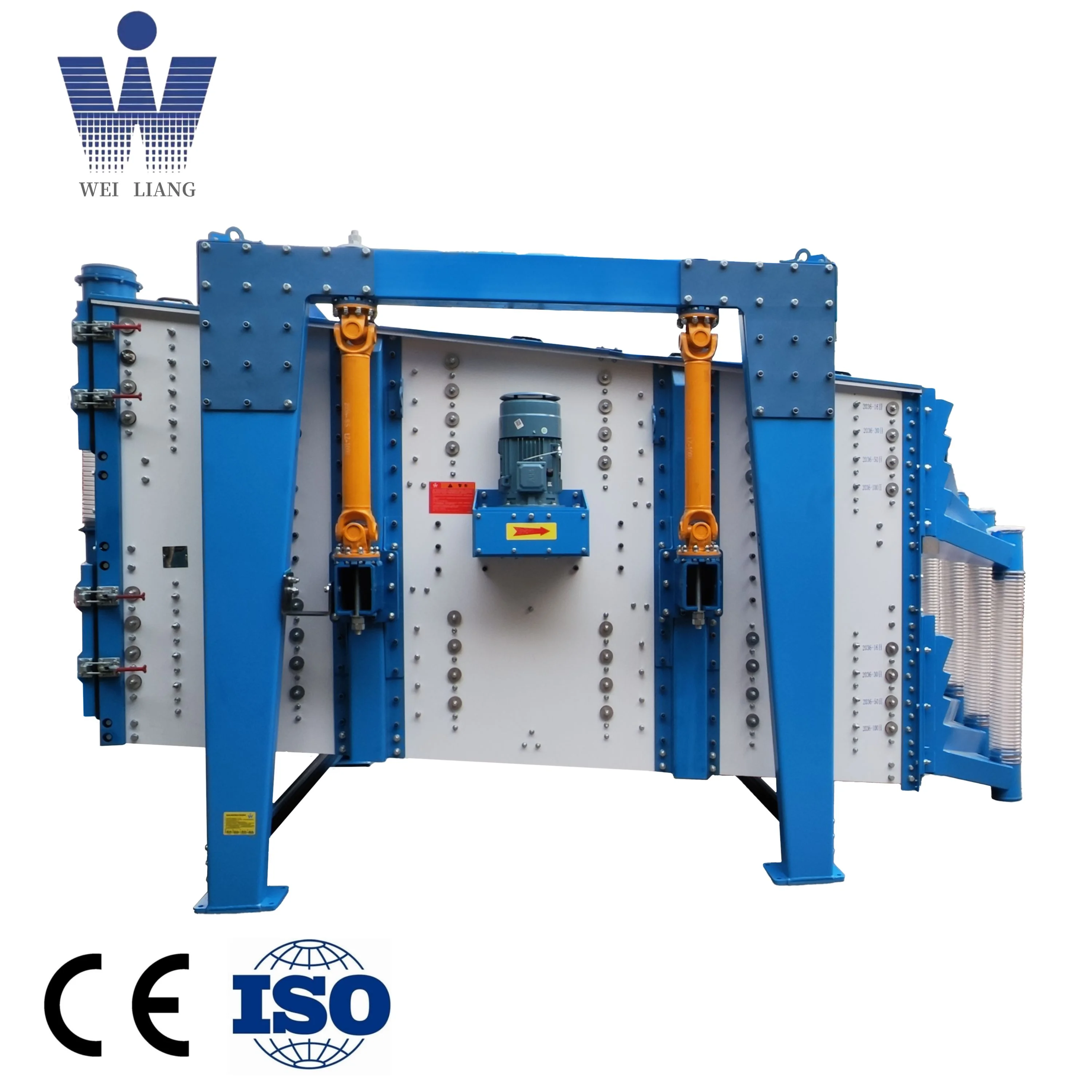

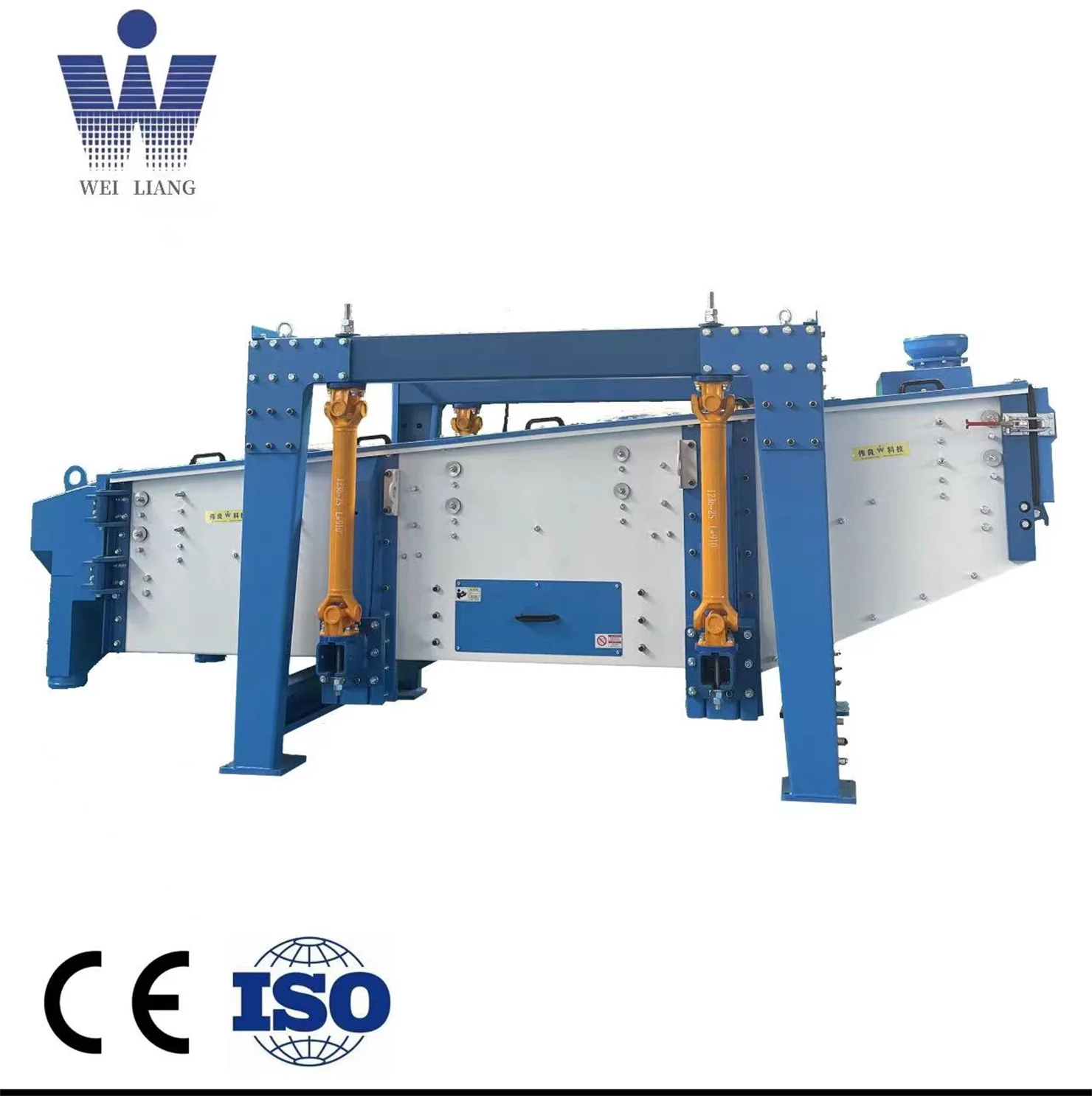

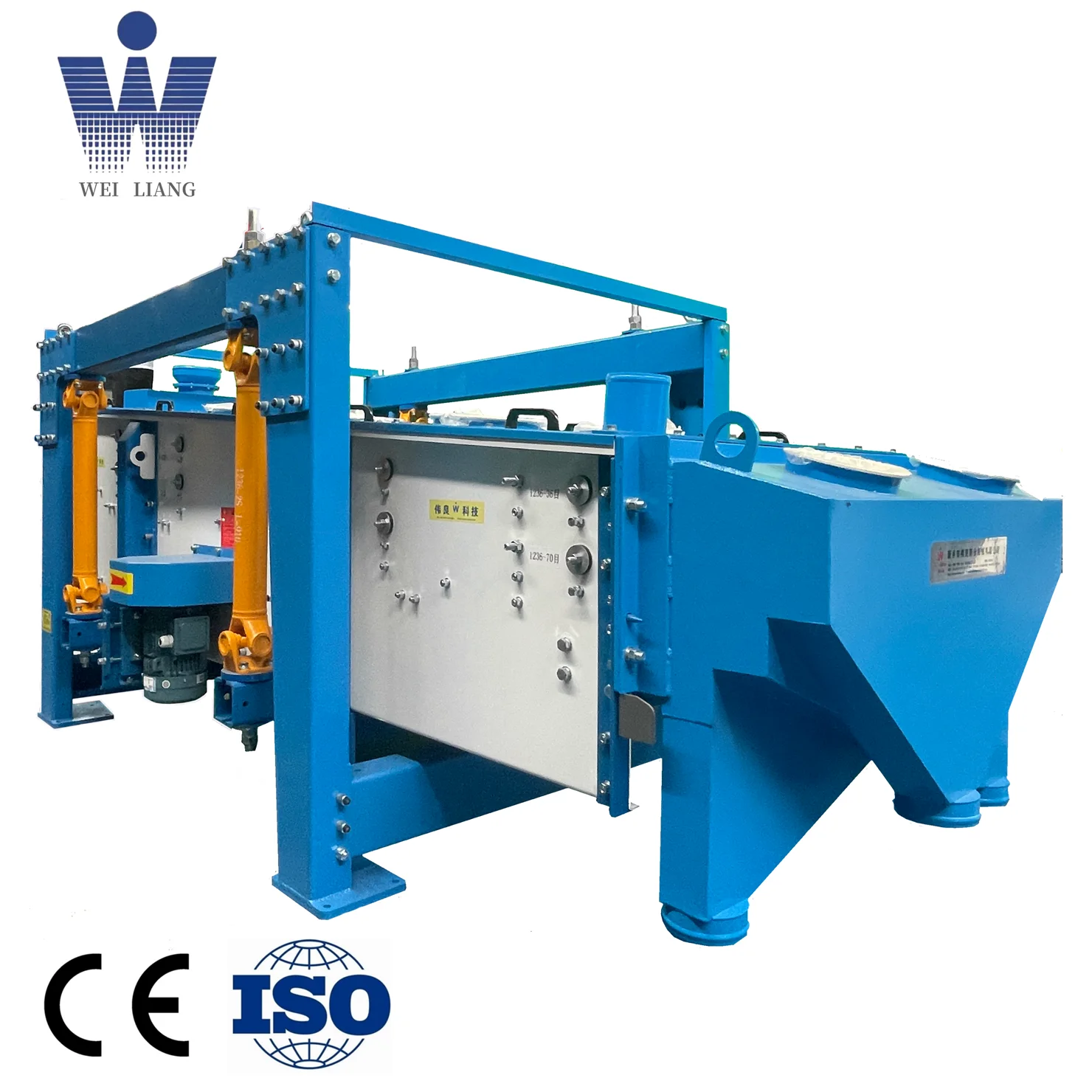

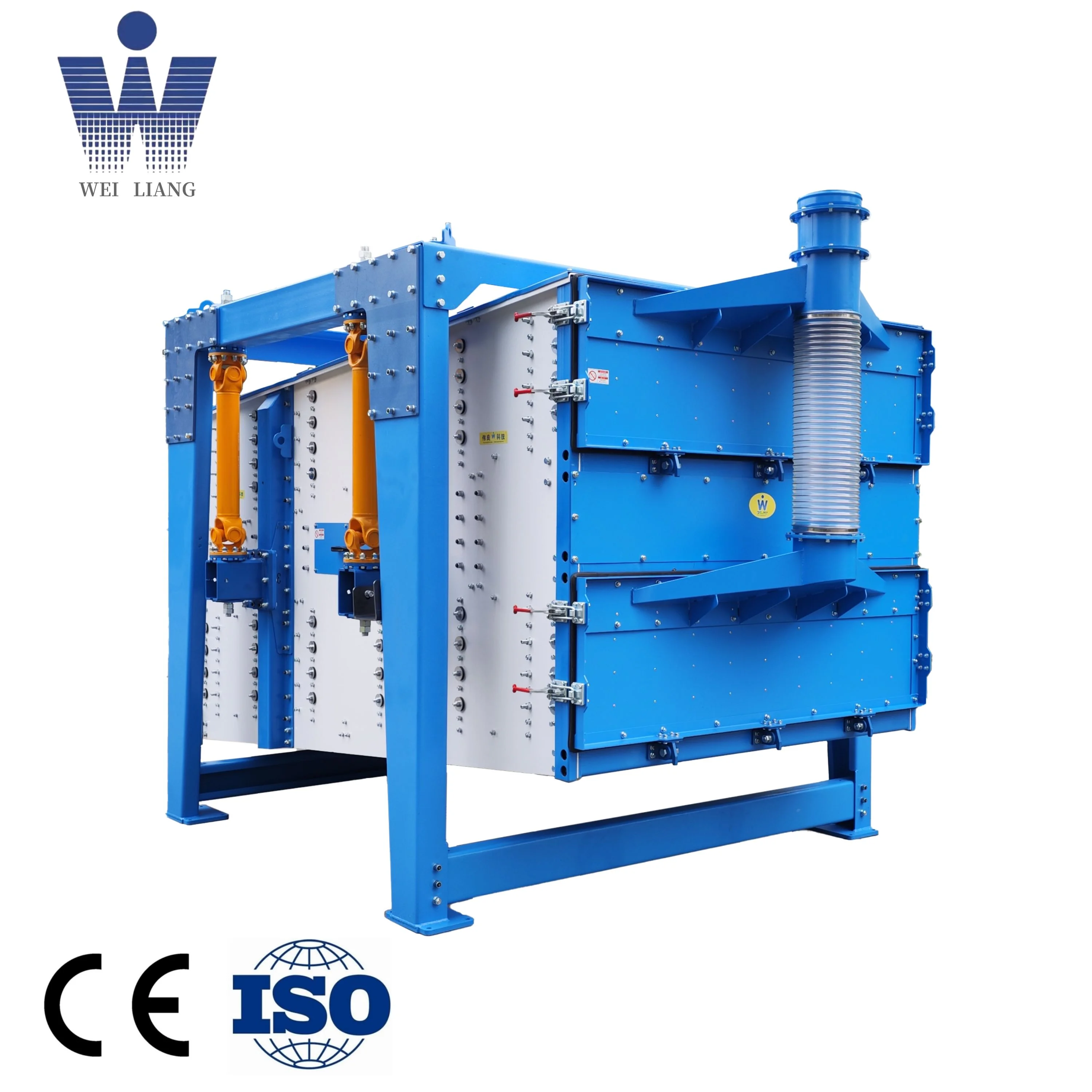

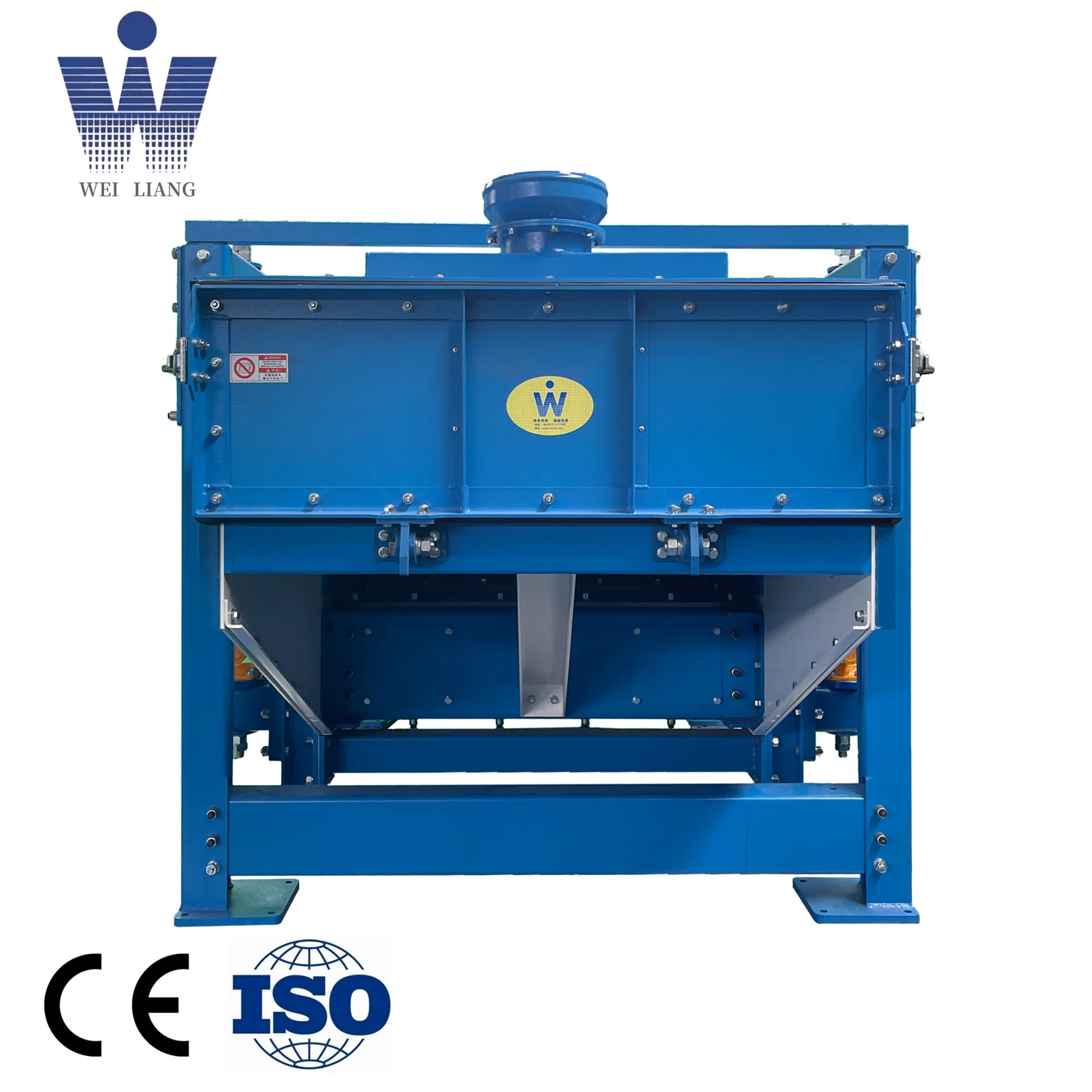

Square sand petroleum coke screening machine gyratory sifter vibtaring screen
- Category: >>>
- Supplier: Xinxiang Weiliang Sieving Machinery Co. Ltd.
Share on (1601044944996):
Product Overview
Description
Product Description
The WEILIANG Gyratory Screen used for classification of bulk dry materials, both meets the requirements of high precision and large throughput. It with the highest performance per screening area provides sharper separations, higher volume, low maintenance, unparalleled material spread-ability and lower finished product wastage.
Details Images
Principle of FYBS
The vibration force generated by the drive device of WEILIANG Gyratory Screen is a force that changes in a certain direction around a fixed axis. Its essence is the reciprocating inertial force formed by the rotation of the eccentric wheel around the fixed axis.
The WEILIANG Gyratory Screen makes reciprocating motion under the action of inertial force, while driving the material to do jumping movement elliptical on the screen. During the period, the materials smaller than the aperture of the screen enter the lower screen, and the materials larger than the aperture are discharged from the outlet after continuous tumbling and jumping movement, finally achieving the purpose of classification.
In addition, the screen surface is generally horizontal or slightly inclined (inclination angle is 0°~5°) based on the structural characteristics and working principle.
High precision
Individual adjustment for retention time to ensure the precision. Simultaneously screen materials of various specifications, up to seven different mesh sizes.
Large Capacity
Maximum use of screening area, and up to screening area 7.2 m2 per layer.
The machine can be duplex (up to ten layers),
Easy Operation
Easy to replace the screen mesh and few maintenance
More Durable
Low acceleration and long service life of all parts.
Technical Parameters
Applications
Packing & Delivery
Inner packaging: Stretch film for machine
Outer packaging: Standard export wooden box
Company Profile
Weiliang Sieving Machinery Co., Ltd founded in 2006, is a leading manufacturer of vibrating separation equipment, specialized in fine screening, with two branches. Our leading products include vibrating screen, ultrasonic vibrating screen,
tumbler screen, gyratory screen, centrifugal screen, linear vibrating screen, dryer machine, white water filter and so on, widely used in food, medicine, chemical, metallurgy, lithium, mining, sand and gravel industries, exported to more than 50 countries and regions.
tumbler screen, gyratory screen, centrifugal screen, linear vibrating screen, dryer machine, white water filter and so on, widely used in food, medicine, chemical, metallurgy, lithium, mining, sand and gravel industries, exported to more than 50 countries and regions.
WEILIANG is first company to produce tumbler screen and gyratory sifter in china. We always adhere to the strategy of scientific and technological development, and have more than 80 invention patents.
Over 40,000 square metes of intelligent, digital, green and highly automated manufacturing super plant was successfully put into production in 2023. We have invested heavily in systems such as hydraulic forming, laser cutting, centre positioning, automatic welding and machining centre. We have constructed an assembly line for circular screening systems and an automatic installation line for gyratory screens.
Over 40,000 square metes of intelligent, digital, green and highly automated manufacturing super plant was successfully put into production in 2023. We have invested heavily in systems such as hydraulic forming, laser cutting, centre positioning, automatic welding and machining centre. We have constructed an assembly line for circular screening systems and an automatic installation line for gyratory screens.
Hot Selling Products
S49A Vibrating Screen
YBS Tumbler Screen
WLQ Centrifugal Screen
S49AQ
Multi Frequency Vibrating Screen
SZF Linear Vibrating Screen
S49AC
Ultrasonic Vibrating Screen
FAQ
1. What is the after-sales service of your factory?
Our machines are guaranteed for 12 months, excluding screens. During the warranty period, we will replace damaged parts for our clients. And we will continue to provide customers with operation guidance. We are available to offer help all the time.
2. What is the delivery time from the factory?
2. What is the delivery time from the factory?
The lead time for general products is 15-30 days, but bulk products and customized products require longer production time, generally 30-60 days. (Excluding shipping time)
3. What is the quotation for the product based on?
According to different models, mesh size (based on material properties and estimated screening yield), materials (Q235A, SUS304 or SUS316L), layers, and motor voltage and frequency to give quotations.
3. What is the quotation for the product based on?
According to different models, mesh size (based on material properties and estimated screening yield), materials (Q235A, SUS304 or SUS316L), layers, and motor voltage and frequency to give quotations.
4. Payment Terms?
We usually accept T/T, L/C;
We usually accept T/T, L/C;
T/T: 30% in advance as down payment, the balance before delivery.
