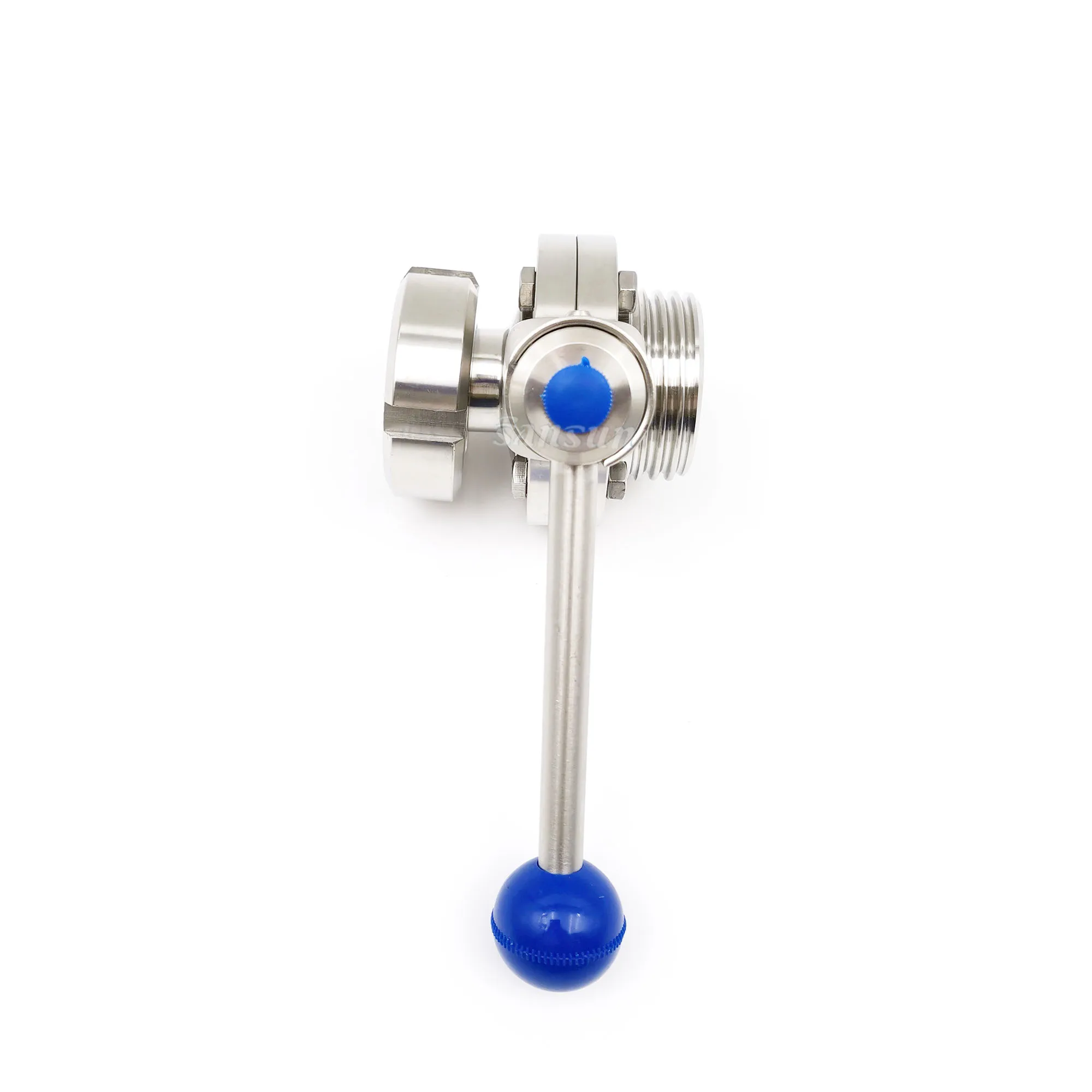

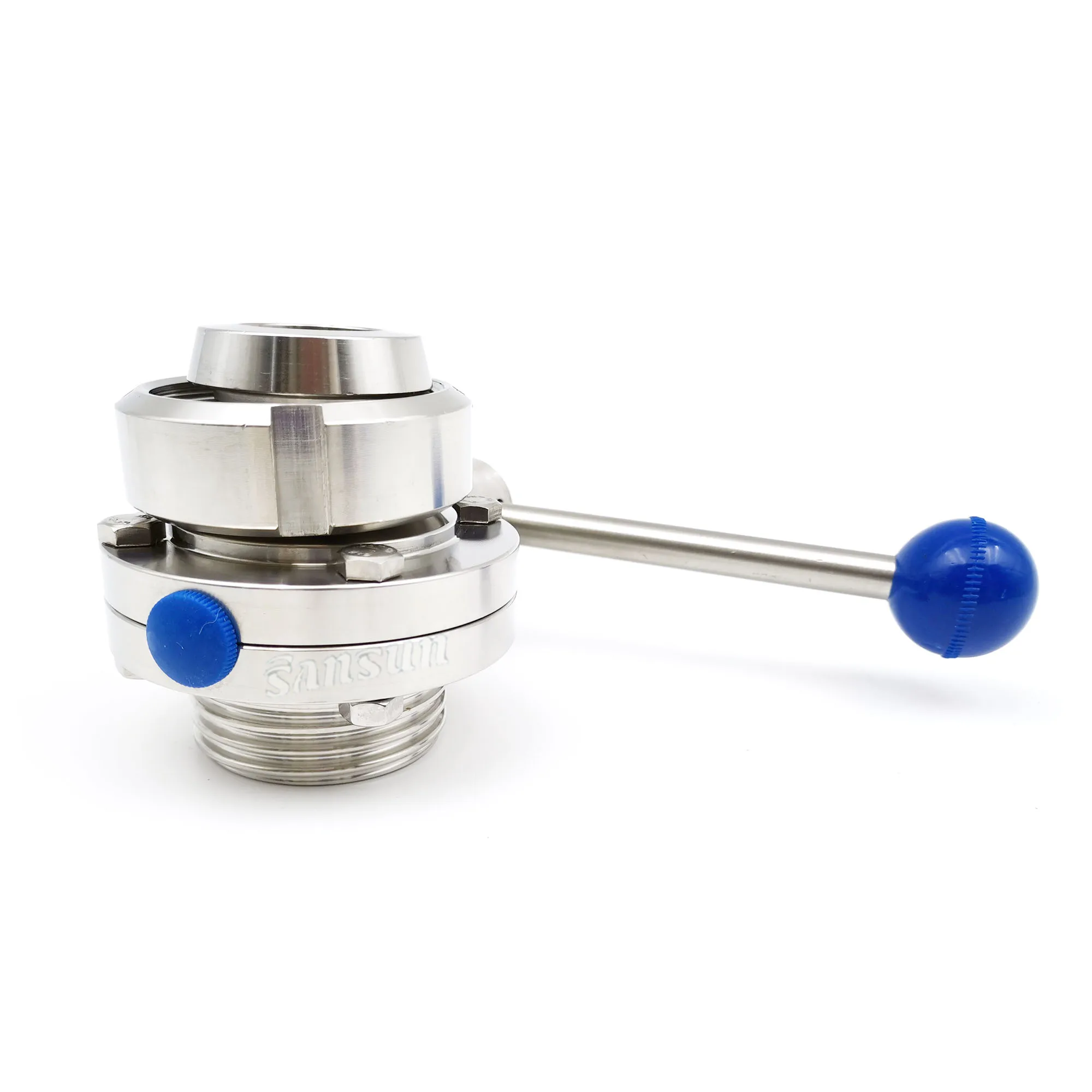

DIN INOX 304 Male Nut Butterfly Valve
DIN INOX 304 Male Nut Butterfly Valve
DIN INOX 304 Male Nut Butterfly Valve
DIN INOX 304 Male Nut Butterfly Valve
DIN INOX 304 Male Nut Butterfly Valve
DIN INOX 304 Male Nut Butterfly Valve
DIN INOX 304 Male Nut Butterfly Valve

DIN INOX 304 Male Nut Butterfly Valve

Share on (1601044960709):


Price:$13.80 - $15.80

Quantity:


Product Overview

Description







Product Overview


Product Name:

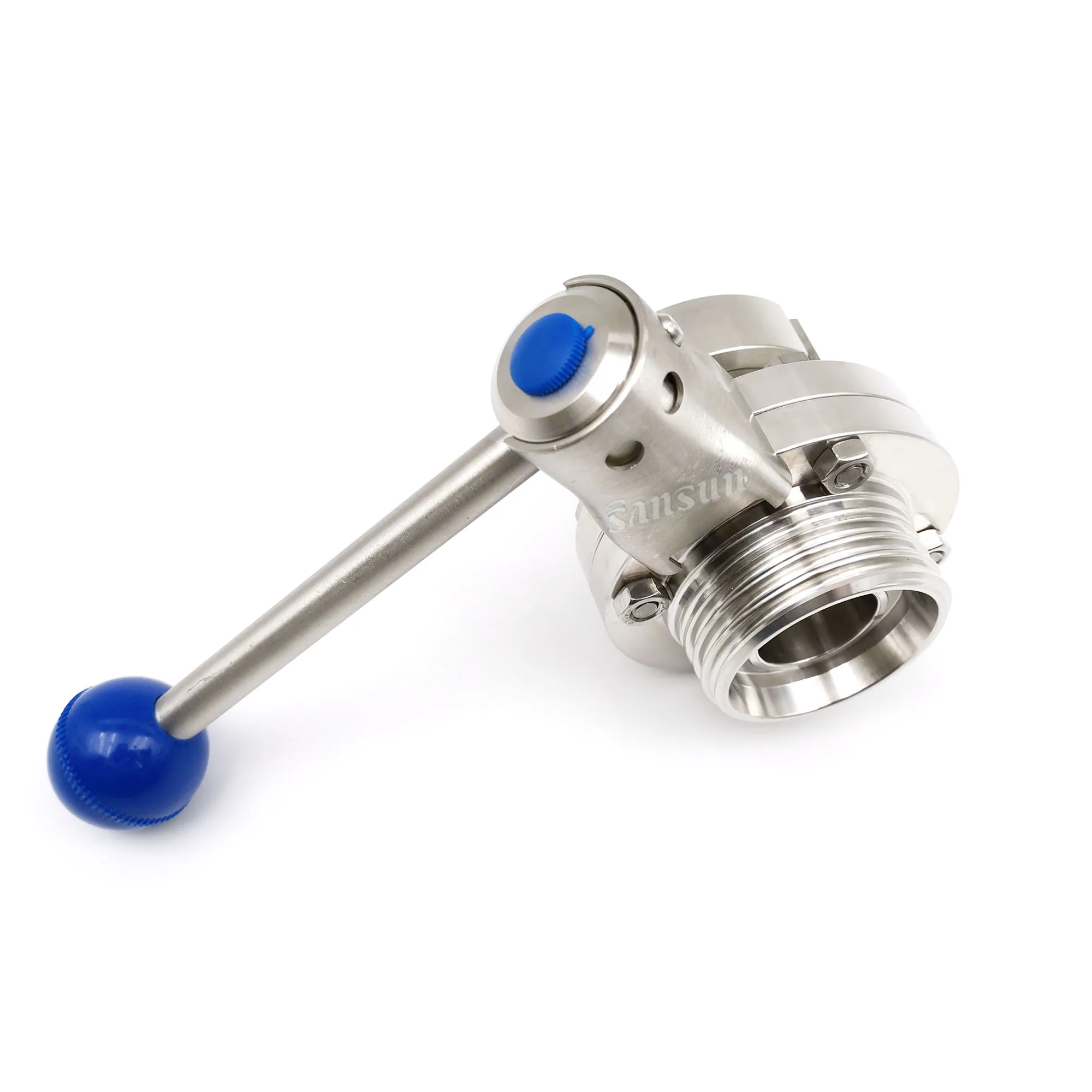

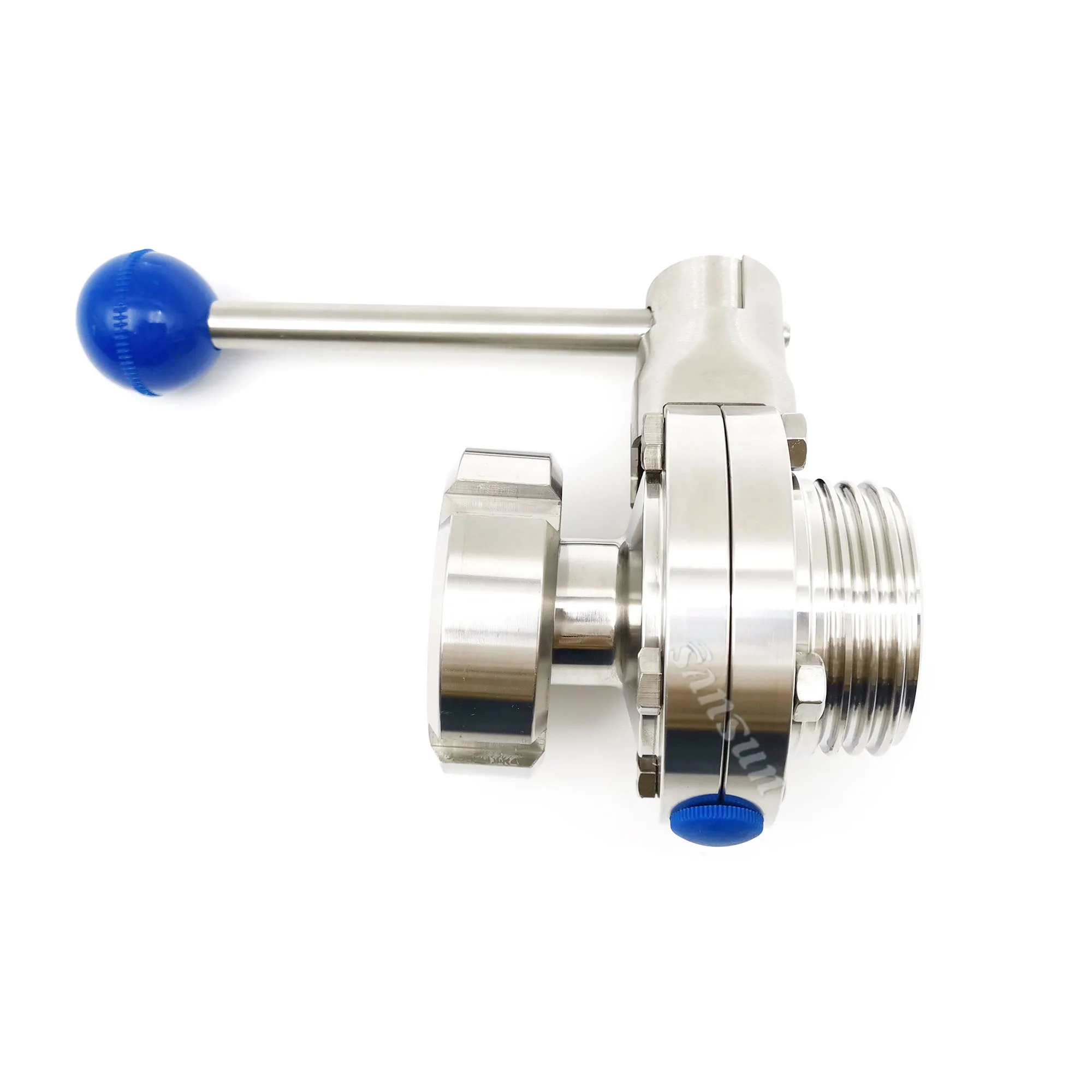

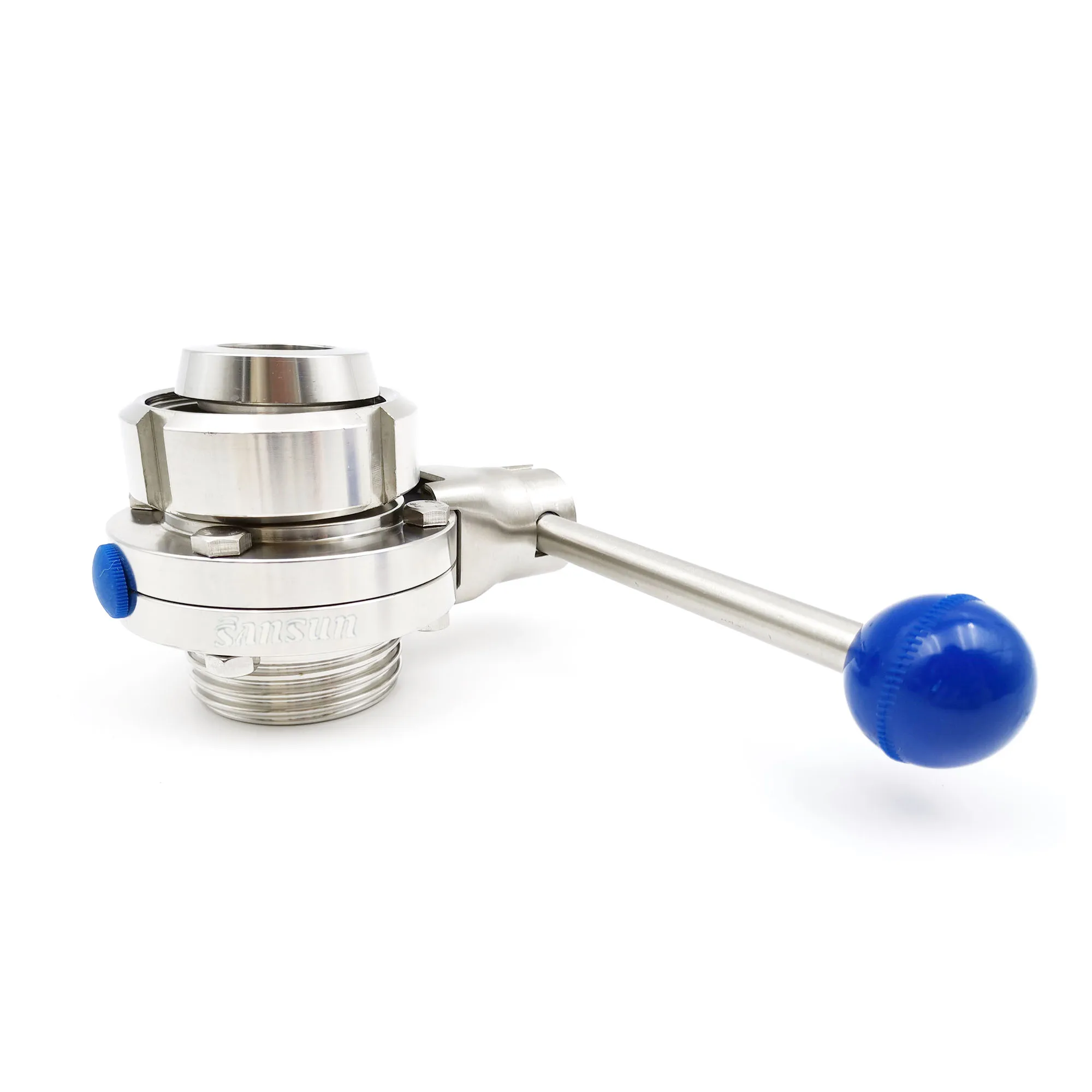

Sanitary SS304 Male Nut Butterfly Valve
Valve Body Material:
1.4404/1.4301, SS304/SS316L(Forged)
Disc:
1.4404/1.4301, SS304/SS316L(Forged)
Seal Material:
EPDM (standard)
Surface Finishing
RA<0.8 um
Operating Principles:
The handle blocks valve in Open or Close position, if with muti-position handle, other position is also available.
Max Working Pressure:
10Bar(DN25 to DN100), 8 bar(DN125 to DN150), 5 bar(DN200 to DN300)
Max. Working Tem.:
120 degree C
Availably Size:
DN10-DN150,1"-4"
Features
Compact and robust design
PED 2014/68/EU
The valve body can be changeable with any kind of connection
Availably standard:
DIN/SMS/RJT/ISO/IDF
Operated:
Manual
Options
Gasket: EPDM, silicone or Viton
Connection:weld,clamp,thread,weld thread,flange
Hanld: two-position handle,three-position handle,four-position pull handle,multi-position plastic handle and multi-position stainless steel handle
Control:
Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)
Certificate
PED 2014/68/EU
Application scope:
Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc

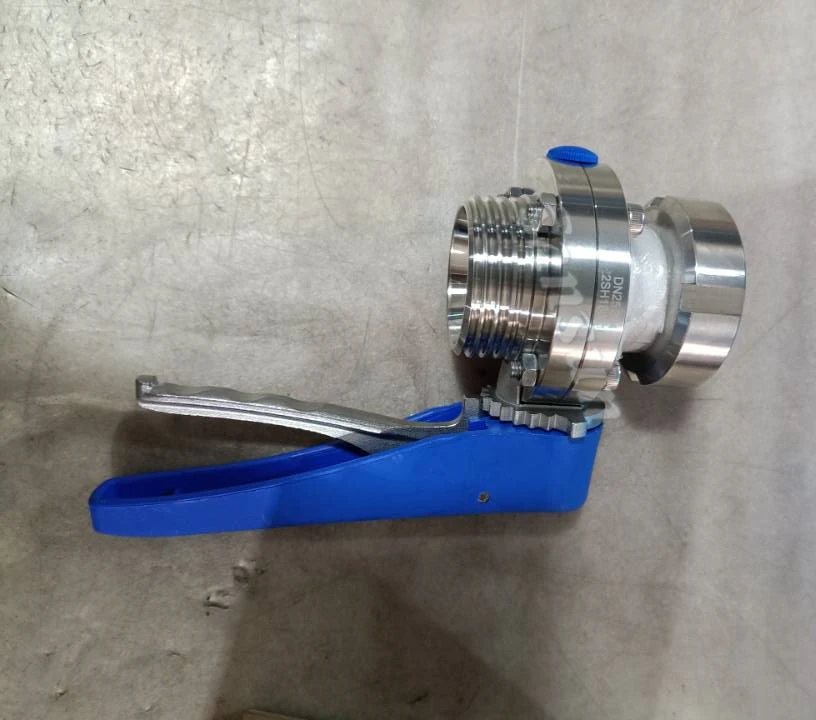

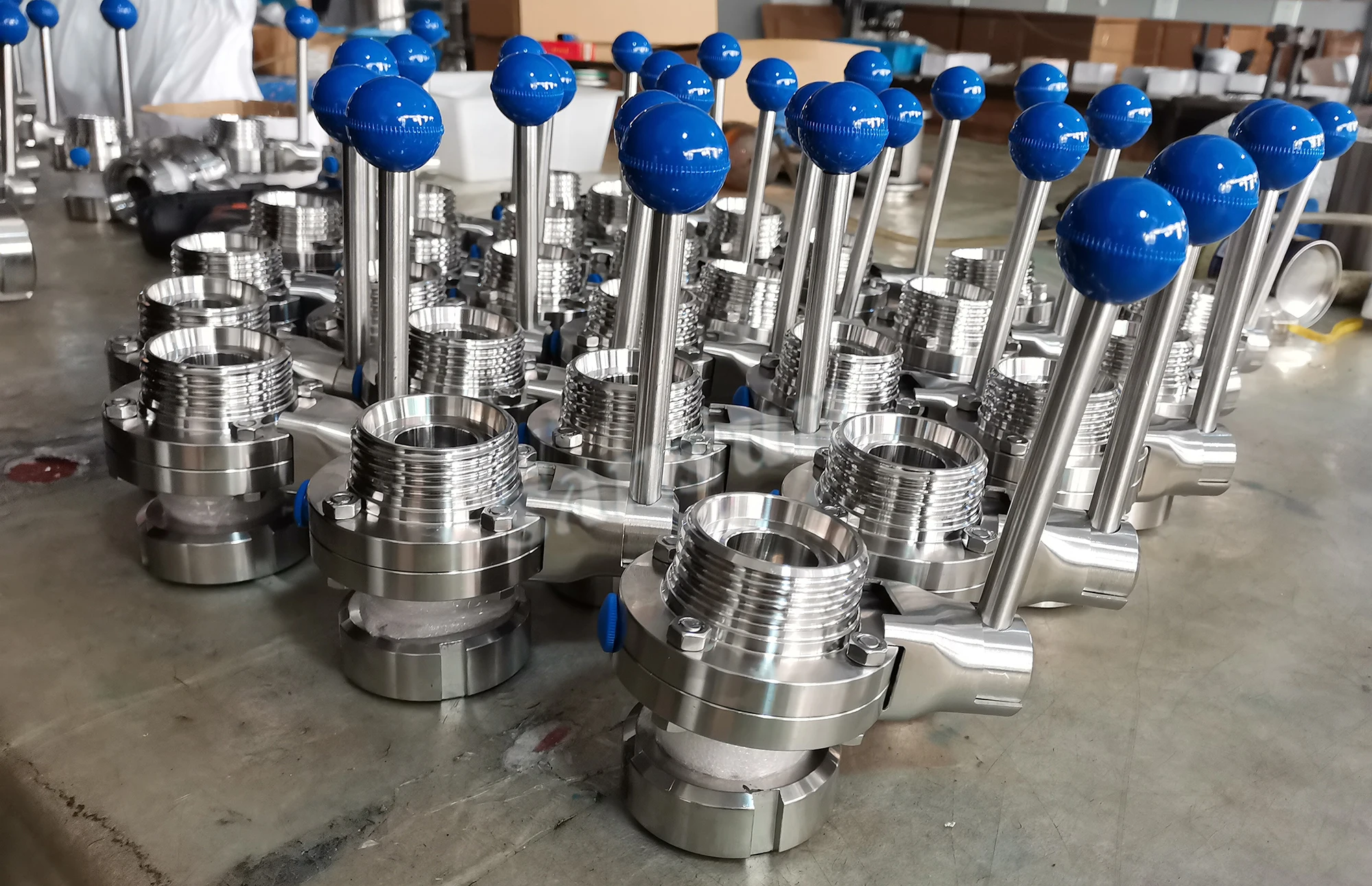

Product Show






Widely received positive feedback from customers all over the world






Pneumatic Butterfly Valve
Pressure Relief Valve
Pipe Fittings


Sampling Valve
Foam Eliminator
Gaskets


Our Company


Wenzhou Sansun stainless Co., Ltd. Was founded in 2013, Located in Wenzhou, China, is a professional manufacturer integrating design, production, sales and service.
Our products includes:Sanitary stainless steel valve,Sanitary Stainless steel pipe fittings, Sanitary pump,Tank accessories,etc.
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.


We have skillful production people and strong R&D technicians who have over 15 years experience in manufacturing, developing and designing various sanitary Valves & fittings.
Under the strict control system - ISO 9001 quality assurance, we have made our OEM products widely extend to international well-known manufacturers.


CNC Machining
CNC Machining


Factory environment
Stock area


Factory Square Meter
3000 m3
Workshop Equipment
10--Mazak CNC Machine
6--HEADMAN CNC Machine
Number of employees
105 Workers + 10 officers
1--of automatic CNC center
4--plain lathe
Number of Engineers
3 designers +2 CAD drawers
4--Press Machine
3--bending Machine
Number of Inspectors
Raw Material (3)
2--Cutting Machine
Finish Product (5)
2-- Chamfering Machine
Testing Equipment
2--Pressure Testing Machine
10--Polishing Machine
1--Surface roughness device
2--Laser marking Machine
2--Spectro Instrument Gun
2--Chamfering Machine

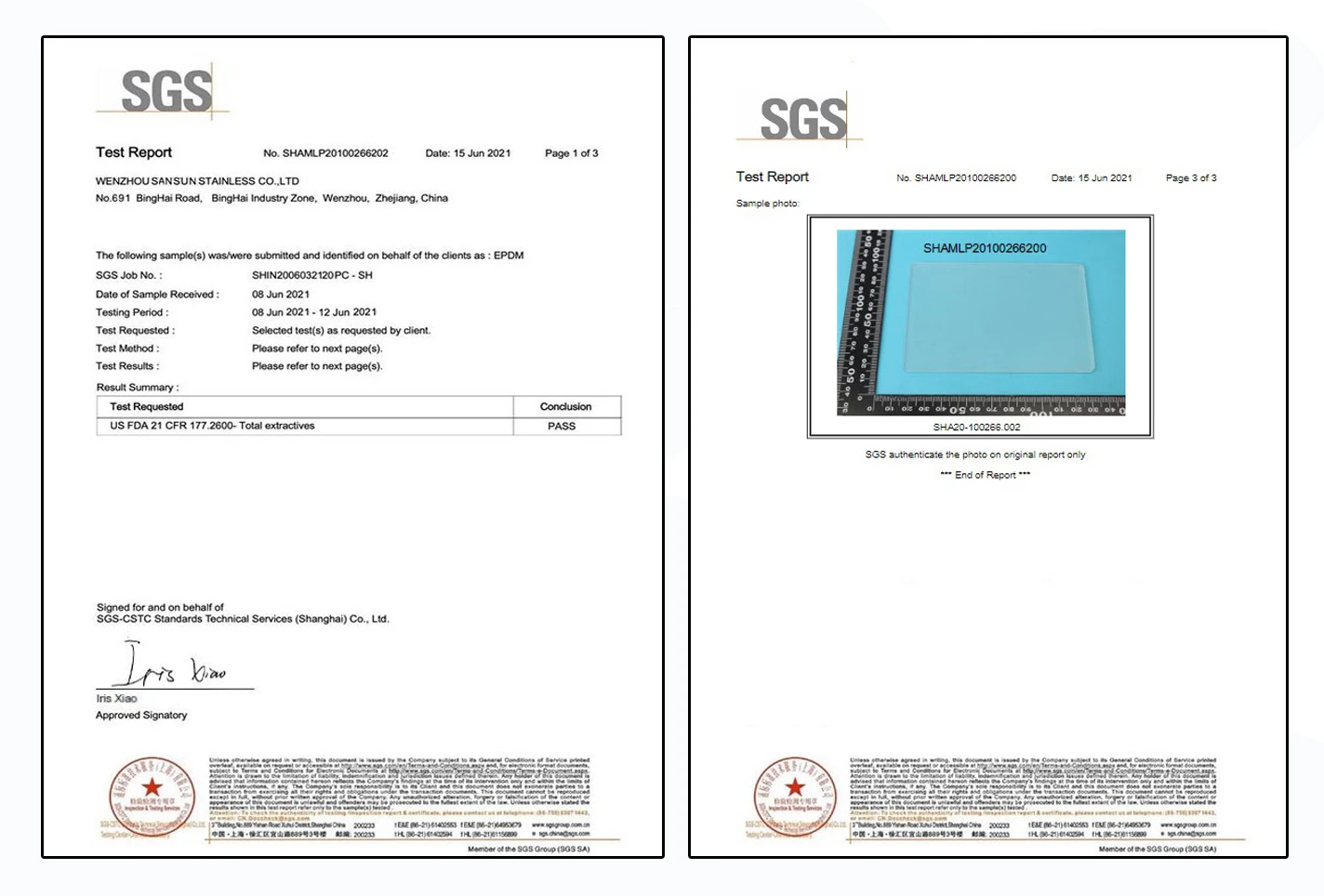

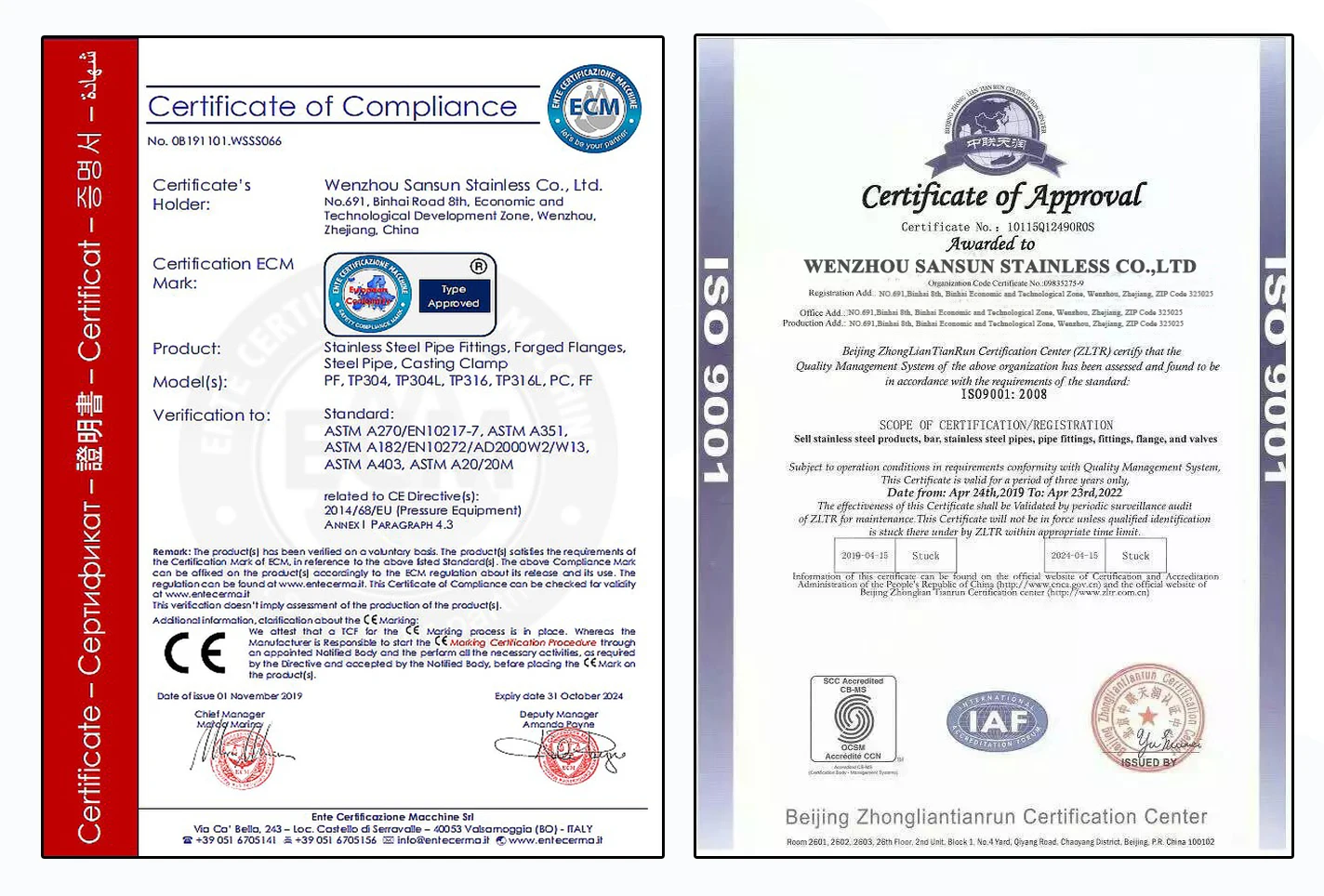

Our Certifications








Exhibition

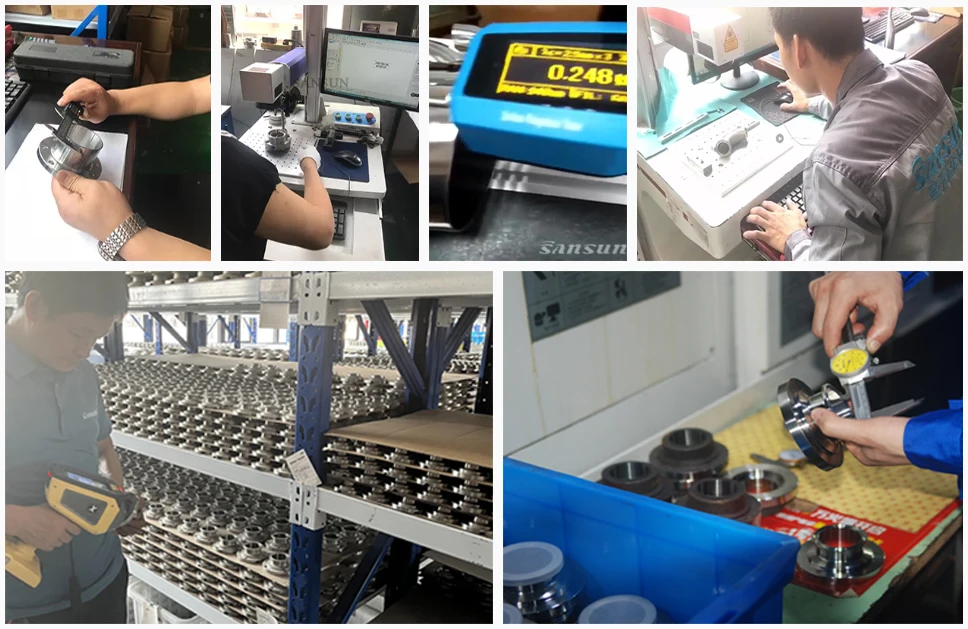

Quality inspection and packaging


Inspection

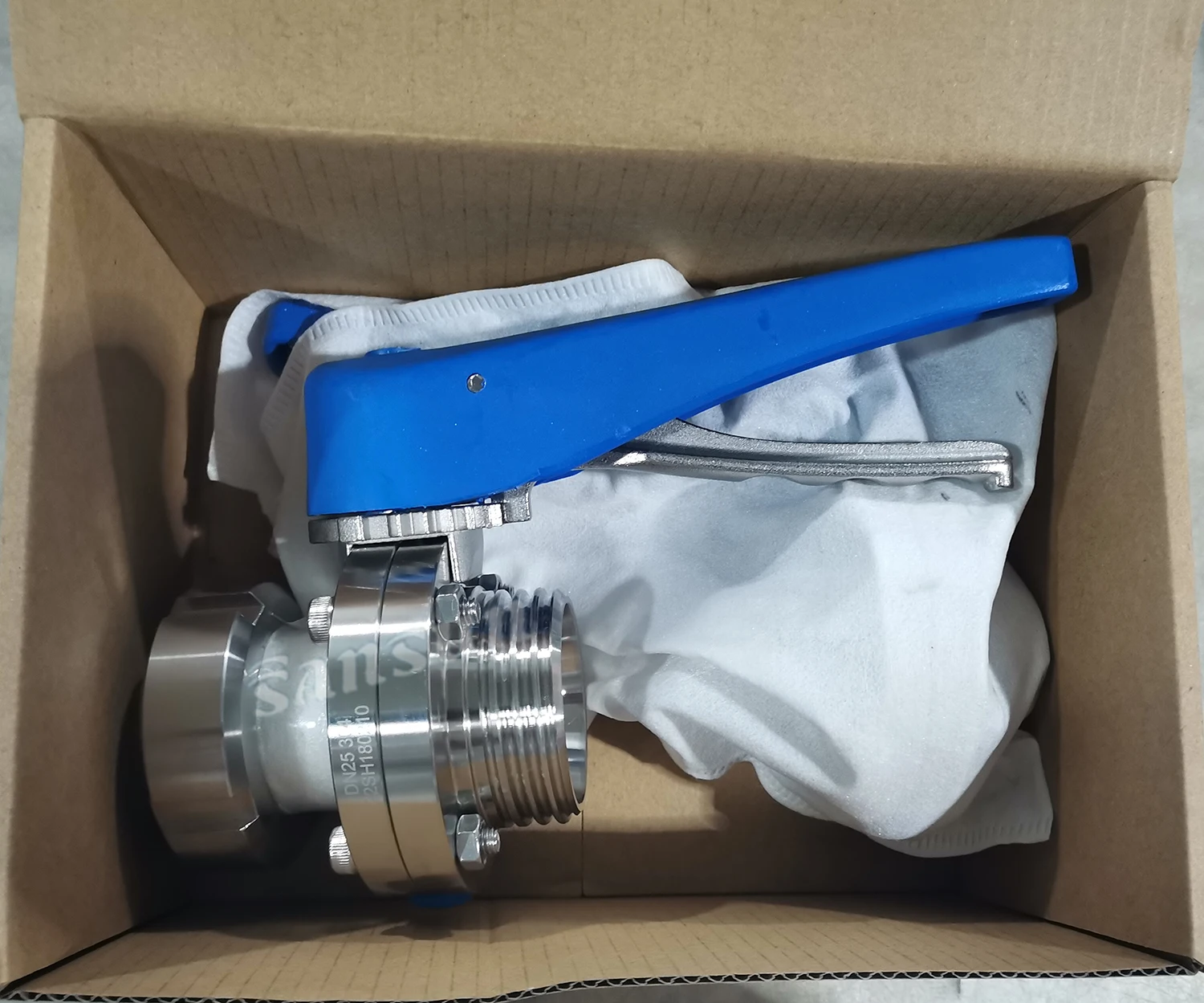

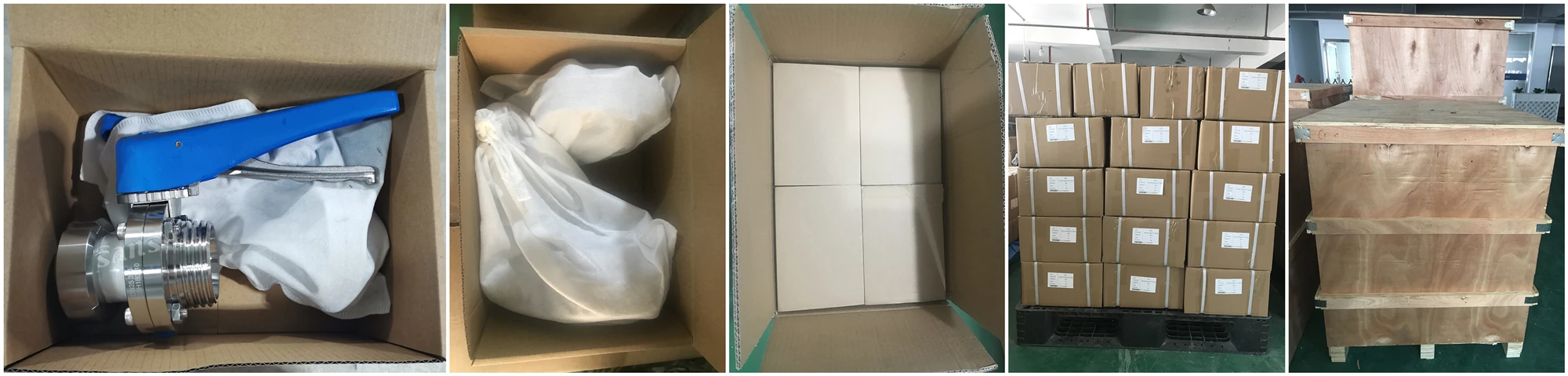

Product Packaging






Workshop gallery




FAQ


Q: DO YOU HAVE MILL TEST CERTIFICATE?
Yes, Each order is traceable by Material certificate EN10204 3.1, and we can also offer pressure testing report, roughness test report if Client need.
Q: DO YOU HAVE PRODUCT WARRANTY
Yes,12 months warranty. 100% inspection on finished products before dispatch. Inferior products can be returned or replaced.Repair parts is supplied for replacement.
Q: WHAT'S THE MOQ?
No MOQ for standard products. Customized products can be discussed.
Q: MAY I HAVE FREE SAMPLES?
Free samples can be provided for starting cooperation, Freight is collected by Client.
Q: HOW LONG IS THE DELIVERY TIME?
Standard item are in stocked--Normally 3-5 days. Bulk order usually takes about 20-25 days.
Q: WHY WOULD I CHOOSE YOU?
1.Hard-working labor worker and advanced machine ensure large production capacity. It will give our clients fast delivery time.
2. Professional engineer and designer ensure the product parameter is well manufatcured and every month, we will have new products to help our client's enlarge market.
3. 100% inspection on finished products before dispatch, give our clients good quality products.
4. High effective sales team quick response to any quote and complaint.
