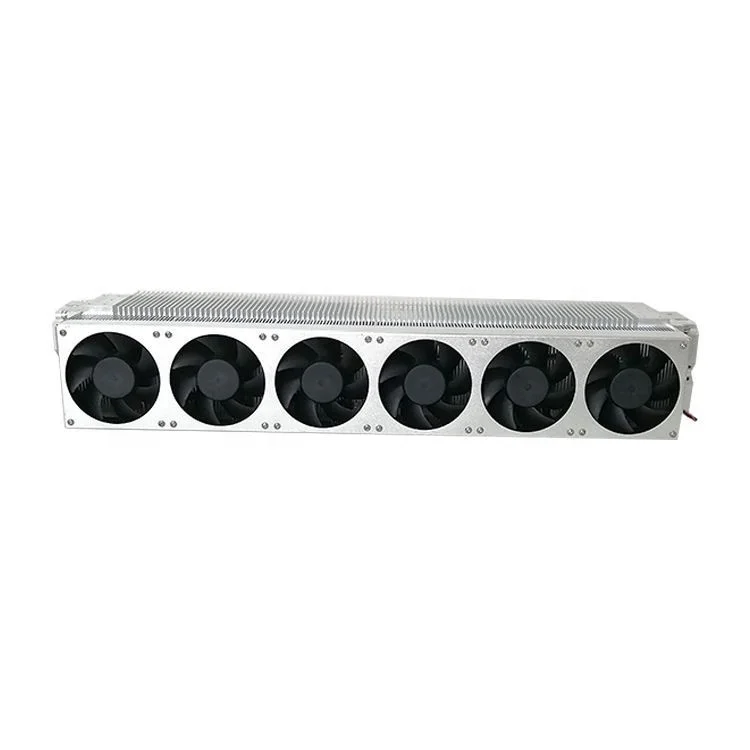

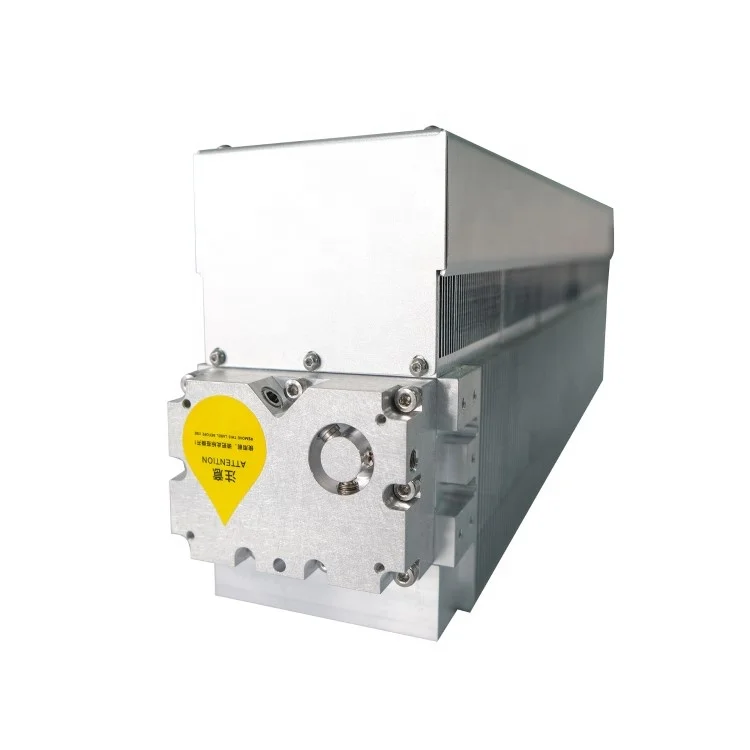

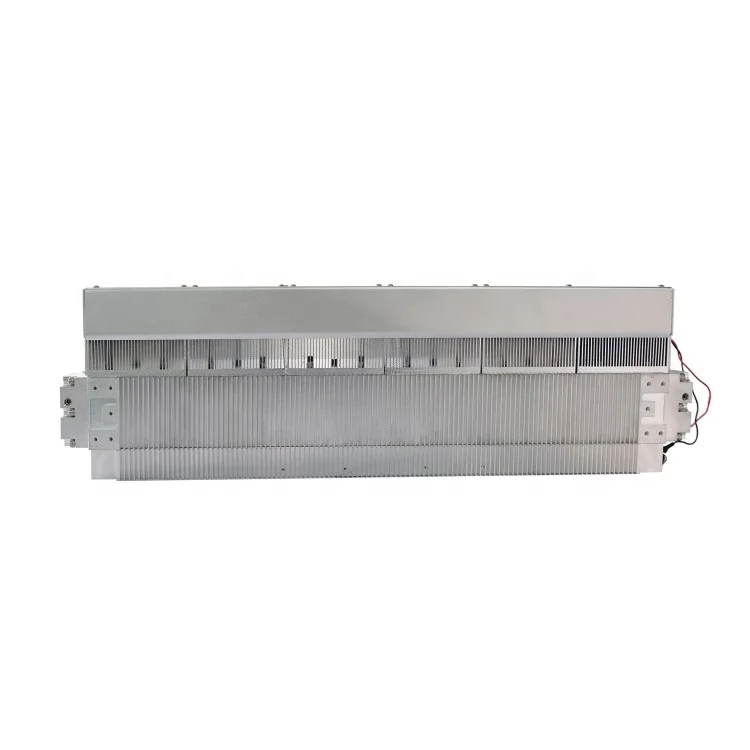

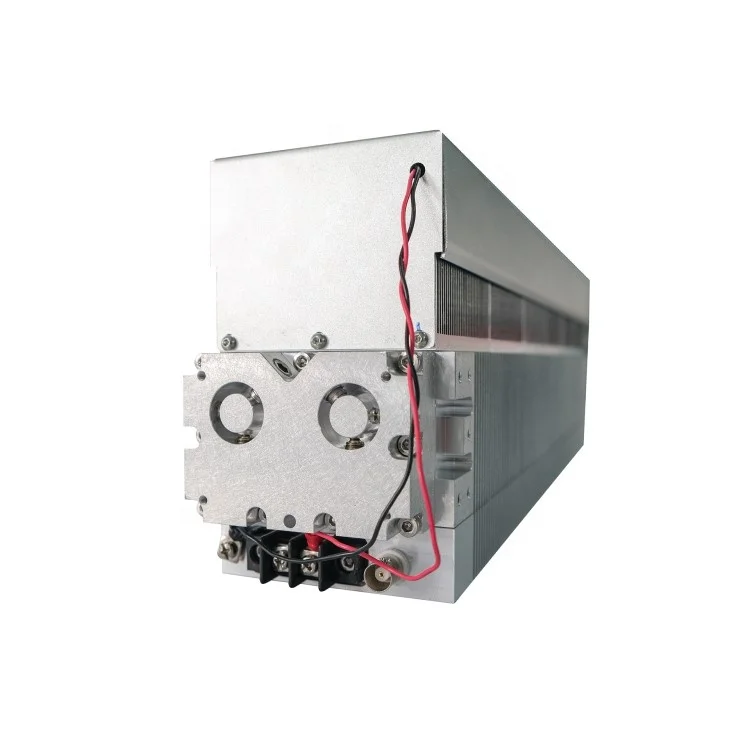

Yongli 60w 80w 100w medical machine parts synrad refill replace rf metal co2 laser tube
- Category: >>>
- Supplier: Jilin Yongli Laser Technology Co. Ltd.
Share on (1601044962348):
Product Overview
Description
Yongli 60w 80w 100w medical machine parts synrad refill replace rf metal co2 laser tube
Product Description
Refillable Co2 RF Laser Metal Tube Best Match for Your Machine
YongLi Co2 RF Laser Tubes are the main CO2 laser type used in small to medium size laser machines. These are commonly referred to as RF Lasers (also called ‘metal’ lasers).
YongLi RLT Series RF CO2 laser metal tubes combine superior optical performance with high reliability, exceptional stability, long operational lifetimes, and a modular design for easy serviceability, making them a worry-free, cost-effective choice for OEMs.
The materials used to make the laser cavity in the YongLi Refillable RF laser tube are very different. YongLi 30W 60W RF laser tubes are constructed from a ceramic core within an aluminum extruded outer body. This results in a robust construction with good optical alignment.
The full power life expectancy for YongLi 30W/60W RF laser tube is typically over 40,000 hours. This represents more than 12 years of single-shift working. They can also be refurbished, giving many more years of life.
A huge range of products, with powers from 30W to 60W, 9.3 µm or 10.6 µm wavelengths can be customized, and pulsed or CW operation, all designed for high reliability and uptime, minimal maintenance downtime, easy serviceability, and simplified OEM integration.
YongLi Refillable CO2 RF Laser Tube can Cut, slit, engrave, score, and mark a wide variety of materials, including wood, cloth, leather, paper, films, plastics, and die boards, Cooling options include air cooled (fans), OEM (no fans) and liquid cooled. Applied on many industrys such as Materials Processing, Cutting, Marking, Engraving, and Additive Manufacturing.
YongLi RLT Series RF CO2 laser metal tubes combine superior optical performance with high reliability, exceptional stability, long operational lifetimes, and a modular design for easy serviceability, making them a worry-free, cost-effective choice for OEMs.
The materials used to make the laser cavity in the YongLi Refillable RF laser tube are very different. YongLi 30W 60W RF laser tubes are constructed from a ceramic core within an aluminum extruded outer body. This results in a robust construction with good optical alignment.
The full power life expectancy for YongLi 30W/60W RF laser tube is typically over 40,000 hours. This represents more than 12 years of single-shift working. They can also be refurbished, giving many more years of life.
A huge range of products, with powers from 30W to 60W, 9.3 µm or 10.6 µm wavelengths can be customized, and pulsed or CW operation, all designed for high reliability and uptime, minimal maintenance downtime, easy serviceability, and simplified OEM integration.
YongLi Refillable CO2 RF Laser Tube can Cut, slit, engrave, score, and mark a wide variety of materials, including wood, cloth, leather, paper, films, plastics, and die boards, Cooling options include air cooled (fans), OEM (no fans) and liquid cooled. Applied on many industrys such as Materials Processing, Cutting, Marking, Engraving, and Additive Manufacturing.
Technical Parameters
Model NO. | RLT-30/RLT-60 |
Wavelength | 10.6μm(Customizable 9.3μm) |
Optical Output Power | 30W/60W |
Beam Mode | TEM00 |
Power Instability | ≤±5% |
Mode quality | M2<1.2 |
Beam Divergence (mrad, full angle) | ≤7.5±0.5 |
Beam Size | 1.8±0.2mm |
Beam divergence angle | 7.5±0.5m Radian full angle |
Polarization | >100 to 1 (fixed linear, parallel to width) |
Operating frequency and duty cycle | 0-25kHz, 0 to 100% DC |
Input voltage | DC48V±2%/20A |
Working Life expectancy | 40,000 Hours |
Warranty | 24 Months |
Heat load | <575w |
Cooling Method | Air Cooling/ Water Cooling(6L/M) |
Maximum case temperature | <60ºC(140ºF) |
Ambient temperature at work | 5~40ºC(41~104ºF) |
Operating Altitude | <2000m(6,500ft.) |
Operating Humidity | Non-condensing |
Shipping and storage environments | -10~60ºC(14~140ºF), Non-condensing |
Weight | 6.2KG/10.5KG |
Size(L×W×H) | 357×92.5×142mm(14.1×3.64×5.59in.)/530x92x154mm |
Product Details
High Stability RLT Series RF CO2 Lasers
Compact RF CO2 laser tubes with more than 30 or 60 Watts of average power for high-speed marking, cutting, and 3D printing applications are available with multiple wavelength options to process a broad range of materials. A unique 60 Watt fan-cooled model is available for OEMs and system integrators seeking an economical and efficient 60 Watt CO2 laser source.
Refillable:When a Co2 laser glass tube uses up its Co2 gas. The tube need be replaced and discard because of the tube has very little gas and the power drops off.
YongLi RLT Series CO2 RF sealed-off laser resonator tube can be refilled with the gas, once it gets refilled/recharged, the laser tube can be reused for several extra years.Obviously refilling the old one would be more cost-effective. To discard the laser tube would be a great waste. You can simply send it back to us for the refilling or just contact your local laser refill service store to get it done easily
Reasonable Price: YongLi RF Laser Metal tubes are many times cheaper than other brands' RF tubes thanks to the advanced production process and factory direct sale model. There is no distributor in between which allowed us to give all the benefits to our customers.
Refillable:When a Co2 laser glass tube uses up its Co2 gas. The tube need be replaced and discard because of the tube has very little gas and the power drops off.
YongLi RLT Series CO2 RF sealed-off laser resonator tube can be refilled with the gas, once it gets refilled/recharged, the laser tube can be reused for several extra years.Obviously refilling the old one would be more cost-effective. To discard the laser tube would be a great waste. You can simply send it back to us for the refilling or just contact your local laser refill service store to get it done easily
Reasonable Price: YongLi RF Laser Metal tubes are many times cheaper than other brands' RF tubes thanks to the advanced production process and factory direct sale model. There is no distributor in between which allowed us to give all the benefits to our customers.
Perfect replacement for all similar RF lasers: YongLi RF Laser Tube can perfectly replace all the same power RF laser tubes without any additional adjustment, our customers could easily change the RF tubes at ease.
RLT-30 30W RF LASER TUBE
Working substance: mainly a mixed gas composed of carbon dioxide, helium, nitrogen, etc. Excitation source: RF power is used as excitation source.
Service life: YongLi 30w/60w CO2 RF Laser Metal Tube has a lifespan of more than 40,000 hours. It can generally be used for 6-8 years, and it can be used repeatedly without replacement; while the glass tube marking machine is only about 2500 hours, usually replaced every six months. The glass tube is not reusable and needs to be replaced.
Service life: YongLi 30w/60w CO2 RF Laser Metal Tube has a lifespan of more than 40,000 hours. It can generally be used for 6-8 years, and it can be used repeatedly without replacement; while the glass tube marking machine is only about 2500 hours, usually replaced every six months. The glass tube is not reusable and needs to be replaced.
One of the primary differences and technological advancements that is incorporated in this design is the resonator. Latest release is model RLT-30/RLT-60 with 30/60 Watts and 9.3 µm wavelength.
Simplify Integration YongLi RF Co2 Laser Metal Tube
Spot size (beam): CO2 radio frequency tube laser marking machine has a fine spot of 0.07mm, which is more than 3 times finer than glass tube, high precision, small thermal diffusion area, and can engrave/cut very fine works; CO2 glass tube laser The marking machine has a coarse light spot of 0.25mm, poor accuracy, unstable light output (uneven light intensity, sometimes no light), large heat diffusion area, melting and blackening of the cutting edge, and poor engraving accuracy.
Stability: The RF tube is a fully sealed metal tube and uses a 48kV low-voltage power supply, which directly avoids some of the disadvantages caused by the use of high-voltage power; Convenient and adjustable output power, excellent stability and high operational reliability
Stability: The RF tube is a fully sealed metal tube and uses a 48kV low-voltage power supply, which directly avoids some of the disadvantages caused by the use of high-voltage power; Convenient and adjustable output power, excellent stability and high operational reliability

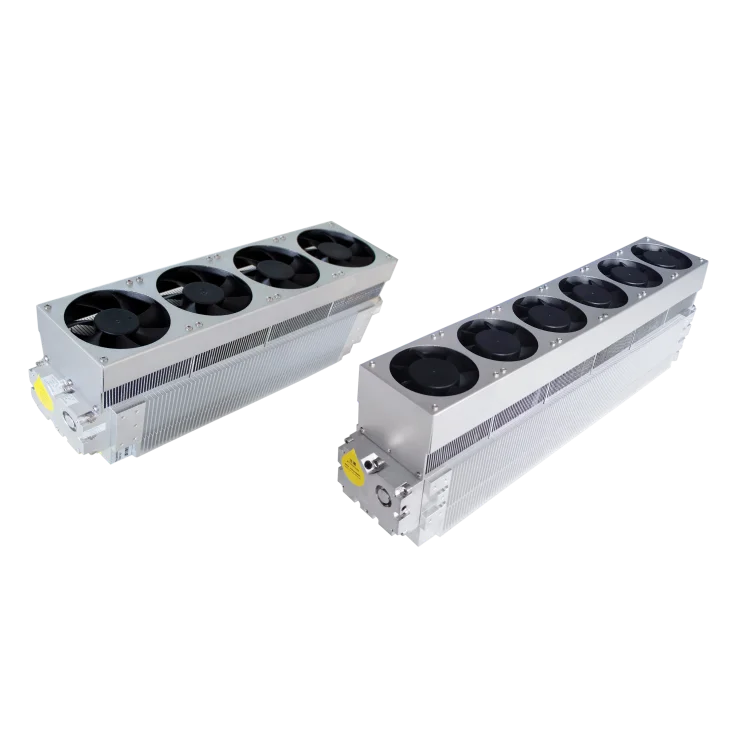

RLT-60 60W RF LASER METAL TUBE （AIR COOLED）
Working Principle: RF Laser Metal Tube is the same as the glass tube, it consists of a resonant cavity, a working substance, and an excitation source. Both belong to CO2 gas laser.
Resonant cavity: the optic window is sealed with ZnSe mirror coated with anti-reflection coating, and the front and rear cavity mirrors use Si reflecting mirror.
Cooling method: 30W 60W CO2 RF tube adopts air cooling, which can ensure long-term trouble-free and stable operation; An OEM Model of 60w RF laser metal tube adopts water cooling, which is used for long working hours or continuous work.
RLT-60 WATER COOLED 60W RF LASER METAL TUBE
The RF laser switching time is faster than DC lasers. This results in sharper definition when engraving fine detail, and the ability to increase the engraving speed without detriment to the quality of the result.The output laser is TEM00 mode, which is 3 times finer than the glass tube
YongLi's RLT Series includes RF excited, 30 and 60 Watt CO2 RF lasers. For customer convenience, all models have identical form and fit with internal RF-drive electronics. If a different power laser is required, only the DC power supply will require changing.
60 Watts CO2 RF lasers are offered in two different cooling configurations.The Fan-Cooled configuration comes fitted with cooling fans. The water cooled version is supplied with an input and output port to connect a chilled water source (co2 laser water chiller).
60 Watts CO2 RF lasers are offered in two different cooling configurations.The Fan-Cooled configuration comes fitted with cooling fans. The water cooled version is supplied with an input and output port to connect a chilled water source (co2 laser water chiller).
All configurations of 30 and 60 Watt RF lasers are built around YONGLI's patented ceramic core technology that provides superior lifetime, reliability, and stability.
The RLT-30’s/RLT-60’s resonator is a Z-folded (2-fold) resonator. This allows for a smaller package design when compared with other 30/60 Watt CO2 RF laser tubes and is the shortest (folded) resonator in the 30 – 60 watt CO2 laser class, but has a remarkably long (unfolded) resonator length, resulting in high stability.
This provides superior power and beam diameter stability. Early test have shown the from-cold power stability in the ±2% range.
The model RLT-60(60W) RF lasers are based on our proven Ceramic Core Technology and offer the advantages of superior stability, gas lifetime and reliability over traditional metal or glass tube technology.
This provides superior power and beam diameter stability. Early test have shown the from-cold power stability in the ±2% range.
YONGLI is excited to extend the upper limit of its RLT Series Lasers to include this new higher powered CO2 RF laser sources.
The model RLT-60(60W) RF lasers are based on our proven Ceramic Core Technology and offer the advantages of superior stability, gas lifetime and reliability over traditional metal or glass tube technology.
Although rated power for 60 Watts, this RF laser tube ship from our factory with a minimum of 10% additional output power (65 Watts respectively) GUARANTEED. These RF metal laser tube has integrated RF Power and is available as water cooled (chiller required and not included).
Manufacturing Technique
World-Class Top Standards of RF Laser Manufacturing
7*24 hours Automaticly intelligent aging workshop
360 hours Processing, More than 20 procedures, 8 inspections
Verify raw materials Assembly inspection Semi-finished product inspection
High and low temperature test and inspection
Simulated Transportation Vibration Inspection
Production line delivery inspection
Degassing equipment
Constant high temperature and high vacuum degassing for 120 hours
Guaranteed working substance purity ISO9001 standard
customized equipment--international leading level
Vacuum system
The ultra-high vacuum exhaust system exhausts for 72 hours, and the vacuum degree can reach 1.0*10^(-6)Pa
Non-standard customized equipment, the technology has reached the international leading level Internationally leading Linde gas

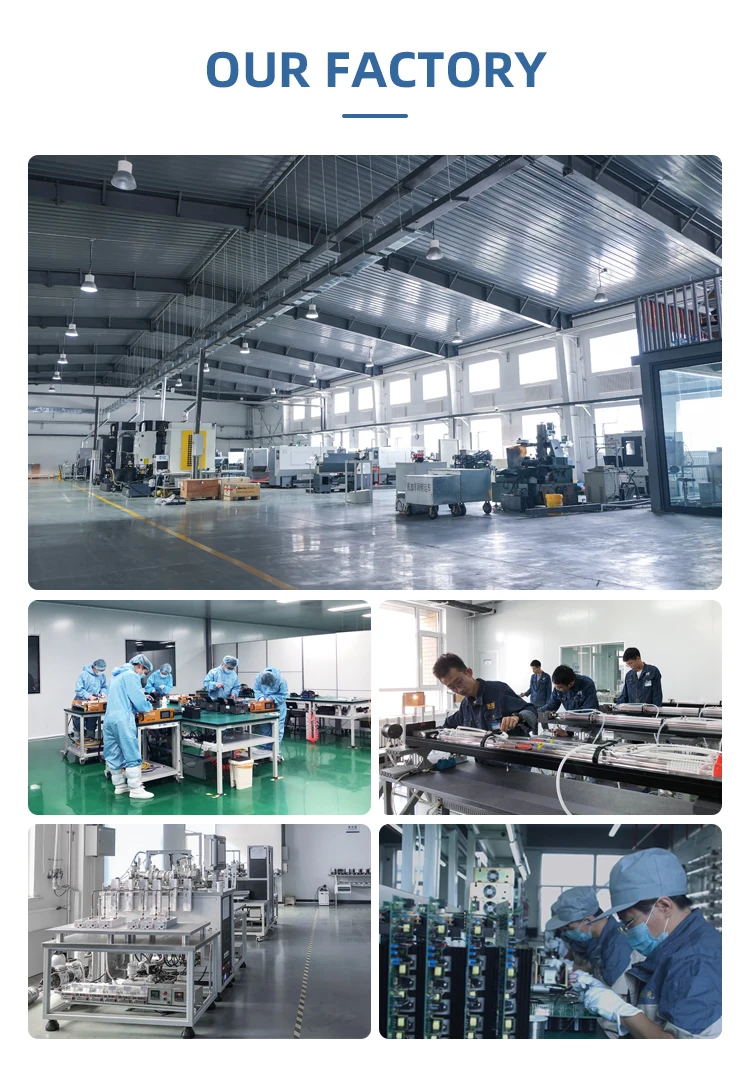

Machining workshop
Machined parts - the tolerance is controlled within 0.02mm, the key dimension is less than 0.01mm, and the surface finish is less than Ra6.3, which improves the fit between the accessories. Although the cost is increased, the quality of the product is reliably guaranteed .
Application
RF Tube For CO2 Laser Cutting Engraving Machine
-Achieve high speed static or dynamic online marking code
-Mark/Engrave clearly
-Hard-wearing quality
-High engraving and marking efficiency
-Environmentally-friendly
-Mark/Engrave clearly
-Hard-wearing quality
-High engraving and marking efficiency
-Environmentally-friendly
RF metal tube is a small size and compact device, maintenance free, high output beam quality (more than 3 times finer than glass tube, power stability, long service life, and can be reused after inflation.
RF lasers generate a smaller spot size out of the output window of the laser. The smaller the spot size, the finer the engraving detail. For high precision engraving, this smaller spot size makes a difference. There are many applications where this advantage in quality will not make itself apparent.
Co2 Laser Engraving or Cutting Process requires fast scanning back and forth. The response speed of RF tube is fast-1600mm / s, so for engraving or cutting, it is the best choice.
For CO2 Laser Marking Machine
-Achieve high speed static or dynamic marking effect.
-Mark/Engrave clearly
-Hard-wearing quality
-High engraving and marking efficiency
-Mark/Engrave clearly
-Hard-wearing quality
-High engraving and marking efficiency
Co2 laser marker adopts world famous YONGLI RF Laser Metal Tube quite suitable for users requiring highest precision and fastest speed batch production, tags, nameplate, logos.
RF Laser Tube For Fractional Treatment System
-CO2 Fractional Laser Scare Removal Skin Resurfacing Device
-CO2 laser therapy
-RF Stretch Marks Removal
-RF Tube Laser Generator Vaginal Tightening Laser
-Cosmetology surgery apparatus
-CO2 laser therapy
-RF Stretch Marks Removal
-RF Tube Laser Generator Vaginal Tightening Laser
-Cosmetology surgery apparatus
Advanced fractional CO2 Laser, it has best beam quality with RF Laser METAL TUBE. For skin resurfacing&rejuvenation with less down time, RF Metal tube from YONGLI guarantees its stable and minimized beam size for minimized PIH and Downtime
Certifications
7 Manufacturing Patented Technology
RF Power Technology
Ultra-high vacuum technology
Discharge cell polishing technology
RF Power Automatic Tuning and Matching Technology
Z-shaped optical path design inside the cavity Overall Design of Ceramic Resonator
Proportion Design of Working Substances
7 Product Designed Patented Technology
High heat dissipation folded RF CO2 laser
CO2 RF laser charging and exhausting equipment RF-excited carbon dioxide laser electrode fixture
RF-excited gas laser pre-ionization device
Electrode structure of carbon dioxide laser excited by radio frequency
RF-excited carbon dioxide laser spot shaping lens RF Laser
CE\\RoHS\\REACH\\FCC APPROVED
The manufacturer YONGLI confirms that our electrical or electronic equipment (including the underlying components) is free of hazardous substances.
The CE certifies indicate that YongLi RF laser tube has met EU consumer safety, health, or environmental requirements.
Packing & Shipping
Standard export packing & Extremely Fast Shipping
Every RF laser tube is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with a hard carton case which is reinforced with tapes on the top and bottom.
All our RF laser tubes are protected well during the long trip by sea or by train. We can transport RF laser tube by sea/air freight or express by DHL EMS UPS etc. Or according to your requirement.
Company Profile
The Largest Laser Manufacturer in China
Yongli Laser Technology Co.,ltd Was Founded in 2005, Yongli is the No.1 Co2 & Fiber Laser Parts & Machine Manufacturer in China, with 69 Core Technology and Independent Intellectual Property Rights.
We Are Committed to the Development and Manufacture of Laser Machine Parts & accessories (co2 Laser Tube, Power Supply, Lens&mirrors, Power Meter, Water Chiller and Control System, Fiber Laser Source, and Fiber Laser Head) and CNC Laser Machines (Laser Marking Machines, Laser Engraving Machines, Laser Cleaning Machines, and Laser Welding Machines). We Are Always Providing Customers with High-quality Products, Competitive Prices, and Excellent Services.
Whether You’re a Professional Supplier, a Large Material Processing Enterprise, or an Inspiring Workshop, We Understand Your Need for Pin-point Precision with a Pleasing Price Tag. Our Machines and Parts Come Equipped for Every Need — from Desktop Engravers to Large Cutters, Fiber Laser Markers and Even 100w for Small Businesses.
We Are Committed to the Development and Manufacture of Laser Machine Parts & accessories (co2 Laser Tube, Power Supply, Lens&mirrors, Power Meter, Water Chiller and Control System, Fiber Laser Source, and Fiber Laser Head) and CNC Laser Machines (Laser Marking Machines, Laser Engraving Machines, Laser Cleaning Machines, and Laser Welding Machines). We Are Always Providing Customers with High-quality Products, Competitive Prices, and Excellent Services.
Whether You’re a Professional Supplier, a Large Material Processing Enterprise, or an Inspiring Workshop, We Understand Your Need for Pin-point Precision with a Pleasing Price Tag. Our Machines and Parts Come Equipped for Every Need — from Desktop Engravers to Large Cutters, Fiber Laser Markers and Even 100w for Small Businesses.
YongLi Laser- Products and solutions for laser professionals.
Yongli Laser Technology is a Leading Manufacturer of Co2 Lasers & Fiber Lasers Machine&parts in China. from Our Base in Changchun, We Supply a Range of Advanced Products for Laser Solutions for Customers Throughout the World.
All Yongli Laser Products Are Designed and Produced On-site Ensuring Transparency and Quality Control Throughout the Manufacturing Process. with In-house Cnc Machining Capabilities and a Roster of Highly Skilled Engineers, Our Facility is Equipped to Produce Equipment of Remarkable Performance and Quality.
Yongli Laser Technology Has the Knowledge and Experience to Provide Expert Advice on Any Laser Application. Combined with Comprehensive After-sales Support Yongli Can Provide an Unrivaled Solution to Your Needs. Solving the Most Difficult Manufacturing Challenges with Thought Leadership and Innovative Laser Systems Solutions. Our Experts Engage Customers on over 2,500 Projects Per Year.
Certification is commitment to quality and safety
Product certification acts as an indicator of that product’s safety, reliability, and quality, Product certification is one of our best tools to tell the quality from the questionable, or reliable from the risky.
YongLi Laser Technology has obtained 50 patents, 6 software copyrights, and has successfully passed European CE certification, RoHS certification, FCC certification, REACH certification, MSDS certification, US Food and Drug Administration Certification, TUV Rheinland certification, Swiss SGS testing certification, and ISO9001 quality management system certification.
YongLi Laser Technology is a member of Alibaba Group’s TrustPass VIP member and Golden & Assessed Supplier. The business covers more than 70 cities in China, as well as nearly 80 countries and regions such as Southeast Asia, Europe, America, Oceania and Africa, and is highly recognized by domestic and global customers.
2015-Serigrafia Sign Futuretextil , Sao Paulo, Brasil
2016-EXPO PUBLICITAS, Mexico City, Mexico
2017-LASER PHOTONICS, Munich, Germany
2017-Sign Africa Expo Durban, Cape Town, South Africa
2018-Digi Sign,Cairo Egypt
2018-Media Expo, Mumbai, India
2018-Print & Signage Expo, Berlin, Germany
2019-Media Expo Mumbai, India
2019-FESPA , Sao Paulo, Brasil
2019-ITMA , Bienvenido, Spain
2022-LASER World of PHOTONICS, Messe München, Germany
2023-SPIE-Photonics West,San Francisco,USA
2023-ISA International Sign Expo 2023,Las vegas,USA
2023-Andigrafica,Bogota,Colombia
2023-LASER-World of Photonics,Messe München,Germany
2023-ISA International Sign Expo 2023,Las vegas,USA
2023-Andigrafica,Bogota,Colombia
2023-LASER-World of Photonics,Messe München,Germany
Pre-sales support. Build customers value with trustworthy
All laser products with comprehensive pre-sales support services that enable you an easy and resourceful journey with YongLi Laser. All we want is to give you a delightful experience.
Extensive coverage of 30+ domestic offices and institutions to create a 2-hour service arrival. Combination of online live chat and other social media video chat to meet customer needs in multiple directions and at multiple levels. Multi-batch customer return visits, timely discovery of problems to solve and improve.
Customer Need Focus
Tell us about your business needs or any questions about CNC laser machines. We strive to put 100% effort into helping you find the most suitable metal laser solution.
Free Consultation
Free consultation and laser market analysis are provided to help you commence and get returns with our high quality lasers.
Free consultation and laser market analysis are provided to help you commence and get returns with our high quality lasers.
Customized Solutions
Customized metal laser solutions will be designed to meet diverse needs, together with free drawings and free trial running. Lifetime technical support is offered for all YongLi Laser laser products.
Customized metal laser solutions will be designed to meet diverse needs, together with free drawings and free trial running. Lifetime technical support is offered for all YongLi Laser laser products.
Showroom Visit
You are always welcomed to visit our factory and office in China, or visit our online 3D VR showroom and experience a fast and efficient way to connect with us.
You are always welcomed to visit our factory and office in China, or visit our online 3D VR showroom and experience a fast and efficient way to connect with us.
We guarantee the most professional after-sales service.
Less than 5 MINS QUICK RESPONSE. Within 24 HOURS SOLUTION PROVIDED. Proud to be No.1 in customer satisfaction for our guaranteed after-sales service.
We guarantee the profitability of our laser products.The laser equipment we designed is highly efficient and durable, which can bring benefits and is easy to oversell.
You can always contact our company's specialized after-sales service staff. Our team will professionally answer all questions about the equipment at any time. No need to worry about anything, we are always by your side.
