Product Overview
Description
Products Description

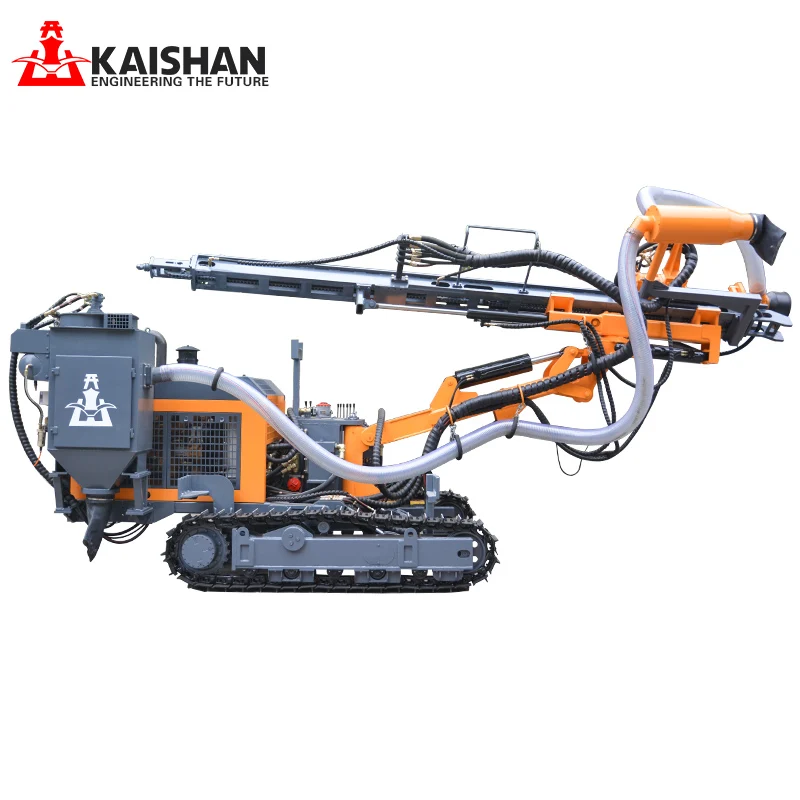

The KG410 down the hole drill rig for open use is an improved device in compliance with national regulations in diesel-engine emissions. Equipped with Yuchai four-cylinder engine (China 3), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive and tramming motor of plunger piston improve the working pressure and climbing capacity, the expanded pith and lifting-arm hydraulic cylinder enable it to meet the requirements on extreme position.
The double-motor rotation increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are
expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its
level of intensity and rigidity, and the additional ring makes handling and lifting convenient.
The double-motor rotation increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are
expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its
level of intensity and rigidity, and the additional ring makes handling and lifting convenient.
Model | KG410 | KG410H | |
Size of drill machine | 6000X2100X2000mm | 6000x2350x2000mm | |
Weight | 4700kg | ||
Rock rigidity | f=6-20 | ||
Diameter of hole | Φ90-115mm | ||
Optium drilling depth | 25m | ||
Rotation speed | 0-120r/min | ||
Rotation torque | 1800N·m | ||
Lift power | 40000N | ||
Feed way | oil cylinder-chain | ||
Feed distance | 3980mm | ||
Walk speed | 0-2.5Km/h | ||
Gradeability | 30° | ||
Ground clearance | 280mm | ||
Sliding carriage pitch angle | Blow 135°,elevation50°, total 185° | ||
Sliding carriage swing angle | Left100°,right45°,total 145° | ||
Drill boom pitch angle | Blow 50°,elevation25°, total 75° | ||
Drill boom pitch swing angle | Left44°, right45°, total 89° | ||
Sliding carriage suppling length | 900mm | ||
Power | YC4DKC4G2-80 (58KW/2200r/min) | ||
Drill pipe | Φ64x3000mm / 76X3000mm | ||
Air consumption | 10-17m³/min | ||
Max height of horizontal hole | 2840mm | ||
Min height of horizontal hole | 350mm | ||
Spare parts
Recommend Screw Air Compressor for KG920B dth borewell drilling machine | ||||
MODEL | Air capacity | Working pressure | ||
LGCY13-13 | 13m3/min | 1.3mpa | ||
LGCY15-13 | 15m3/min | 1.3mpa | ||
LGCY13-17 | 13m3/min | 1.7mpa | ||
Recommend Drilling tools for KG920B borewell drilling machine | ||||||
Drill Bit Dia. | 90mm | 105mm | 115mm | |||
Drill pipe Dia*L | 64*3000mm | 64*3000mm | 76*3000mm | |||
Drill hammer | CW930 | HD45S | HD45A | |||
