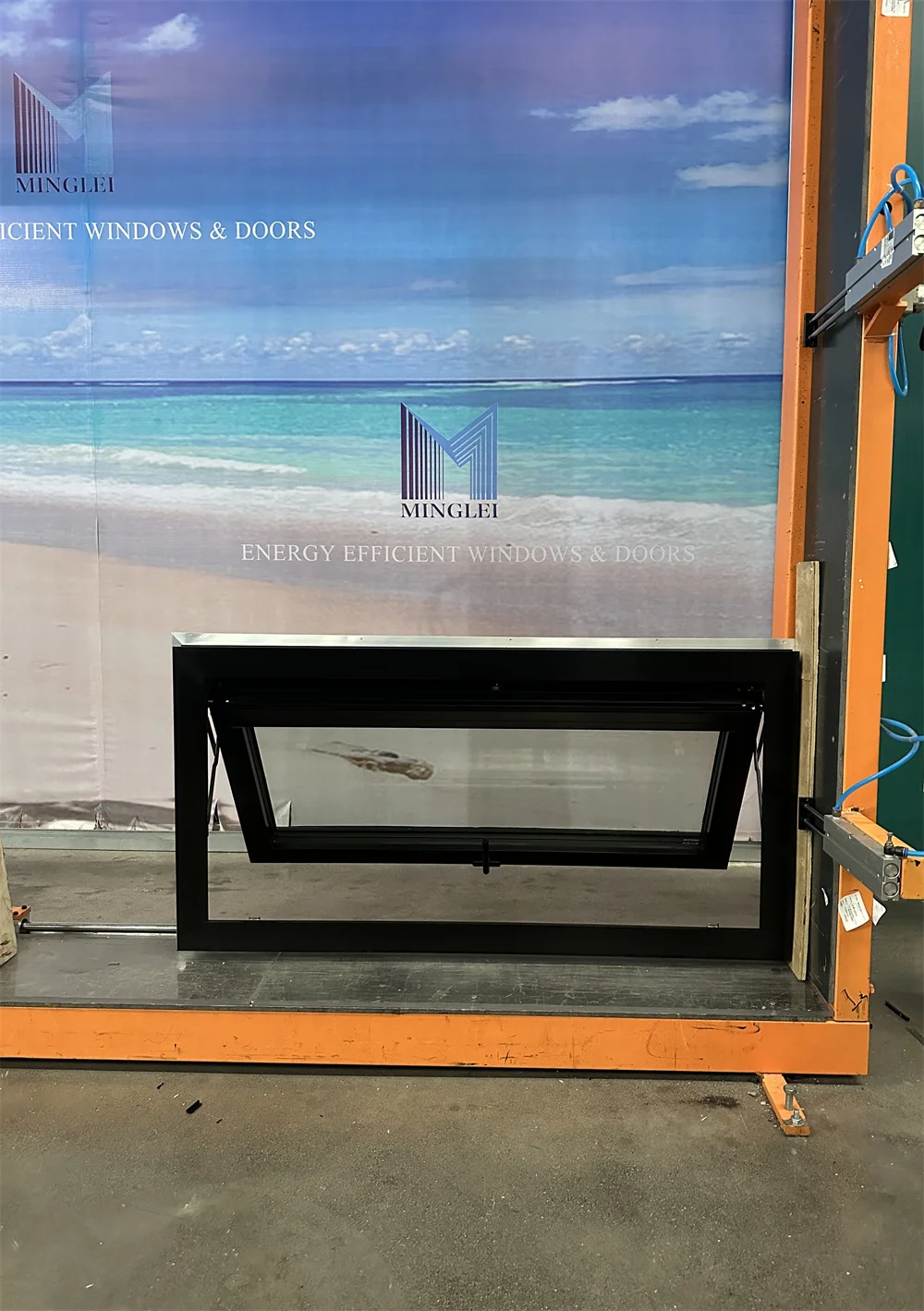

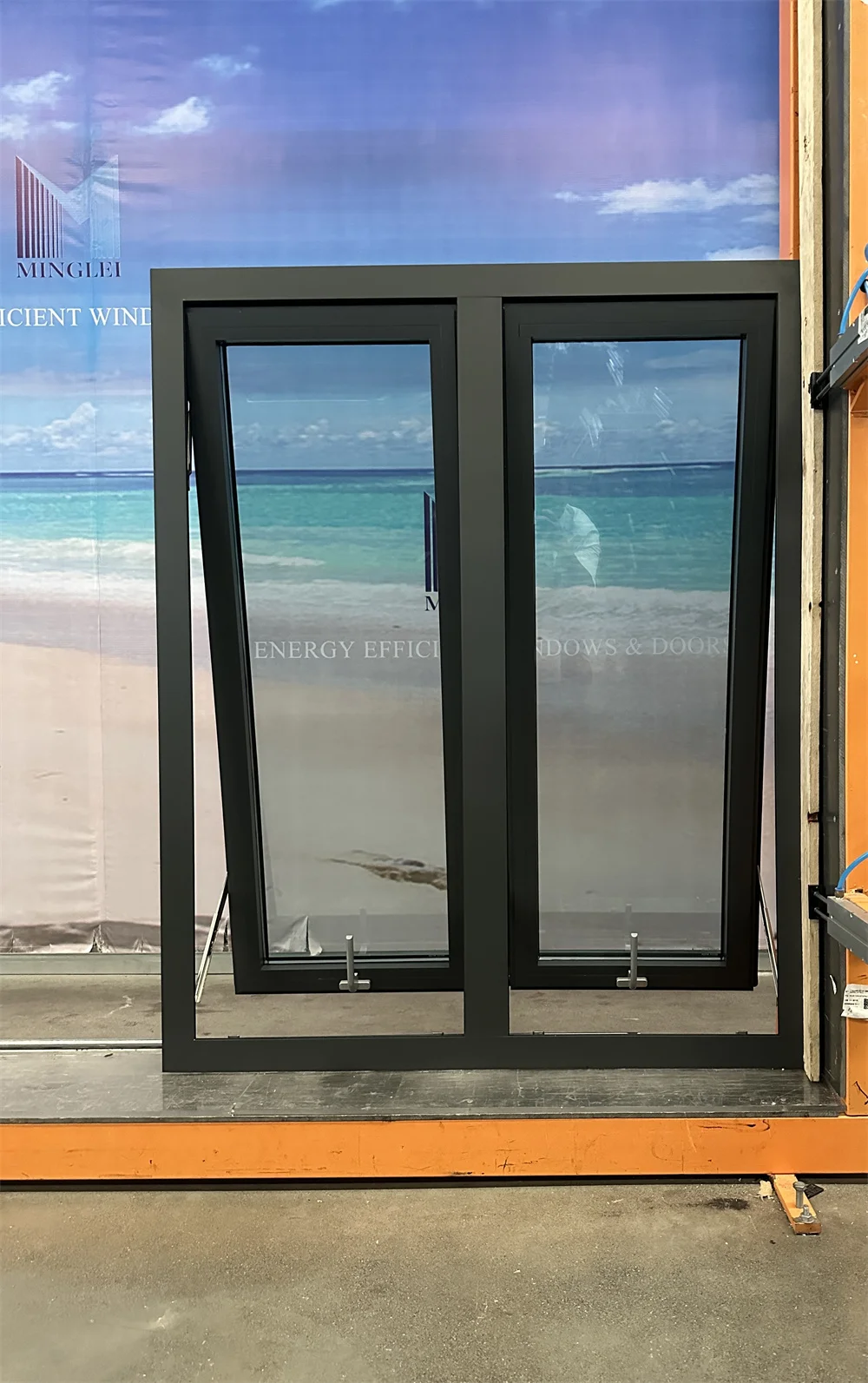

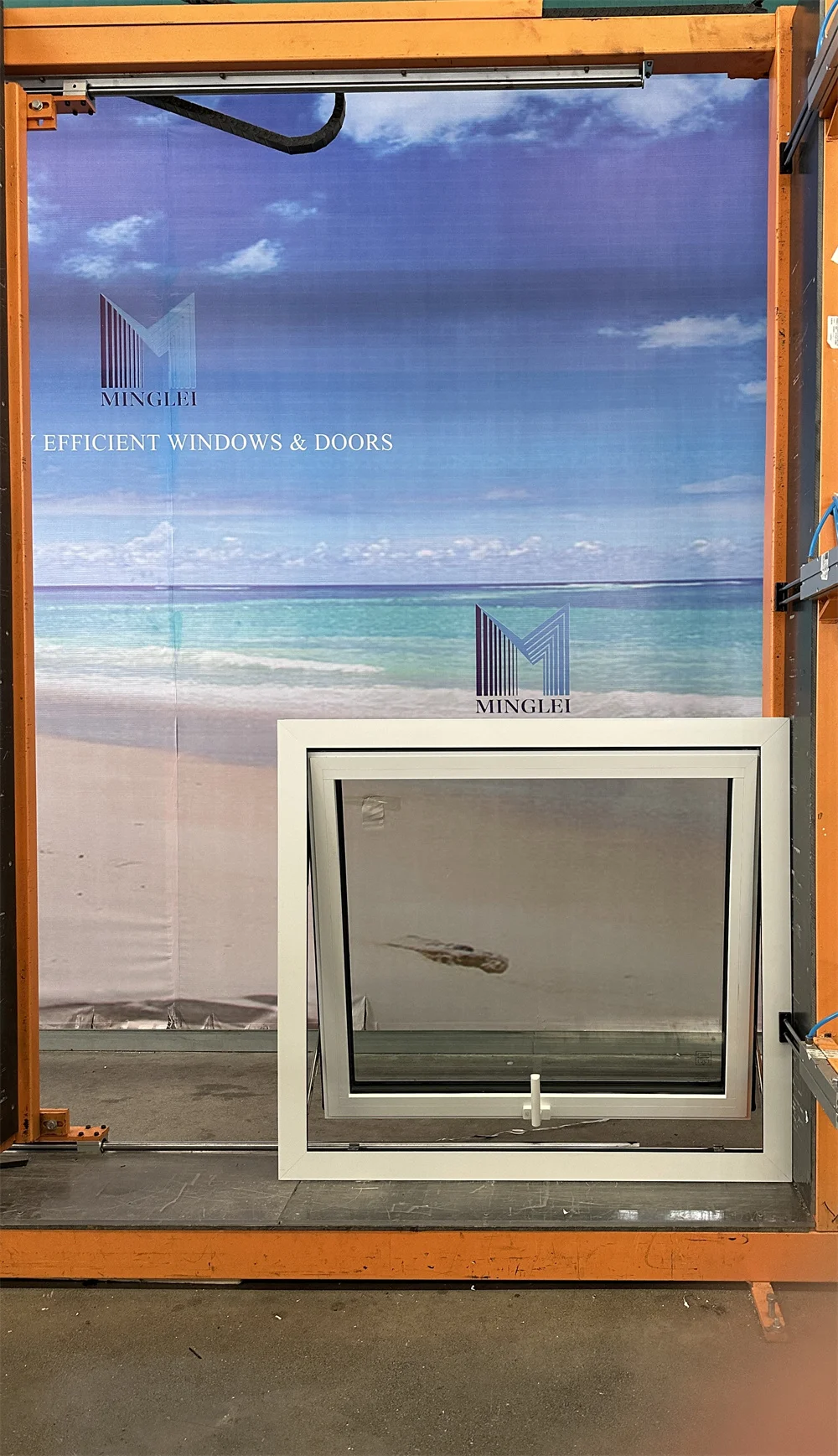

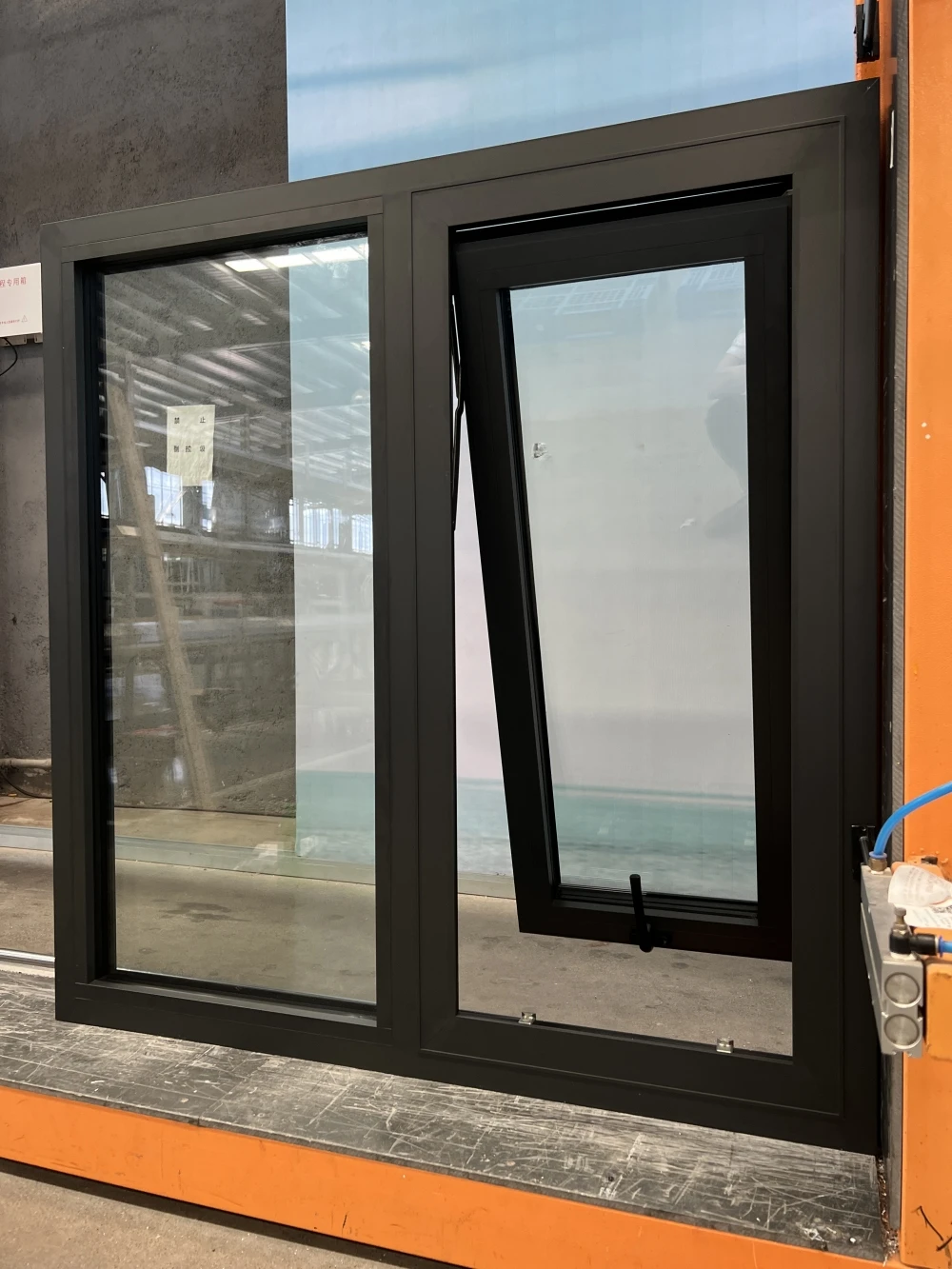

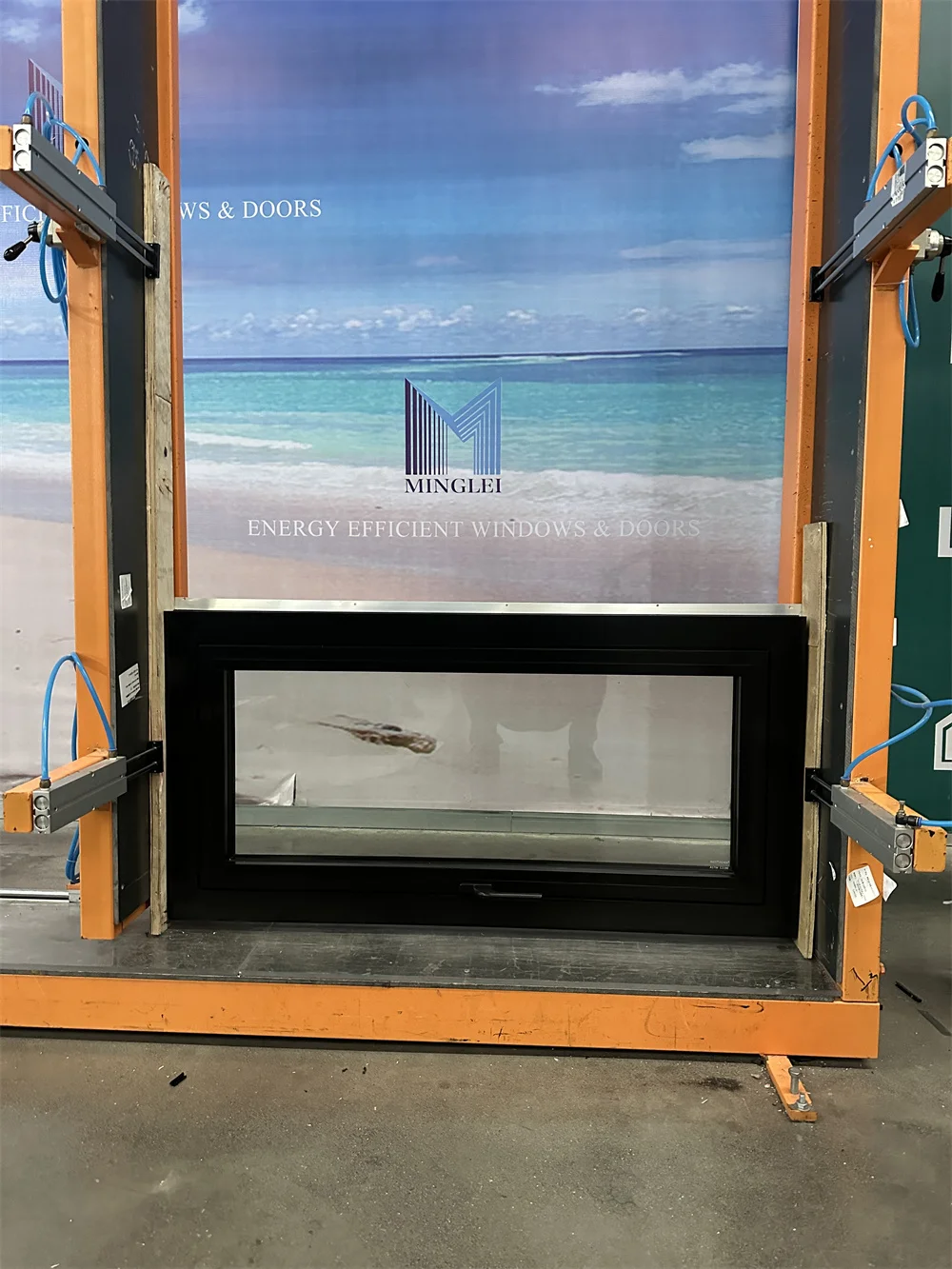

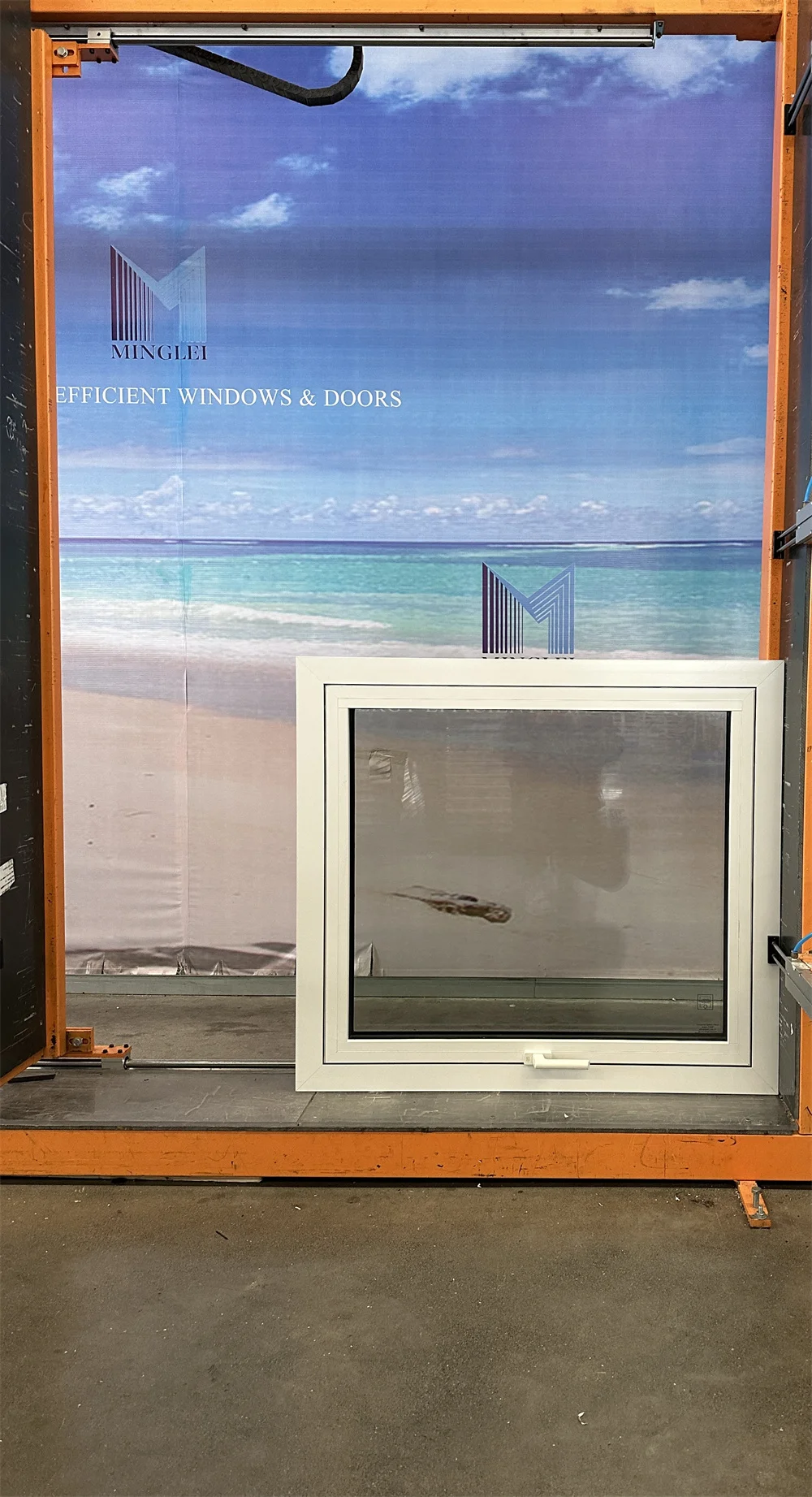

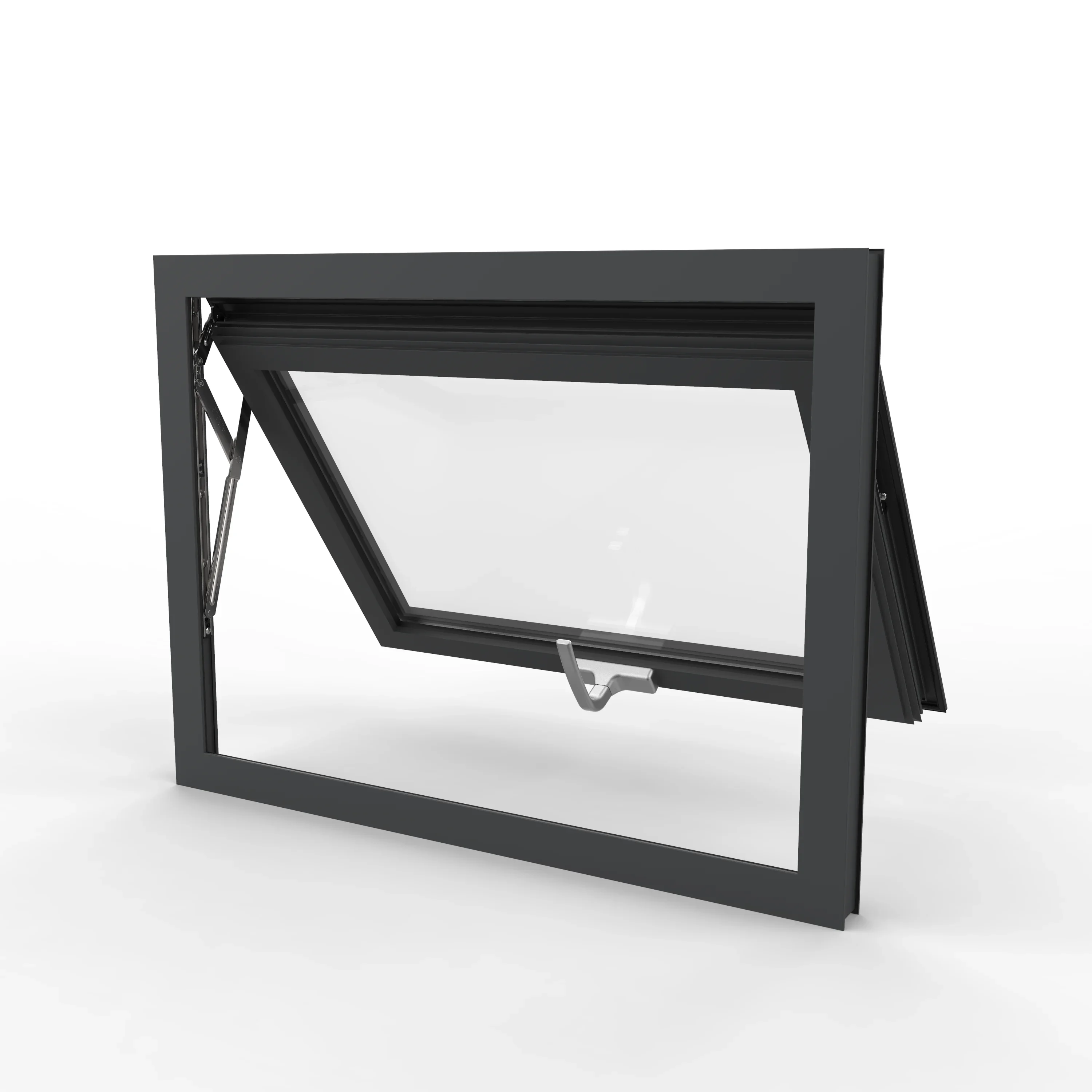

German standard aluminum profile glass windows double glazed tempered glass aluminum awning window
- Category: >>>
- Supplier: Hangzhou Minglei Industry Co. Ltd.
Share on (1601044986927):
Product Overview
Description
Product details
1. Profile | 6060-T66/6063-T5 Thermal break aluminum alloy | ||||
2. Profile brand | Germany system, Domestic system | ||||
3. Surface finish | Powder coating, Anodized, Woodgrain transfer, Elestrophoresis, Fluorocarbon paint. | ||||
4. Profile thickness | 1.8 mm-3.0mm, | ||||
5. Glass option | Double insulated glass: 5mm/6mm+12A/15A+6mm, warm edge spacer low-e & argon gas optional Triple insulated glass: 5mm+ 9A/12A/15A/18A+5mm+ 9A/12A/15A/18A+5mm, warm edge spacer low-e & argon gas optional Laminated insulated glass: 5mm+ 0.76PVB/ 1.14PVB+5mm+12A+5mm, clear, tinted, reflective, tempered optional | ||||
7. Hardware | Germany imported Schuco brand, Siegenia, G-U, Hoppe, Italy Giesse, Sonbinco | ||||
8. Seal & strip | Germany Orginally imported EPDM Rubber sealing strip, black or grey color | ||||
9. Screen optional | Nylon/fiberglass mesh material, Stainless steel mesh screen etc | ||||
10. Sunshading | Blinds, roller shutter etc | ||||
11. Applications | Commercial building, Office, apartment, villa, basement, garden, hotel, hospital, residential housing. | ||||
Product performance | AWS 112 IC series | AWS 90.SI+ series | AWS 75.SI+ series |
European U-Value (Metric/SI) | 0.75 W/(m²K) | 0,95 W/(m²K) | 1.05 W/(m²K) |
American U factor (U.S./I-P) | 0.14 | 0.17 | 0.18 |
Rw (dB) | 42 | 38 | 38 |
Domestic system thermal insulation aluminum window
ML 70 series high thermal insulation
ML 75 series high thermal insulation
ML101 Series Passive house max insulation
Product performance | ML101 Series | ML 75 series | ML 70 series |
European U-Value (Metric/SI) | 0.79 W/(m²K) | 1.3 W/(m²K) | 1.4 W/(m²K) |
American U factor (U.S./I-P) | 0.14 | 0.23 | 0.24 |
Rw (dB) | 40 | 38 | 38 |
Wind load resistance (Pa) | ≥ 5000 Pa | ≥ 5000 Pa | ≥ 5000 Pa |
Water tightness (Pa) | ≥ 700 Pa | ≥ 700 Pa | ≥ 700 Pa |
Air infiltration/exfiltration | q1≤0.26m³/(m·h); | q1≤ 0.36m³/(m·h); q2≤ 0.71m³/m²·h) | q1≤ 0.42m³/(m·h); q2≤ 0.77m³/m²·h) |
For years, Aluminum window have been specified by architects and builders for their overall strength and lasting value. Because of their rigidity, durability and narrow frames, aluminum windows can be configured into a wide variety of combinations that maximize views. Aluminum windows also are popular because of their low maintenance. They won't rust or rot. You don't have to paint them. And they're available with tough anodized or baked-on finishes.
Packing & Delivery
Related products
Our company
Hangzhou Minglei Industry Co., Ltd., which have been specialized in windows and doors since 2008 year.
Based on our advanced & exquisite manufacturing technique, and abundant product application and service experience, We can offer extensive range of windows and doors products, which can meet EU CE and USA ASTM standards on windows & doors technologies.
Minglei is dedicated to contribute to the prospective and sustainable development of buildings, and creating better life for human beings.
