Full Automatic Gypsum Board Production Line Full Automatic Low Price Gypsum Board Production Line
$700,000.00-3,000,000.00
Full automatic EPS lightweight cement wall panel vertical forming mold machine
- Category: >>>
- Supplier: Yurui (shandong) Machinery Co. Ltd.
Share on (1601045000200):
Product Overview
Description
Contact Me
whatsapp/wechat:0086-17853908196
Email:sherryoyd@aliyun.com
https://www.oyademachine.cn
Introduction of advantages
1 | lightweight ：The lighter material of the wall panel used weighs 25% to 40% of the weight of the bricks |
2 | High thermal insulation |
3 | Remove a higher sound |
4 | Install faster 4 Times than the regular blocks |
5 | Wall does not need the expenses of the work of the plaster |
6 | A1 grade fireproof |
Product Description
Why wall panel is more and more popular?
1 -lightweight ：The lighter material of the wall panel used weighs 25% to 40% of the weight of the bricks
2 -High thermal insulation
3 - Remove a higher sound
4 -Install faster 4 Times than the regular blocks
5 - Wall does not need the expenses of the work of the plaster
2 -High thermal insulation
3 - Remove a higher sound
4 -Install faster 4 Times than the regular blocks
5 - Wall does not need the expenses of the work of the plaster
Intruduction of eps cement wall panel making machine / lightweight eps cement wall panel production line
Lightweight and energy-saving composite wall panel is made of industrial waste fly ash, slag, ceramics, portland cement and EPS foam particles as the main raw materials. The production process is simple, the cost is low, and the economic benefits are considerable.According to the development of wall materials in developed countries, the product is in line with the development law, which overcomes the defects of other lightweight wall panel, has unique performance, and will be the leader in new wall materials

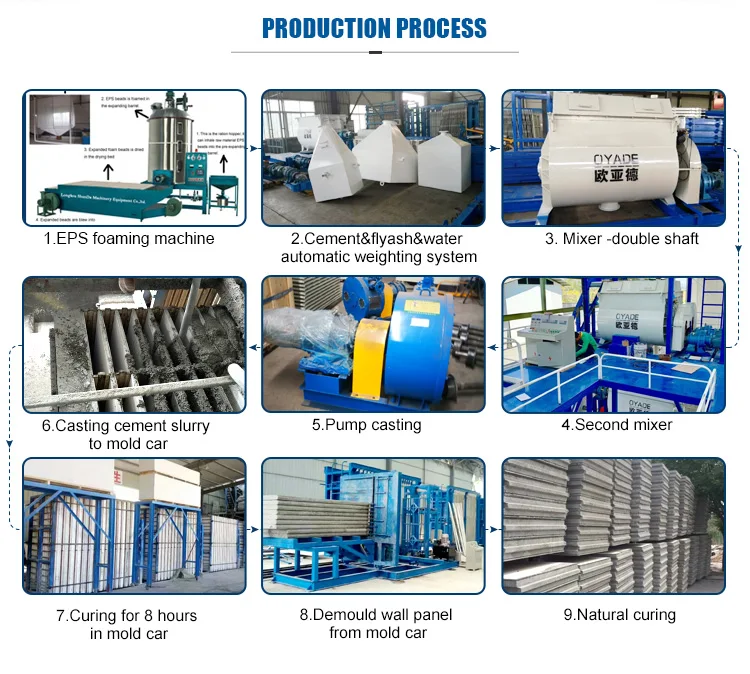

Product process

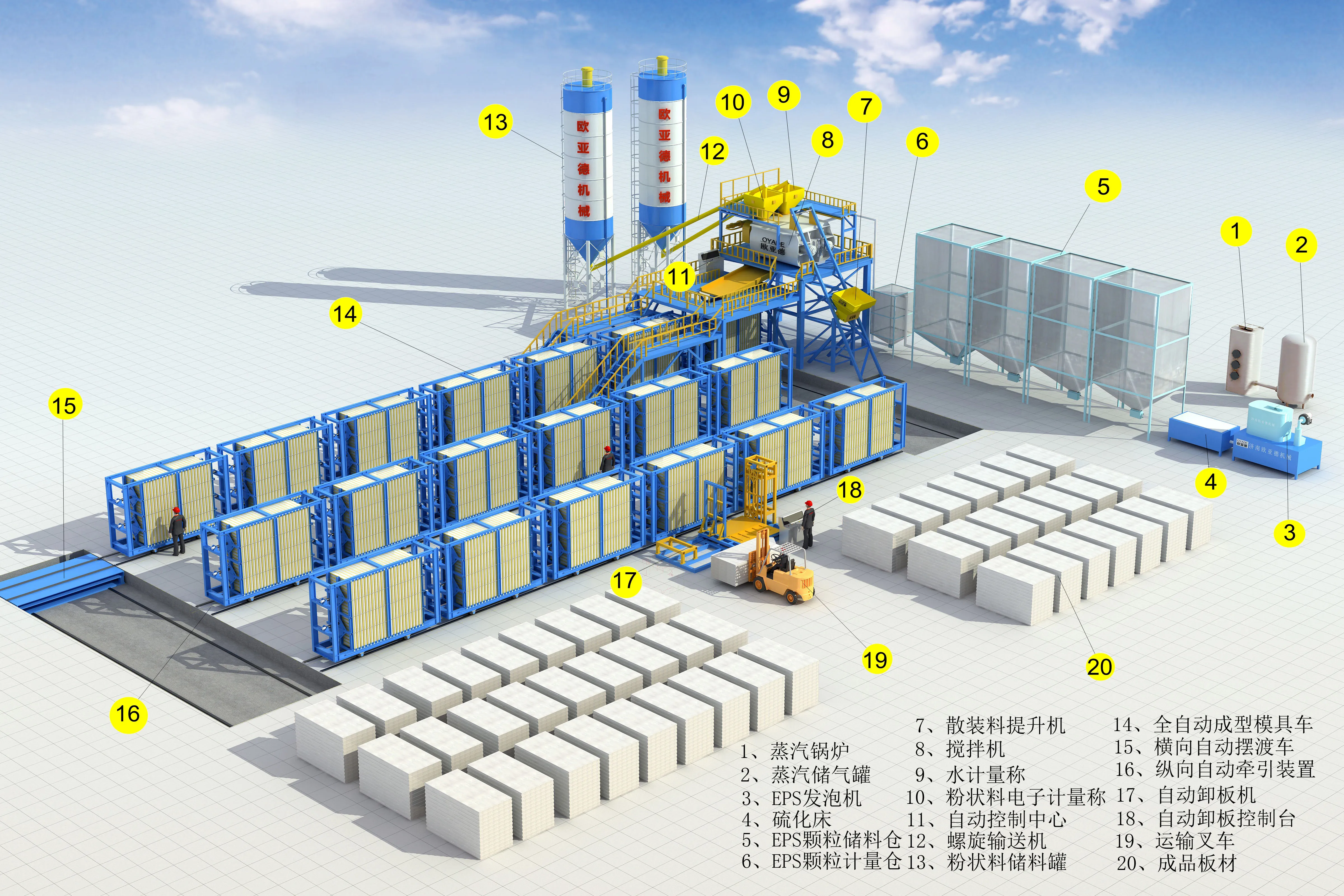

wall panel production process

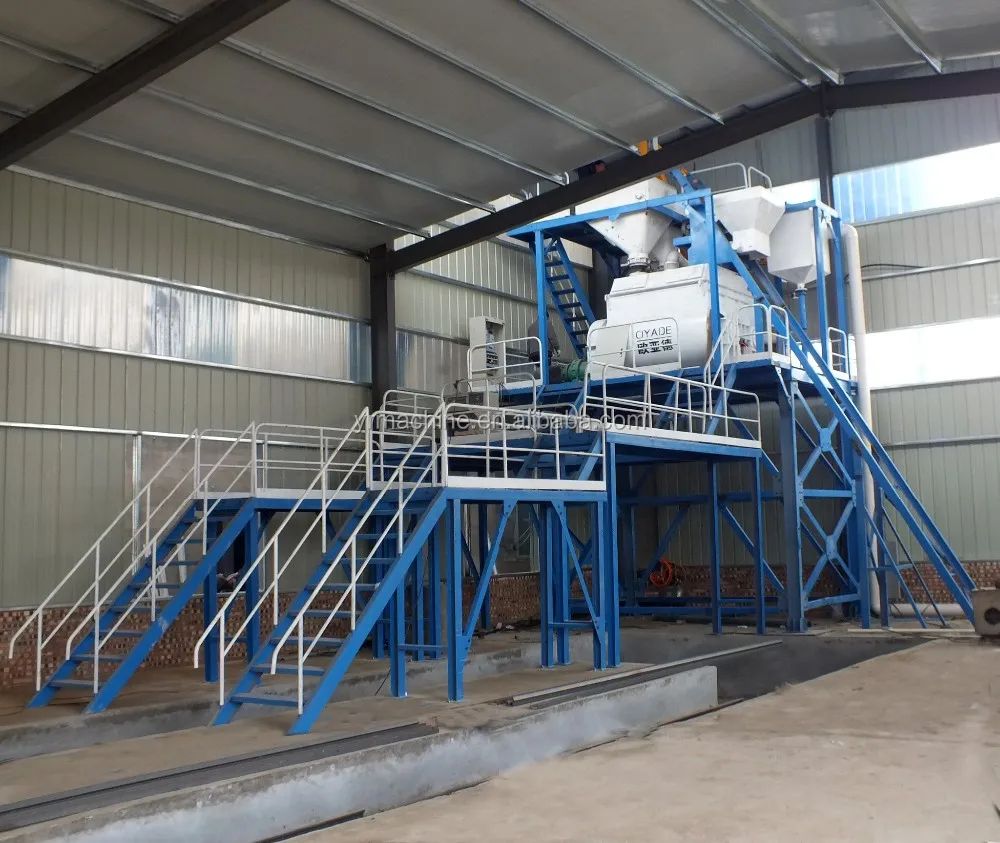

1 Automatic raw material feeding --metering -mixing system ,
accurate measurement to ensures proportion stability , also can save time and labor .
accurate measurement to ensures proportion stability , also can save time and labor .
2 The Mixer is double -shaft , stable and convenient operation and high production efficiency.Beside, the blade is only 3mm to the mixer wall so that can guarantee mixing even .End of shaft has four seal, no oil
leakage, no slurry leakage , automatic oil filling maintenance.
Besides ,the mixer is sealed， so there is only a small quantity dust and no need dust collector , so that can help you save cost .
leakage, no slurry leakage , automatic oil filling maintenance.
Besides ,the mixer is sealed， so there is only a small quantity dust and no need dust collector , so that can help you save cost .
3 We use the pump to cast the slurry into the mould car , in this way , the slurry will be more even ,with less bubble ,besides it can kepp
the working platform clear without wasted raw material .
Besides , it can avoid the difference between two end of two board by workers vibration,
, and protect the integrity of the calcium silicate board , and ensure the compactness of both sides.
the working platform clear without wasted raw material .
Besides , it can avoid the difference between two end of two board by workers vibration,
, and protect the integrity of the calcium silicate board , and ensure the compactness of both sides.
4 we have full automatic demoulding system to reduce the woking strength, this is our patent
technology and it is very mature now . each time can pull out 20pieces wall panel , compared with manural demoulding which need about 30-40minutes , automatic demoulding only need around 10-20 minutes
technology and it is very mature now . each time can pull out 20pieces wall panel , compared with manural demoulding which need about 30-40minutes , automatic demoulding only need around 10-20 minutes

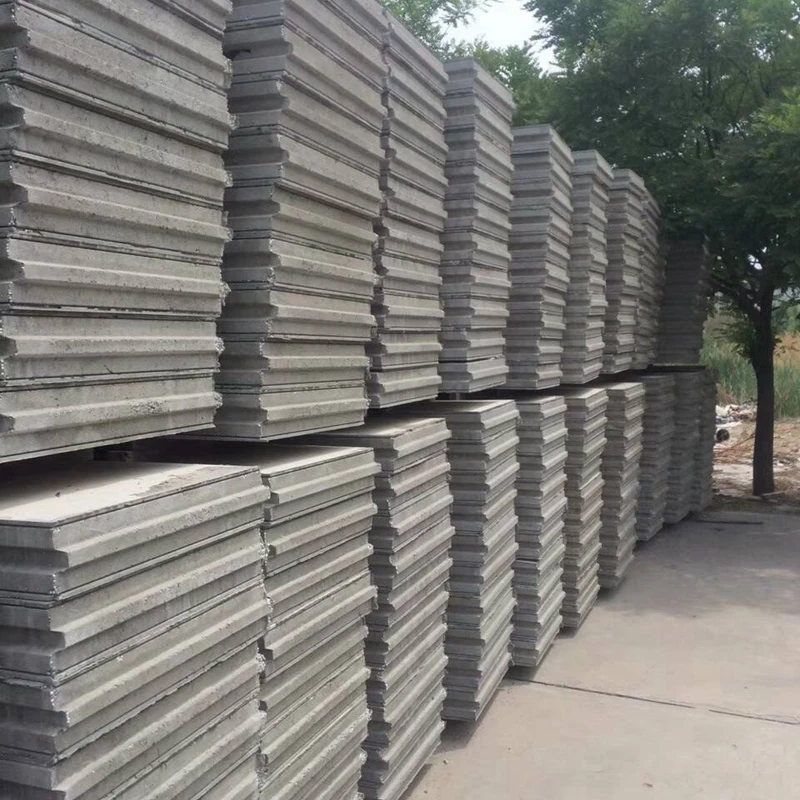

Finished wall panel
Machinery Parameters | ||||||
Capacity | 20,000sqm~600,000sqm per year | |||||
Thickness | 50-250mm thickness. special sizes need to be customized | |||||
Length | 2440~3600mm, special sizes need to be customized | |||||
Width | 610mm , special sizes need to be customized | |||||
Raw materia | There are mainly two different types 1. Cement+fly ash/eps/ceramsite/sand, etc (optional, can choose to add or not add) 2. Fomed cement+additives | |||||
Finished board type | 1. Composite board/sandwich board, with surface board 2. Lightweight solid panel, without furface board | |||||
Surface board types | 1. Calcium silicate board 2. Fiber cement board 3. Mgo board | |||||
Electrical | There are mainly two different types | |||||

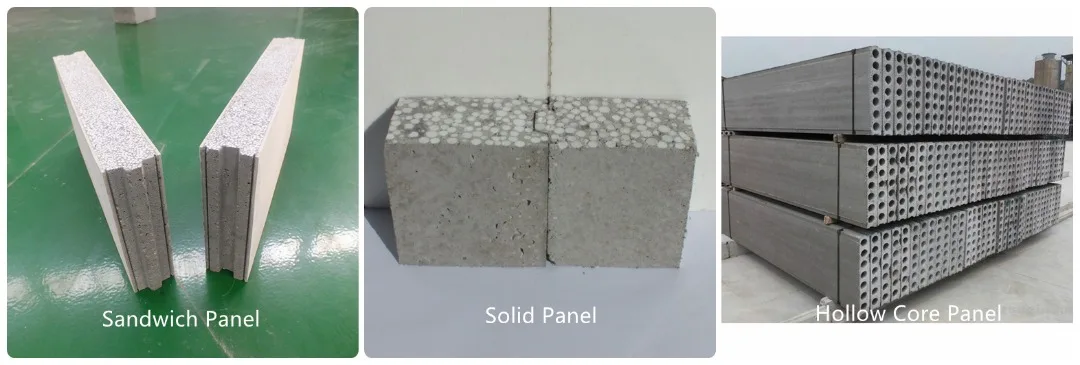

1 Sandwich wall panel(with the surface board， like calcium silicate board or fiber cement board)
2 solid wall panel(without surface board),
3 hollow core wall panel
2 solid wall panel(without surface board),
3 hollow core wall panel

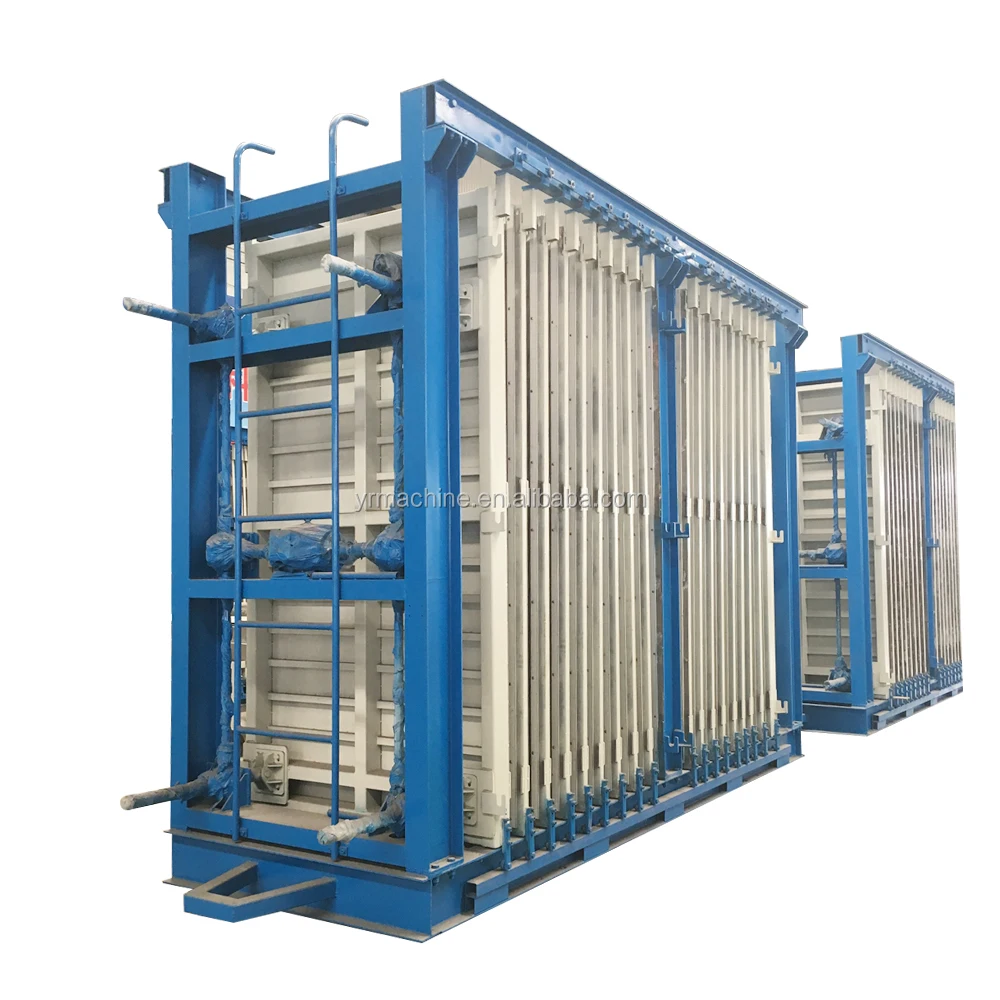

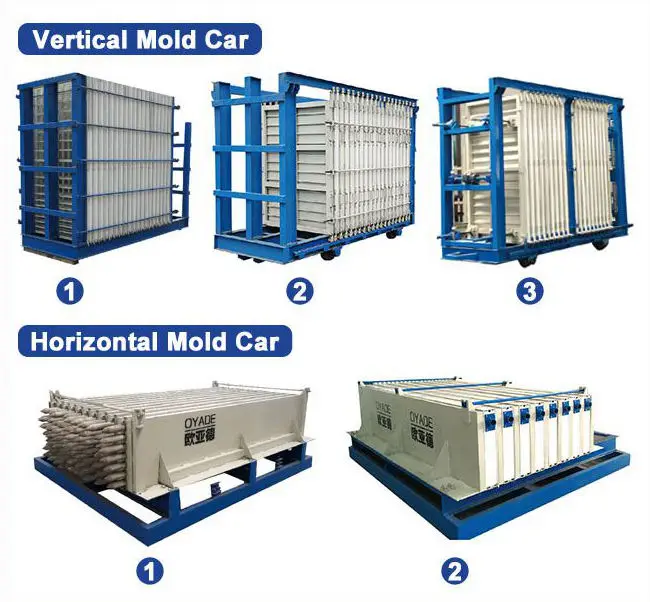

Vertical mold cars
Vertical mold Car
We have double functional vertical mould car : it not only can produce sandwich wall panel but also
can produce solid wall panel to meet market demand .
Our mould car surface plate used cold roll steel plate , so that can guarantee the wall panel are straight ,besides the plate is durable.
can produce solid wall panel to meet market demand .
Our mould car surface plate used cold roll steel plate , so that can guarantee the wall panel are straight ,besides the plate is durable.
Its advantages is bigger productions capacity.
Like wall panel with 100mm thickness， it can produce 36 sheets per mold car
Like wall panel with 100mm thickness， it can produce 36 sheets per mold car
1 The steel plate is cold rolled steel plate with a thickness of 2 mm, which can ensure the flatness of the plate.
2 Welding, exquisite workmanship, rust removal of steel balls
3 The raw material for the mould car is wear-resistant casting steel , which is same to the high speed
train
train
4 Vertical mold car has larger production capacity and small floor area.

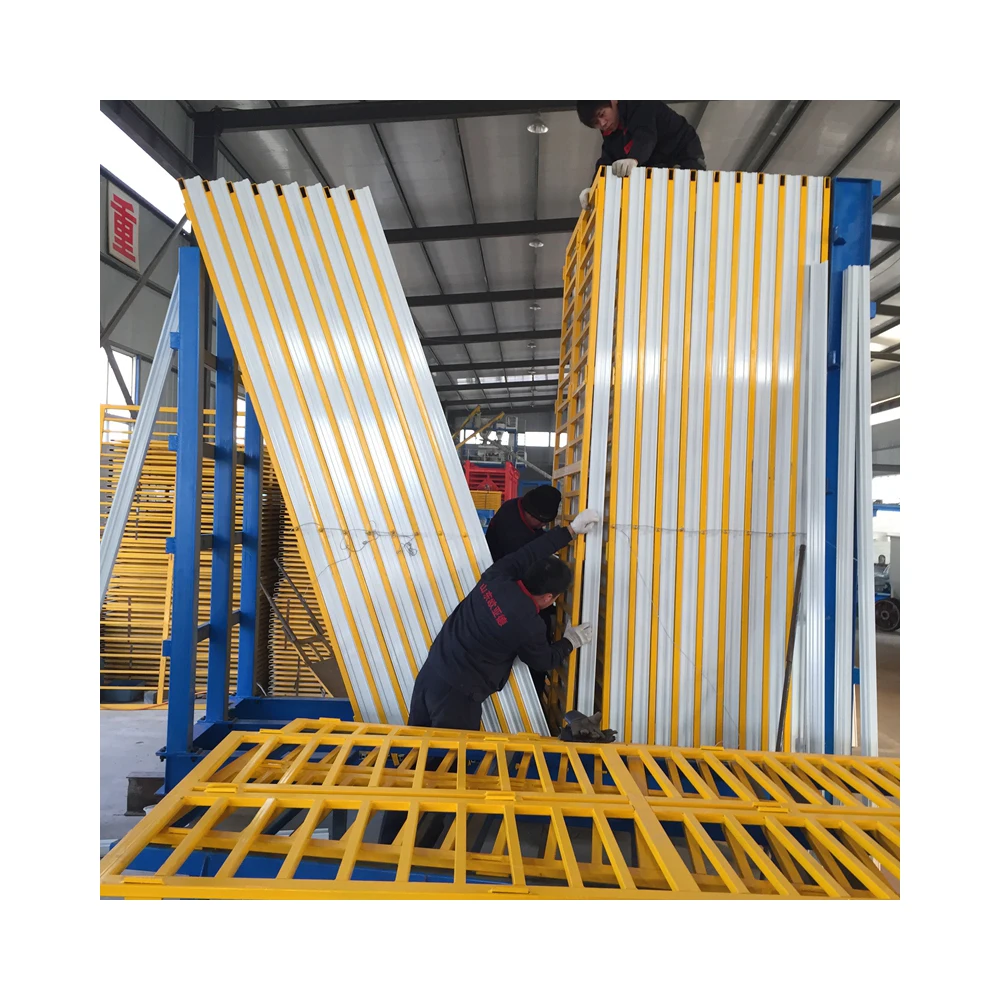

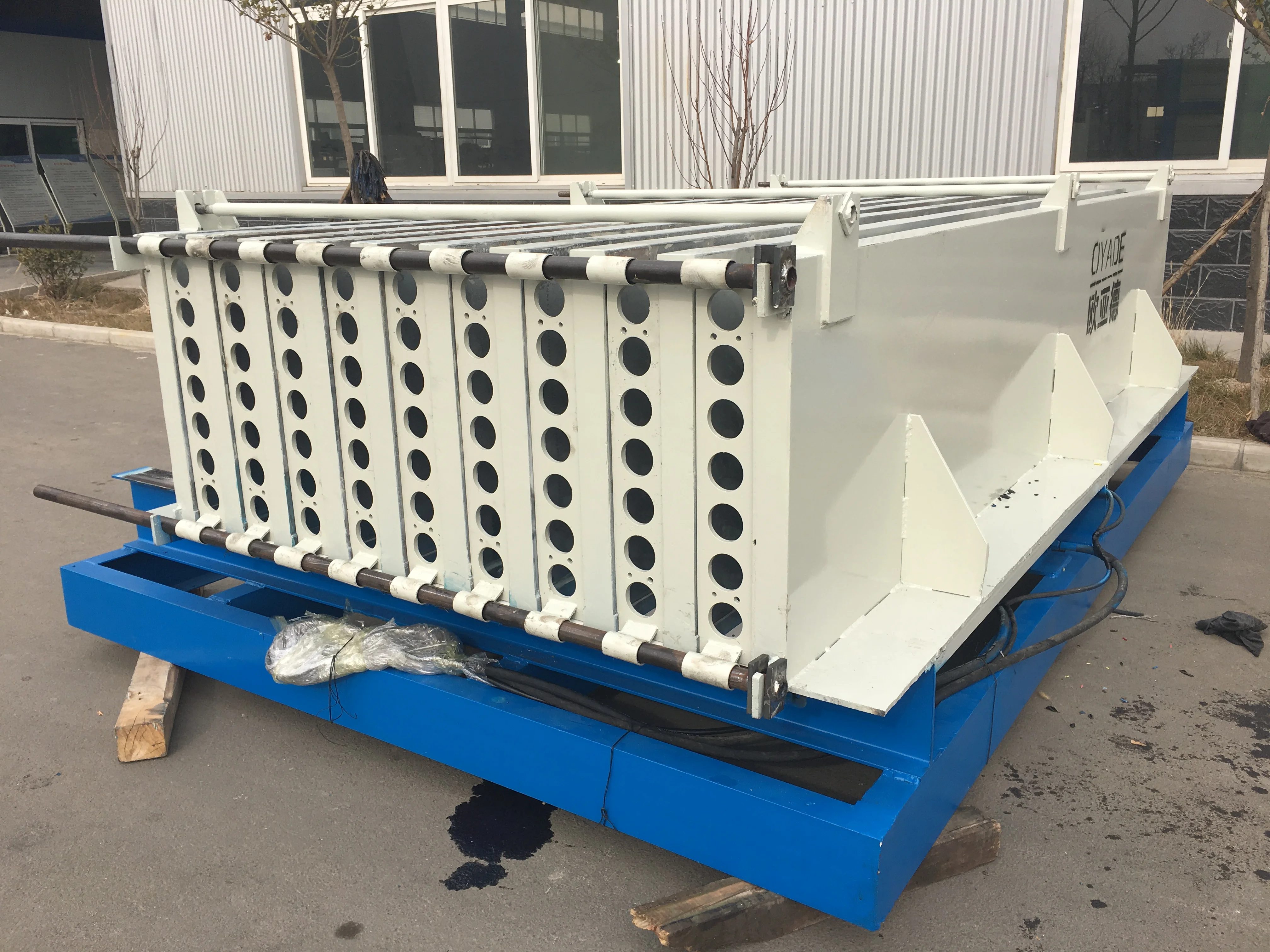

horizontal mold car
Horizontal mold cars: It is multifunctional. It can produce all kinds wall panel.
1 We pay much more attention for the process of Welding. Our workers are more careful in Welding to make the joints compact, avoid any Leakage welding.
2 For the Flatness of Steel Plate, its tolerance is only within ±1mm/m2
3 Our engineer developed new design of Plastic plug (Double 66 + nylon material） （Native material， while other factories use Recycled material): Reduce friction damage with steel pipe and increase service life. The plastic plug is more thicker. It can stand up in any position, easy to use.
4 The thickness of steel plate on horizontal mold car : 6-8 mm
4 The thickness of steel plate on horizontal mold car : 6-8 mm
5 Plastic plug, which is much more easy for workers to Intubation and extubation.
After sales service
Since the production line is large investment, so our company order type of production, that is arranging the production process from raw materials and production to shipment
after received the order.
1 Full life-cycle value services: Our company provides production line design, cost accounting, installation and operation, equipment maintenance and the whole life cycle technical support
2 All-around technical service: we provide technical formula for clients, to help clients to occupy the leading position in the market.
3 Complete data specification: Provide production line equipment technical data and instructions, and provide the formula.
4 Quality commitment: The company regards product quality as the lives of enterprises, the main components and wearing parts are made of high quality wear-resistant materials and advanced processing technology, so that the equipment endurable and wear resisting, wearing parts warranty for one year, and our company perennial supply of device of wearing parts.
after received the order.
1 Full life-cycle value services: Our company provides production line design, cost accounting, installation and operation, equipment maintenance and the whole life cycle technical support
2 All-around technical service: we provide technical formula for clients, to help clients to occupy the leading position in the market.
3 Complete data specification: Provide production line equipment technical data and instructions, and provide the formula.
4 Quality commitment: The company regards product quality as the lives of enterprises, the main components and wearing parts are made of high quality wear-resistant materials and advanced processing technology, so that the equipment endurable and wear resisting, wearing parts warranty for one year, and our company perennial supply of device of wearing parts.

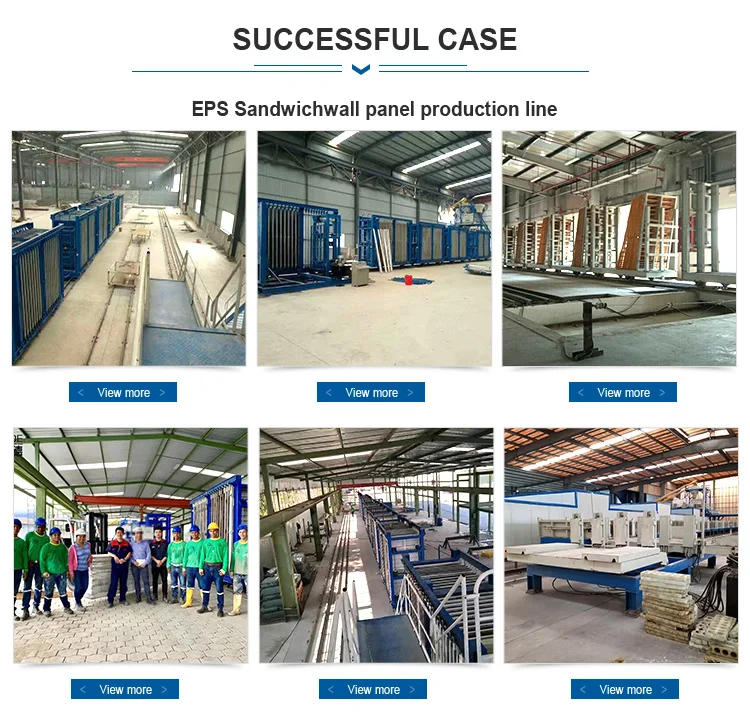

Sample project
1 Our company provides production line design, cost accounting, installation and operation,
equipment maintenance and the whole life cycle technical support
All-around technical service: we provide technical formula for clients, to help clients to occupy the leading position in the market.
2 Complete data specification: Provide production line equipment technical data and instructions, and provide the formula.
3 Quality commitment: The company regards product quality as the lives of enterprises, the main components and wearing parts are made of high quality wear-resistant materials and advanced processing technology, so that the equipment endurable and wear resisting, wearing parts warranty for one year, and our company perennial supply of device of wearing parts.
4 Trade Service: We can help the customer to do the consignment and the relevant procedure for import and export.
equipment maintenance and the whole life cycle technical support
All-around technical service: we provide technical formula for clients, to help clients to occupy the leading position in the market.
2 Complete data specification: Provide production line equipment technical data and instructions, and provide the formula.
3 Quality commitment: The company regards product quality as the lives of enterprises, the main components and wearing parts are made of high quality wear-resistant materials and advanced processing technology, so that the equipment endurable and wear resisting, wearing parts warranty for one year, and our company perennial supply of device of wearing parts.
4 Trade Service: We can help the customer to do the consignment and the relevant procedure for import and export.
Our Company
OYD group was established in 2008. she has 5 subsidiaries for producing different kinds of products, eps concrete wall panel production line; mgo board /fiber cement board production line; hollow glass aluminum spacer; Laser cutting machine , etc.
OYD Philosophy : O and Y means the global market, with the top quality machine to occupy more market. D, is related with a Chinese idiom, means the person who has the high prestige and trustworthy. So the OYD means that Be a sincere person first, Occupy the market share through top quality products.
I am Sherry from Shandong Oyade Machinery, China.
Our factory has been producing wall panel production line for 15 years, and have successful projects in Philippines, Malaysia,Qatar, UAE, Syria，Saudi Arabia, Russia, Australia, Ecuador, Mexico and so on.
Our factory has been producing wall panel production line for 15 years, and have successful projects in Philippines, Malaysia,Qatar, UAE, Syria，Saudi Arabia, Russia, Australia, Ecuador, Mexico and so on.
Our company is a group company which focuses on the construction/building materials and its making machine. After many years devoted to research and manufacturing, we are confident to say that we could provide the mature and patented technology for customers. Such as light wall panel production line, EPS cement sandwich wall panel production line, foamed cement insulation board production line, full-automatic extrusion wall panel production line, gypsum wall panel production line, gypsum block production line, etc.
We continuously improve customer satisfaction through providing high-quality service. Now we have already help to set many factories in China and exported to more than 30 countries over the world, such as , Syria, Israel, Kazakhstan, Malaysia, India, etc.
Sincerely invite friends from all over the world to visit our factory. If you have any questions, don't hesitate to contact us.
