16 In and 16 Out Dante DSP Audio Processor with 48V Phantom Power for Conference
- Category: >>>
- Supplier: Guangzhou Temeisheng Audio Technic Co. Ltd.
Share on (1601045011803):
Product Overview
Description
Product Description
Description:
The DSP-1616N2/DSP-1616ND2/DSP-1616ND3 audio processor combines Auto Mixer, Matrix Mixer, and Feedback suppressor in one purpose-built DSP processor. At the same time, it has independent FIR/AFC/ AEC/ ANS/ AGC gain sharing automatic mixing, threshold automatic mixing and other processing modules. The /DSP-1616ND2/DSP-
1616ND3 includes 16 mic/line analog inputs, 16 analog outputs to meet the needs of a wide range of audio processing applications such as boardroom, medium/large conference rooms, courtrooms, auditoriums and multi-purpose halls.
Features:
* 16-channel analog input and 8-channel analog output, Microphone or Line in switch
* +48V Phantom power per input channel
* AFC in each input
* AUTO-MIX and MATRIX-MIX
* 15 PEQS per input and 10 PEQS per output
* USB free driver connect, RS232/485 connector for center control
* +48V Phantom power per input channel
* AFC in each input
* AUTO-MIX and MATRIX-MIX
* 15 PEQS per input and 10 PEQS per output
* USB free driver connect, RS232/485 connector for center control
SPECIFICATIONS | DSP-1616ND3 |
Input Channels | 16 balanced. Mic/line level |
Connectors | 3.81 mm Euro block |
Input Impedance | 11.5KΩ |
Maximum Input Level | 14dBu/Line, -7dBu/Mic |
Phantom Power | +48VDC, 10mA, selectable per input |
Output Channels | 16 balanced, line level |
Output Impedance | 150Ω |
Frequency Response | 20Hz-20kHz(+-0.5dB)/Line |
20Hz-20kHz(+-1.5dB)/Mic | |
THD+N | LINE: 0.003% |
MIC: 0.005% | |
SNR | 105dB(@12dBu,1kHz,A-wt)/Line |
95dB(@-7dBu,1kHz,A-wt)/Mic | |
USB | Micro-B type, free driver |
RS232 | Serial port communication |
TCPIP | RJ-45, Optional |
LED Status Indicators | Power, Link, +48V, Input and Output Audio signal |
Mains Voltage | AC100V---240V 50/60 Hz |
Dimensions | 44mmx483mmx210mm |
Net Weight | 2.8kg |
Operating Temperature | -20℃-60℃ |
Cooling System | Active, Fan inside |
Signal Processor | 32-bit fixed/floating-point DSP 300MHz |
Audio Latency | < 1ms |
A/D and D/A Converters | 24-bit |
Sample Rate | 48KHz |
Related Products
Company Introduction
Lucky Tone specializes in design and manufacturing of Public Address System (PA), Conference System and Professional Audio System.
With power amplification, loudspeaker, and PA system management engineering resources all located under one roof.
Lucky Tone uniquely leverages these technologies to deliver products and systems that far outperform the sum of their parts - providing compelling solutions for public Address and Conference systems, and professional installed sound for customers worldwide.

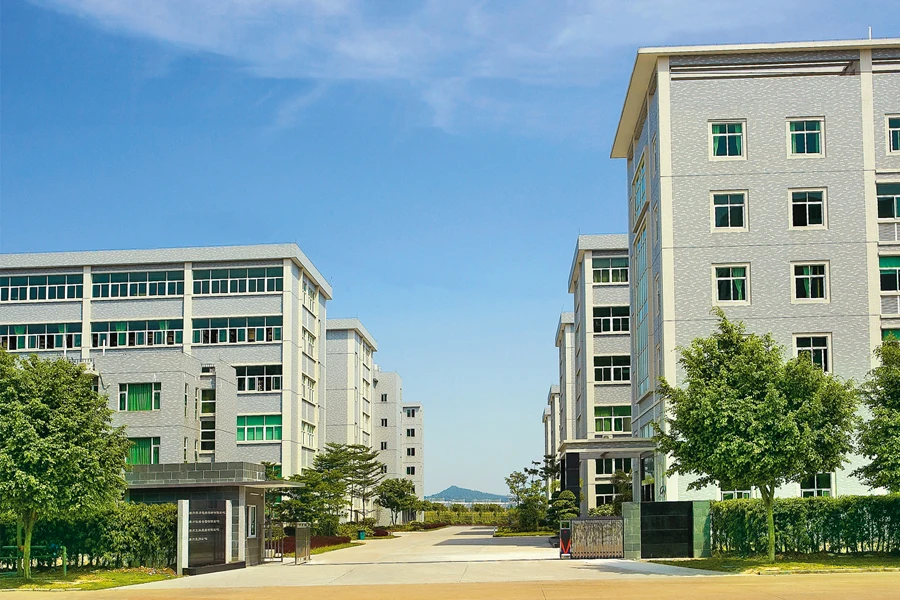

Lucky Tone advances in manufacturing and quality control processes. The company manufactures in its 8,000 square meter, state-of-the-art factory, located in Guangzhou.
Utilizing a compliment of demand planning, parts procurement, operations and logistics, computer-controlled system, and rigorous testing and control, our facility is designed with build-to-order flexibility, giving the company unprecedented ability to respond to customer needs while keeping both parts and finished goods inventory at well-maintained levels.
With power amplification, loudspeaker, and PA system management engineering resources all located under one roof.
Lucky Tone uniquely leverages these technologies to deliver products and systems that far outperform the sum of their parts - providing compelling solutions for public Address and Conference systems, and professional installed sound for customers worldwide.
Lucky Tone advances in manufacturing and quality control processes. The company manufactures in its 8,000 square meter, state-of-the-art factory, located in Guangzhou.
Utilizing a compliment of demand planning, parts procurement, operations and logistics, computer-controlled system, and rigorous testing and control, our facility is designed with build-to-order flexibility, giving the company unprecedented ability to respond to customer needs while keeping both parts and finished goods inventory at well-maintained levels.

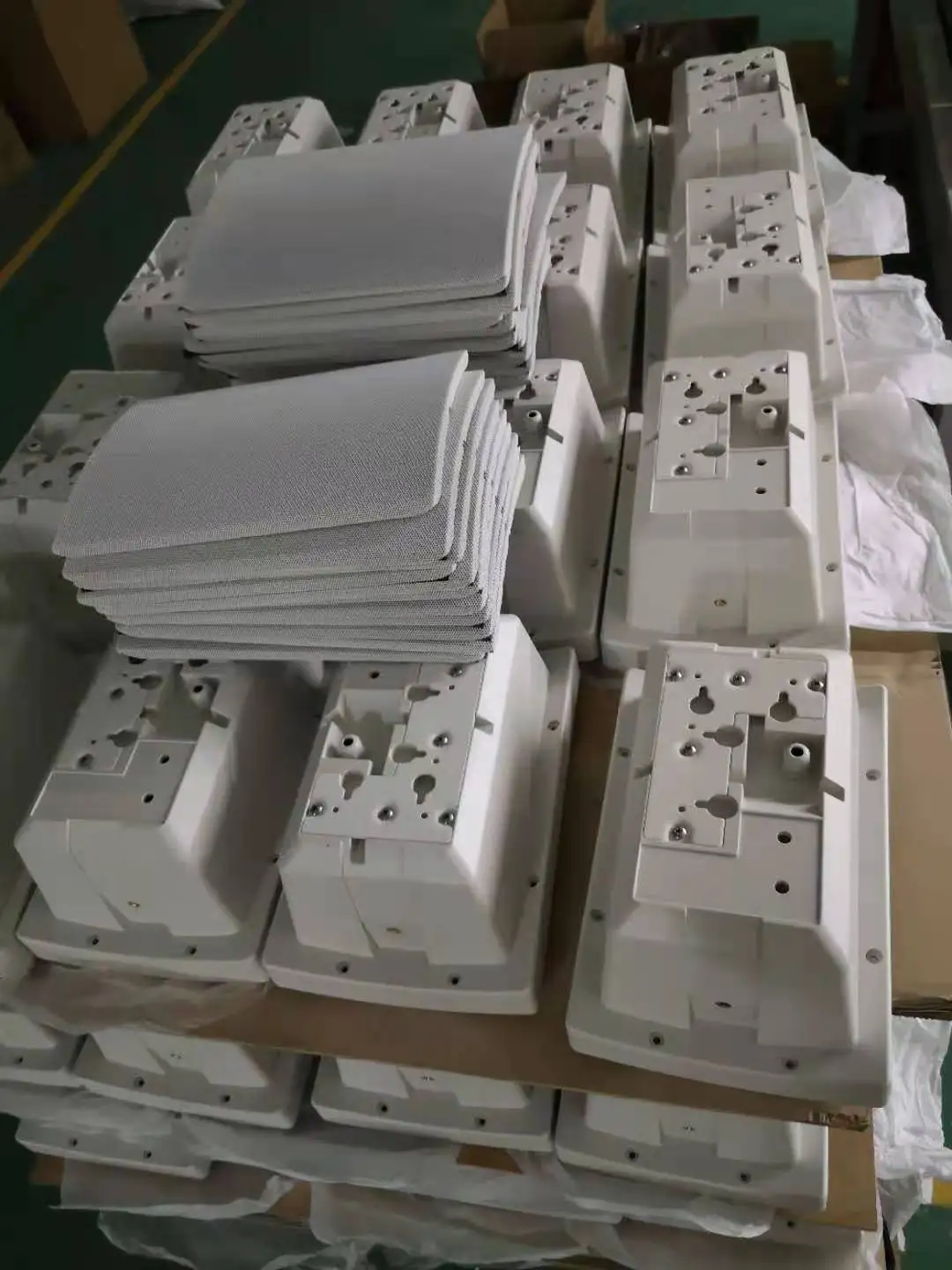

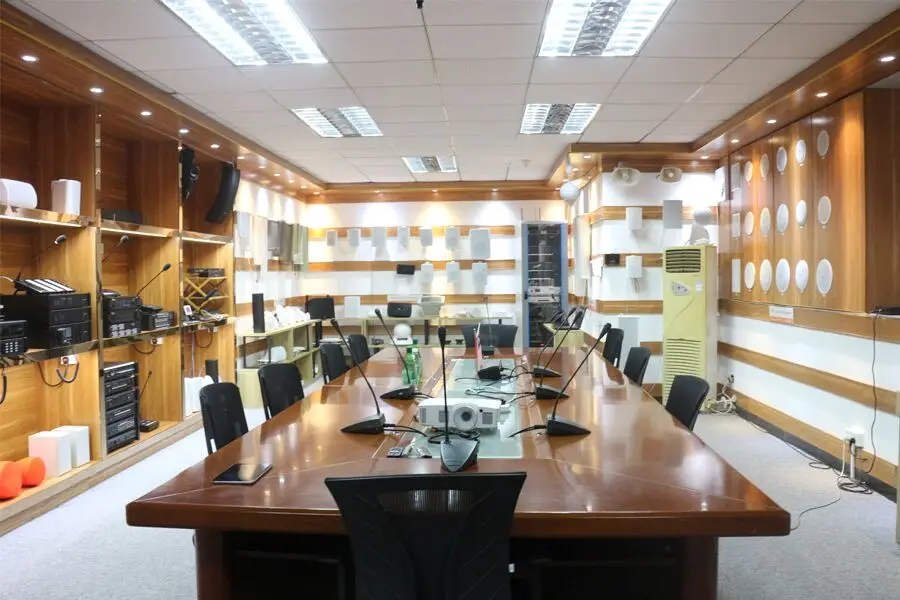

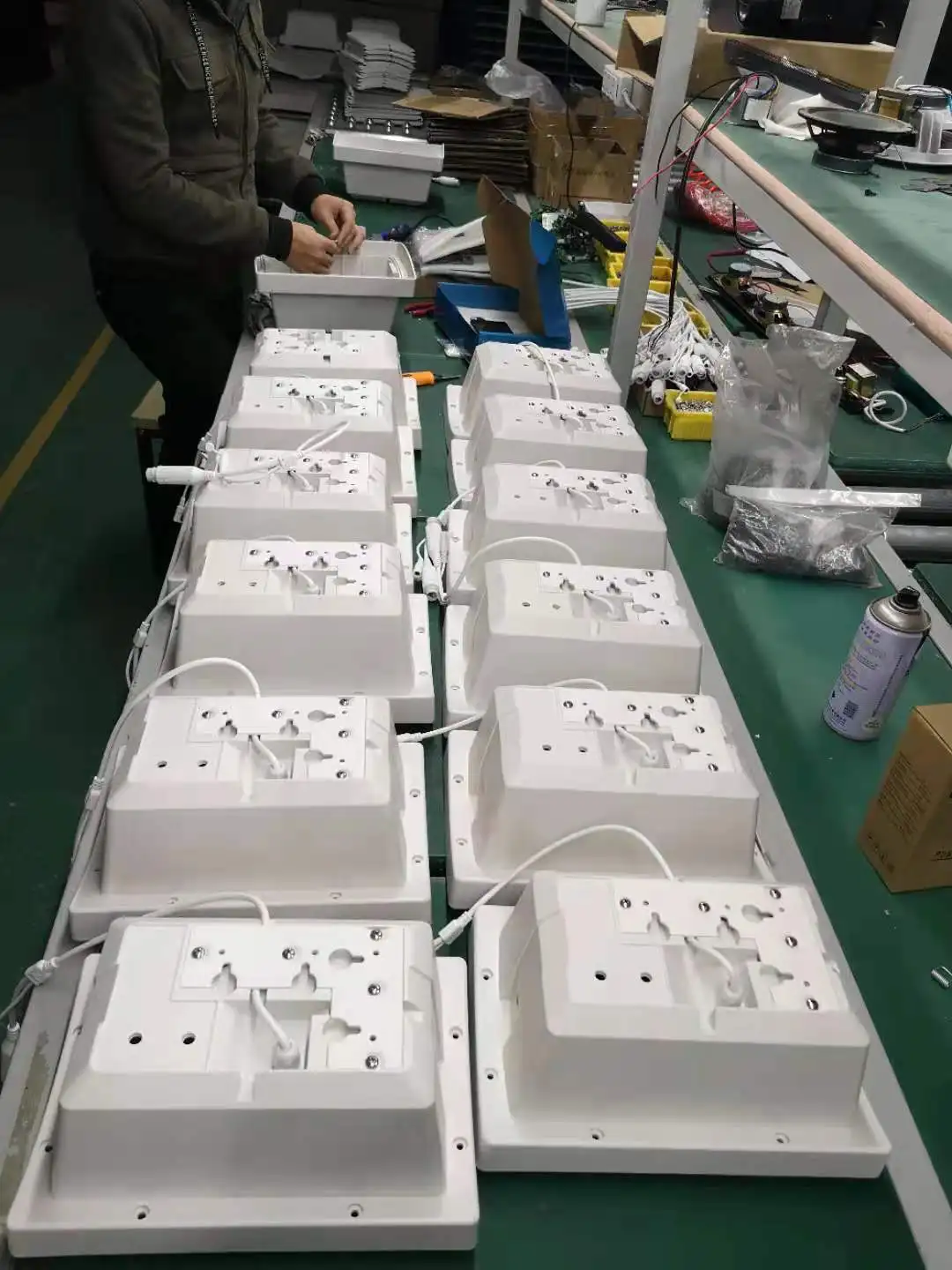

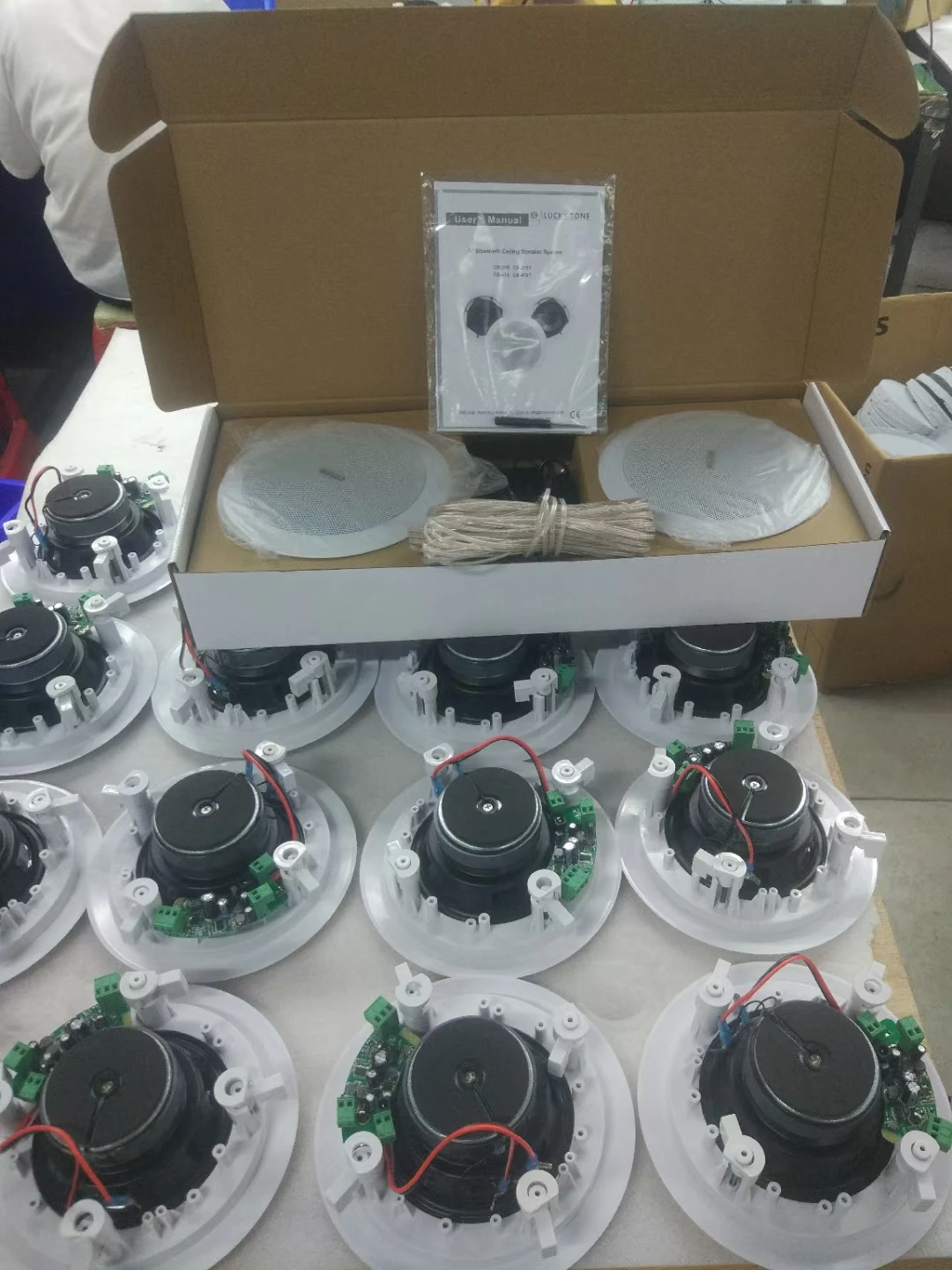

Work Place
