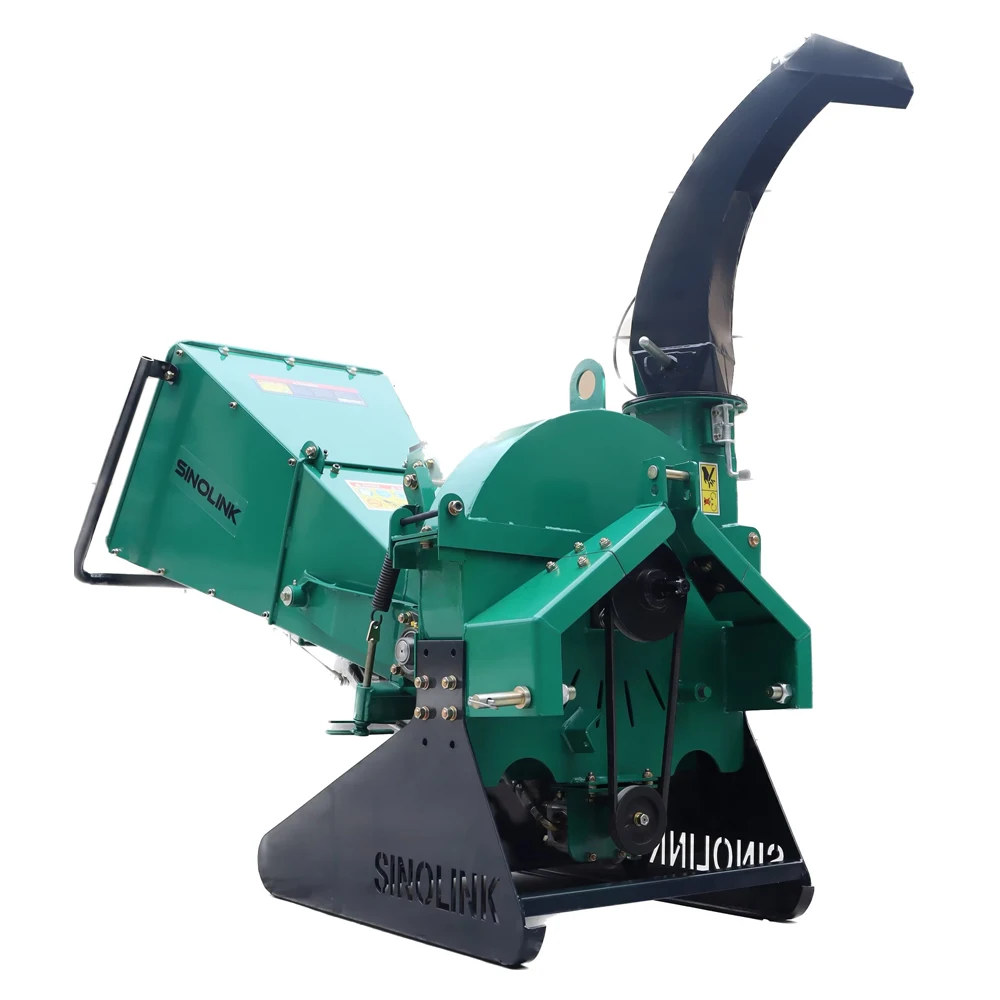

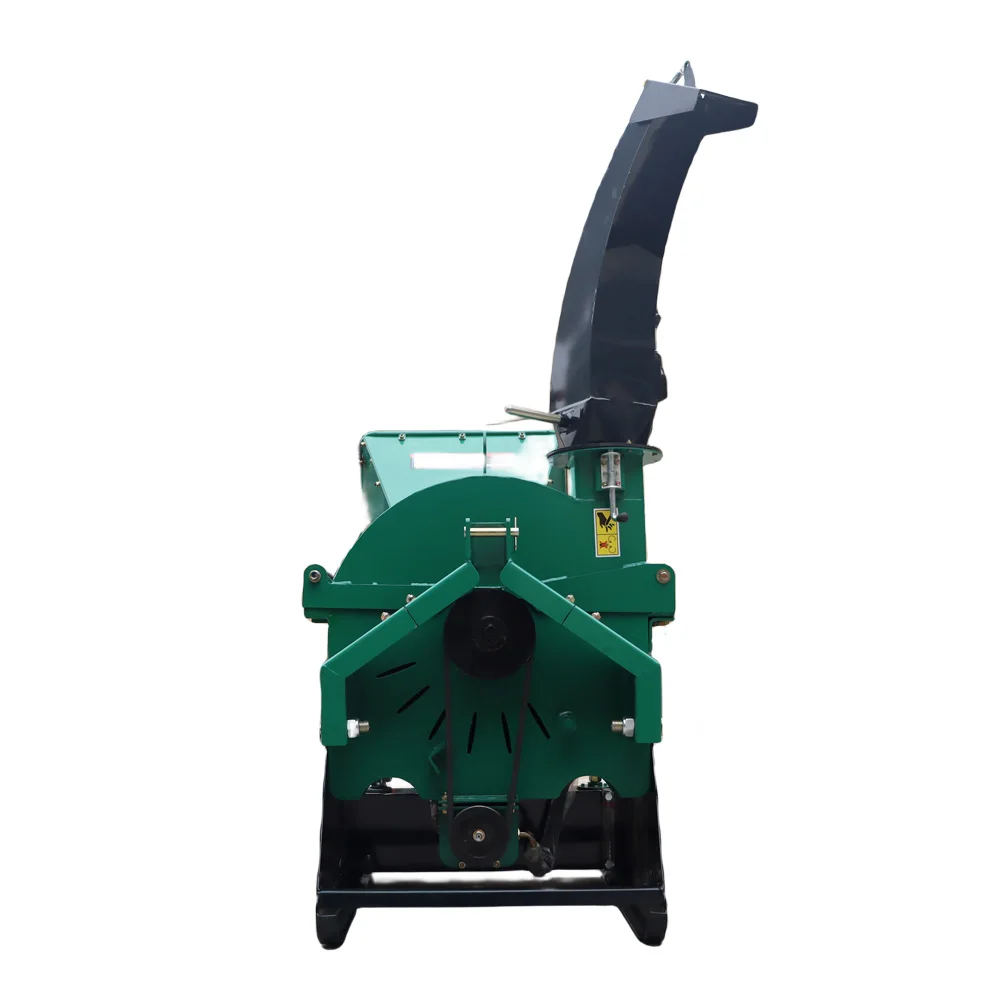

2024 SINOLINK BX42R PTO wood chipper shredder with hydraulic feeding system

Product Overview

Description

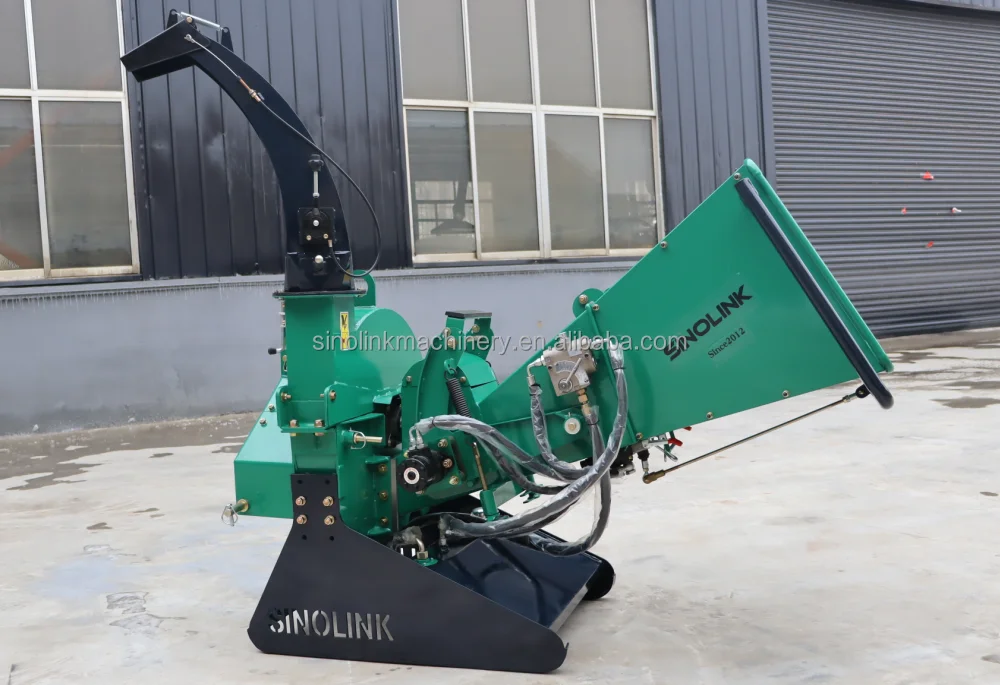

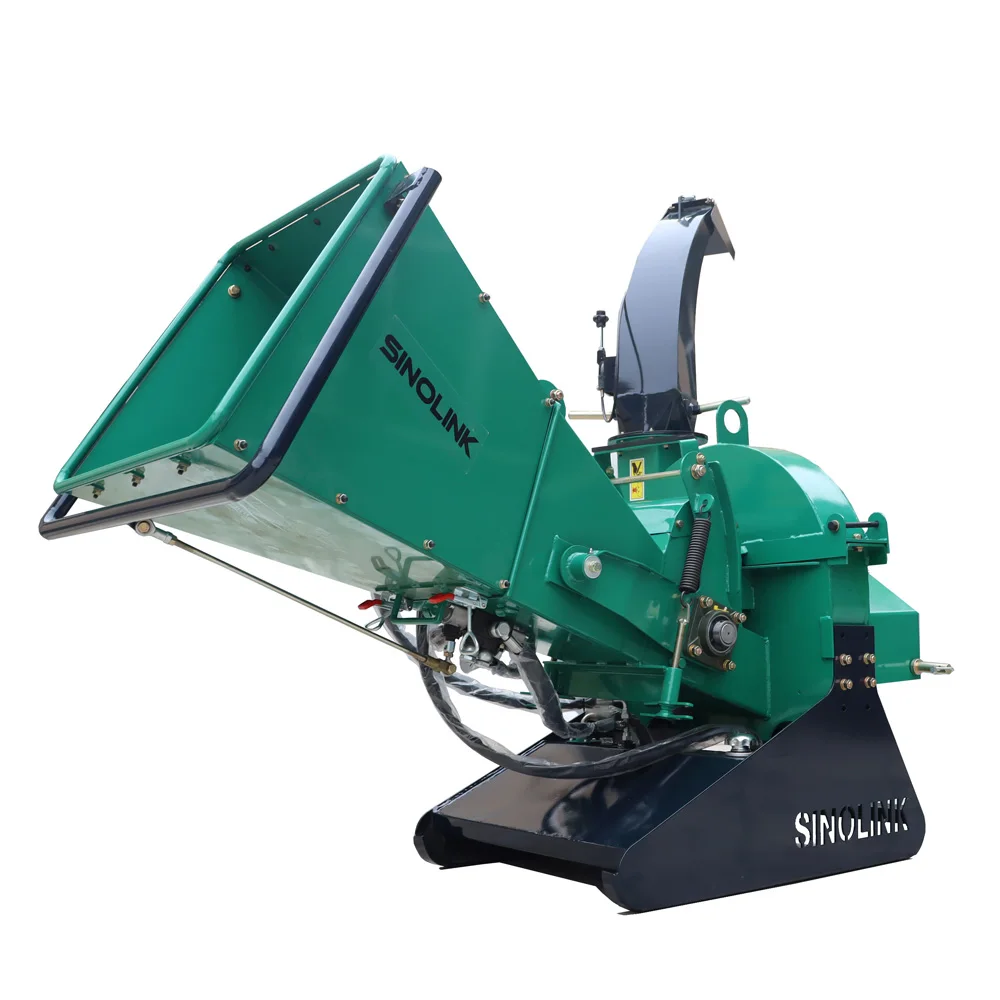

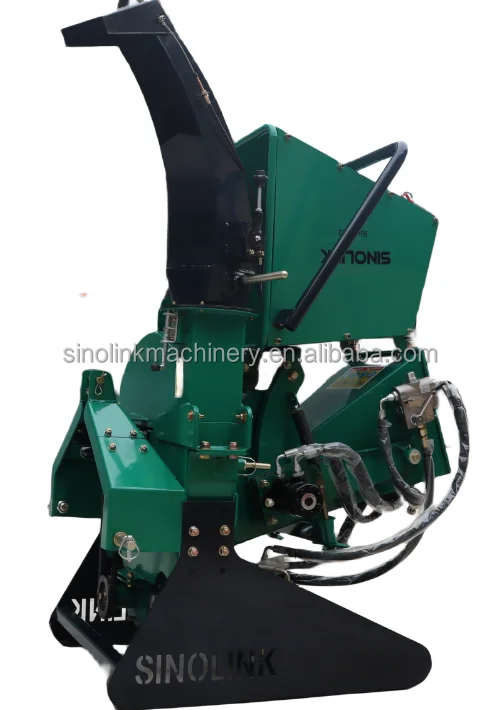

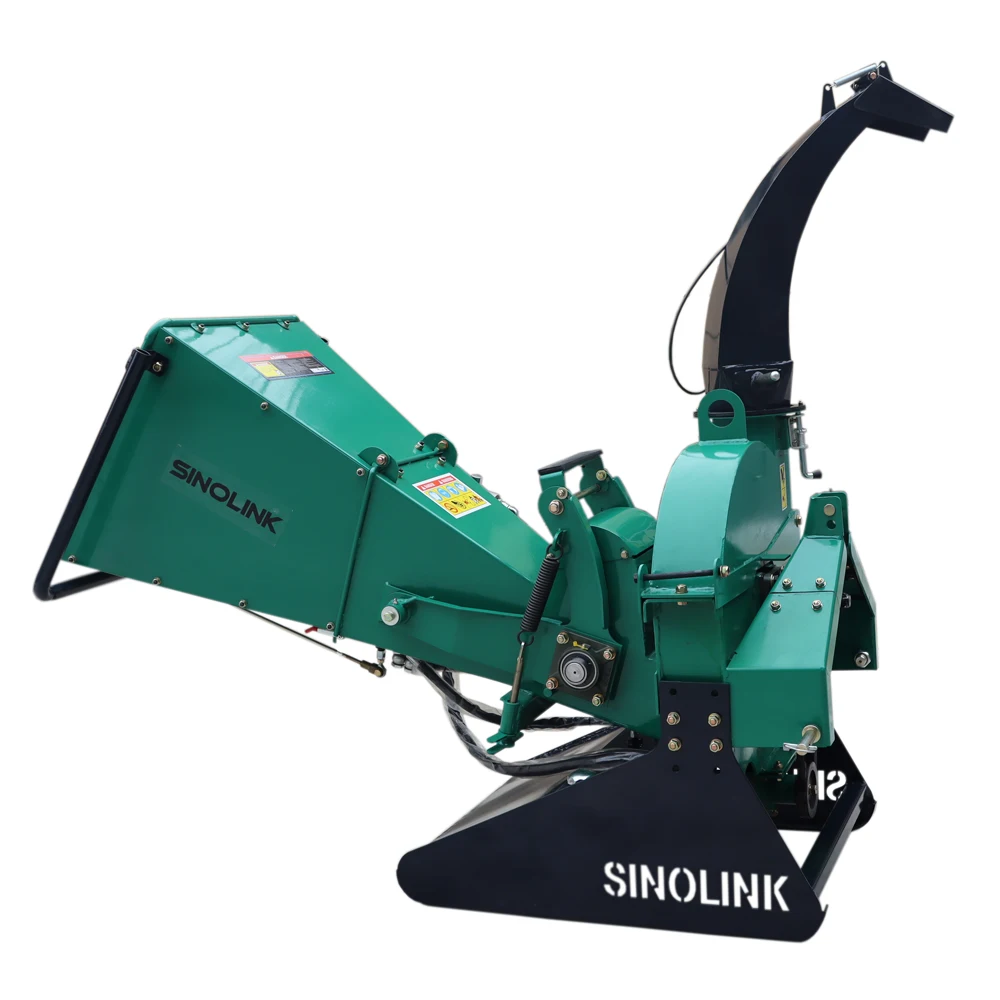

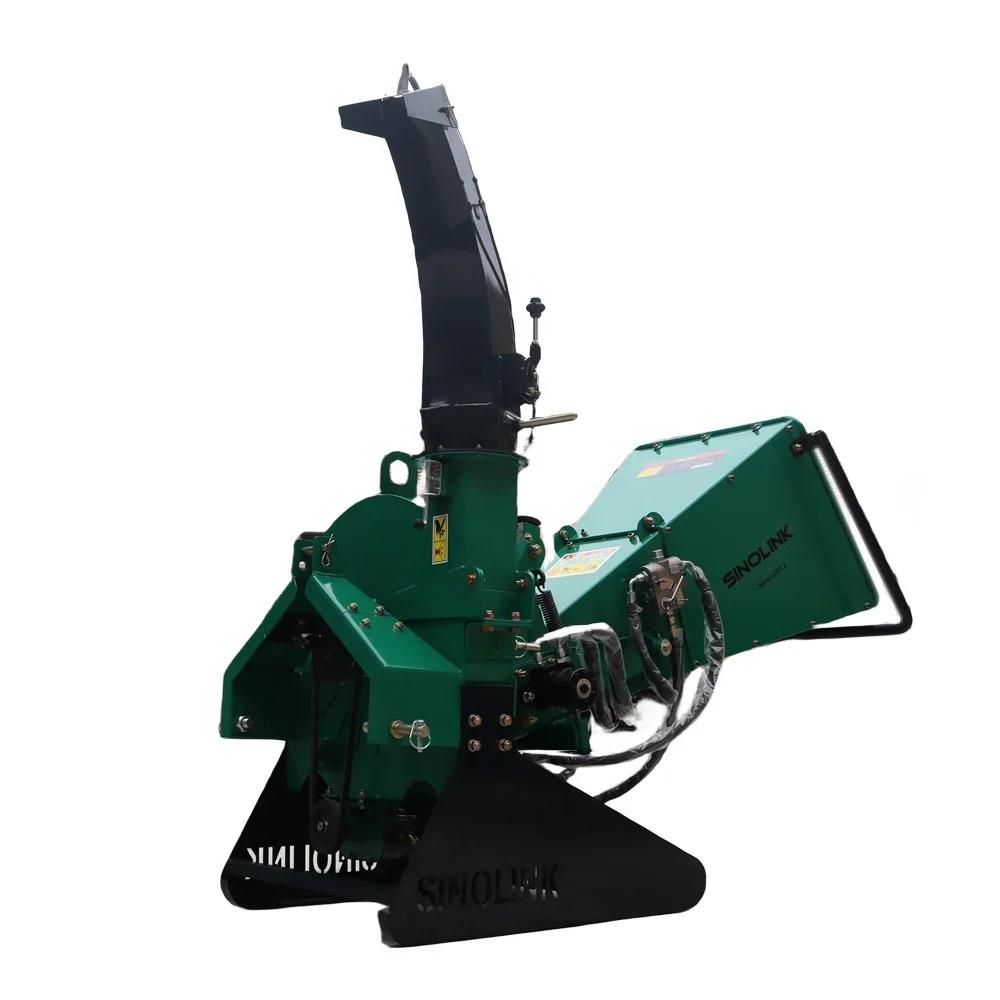

SINOLINK 2024 BX42R PTO wood chipper shredder with hydraulic feeding system

Specification
Model	BX42R
Drive system	PTO
Minimum HP Required (at PTO)	15HP
In-Feed System	Hydraulic
Hydraulic Oil	ISO32 / AW32
Hydraulic Tank Volume	17L
Hydraulic Requirement (Tractor)	None. Self contained.
Blade Quantity and Dimensions	4pcs,145x69x8mm
Blade Hardware	M10 Lock Nuts - Class 10.9
Infeed Roller Diameter	134mm
Infeed Chute Dimensions	500x480mm
N.W. / G.W.(KG)	330 / 360kg
Shipping size	1300x950x1200mm



Introduction:

The Sinolink BX42R PTO drive wood chipper was specifically designed for sub-compact tractors with 15-30HP at the PTO.

Featuring a hydraulic infeed system, the BX42R is capable of chipping up to 4” (10cm) diameter material.
The BX42R is a good fit for customers with sub compact tractors that feature the following:
1) Rear PTO that spins at 540RPM
2) 15-30HP at the PTO
3) Ability to lift 550lbs (250kgs) at the 3 point hitch system

The BX42R operates on tractors with 15-30 HP at the PTO.
It utilizes a large 48cm x 47cm infeed hopper opening that tapers down to a 10 cm x 15 cm opening where the 13cm diameter hydraulically driven infeed roller grabs the branches and feeds them through the chipper.
Branches as small as 6mm diameter and as large as 10 cm diameter can be fed through the BX42R.
To chip full 10cm diameter logs at full infeed speed, tractors with over 20 HP at the PTO is required.

Hydraulic Infeed System:

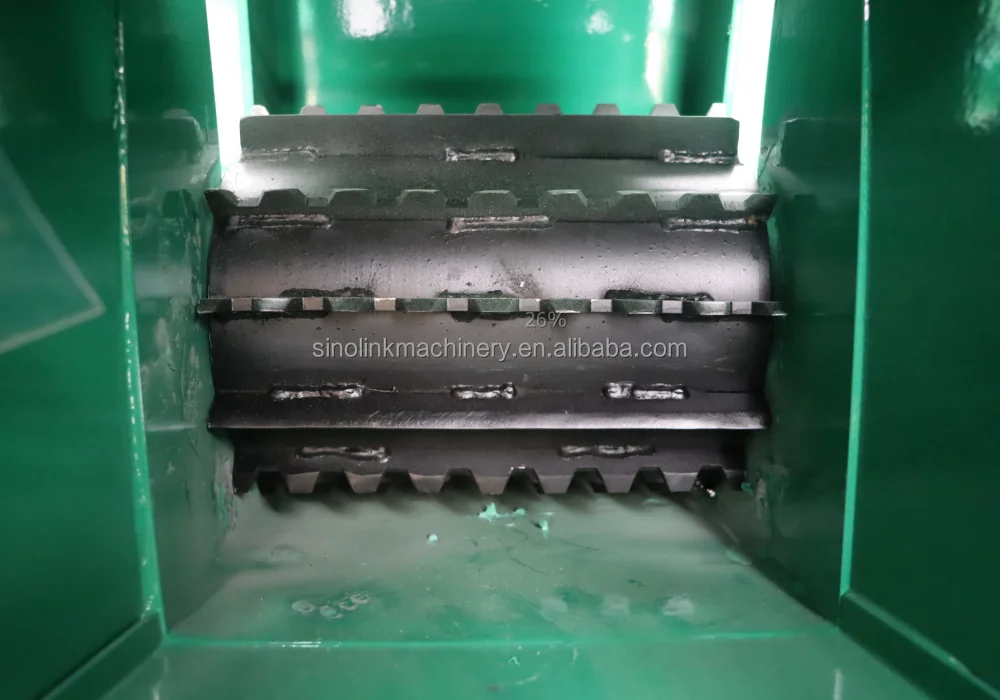

Branches are pulled into the BX42R via the 13cm diameter infeed roller.

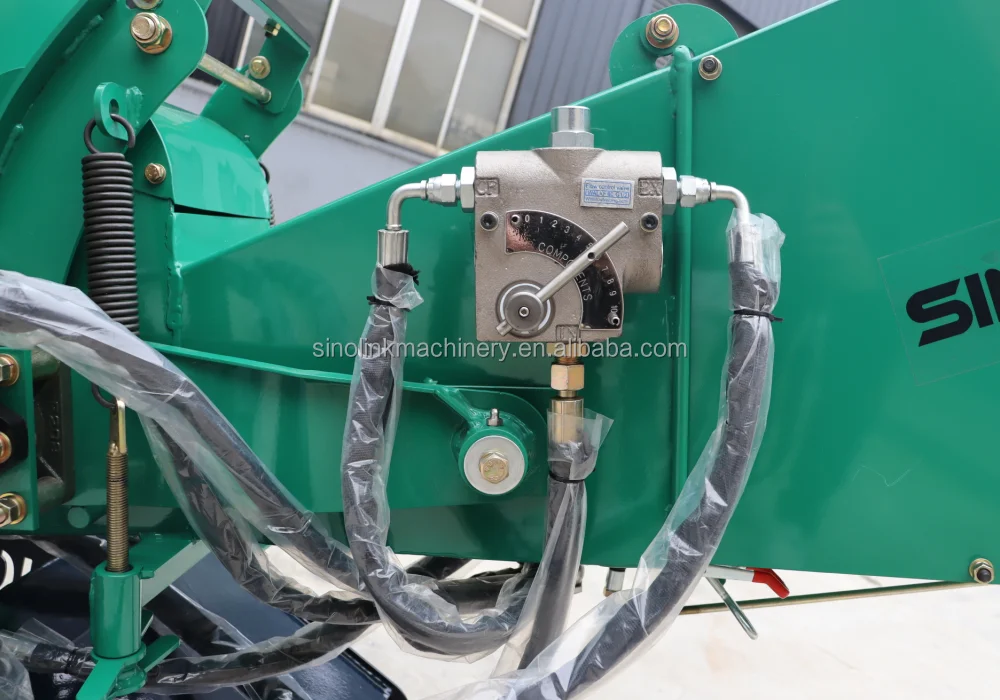

The roller is hydraulically driven via the chippers self contained hydraulic system. The roller is adjustable in direction and speed making it easy to feed branches of all shapes and sizes.
The hydraulic pump is belt driven from the main flywheel shaft.
The roller down pressure may be adjusted via the two large springs ensuring it grabs branches and easily pulls them in, eliminating the need for manual feeding.

Discharge Chute:

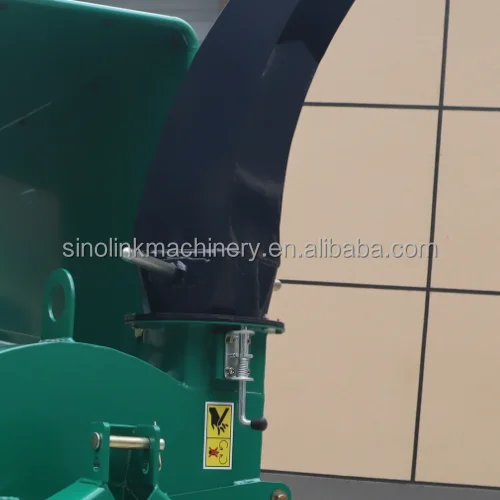

The discharge chute was designed to rotate 360 degrees by simply rotating it with the two handles to the desired angle.

This makes it possible to direct the wood chips in any direction regardless of the location of the chipper.

The end of the chute stands at 1.7m off of the ground, making it quite easy to direct the wood chips into the back of a truck or trailer if desired.

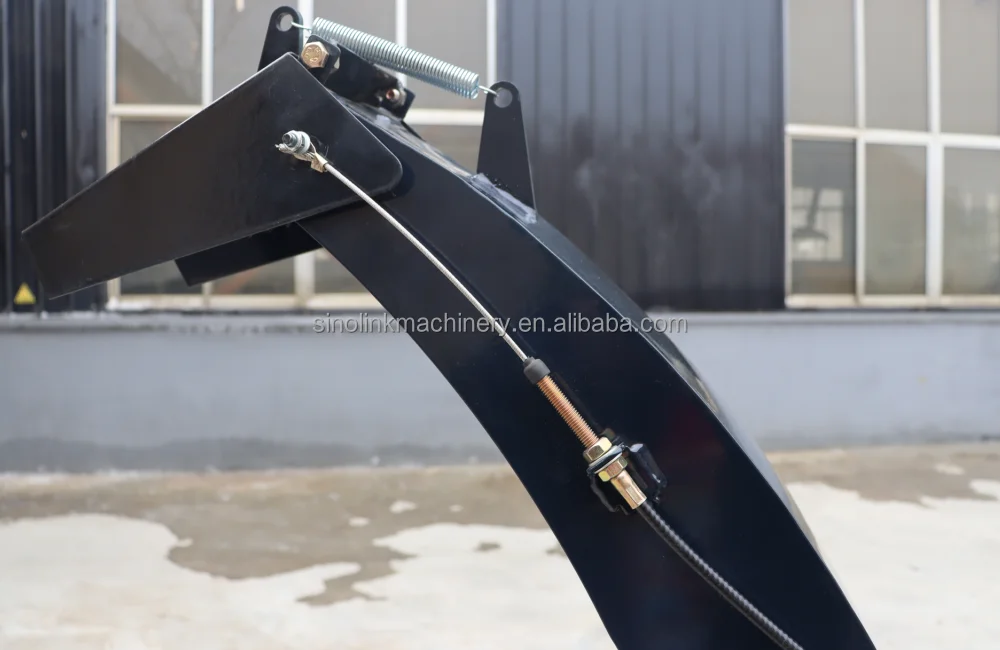

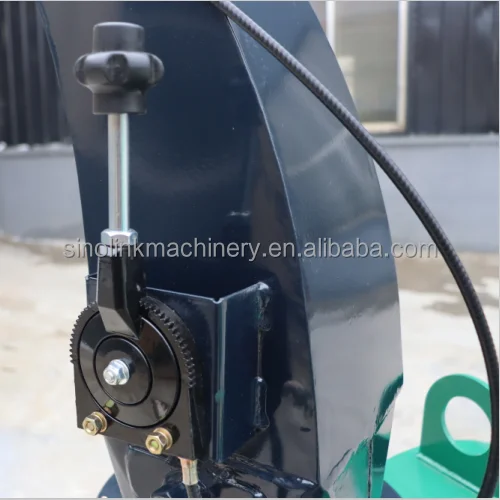

Located at the end of the discharge chute is a rotating deflector, which allows further control of the location of the wood chips.
Simply point it straight for maximum distance or angled down to deflect the chips directly down to the ground or into a trailer.

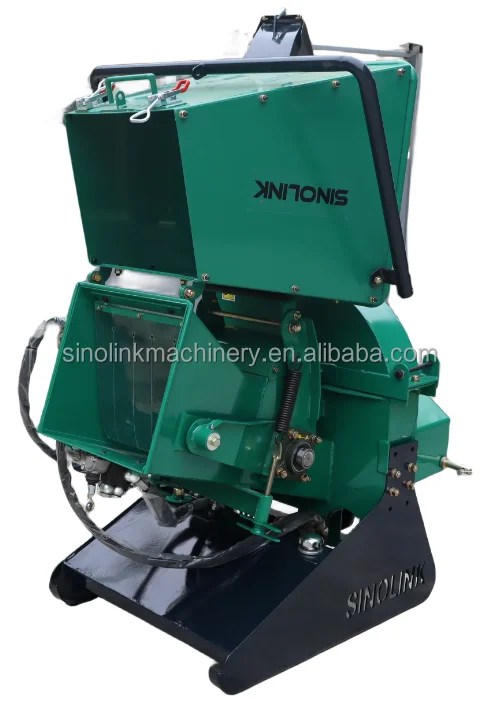

Folding Infeed Chute:
The infeed chute on the BX42R wood chipper has a 48cm x 47cm opening to feed branches into.
The infeed chute can also be folded up which decreases the footprint of the chipper during storage or transport.

PTO Shaft:
Included with the WC46 chipper is the PTO shaft complete with a shear pin.

Warranty:
The BX42R is covered by a full 2 year warranty against any manufacturing defects. If a part breaks, we simply ship you a new spare parts.
Wearing parts such as belts, bearings and blades are not covered under our warranty.
